Zimmermann FZ33C - Machining Centers, Gantry (incld. Bridge & Double Column)

Share Machine
Specifications Print Specs
Model: FZ33C
Year: 2015
Stock #: 13483 Sold
Highlights:
Siemens 840D SL Control
Table Size: 98.4" x 128"
Travels (X/Y/Z): 98.4"/118"/49.2"
A axis: +/-110° | C axis:+/-300°
VH-30 Head (HSK-63A)
Coolant Through Spindle
Blum Tool Measuring
Spindle Probing

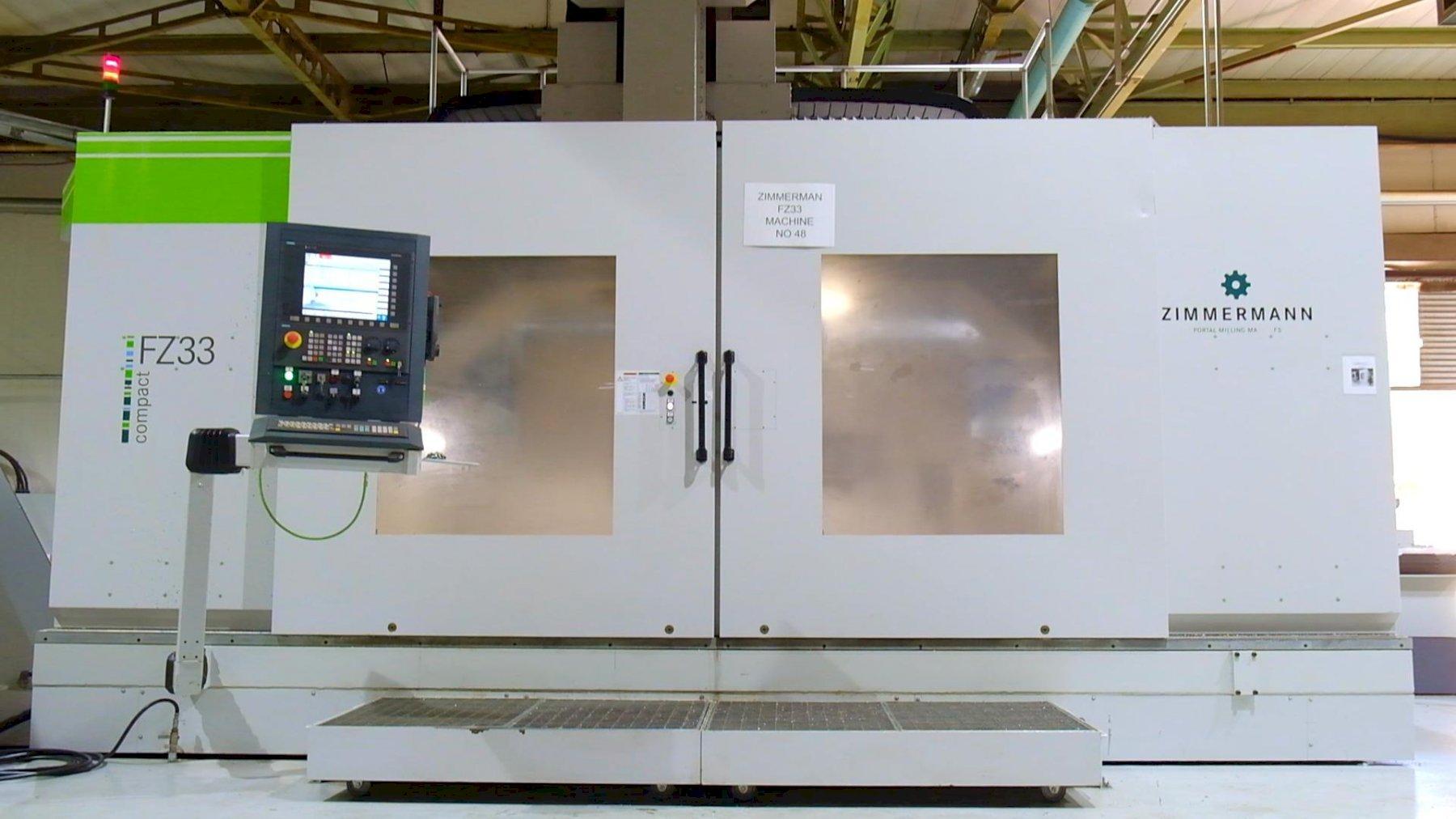

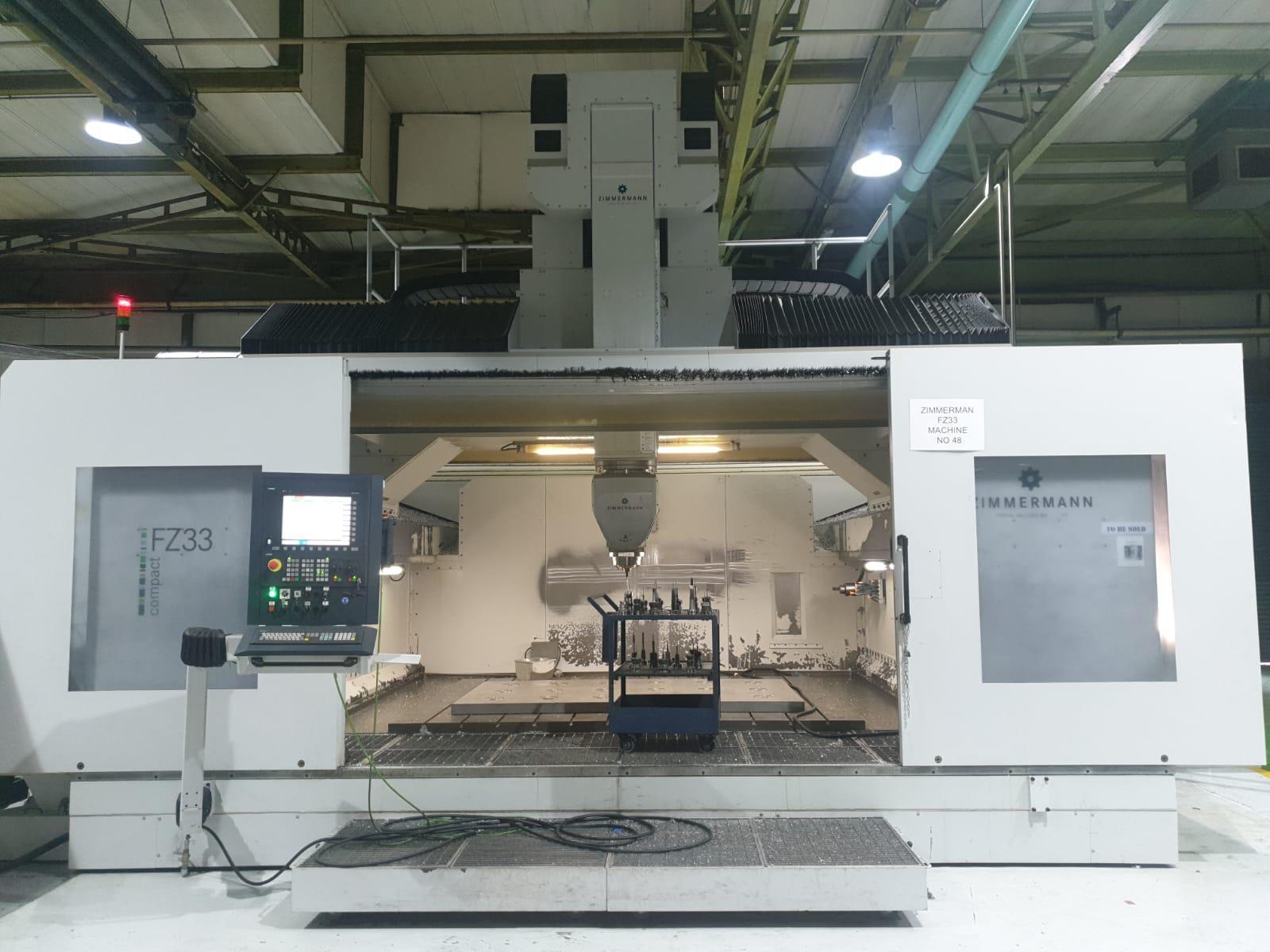

Zimmerman FZ33C CNC 5 axis Bridge Mill
Machine Specifications
CNC Control
yes
Control Type
Siemens 840SL
Table-L
98.4"
Table-W
128"
X-Axis Travel
98.4"
Y-Axis Travel
118"
Z-Axis Travel
49.2"
A Axis Rotation
+/- 110°
C Axis Index
+/-300°
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Milling Head
VH30
Spindle Taper
HSK 63
Spindle Speed
27,000 rpm
Spindle Motor
98 horsepower
ATC Capacity
60
Coolant Through Spindle
Yes
Dimensions
398" x 359" x 222"
Weight
126,765 pounds

Equipped With:

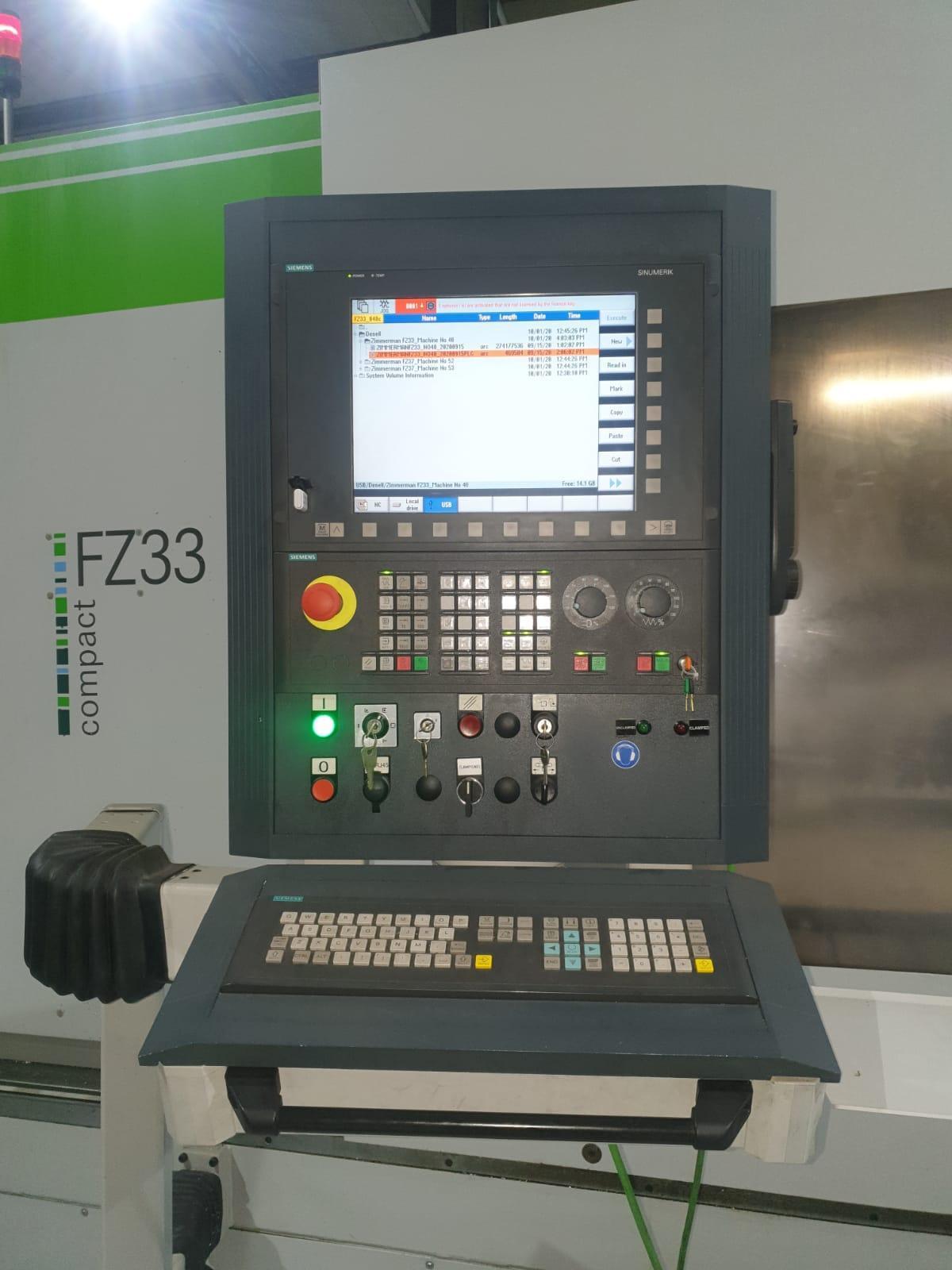

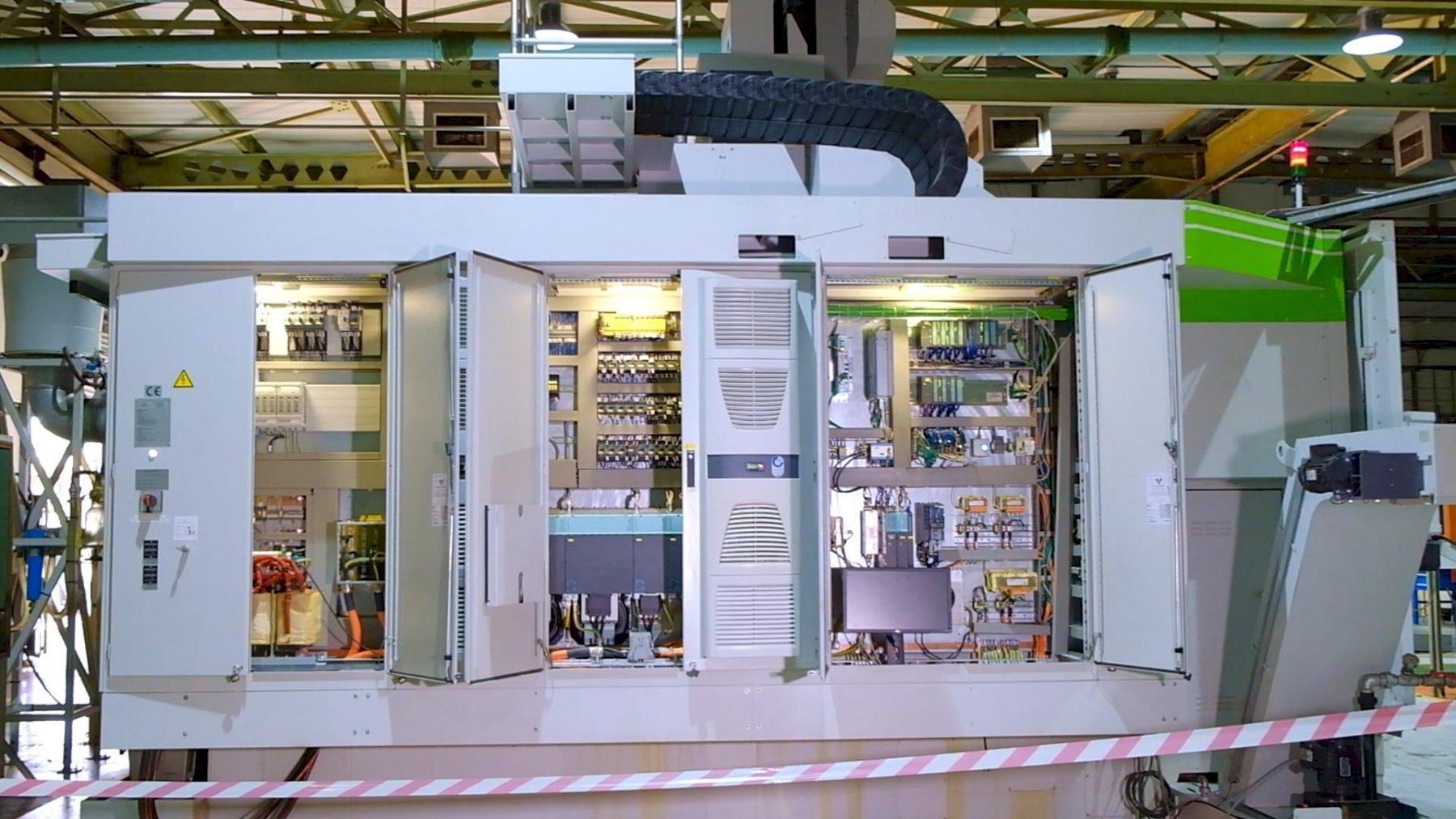

- Siemens 840D CNC Control
- 60 Station ATC

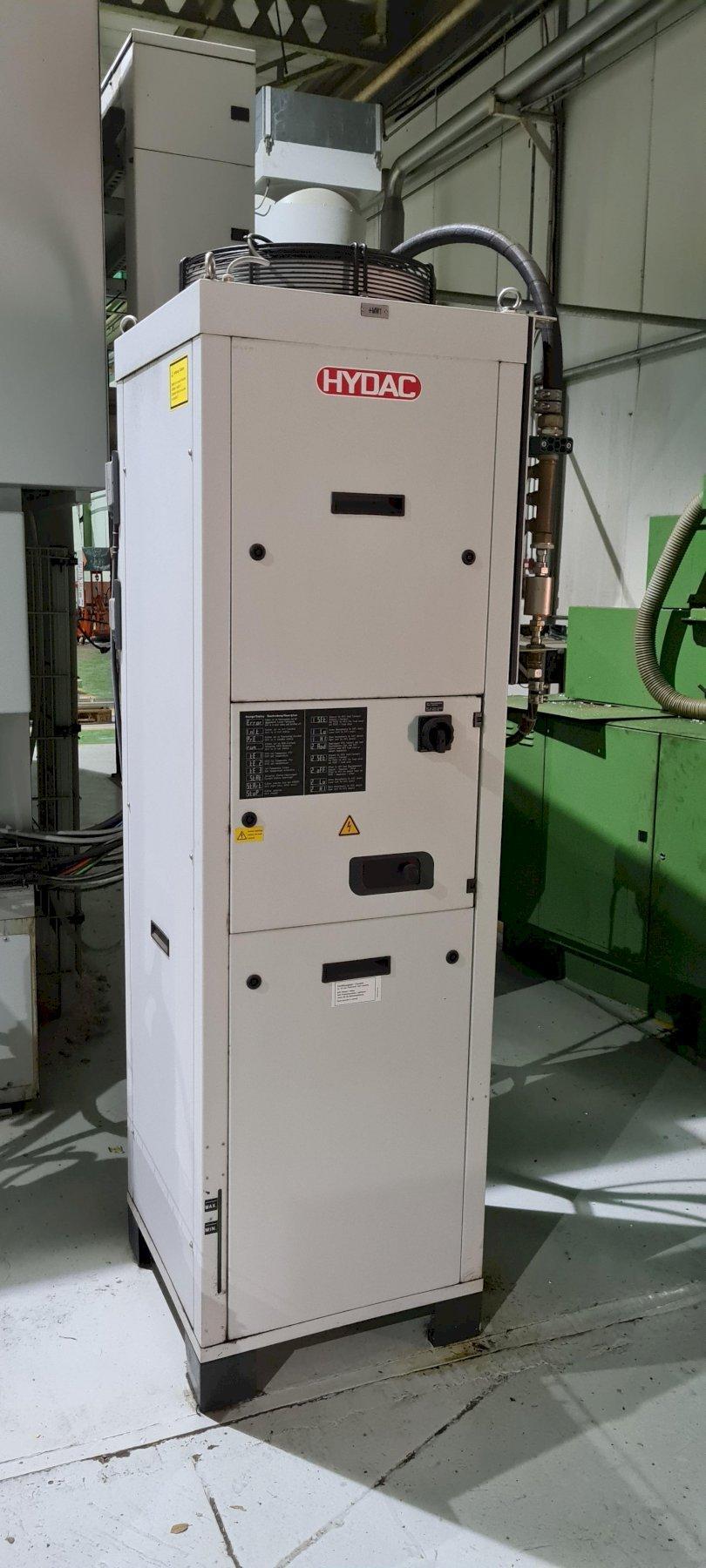

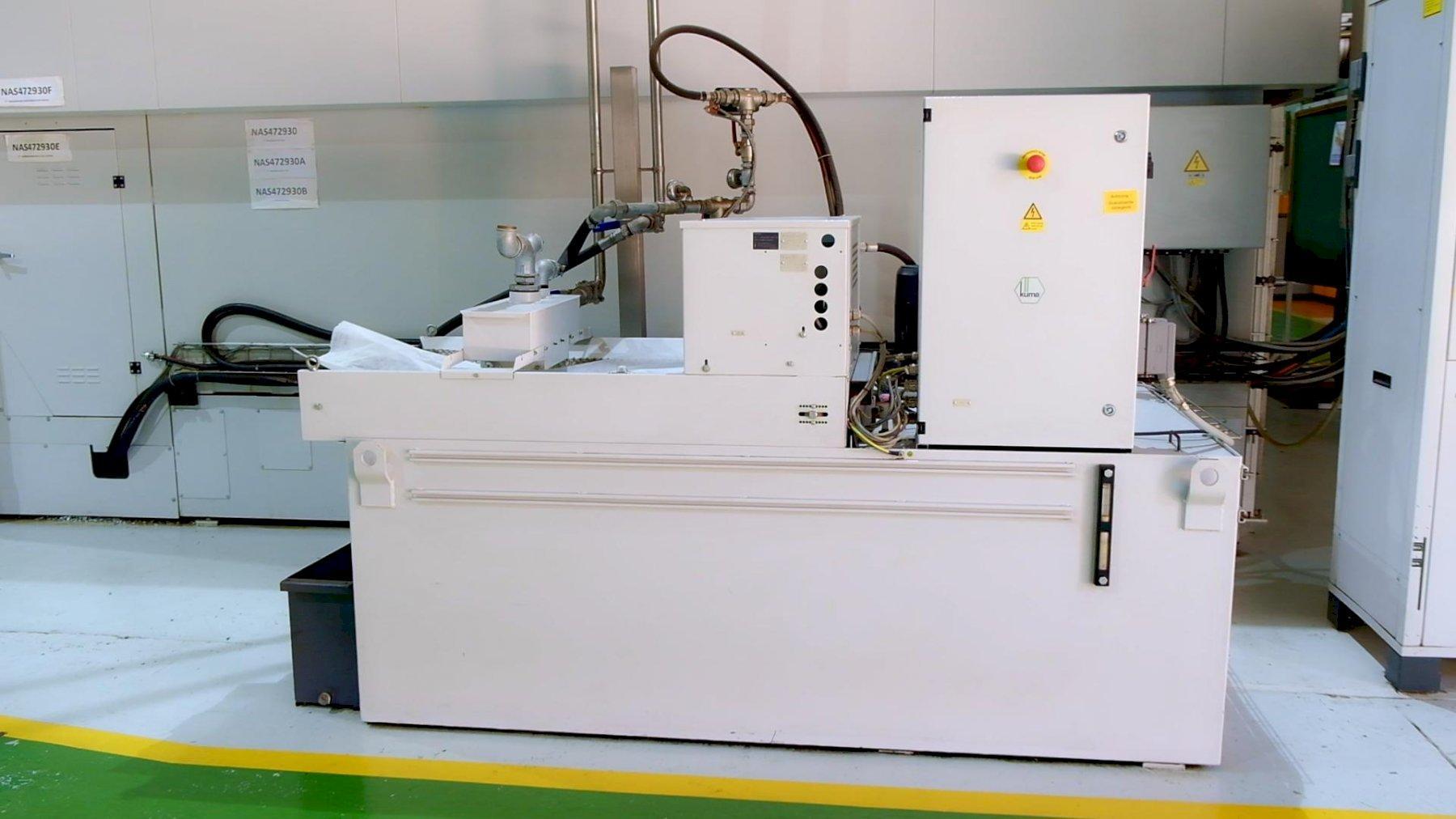

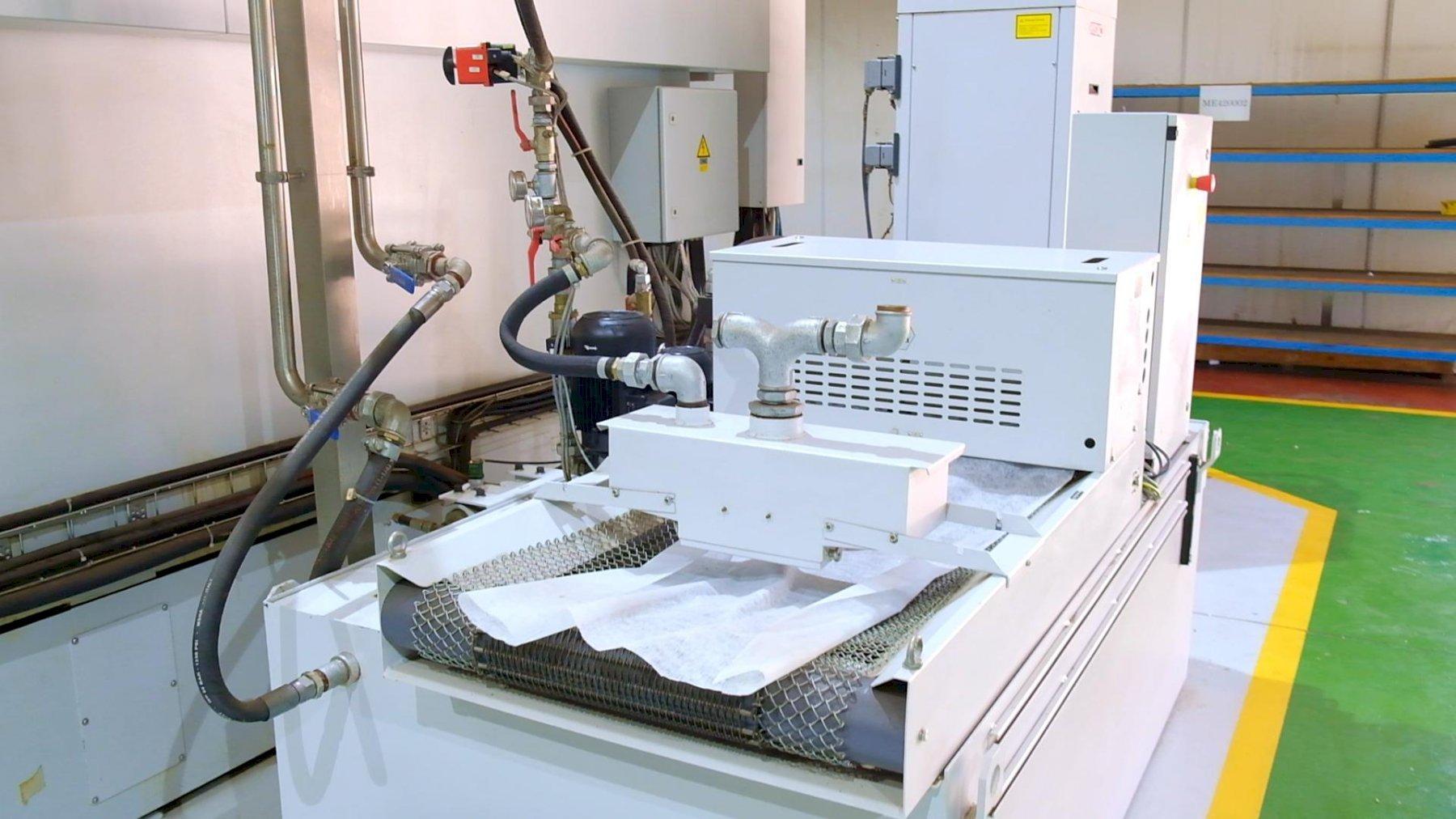

- Thru Spindle Coolant & Coolant System
- Chip Conveyor

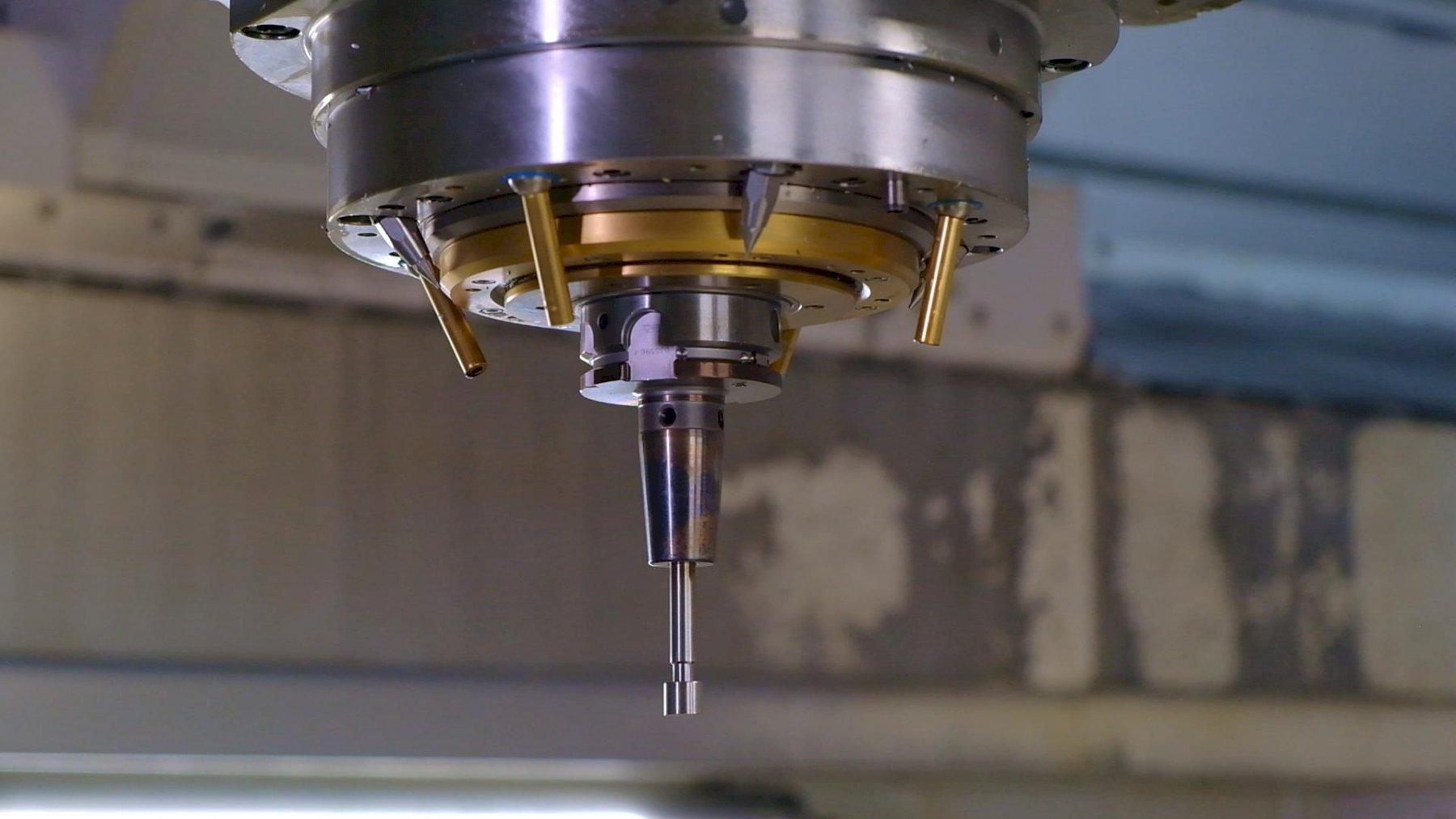

- Renishaw Part Probe System

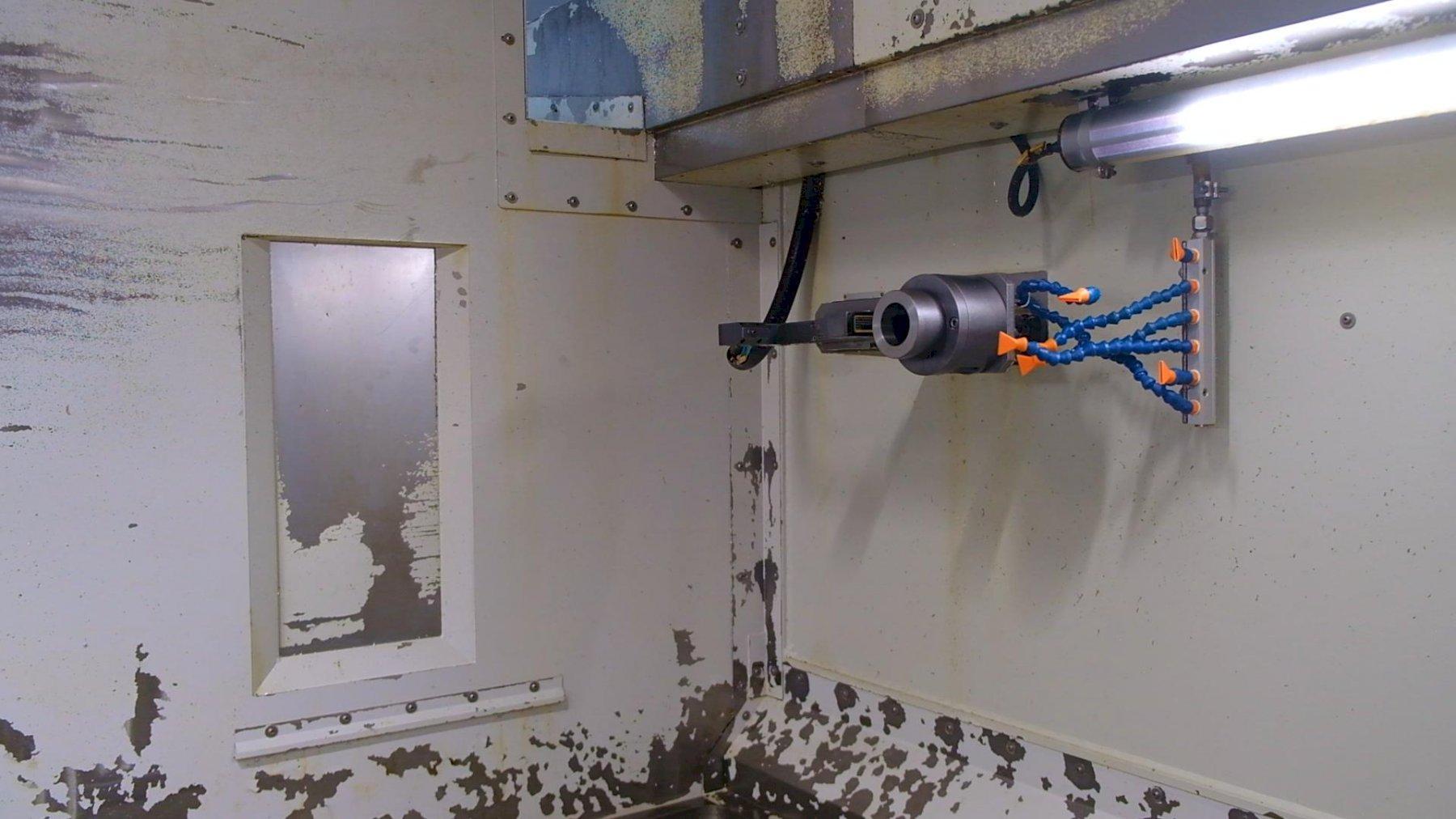

- Blum Tool Probe Laser System

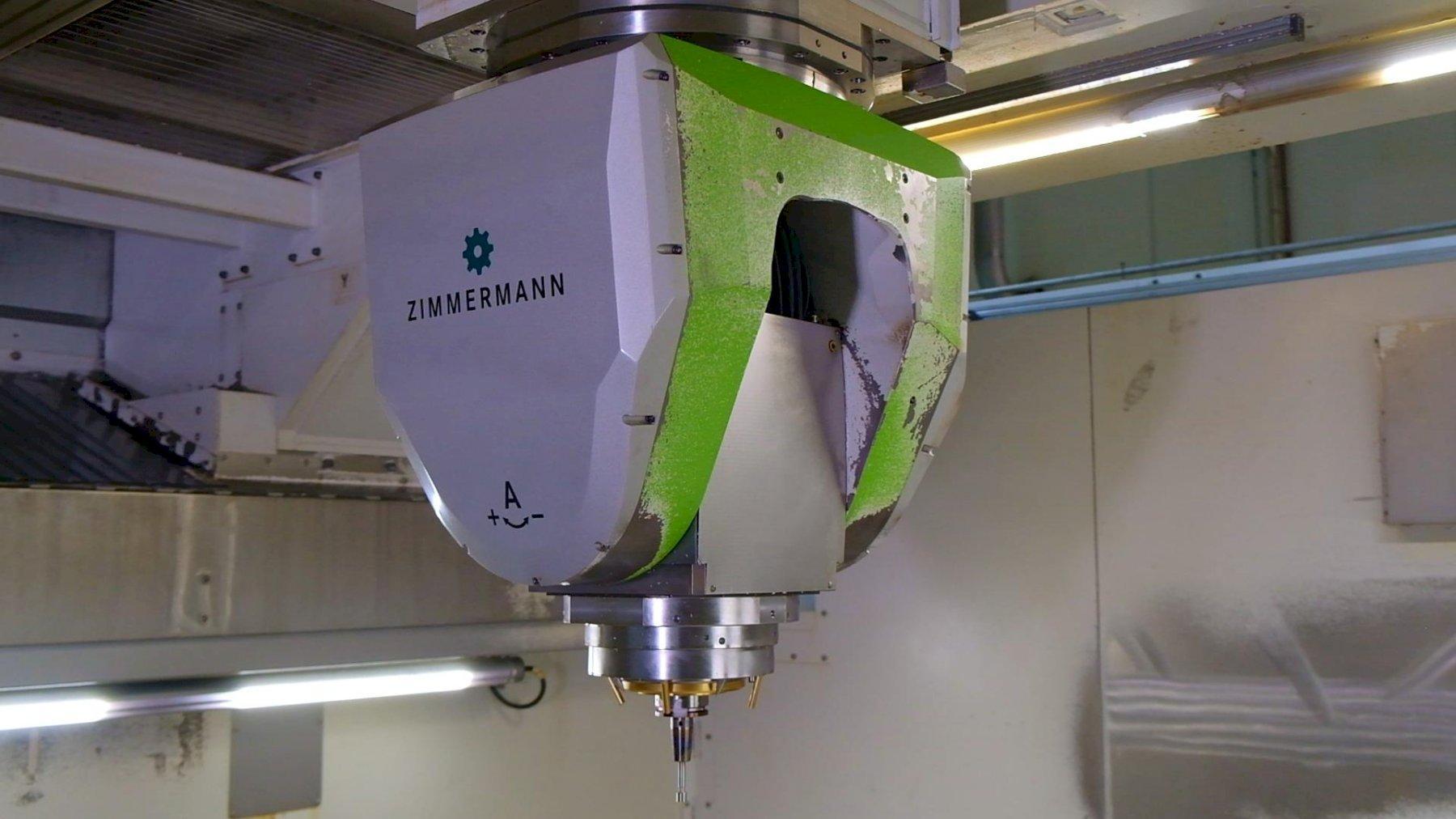

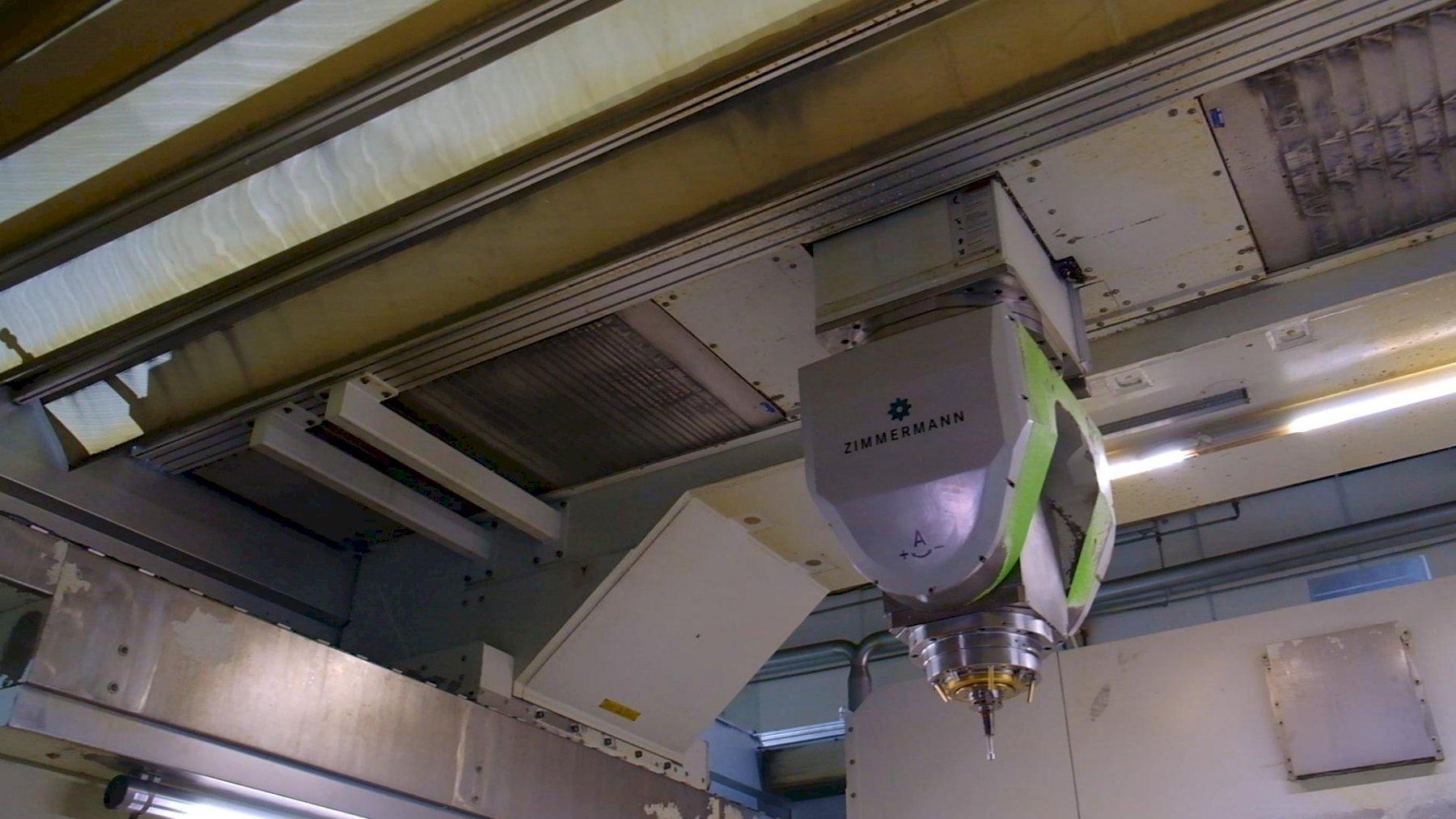

- Model VH30 Milling Head

The Zimmermann FZ33C is an exclusive part of our Machining Centers, Gantry (incld. Bridge & Double Column) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
