YCM TV-158B - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: TV-158B
Year: 2006
Stock #: 14327
Highlights:

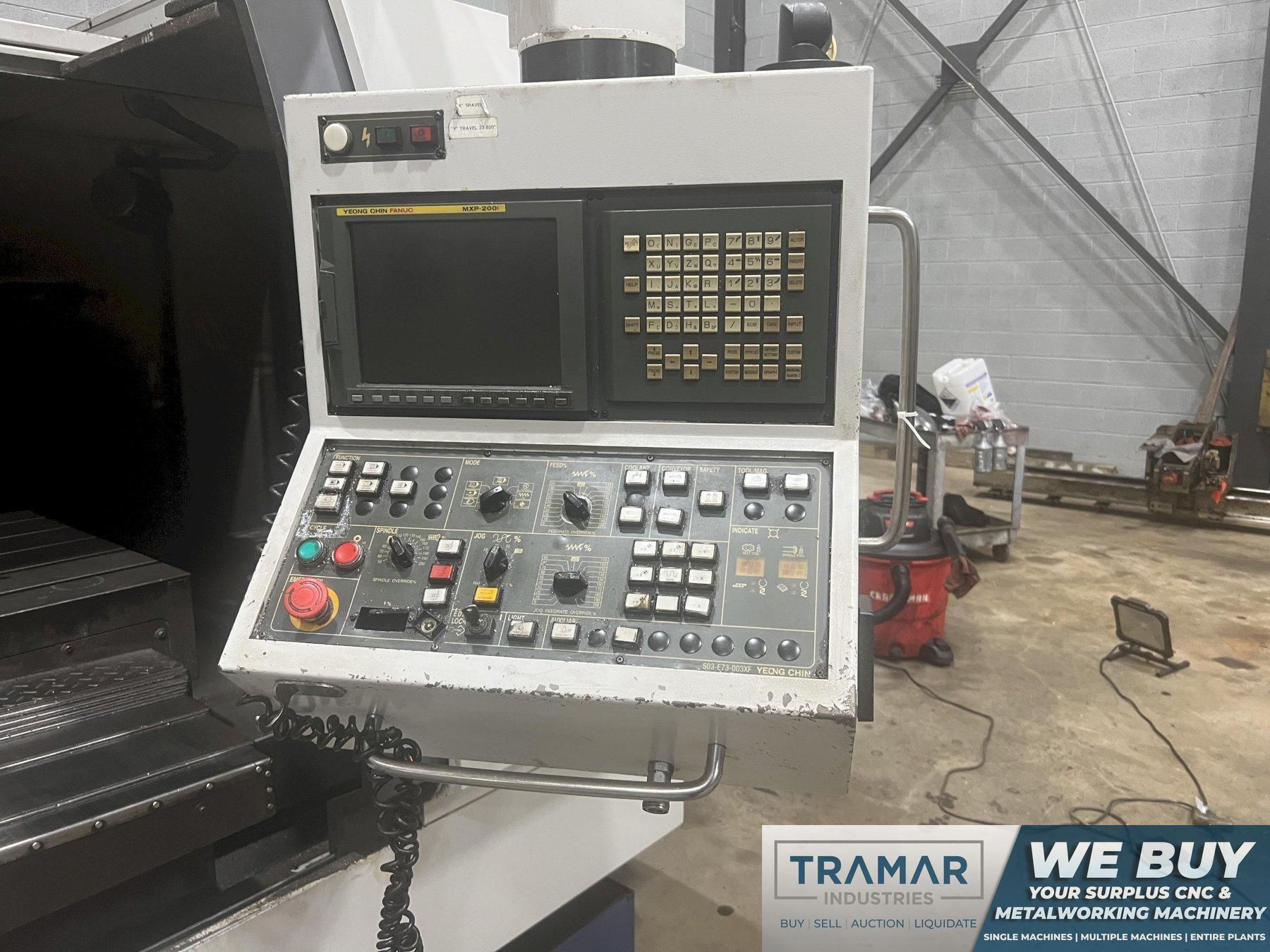

Fanuc MXP-200i CNC Control
Coolant Thru Spindle
Chip Augers

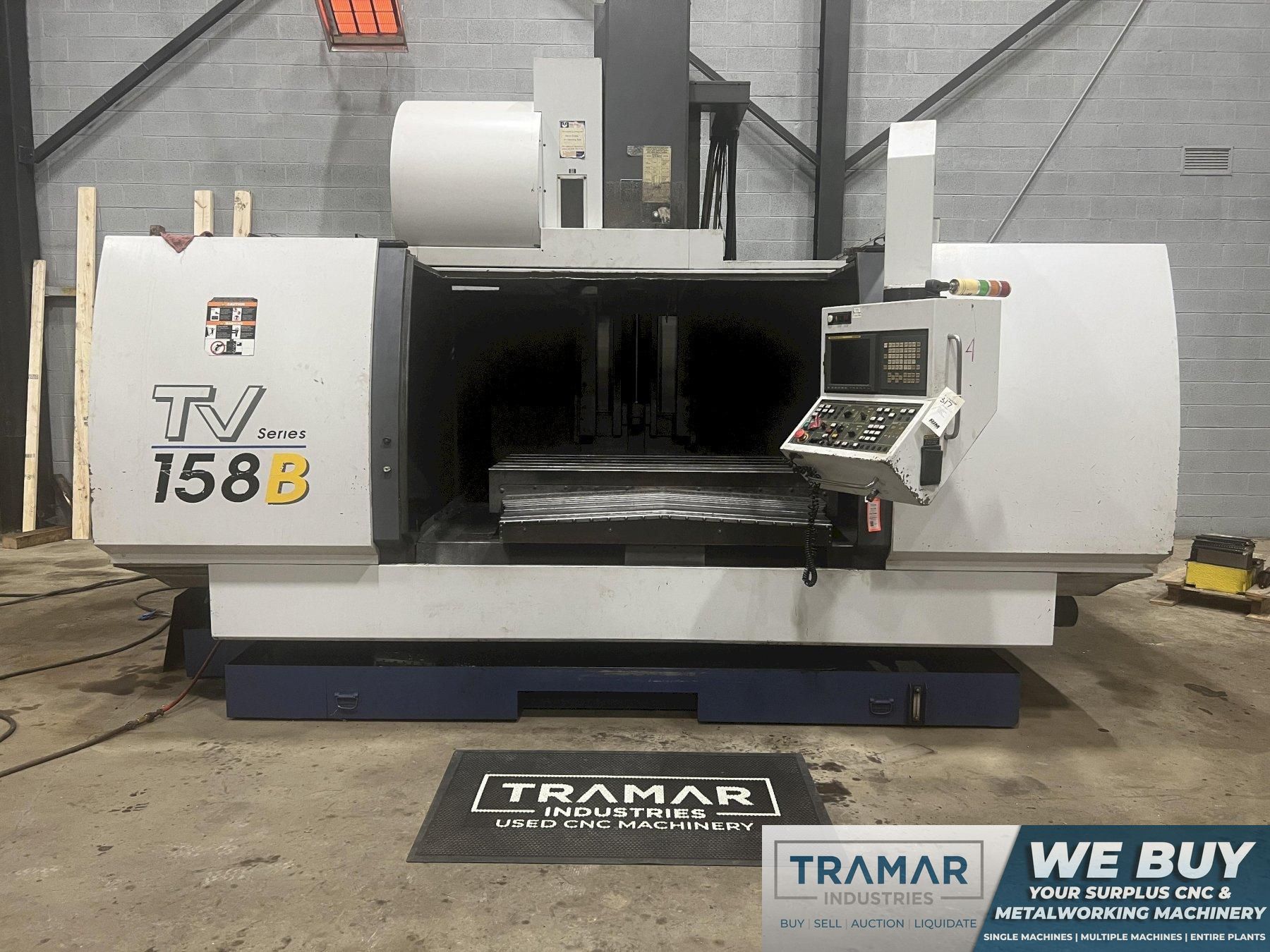

YCM TV 158B CNC Vertical Machining Center For Sale - 2006
Machine Specifications
CNC Control
yes
Control Type
Fanuc MXP-200i
# Axis
3

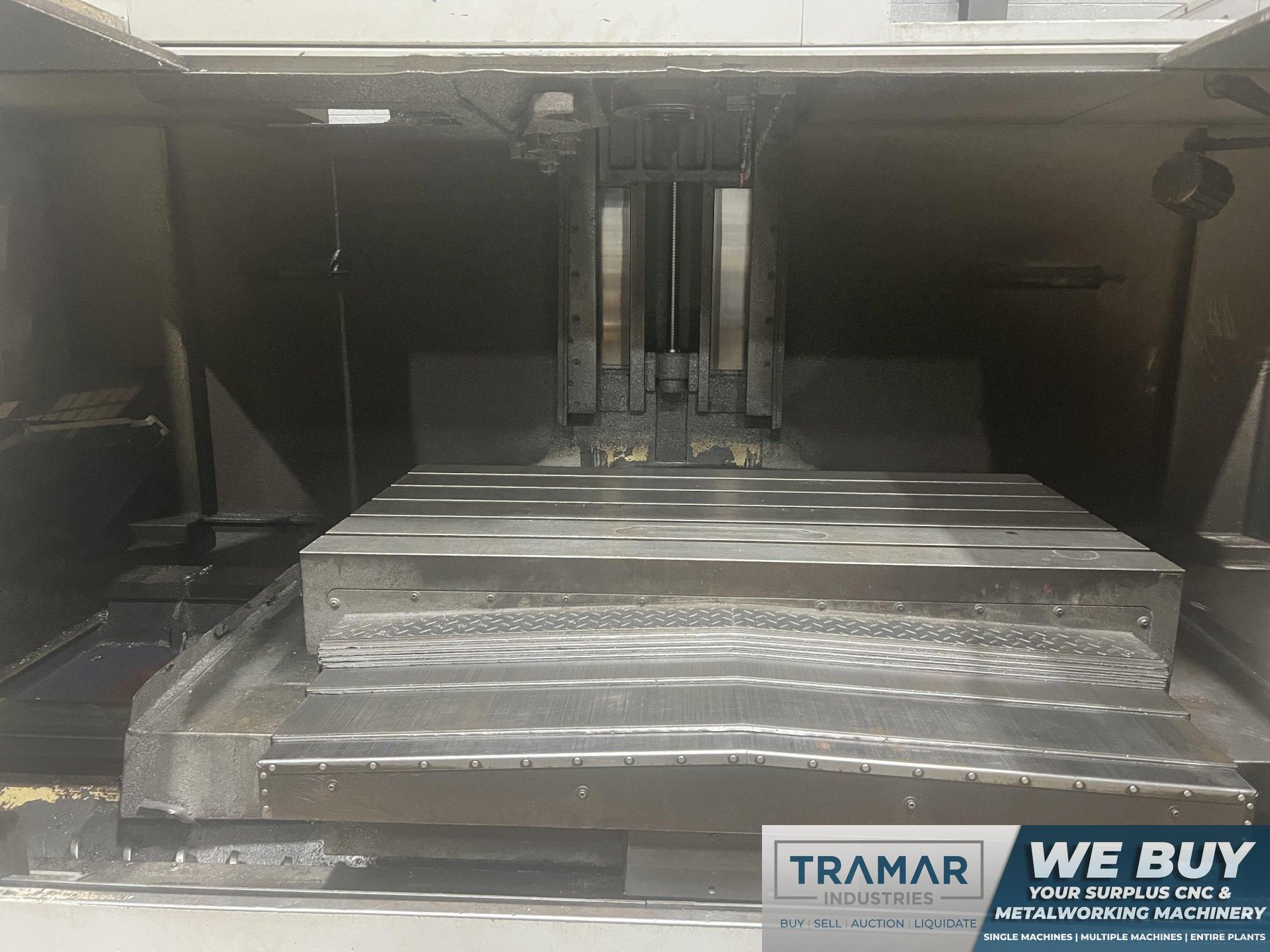

Table Size
66.9" x 33.8"
Table Capacity
4,409 pounds
X-Axis Travel
59"
Y-Axis Travel
33.8"
Z-Axis Travel
29.5"
Spindle Taper
CAT 50
Spindle Speed
10,000 rpm
Main Motor
40 hp
Tool Changer Capacity
32
Machine Weight
39,683 pounds

Equipped With:

- Fanuc MXP-200i CNC Control

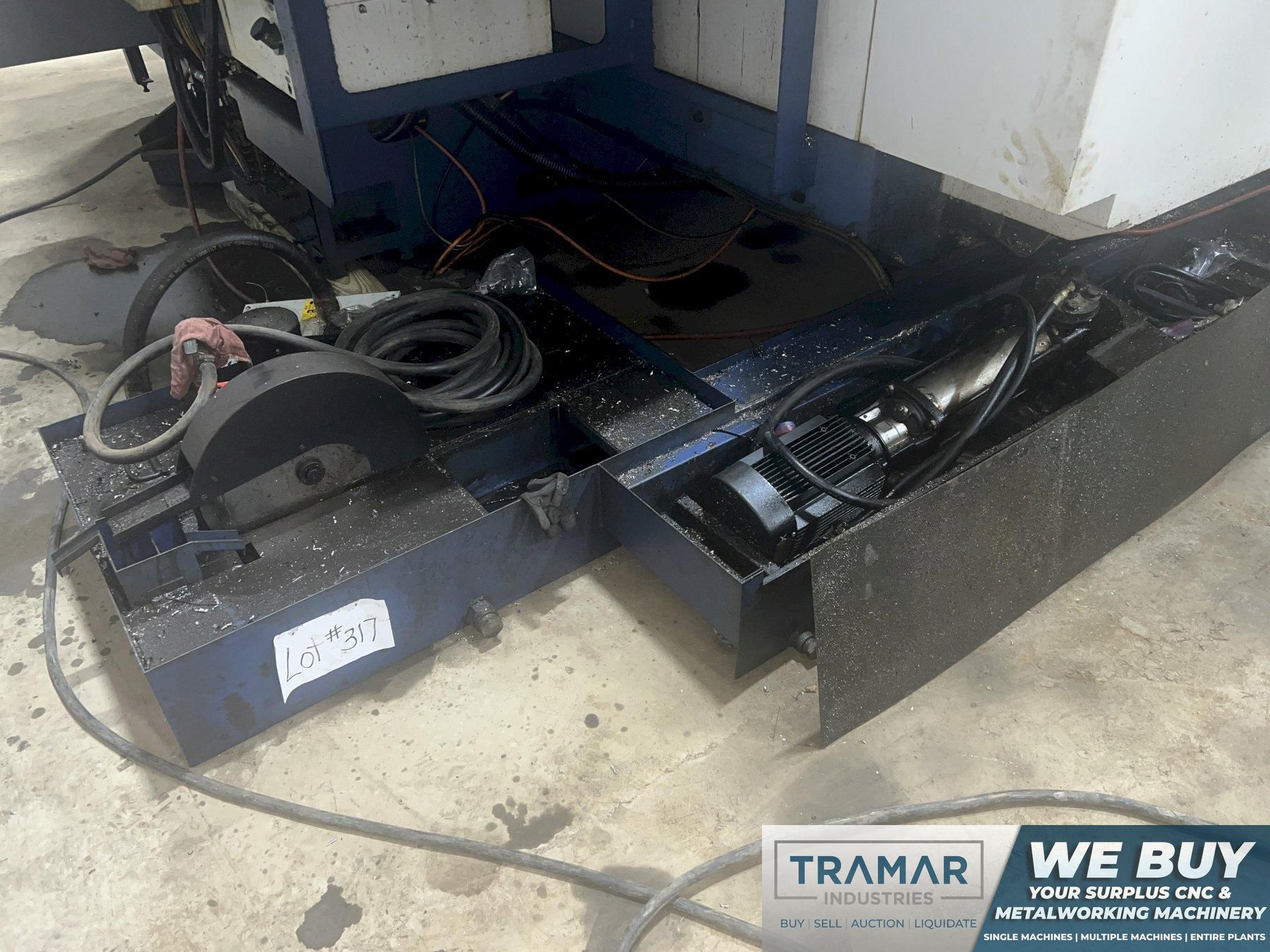

- Chip Auger
- Coolant Tank & Pump
- Coolant Thru Spindle

The YCM TV-158B is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
