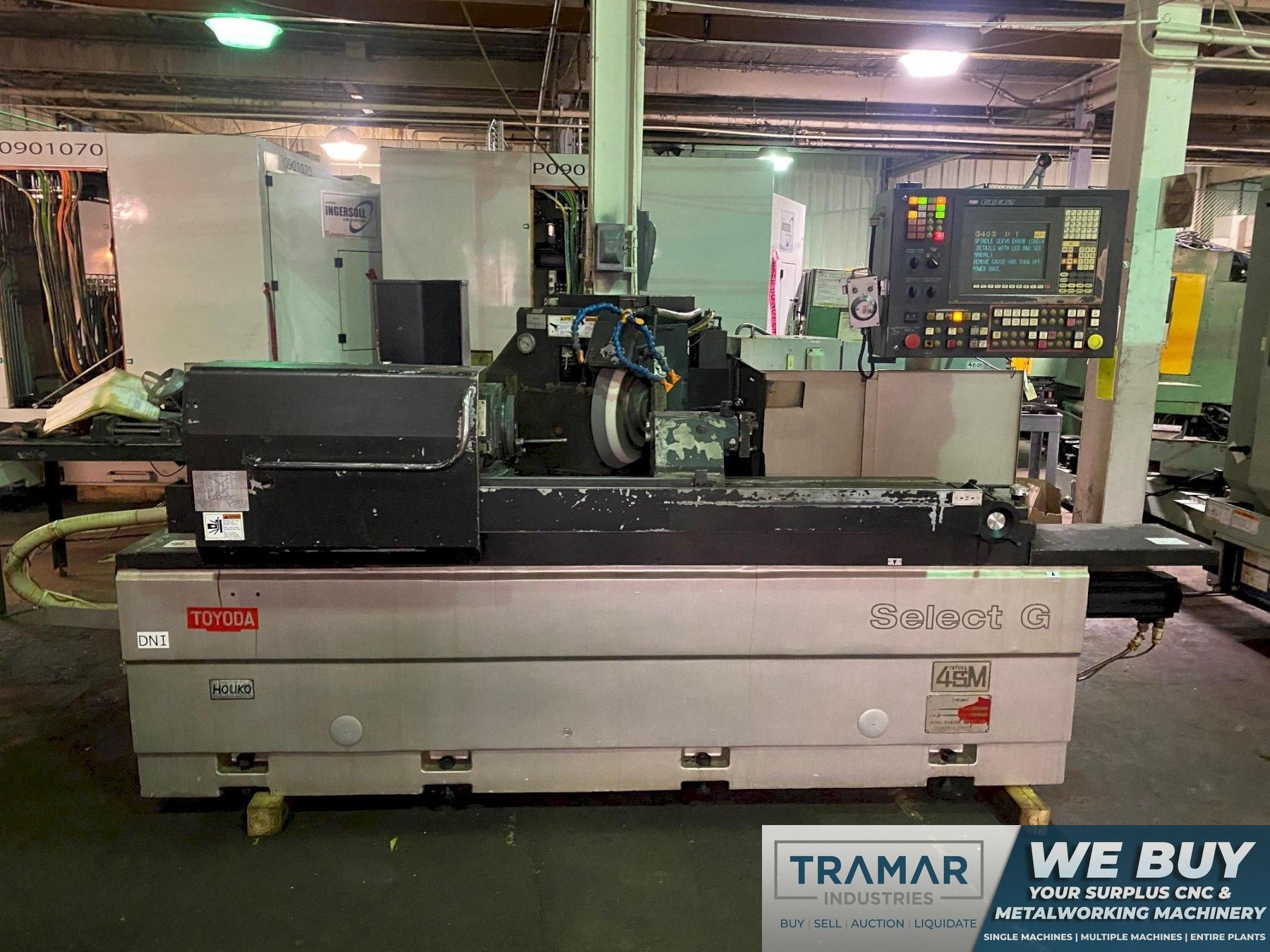

Toyoda Select G-100 - Cylindrical Grinders (Incl Plain & Angle Head)

Share Machine

Specifications Print Specs

Model: Select G-100

Year: 2005

Stock #: 13974 Sold

Type: Cylindrical Grinders (Incl Plain & Angle Head)

Manufacturer: Used Toyoda Machines

Highlights:

Toyoda Select G-100 Used CNC Cylindrical Grinder For Sale - 2005

Equipped With:

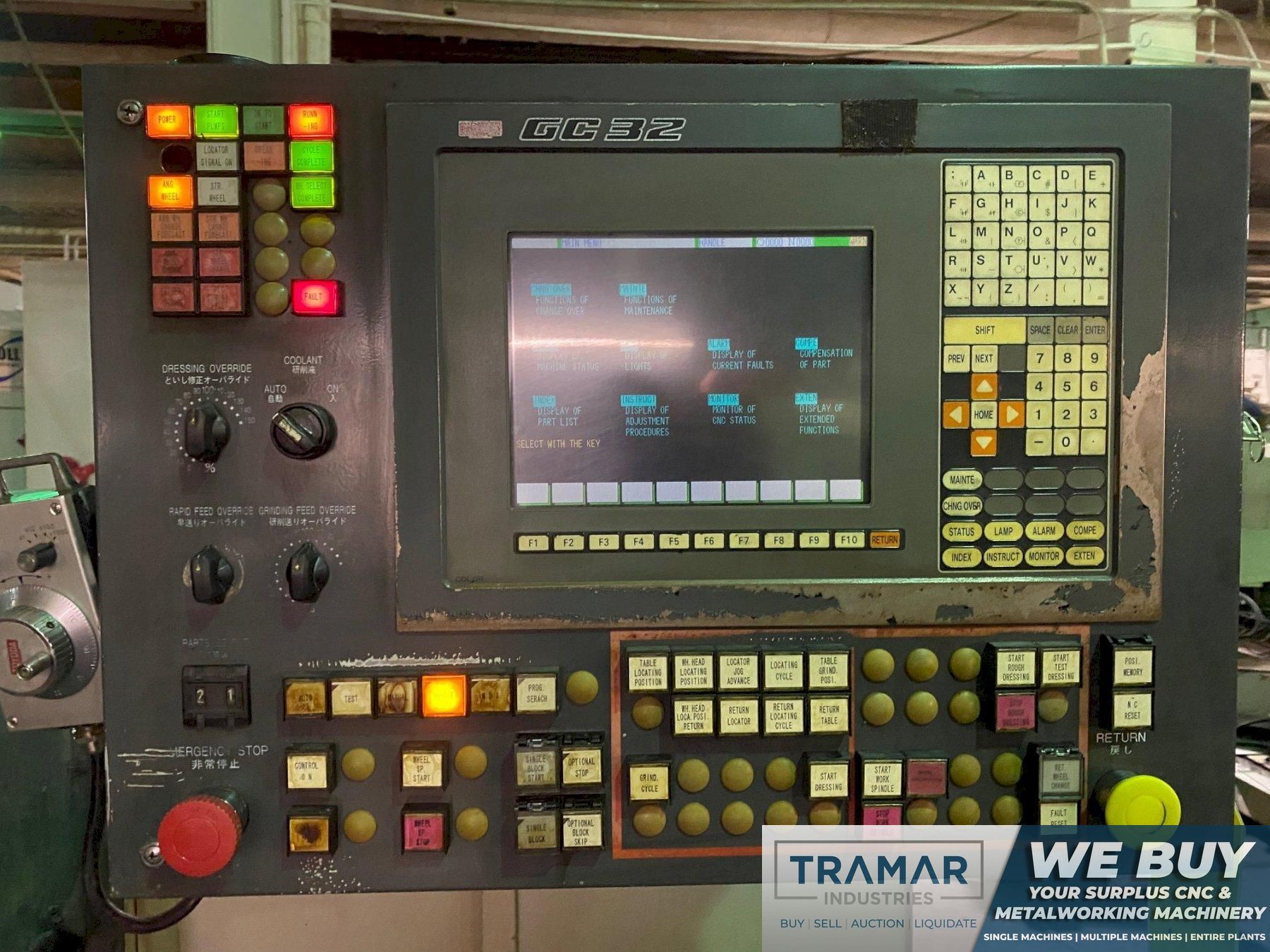

- Toyoda GC-32 CNC Control

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

GC-32

Swing

12.6"

Grinding Diameter

11.8"

Center Distance

39.4"

Max Weight Between Centers

330 pounds

Grinding Wheel Dimensions

20" x 3" x 8"

Grinding Wheel Speed RPM

1,230 rpm

Grinding Wheel Spindle Motor

7.5 hp

Workhead Taper

MT No. 4

Workhead Speed

500 rpm

Workhead Motor

1 horsepower

Workhead Swiveling Angle

-30° to 90°

X-Axis Travel

10.73"

Z-Axis Travel

50"

Internal Grinding Attachment

Machine Dimensions

177" x 77" x 70"

Machine Weight

12,000 pounds

Equipped With:

- Toyoda GC-32 CNC Control

The Toyoda Select G-100 is an exclusive part of our Cylindrical Grinders (Incl Plain & Angle Head) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
