Studer S40 - Cylindrical Grinders (Incl Plain & Angle Head)

Request Quote

Share Machine

Specifications Print Specs

Model: S40

Year: 2008

Stock #: 14494

Type: Cylindrical Grinders (Incl Plain & Angle Head)

Manufacturer: Used Studer Machines

Highlights:

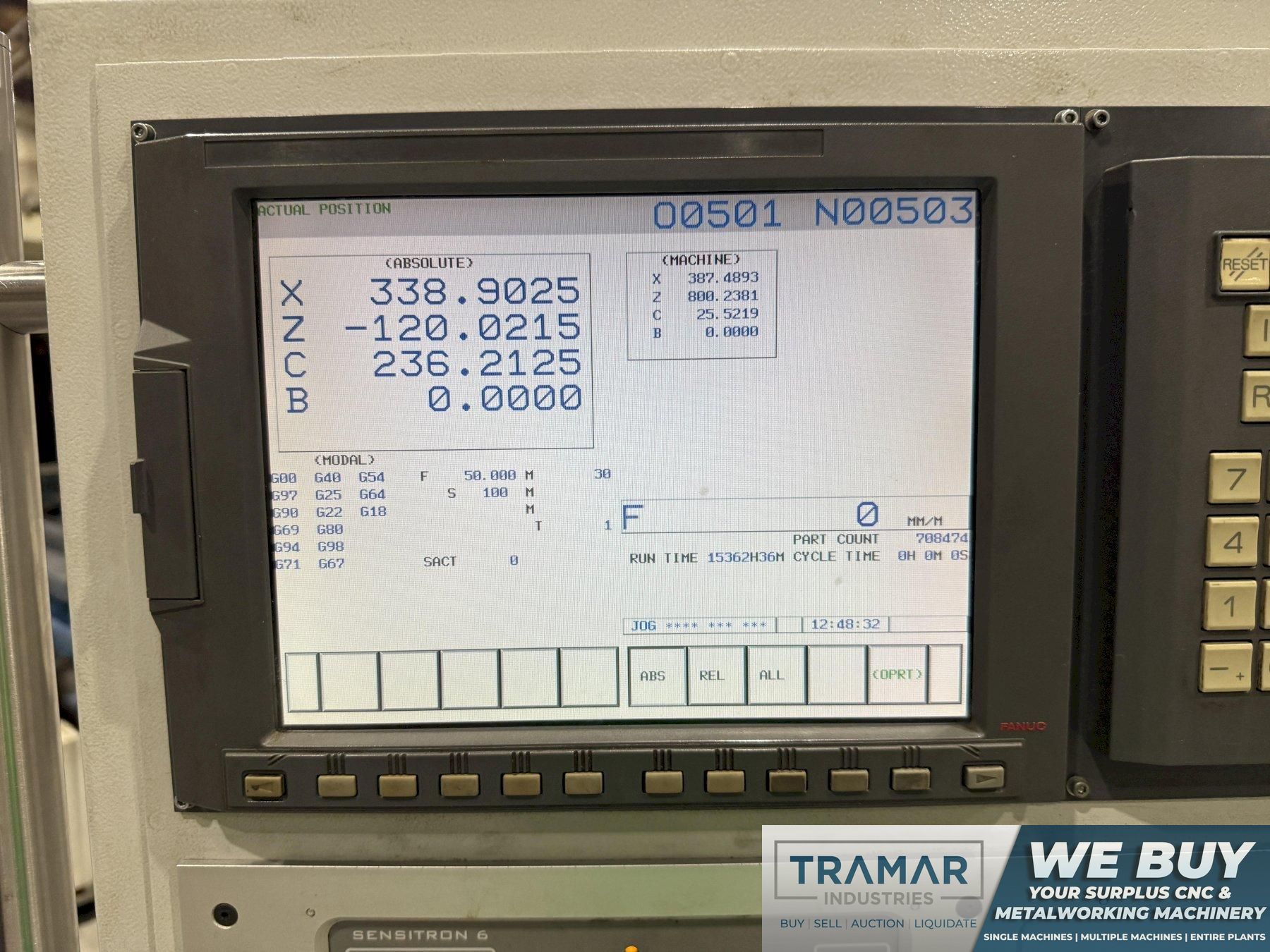

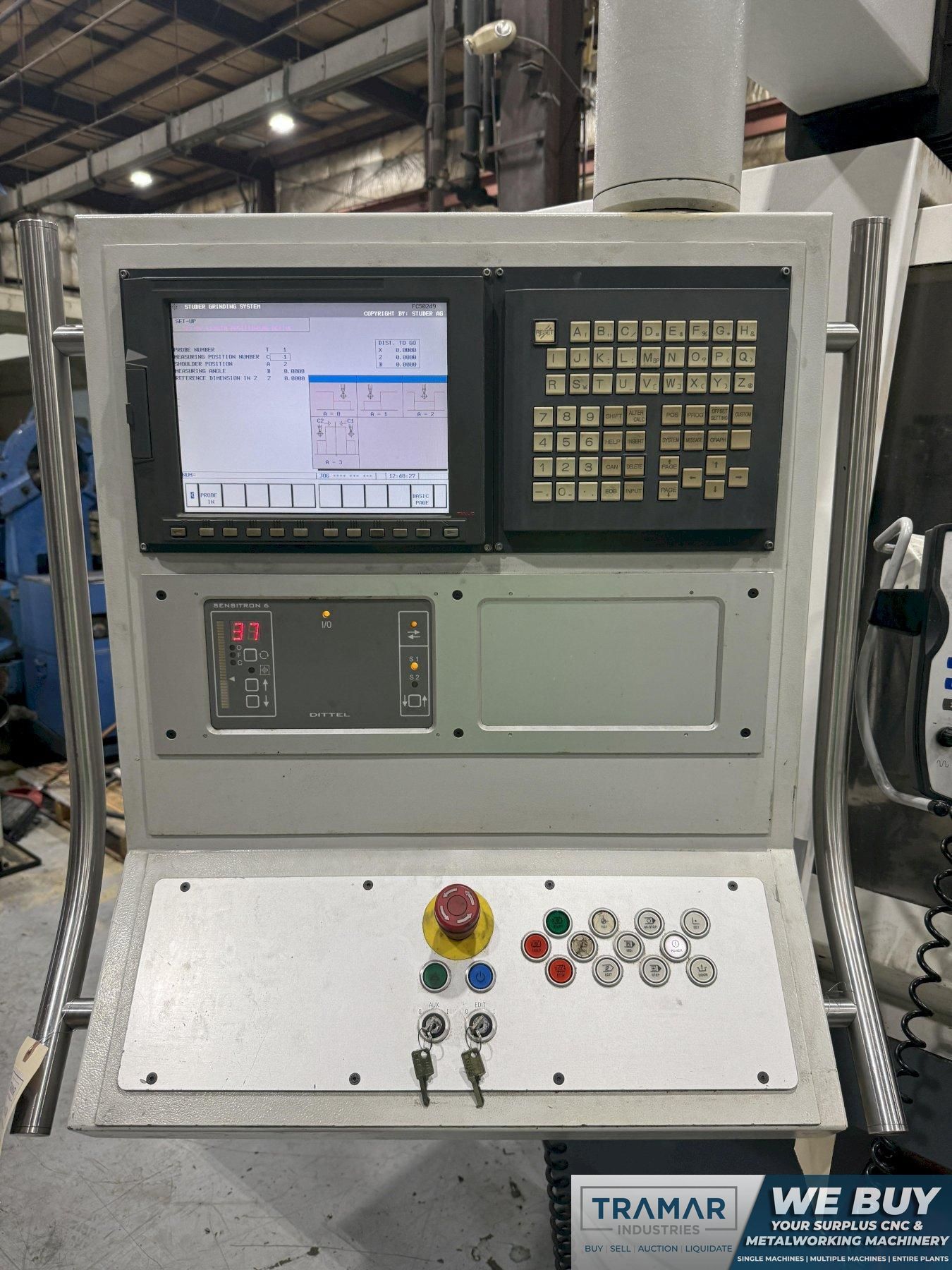

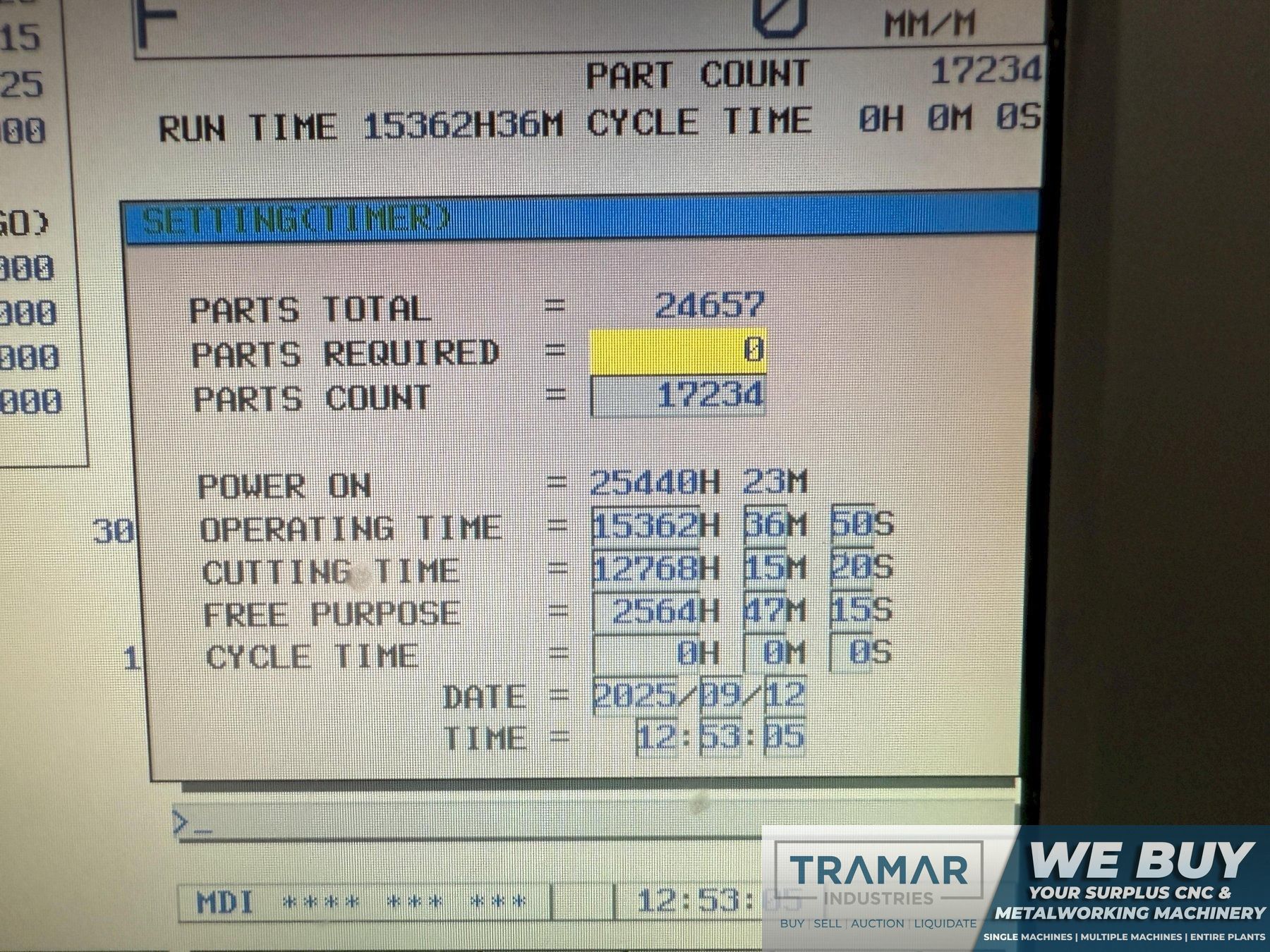

Fanuc 16i-T CNC Control

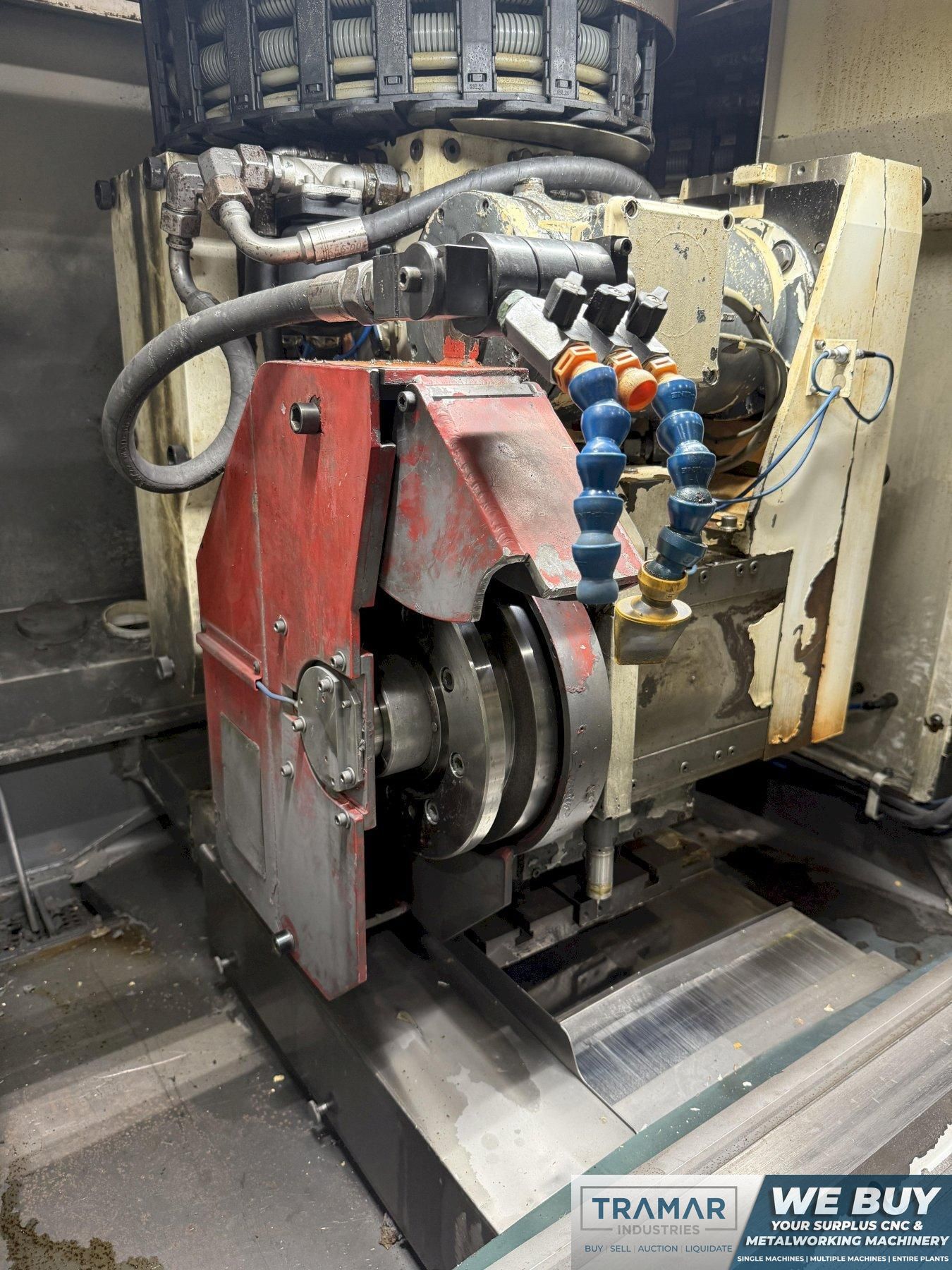

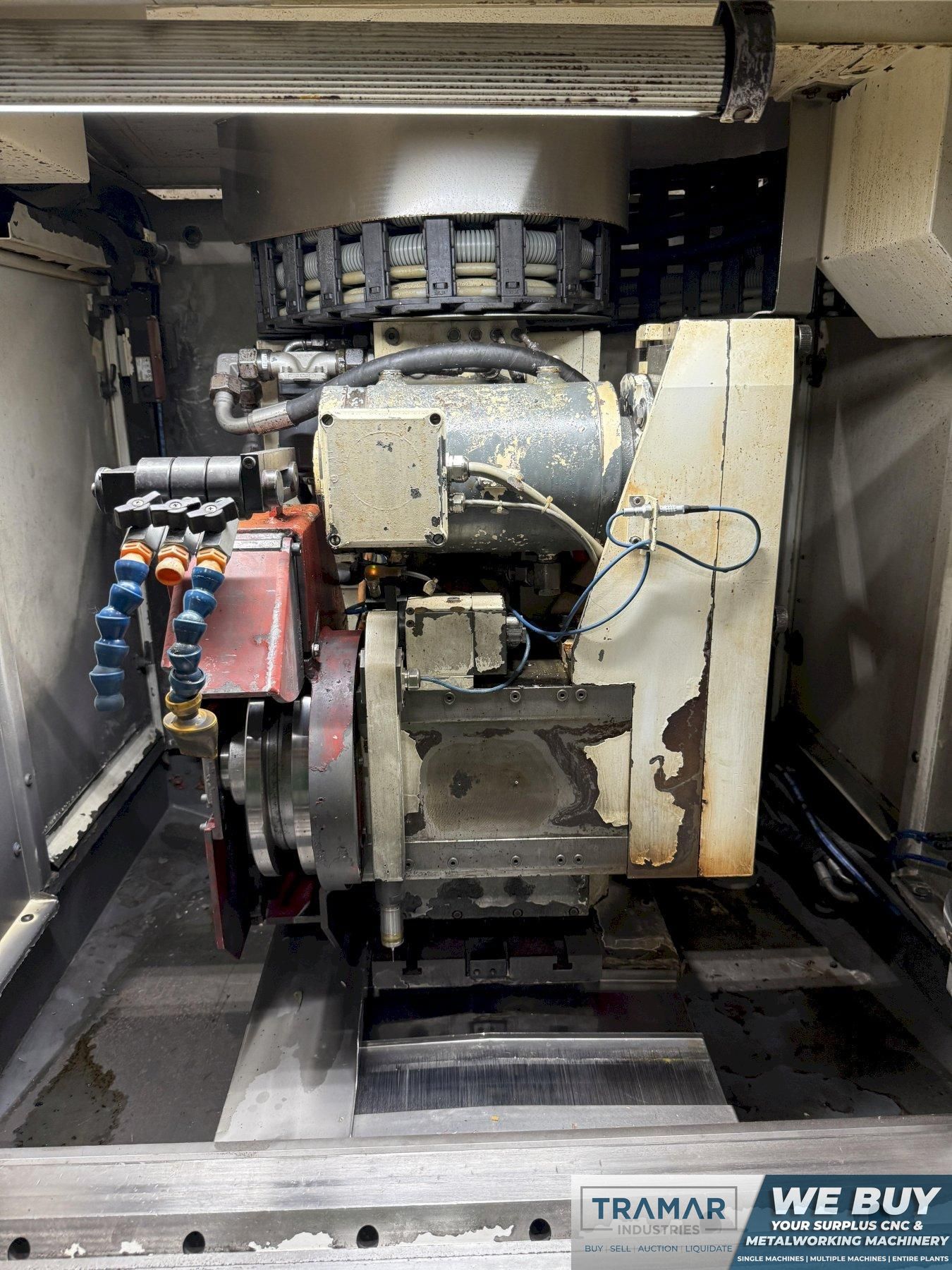

(2) OD Wheels
64” Center Distance

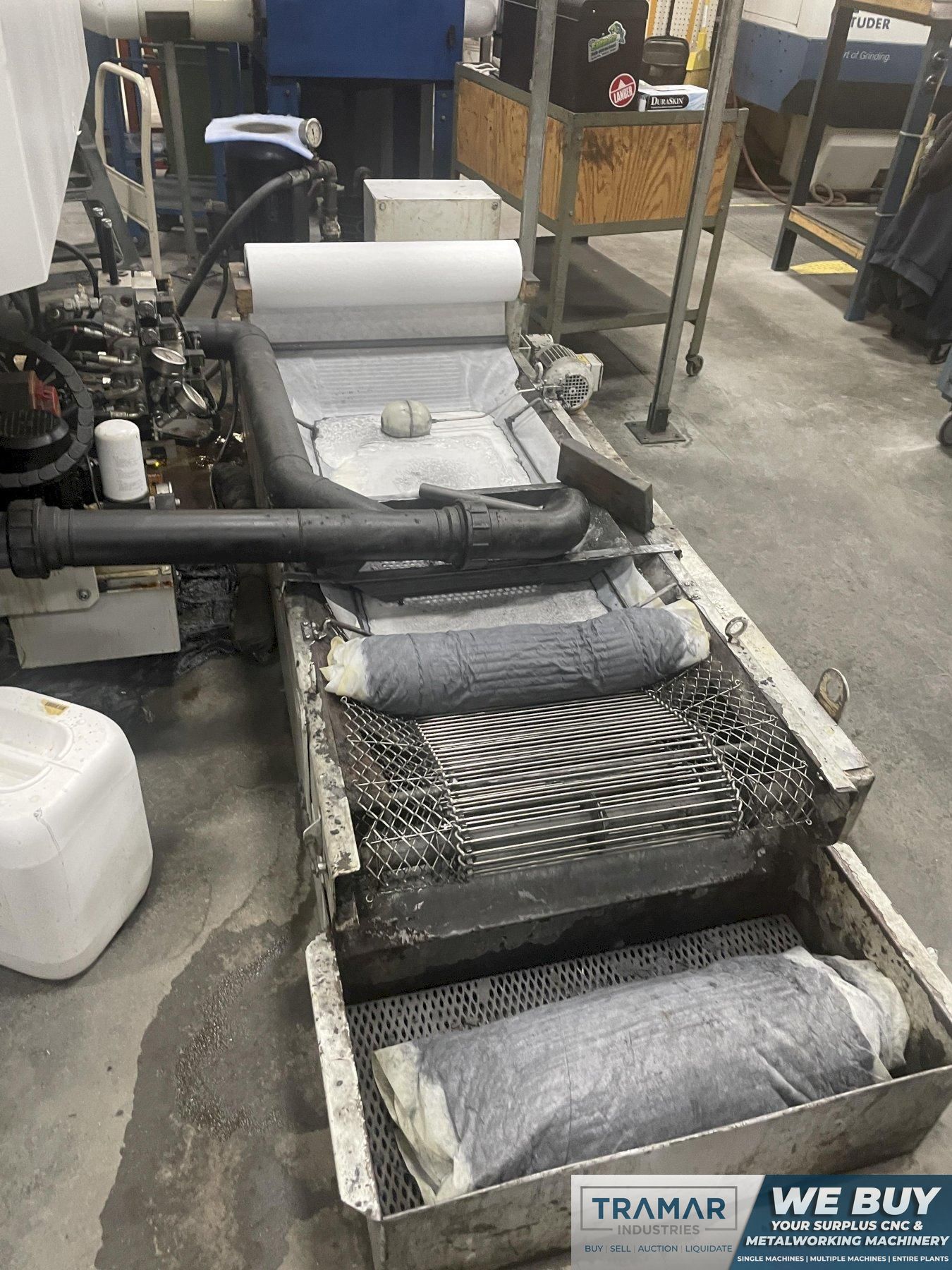

Paper Coolant Filtration System
B Axis Indexing
C Axis Positioning
Shoulder Locator

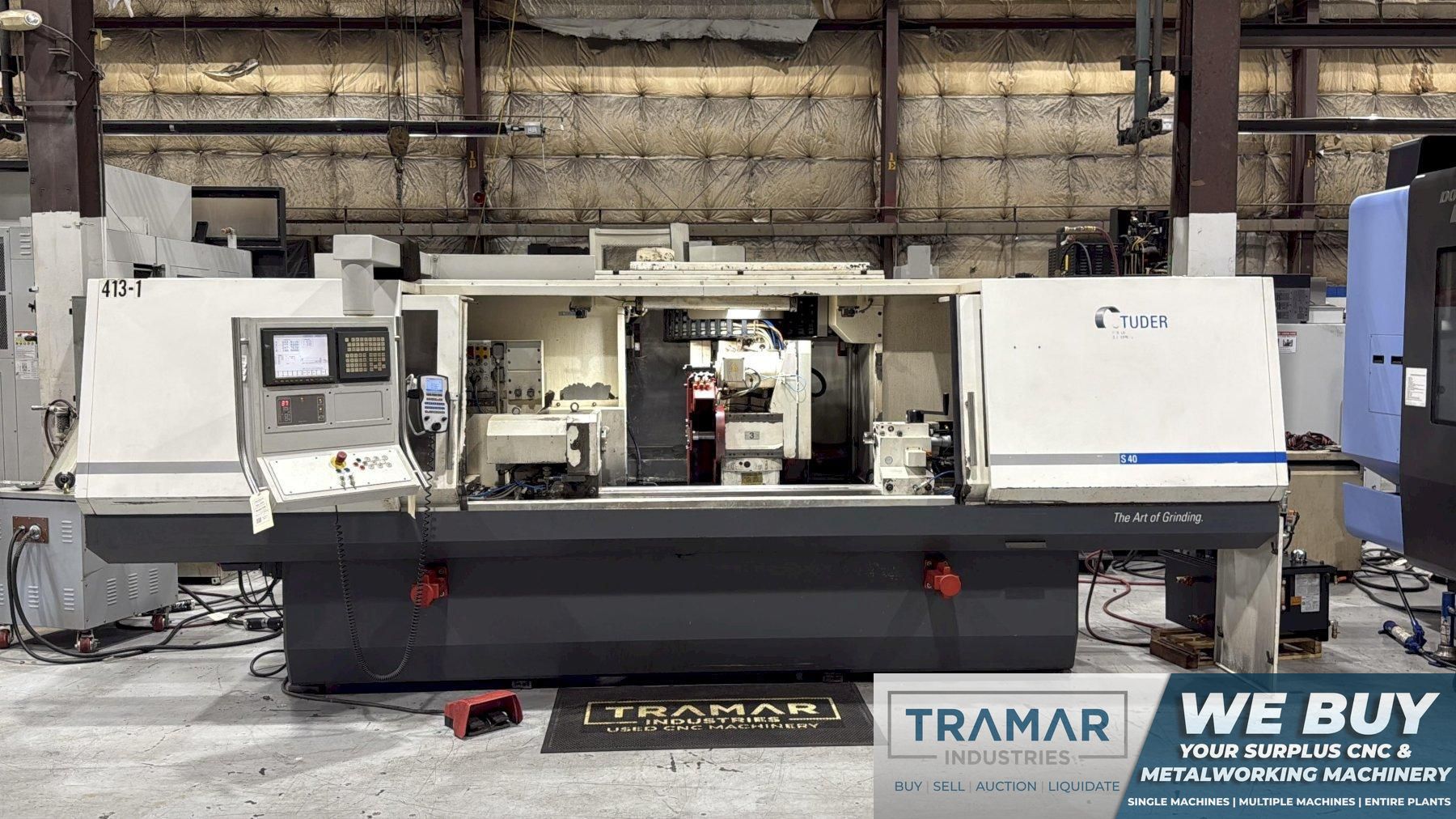

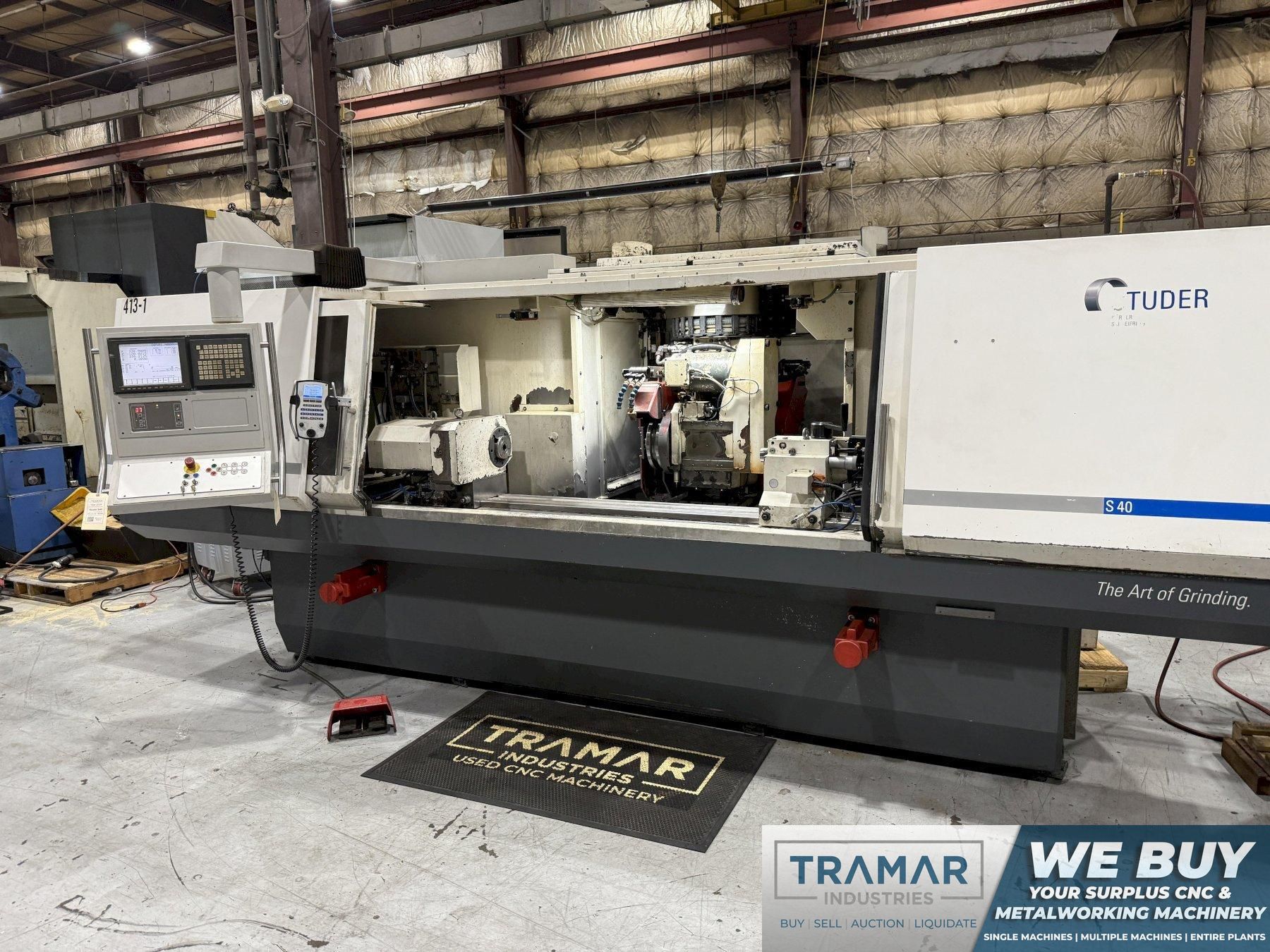

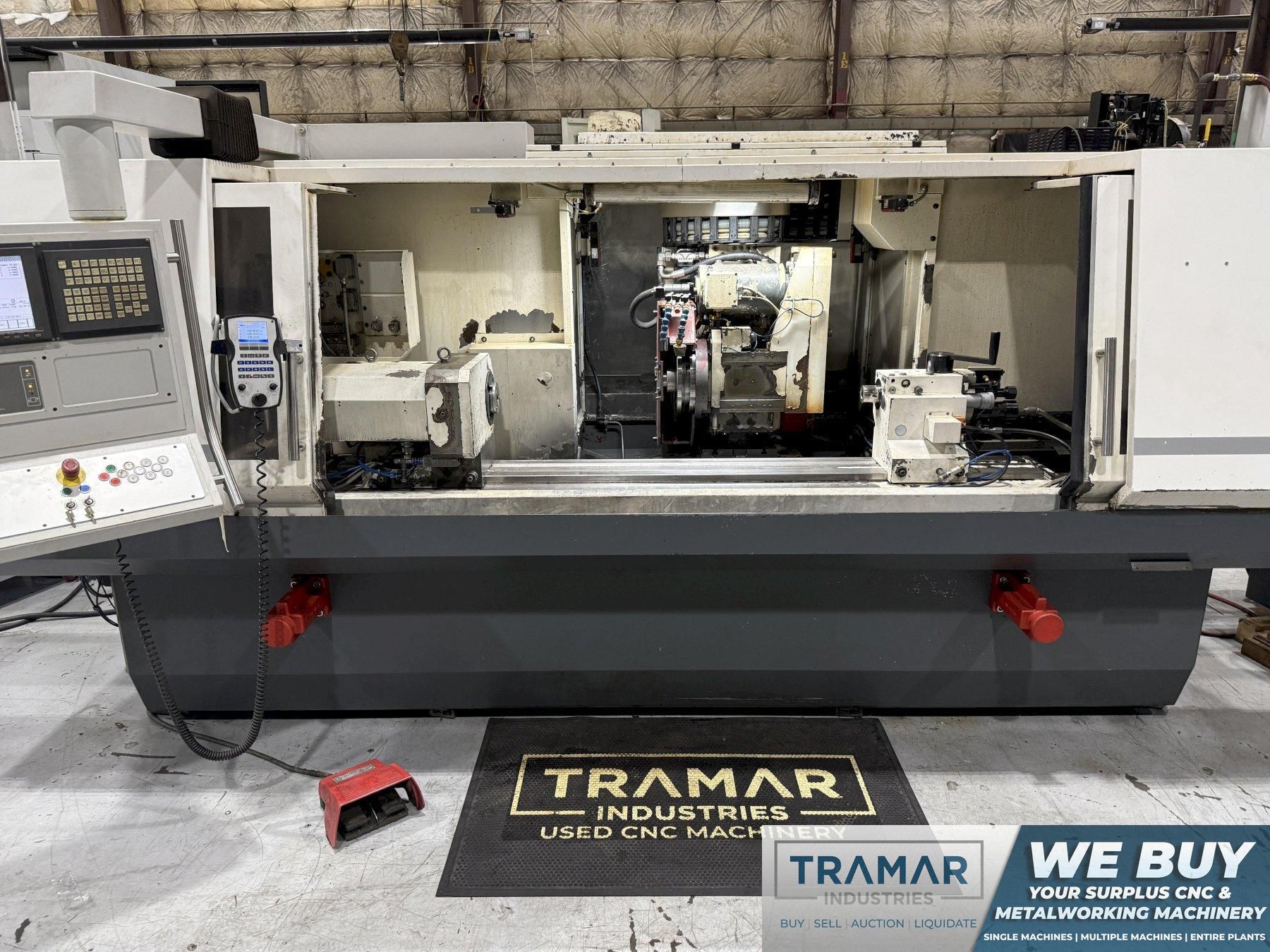

Studer S40 CNC Cylindrical Grinder For Sale - 2008

Equipped With:

- Fanuc 16i-T CNC Control
- Full (B) Axis
- Full (C) Axis
- Paper Filter

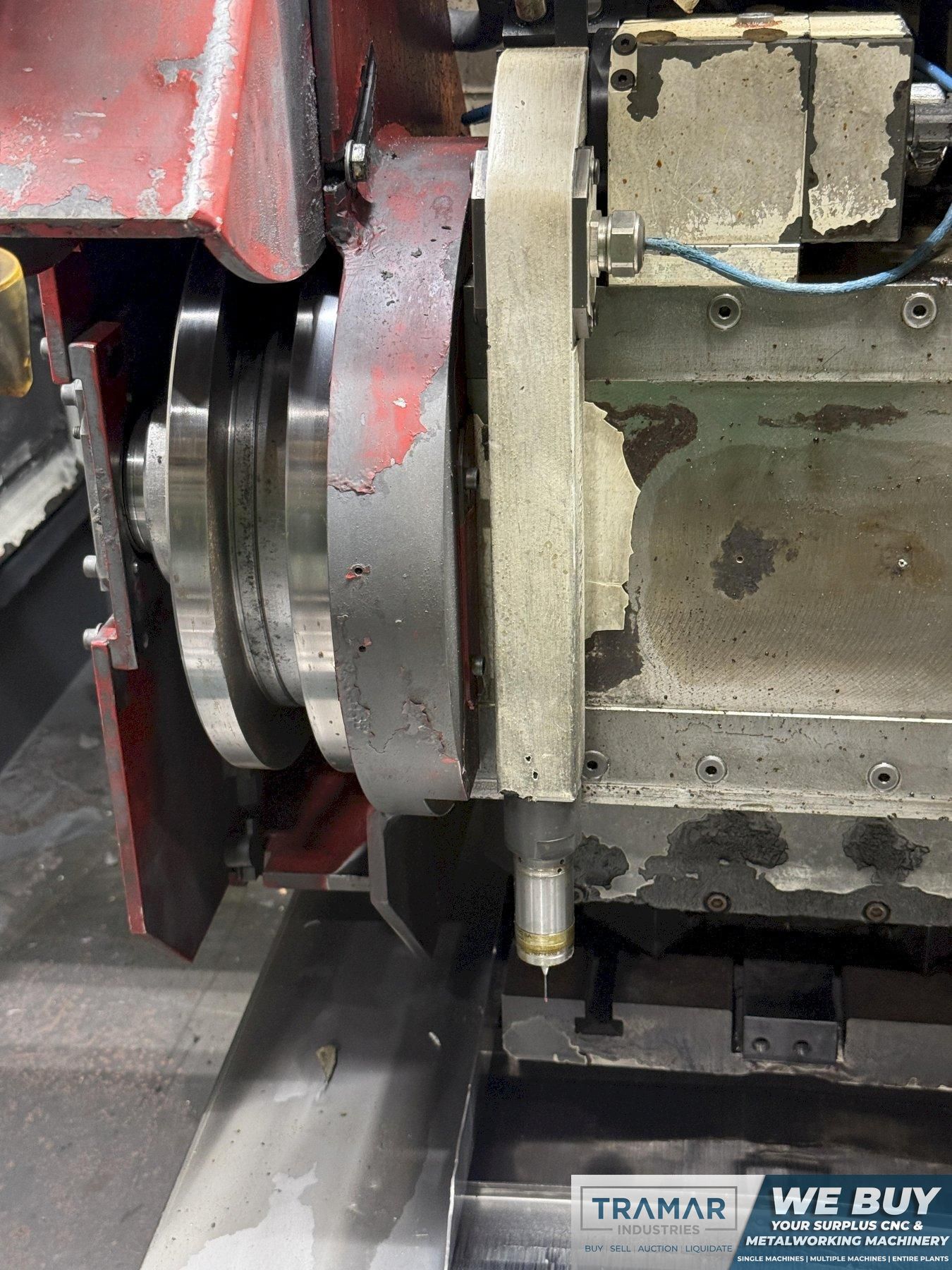

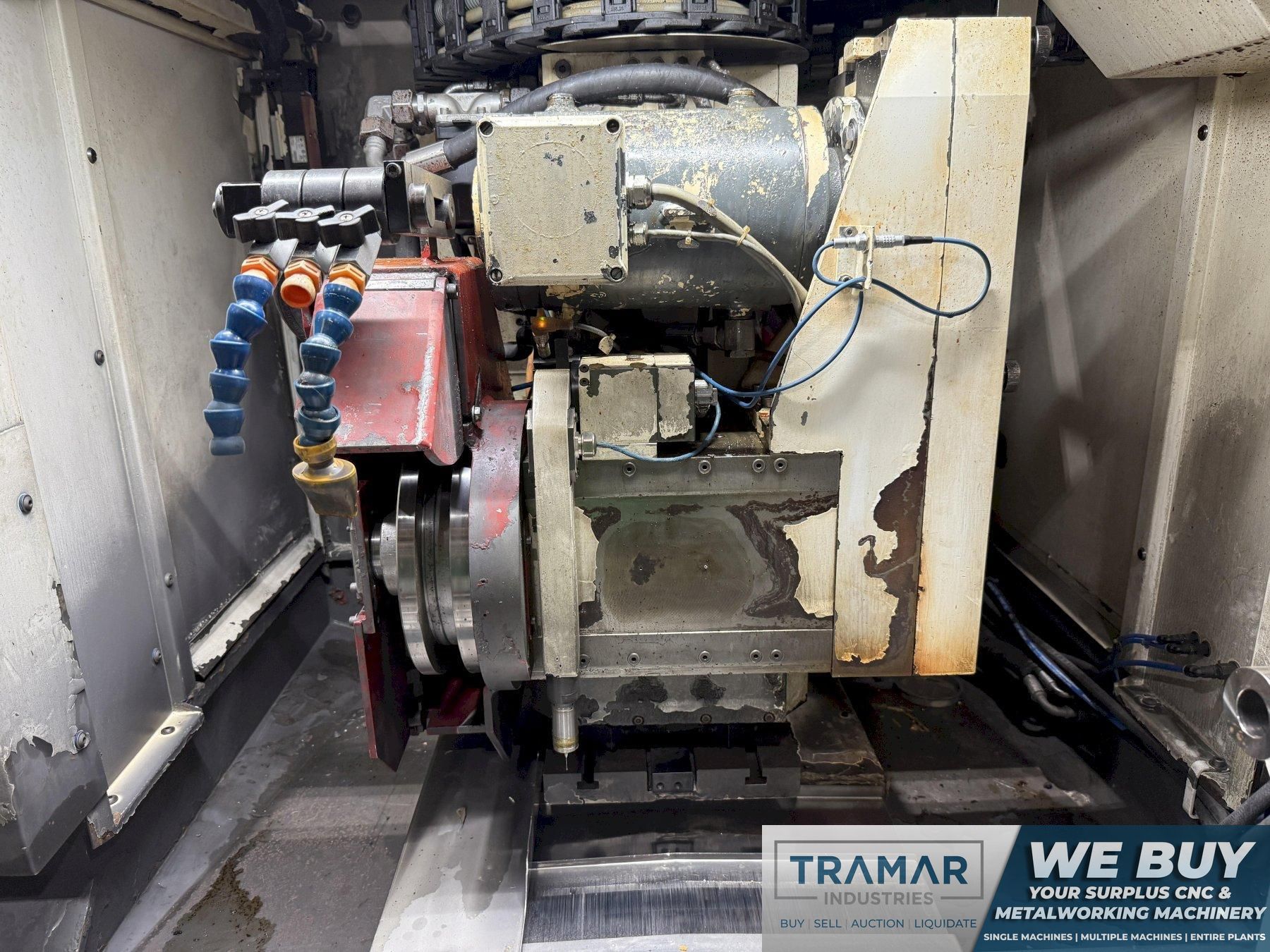

- (2) OD Left Hand Wheels

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 16i-T

Swing

17.8"

Center Height

8.9"

Center Distance

63"

Max Weight Between Centers

330 pounds

Grinding Wheel Dimensions

20” x 2.5” x 5”

Wheelhead (Angle / Straight / Universal)

Universal

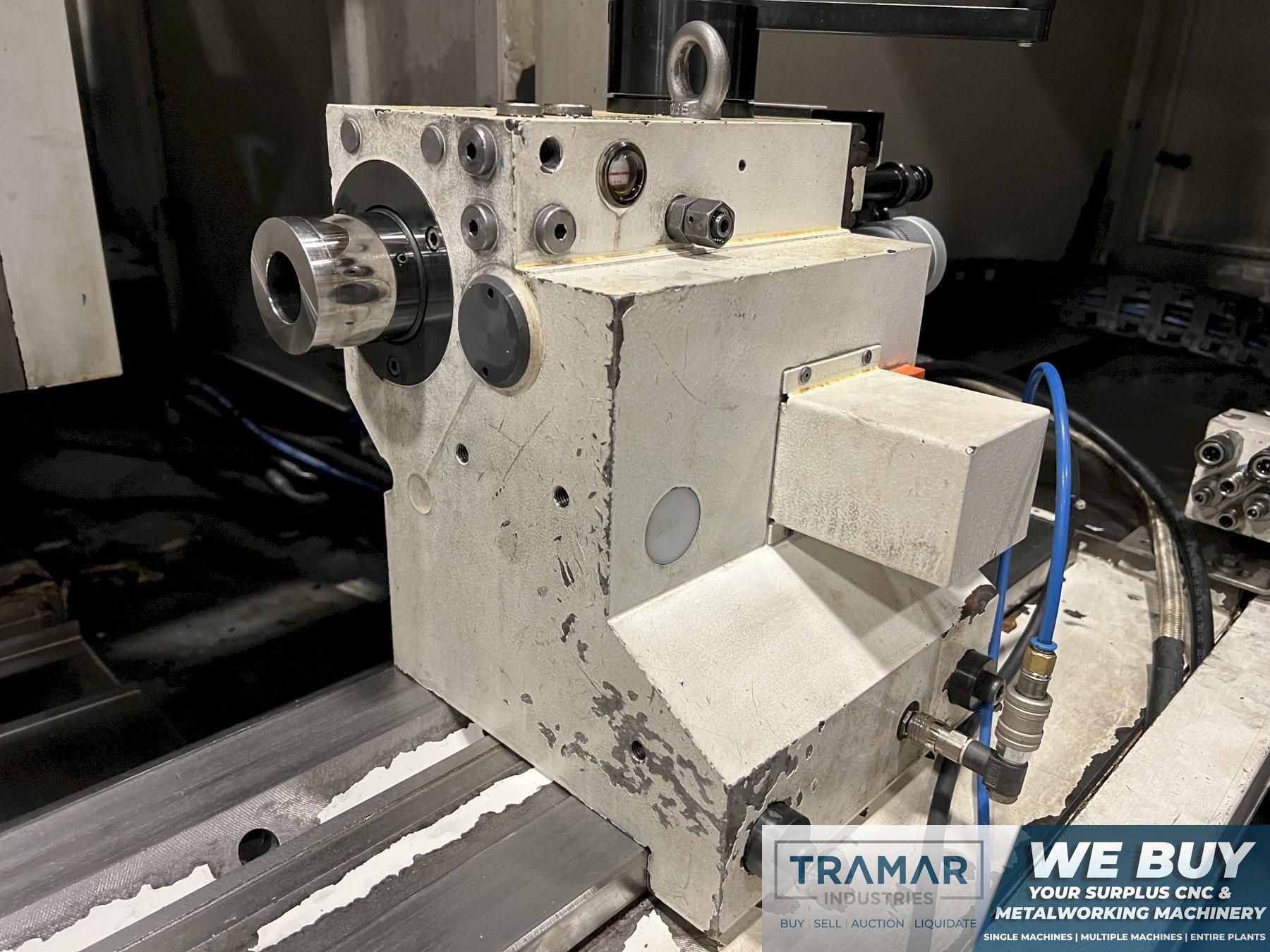

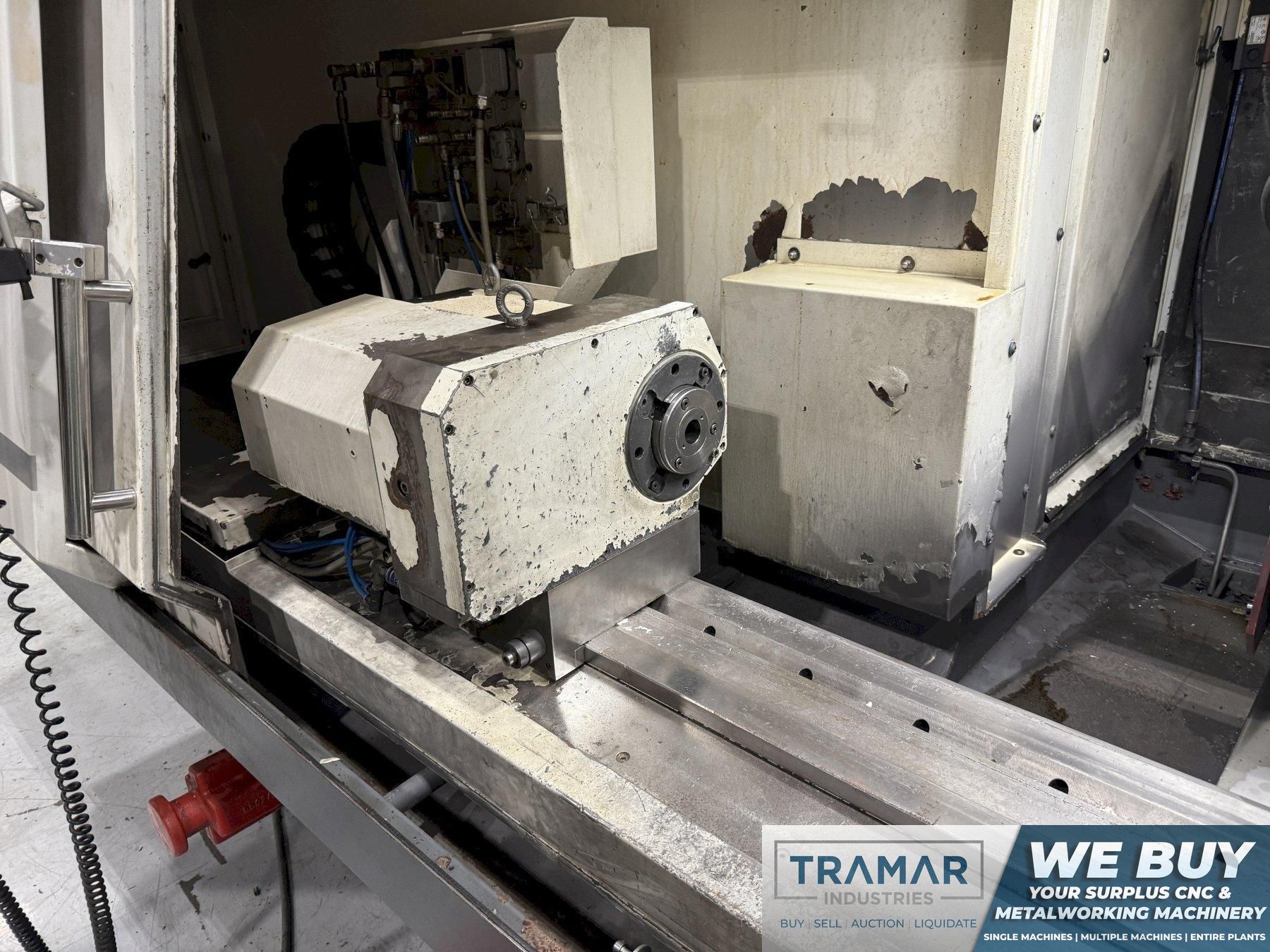

Workhead Taper

Morse 5

Workhead Speed

1,000 rpm

Workhead Motor

3.8 horsepower

X-Axis Travel

10.8"

Z-Axis Travel

65"

Internal Grinding Attachment

Equipped With:

- Fanuc 16i-T CNC Control
- Full (B) Axis
- Full (C) Axis
- Paper Filter
- (2) OD Left Hand Wheels

The Studer S40 is an exclusive part of our Cylindrical Grinders (Incl Plain & Angle Head) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
