Model: SR-32J Type N
Year: 2017
Stock #: K23318
Highlights:

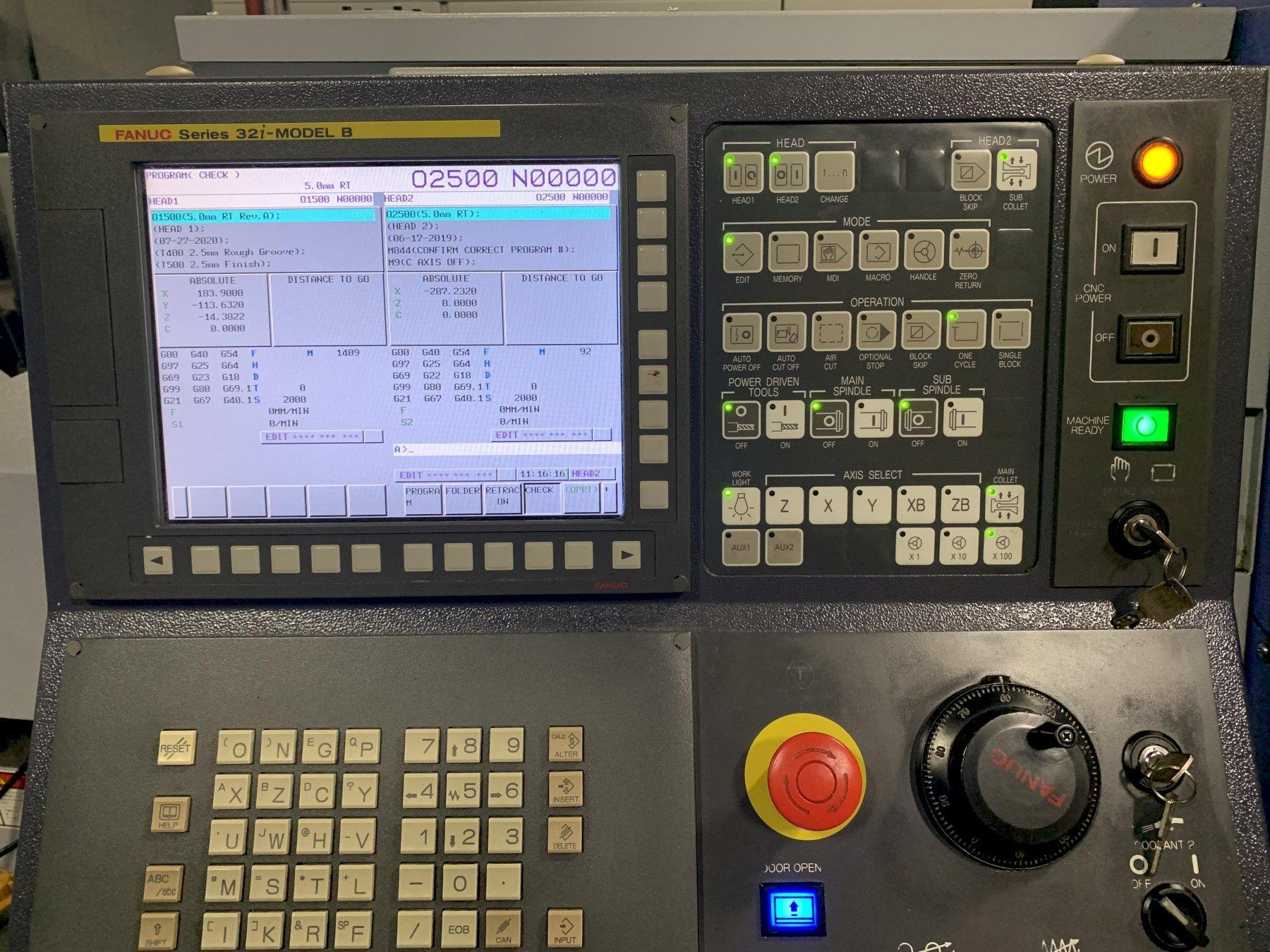

Fanuc 32i-B5 CNC Control

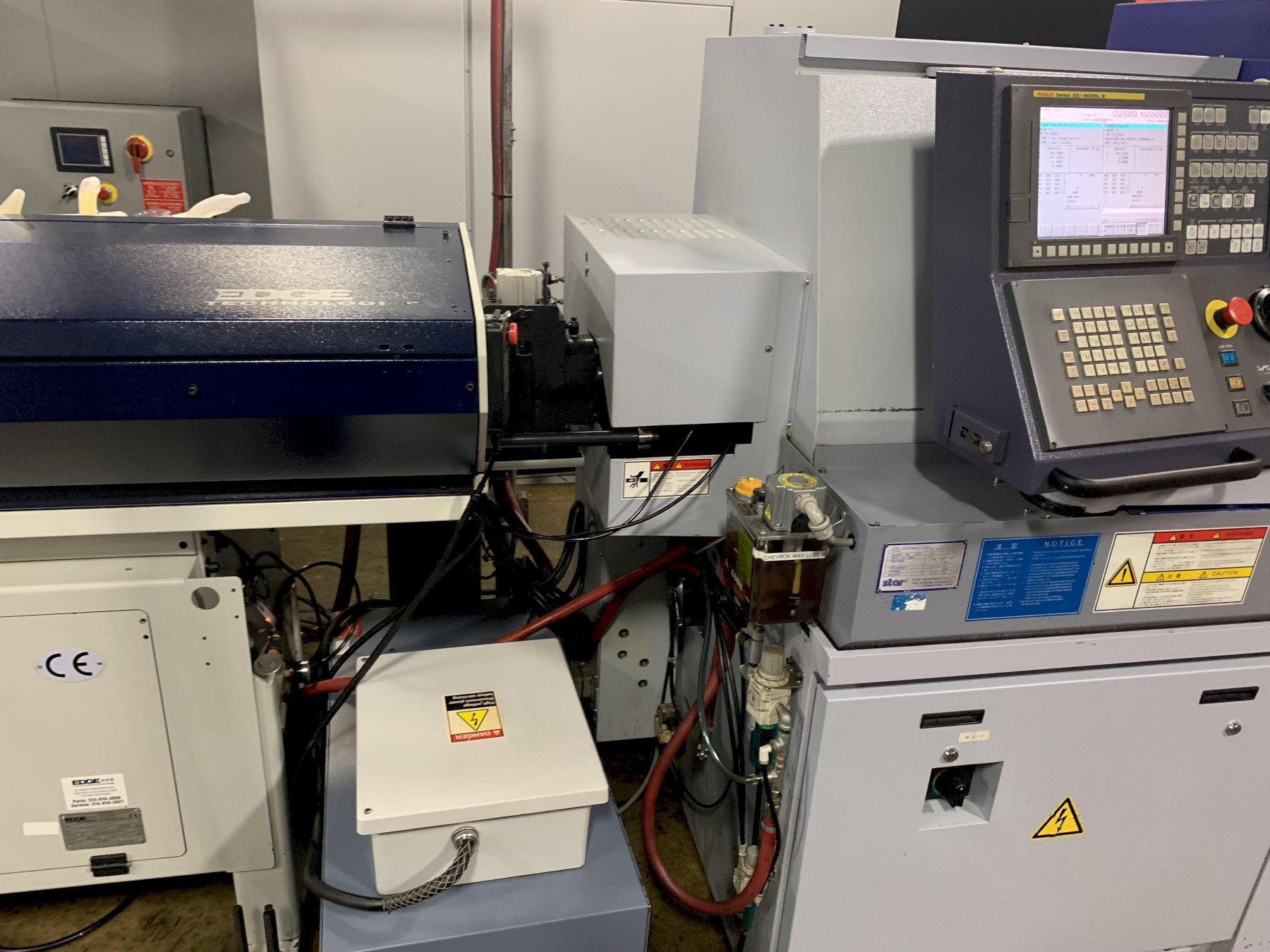

Edge Patriot 338 Bar Feeder 12 Feet
High Pressure Coolant System

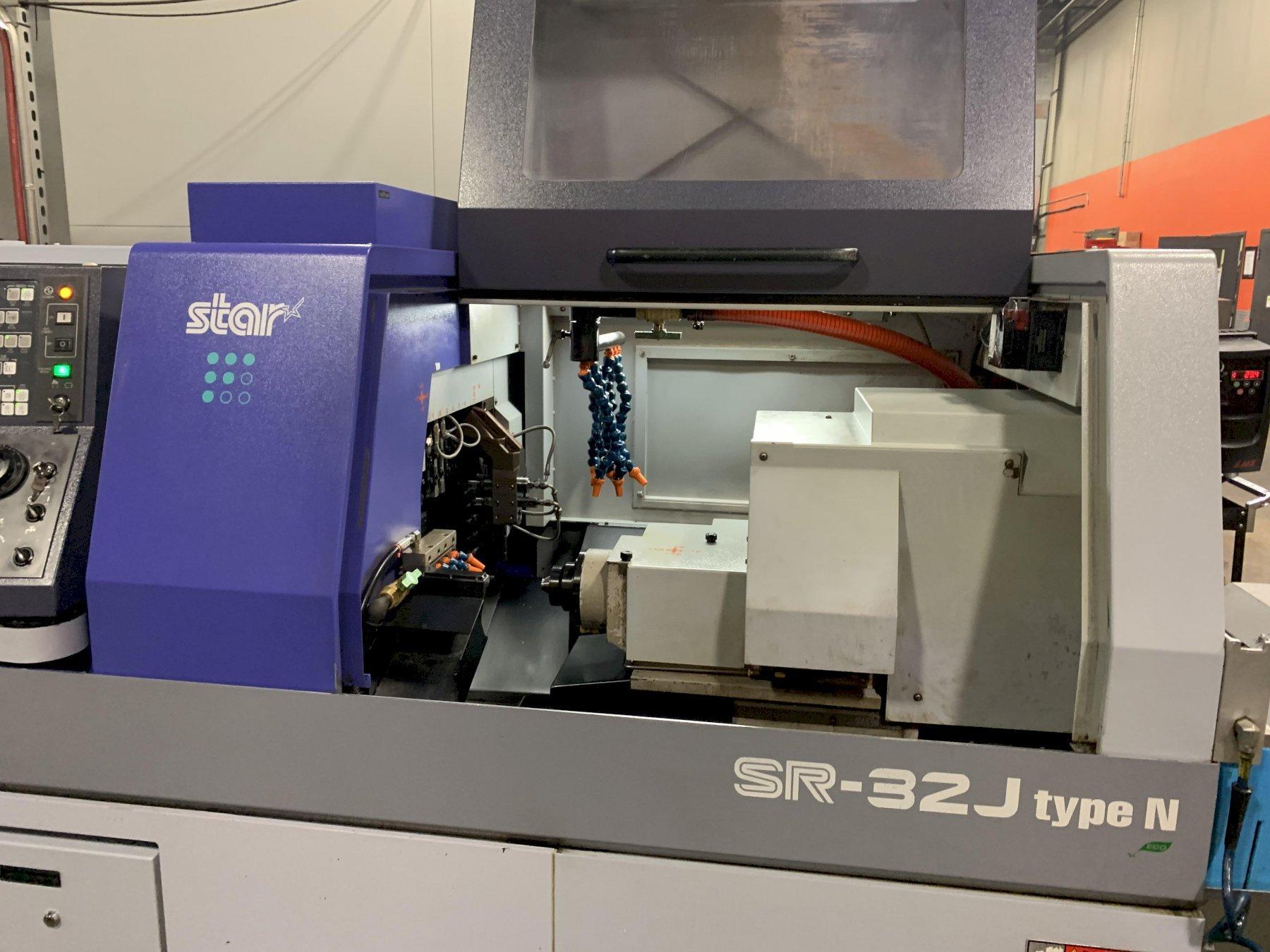

Star SR-32J Type N Used CNC Swiss Type Automatic Lathe For Sale - 2017
Machine Specifications
CNC Control
yes
CNC Control
Fanuc 32i-B5
# Axis
9
Turning Diameter
1.26"
Bar Capacity
1.26"
X Axis Travel
7"
Z Axis Travel
3.15"
C Axis Index
0.001°
Rapid Traverse (X/Y/Z/ZB/XB)
944 IPM
Spindle Nose
TF32
Spindle Speed
7,000 RPM
Main Motor
10 hp
Live Tooling
yes
Live Tooling Speed
6,000 RPM
Live Tooling Motor
1.5 hp
Tailstock
no
Y Axis
yes
Sub Spindle
yes
Sub Spindle Speed
7,000 rpm
Sub Spindle Max Work Length
10.63"
Turret Capacity
18
Machine Dimensions
107" x 51.2" x 75"
Machine Weight
7,000 pounds

Equipped With:

- Fanuc 32i-B5 CNC Control
- Front Tool Post With 6 Turning, 4 Bore/Drill and 4 Power Driven Cross Mill/Drill Positions
- Back Tool Post With 4 Live Tool Positions
- High Pressure Coolant System
- Edge Patriot 338 Bar Feeder
- Part Unloader Conveyor

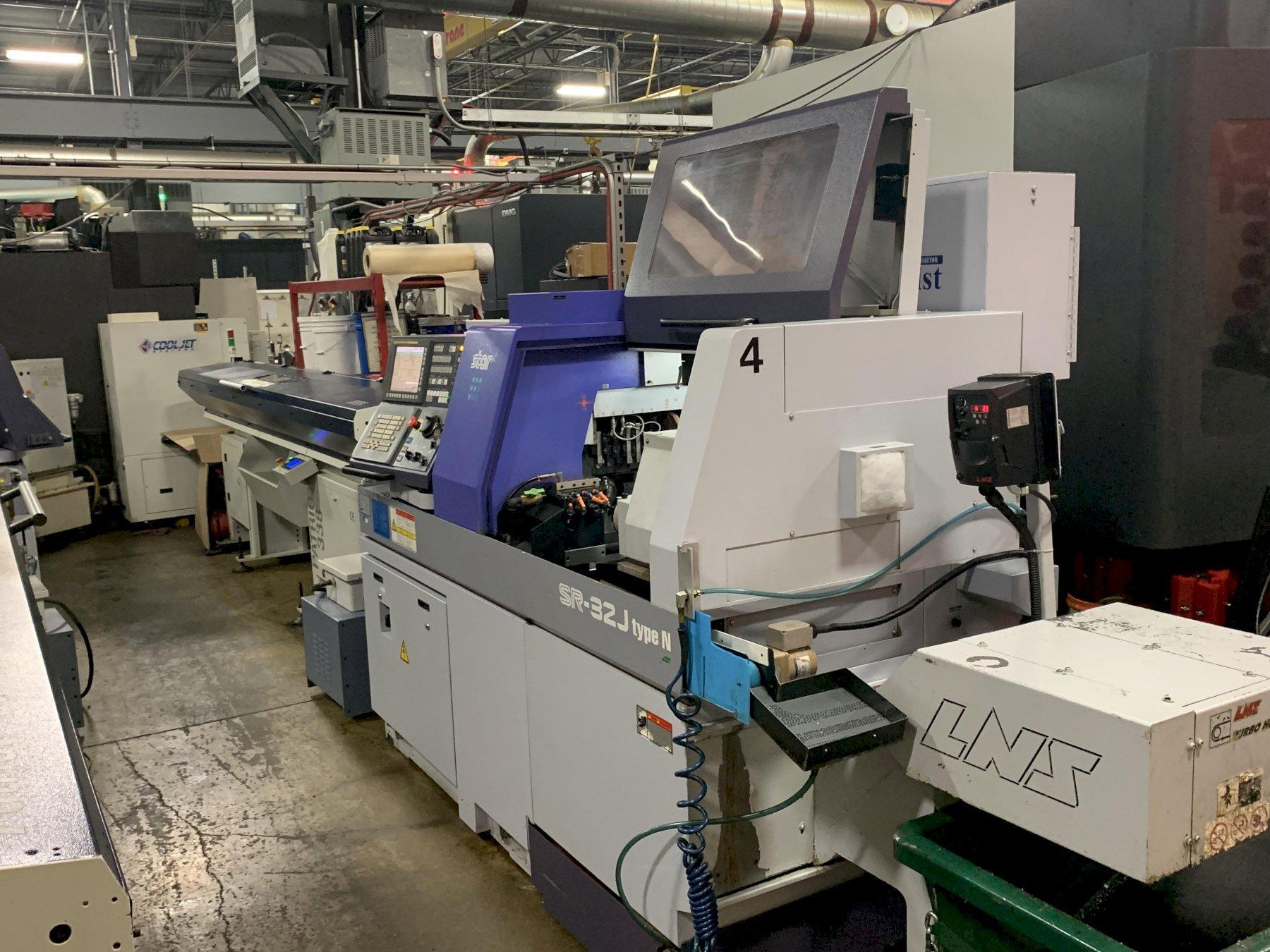

- LNS Chip Conveyor and Coolant Tank

The Star SR-32J Type N is an exclusive part of our Lathes, CNC, Automatic, Swiss Type inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
