Southwestern Industries K3 - Millers, Knee, CNC

Share Machine
Specifications Print Specs
Model: K3
Year: 2012
Stock #: 3886 Sold
Highlights:

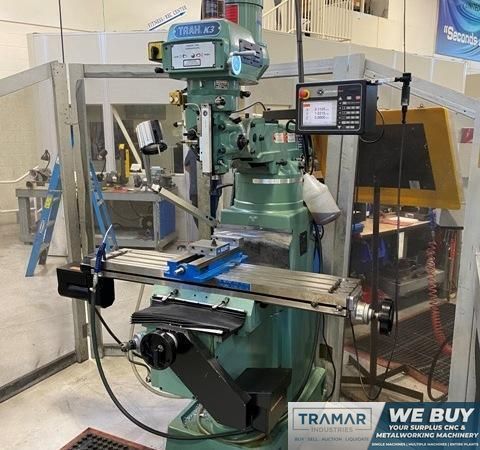

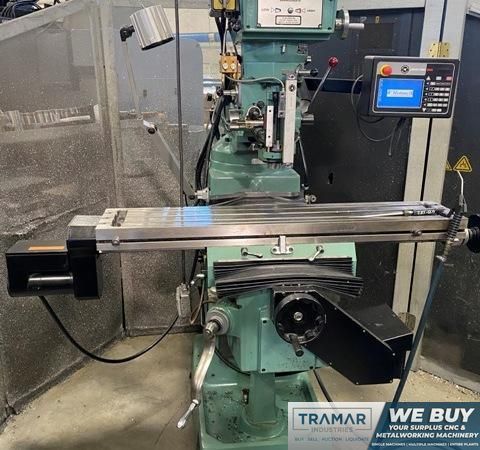

Southwestern Industries Trak K3 CNC Mill, Prototrak EMX, 32
Machine Specifications
Control Type
ProtoTrak EMX
Table Size
50" x 10"
Table Travel
32"
SaddleTravel
16"
Knee Travel
16"
Ram Travel
15"
Max Quill Travel
5
Spindle Taper
R8
Spindle Speed (RPM)
60-4,200
Spindle Motor
3 HP
Head Tilt
45 Deg Forward/Back 90 Deg Left/Right
Max Weight On Table
850 LBS
Dimensions
71"L x 59"W x 84"H
Weight
2,800 pounds

Equipped With:

Hardened and Ground Way Surfaces
Power Draw Bar
(2) Axis CNC (3) Axis Read Outs
Scale on Quill
Handwheels for Manual Operation

The Southwestern Industries K3 is an exclusive part of our Millers, Knee, CNC inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
