Okuma SpaceTurn LB4000EXII - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: SpaceTurn LB4000EXII
Year: 2013
Stock #: 13488 Sold
Highlights:

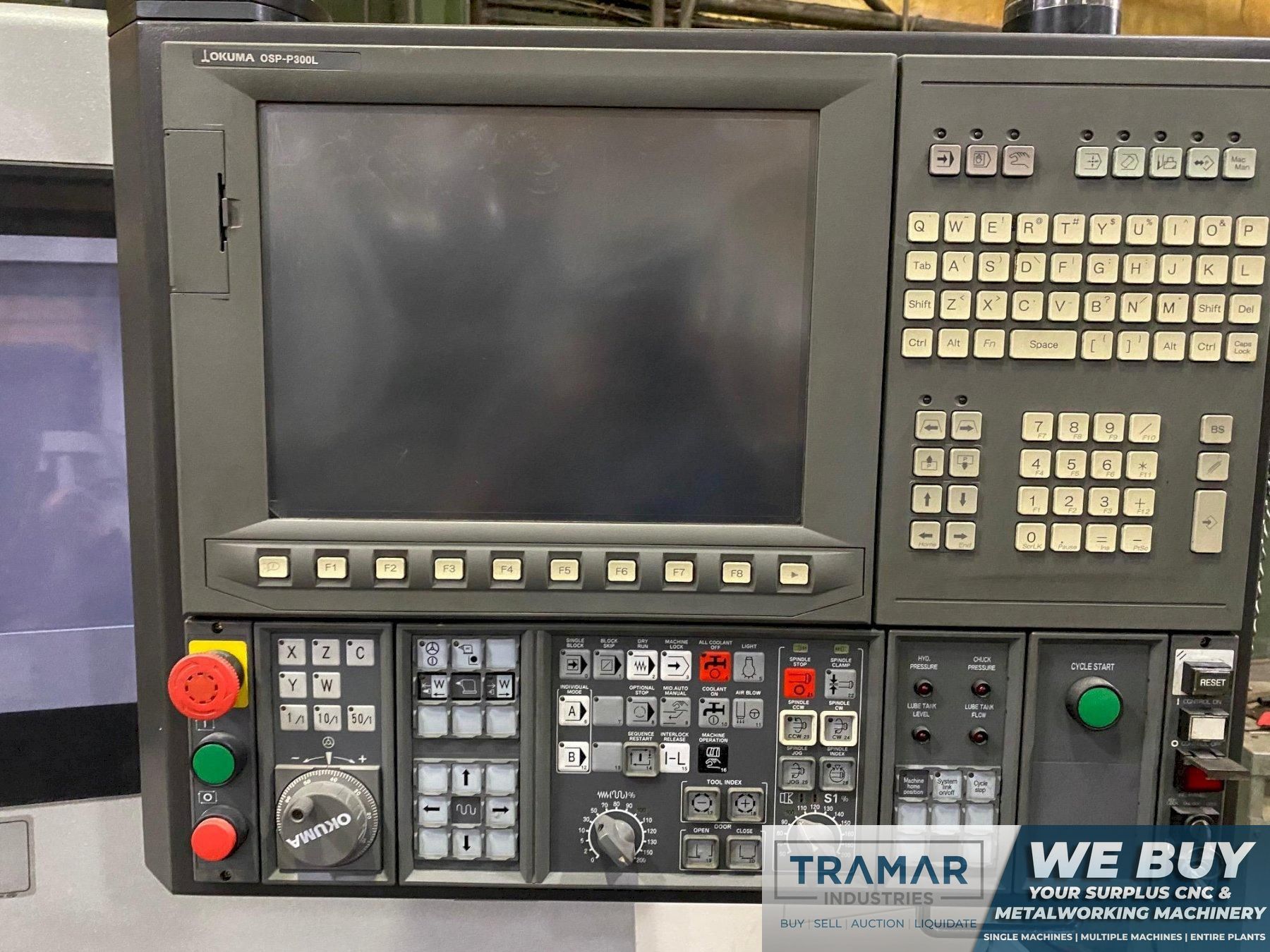

Okuma OSP-P300L Control
NC Programmable Tailstock
IGF - Conversational Programming

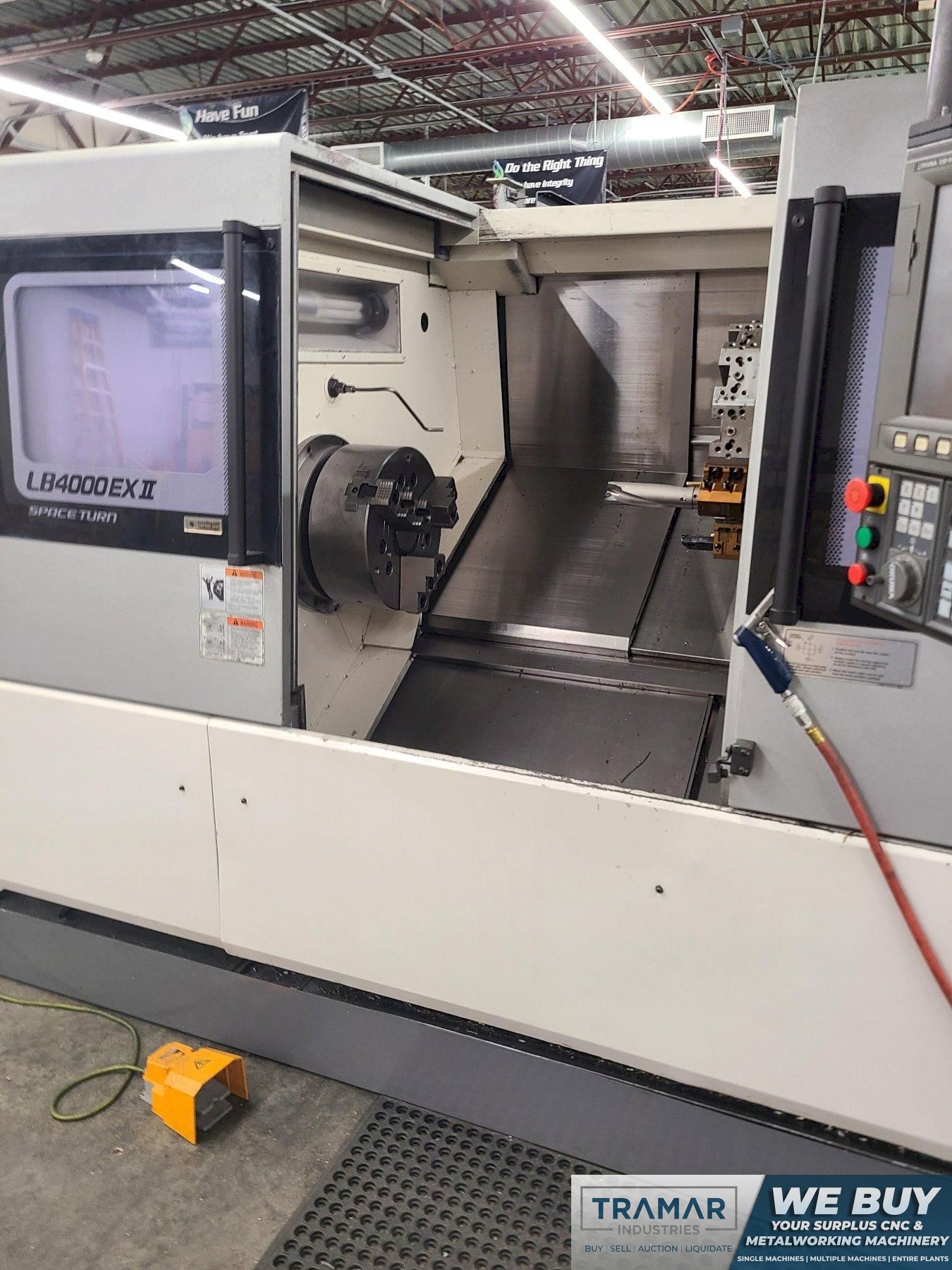

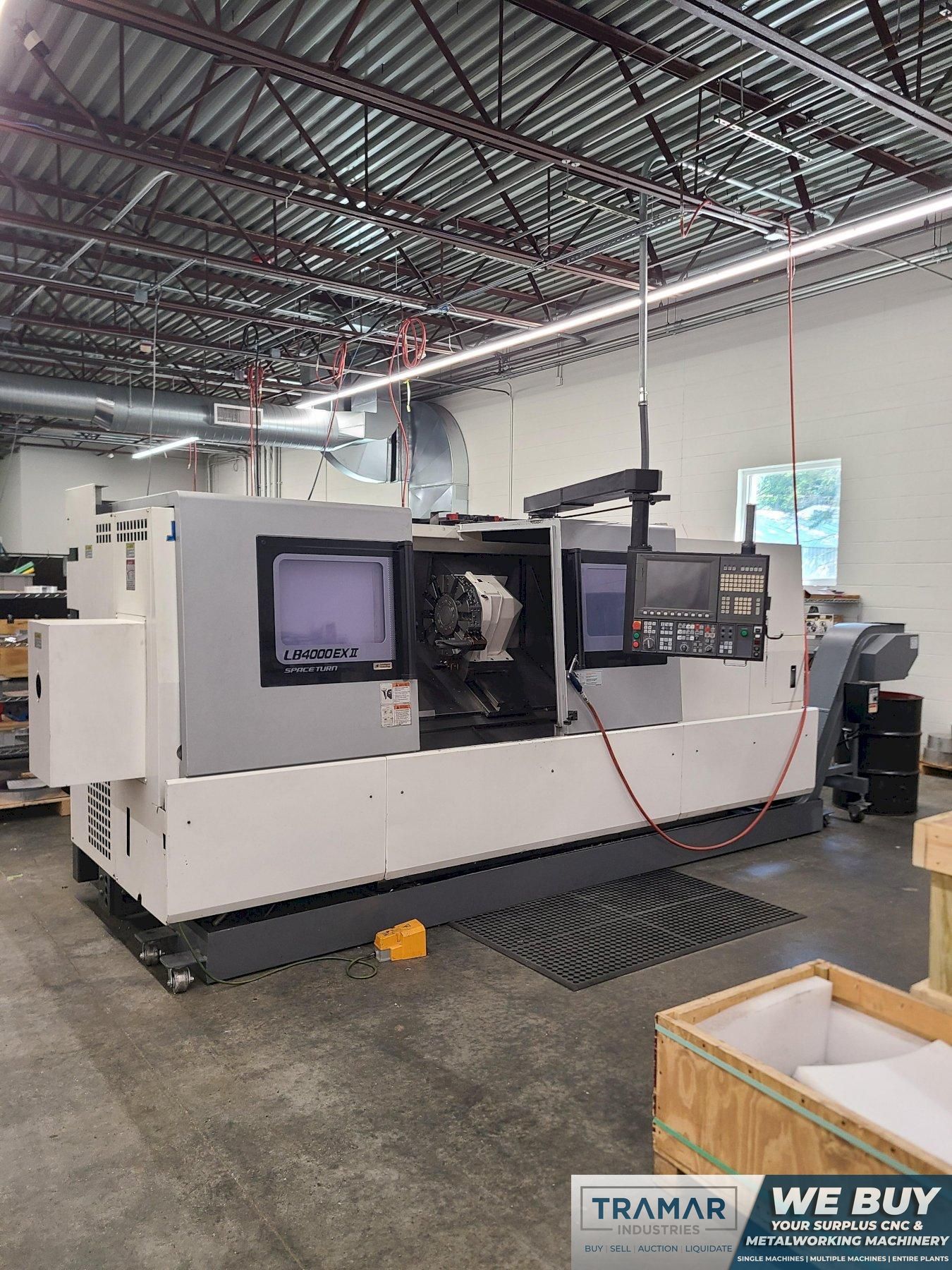

Okuma SpaceTurn LB4000EXII Used CNC Horizontal Lathe For Sale 2013
Machine Specifications
CNC Control
yes
CNC Control
OSP-P300L
# Axis
2
Swing
26.38"
Swing Over Cross Slide
18.9"
Turning Diameter
18.9"
Center Distance
59.84"
Chuck Size
15"
Bar Capacity
3.189"
X Axis Travel
11.81"
Z Axis Travel
62.6"
Rapid Traverse (X/Z)
984/1,181 ipm
Spindle Nose
A2-11
Spindle Speed
3,000 rpm
Main Motor
40 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no

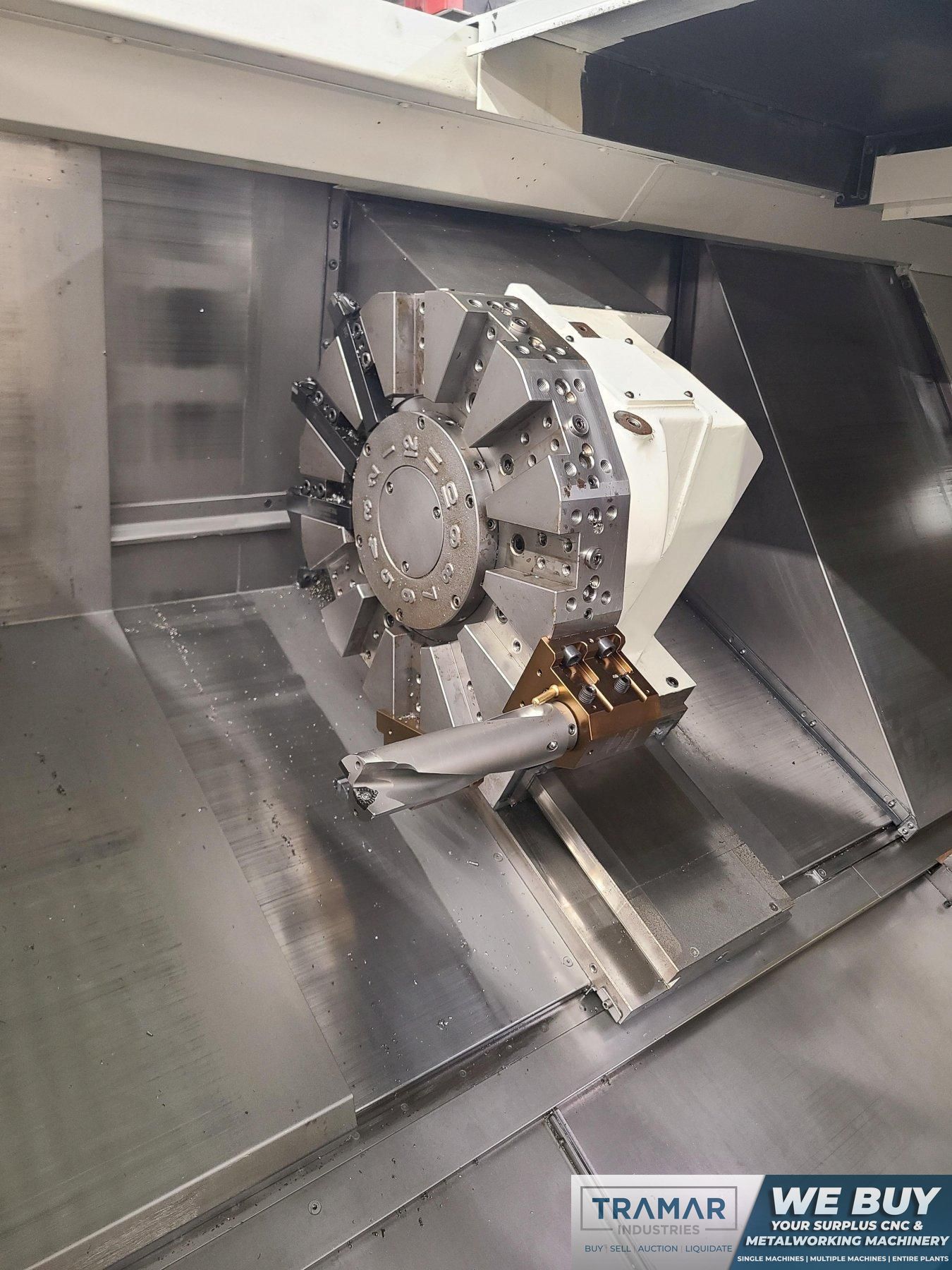

Turret Capacity
12
Machine Dimensions
164" x 94" x 85"
Machine Weight
18,040 pounds

Equipped With:

- OSP-P300L CNC Control
- Hi-G Control
- Tool Life Management
- Tool Wear Compensation

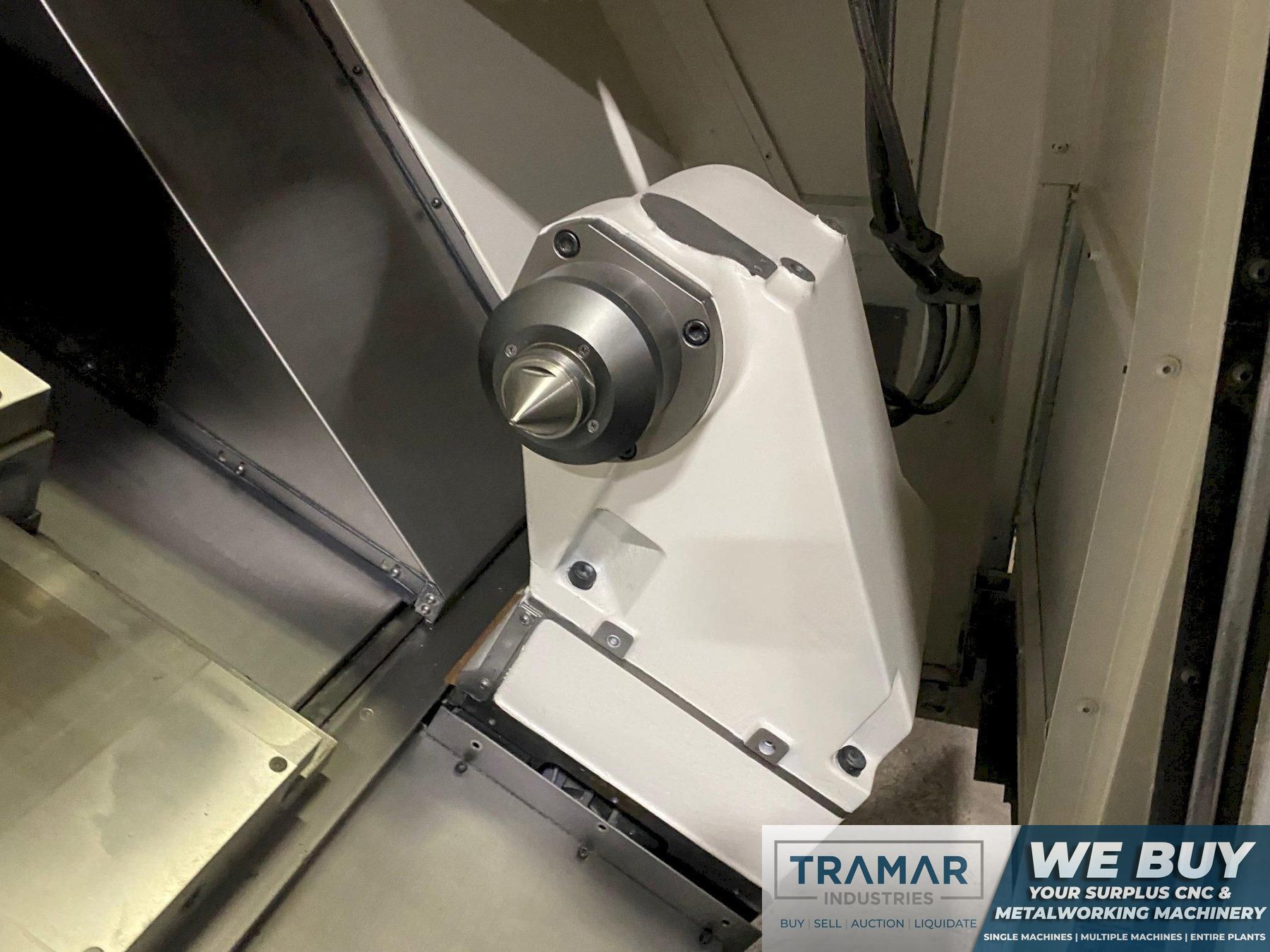

- Programmable Tailstock
- 3D Animation
- IGF (Conversational Programming)

The Okuma SpaceTurn LB4000EXII is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
