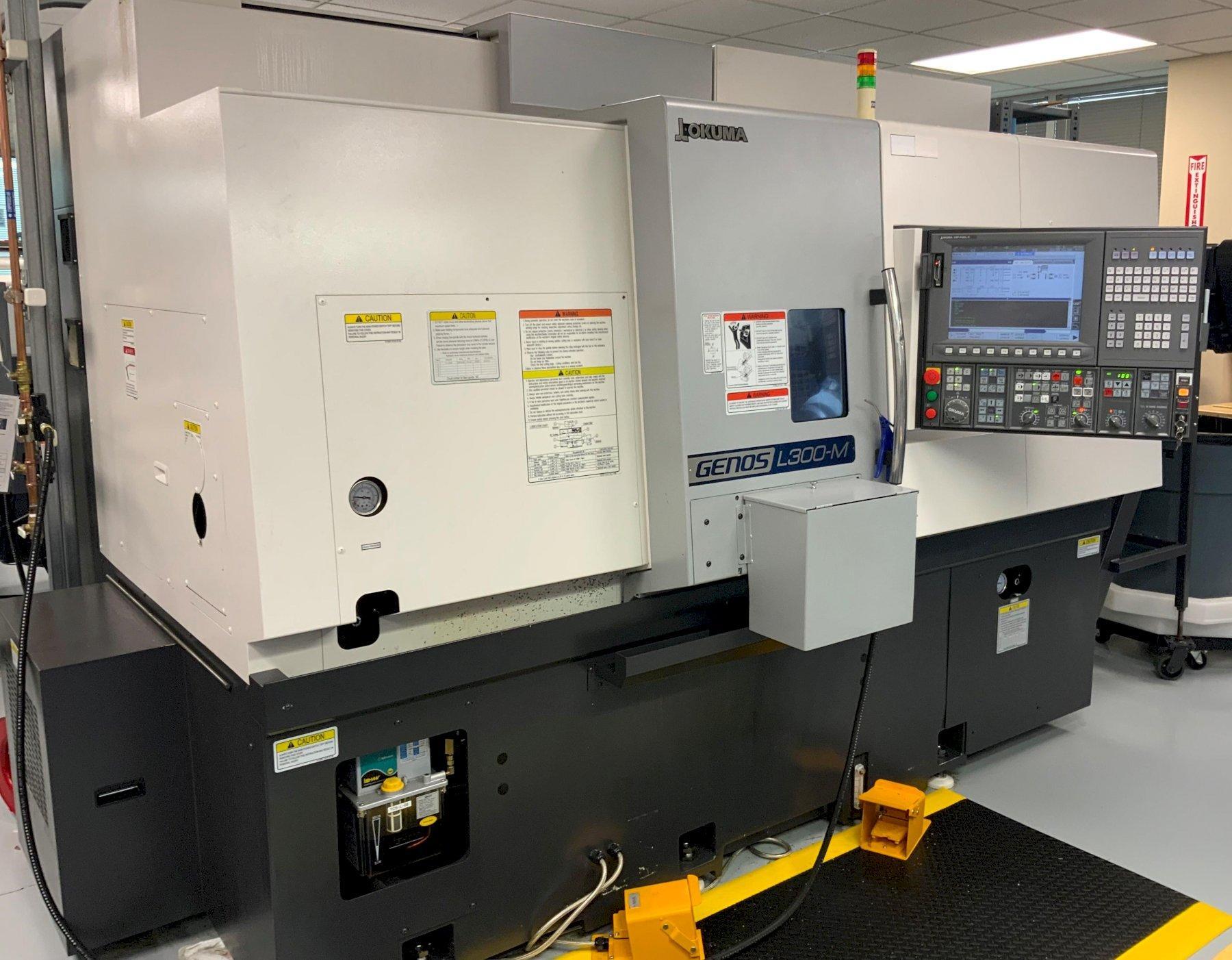

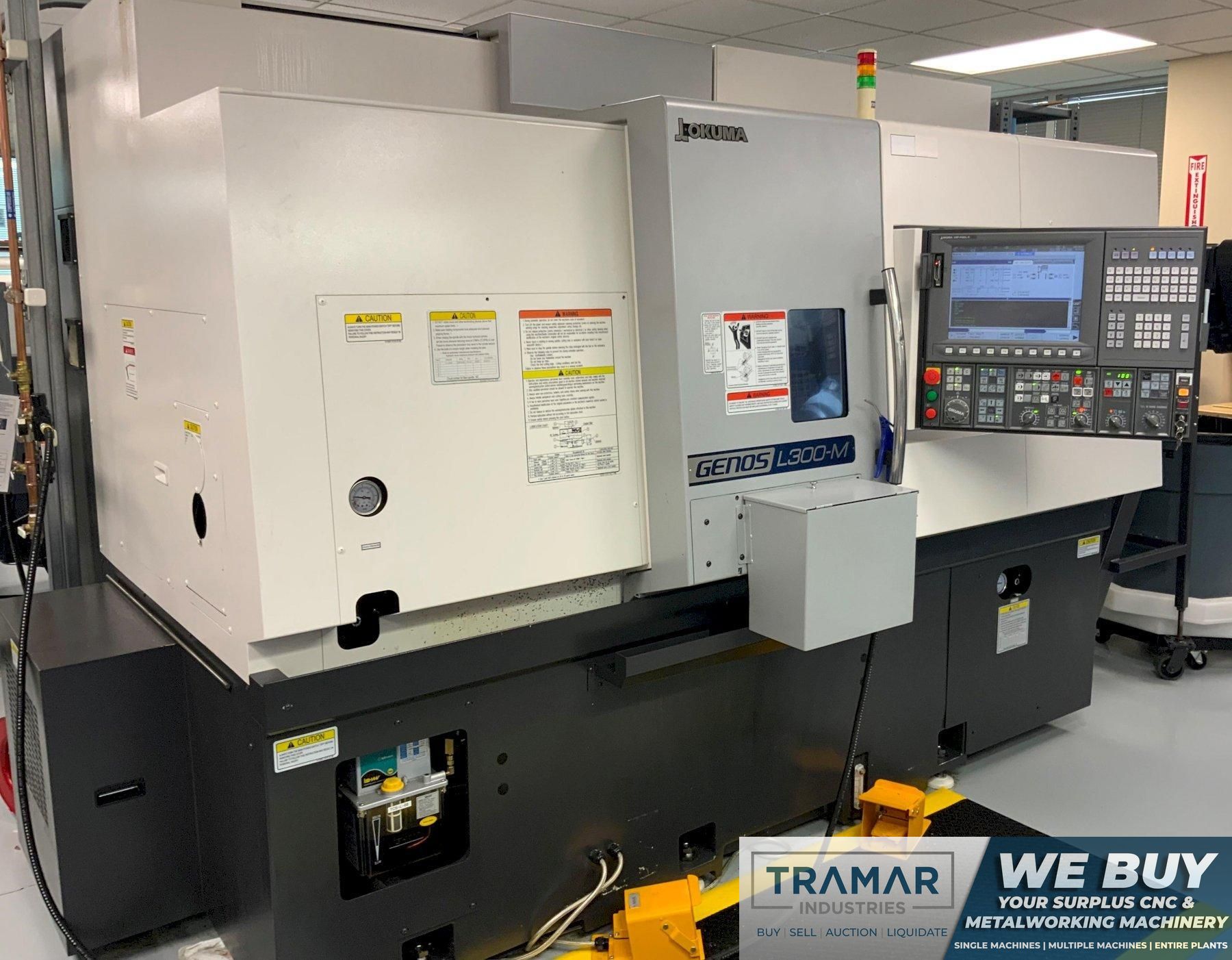

Okuma Genos L-300MYW - Lathes (3-Axis or More)

Share Machine
Specifications Print Specs
Model: Genos L-300MYW
Year: 2015
Stock #: BR16000 Sold
Highlights:

Okuma Genos L300MYW CNC Lathe, OSP P300LA, 10
Machine Specifications

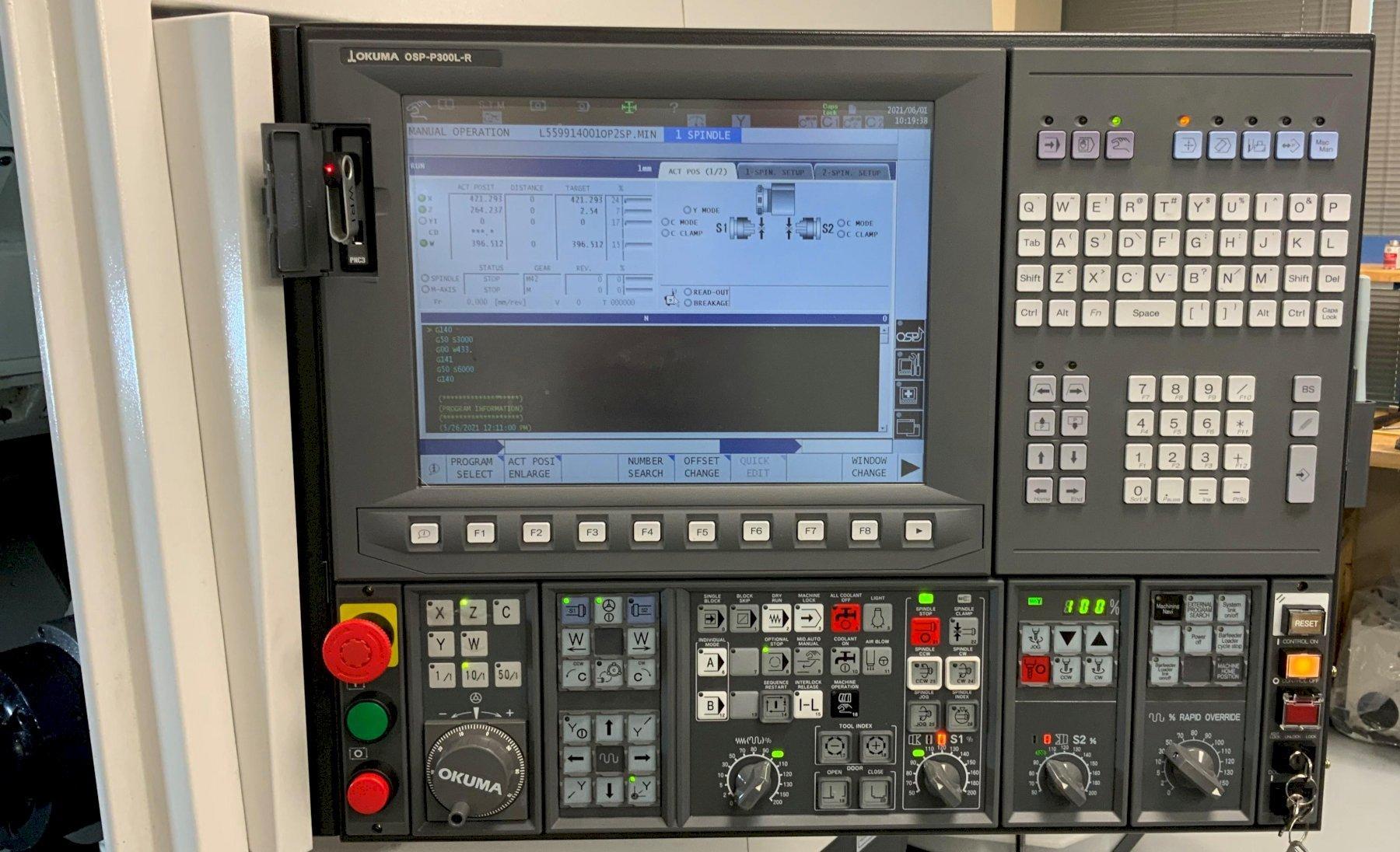

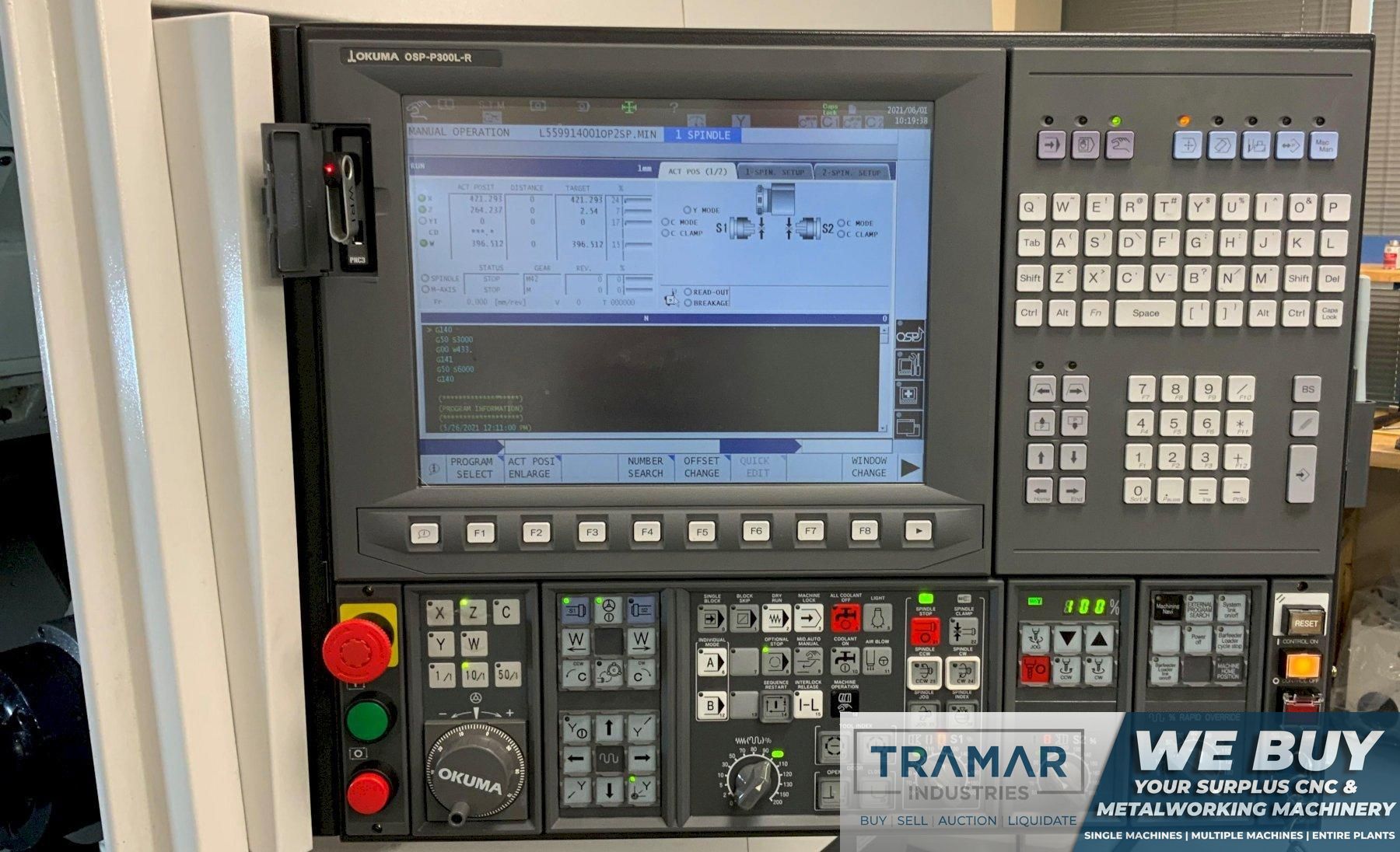

Control Type
OSP P300LA
Chuck Size
10"
Spindle Nose
A2-8
Turning Diameter
11.81"
C-Axis
yes
W-Axis Travel
20.47"
X Axis Travel
9.25"
Y-Axis Travel
3.94"
Z Axis Travel
18.11"
Spindle Speed (RPM)
3,000
Main Motor
20 Horsepower

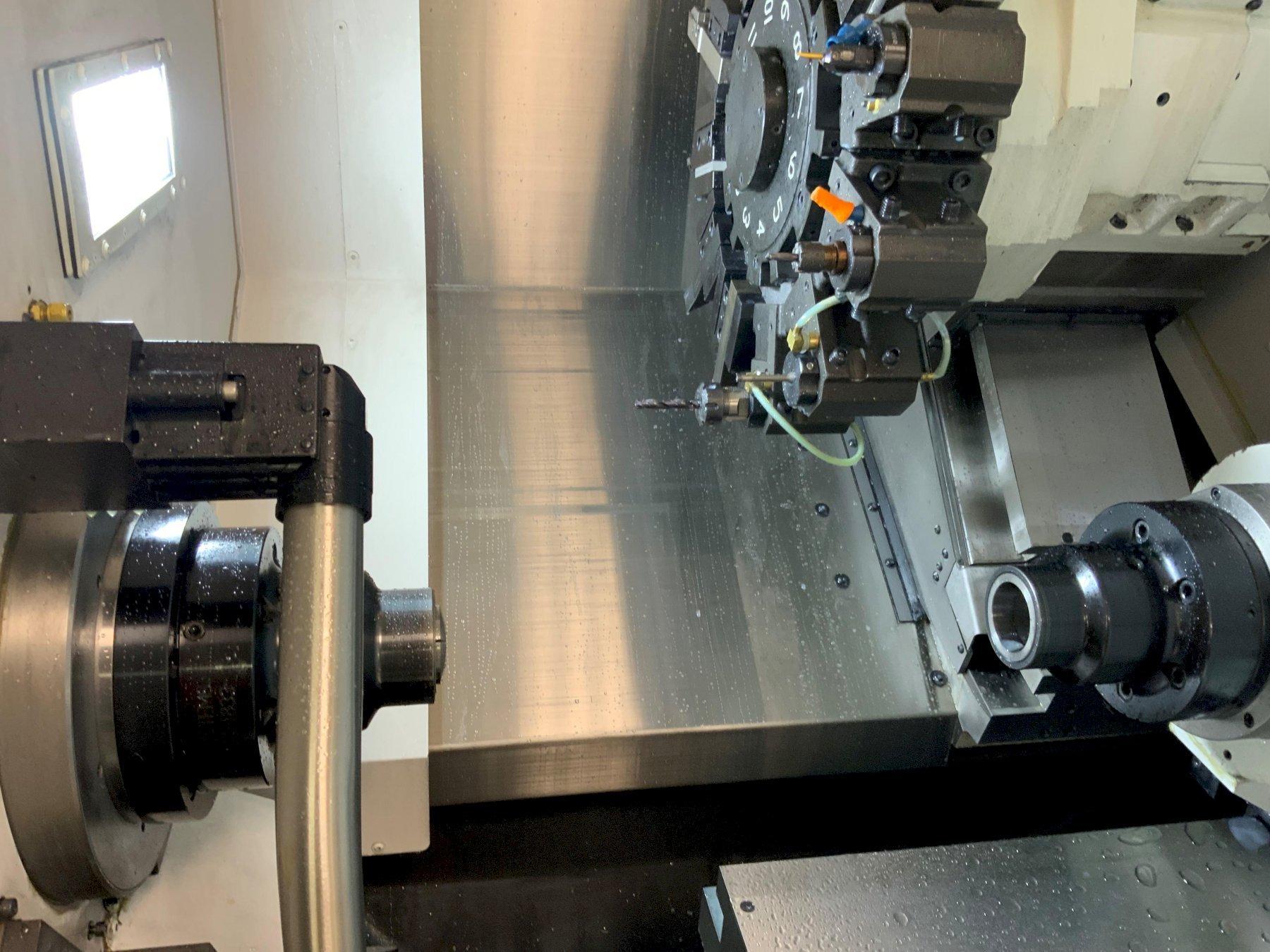

Sub Spindle Speed (RPM)
6,000
Sub Spindle Motor
10 HP
Live Milling (Yes / No)
yes
Live Milling Speed (RPM)
6,000
Live Milling Motor
7.5 HP
Number Of Turrets
1

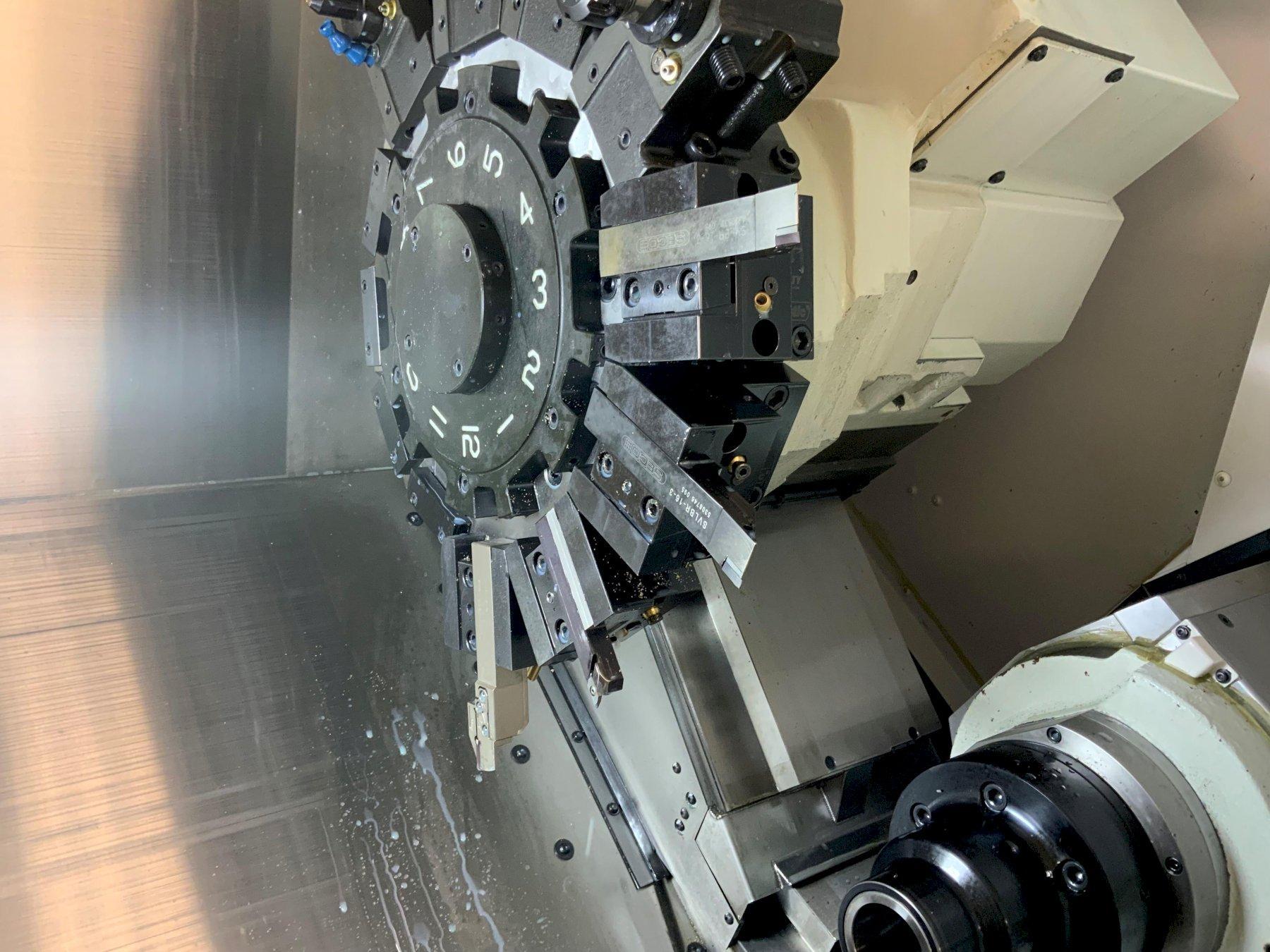

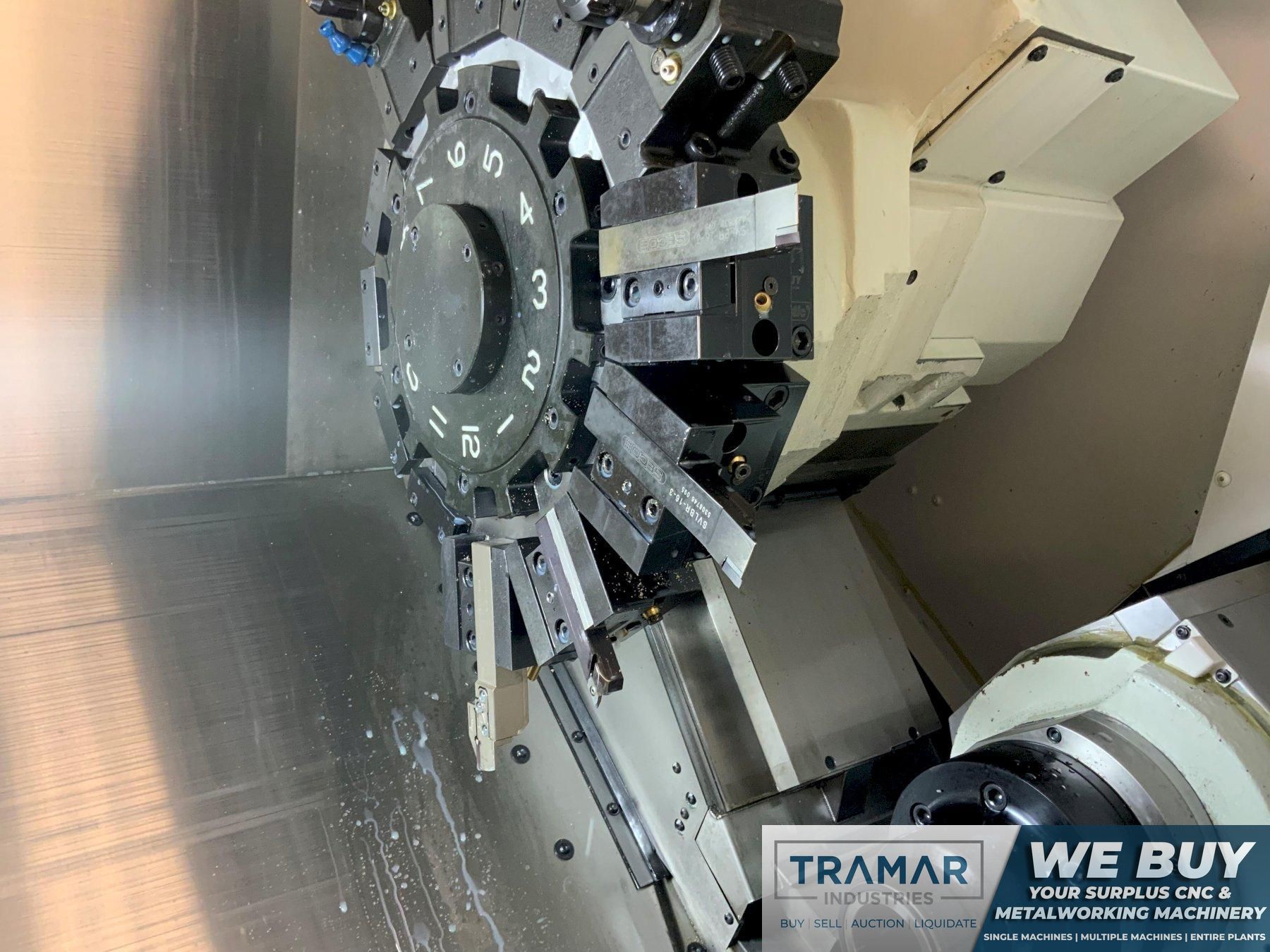

Turret Capacity (Upper/Lower)
12 Station
Weight
13,700 pounds

Equipped With:

Tool Setter

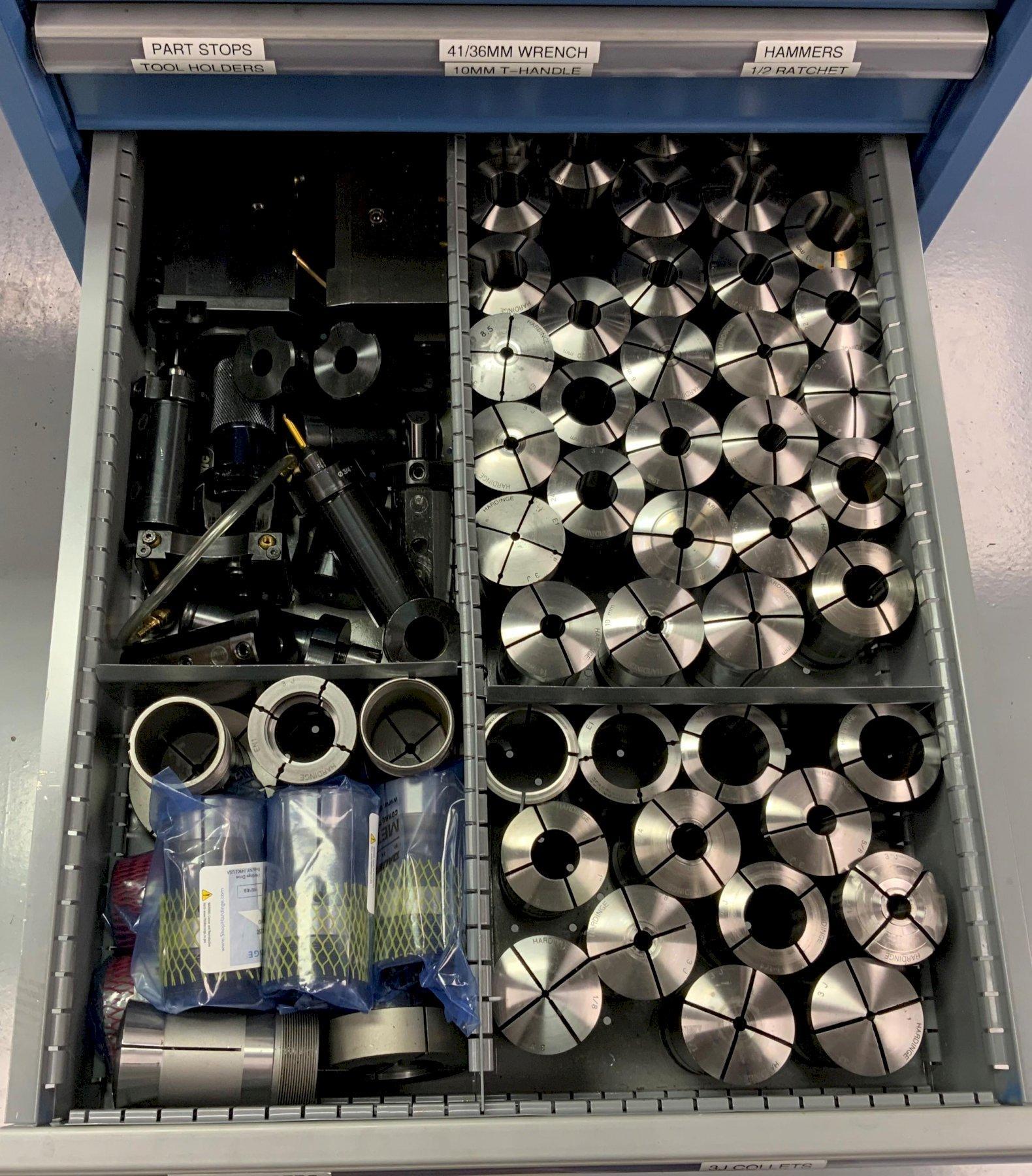

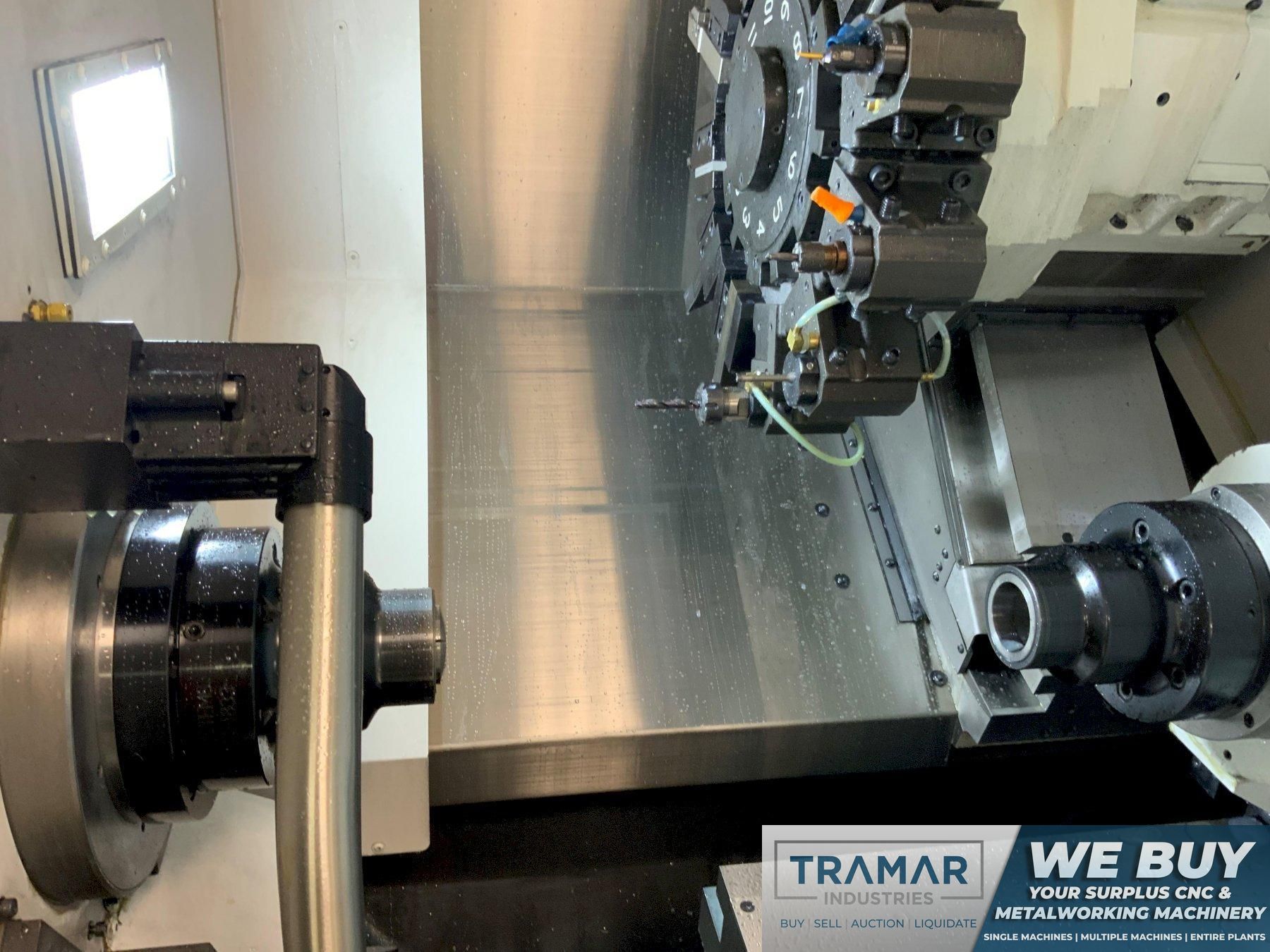

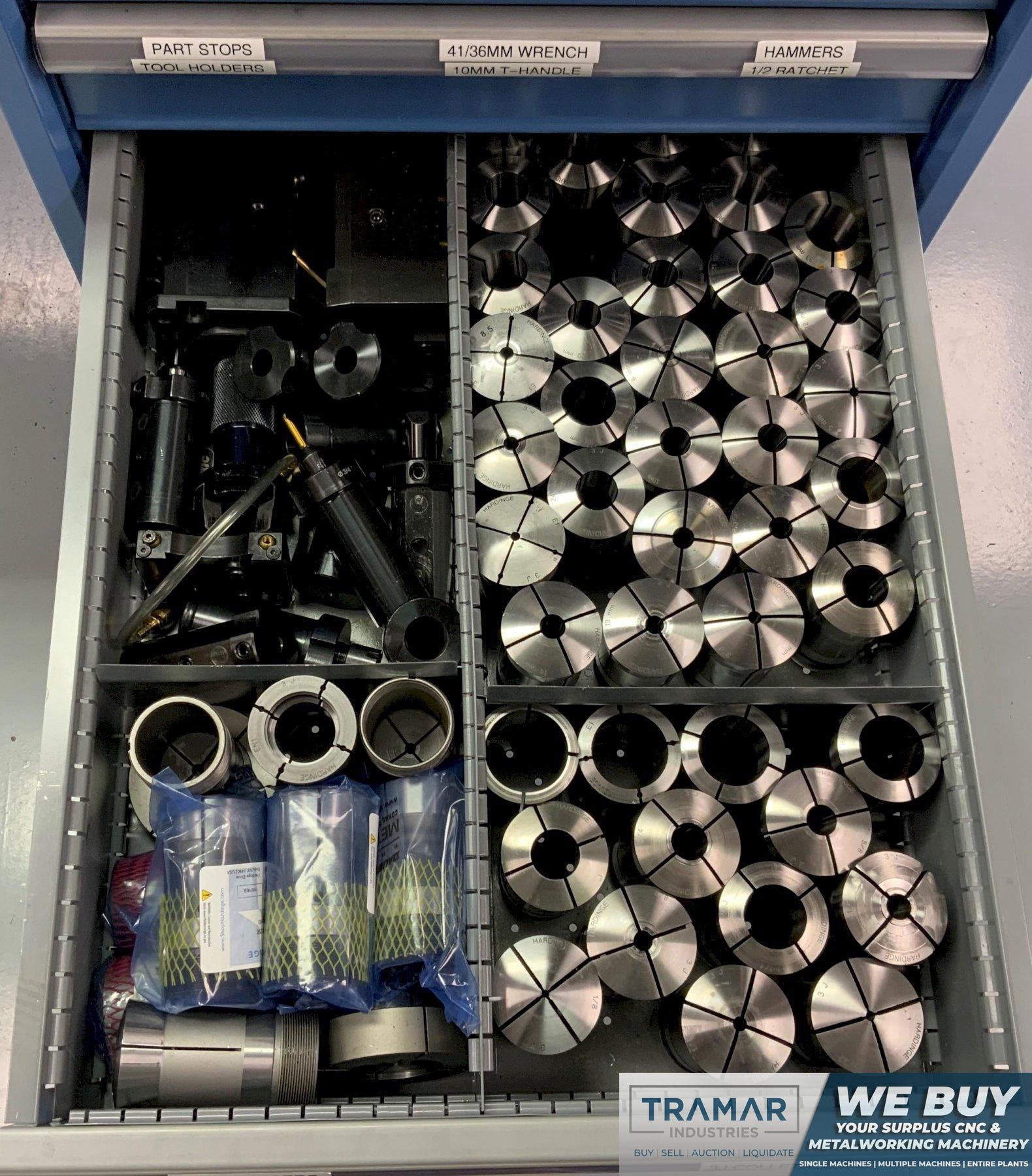

Collet Chuck on Main and Sub Spindles

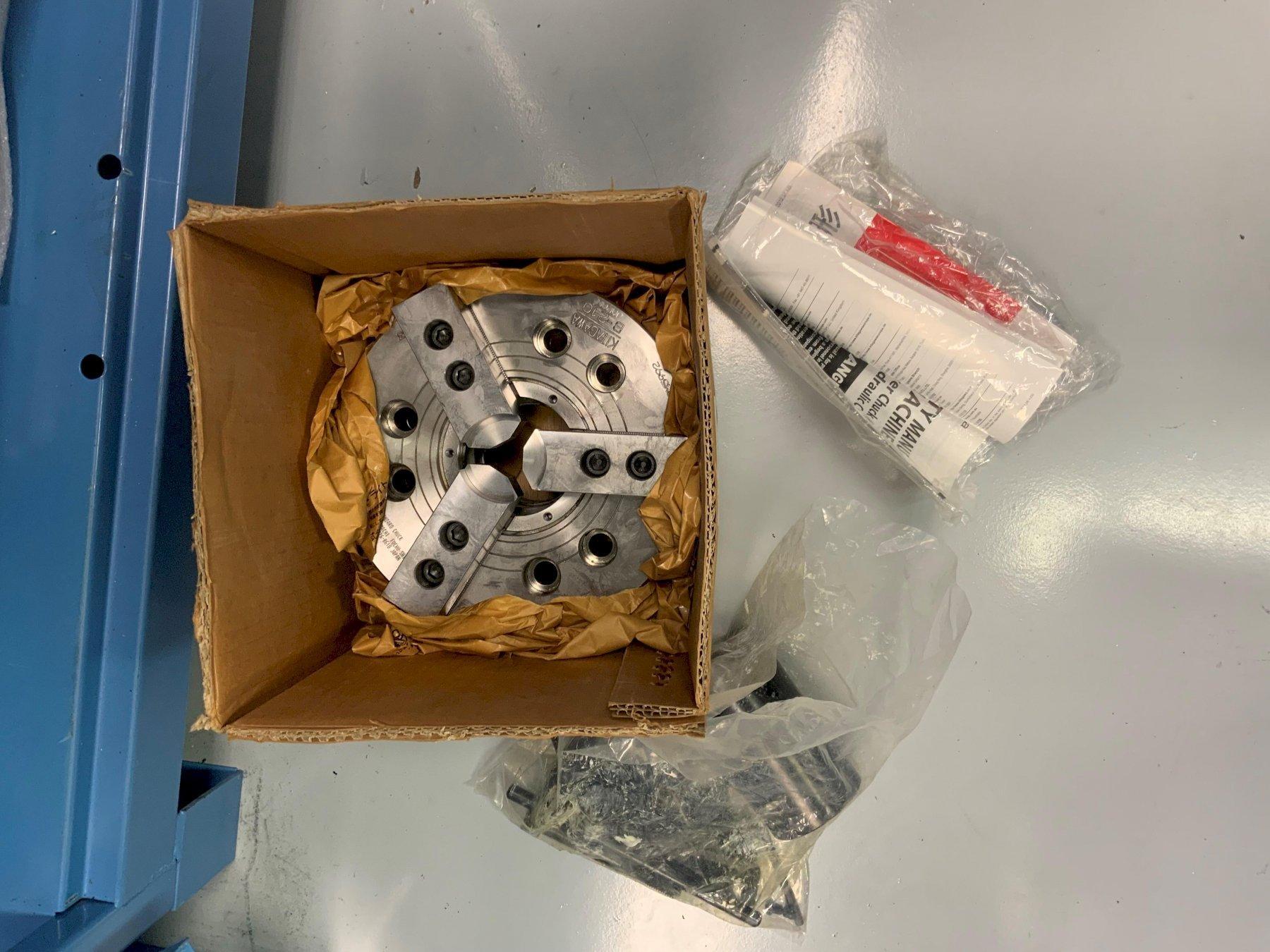

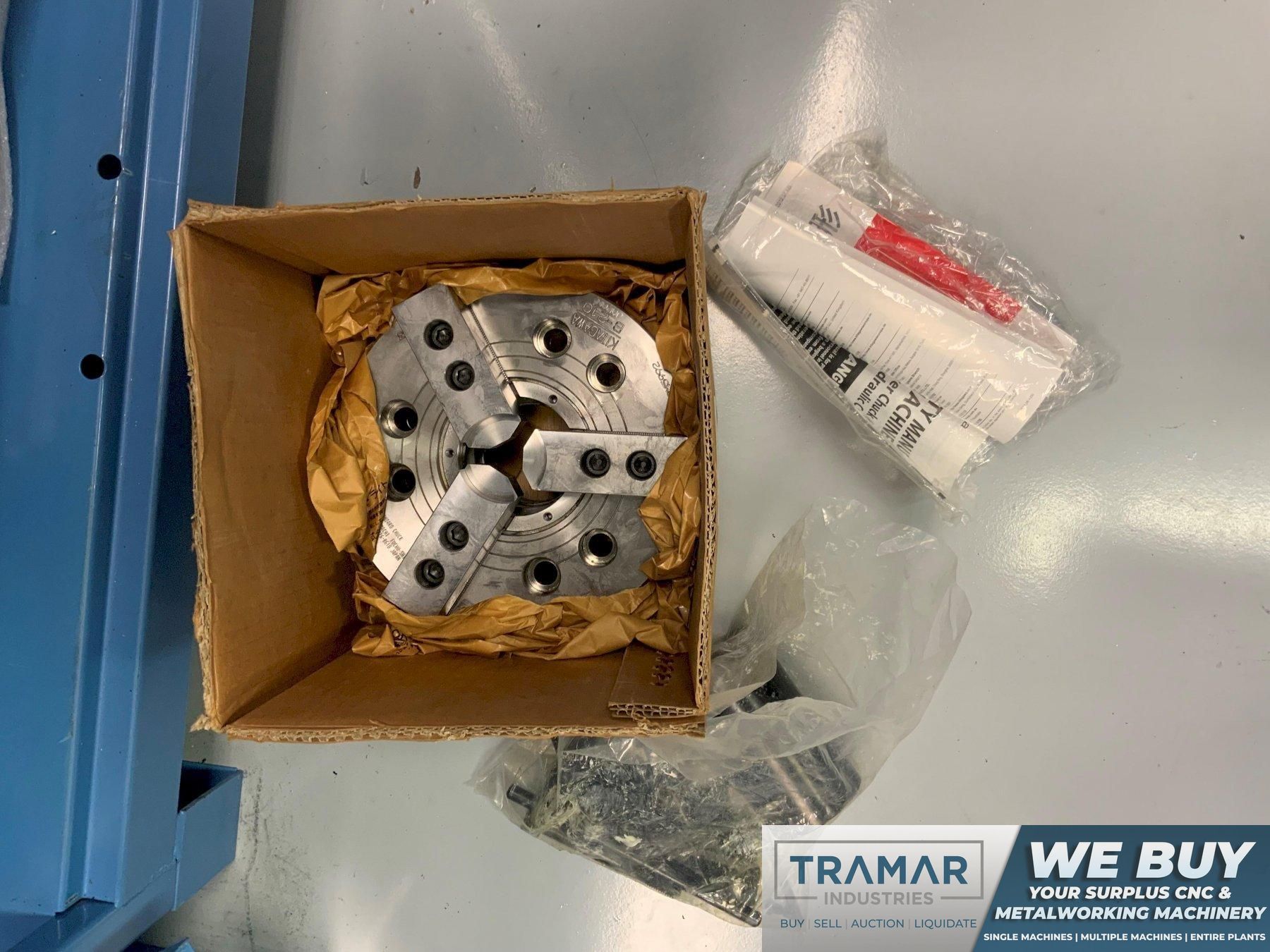

10" 3 Jaw Chuck
4 Live Holders

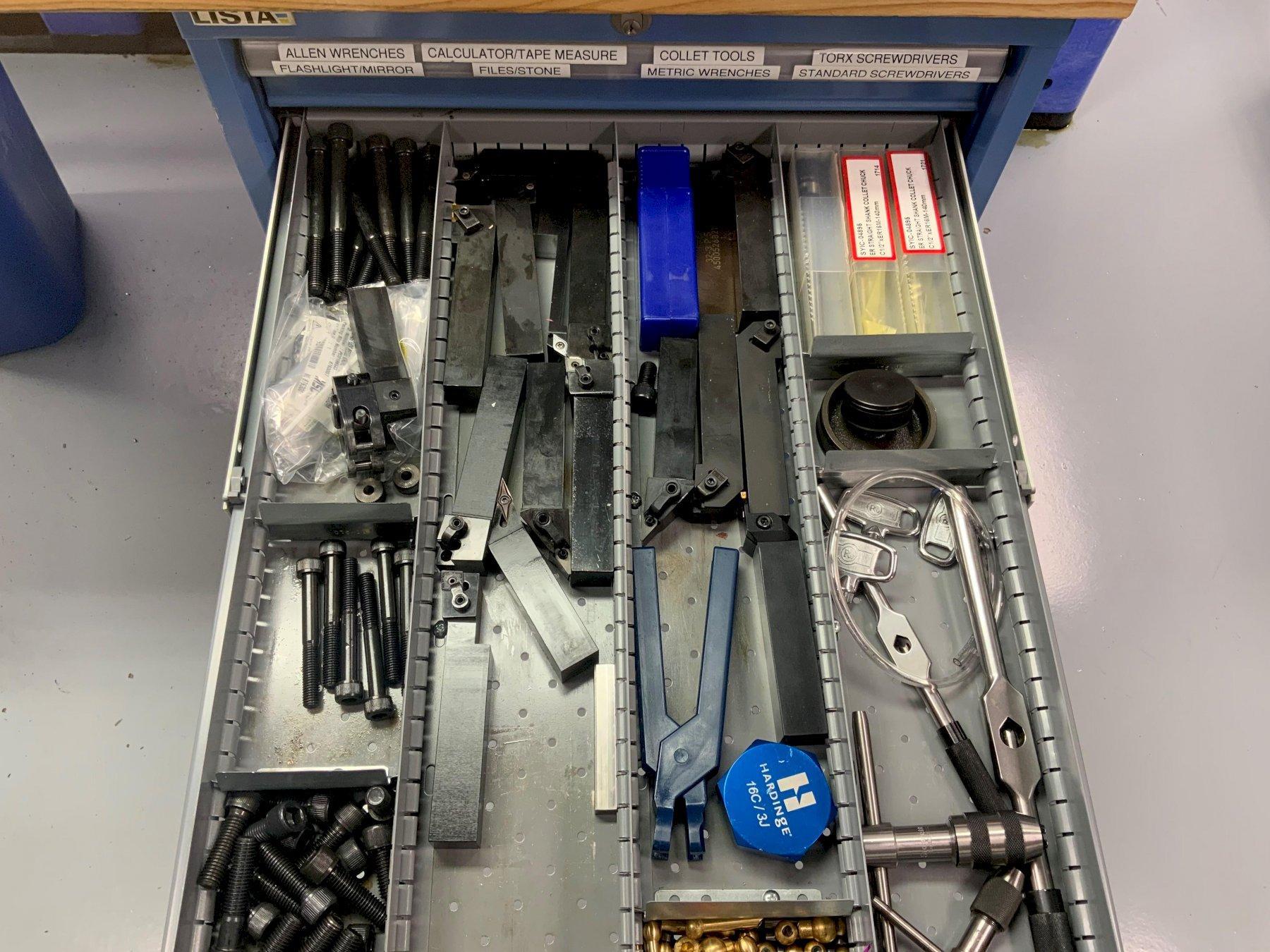

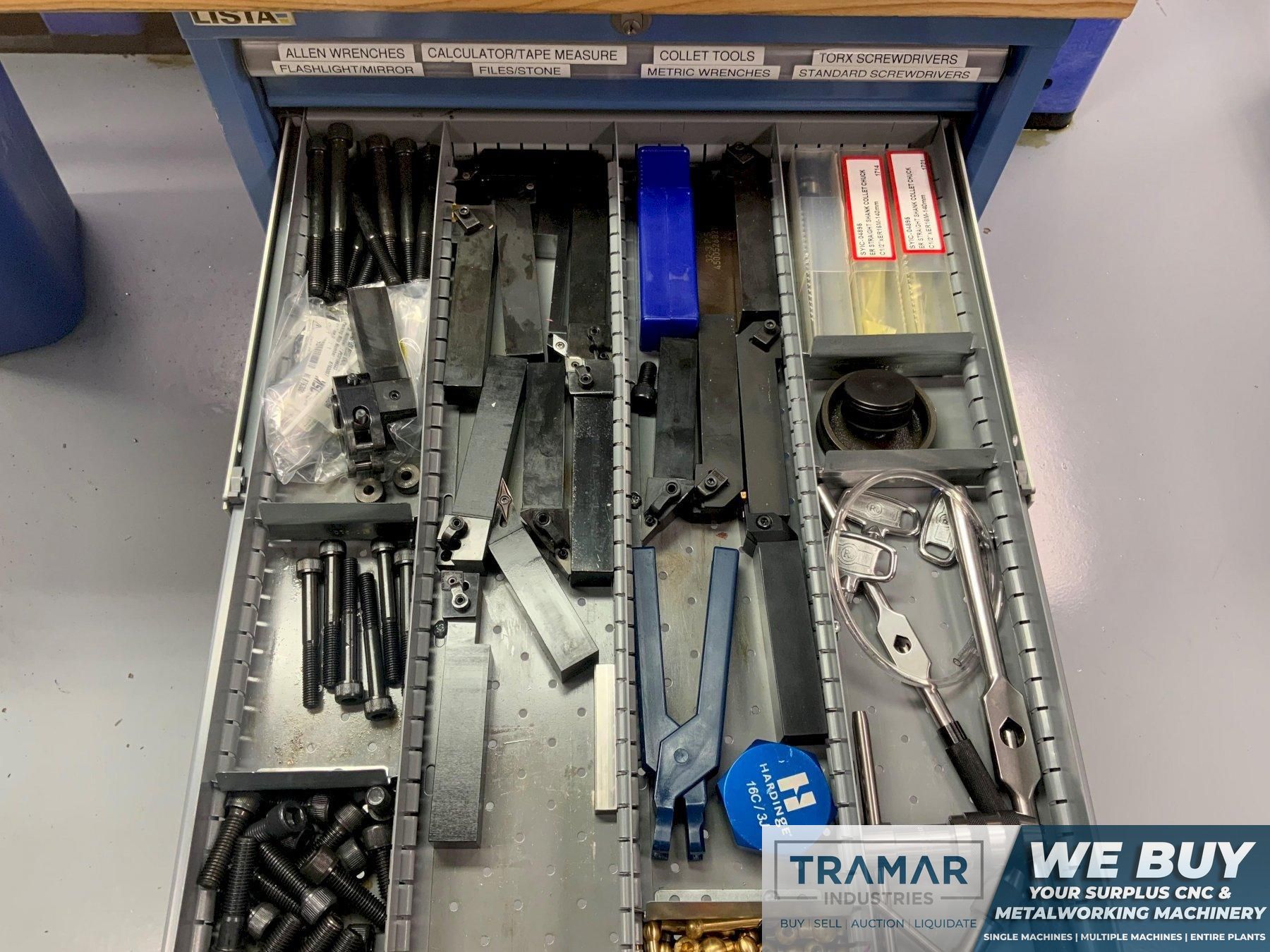

Misc Static toolholders
Thermal Compensation
HI G Control
DNC T-1
Tool Offsets 96
Synchro Tap
Plane Conversion

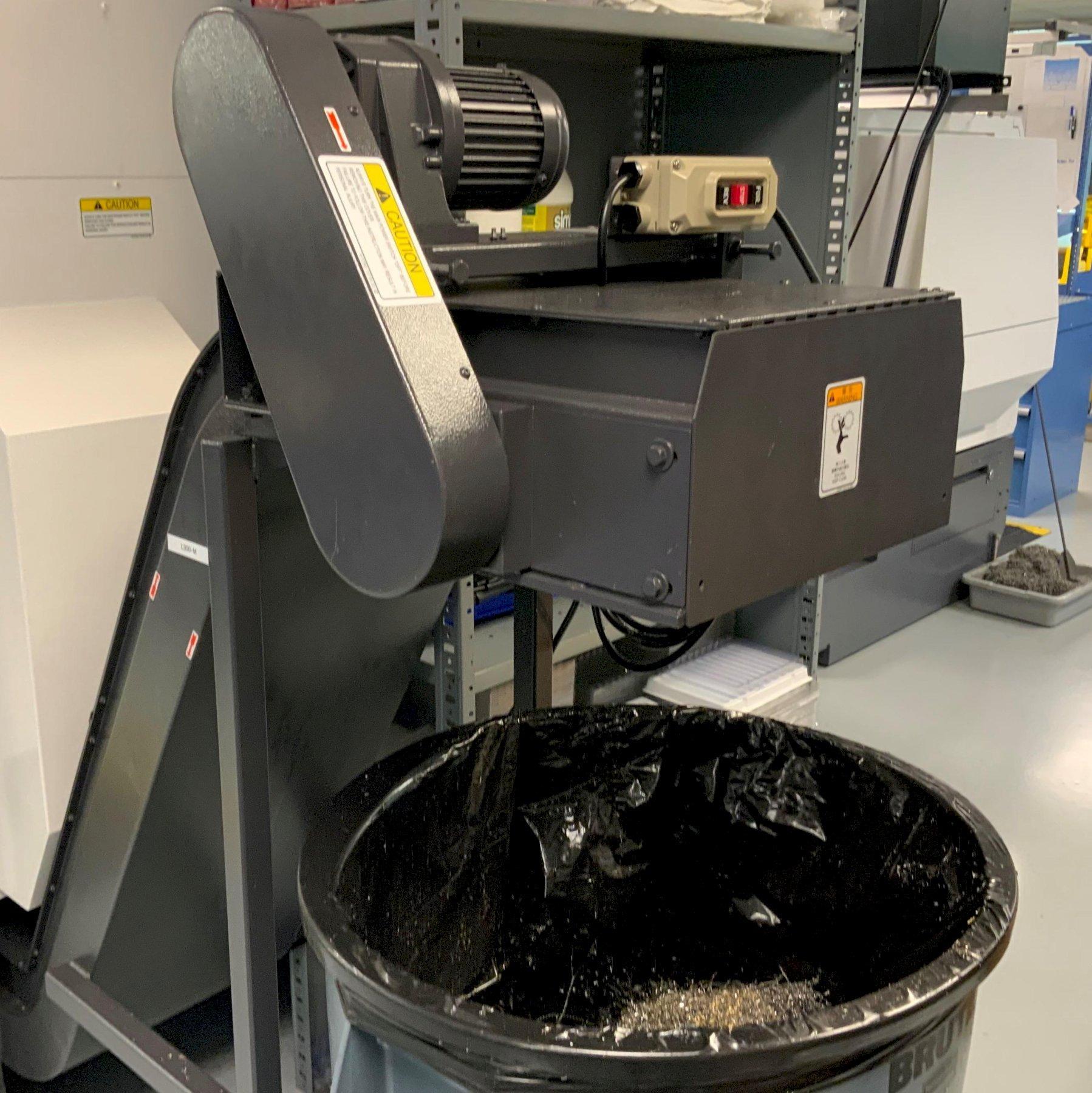

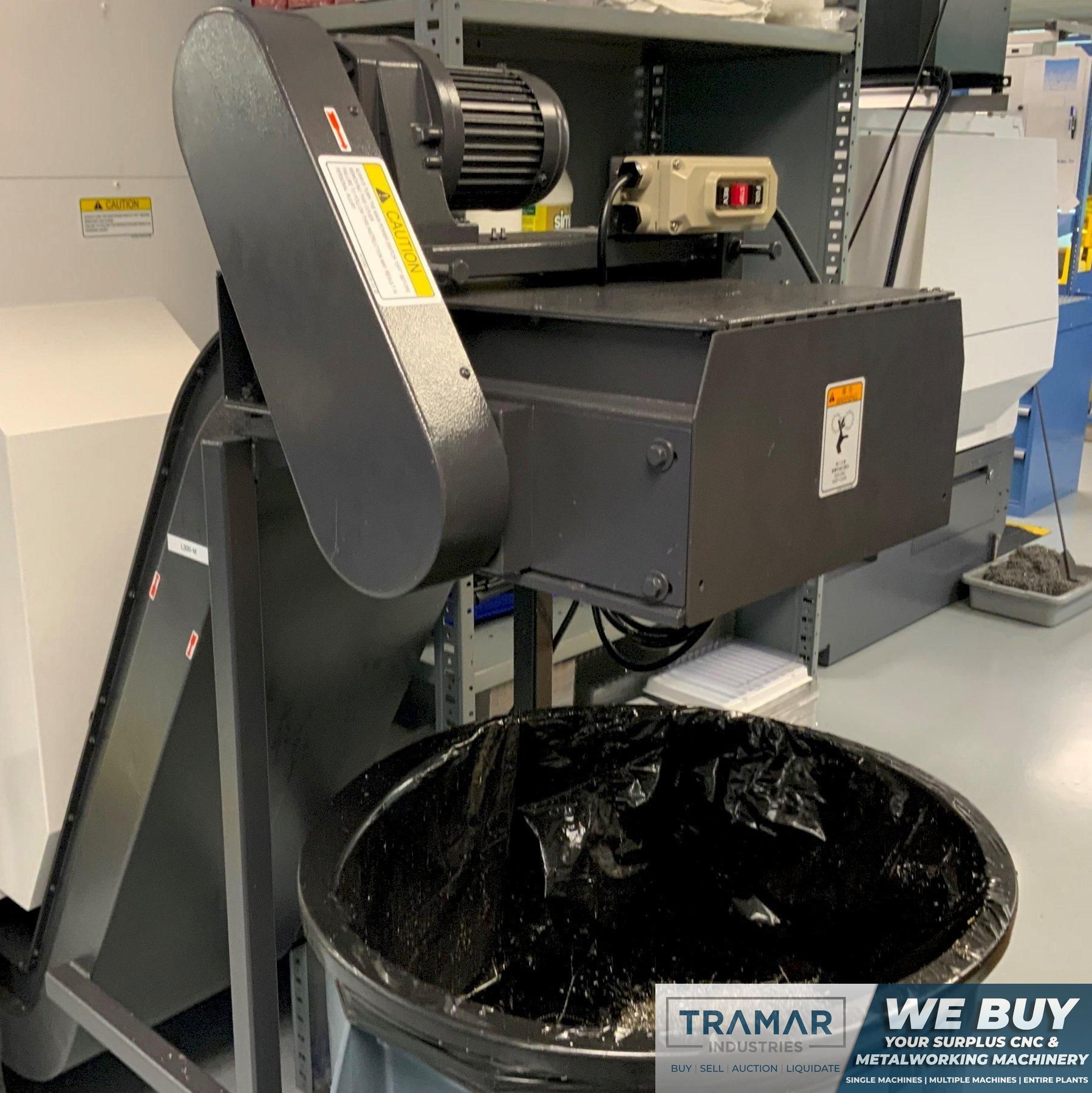

Chip Conveyor

The Okuma Genos L-300MYW is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
