OKK VC-X500 - Machining Centers, Vertical, (5-Axis or More)

Share Machine

Specifications Print Specs

Model: VC-X500

Year: 2014

Stock #: 14345 Sold

Type: Machining Centers, Vertical, (5-Axis or More)

Manufacturer: Used OKK Machines

Highlights:
Fanuc 31i-Model B5 CNC Control
Manual Guide i
Data Server

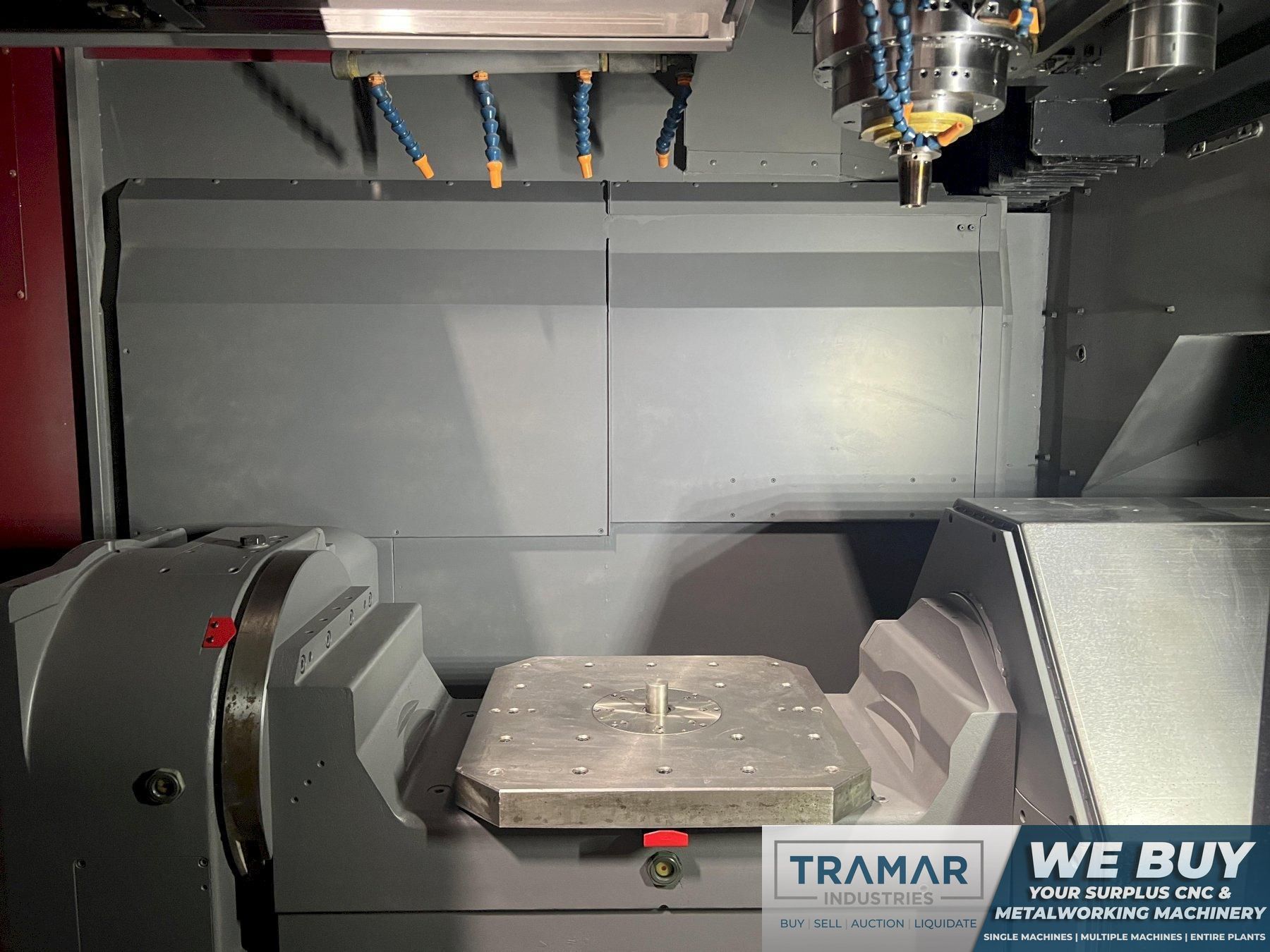

5-Axis Machining
Coolant Thru Spindle

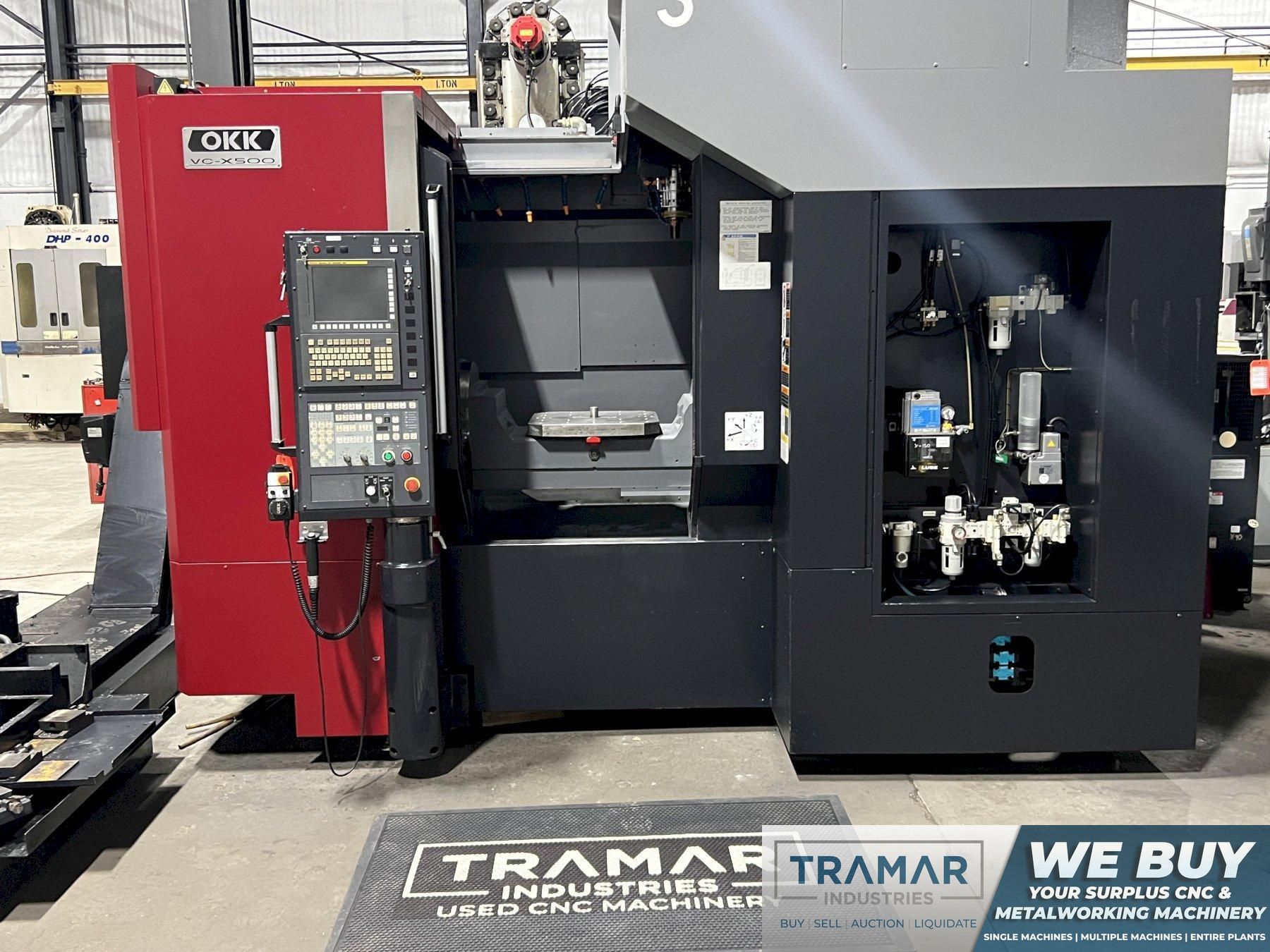

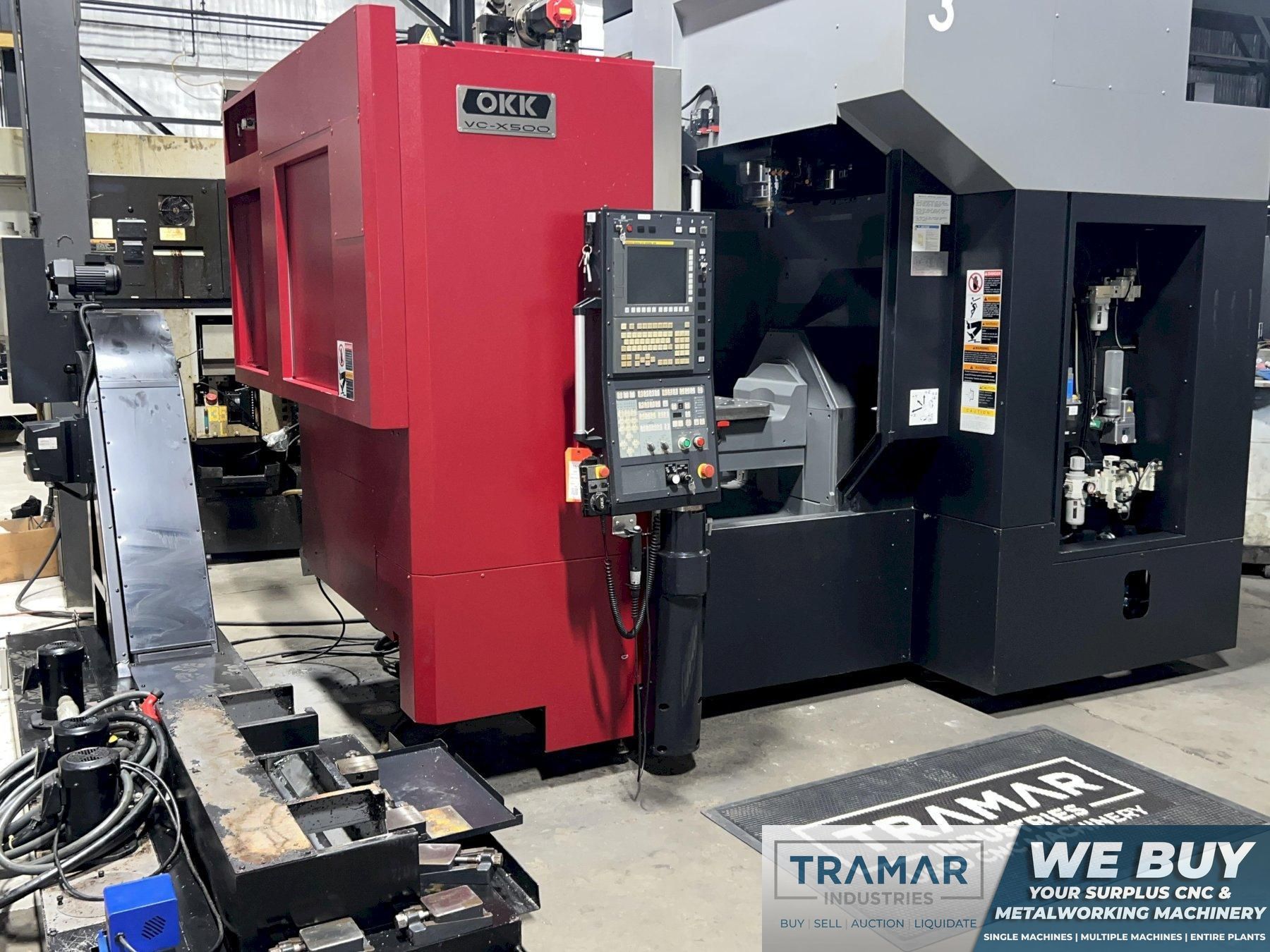

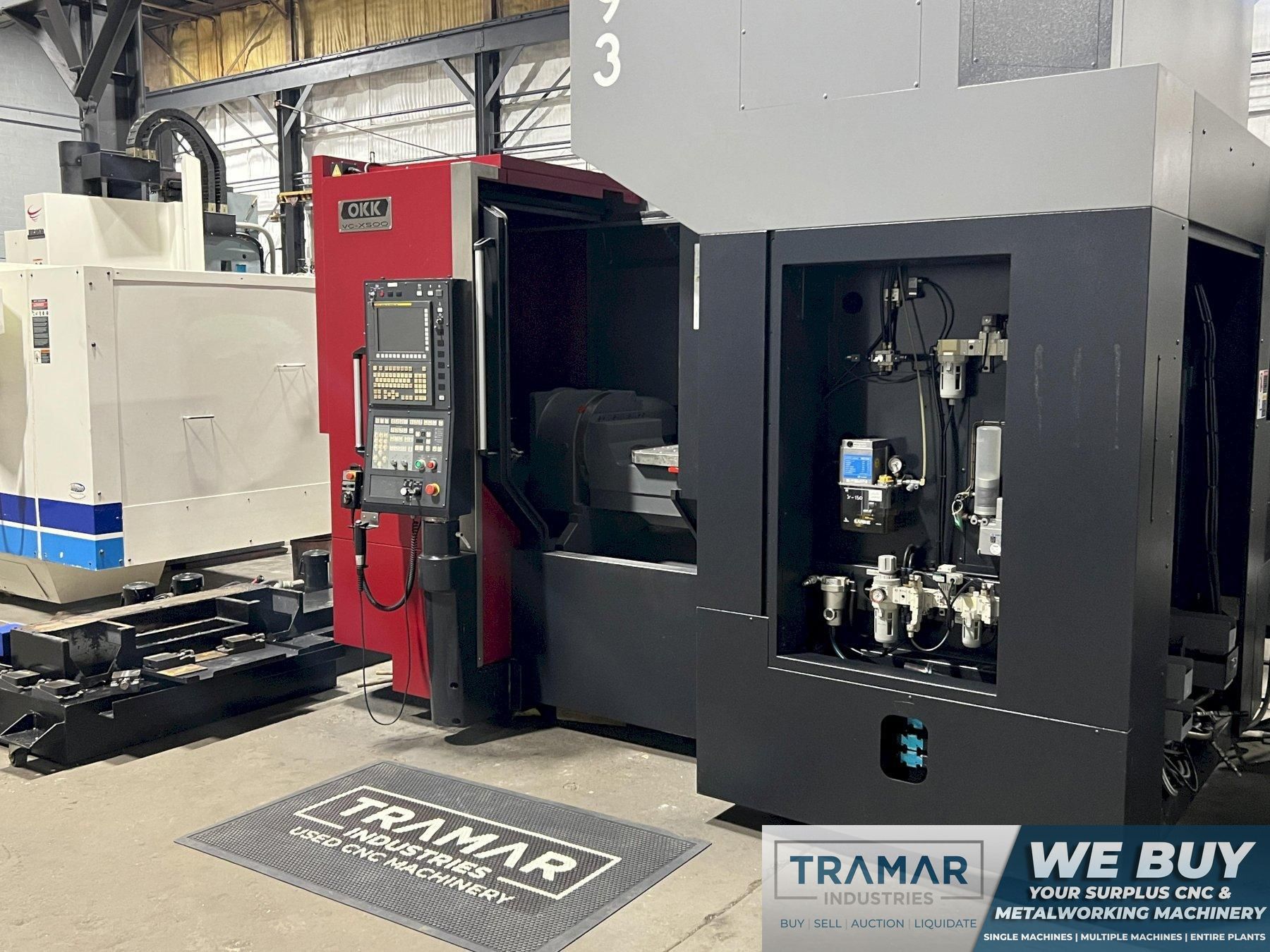

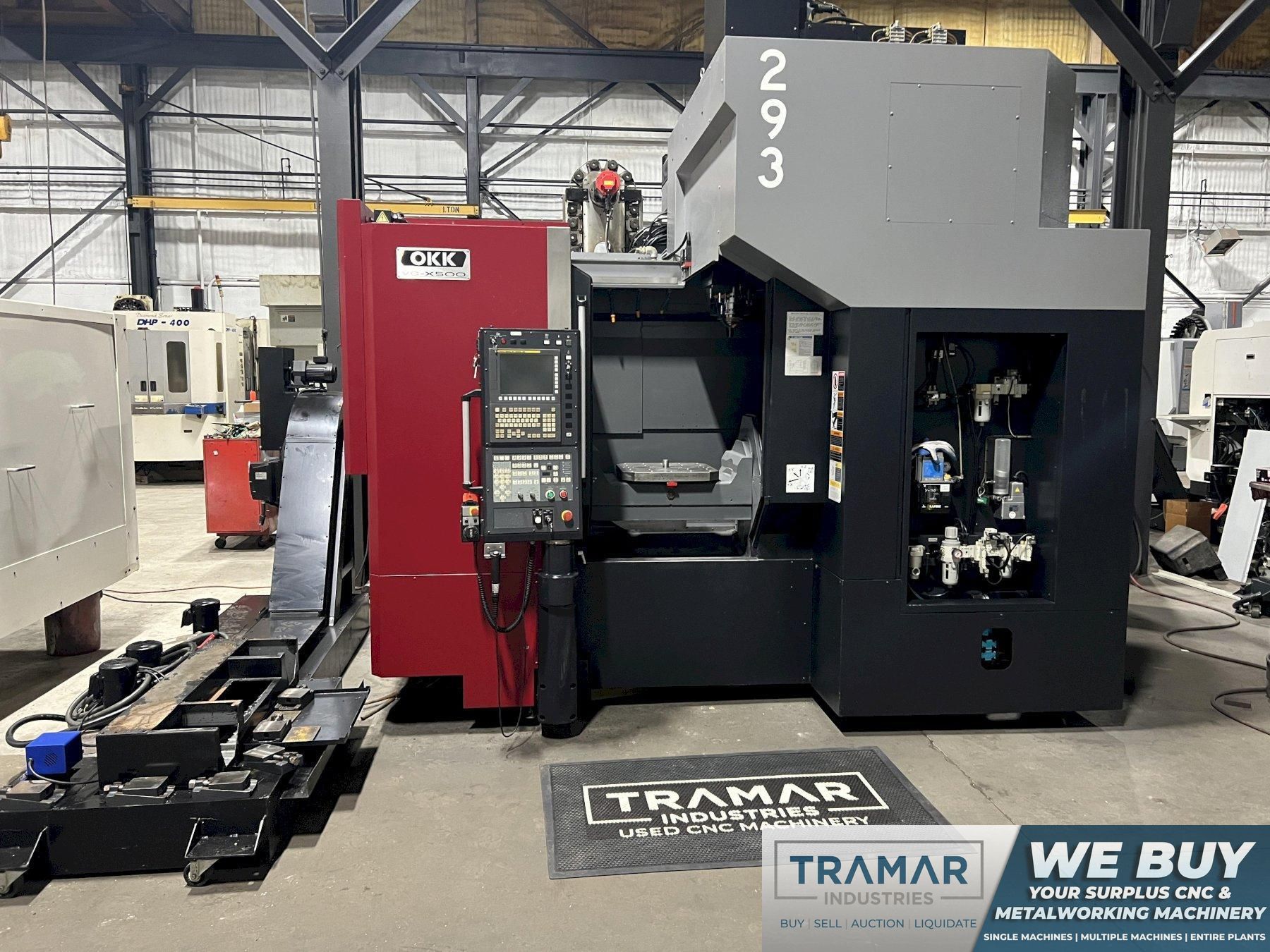

OKK VC-X500 5-Axis CNC Vertical Machining Center For Sale - 2014

Equipped With:

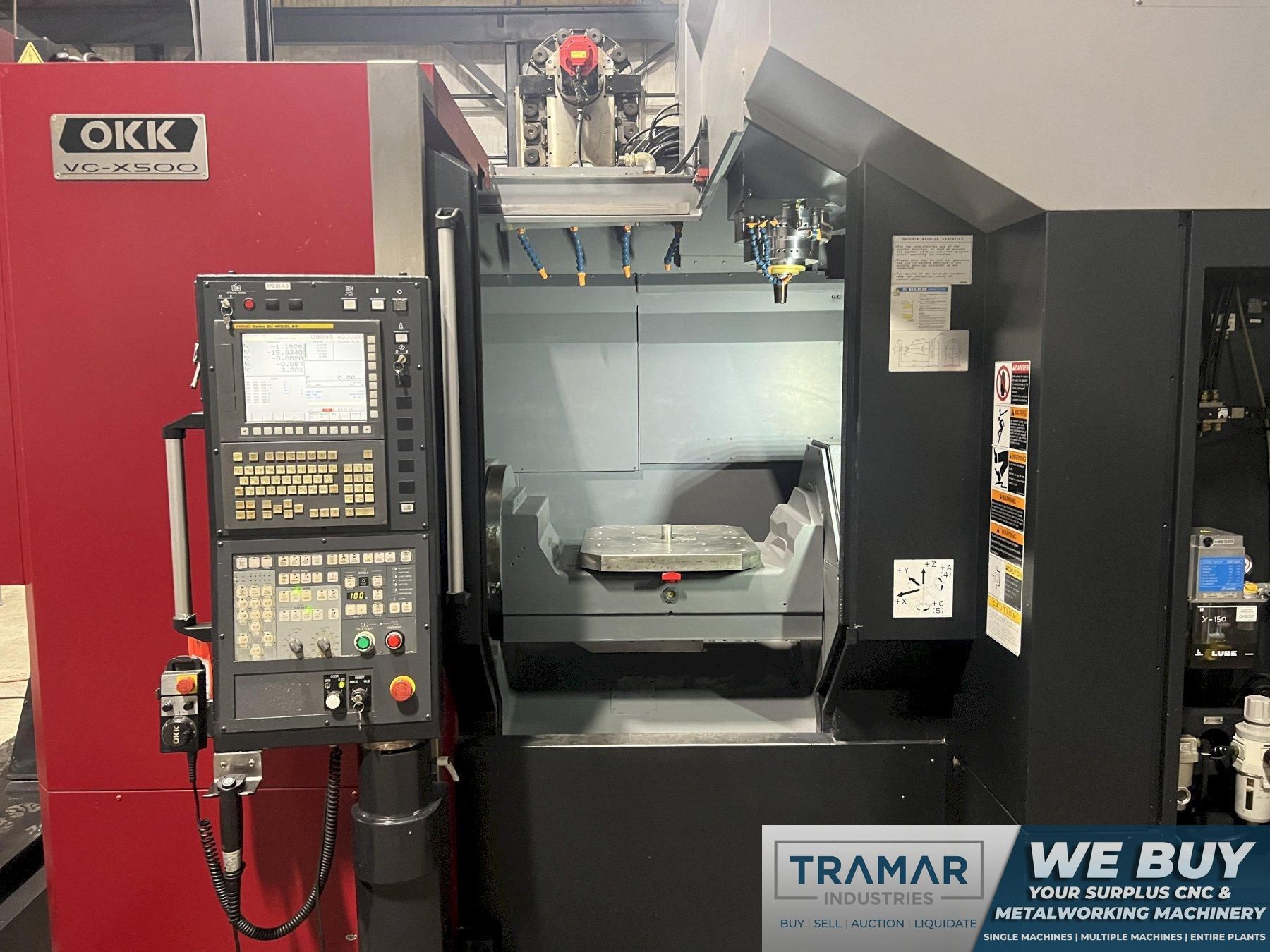

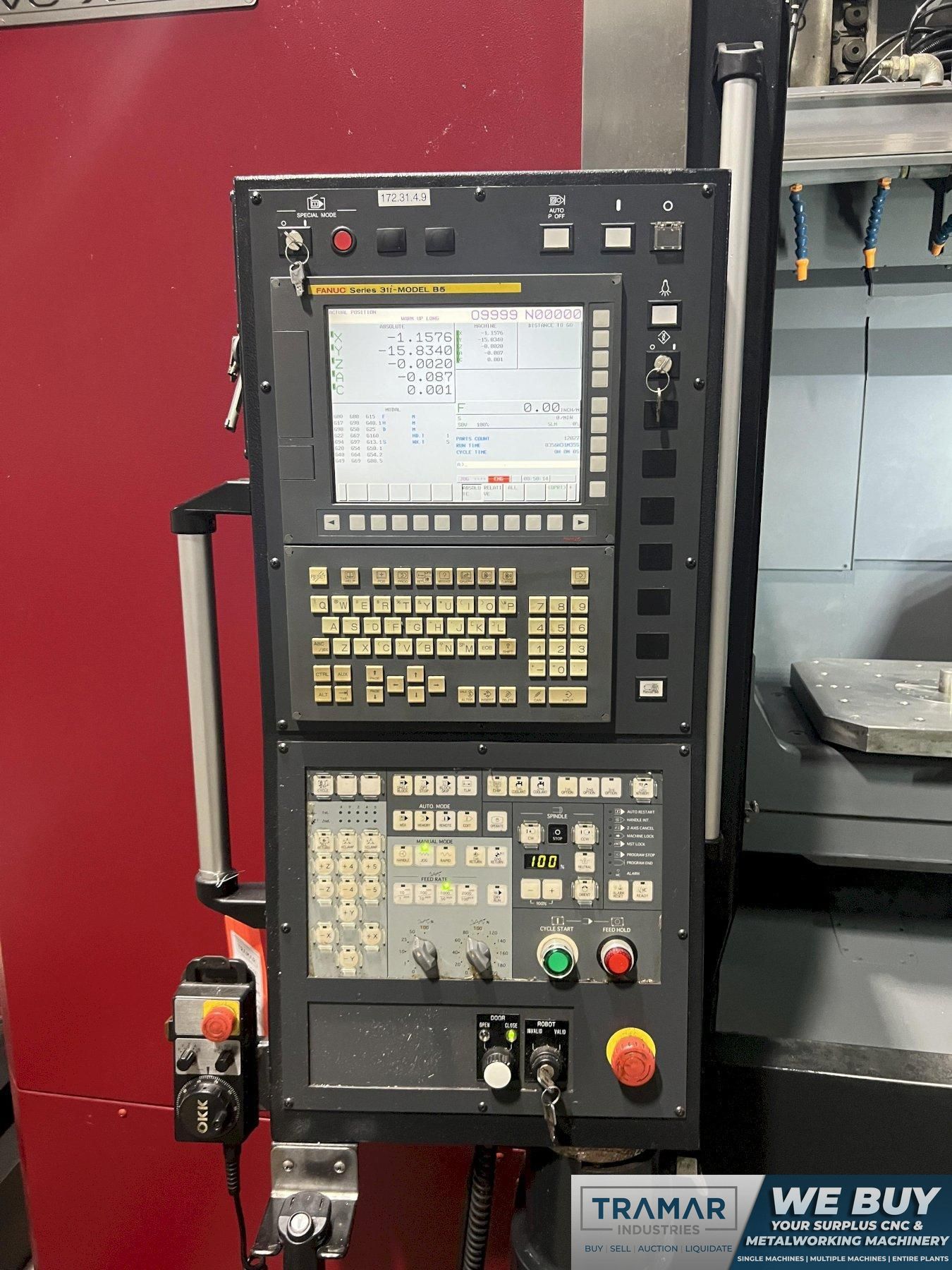

- Fanuc 31i-Model B5 CNC Control
- 5-Axis Machining

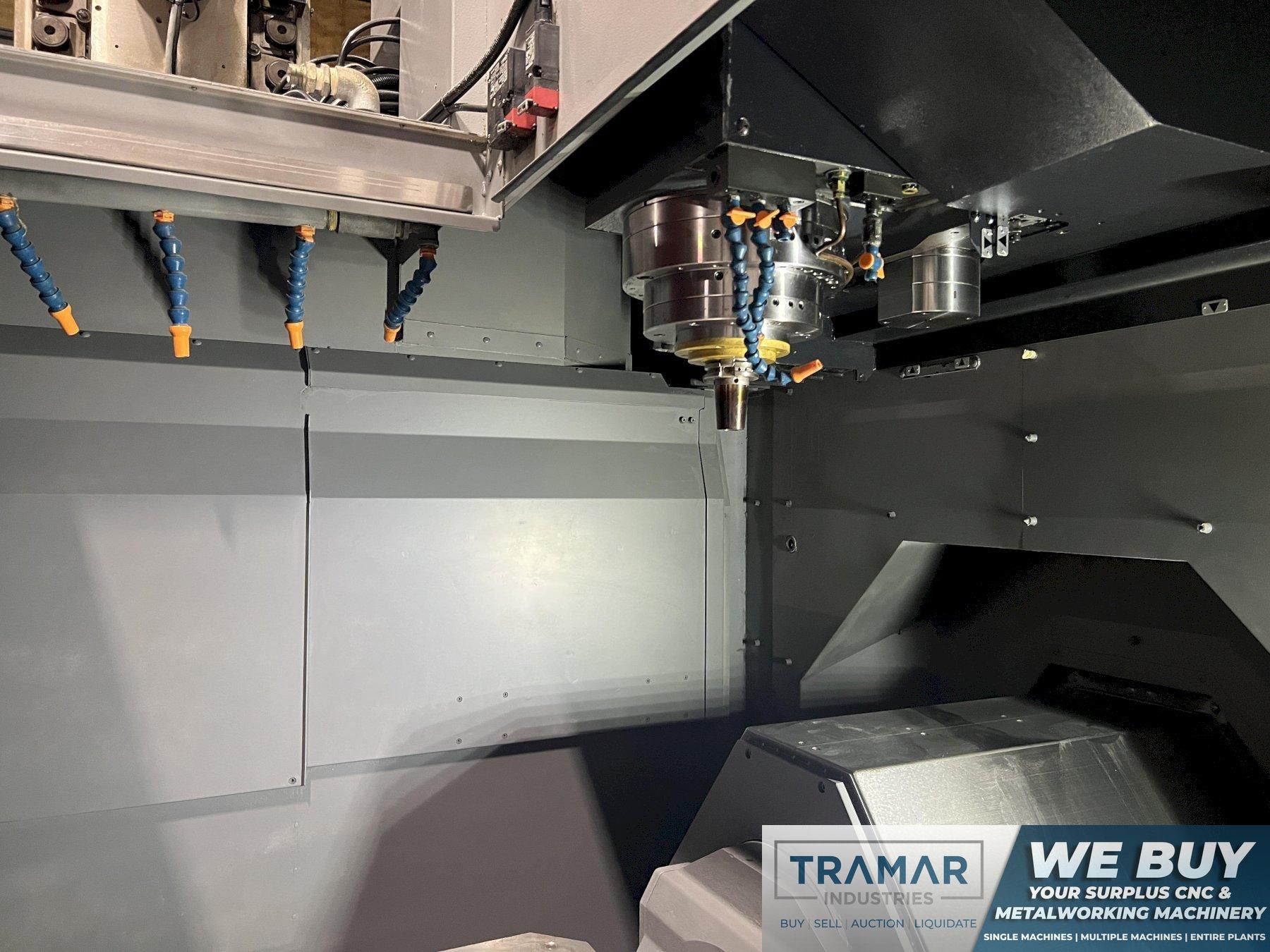

- Coolant Thru Spindle
- Chip Conveyor

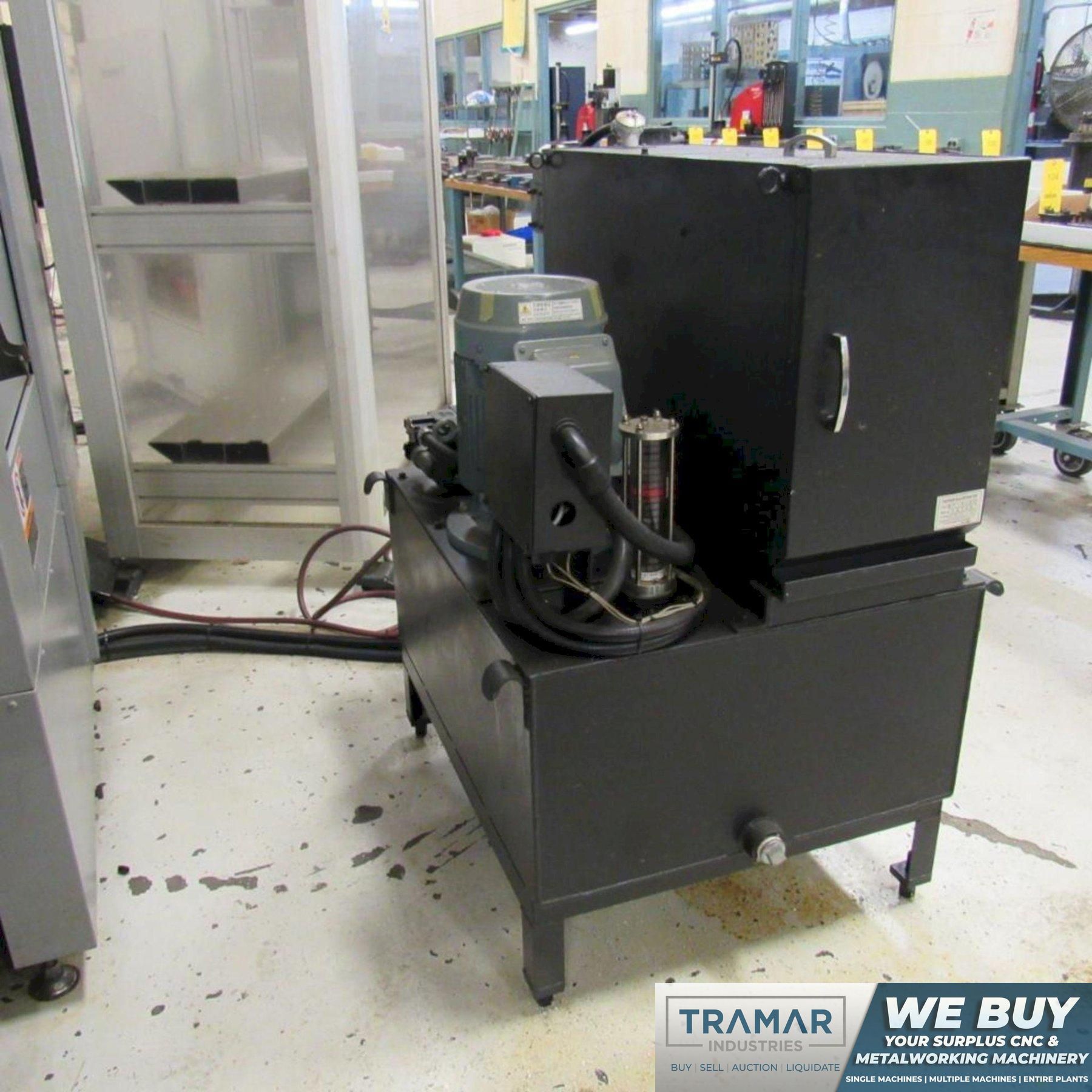

- Coolant Tank & Pump
- Spindle Chiller
- Embedded Ethernet
- Manual Guide i
- Rigid Tapping
- Custom Macro B
- Graphic Function
- AI Contour Control II
- Data Server
- Tool Life Management
- Tool Offset Pairs - 200 pairs
- HRV Function
- High Speed HRV Function

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 31i-Model B5

# Axis

Table Size

19.69" x 19.69"

Max Table Load

1,102 pounds

X-Axis Travel

27.56"

Y-Axis Travel

33.46"

Z-Axis Travel

24.02"

C Axis Rotary

0.001°

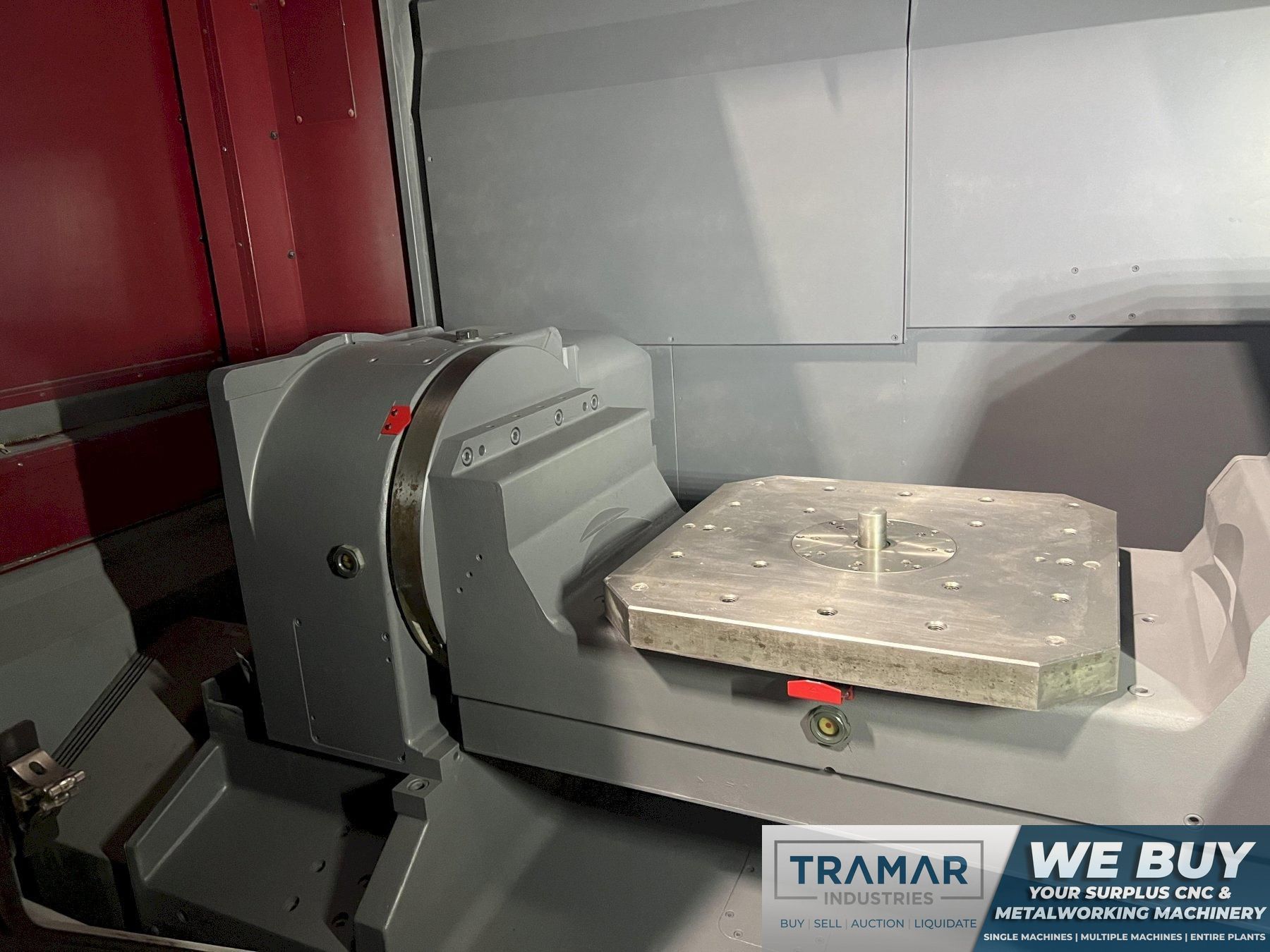

A Axis Rotation

-120° to +30°

Rapid Traverse Rate (X/Y/Z)

1,889/1,889/1,259 ipm

Spindle Taper

CAT 40

Spindle Speed

20,000 rpm

Main Motor

30 hp

ATC Capacity

Coolant Thru Spindle

yes

Machine Dimensions

130" x 97" x 138"

Equipped With:

The OKK VC-X500 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
