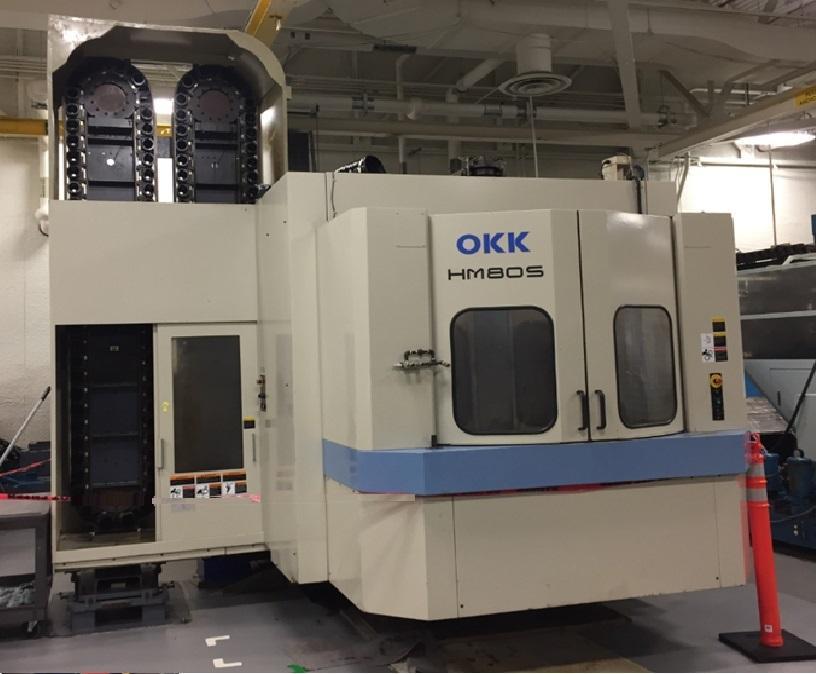

OKK HM80s - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: HM80s
Year: 2000
Stock #: 13314 Sold
Highlights:
Fanuc 16i-MA Control
31.5" Pallets
13,000 RPM Spindle
Hi-Pressure Coolant Thru Spindle

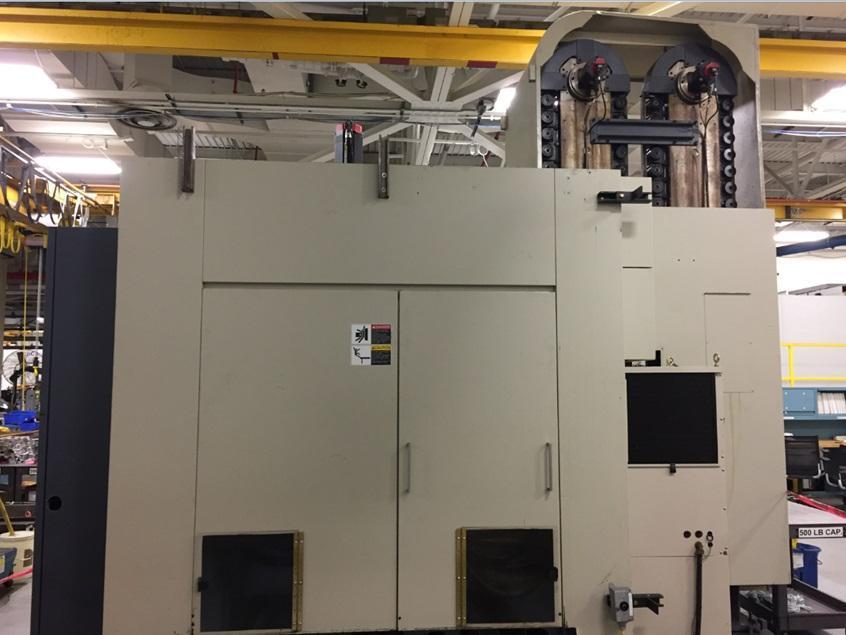

116 Station ATC

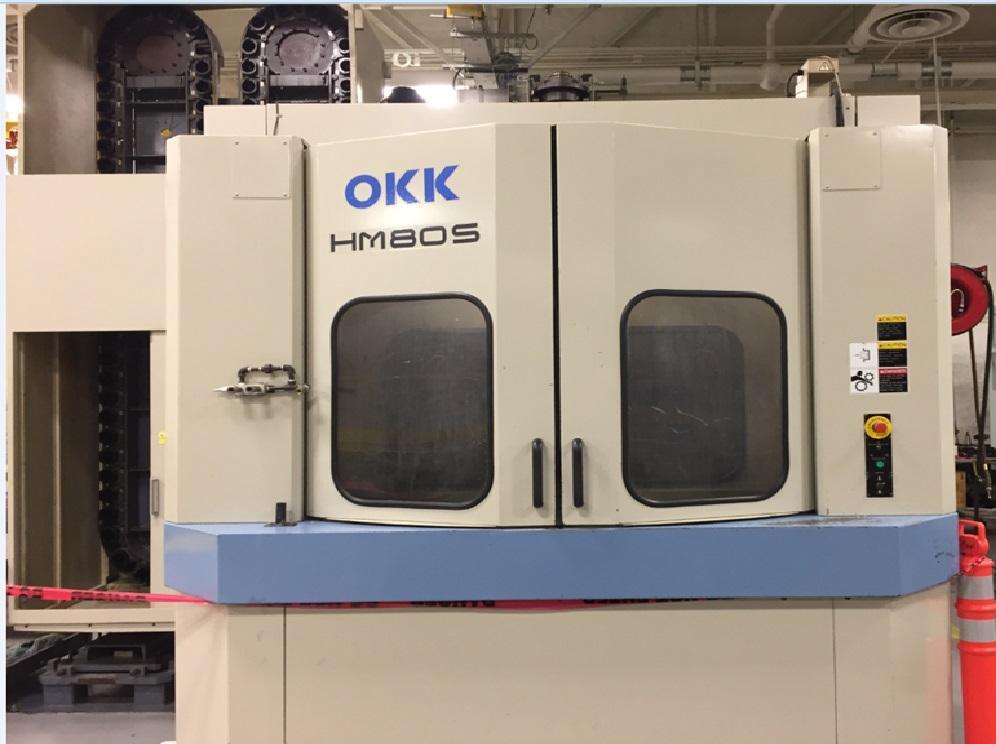

OKK HM80s- CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Fanuc 16i-M
# Axis
4

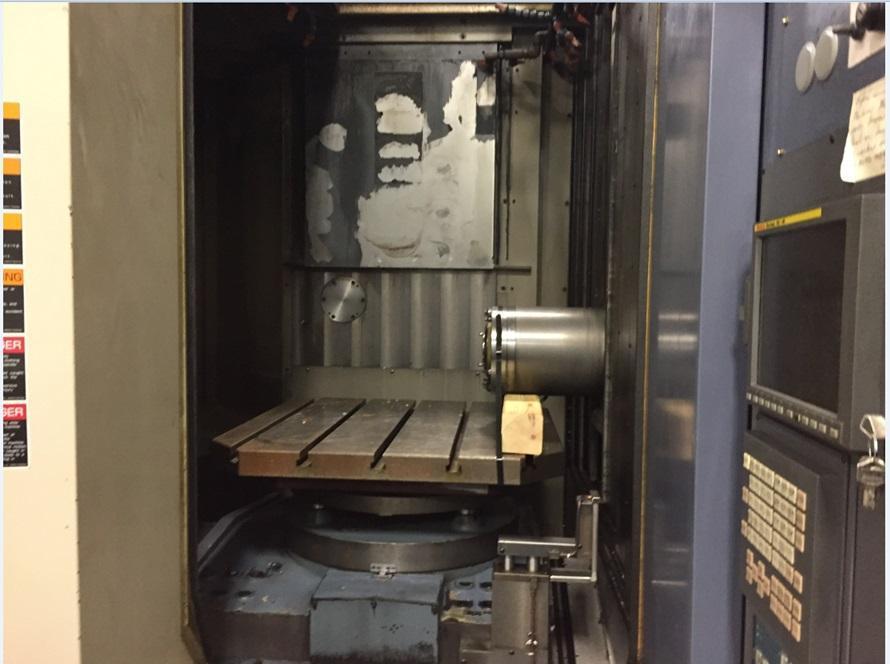

Pallet Length
31.5"
Pallet Width
31.5"
Pallet Capacity
2,450 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
39.37"
Y-Axis Travel
33.46"
Z-Axis Travel
32.28"
Rapid Traverse Rate (X/Y/Z)
1,574
Spindle Taper
CAT 50
Spindle Speed
13,000
Spindle Motor (HP)
35 HP
Tool Changer Capacity
116
Coolant Through Spindle
yes
Machine Weight
48,000 pounds

Equipped With:

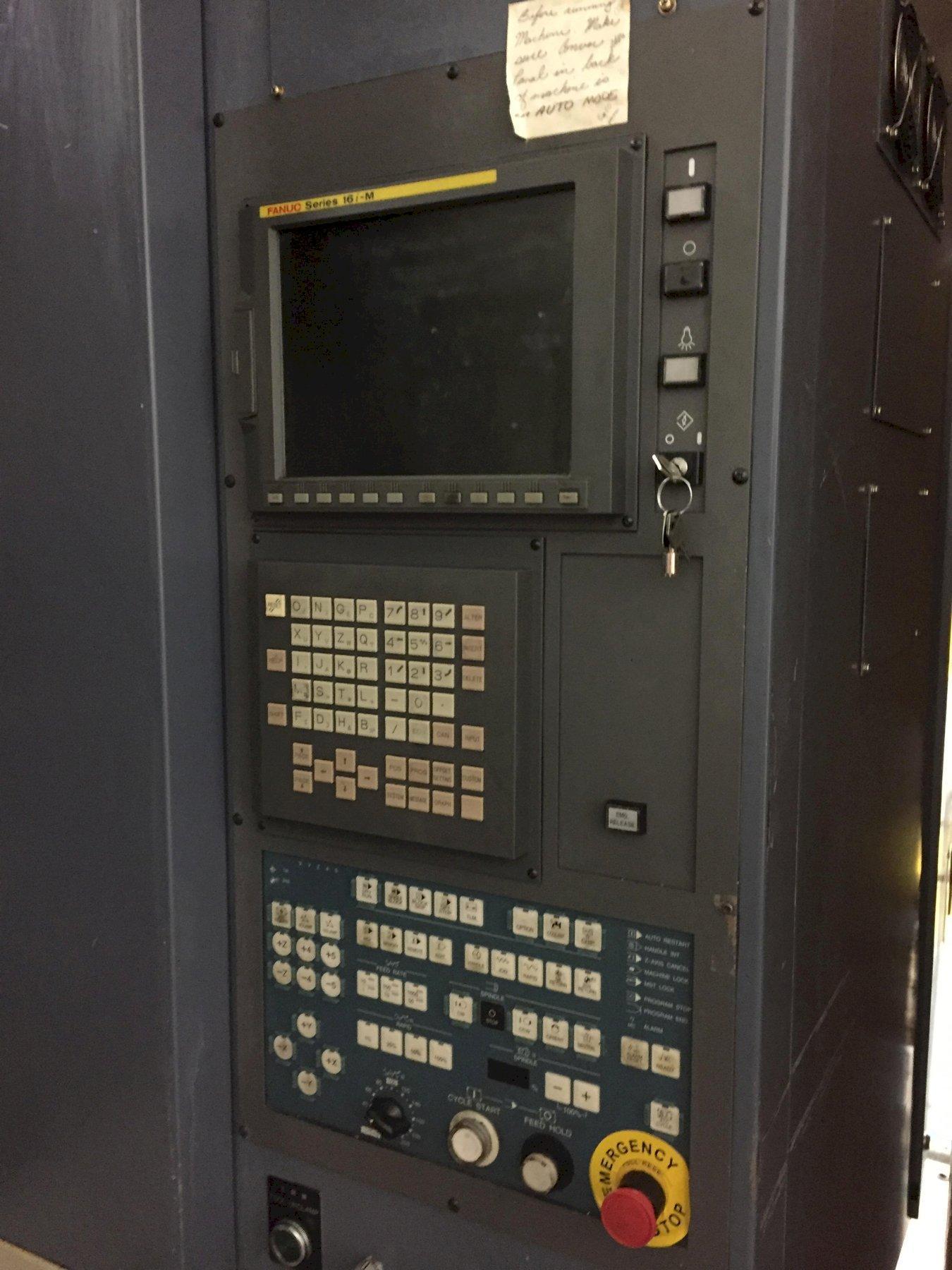

- Fanuc 16i-MA Control

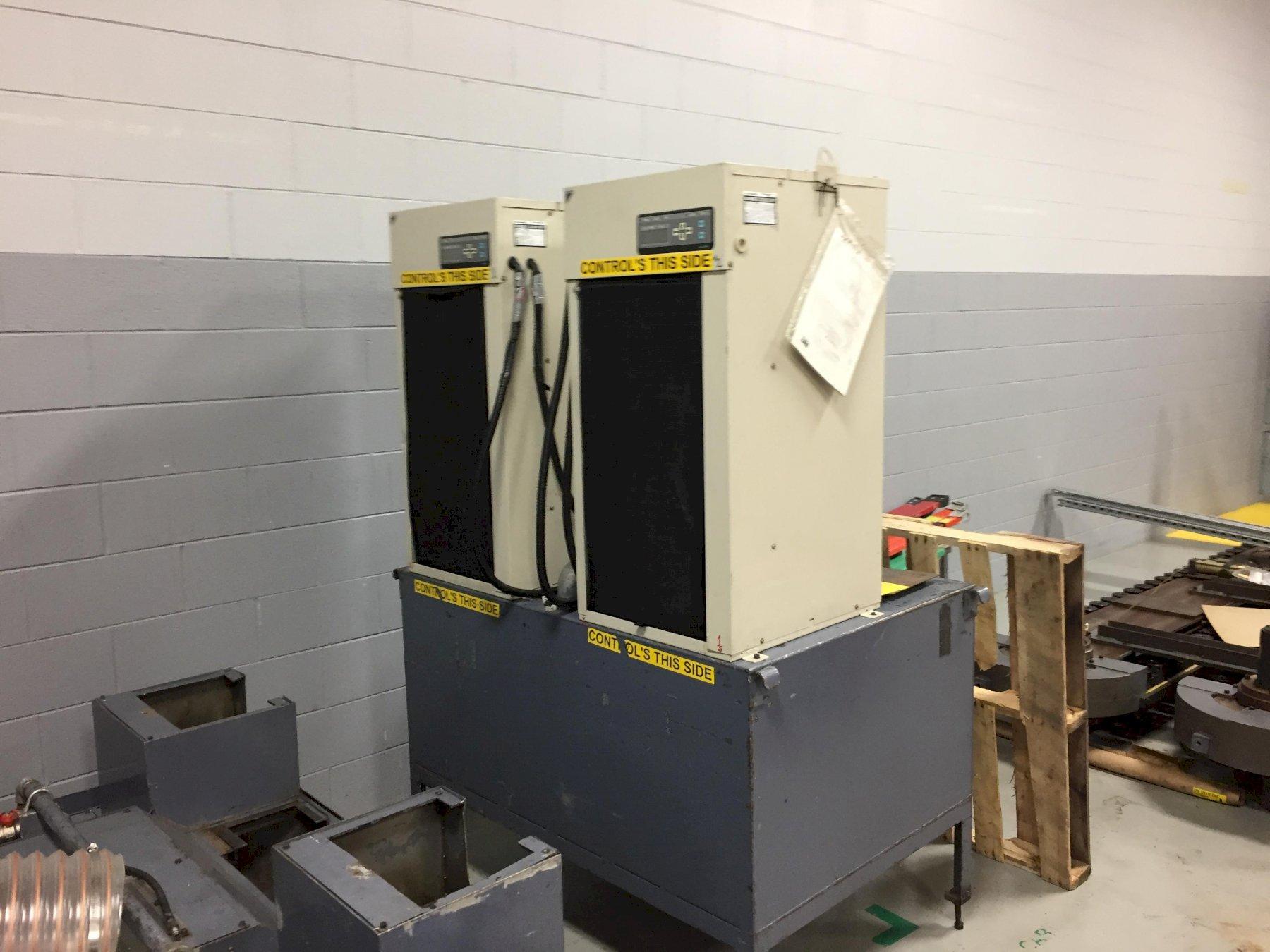

- Spindle Chiller
- Coolant Chiller
- Glass Scales
- 100 Station ATC

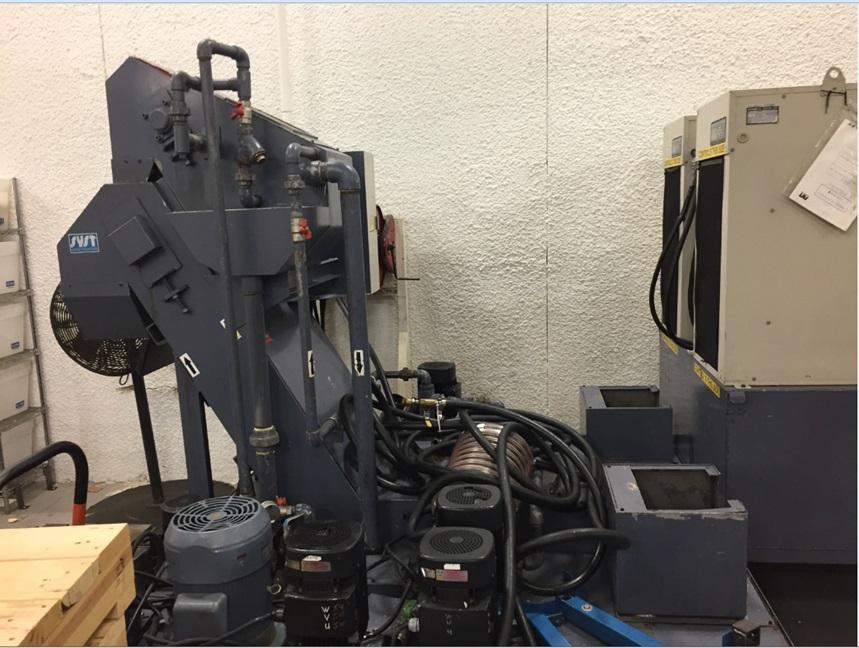

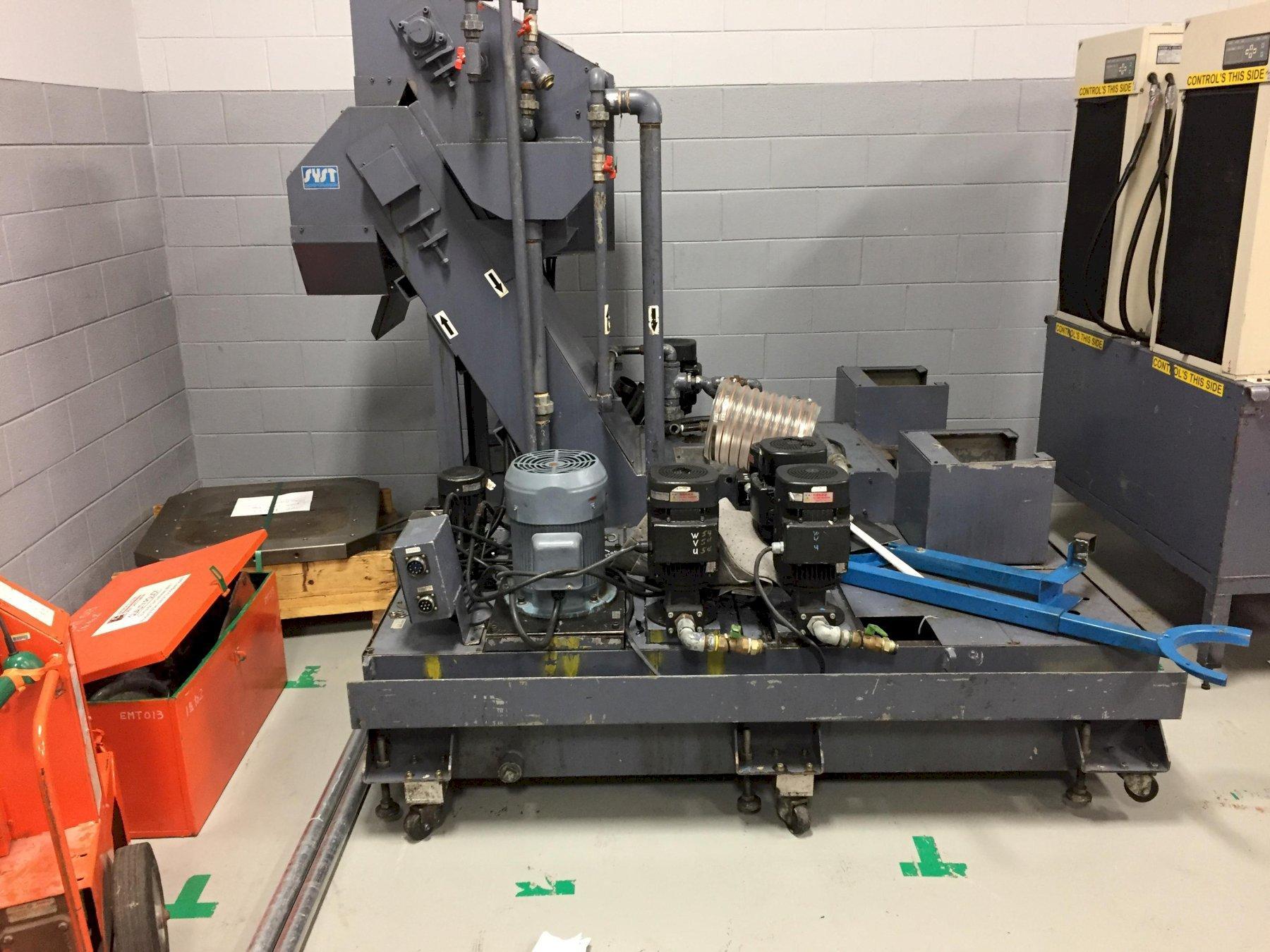

- Chip Conveyor
- Coolant Tank

The OKK HM80s is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
