Nakamura-tome WY-150 - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: WY-150

Year: 2017

Stock #: 65698 Sold

Type: Horizontal Lathes

Manufacturer: Used Nakamura-tome Machines

Highlights:
NT Smart X Control
Main & Sub Spindle

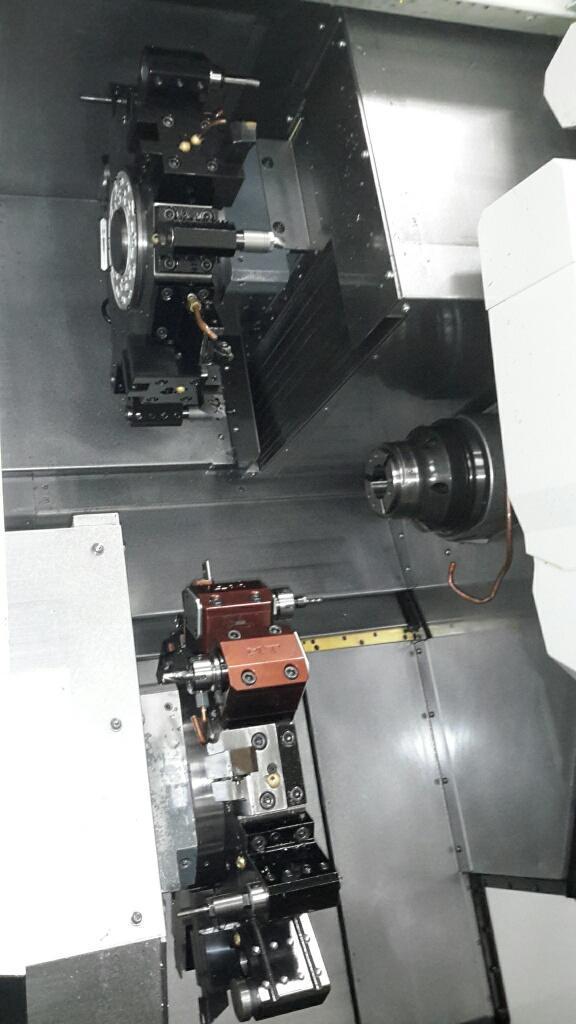

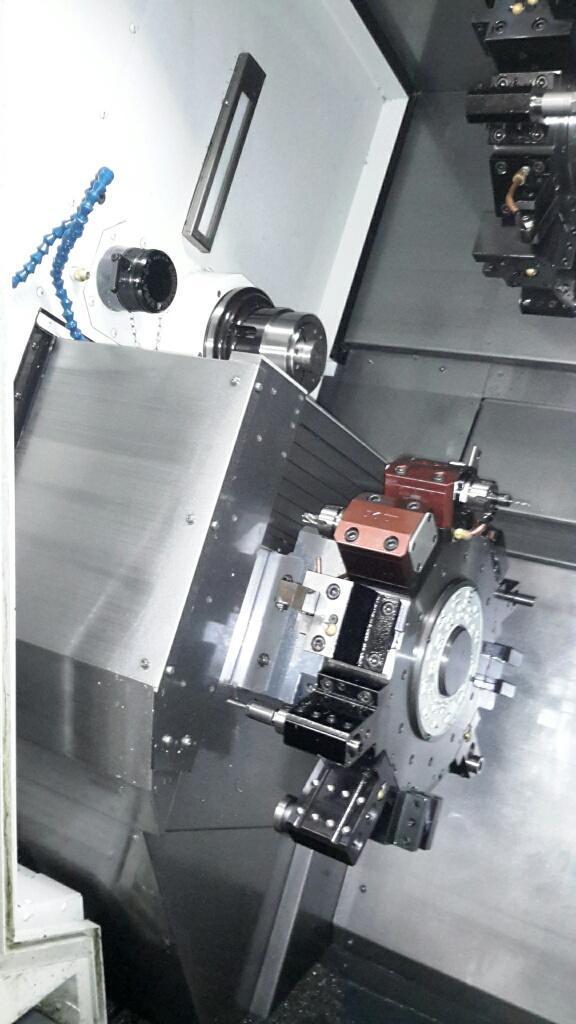

Upper & Lower Turrets
Live Tooling | Y Axis Both Turrets
FMB Turbo 5-65 Bar Feeder

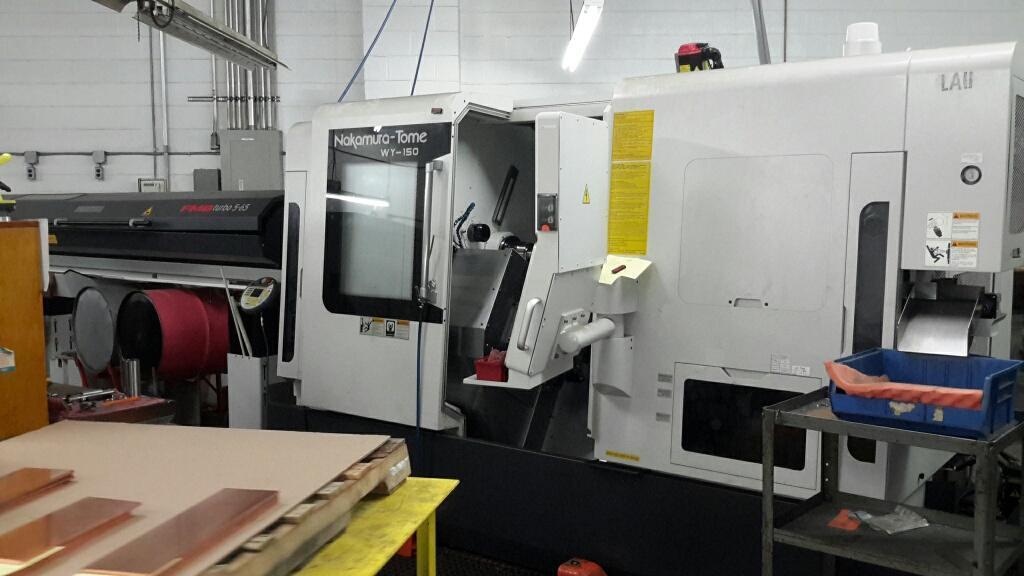

NAKAMURA-TOME WY-150 CNC Horizontal Lathe - 2017

Equipped With:

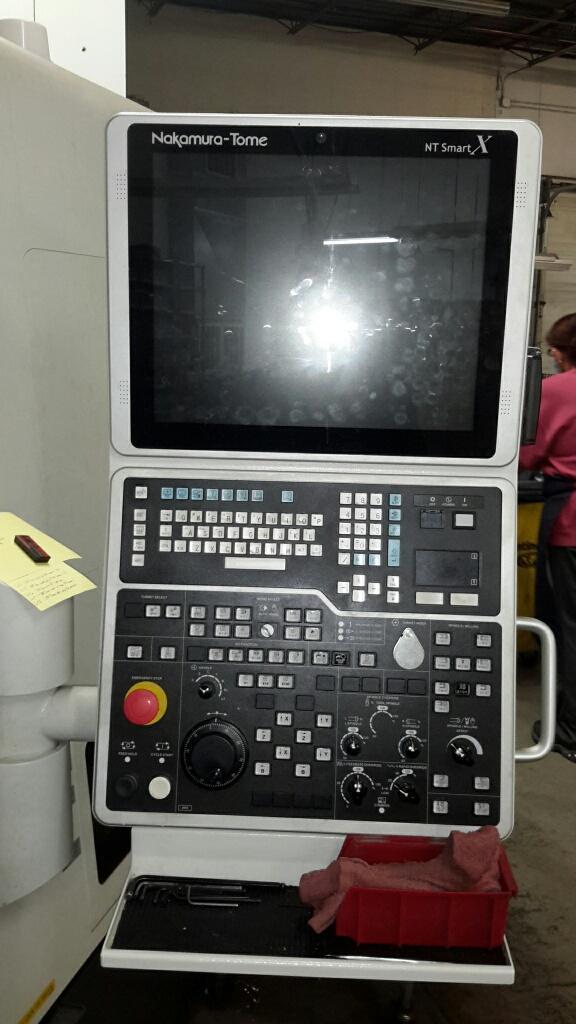

- NT Smart X CNC Control

- Collet Chuck on Main Spindle

- Coolant Tank

- Chip Conveyor

- Live Tooling

- Full C axis on Main & Sub Spindle

- Bar Feeder (FMB Turbo 5-65)

- Y Axis on Upper & Lower Turret's

- Misc. Tooling Available

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

NT Smart X

# Axis

Swing

12.2"

Turning Diameter

8.88"

Center Distance

22.25"

Chuck Size

Bar Capacity

2.56"

X Axis Travel

6.31"

X2 Travel

6.31"

Z Axis Travel

22.25"

Z2 Travel

22.25"

Y Axis Travel

3.54"

Y2 Lower Turret Travel

2.75"

B Axis Travel (Sub Spindle)

25.63"

C1/C2 Axis Index

0.001°

Spindle Nose

A2-6

Spindle Speed (RPM)

4,500

Main Motor

20 hp

Live Tooling

yes

Live Tooling Speed

6,000 rpm

Live Tooling Motor

7.5 hp

Y Axis

yes

Sub Spindle

yes

Sub Spindle Chuck

Sub Spindle Bar Capacity

Sub Spindle Nose

A2-5

Sub Spindle Speed

5,000 rpm

Sub Spindle Motor (HP)

15 hp

Turret Capacity

24 Upper / 24 Lower

Dimensions

150" x 87" x 87"

Weight

23,150 pounds

Equipped With:

- NT Smart X CNC Control

- Collet Chuck on Main Spindle

- Coolant Tank

- Chip Conveyor

- Live Tooling

- Full C axis on Main & Sub Spindle

- Bar Feeder (FMB Turbo 5-65)

- Y Axis on Upper & Lower Turret's

- Misc. Tooling Available

The Nakamura-tome WY-150 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
