Mori Seiki NMV5000 DCG - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: NMV5000 DCG
Year: 2011
Stock #: 13423 Sold
Highlights:
MSX-711 IV (Fanuc 31i-A5) Control
HSK 63 | 12,000 rpm | 91 Station ATC
High Pressure Coolant Thru Spindle
Fast Data Server

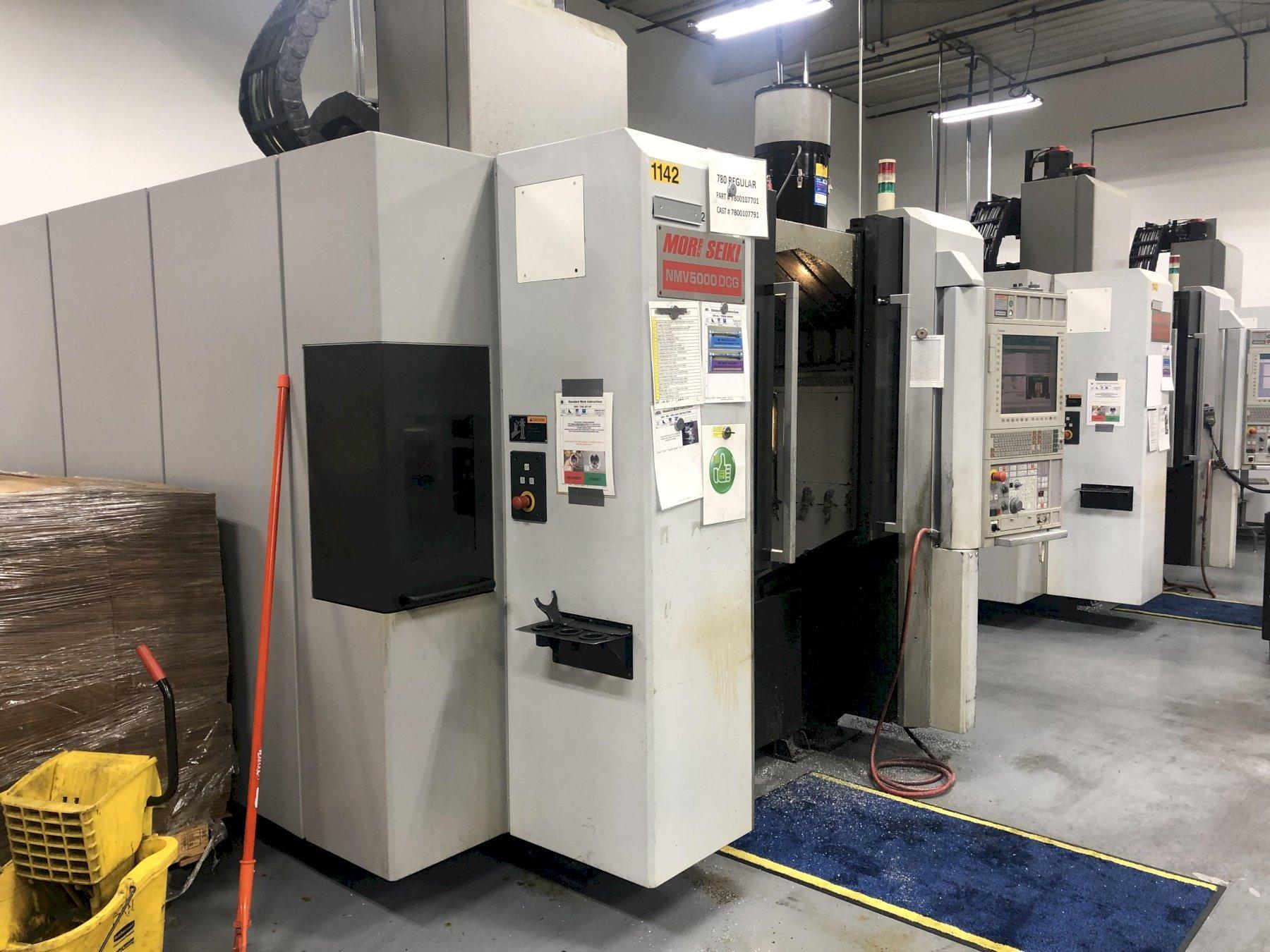

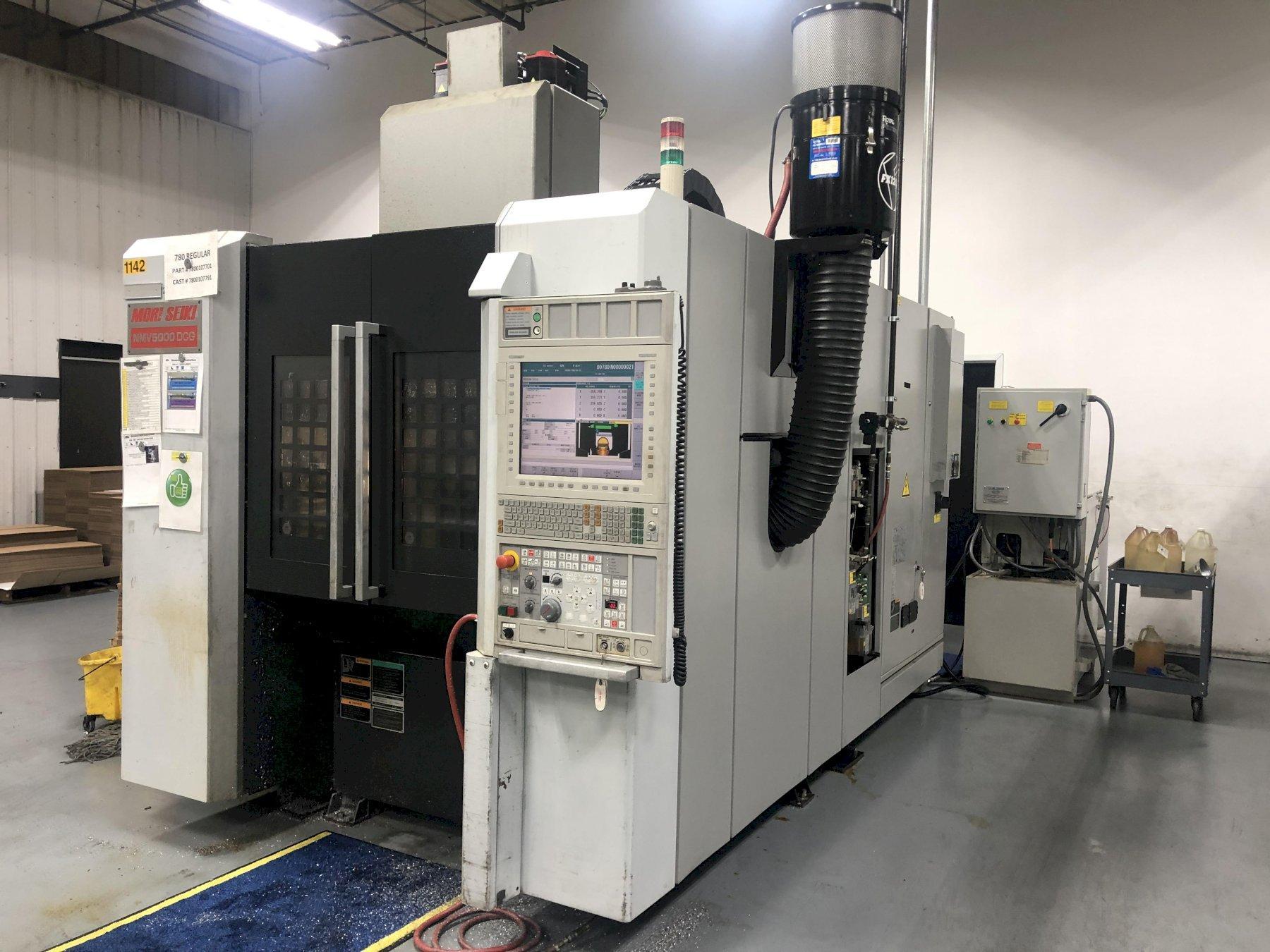

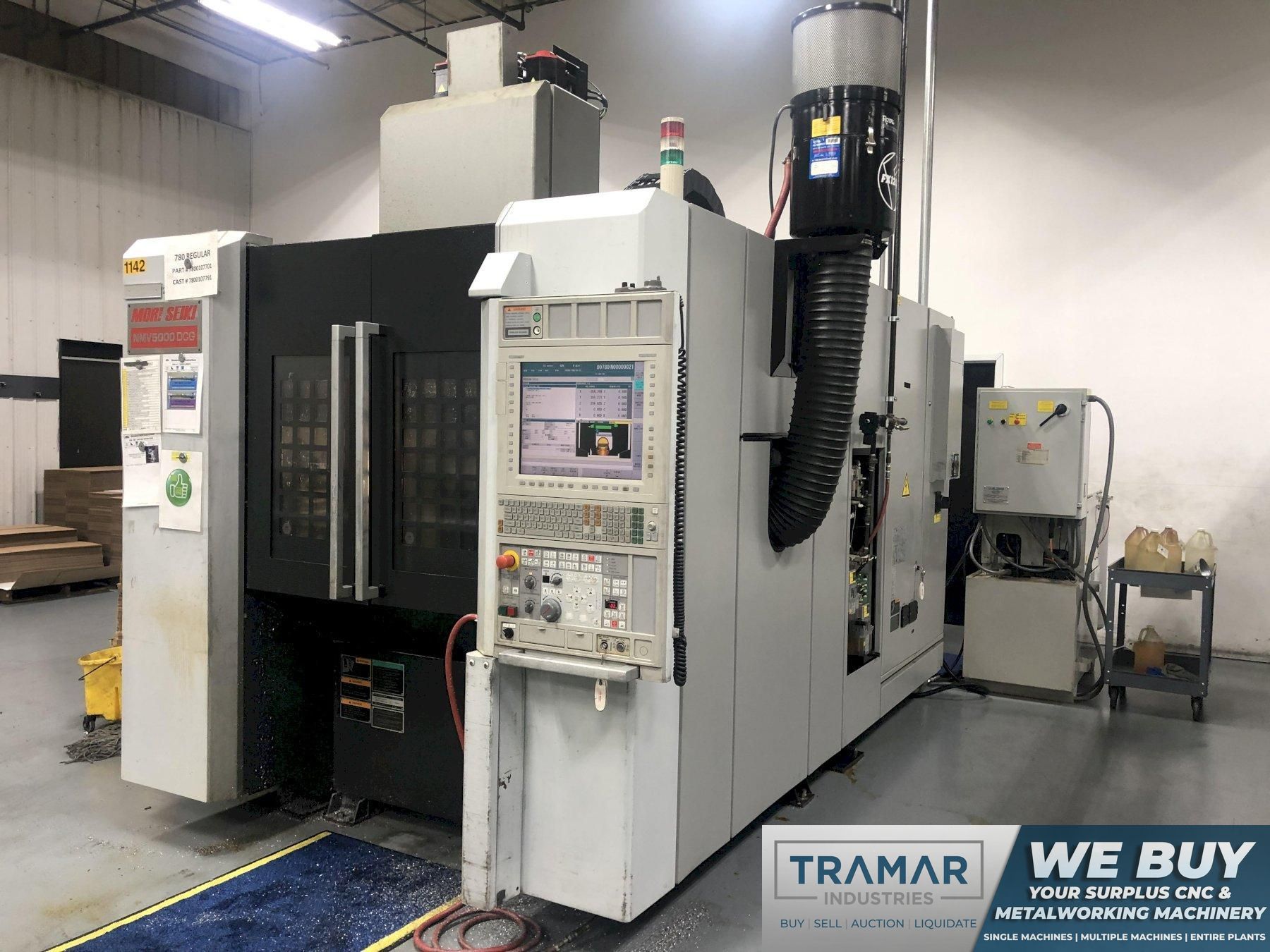

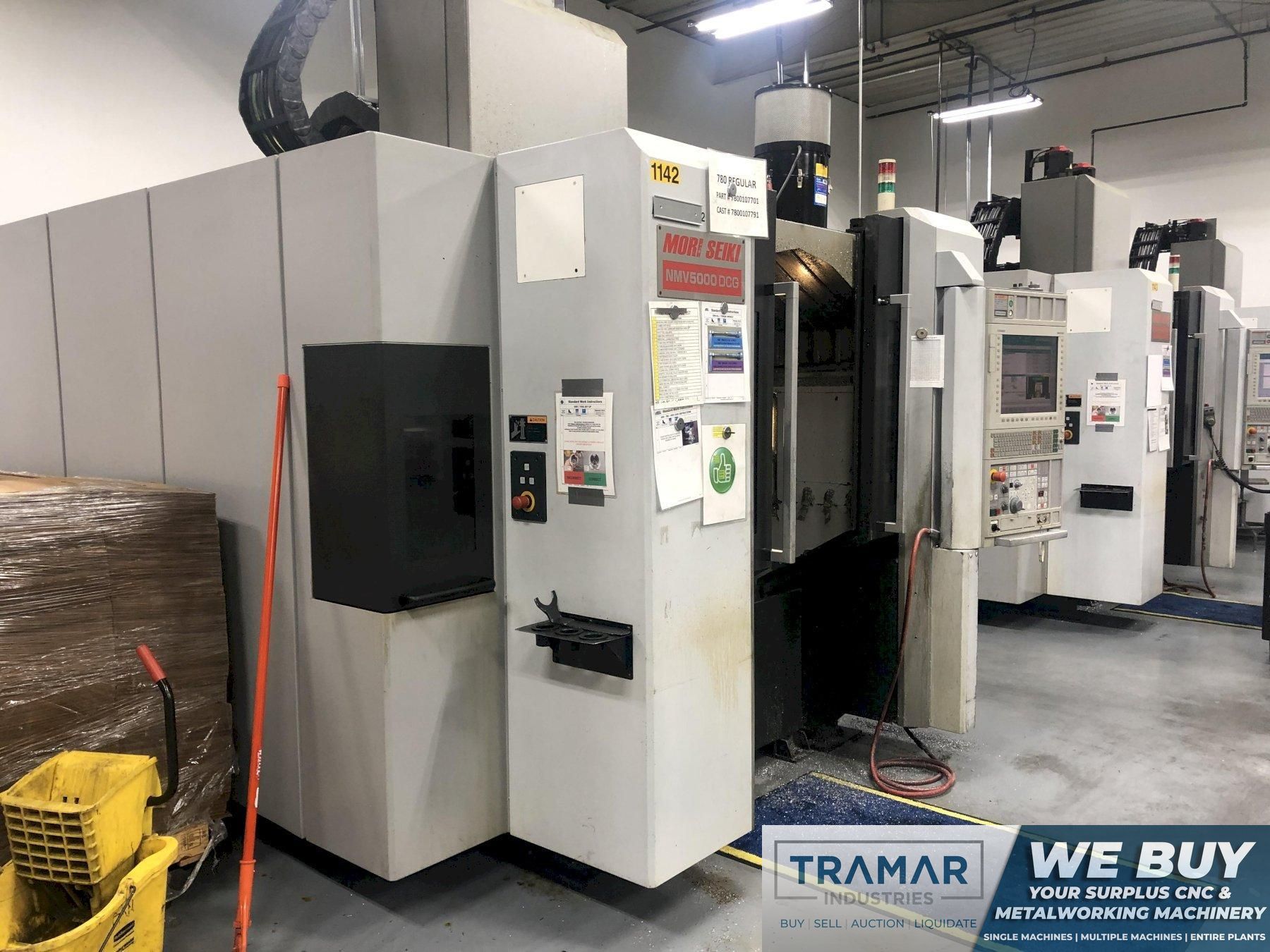

Mori Seiki NMV5000 DCG Vertical Machining Center
Machine Specifications
CNC Control
yes

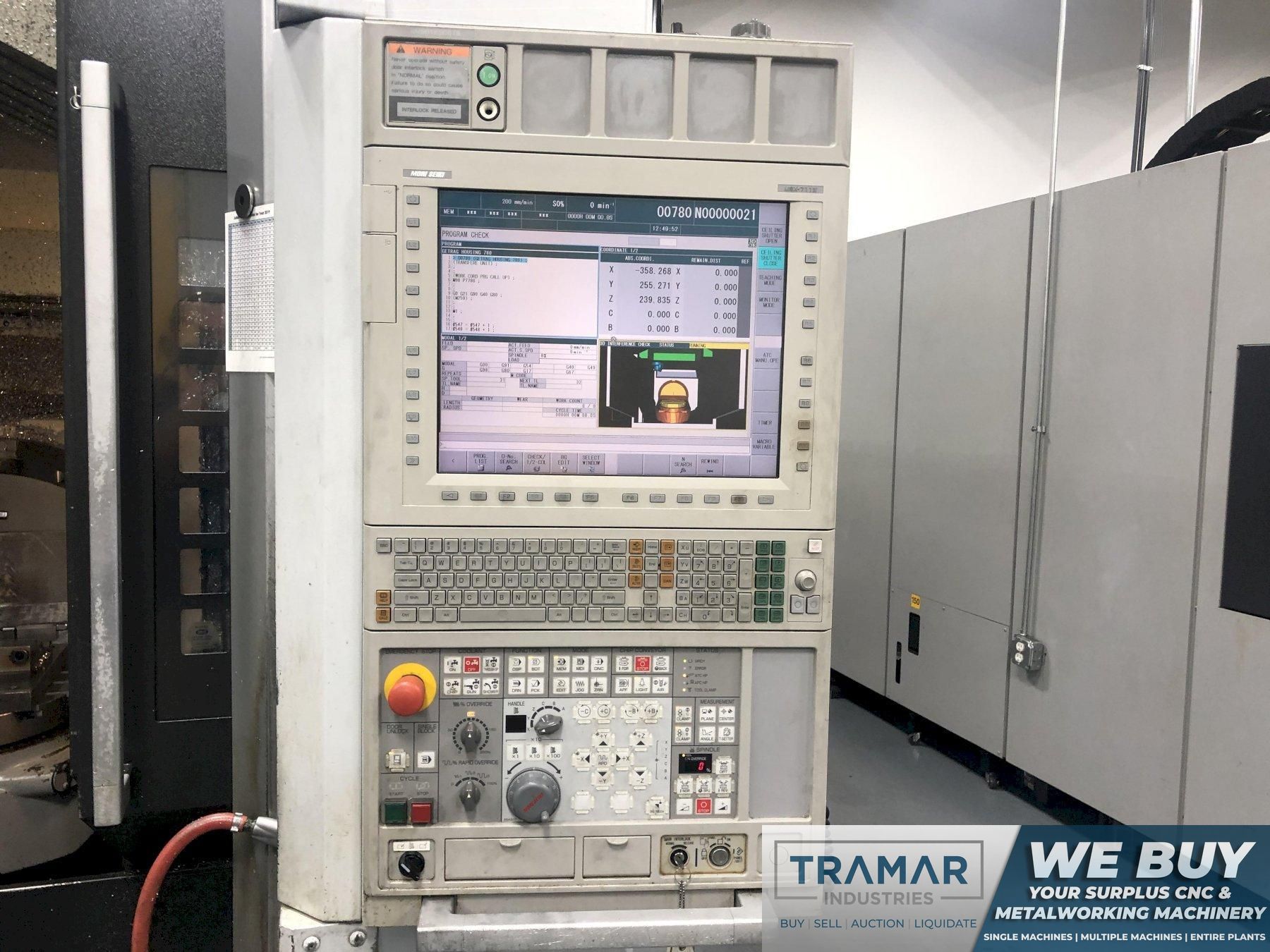

Control Type
MSX-711 IV (Fanuc 31i-A5)
# Axis
5

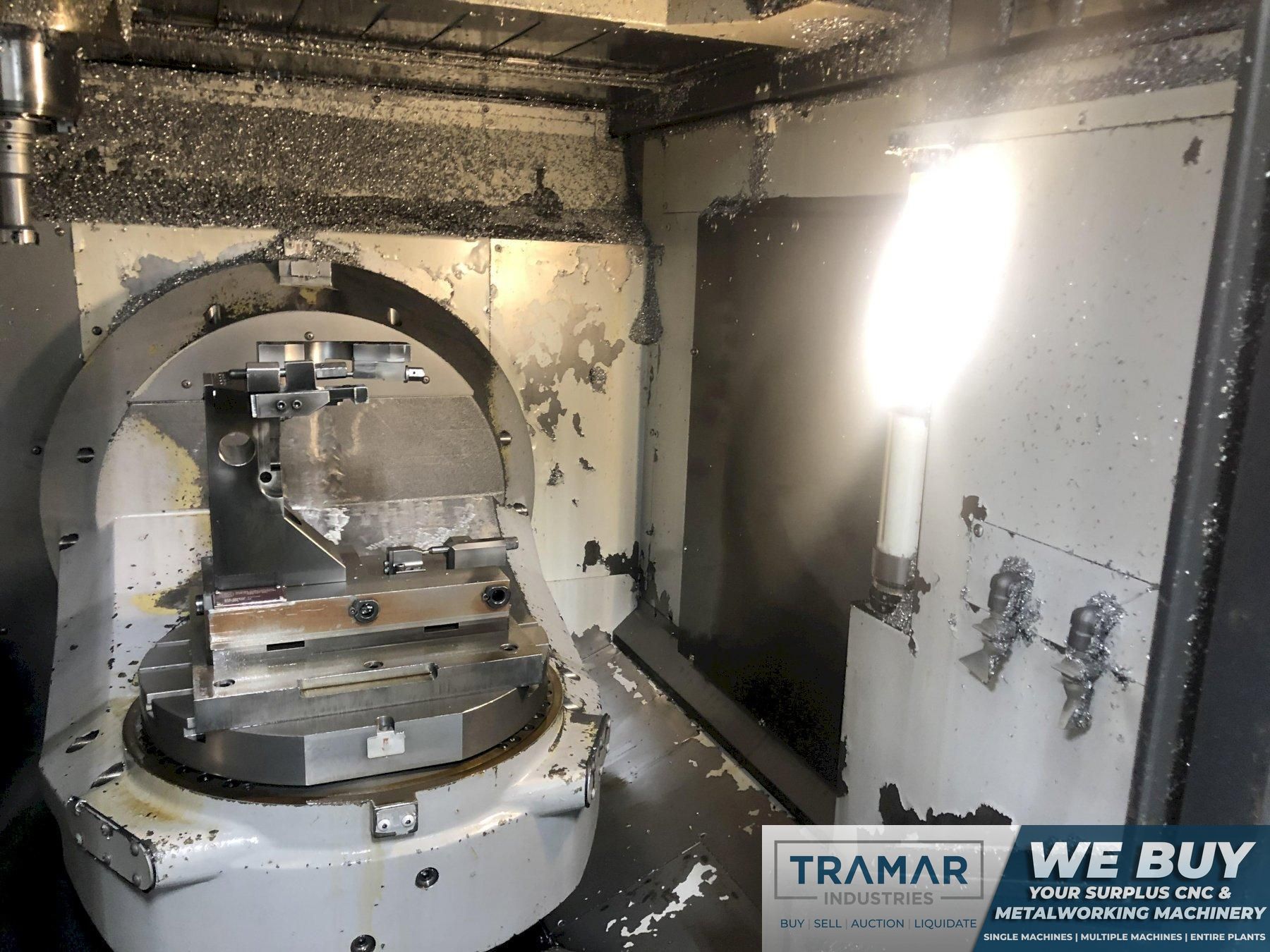

Table Size
19.7" round
Table Capacity
660 pounds
X-Axis Travel
28.7"
Y-Axis Travel
20.1"
Z-Axis Travel
20.1"

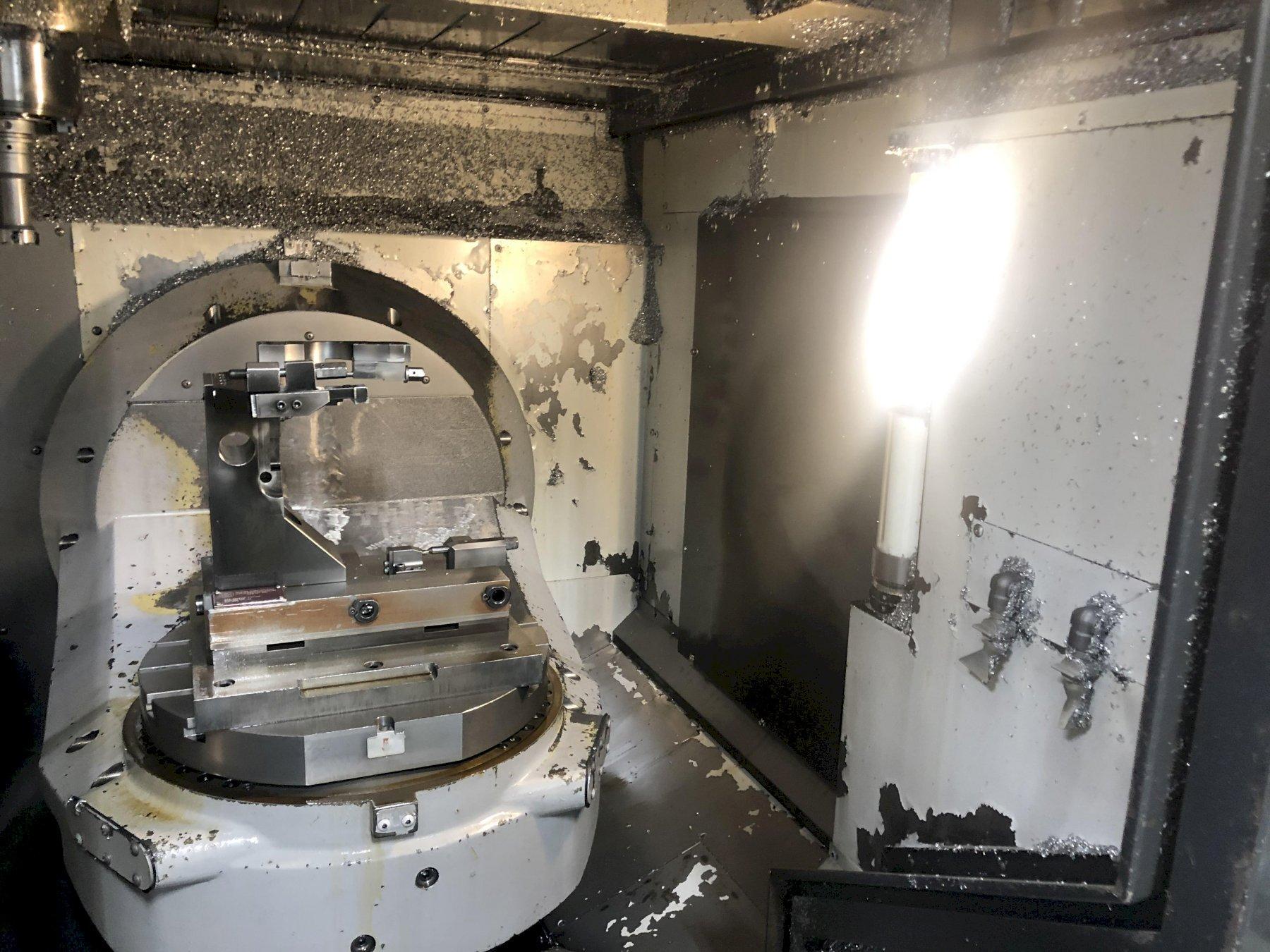

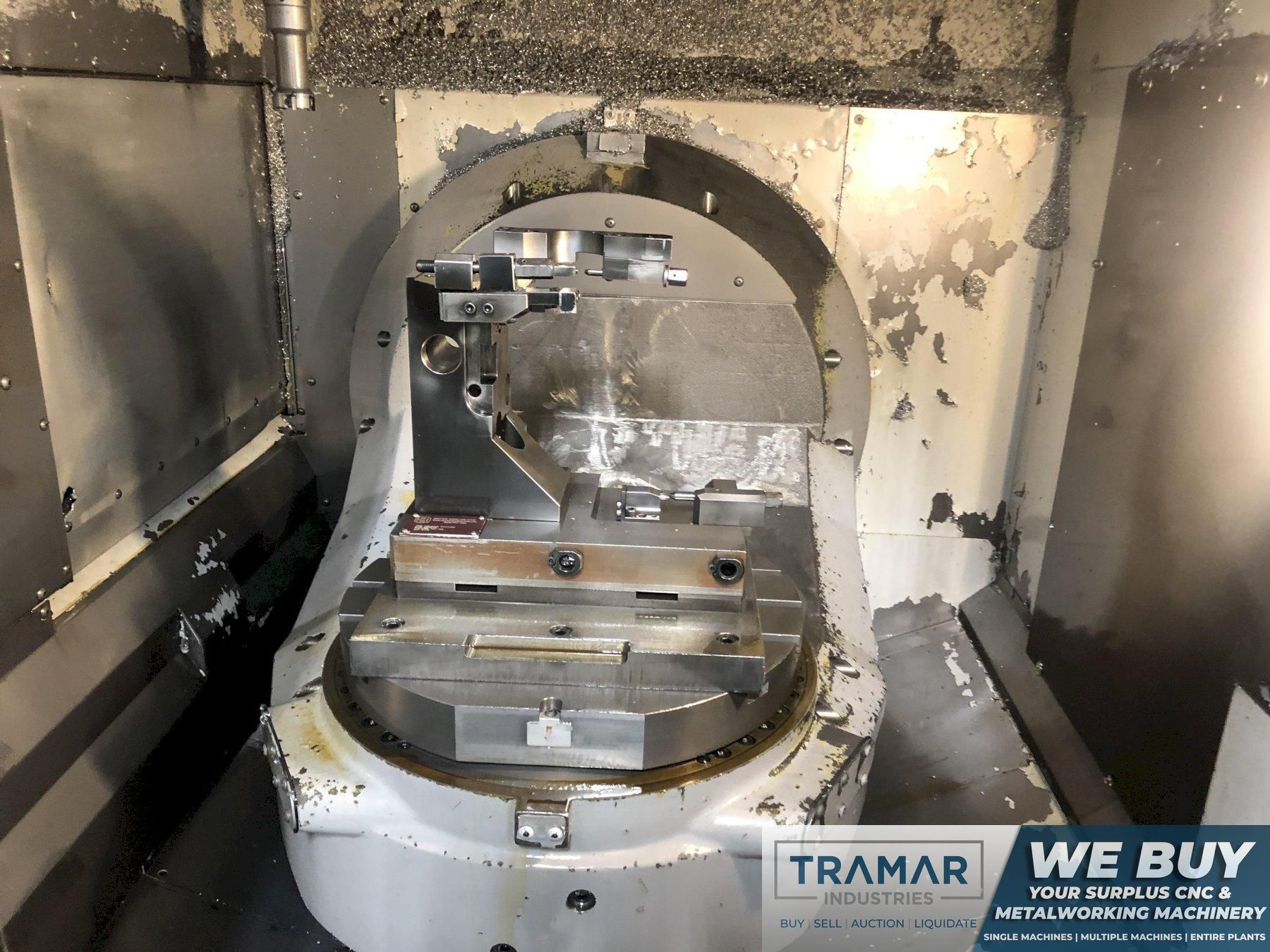

B Axis Head Tilt
+160° to -180°
C Axis Index
360°
Rapid Traverse Rate (X/Y/Z)
1,968/1,968/1,574

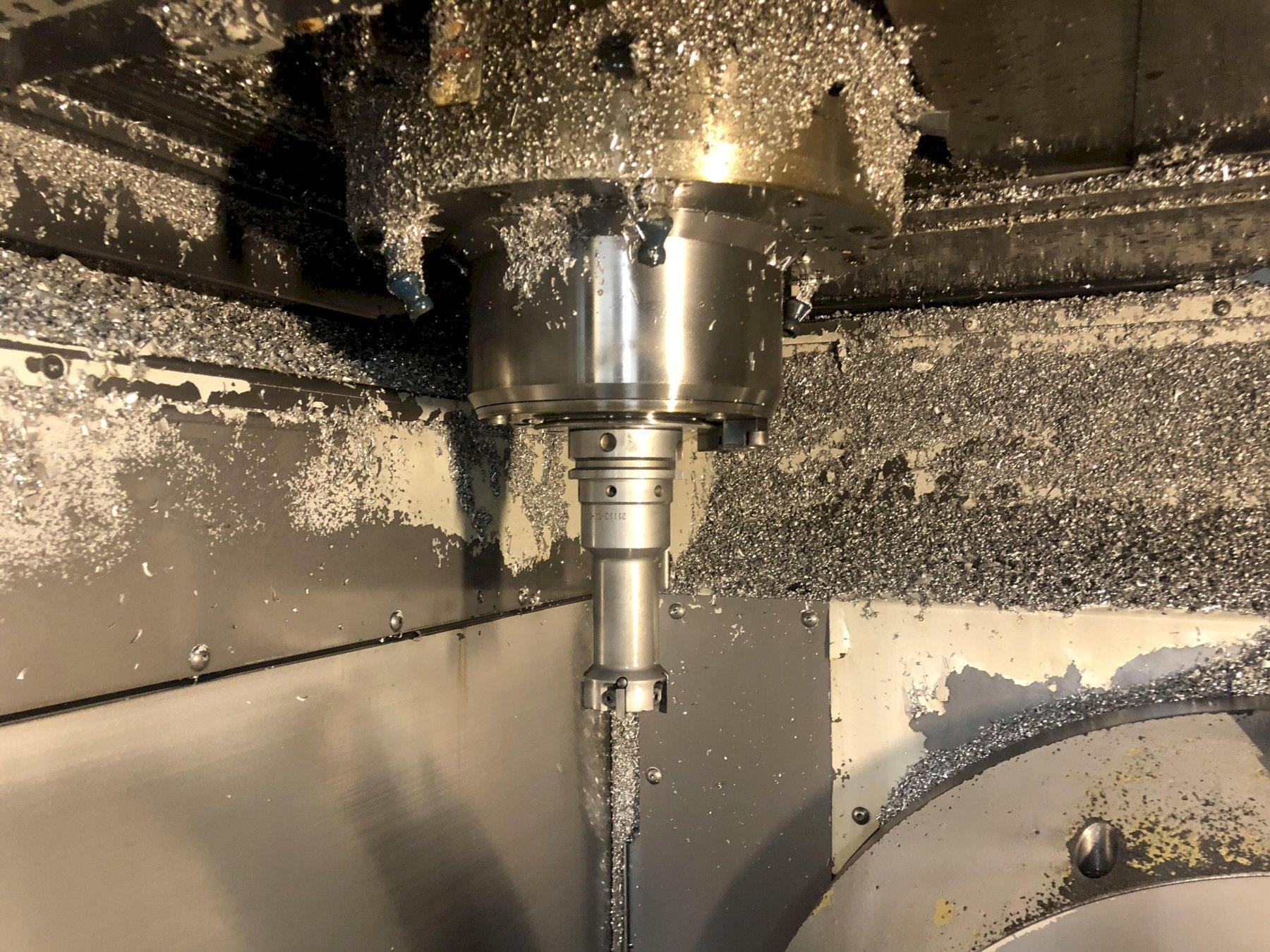

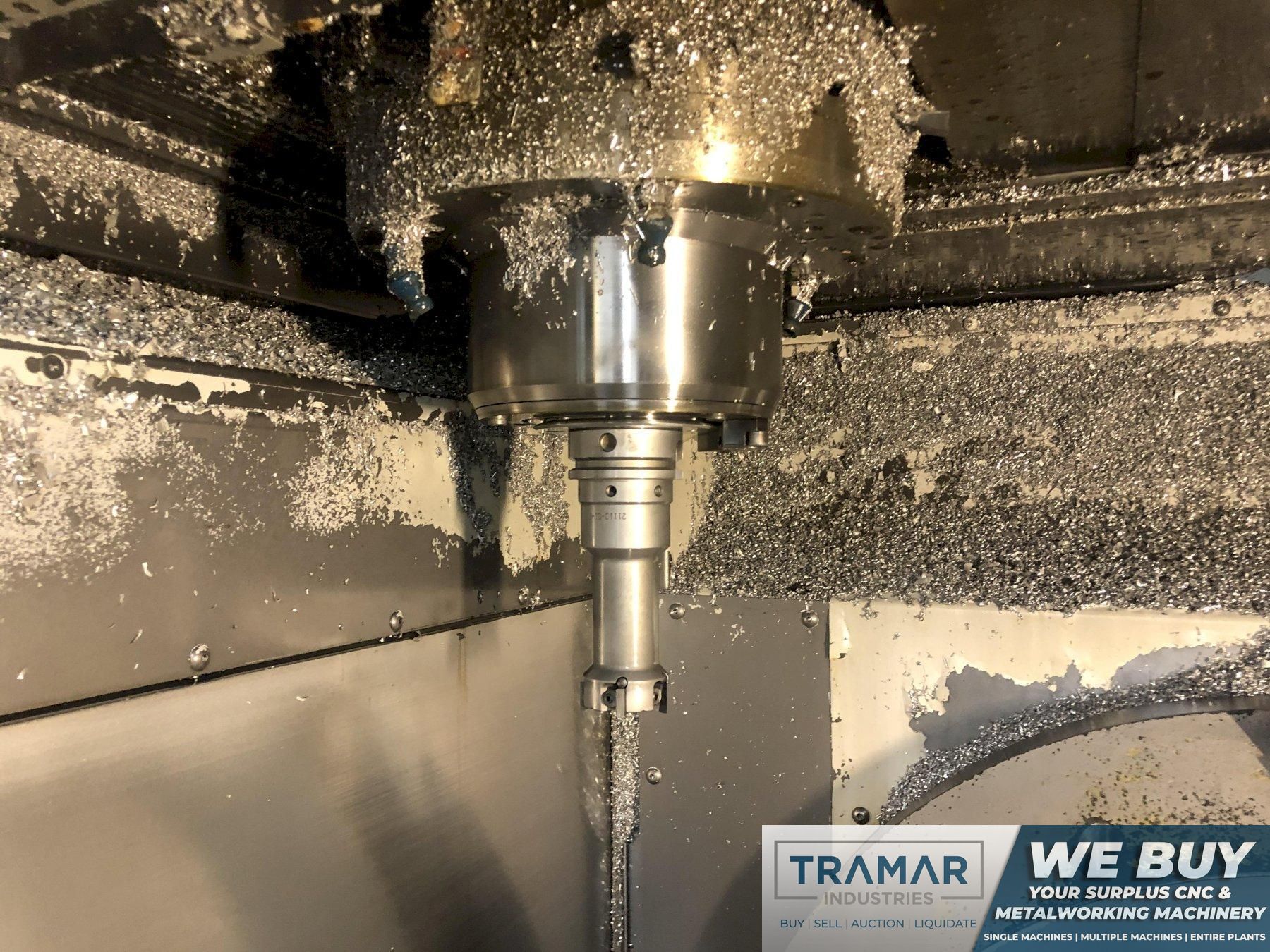

Spindle Taper
HSK 63

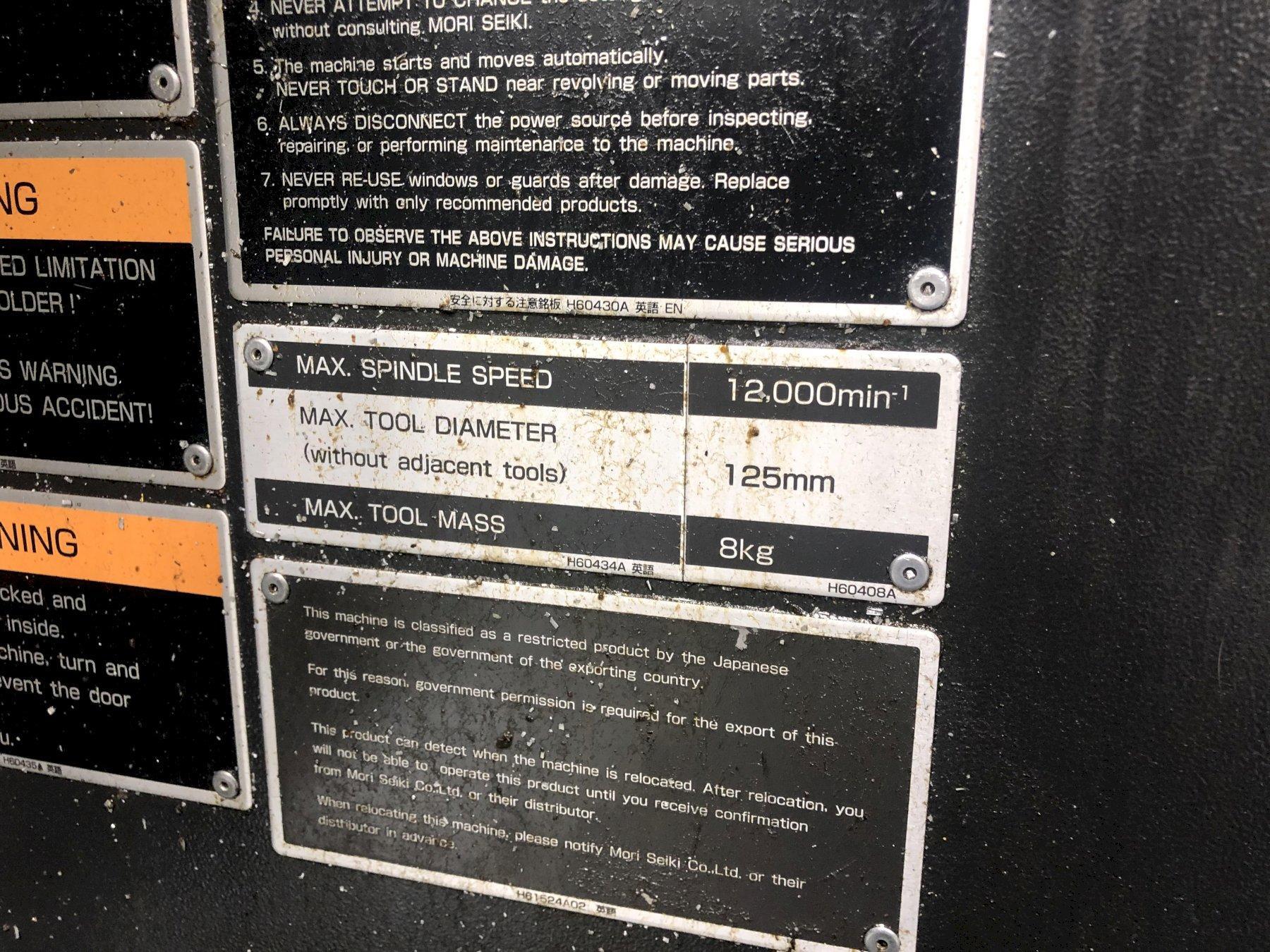

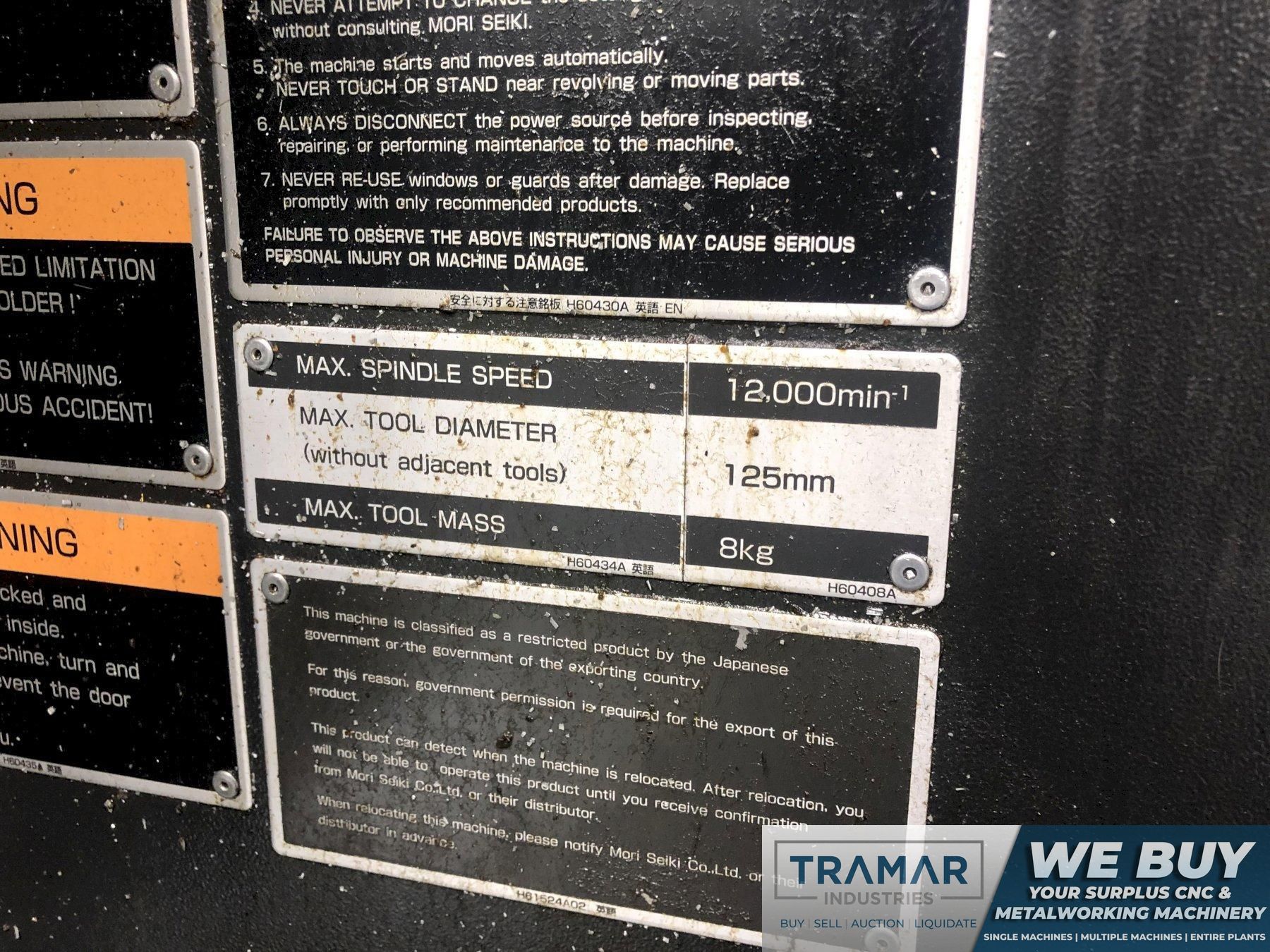

Spindle Speed
12,000 rpm
Main Motor
25 hp
Tool Changer Capacity
91
Coolant Thru Spindle
yes
Machine Dimensions
156" x 110" x 122
Machine Weight
27,280 pounds

Equipped With:

- MSX-711 IV Control (Fanuc 31i-A5)
- Coolant Tank & Pump
- Chip Conveyor
- Spindle Chiller
- High Pressure Coolant Thru Spindle

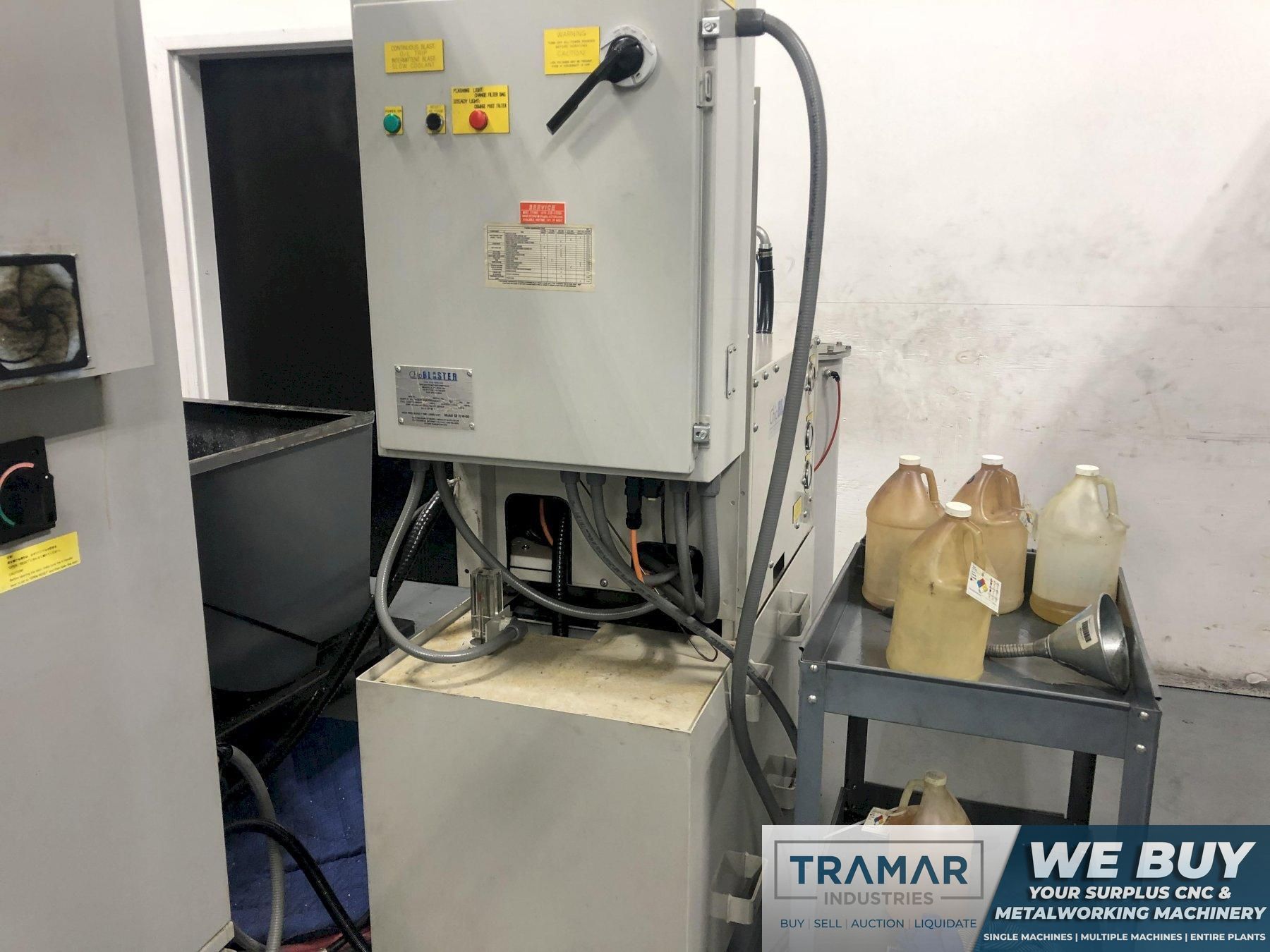

- Chip Blaster Model JV40
- MAPPS IV (Conversational Programming)
- Fast Data Server
- Glass Scales on B & C Axes
- Cutting Mode Selection (Speed Priority ---> Accuracy Priority)
- Custom MACROS
- Work & Tool Offset
- Mist Collector

The Mori Seiki NMV5000 DCG is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
