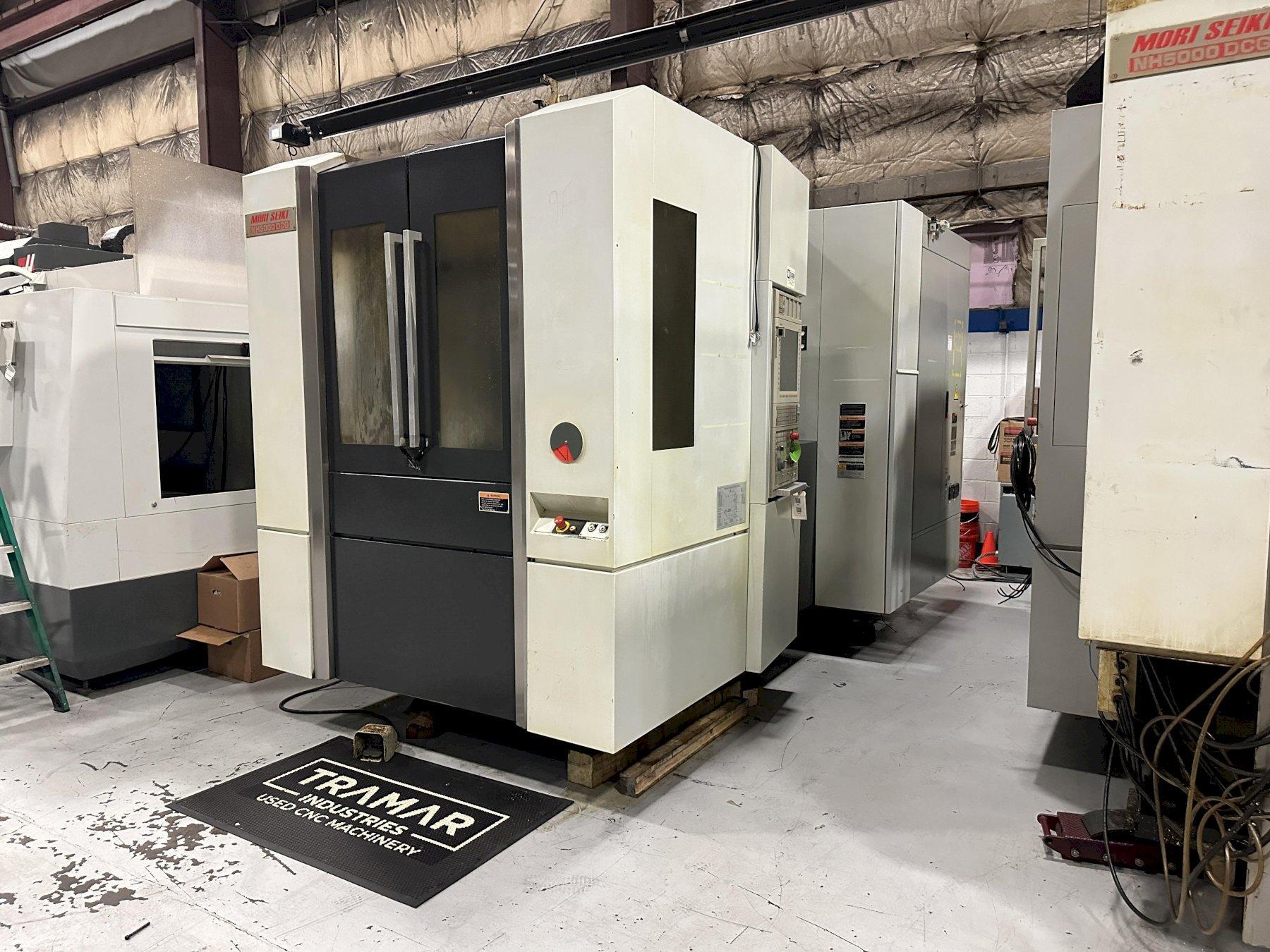

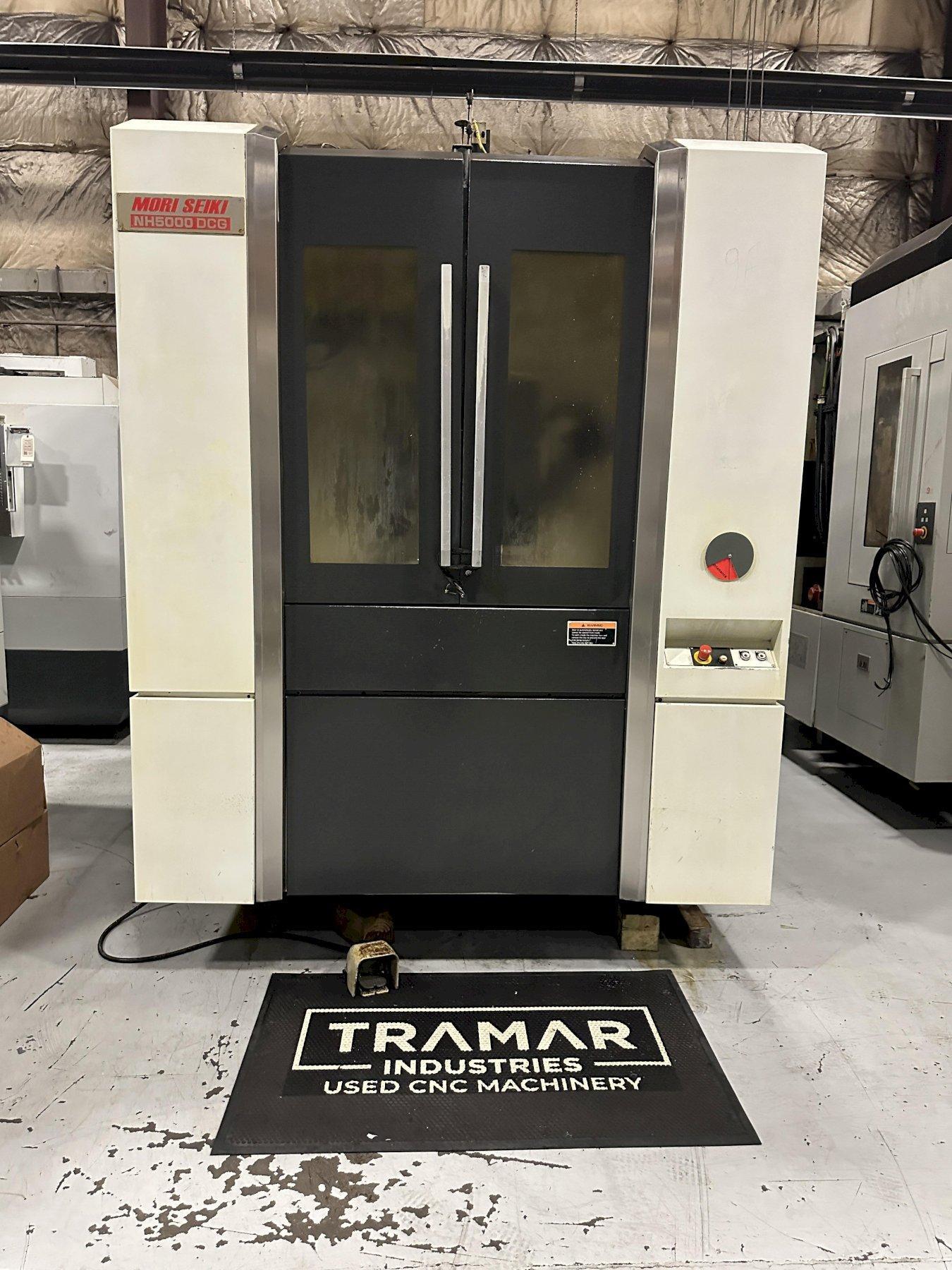

Mori Seiki NH5000dcg/40 - Horizontal Machining Centers

Share Machine

Specifications Print Specs

Model: NH5000dcg/40

Year: 2010

Stock #: 14109 Sold

Type: Horizontal Machining Centers

Manufacturer: Used Mori Seiki Machines

Highlights:

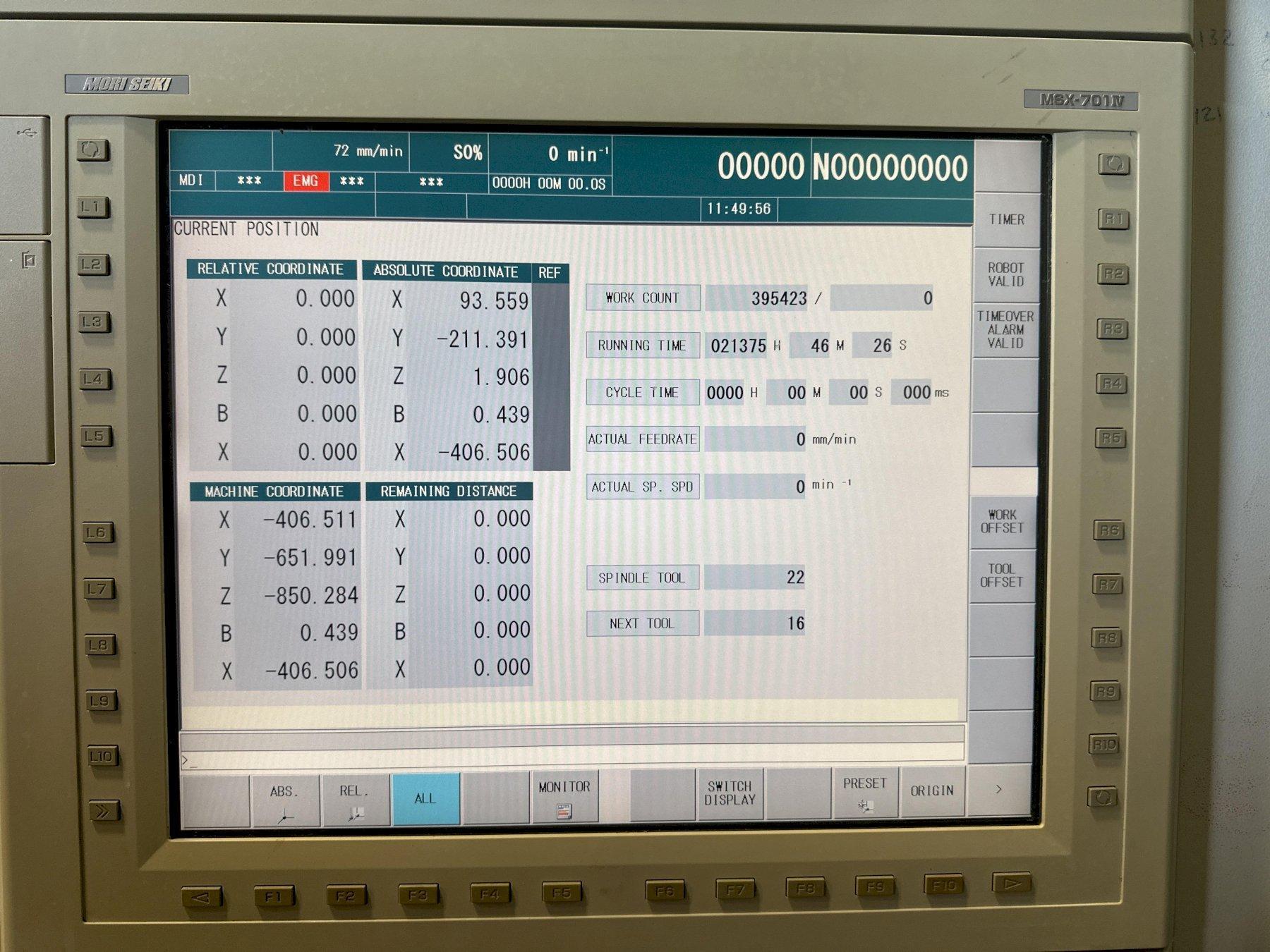

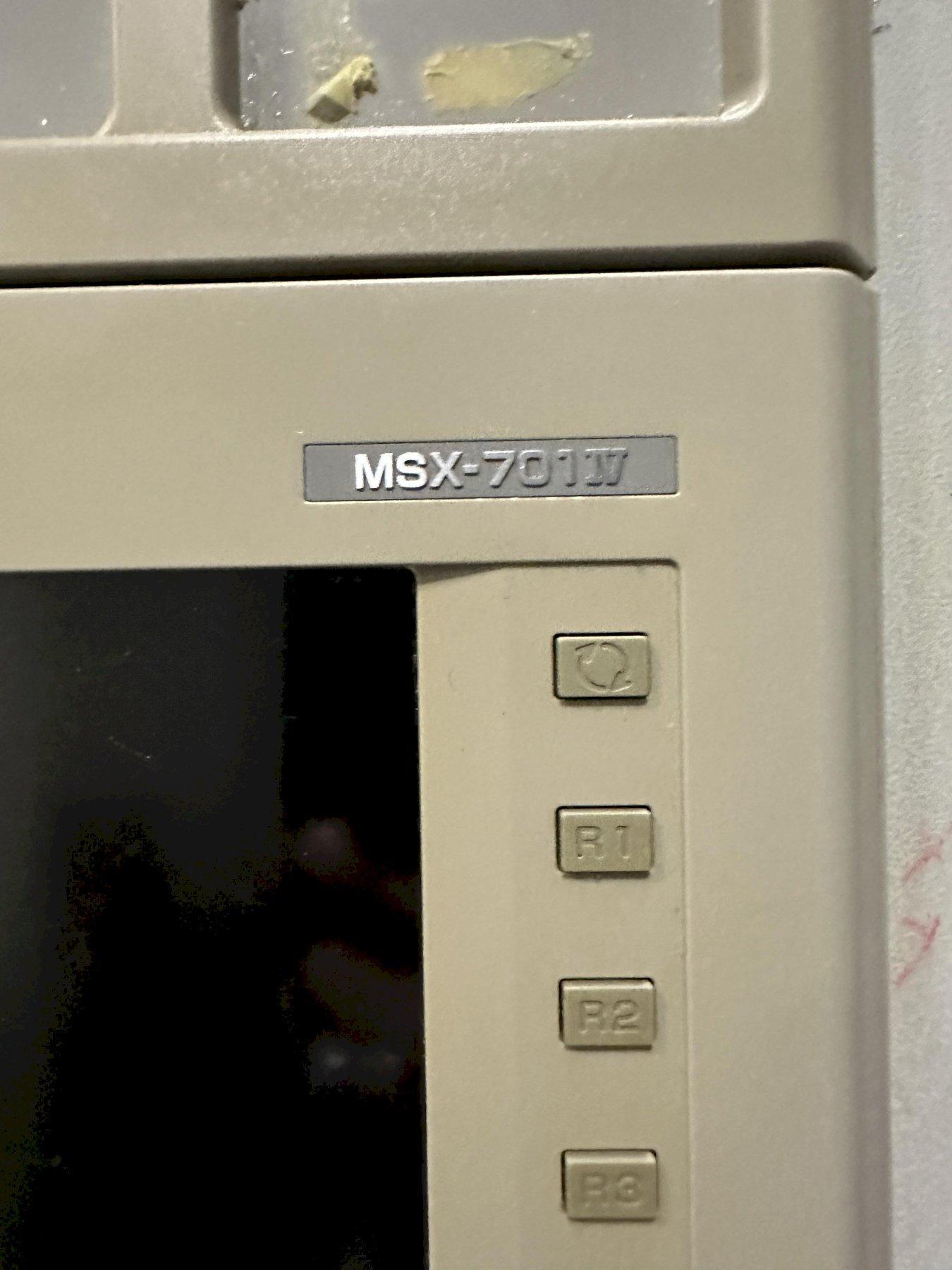

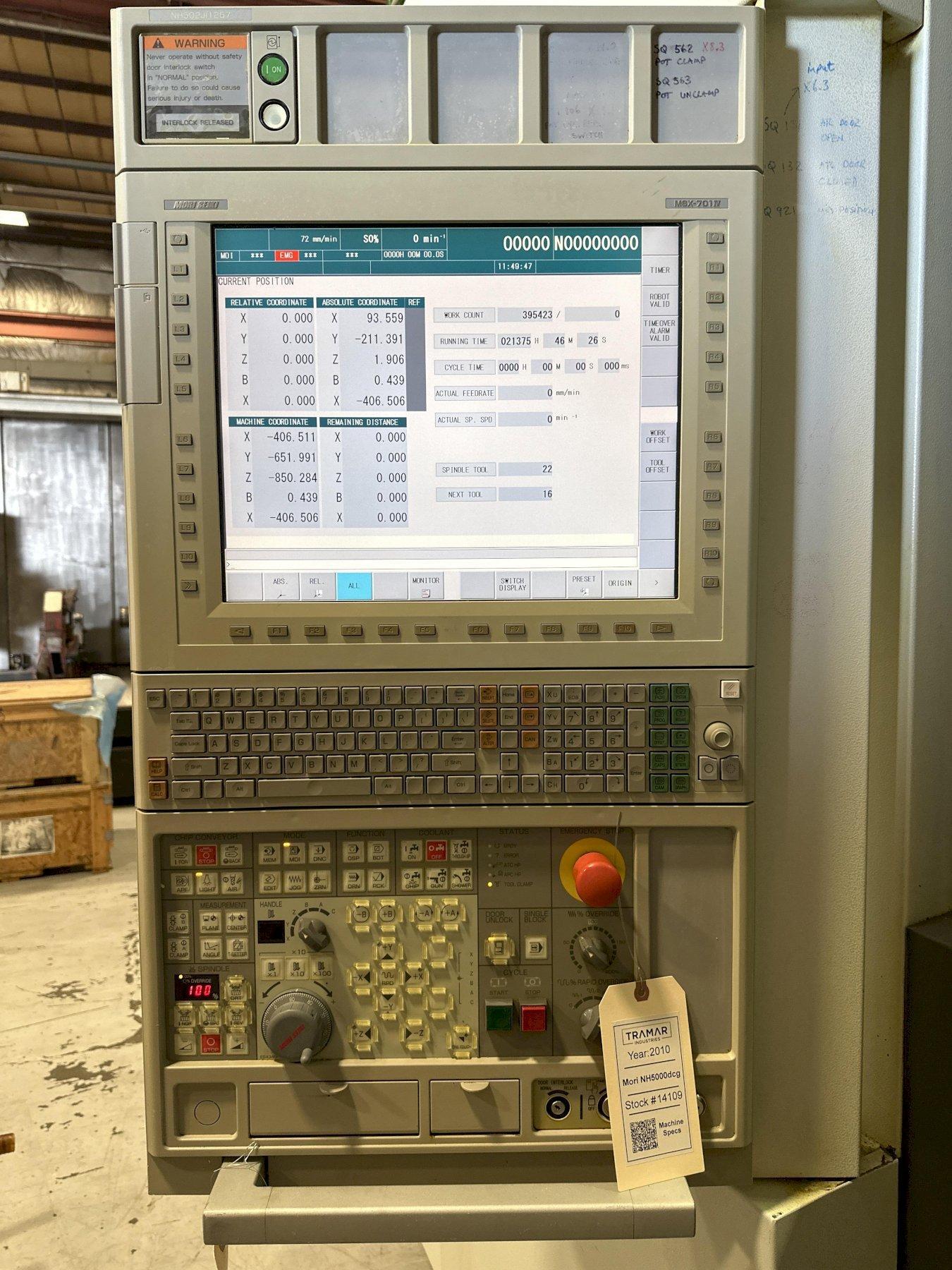

MSX-701IV CNC Control

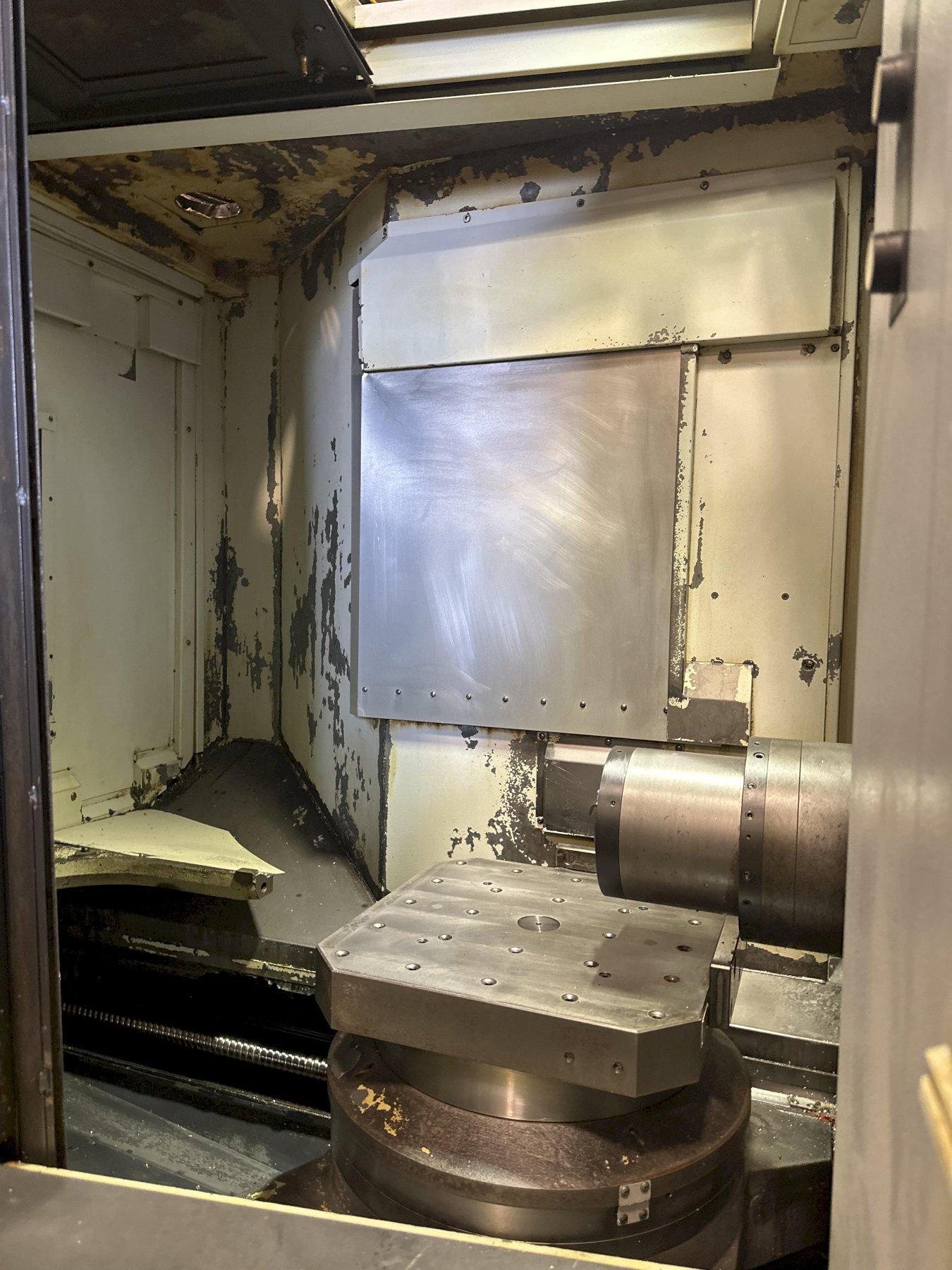

Full 4th Axis Indexing - 0.001°
Coolant Thru Spindle - Chip Blaster
Hydraulic Clamping
Tool Breakage Detection

Mori Seiki NH-5000dcg Used CNC Horizontal Machining Center For Sale - 2010

Equipped With:

- MSX-701IV CNC Control
- Full 4th Axis Indexing - 0.001°

- Chip Conveyor

- Coolant Tank & Pumps

- Coolant Thru Spindle
- Chip Blaster
- Tool Breakage Detection
- Hydraulic Clamping

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

MSX-701IV

# Axis

Pallet Length

19.7"

Pallet Width

19.7"

Pallet Load Capacity

1,100 pounds

Pallet Indexing (B-Axis)

0.001°

X-Axis Travel

28.7"

Y-Axis Travel

28.7"

Z-Axis Travel

33.5"

Rapid Traverse Rate (X/Y/Z)

1,969 ipm

Spindle Taper

CAT 40

Spindle Speed

14,000 rpm

Spindle Motor (HP)

25 hp

Tool Changer Capacity

Coolant Through Spindle

yes

Machine Dimensions

182" x 108" x 124"

Machine Weight

28,500 pounds

Equipped With:

- MSX-701IV CNC Control
- Full 4th Axis Indexing - 0.001°

- Chip Conveyor

- Coolant Tank & Pumps

- Coolant Thru Spindle
- Chip Blaster
- Tool Breakage Detection
- Hydraulic Clamping

The Mori Seiki NH5000dcg/40 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
