Mitsubishi MVR-35 - Machining Centers, Gantry (incld. Bridge & Double Column)

Share Machine

Specifications Print Specs

Model: MVR-35

Year: 2007

Stock #: 14330 Sold

Type: Machining Centers, Gantry (incld. Bridge & Double Column)

Manufacturer: Used Mitsubishi Machines

Highlights:

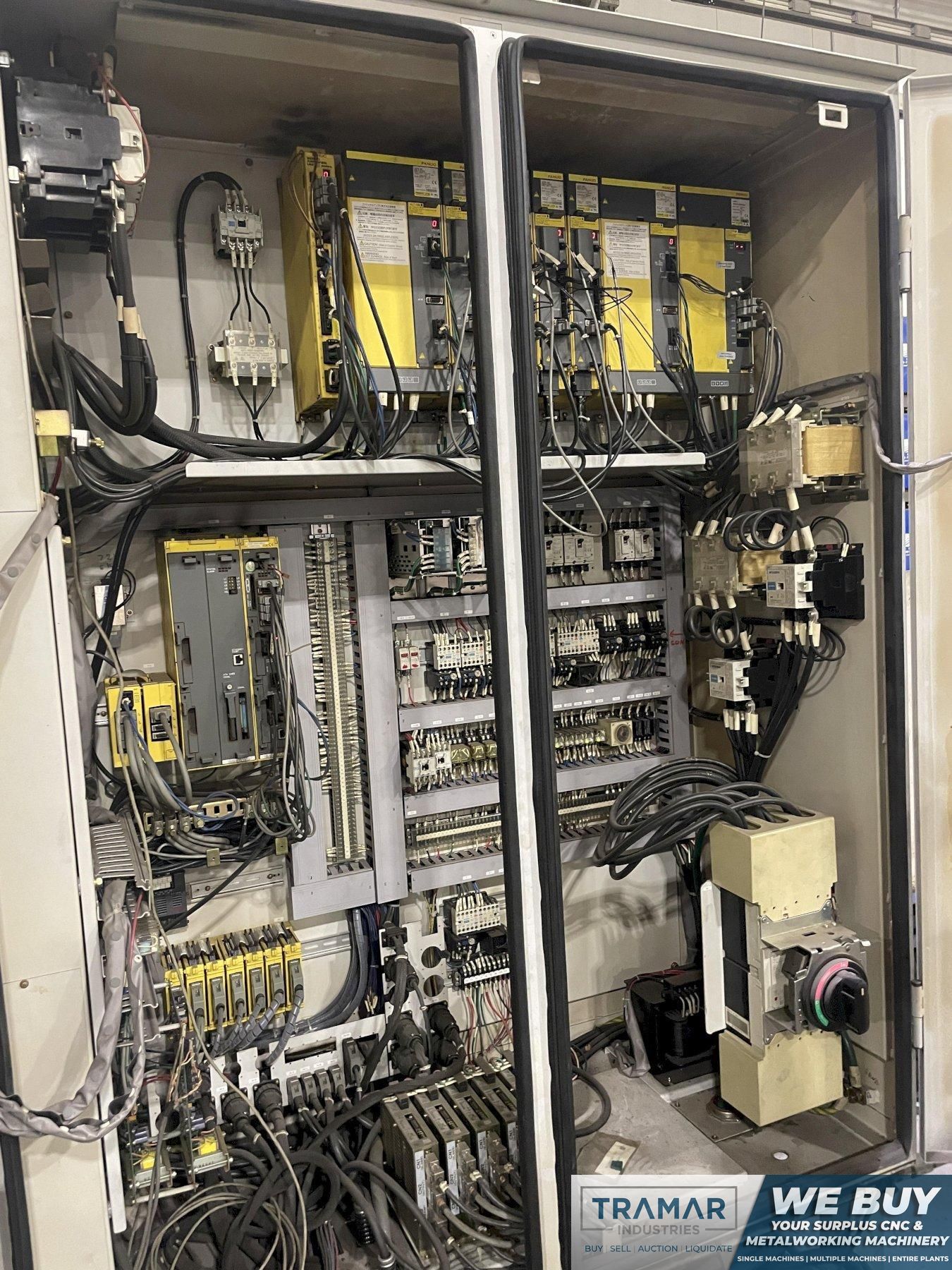

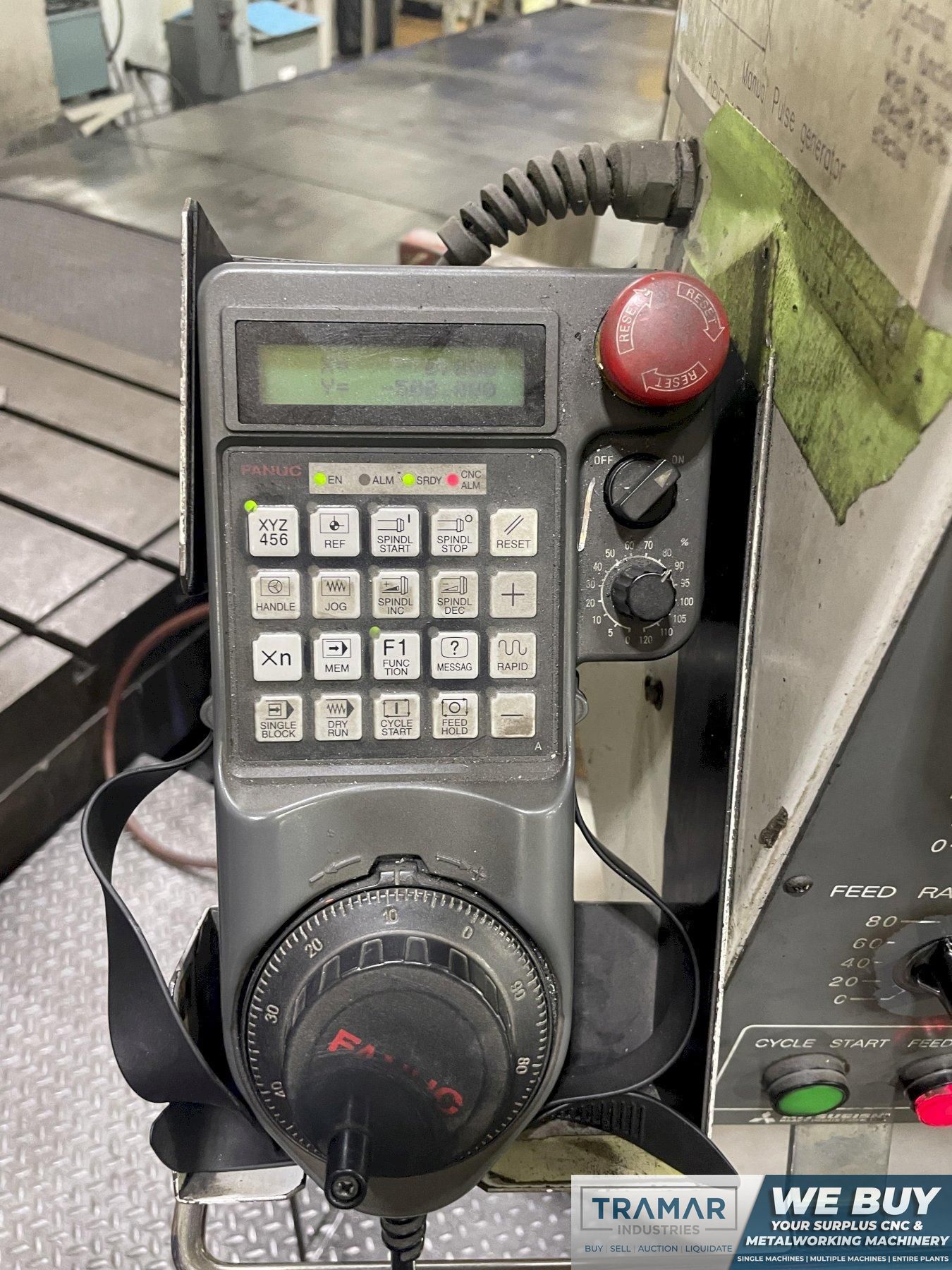

Fanuc 18i-MB CNC Control
5-Face CNC Gantry Bridge Mill

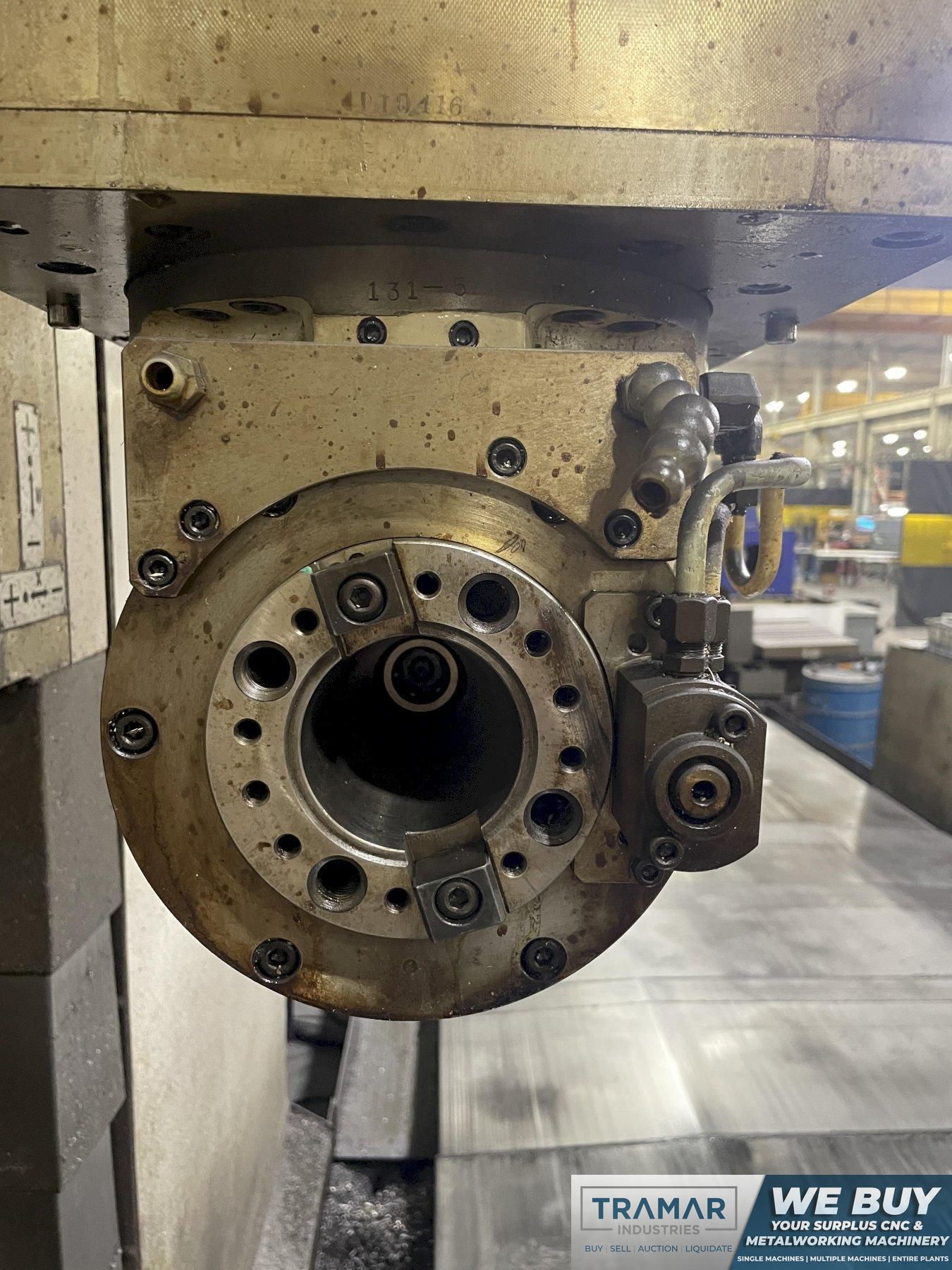

90° Right Angle Head Attachment w/5° indexing
Elevating Rail

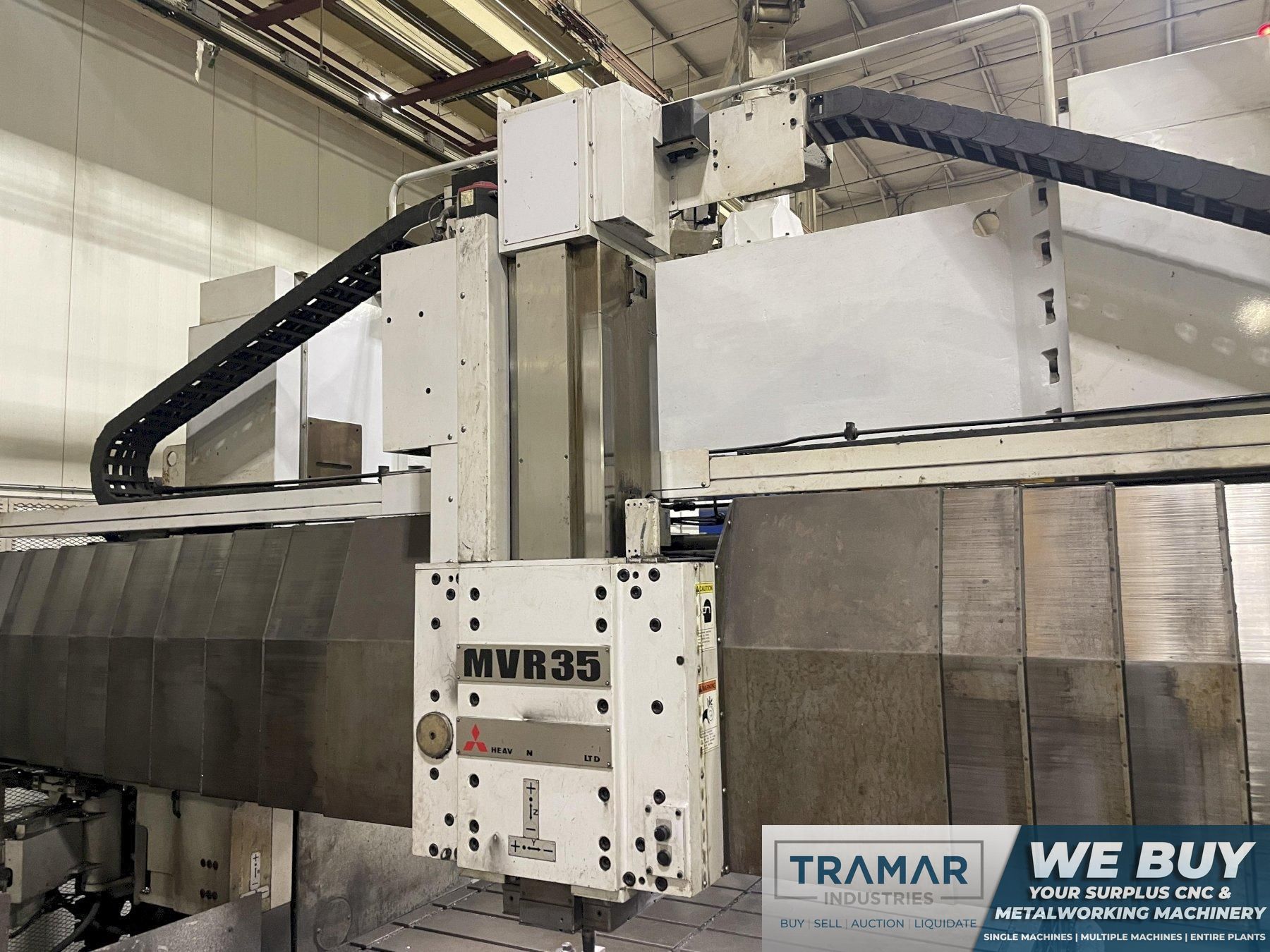

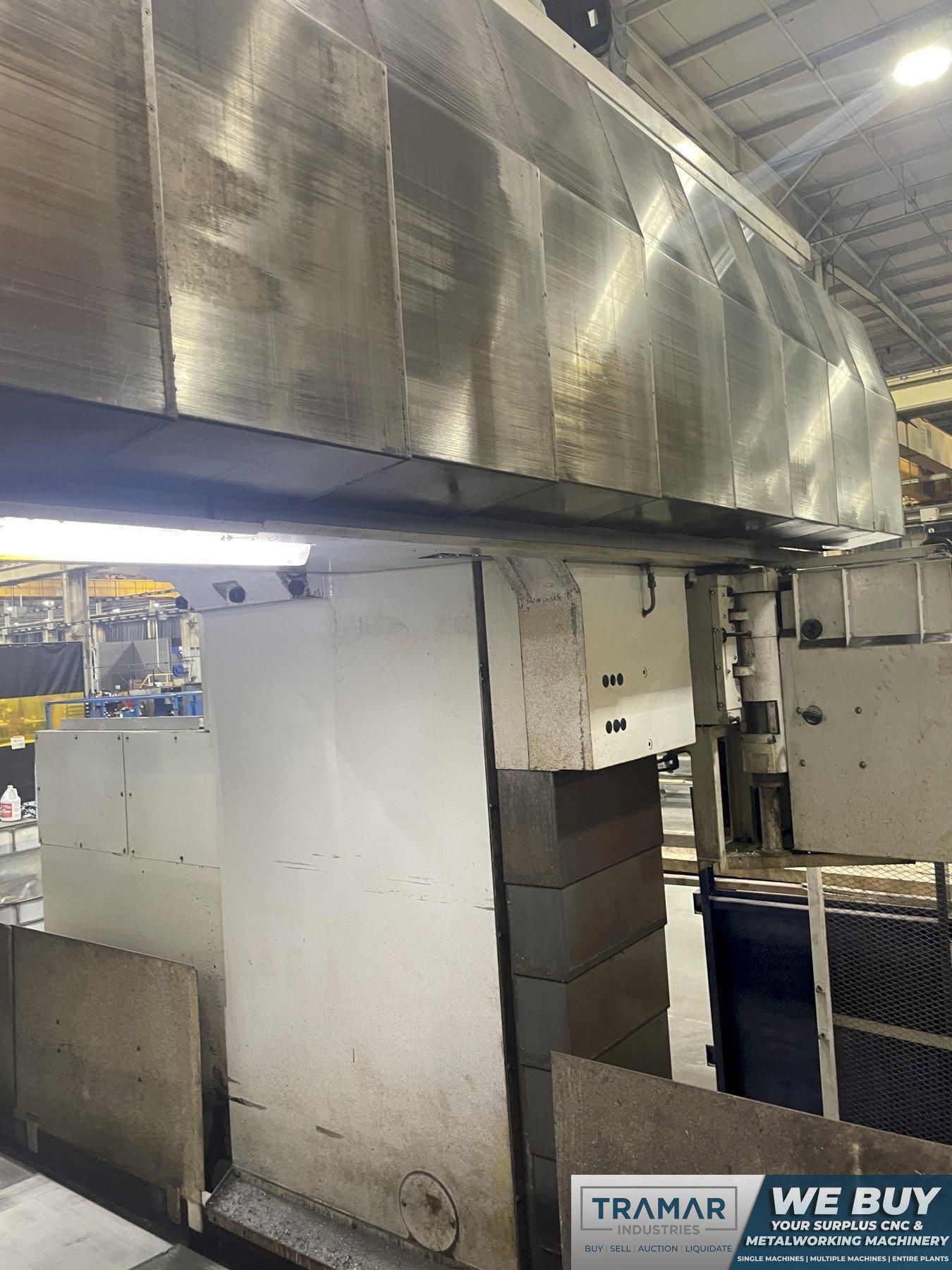

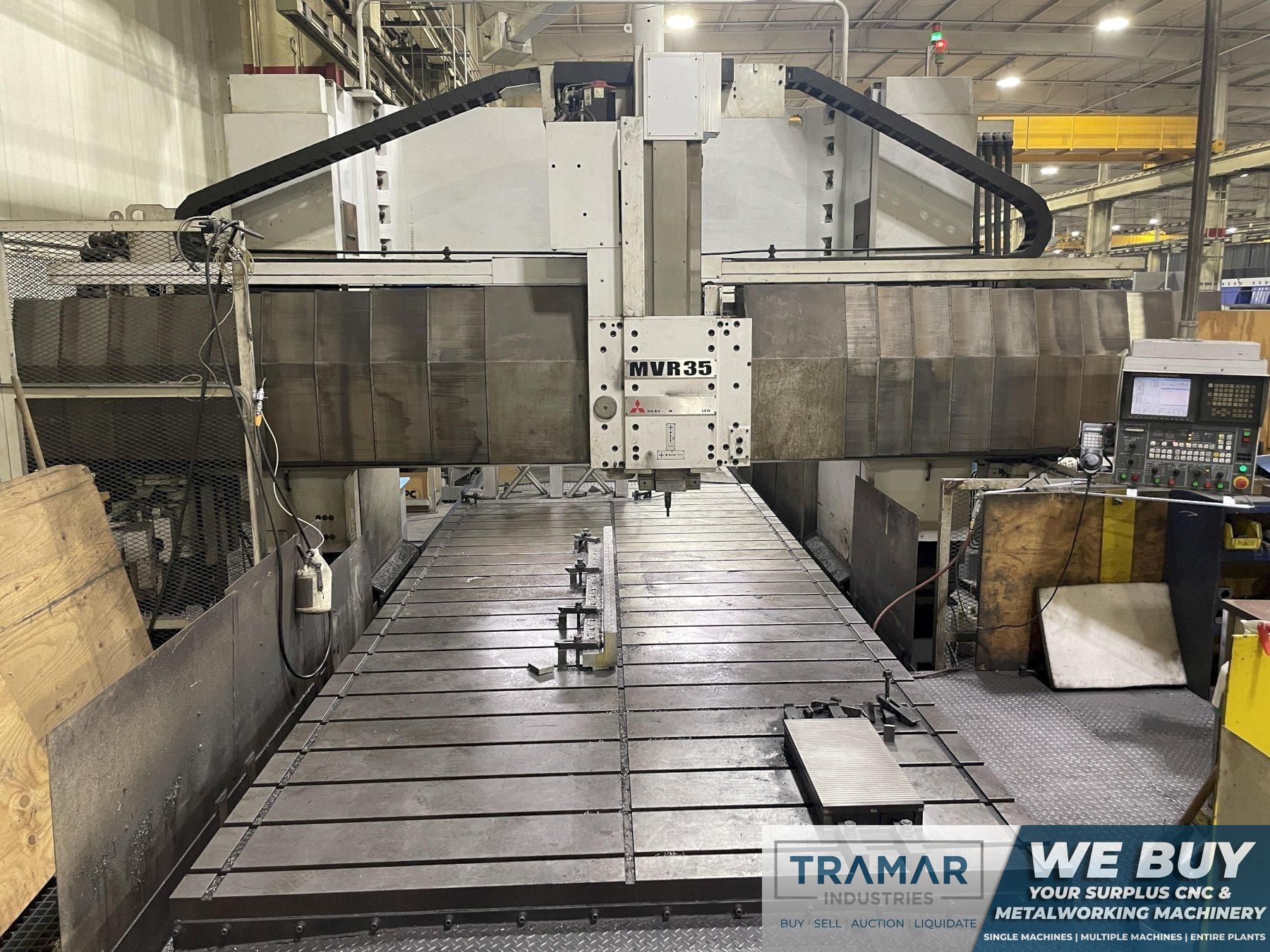

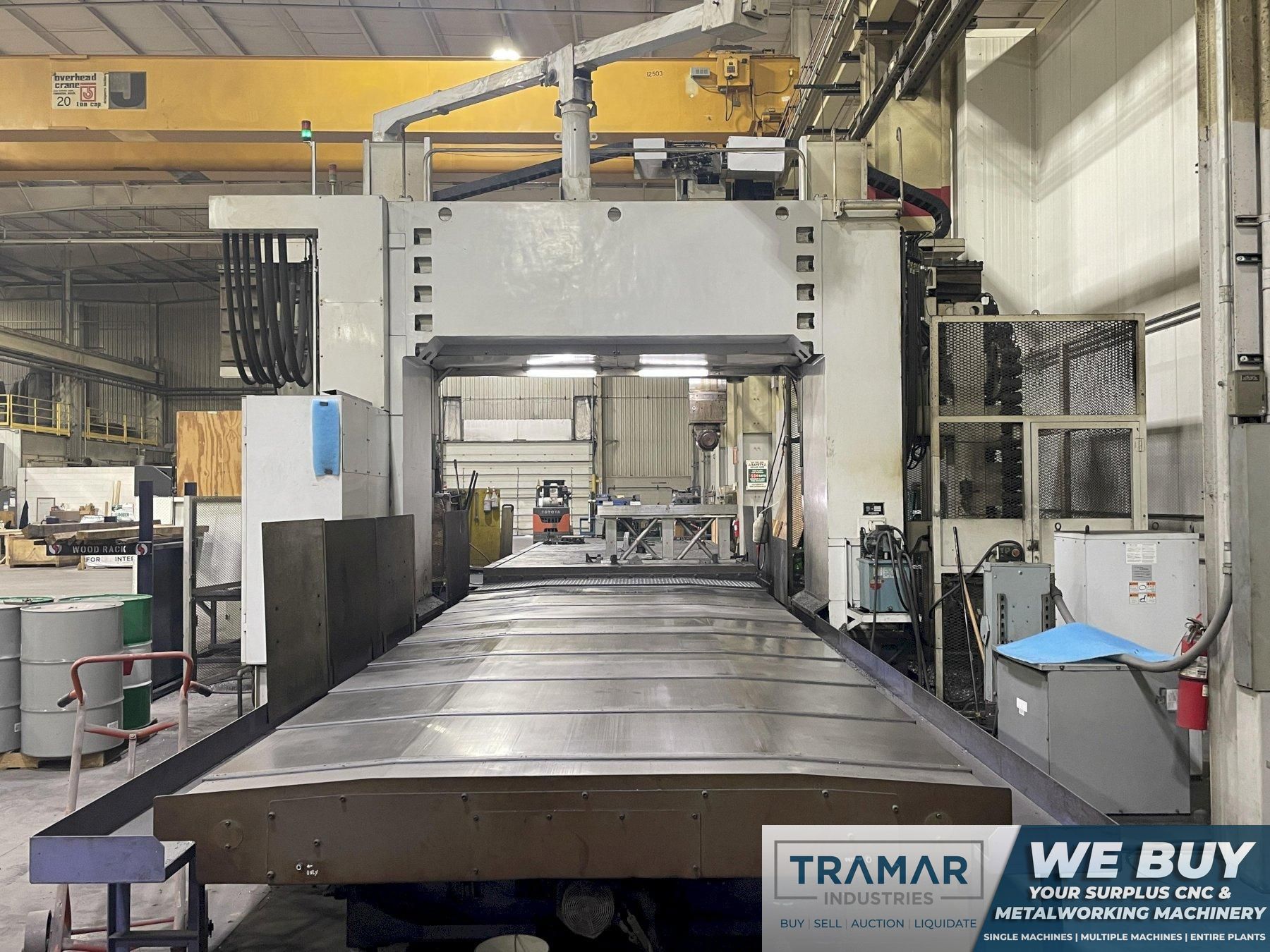

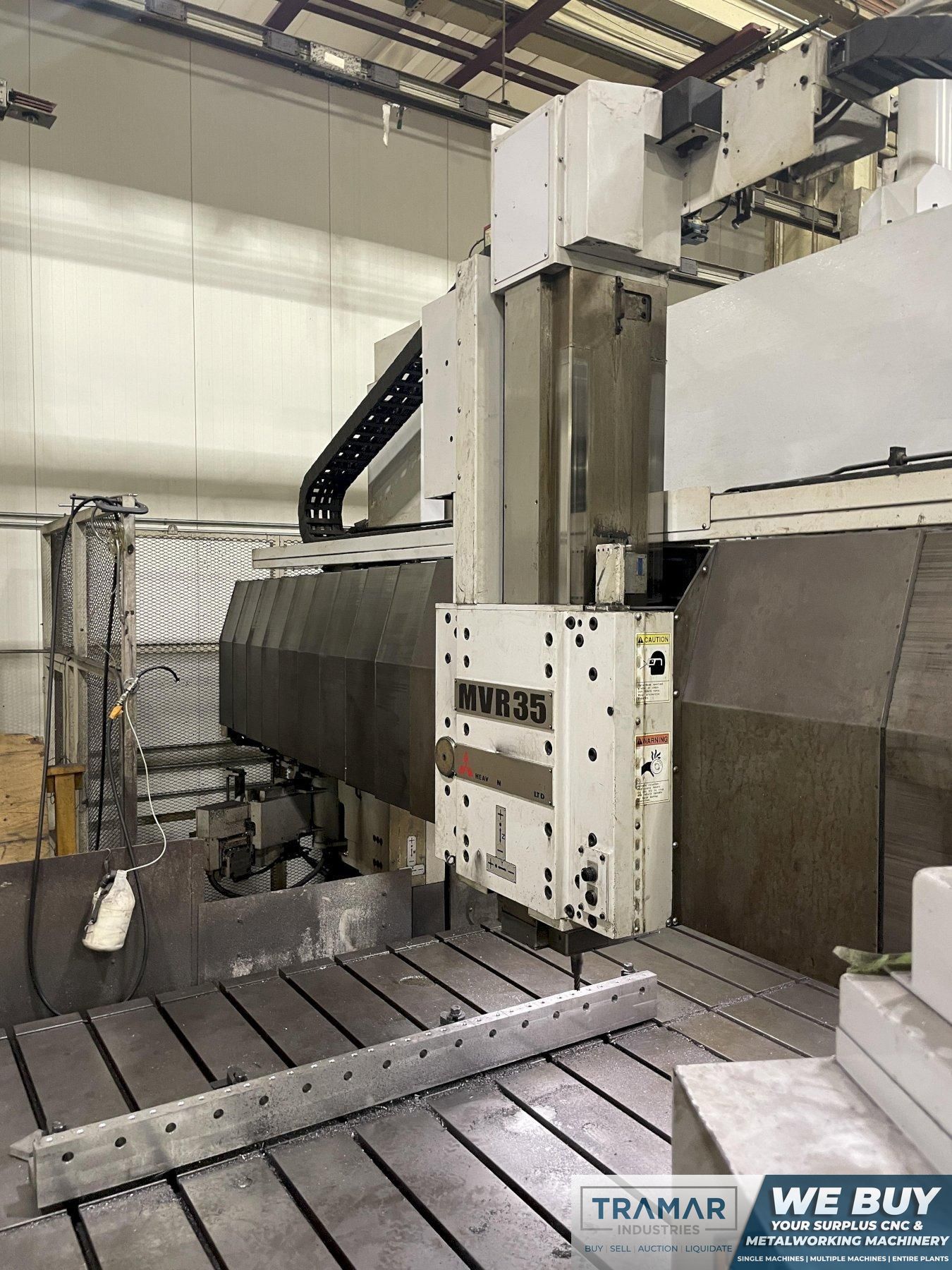

Mitsubishi MVR-35 5-Face CNC Gantry Bridge Mill For Sale - 2007

Equipped With:

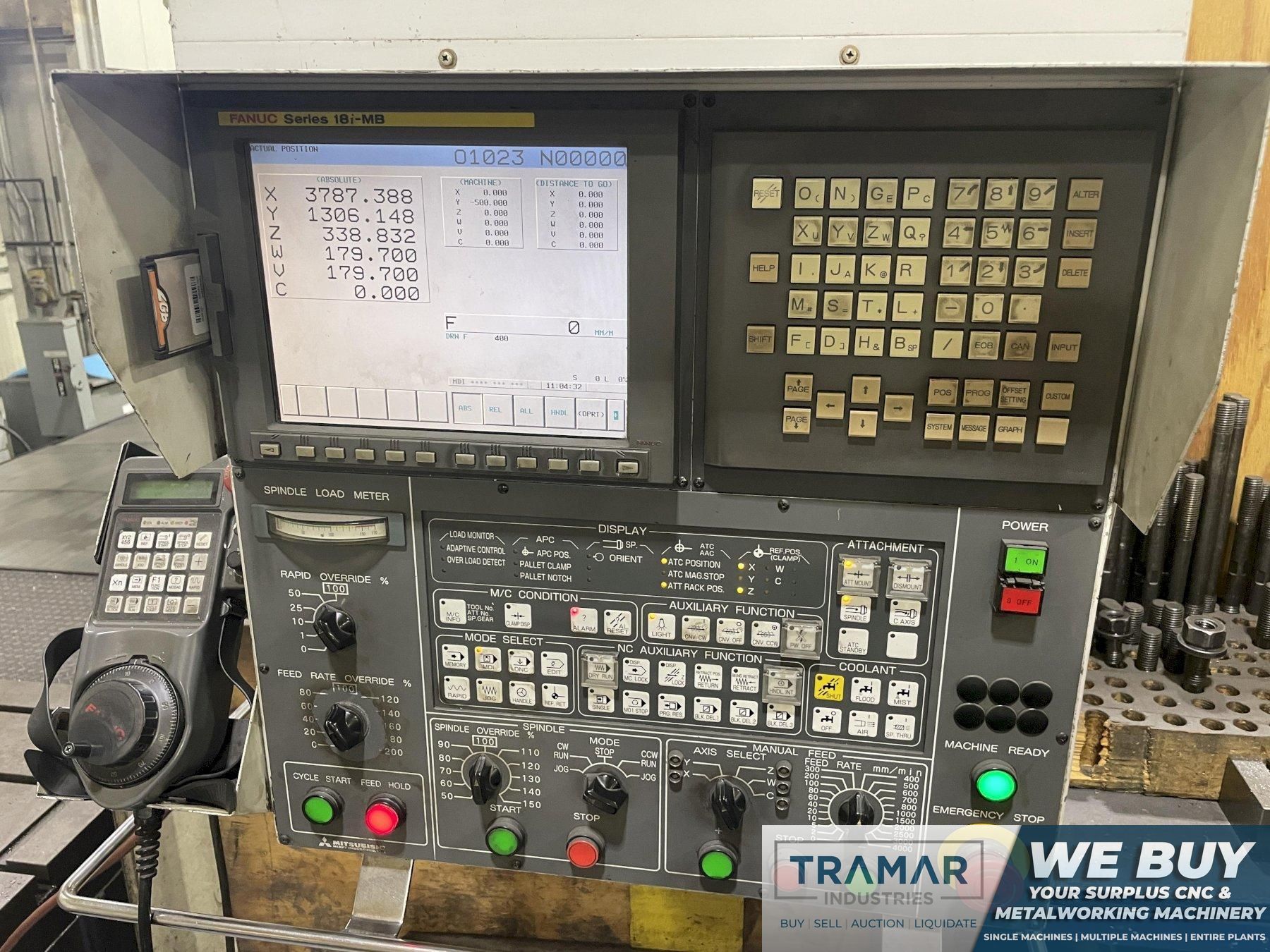

- Fanuc 18i-MB CNC Control

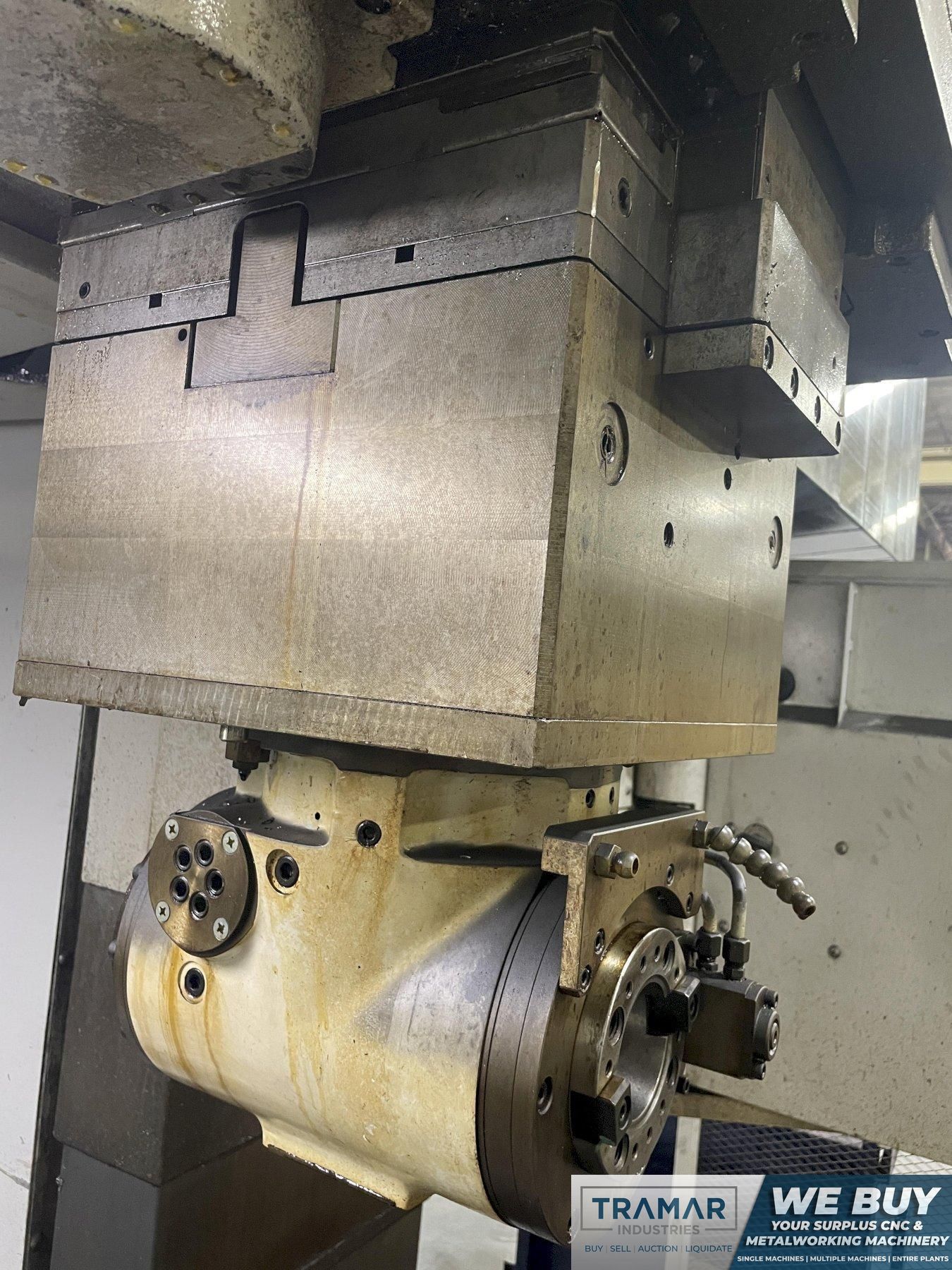

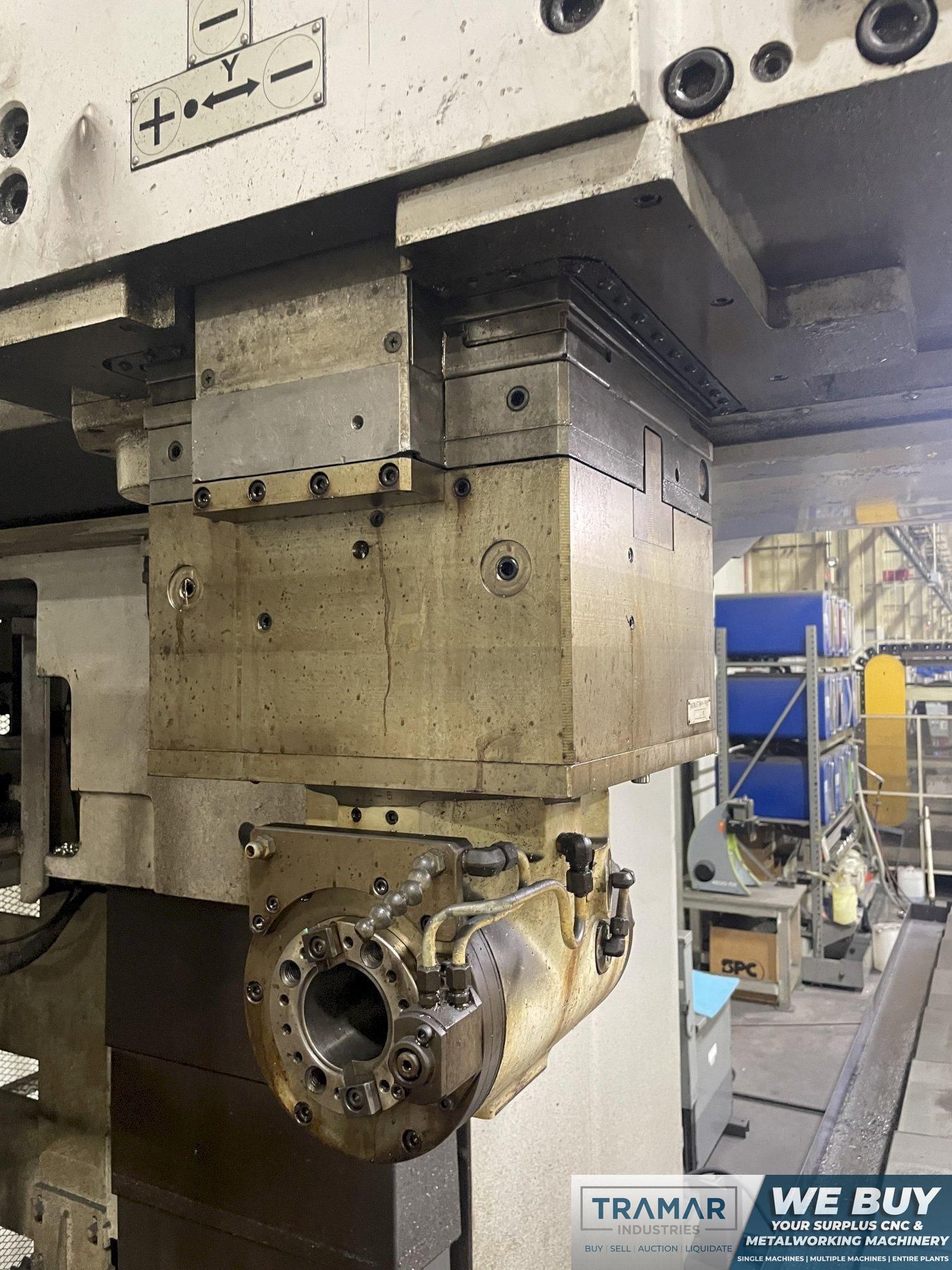

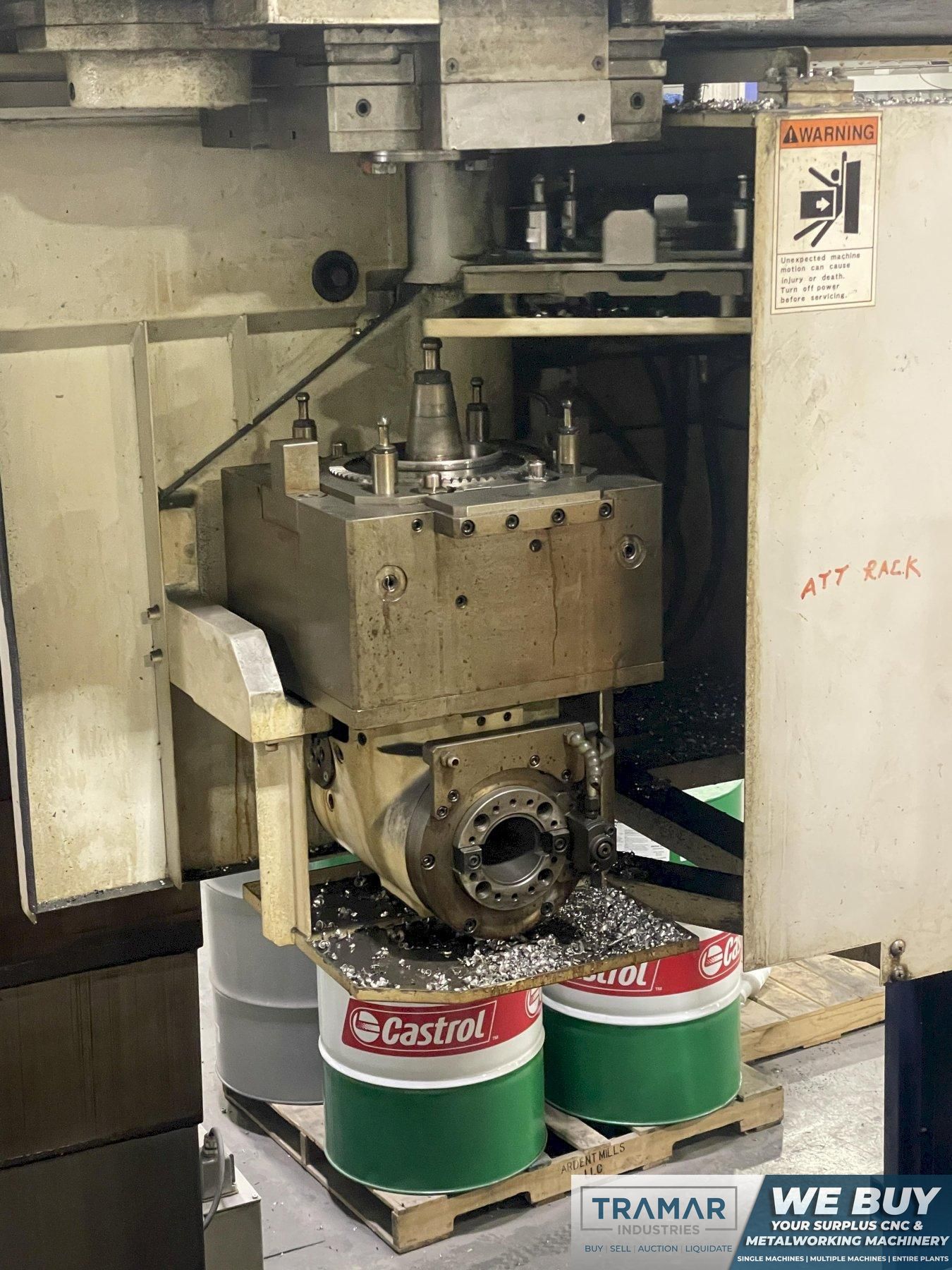

- 90 Degree Right Angle Indexing Head Attachment w/5° Increments
- Glass Scales

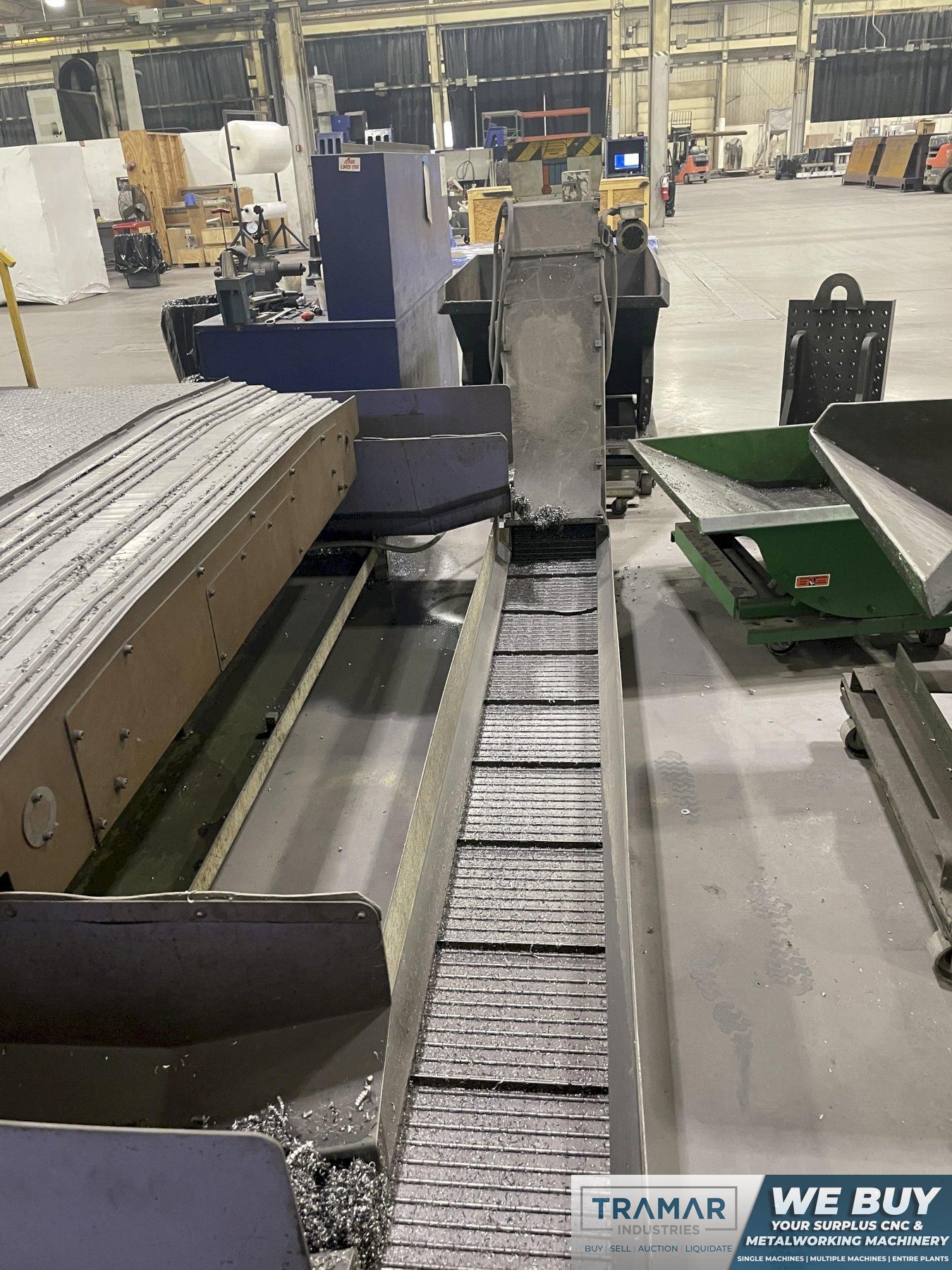

- Chip Conveyor

Machine Videos

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 18i-MB

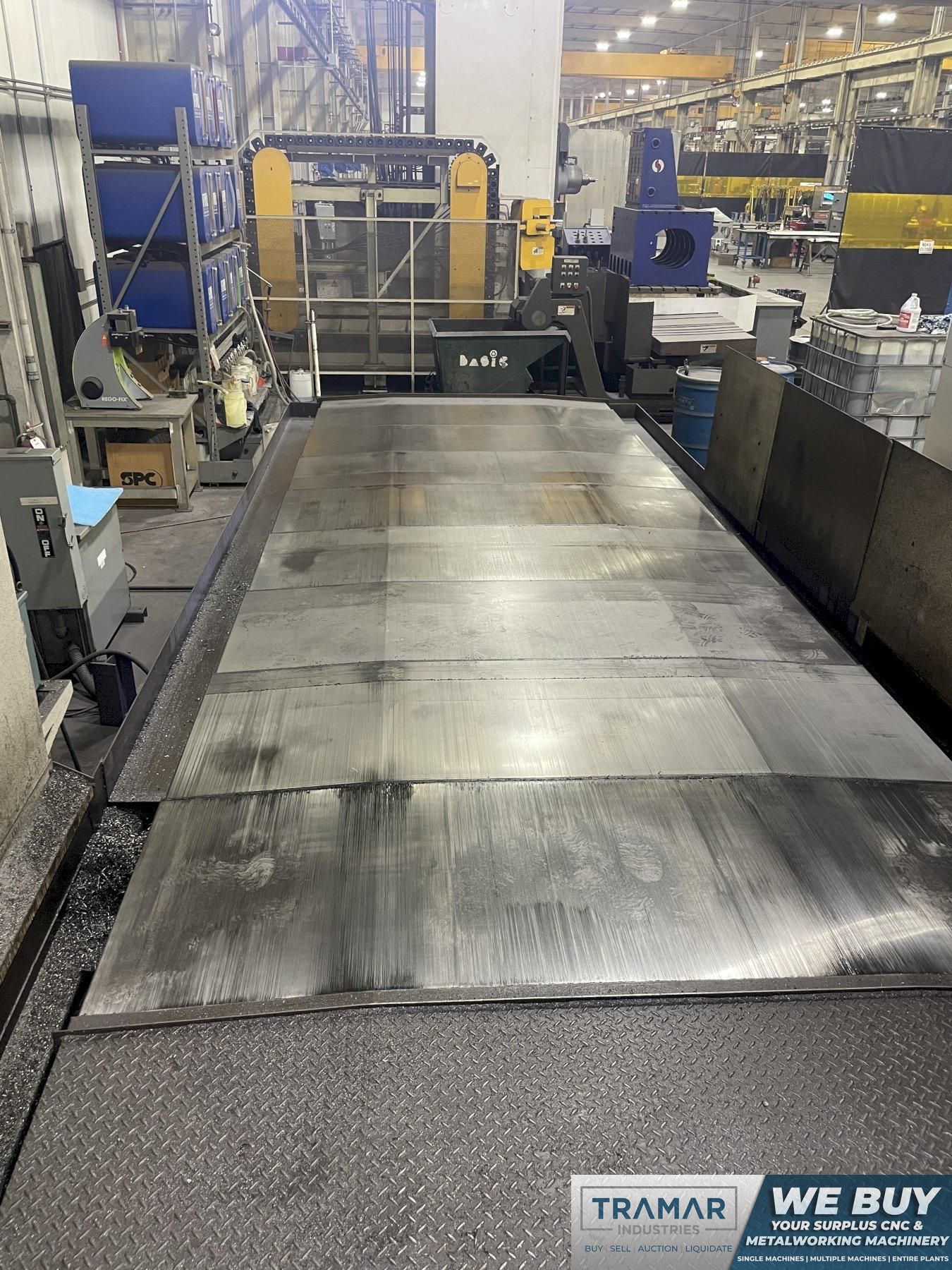

Table Size

236.2" x 98.43"

Max Table Load

77,000 lbs

Distance Between Columns

127.95"

Ram Size

13.78" x 15.75"

Vertical Travel of Crossrail

43.1"

X-Axis Travel

244.09"

Y-Axis Travel

137.8"

Z-Axis Travel

27.56"

Max Distance Spindle To Table Top

64.96"

Spindle Taper

CAT 50

Spindle Speed

6,000 rpm

Spindle Motor (HP)

40 hp

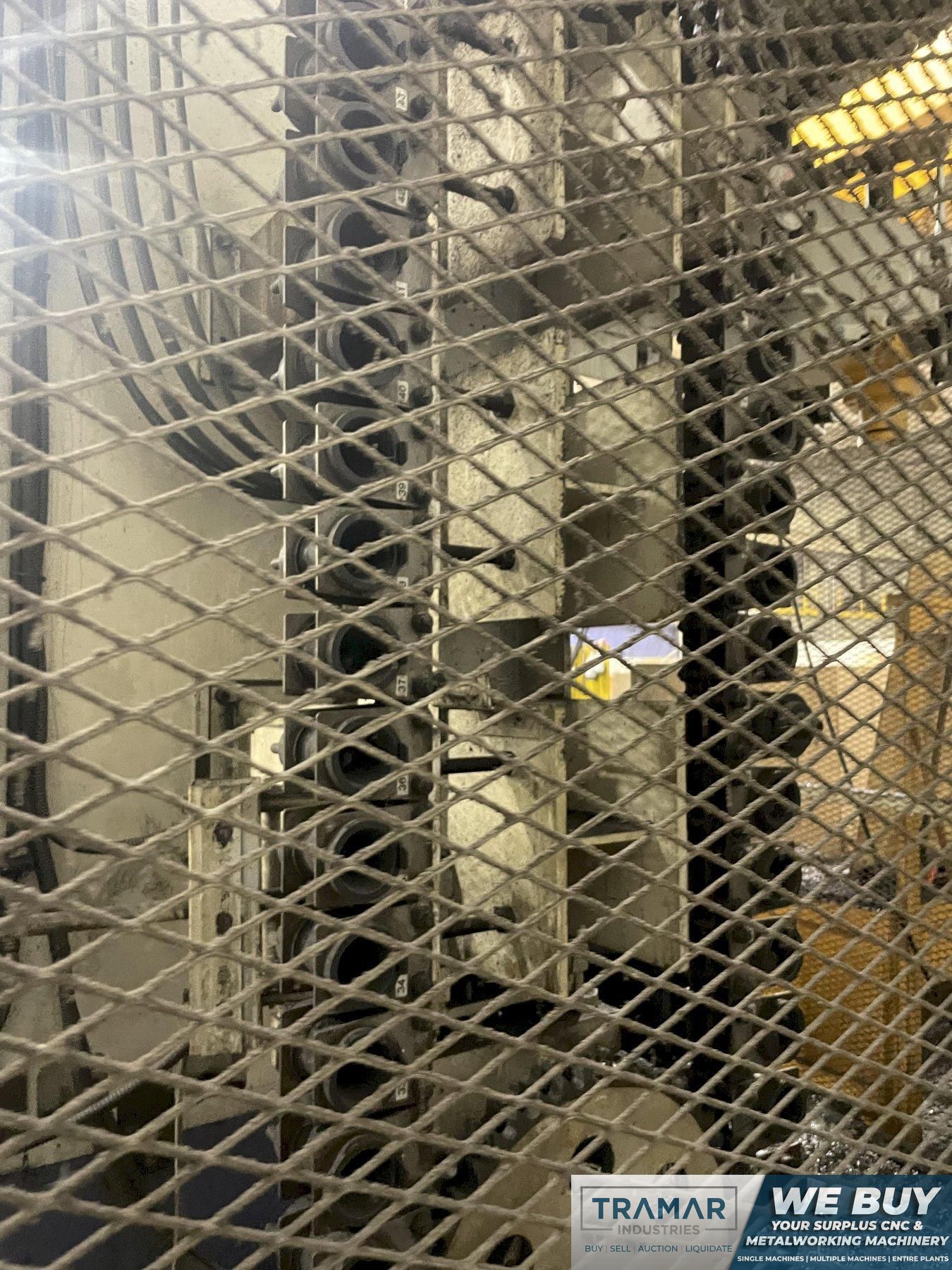

ATC Capacity

Machine Dimensions

590" x 294" x 233"

Machine Weight

132,000 pounds

Equipped With:

- Fanuc 18i-MB CNC Control
- 90 Degree Right Angle Indexing Head Attachment w/5° Increments
- Glass Scales
- Chip Conveyor

The Mitsubishi MVR-35 is an exclusive part of our Machining Centers, Gantry (incld. Bridge & Double Column) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
