Milltronics ML35 - Horizontal Lathes

Share Machine
Specifications Print Specs

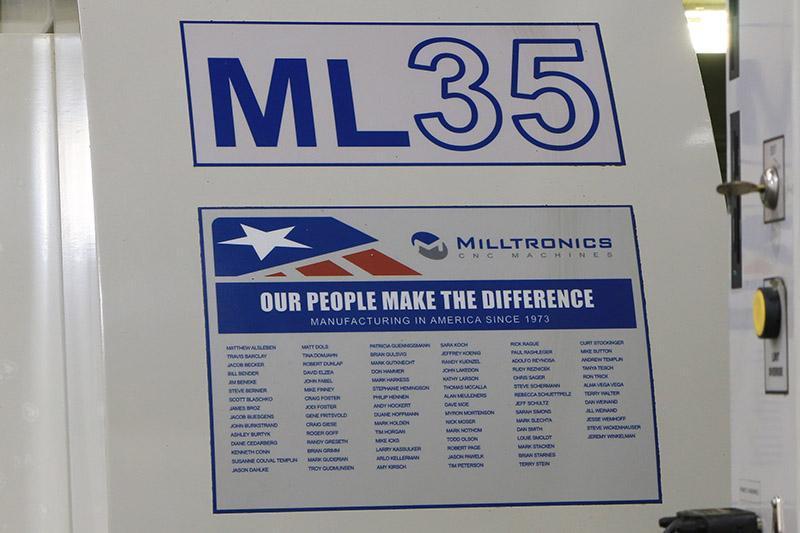

Model: ML35
Year: 2012
Stock #: 011752 Sold
Yes
Highlights:

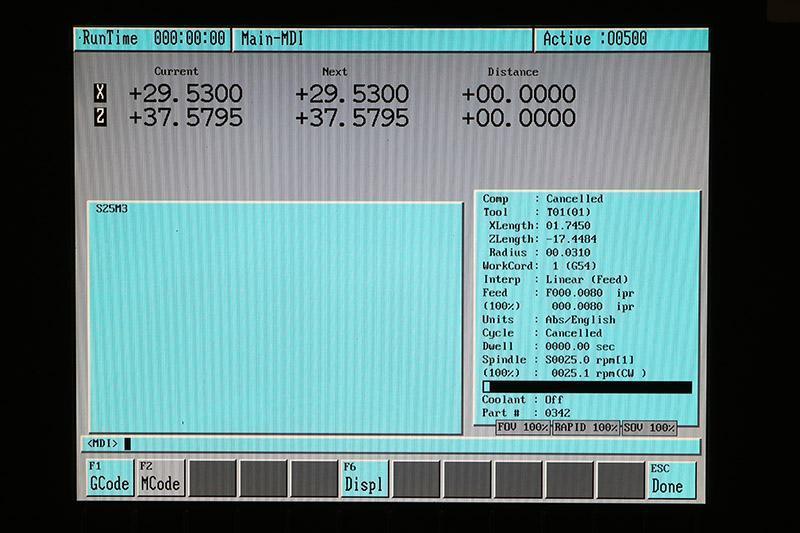

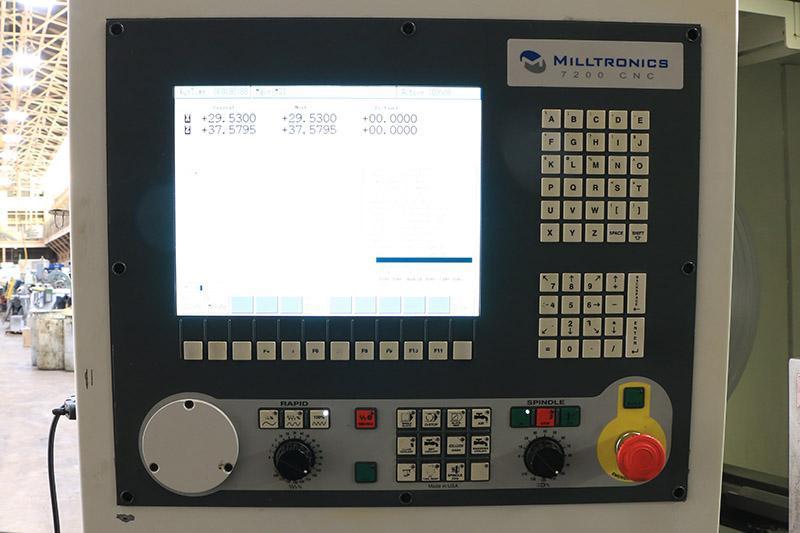

- Centurion 7,200T Control

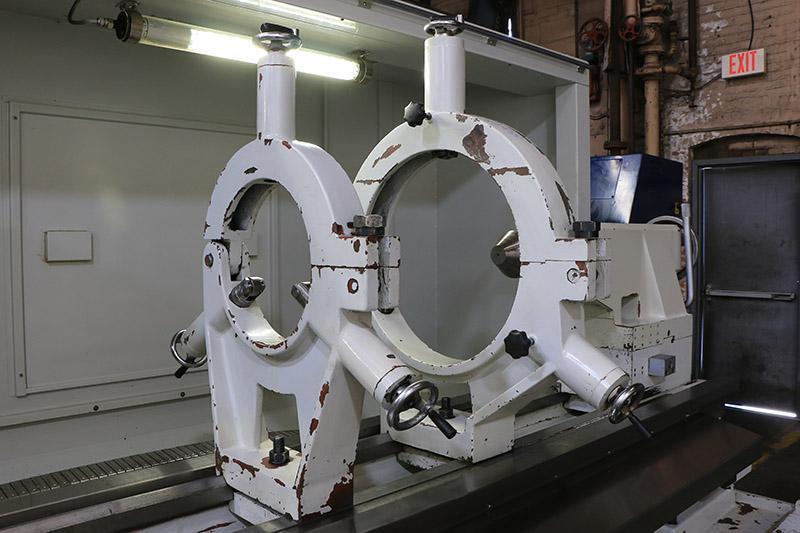

- (2) Roller Type Steady Rests
- 36" Swing x 120" Center Distance
- Chip Conveyor
- Geared Spindle w/2 Ranges
- 32" Pratt Burnerd 4-Jaw Chuck

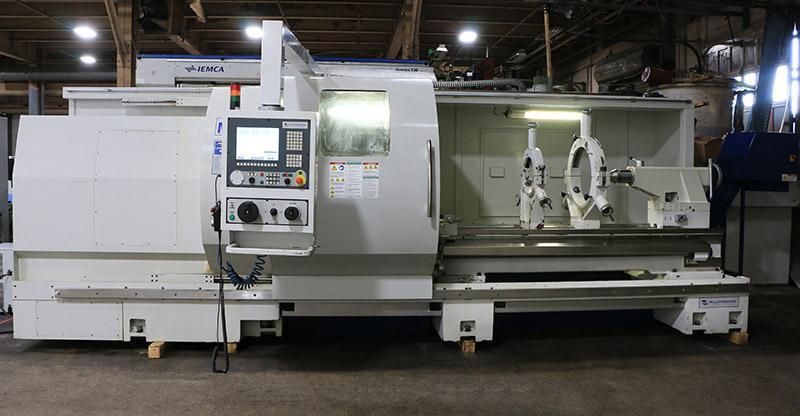

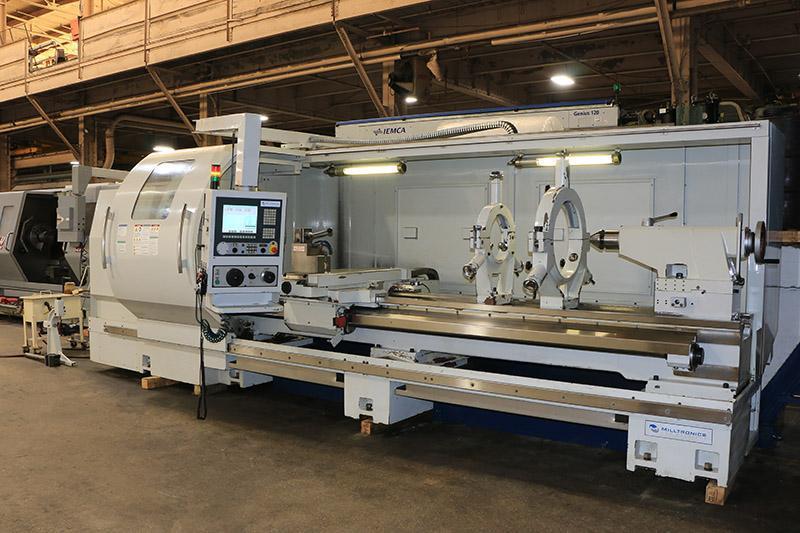

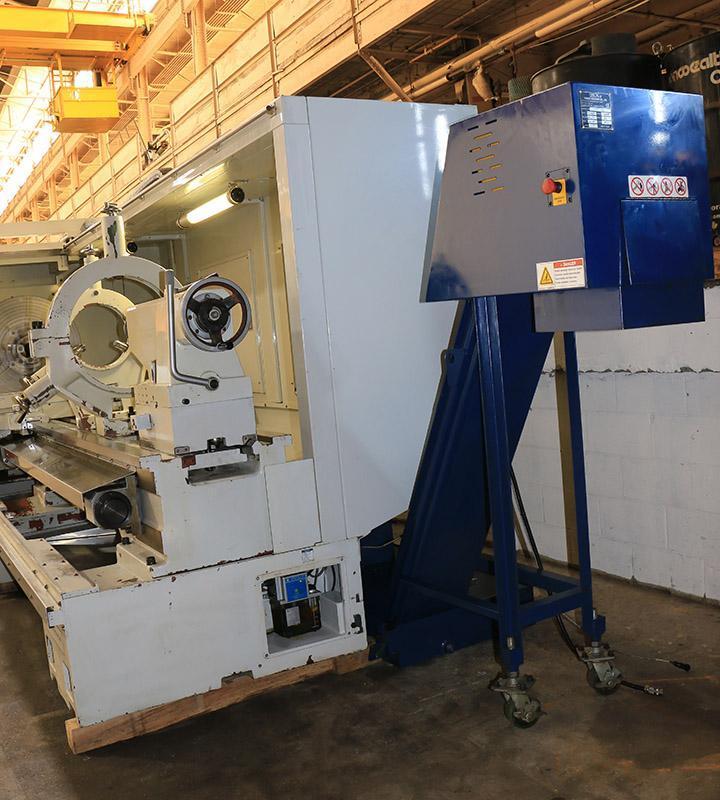

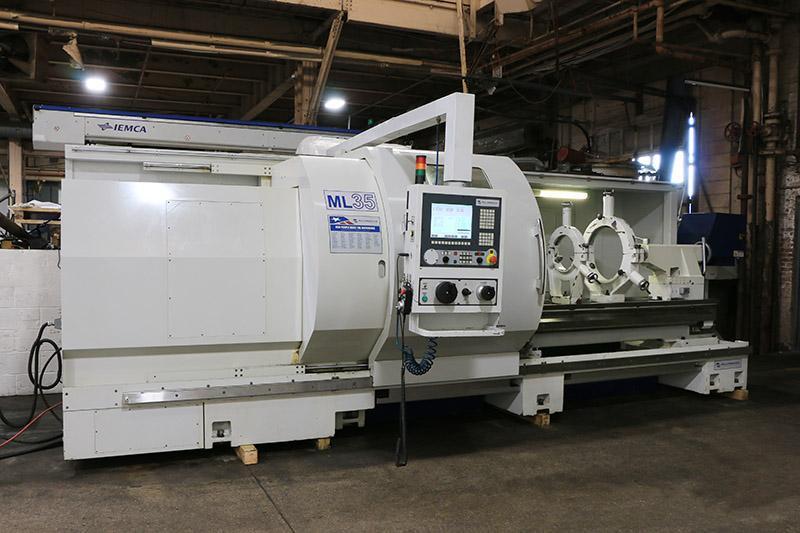

Milltronics ML35/120 Flatbed CNC Lathe
Machine Specifications
CNC Control
yes
Control Type
Centurion 7,200T
# Axis
2
Swing
36"
Turning Diameter
21.6"
Center Distance
120"
Chuck Size
32"
Bar Capacity
6"
X Axis Travel
19"
Z Axis Travel
120"
Spindle Ranges
3 Ranges
Spindle Speed (RPM)
900
Main Motor
44 hp
Tailstock
yes
Live Tooling
no
Sub Spindle
no
Y Axis
no
Dimensions
232" x 110" x 90"
Weight
25,200 pounds

Equipped With:

- Centurion 7,200T Control
- (2) Roller Type Steady Rests
- Chip Conveyor
- Geared Spindle w/2 Ranges
- Follow Rest

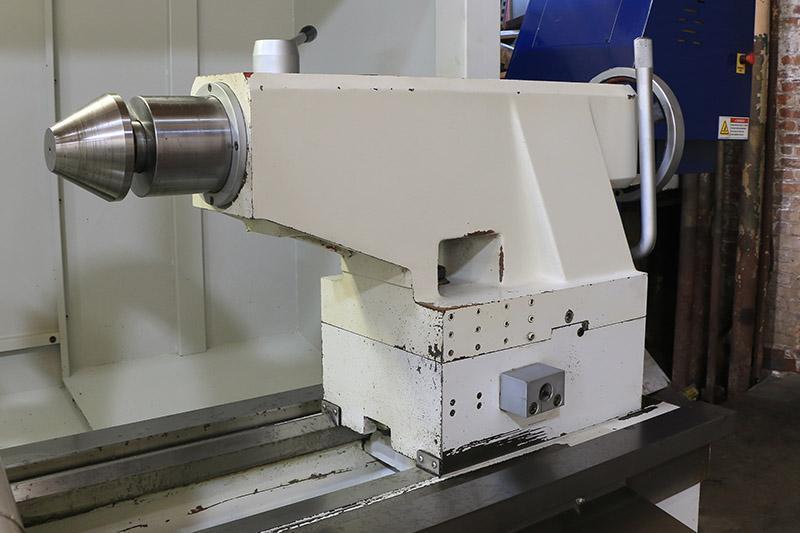

- Live Center for Tailstock
- Spindle Chiller

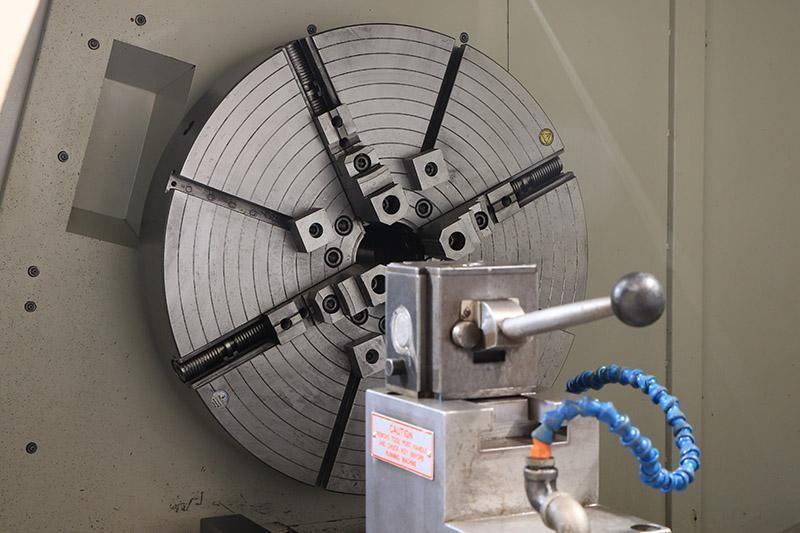

- 32" Pratt Burnerd 4-Jaw Chuck

The Milltronics ML35 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
