Mazak Slant Turn 60N - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Slant Turn 60N
Year: 2006
Stock #: 14534
Highlights:

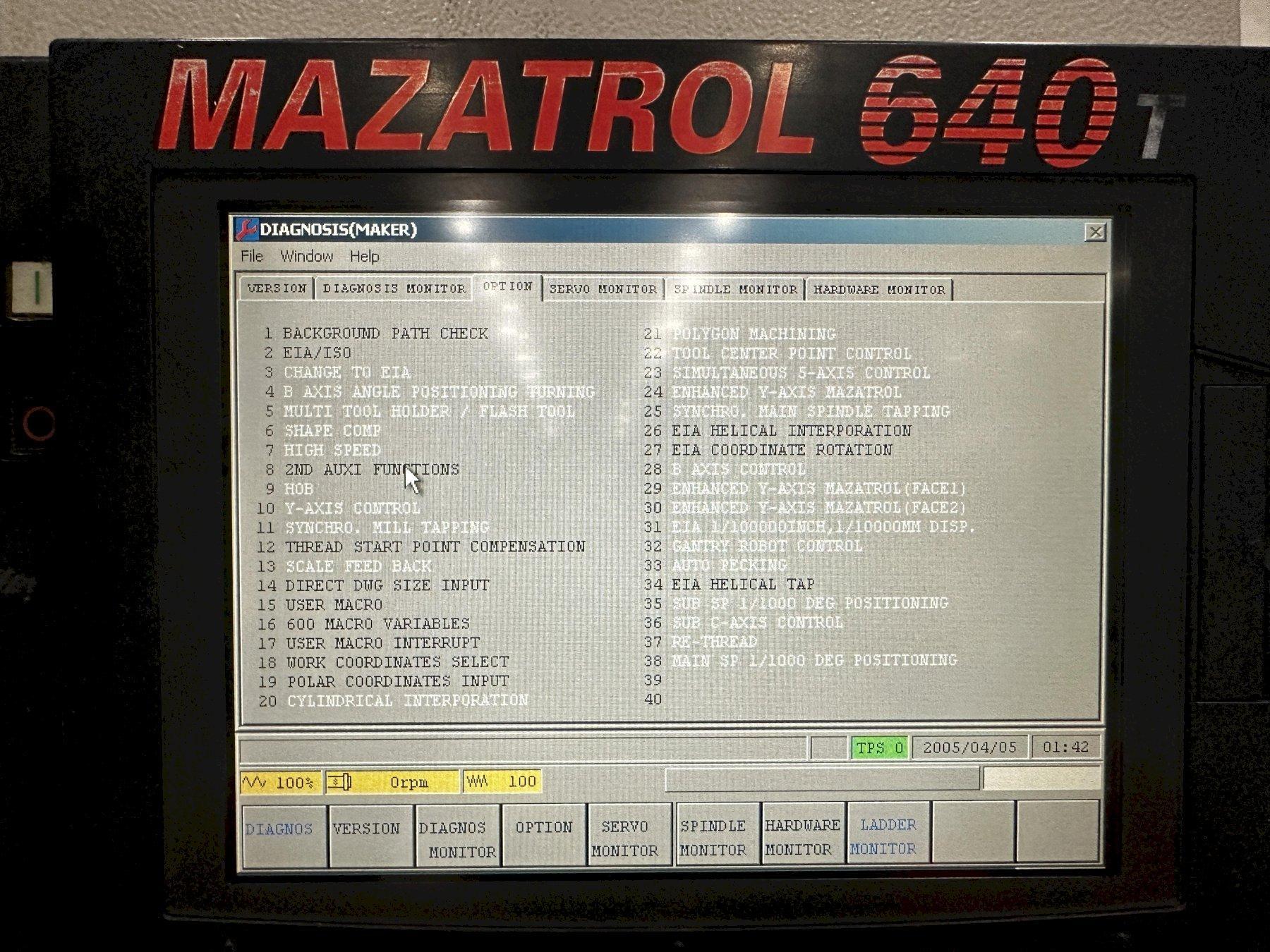

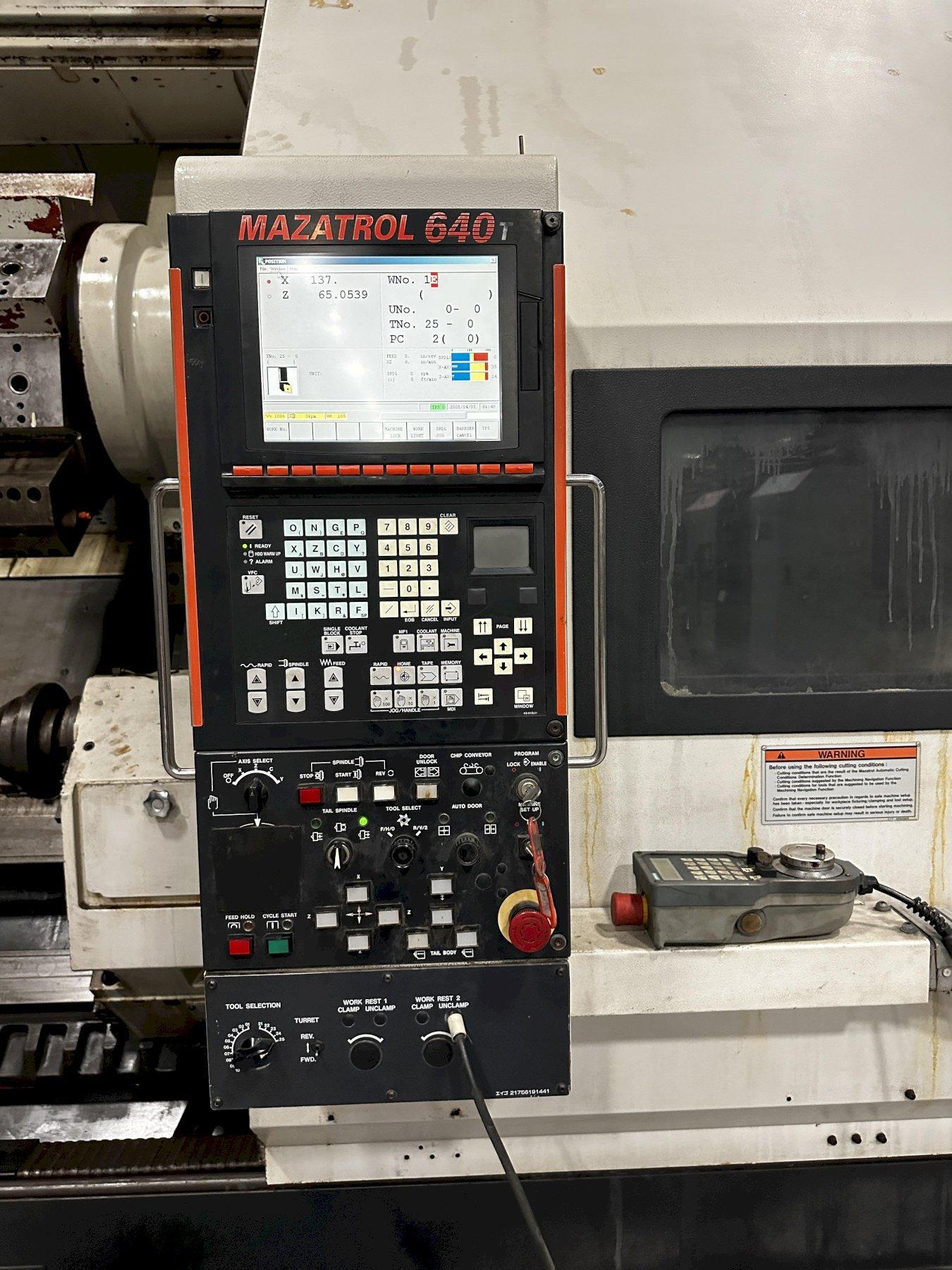

Mazatrol 640T CNC Control

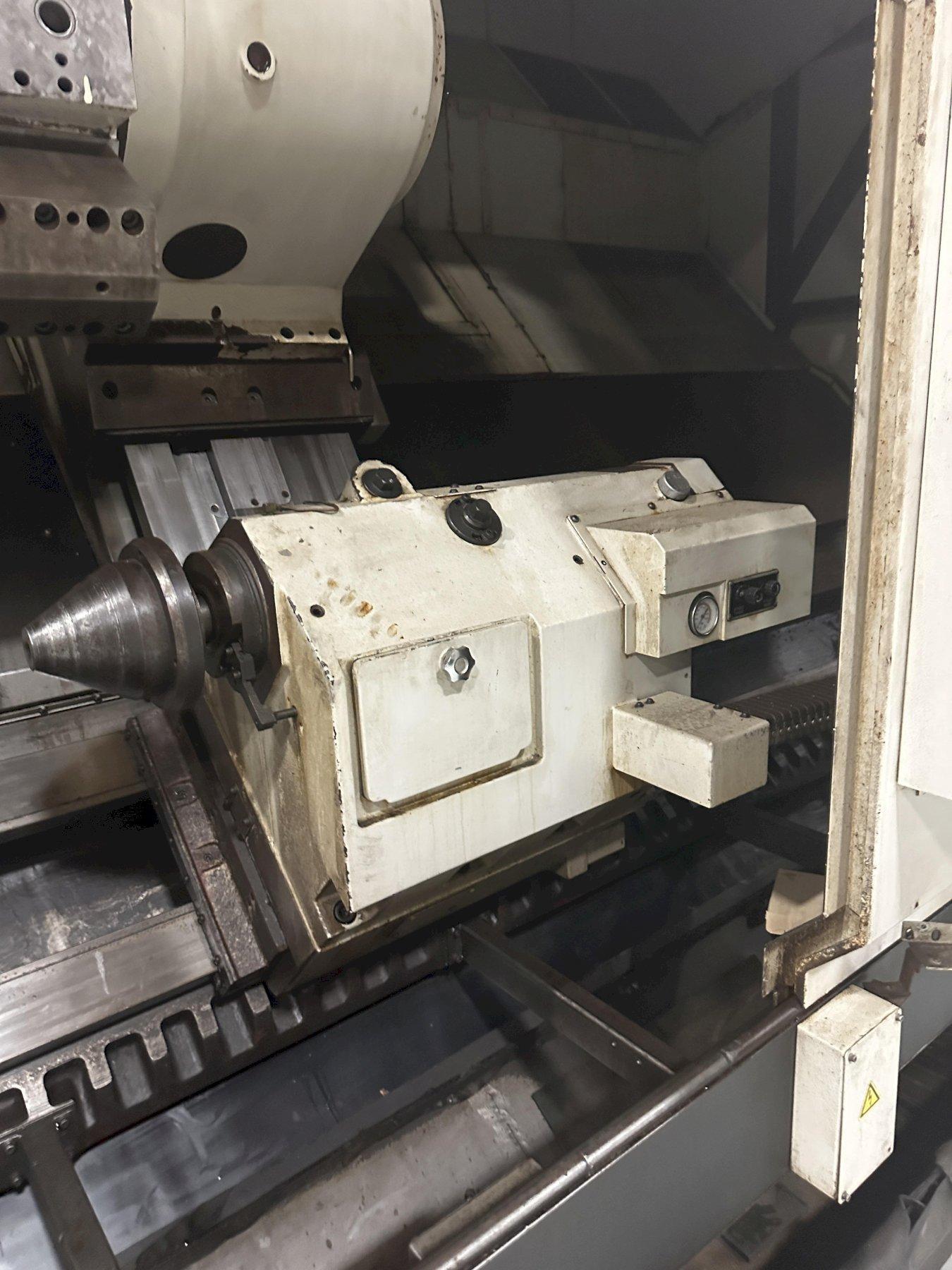

Tailstock
Tool Presetter
Chip Conveyor
4-Stage Gear Box

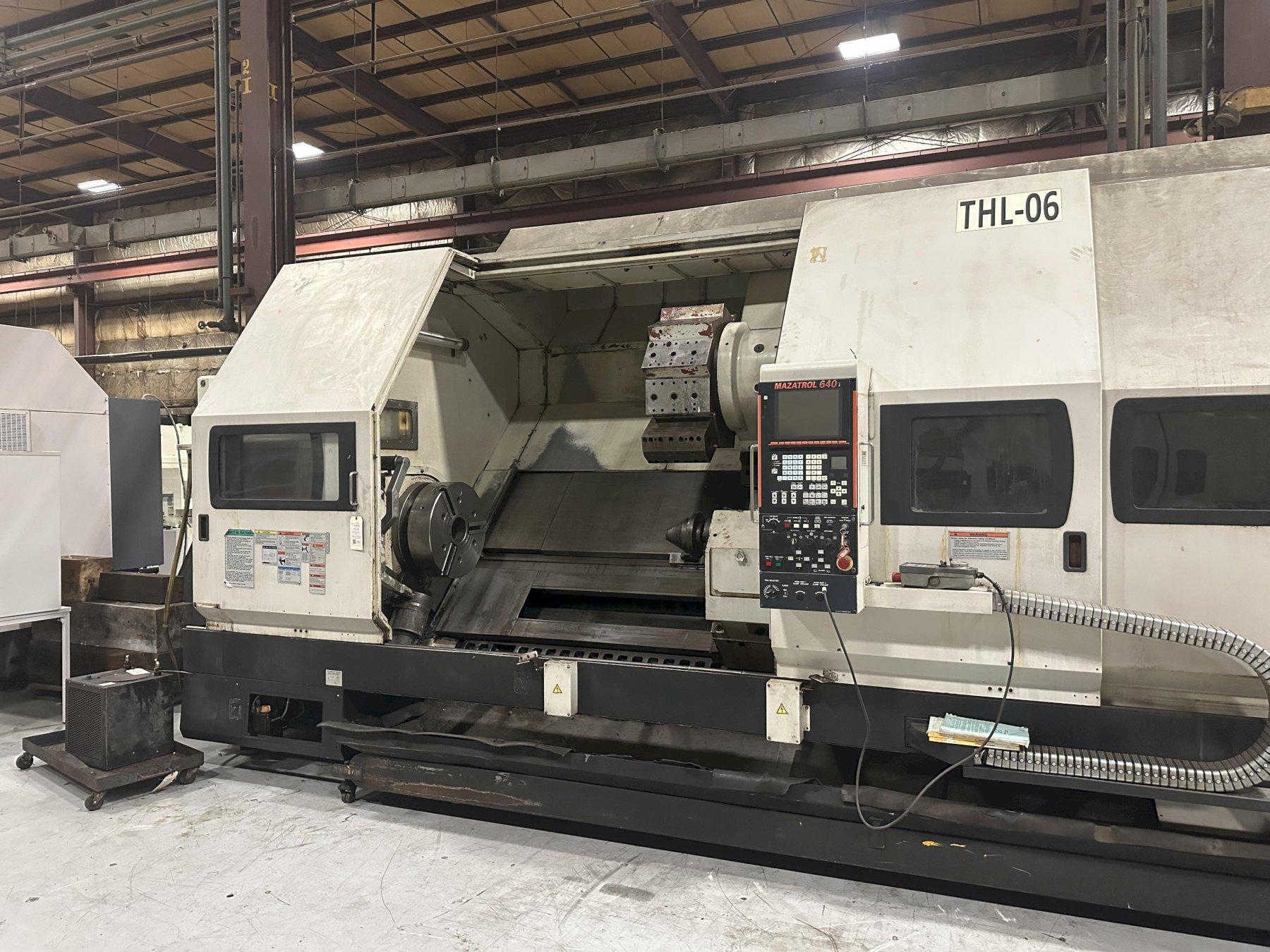

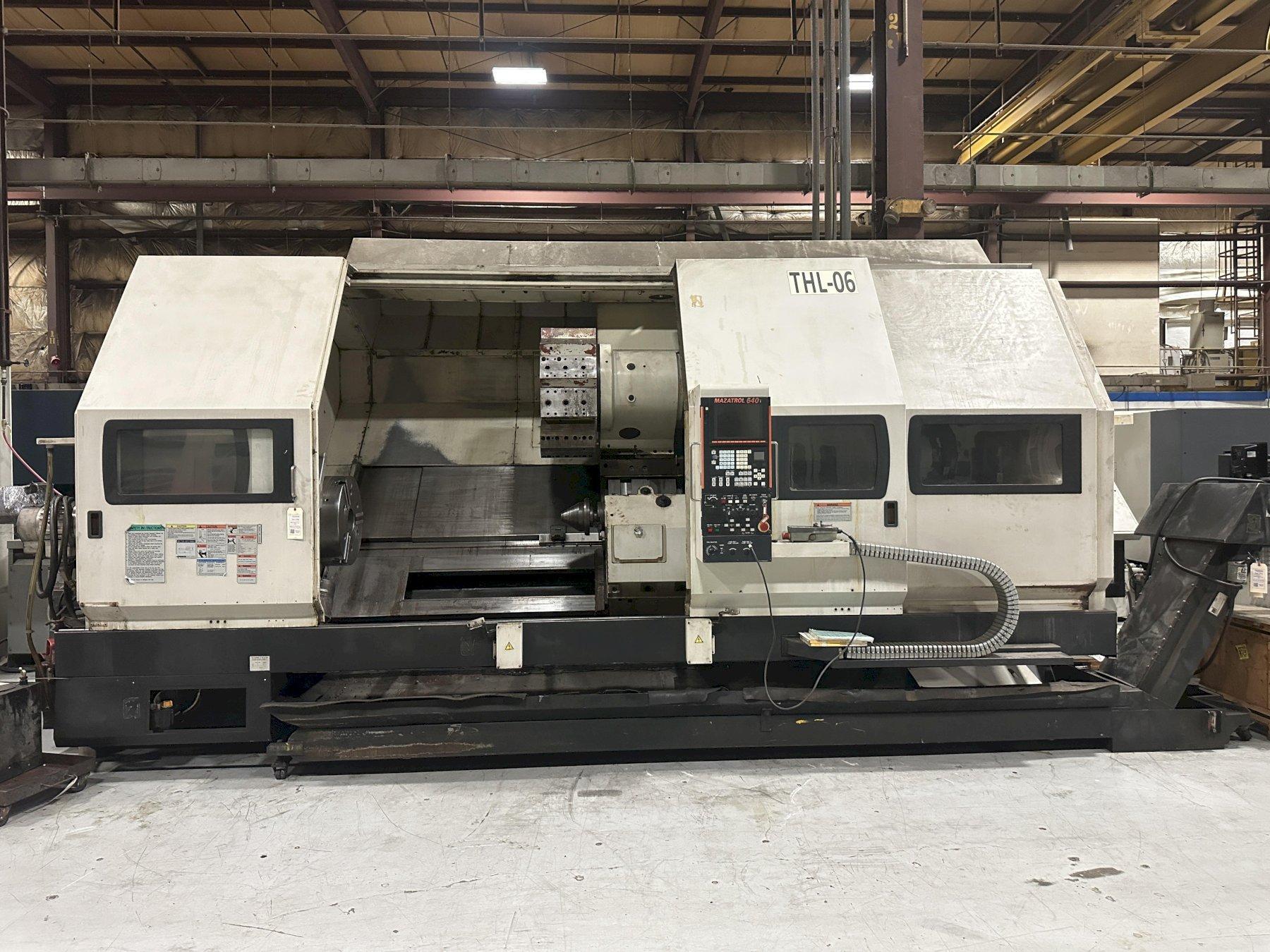

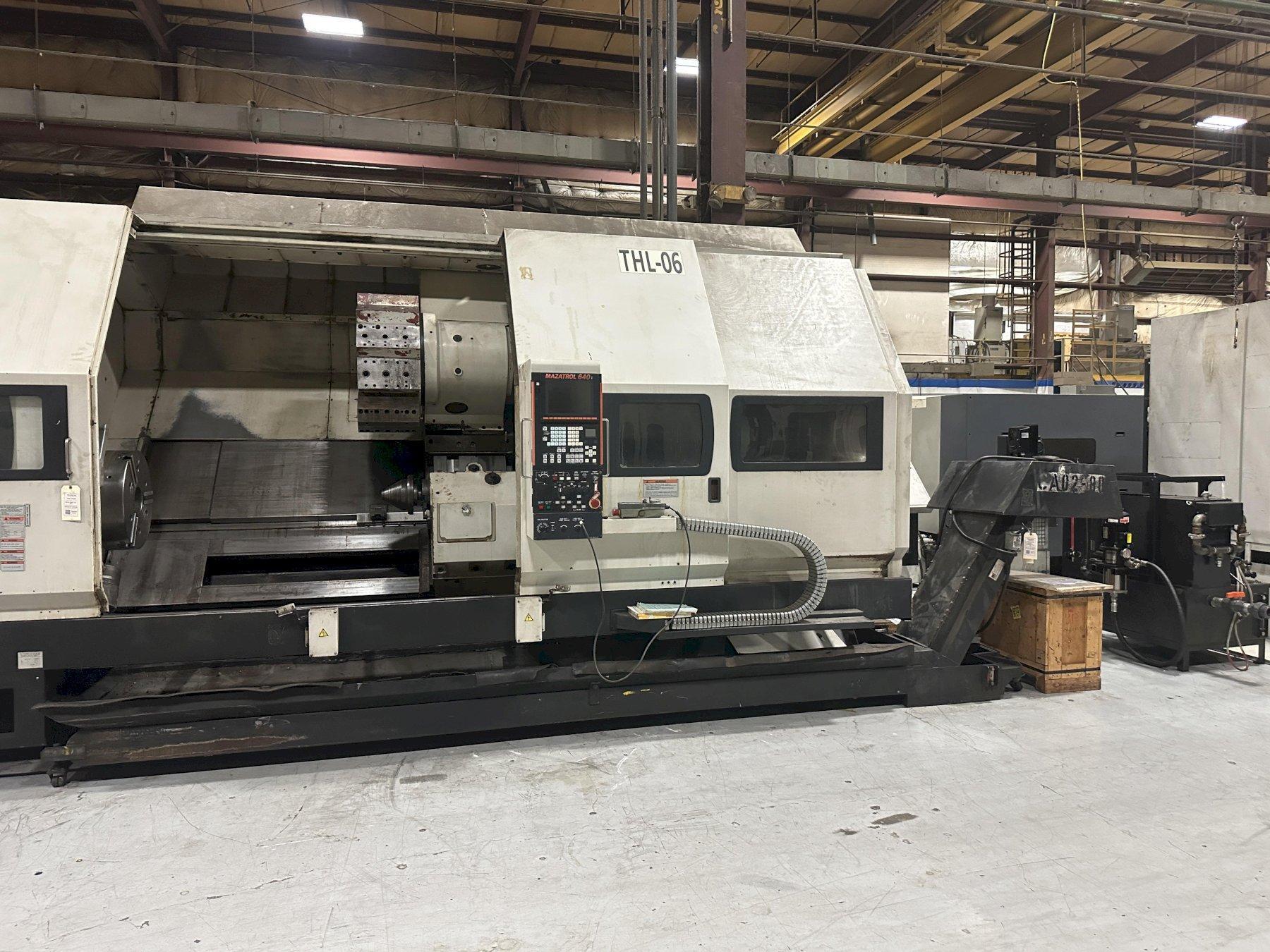

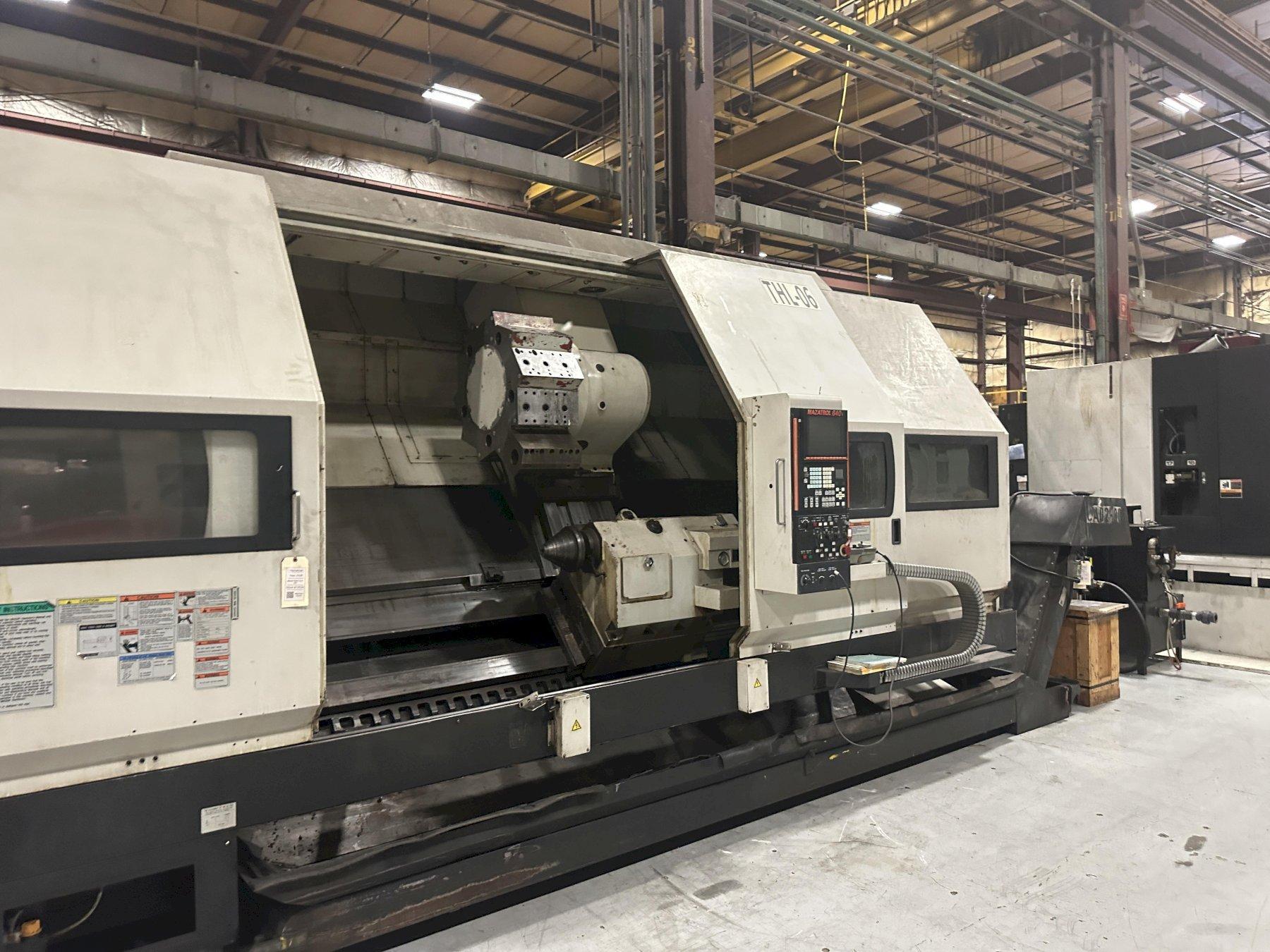

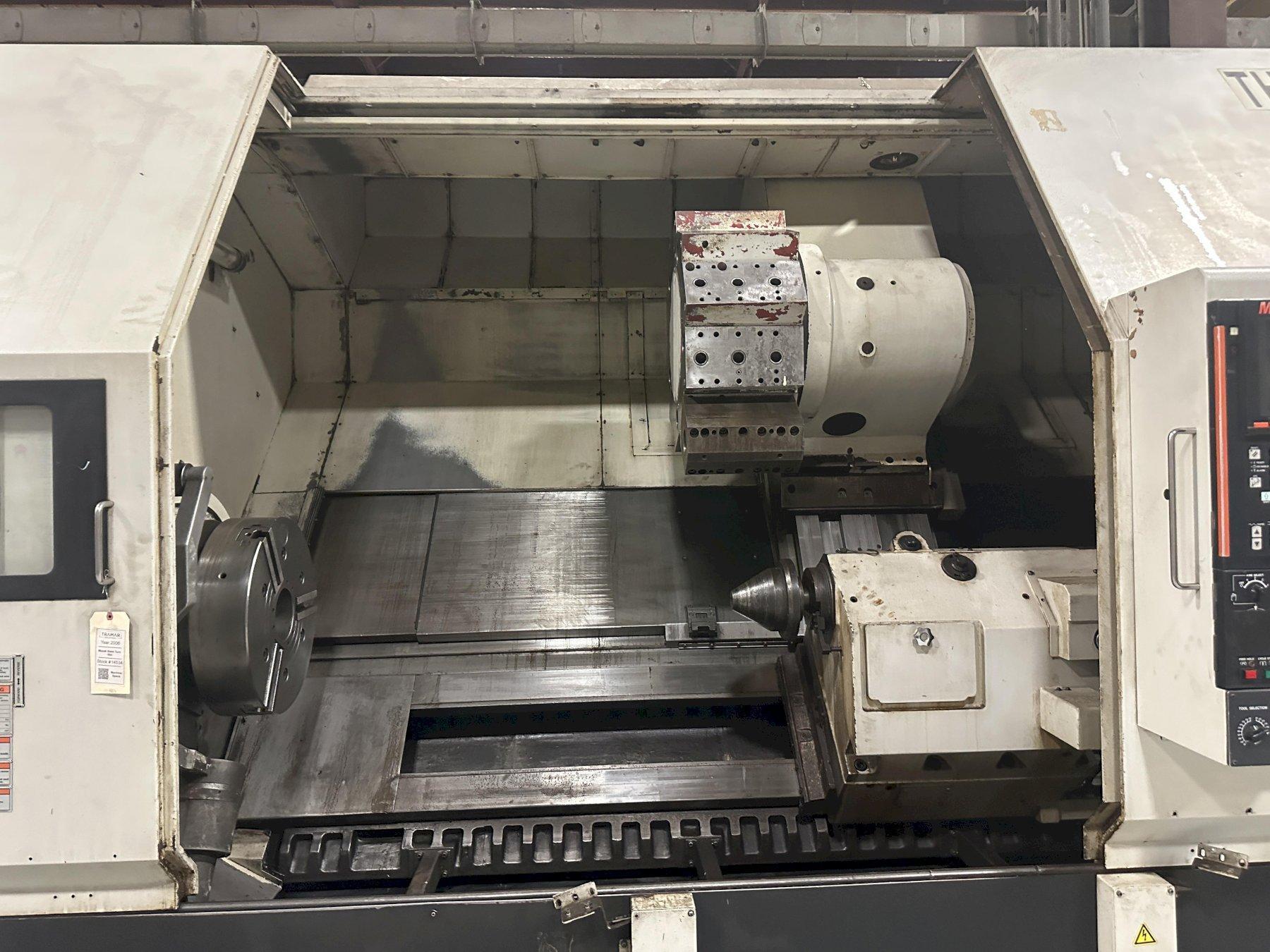

Mazak Slant Turn 60N Used CNC Lathe For Sale - 2006
Machine Specifications
CNC Control
yes
CNC Control
Mazatrol 640T
# Axis
2
Swing
36"
Turning Diameter
28.75"
Center Distance
120"
Chuck Size
24"
Bar Capacity
4"
X Axis Travel
25.3"
Z Axis Travel
120.1"
Rapid Traverse (X/Z)
475/630 ipm
Spindle Nose
A2-20
Spindle Speed
1,000 rpm
Main Motor
60 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no
Gear Box
yes

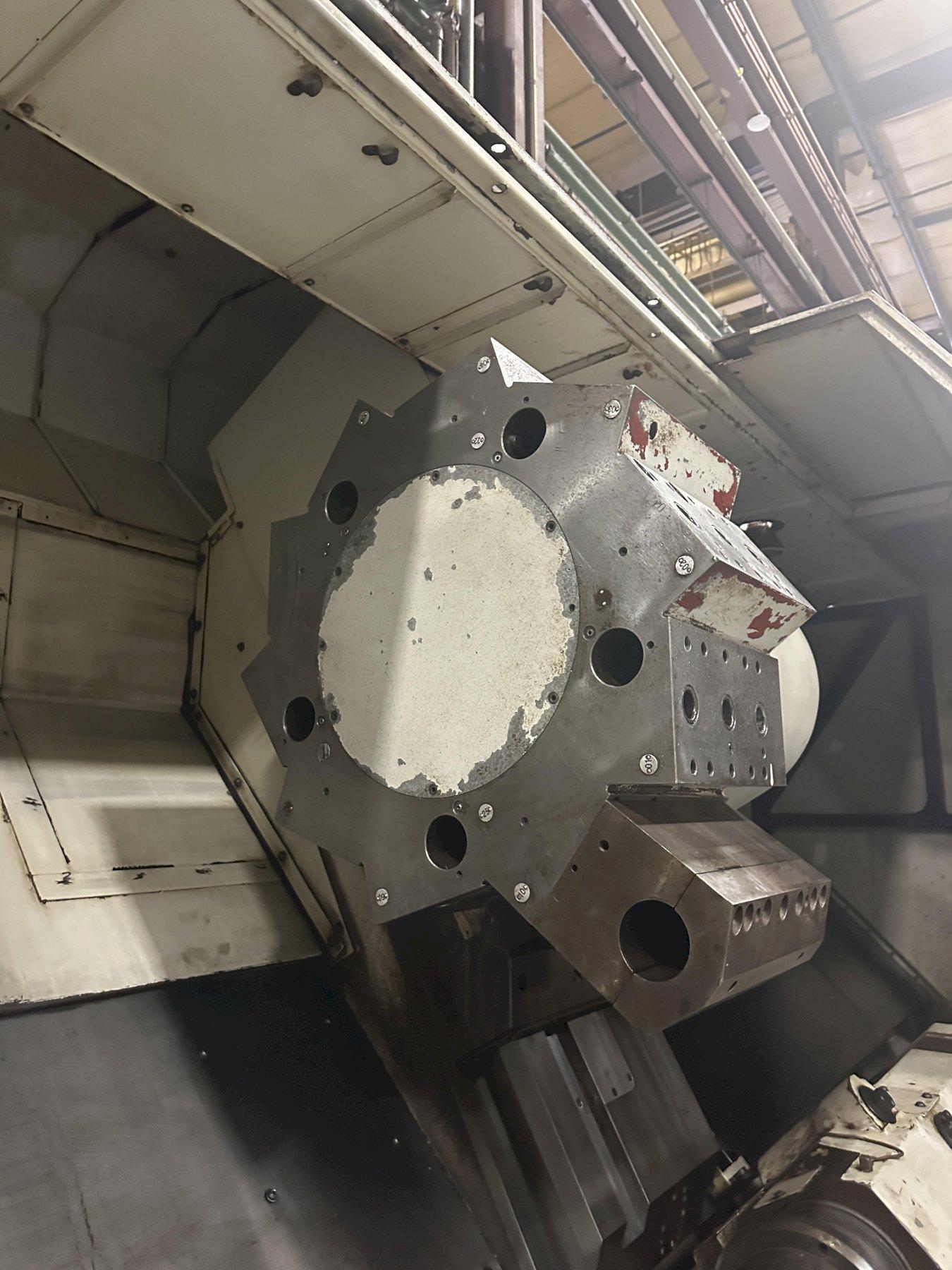

Turret Capacity
10 + 5
Machine Weight
41,880 pounds

Equipped With:

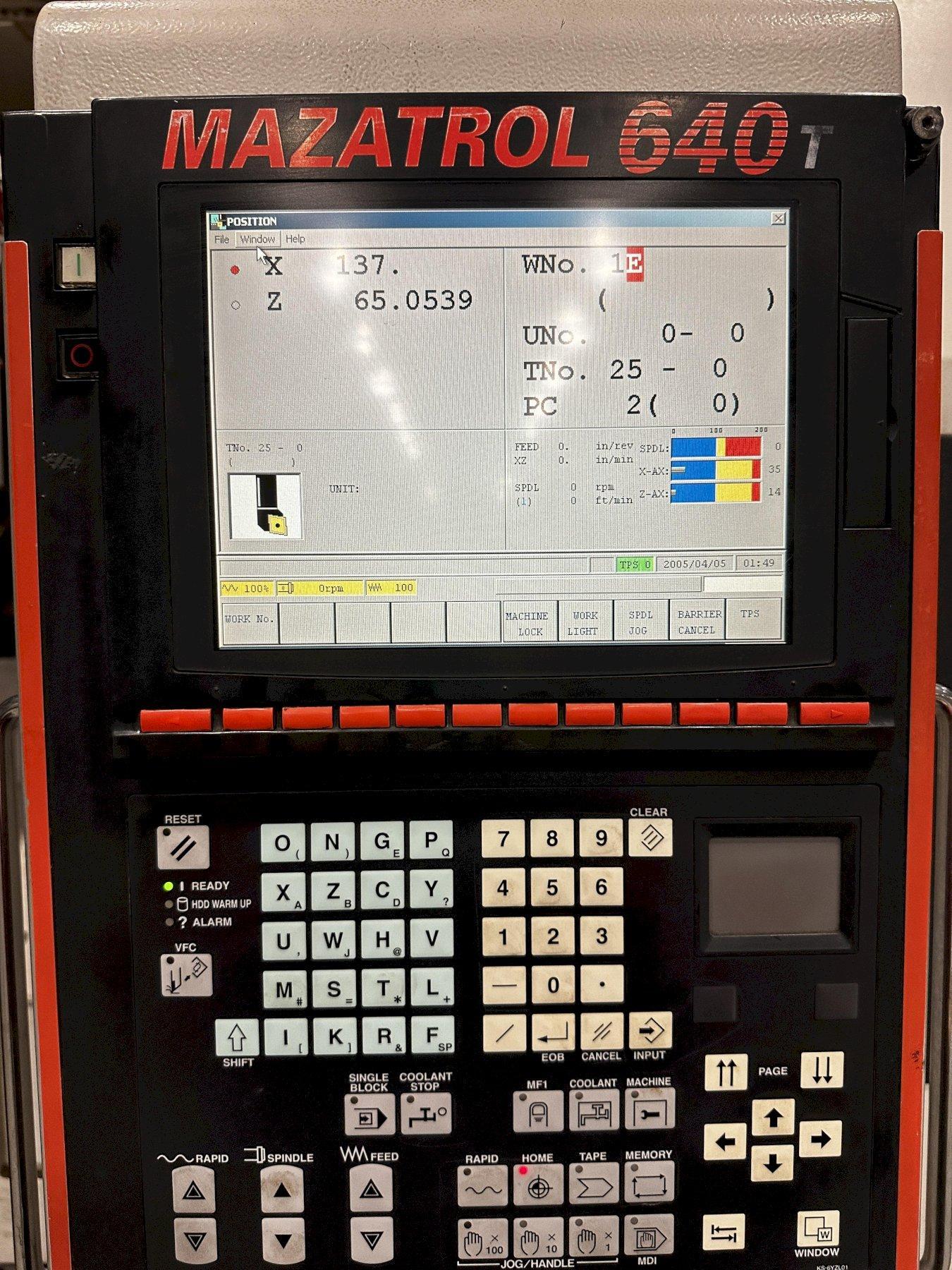

- Mazatrol 640T CNC Control
- Tool Presetter
- Chip Conveyor

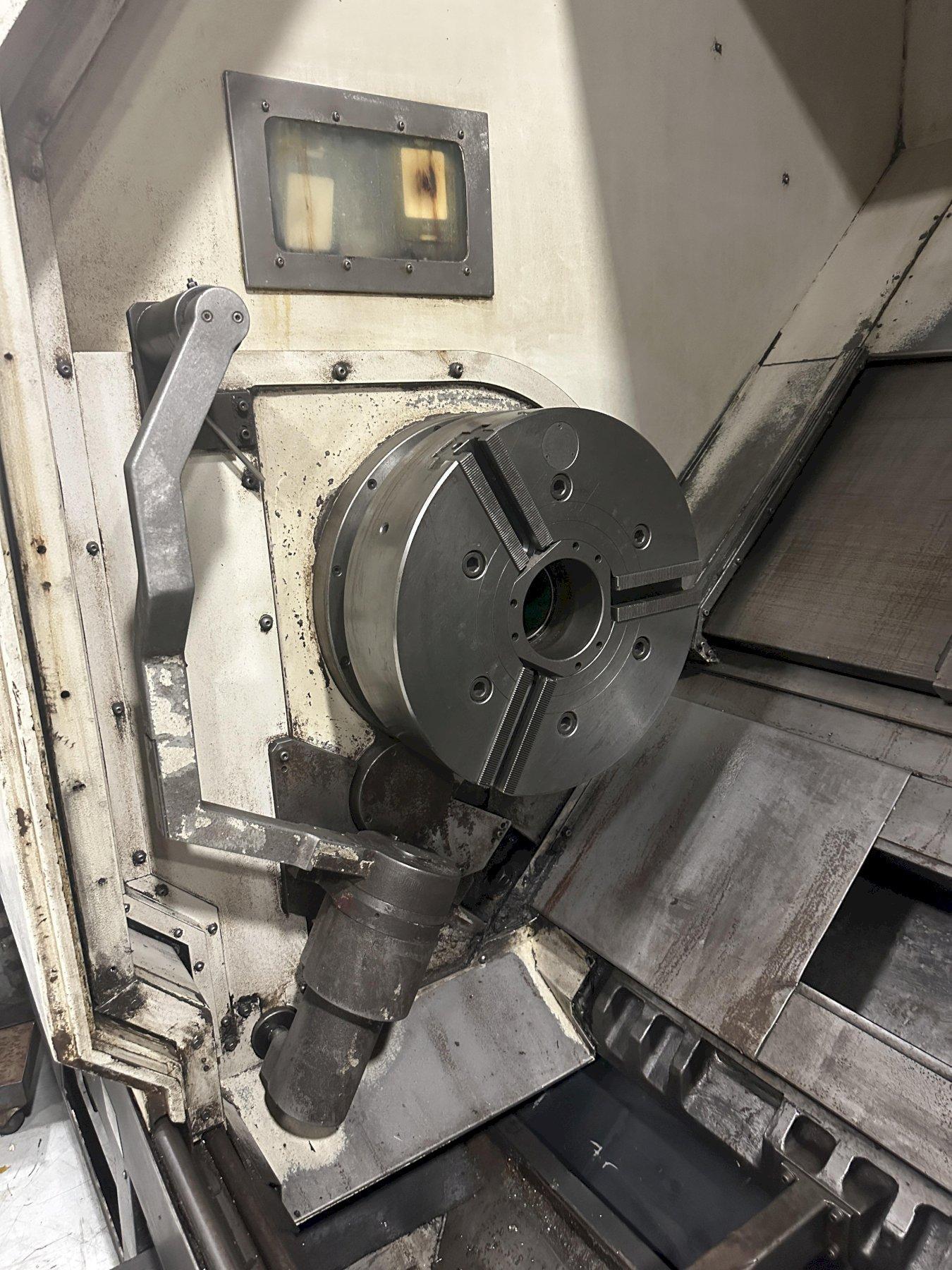

- Kitagawa Hydraulic Chuck

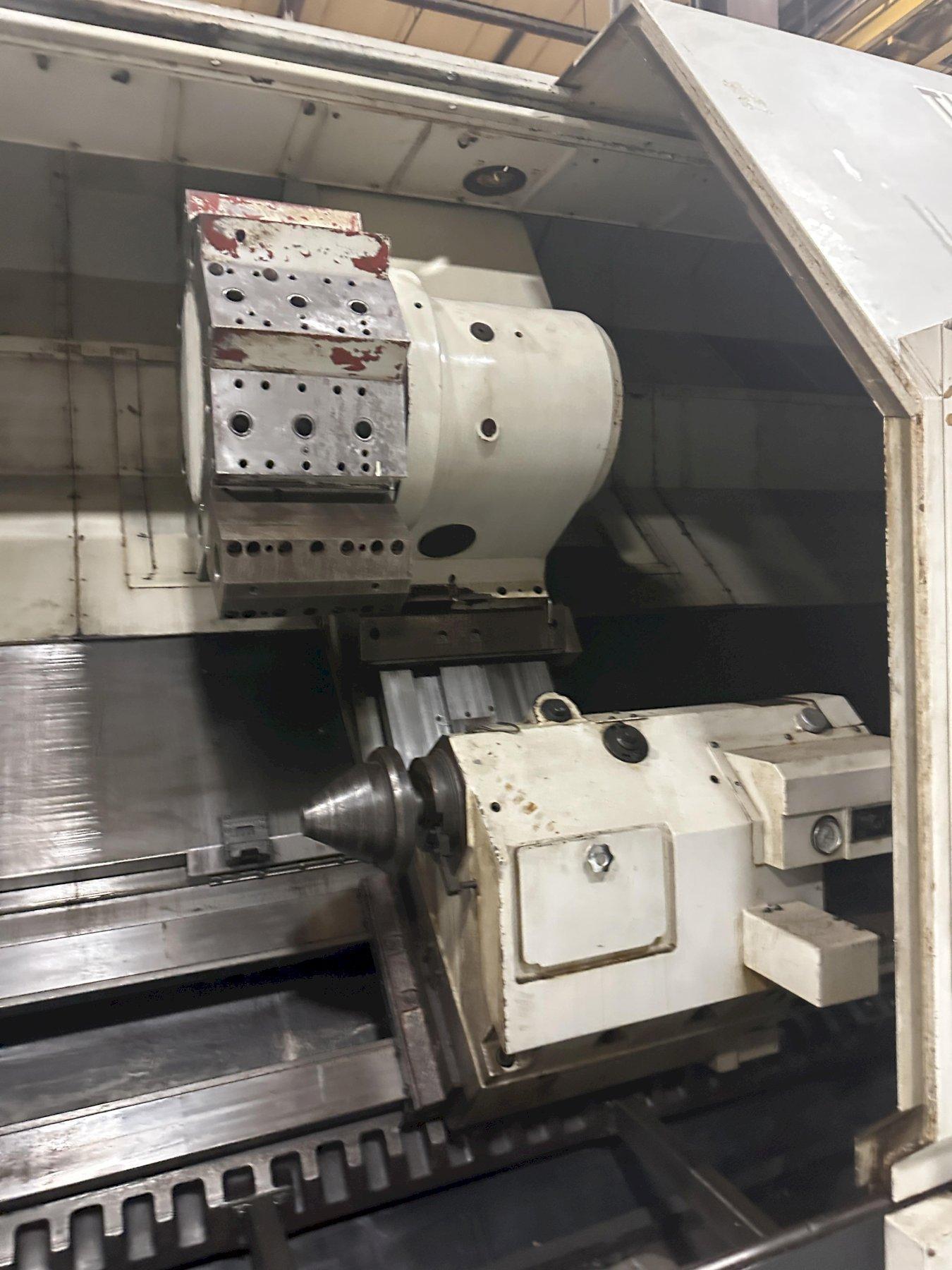

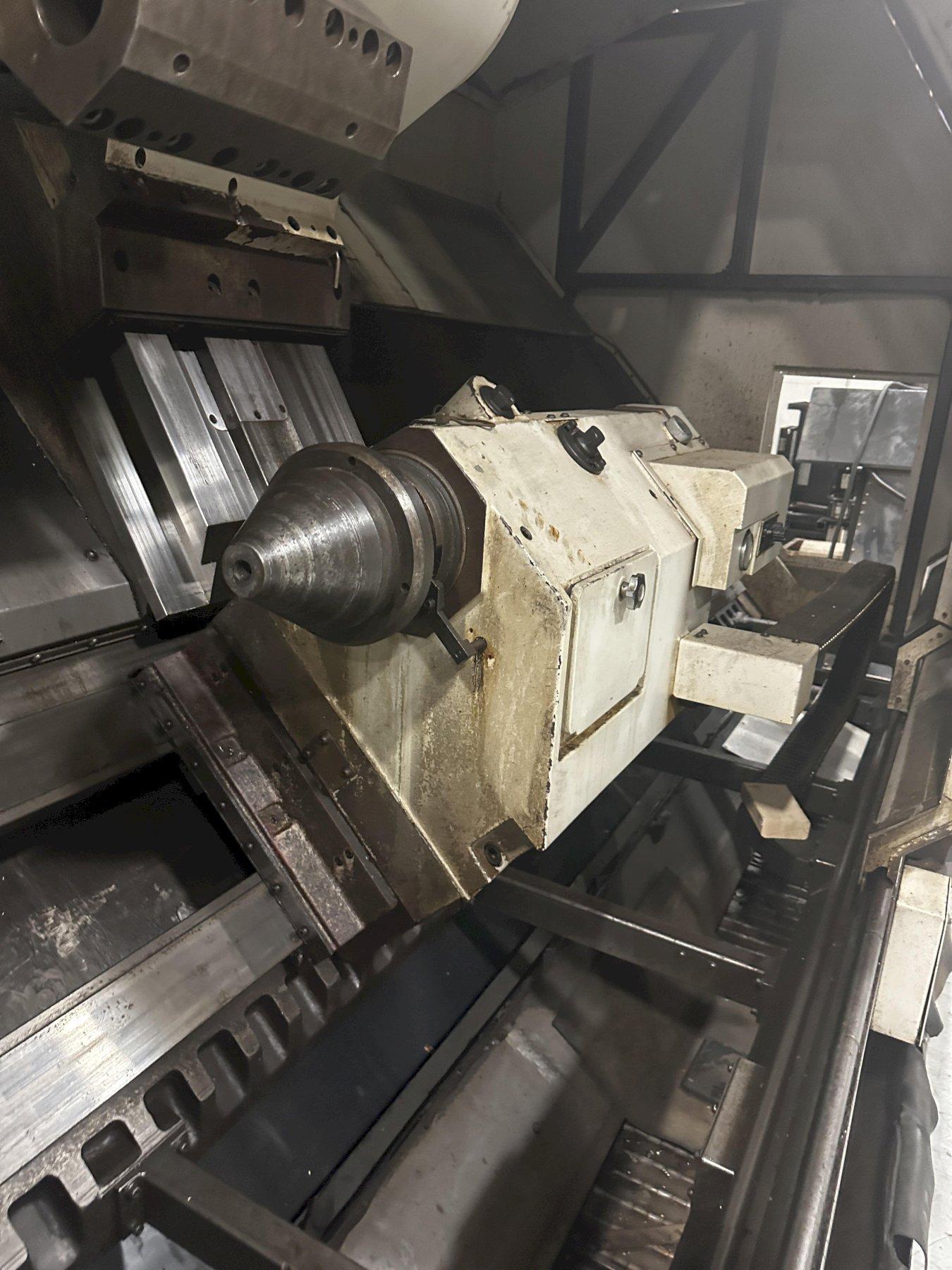

- Tailstock
- 4 Stage Gear Box

The Mazak Slant Turn 60N is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
