Mazak QTN 350-II - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: QTN 350-II
Year: 2010
Stock #: 13333 Sold
Highlights:

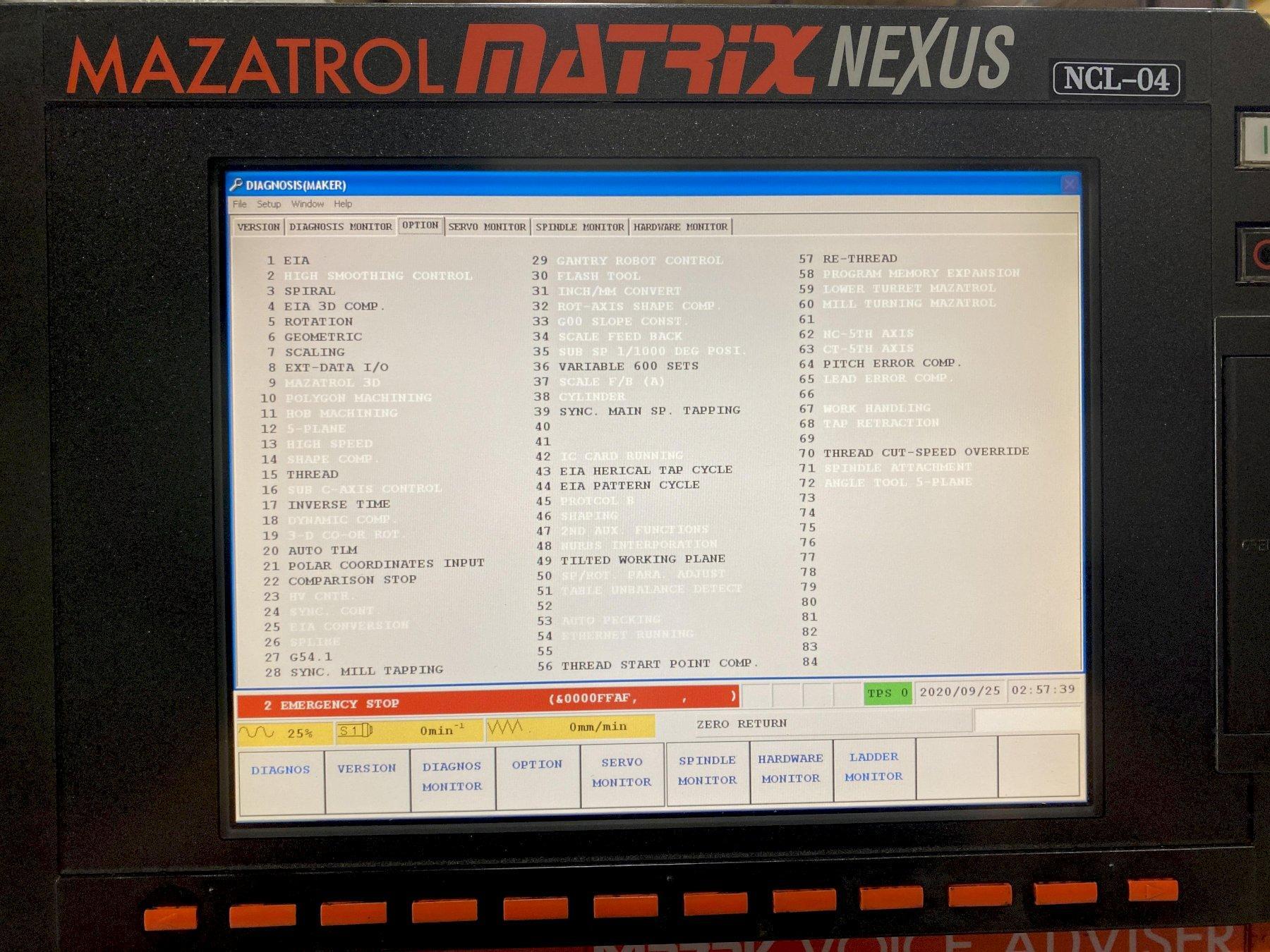

Mazatrol Matrix Nexus Control

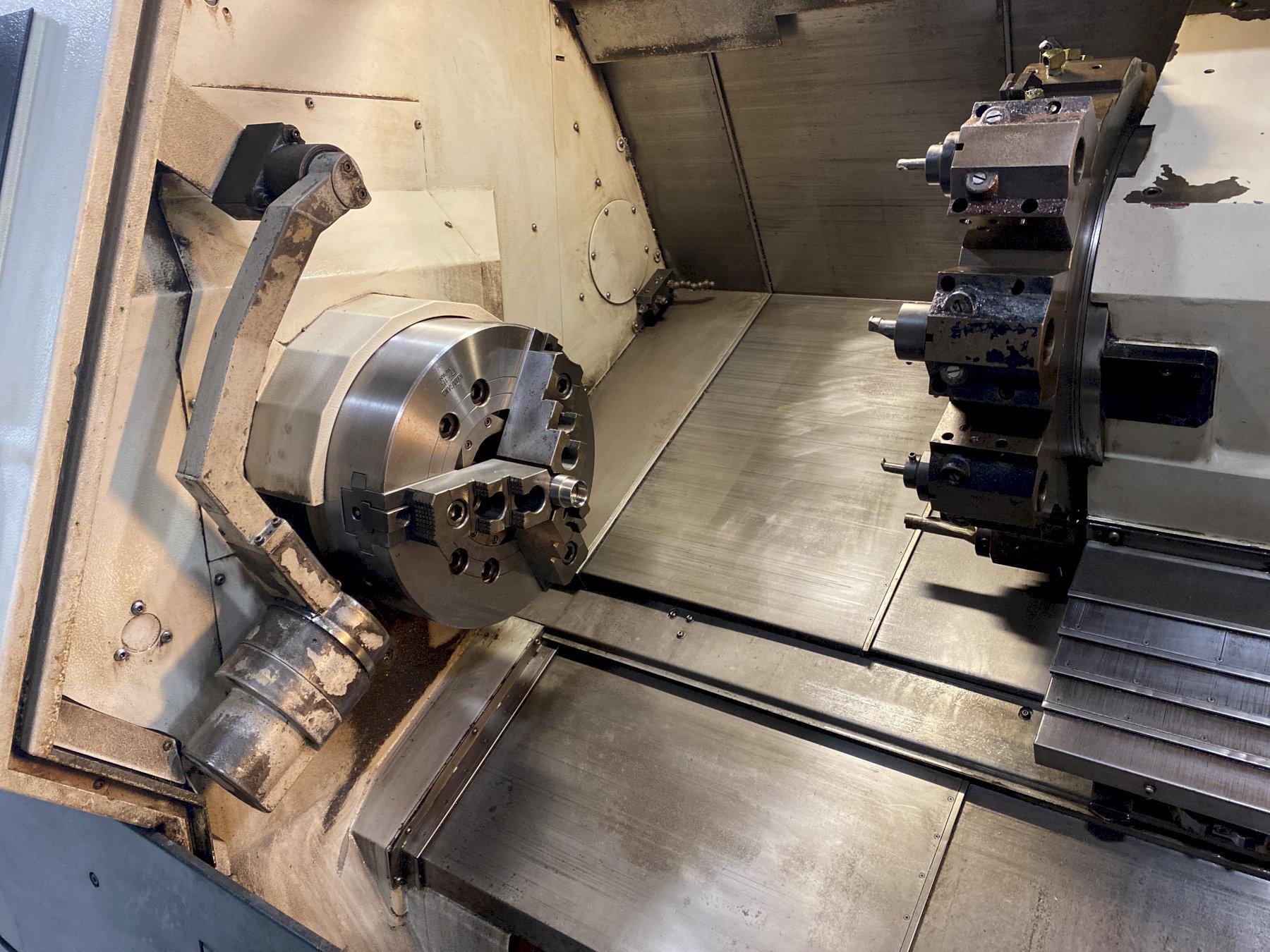

Kitagawa B-15 Hydraulic Chuck
Tool Presetter | Tailstock

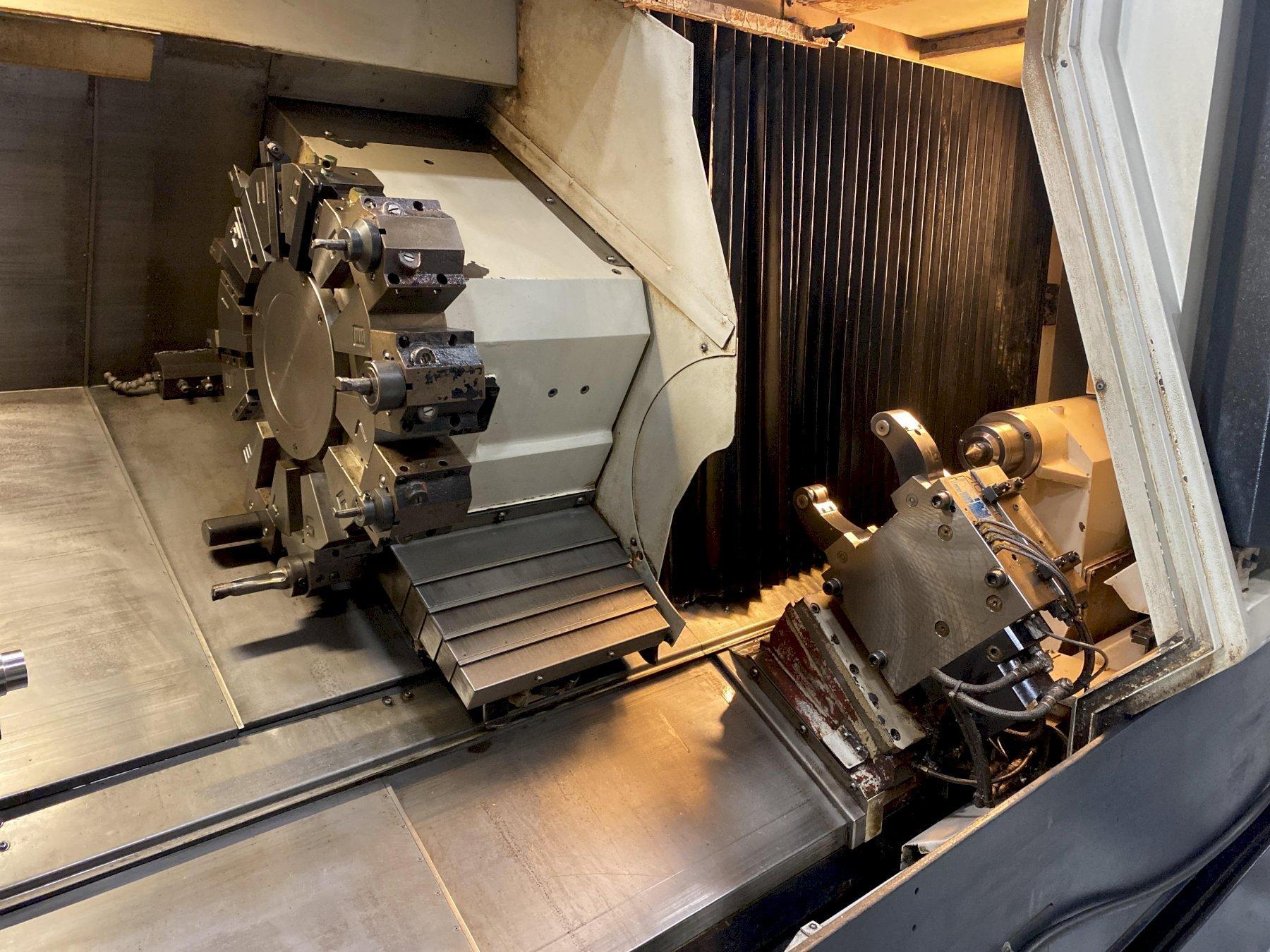

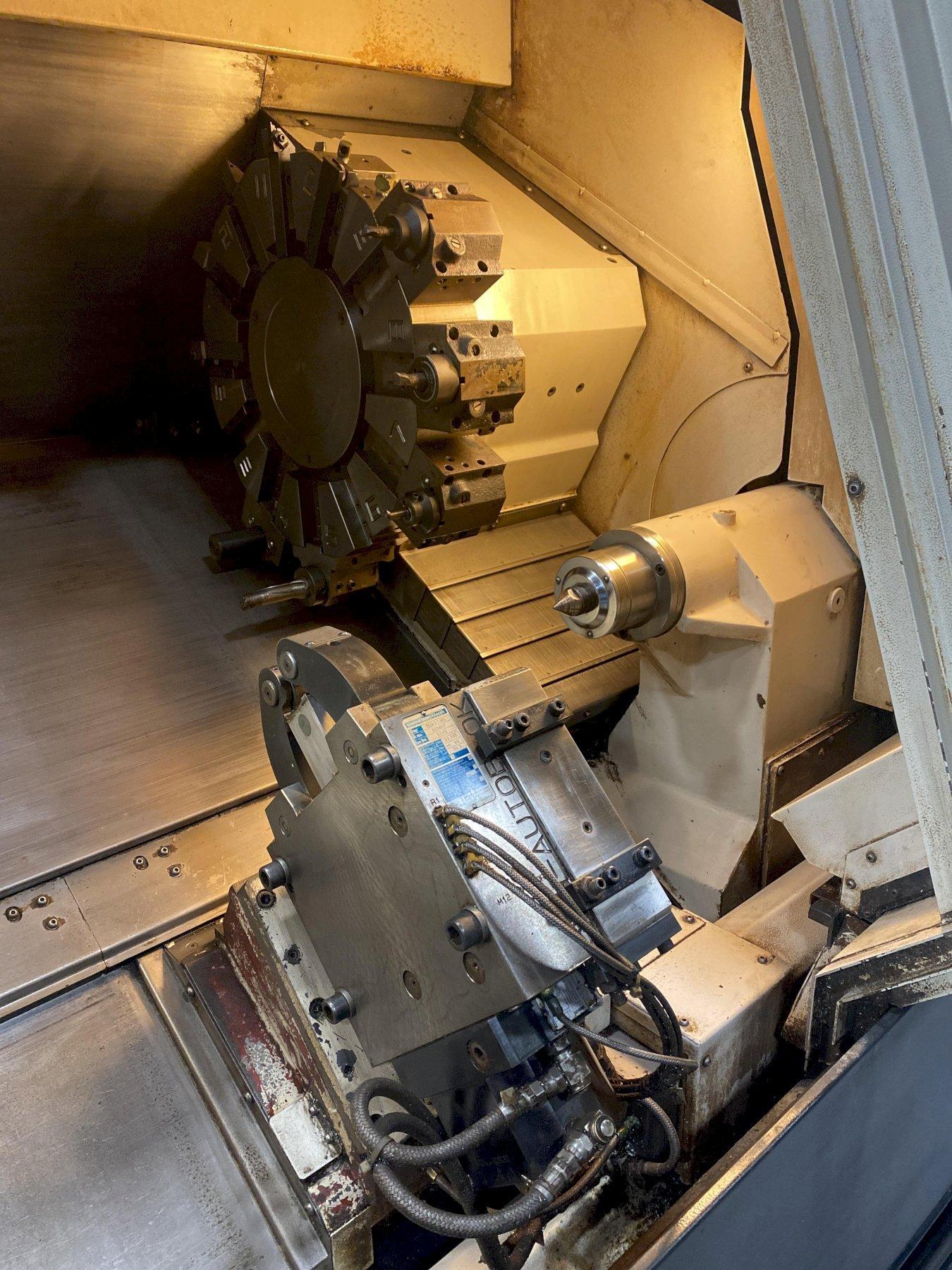

Hydraulic Steady Rest (SMW SLU-3.1-MS)
26.77" Swing x 60" Centers

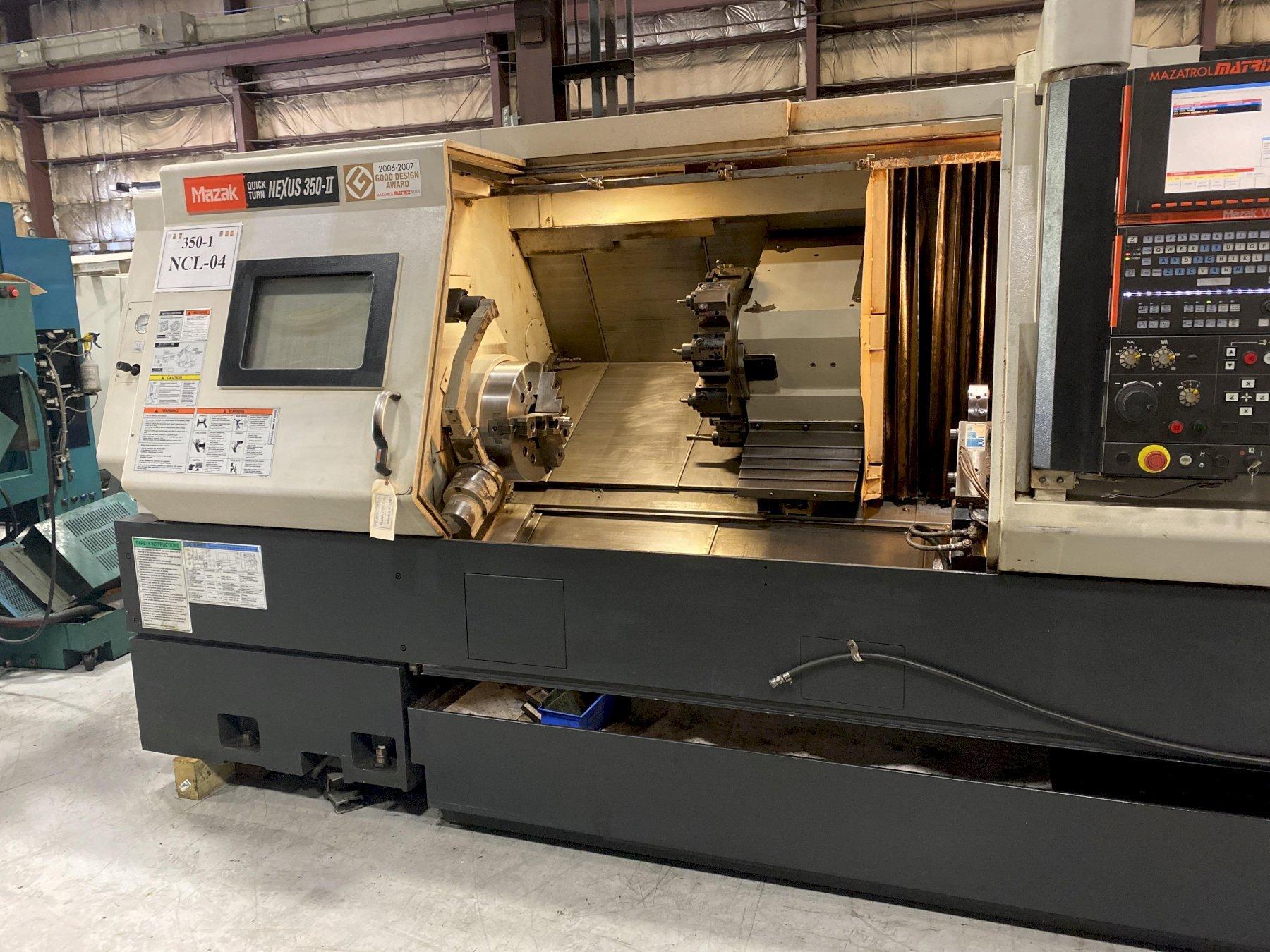

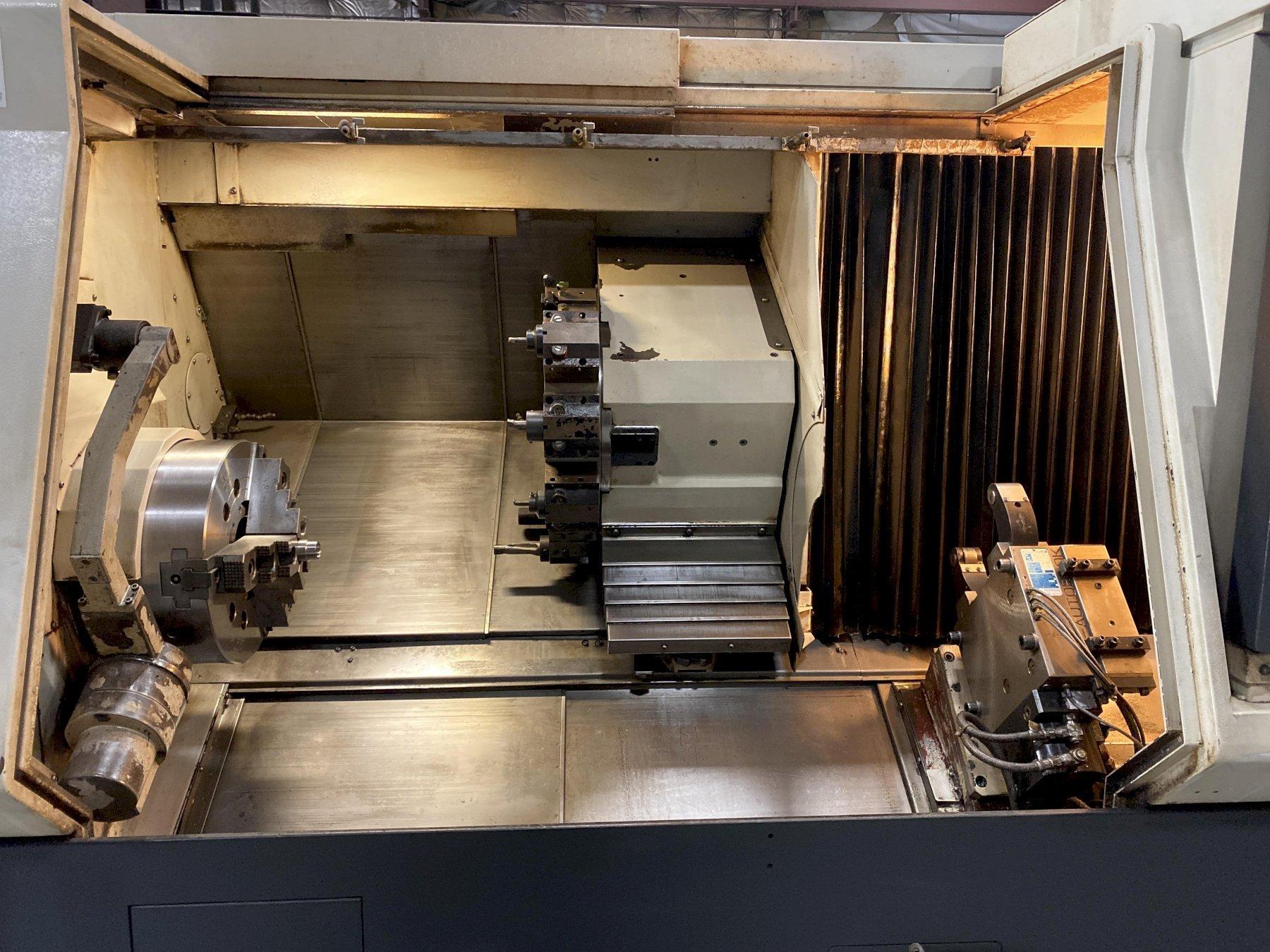

Mazak QTN-350 II CNC Horizontal Lathe 2010
Machine Specifications
# Axis
2
Control Type
Mazatrol Matrix Nexus
Swing
26.77"
Turning Diameter
16.54"
Center Distance
60"
Chuck Size
15"
Bar Capacity
4"
X-Axis Travel
10.13"
Z-Axis Travel
63.25"
Spindle Speed (RPM)
3,300
Spindle Motor
40

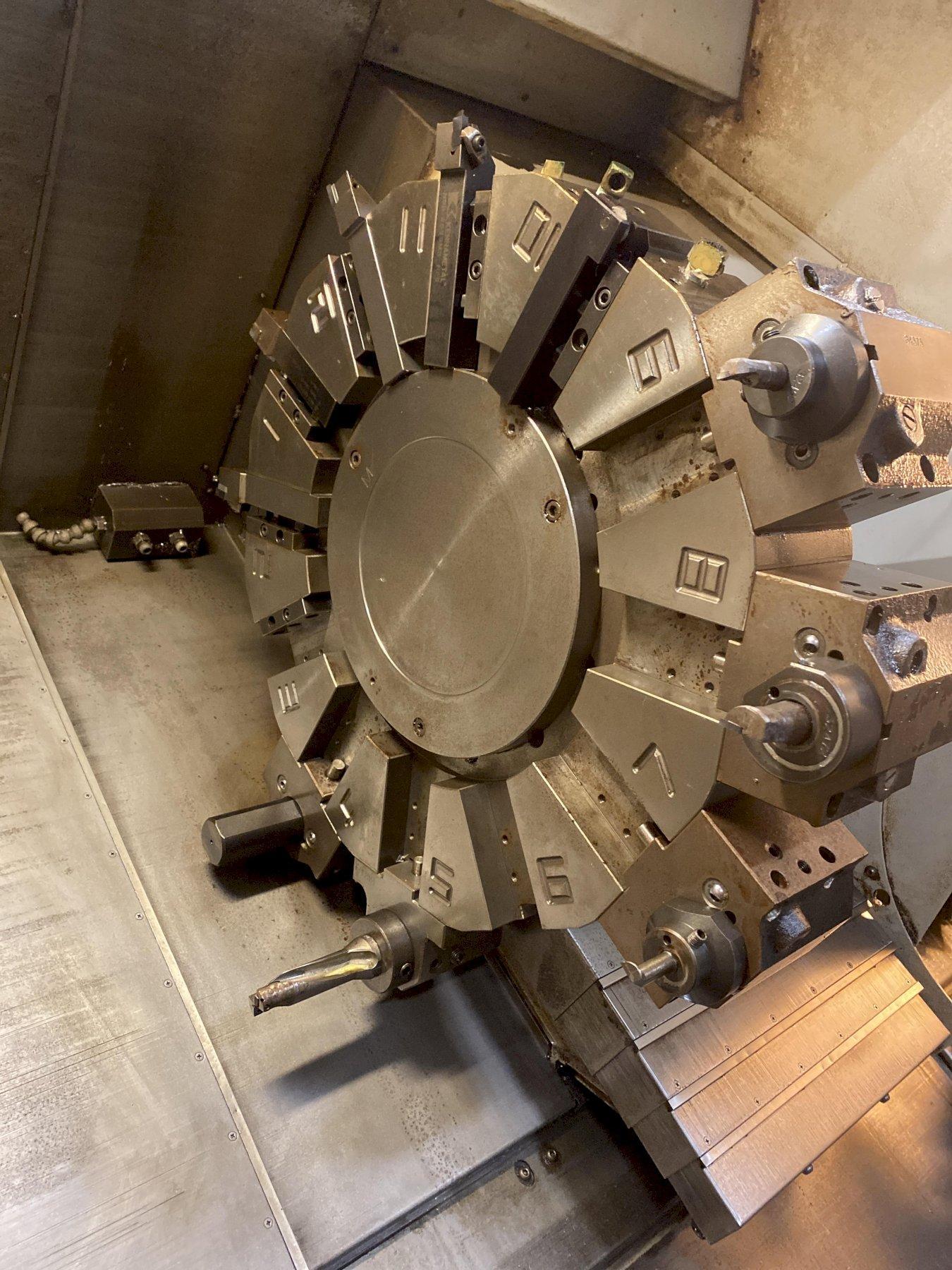

Turret Capacity
12
Tailstock
yes
Steady Rest
yes
Y Axis
no
Live Tooling
no
Sub Spindle
no
Machine Dimensions
172" x 84" x 84"
Machine Weight
17,000 lbs

Equipped With:

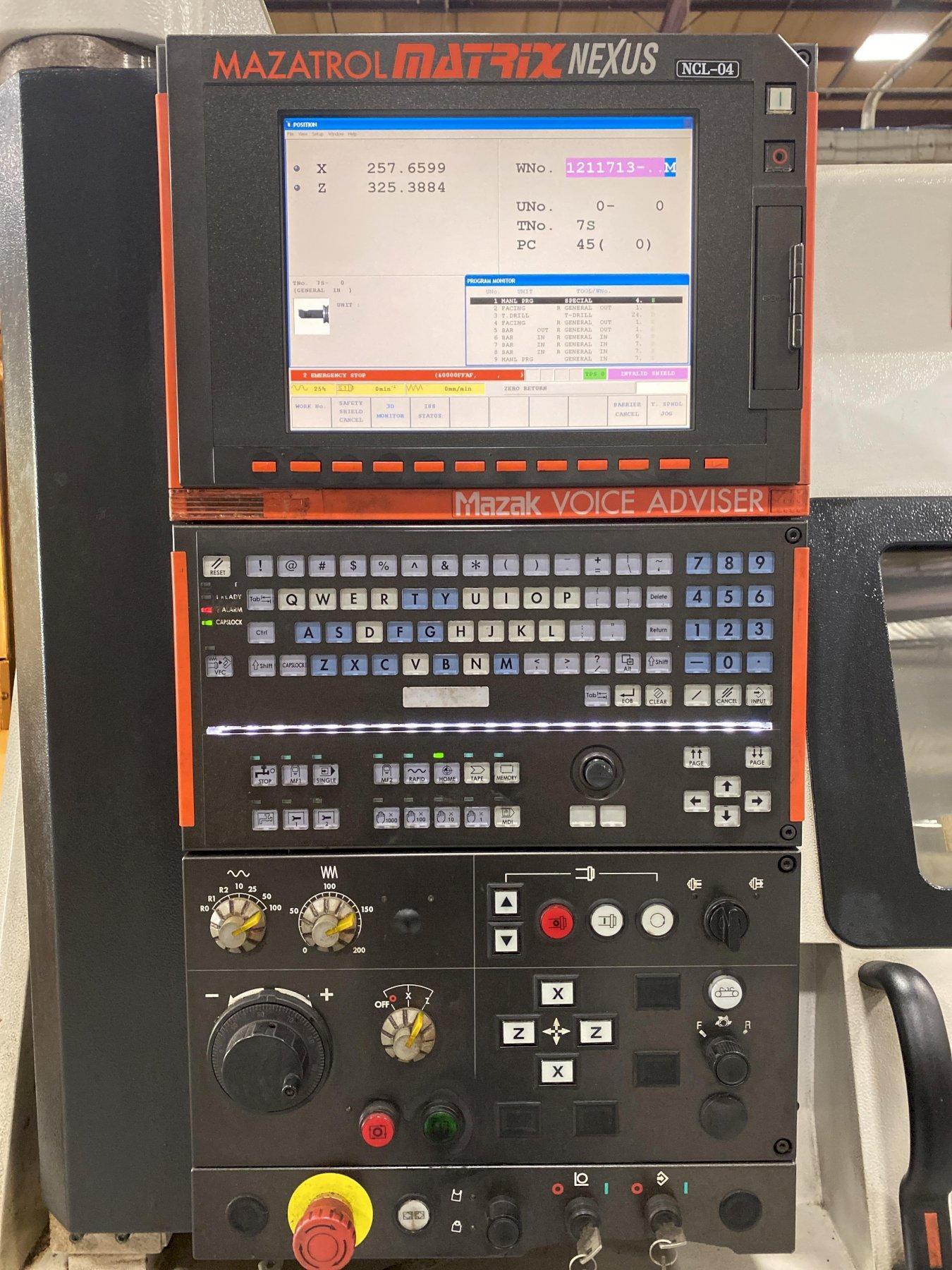

- Mazatrol Matrix Nexus Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter

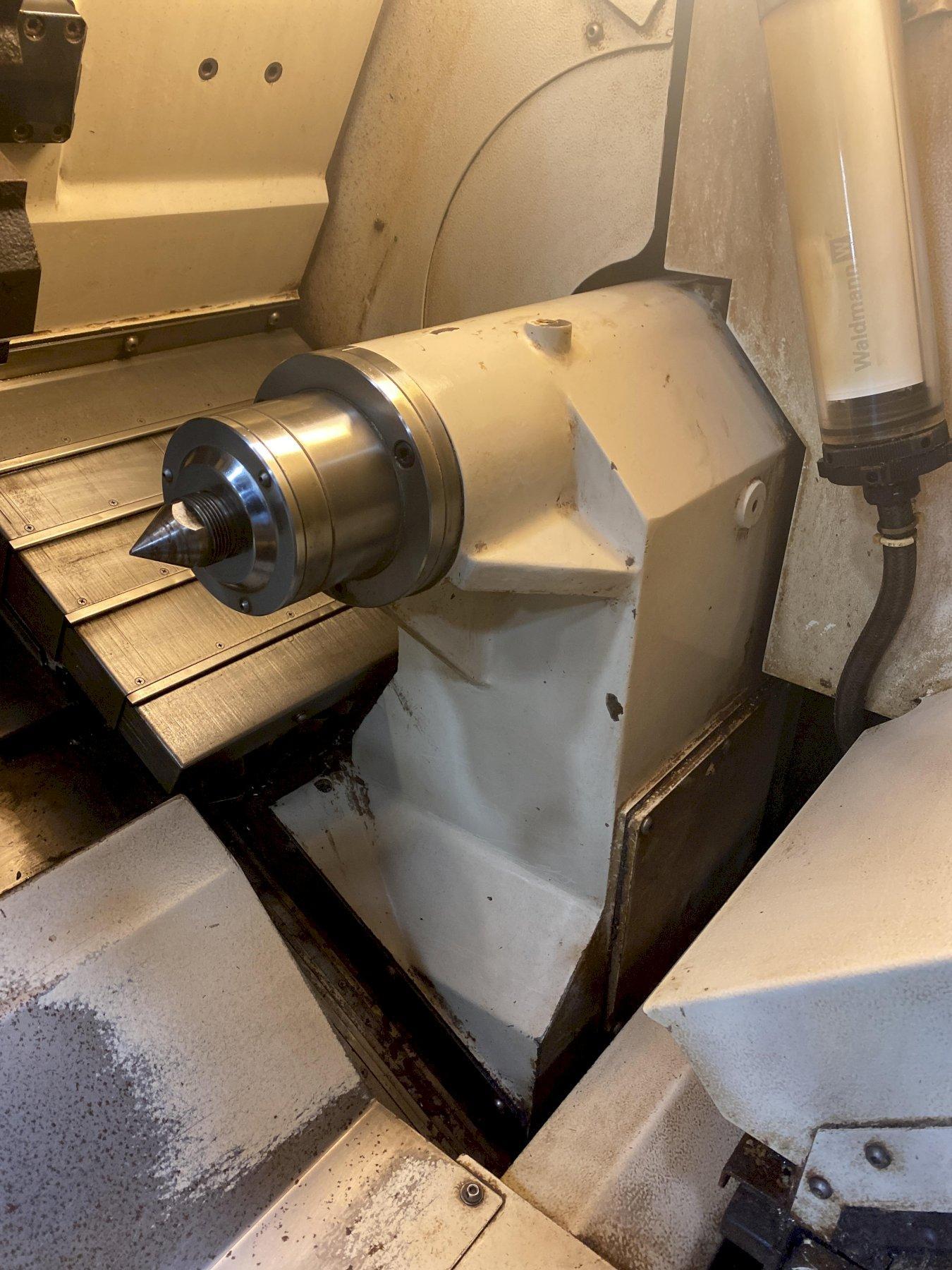

- Tailstock

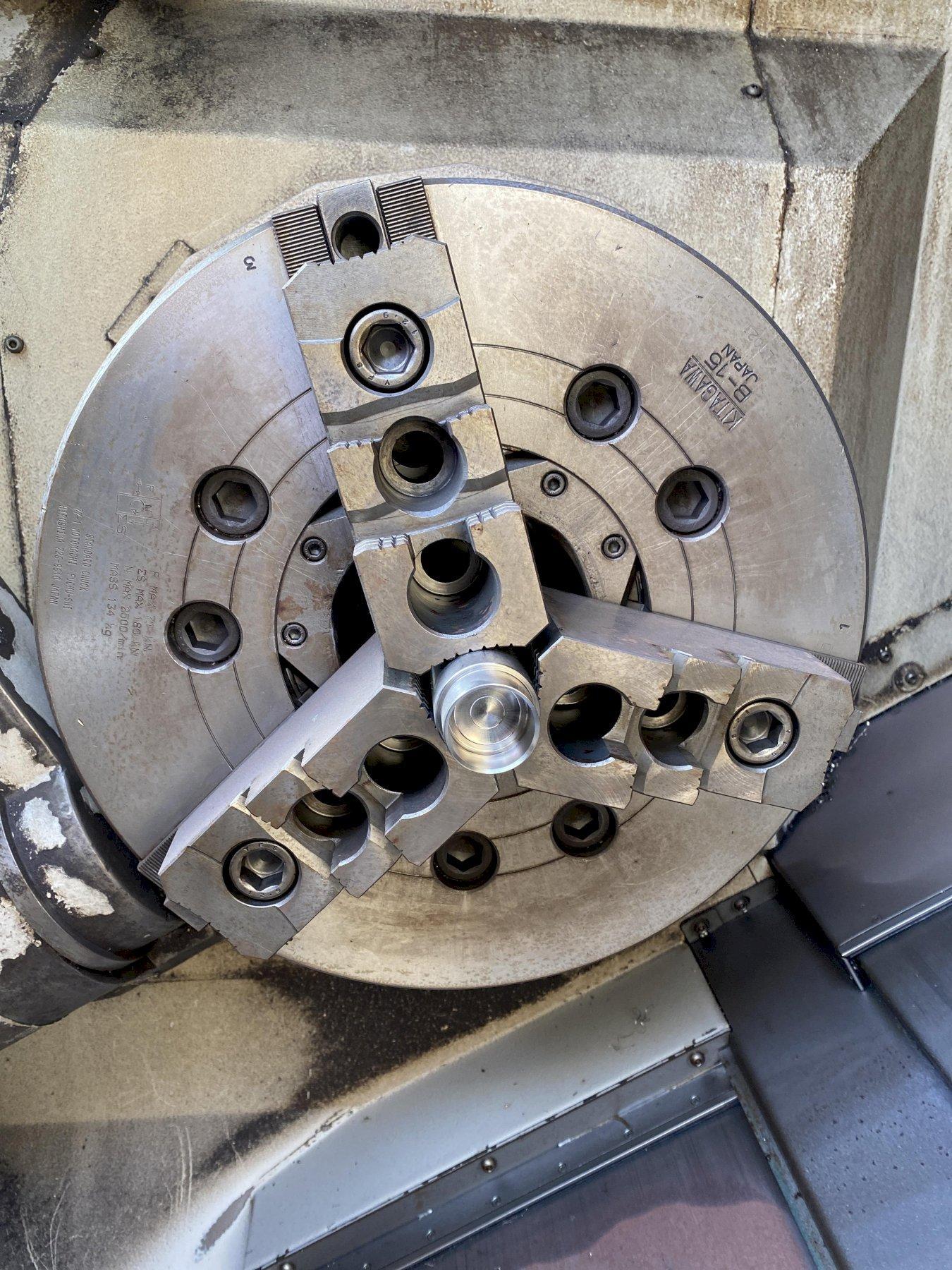

- 15" Hydraulic Chuck

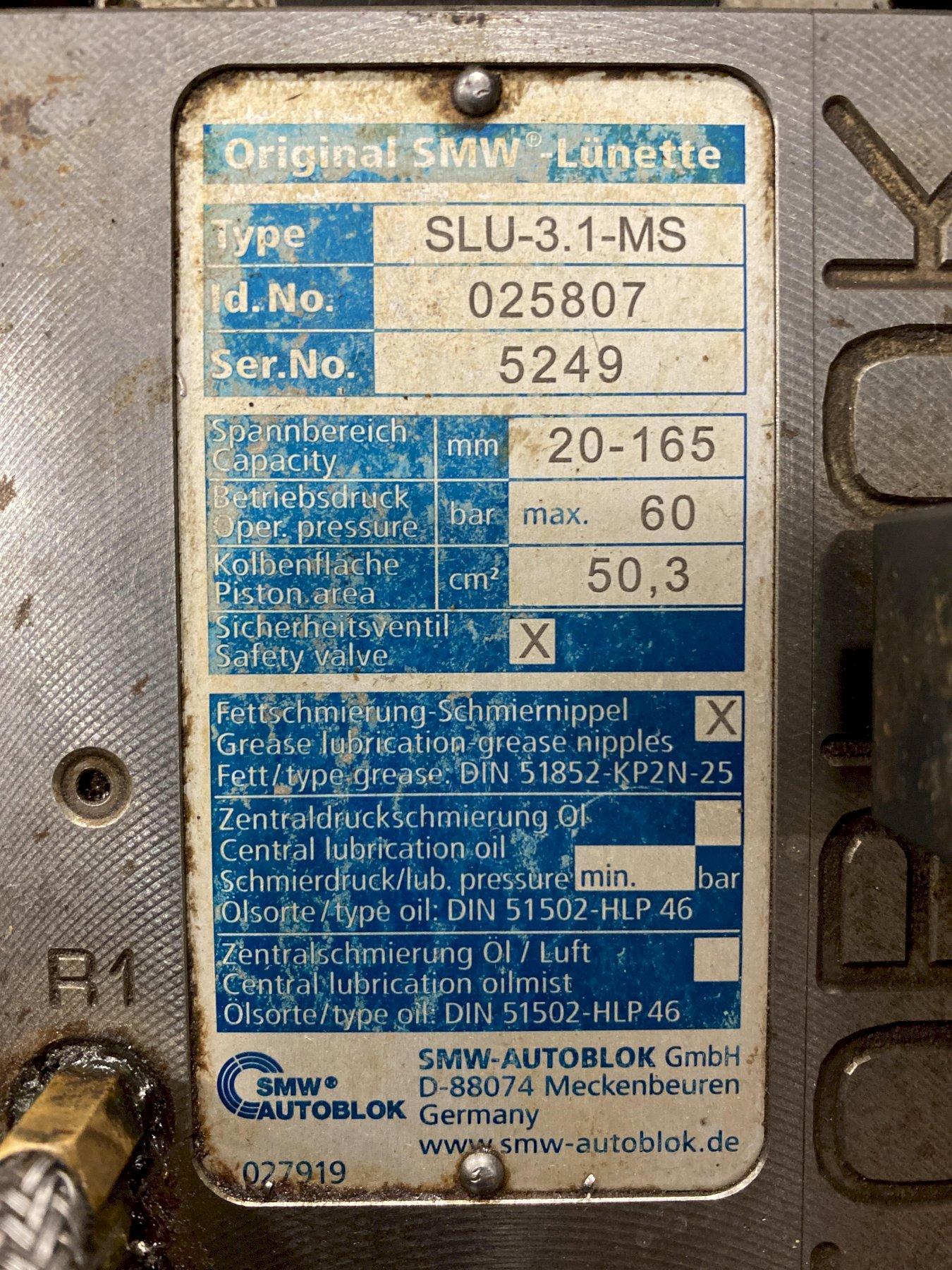

- SMW Hydraulic Steady Rest (SLU3.1-MS, 20mm/165mm centering capacity range)

The Mazak QTN 350-II is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
