Mazak PFH-5800 - Horizontal Machining Centers

Share Machine

Specifications Print Specs

Model: PFH-5800

Year: 2005

Stock #: 13771 Sold

Type: Horizontal Machining Centers

Manufacturer: Used Mazak Machines

Highlights:
Mazatrol 640M Control
19.7" x 19.7" Pallets
0.001° B Axis Indexing - Non Interpolating
Travel (X/Y/Z): 28.7"/28.7"/29.1"

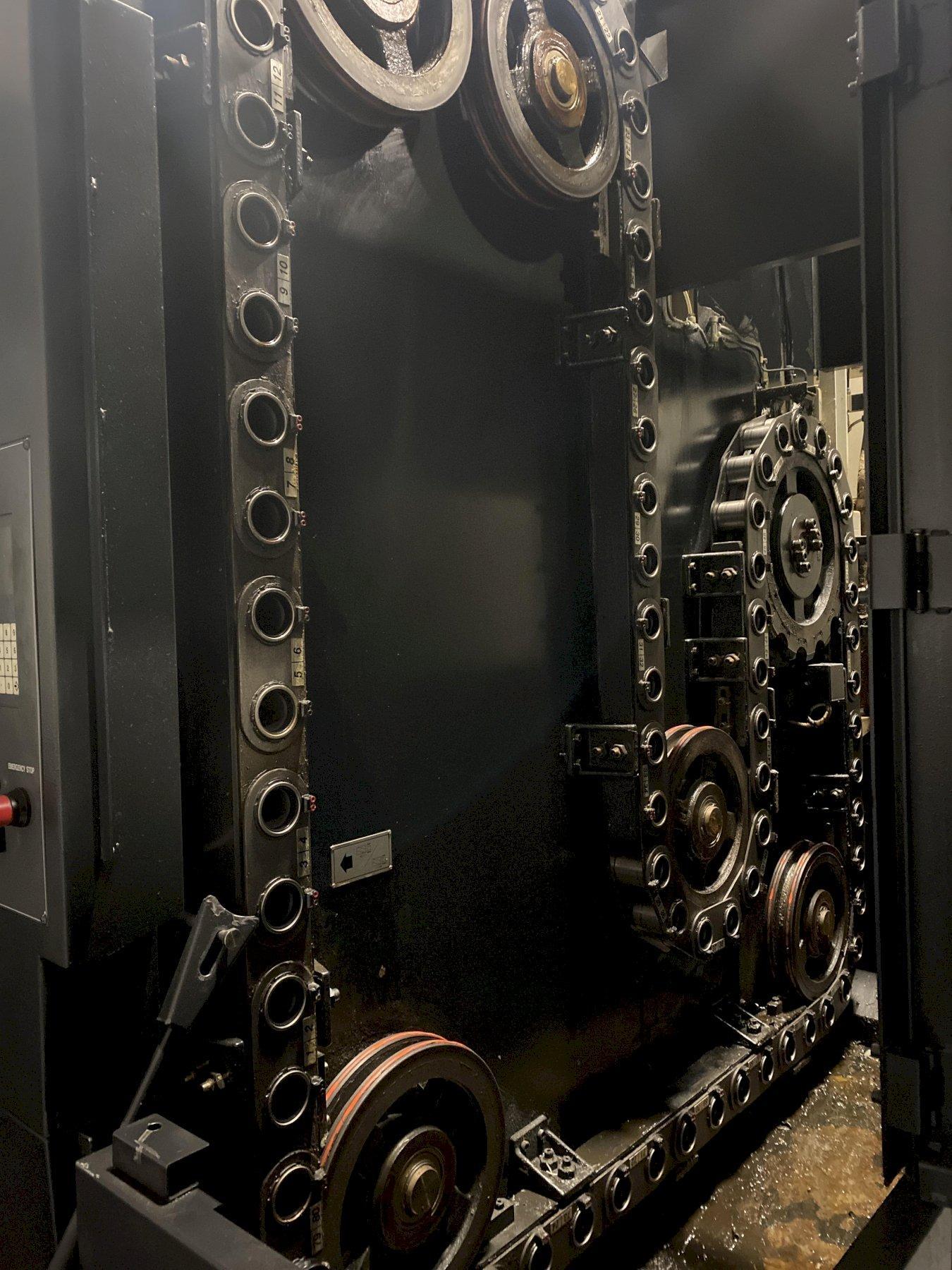

CAT 40 | 12,000 rpm | 80 Station Tool Changer
Renishaw Probing

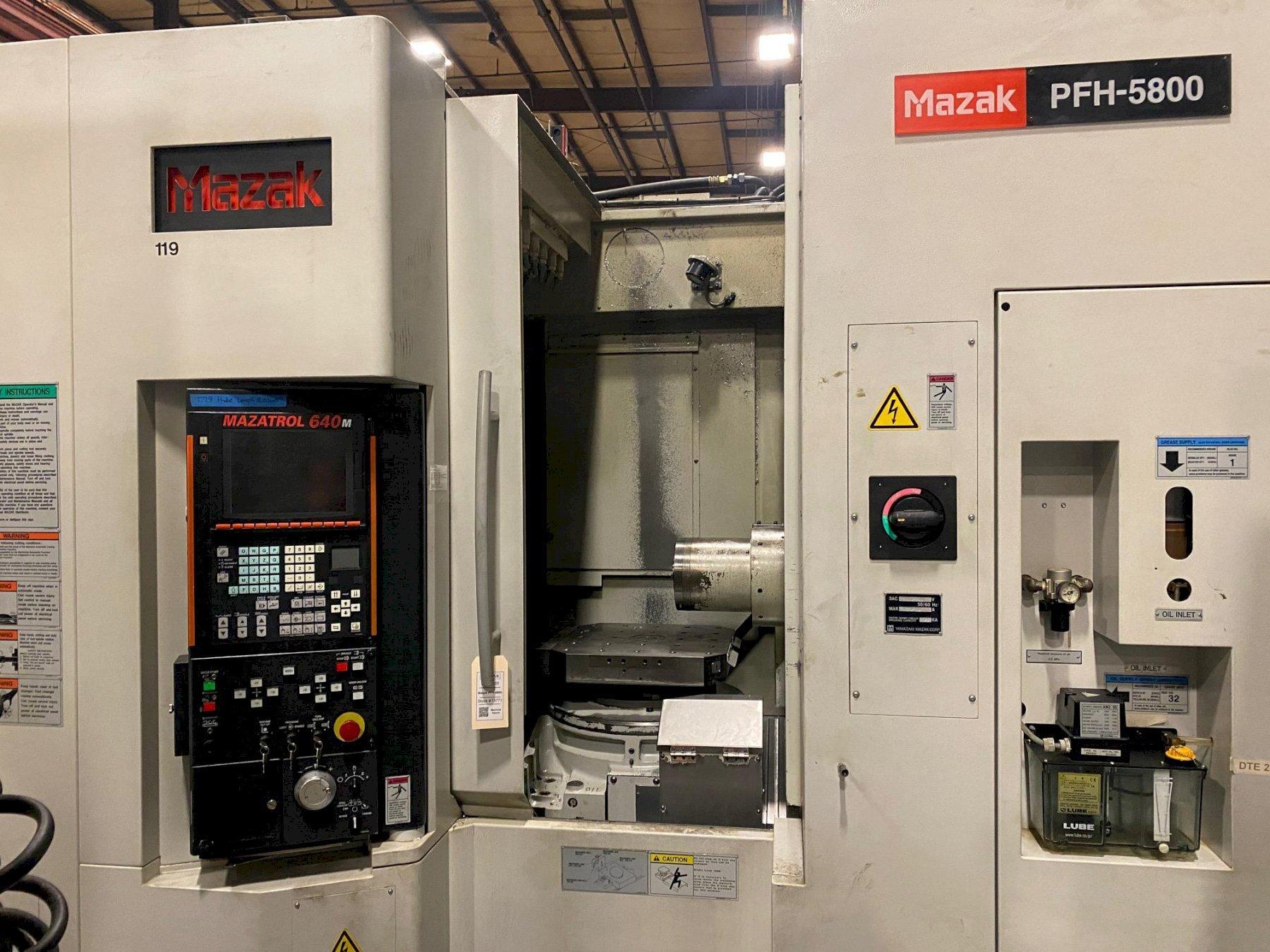

Mazak PFH-5800 CNC Horizontal Machining Center 2005

Equipped With:

** Video - Click Here **

- Mazatrol 640M Control
- 0.001 degree B Axis Indexing - Non Interpolating (3+1)
- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller
- Renishaw Probing
- Coolant Thru Spindle (Low Pressure)
- Rotation & Scaling
- Auto Tool Length Measurement

Machine Videos

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Mazatrol 640M

# Axis

Pallet Length

19.7"

Pallet Width

19.7"

Pallet Load Capacity

1,543 pounds

Pallet Indexing (B-Axis)

0.001° Indexing (3+1 Non Interpolating)

X-Axis Travel

28"

Y-Axis Travel

28.7"

Z-Axis Travel

29.1"

Rapid Traverse Rate (X/Y/Z)

2,362 ipm

Spindle Taper

CAT 40

Spindle Speed

12,000 rpm

Spindle Motor (HP)

30 hp

Tool Changer Capacity

Coolant Through Spindle

yes

Machine Dimensions

109" x 175" x 119"

Machine Weight

25,000 pounds

Equipped With:

The Mazak PFH-5800 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
