Mazak Multiplex 630 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Multiplex 630
Year: 1996
Stock #: 13553 Sold
Highlights:

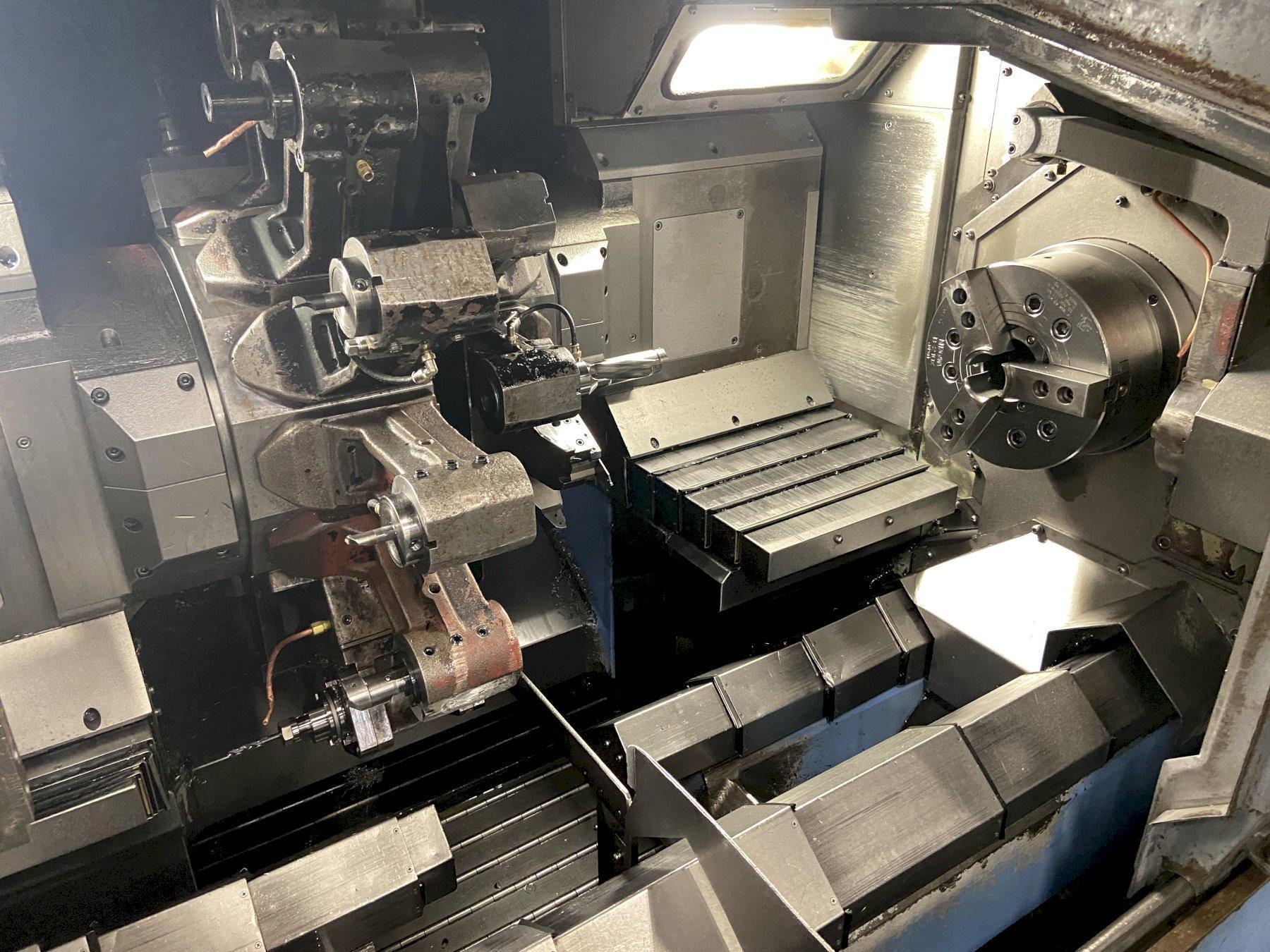

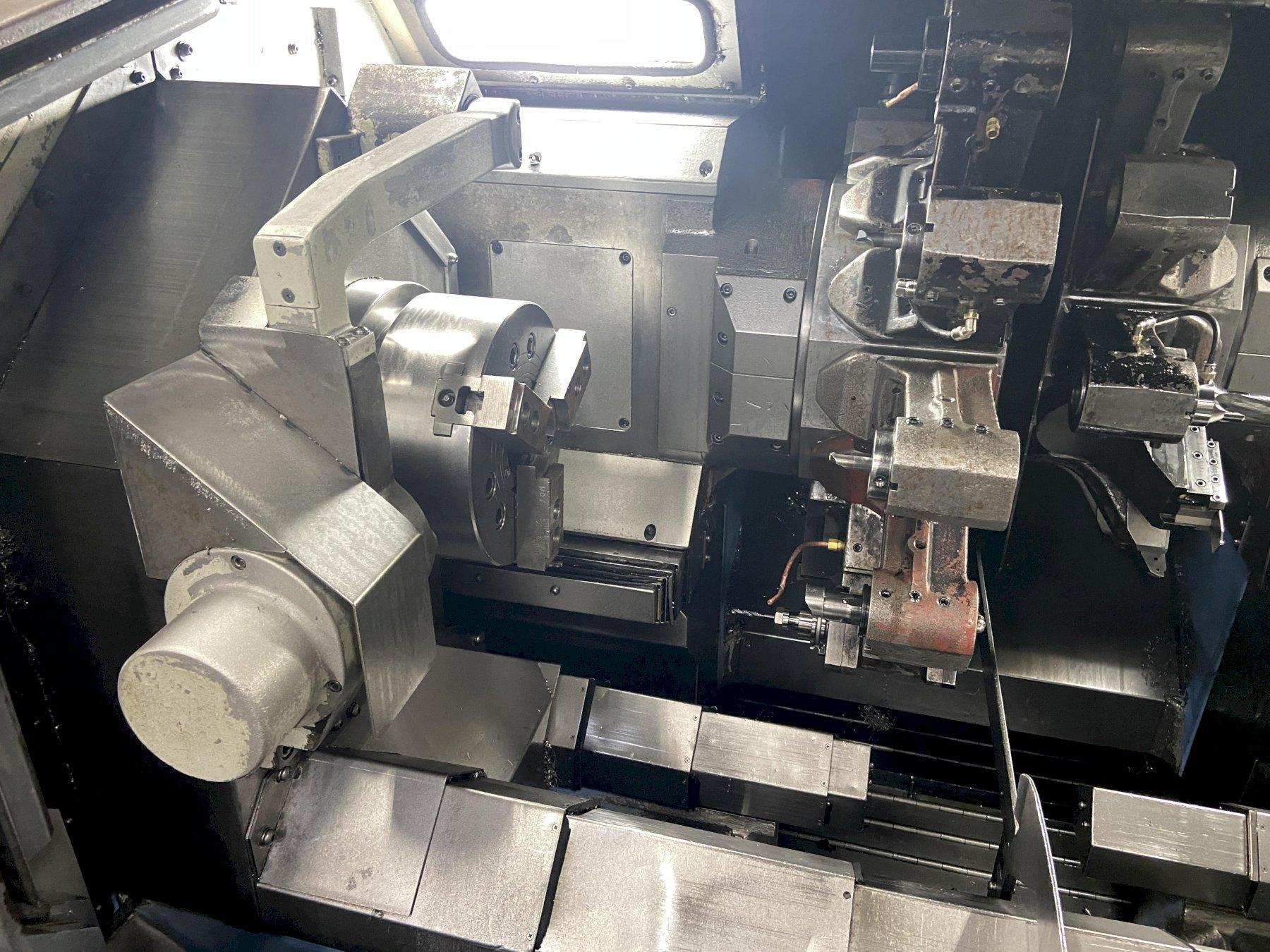

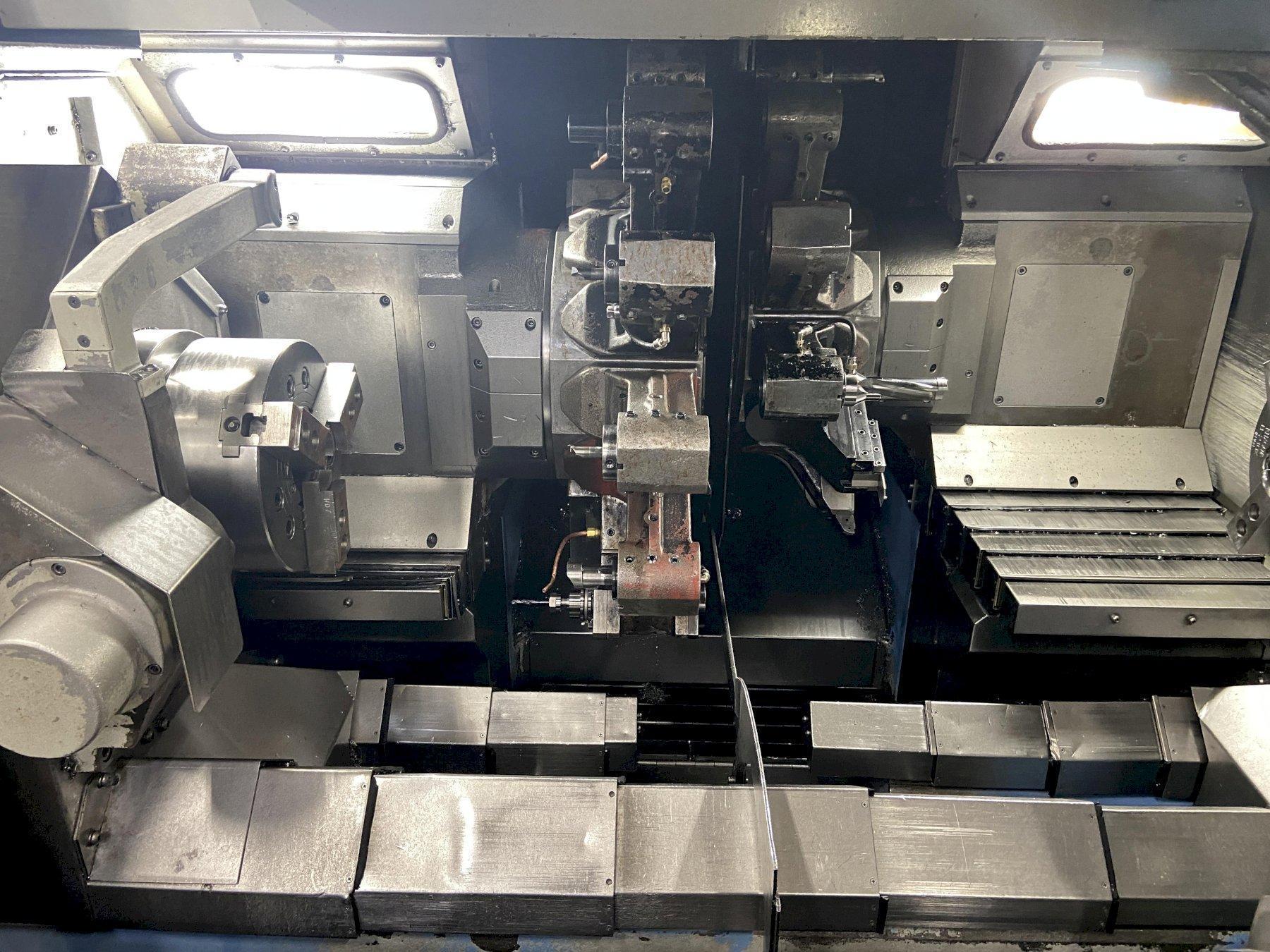

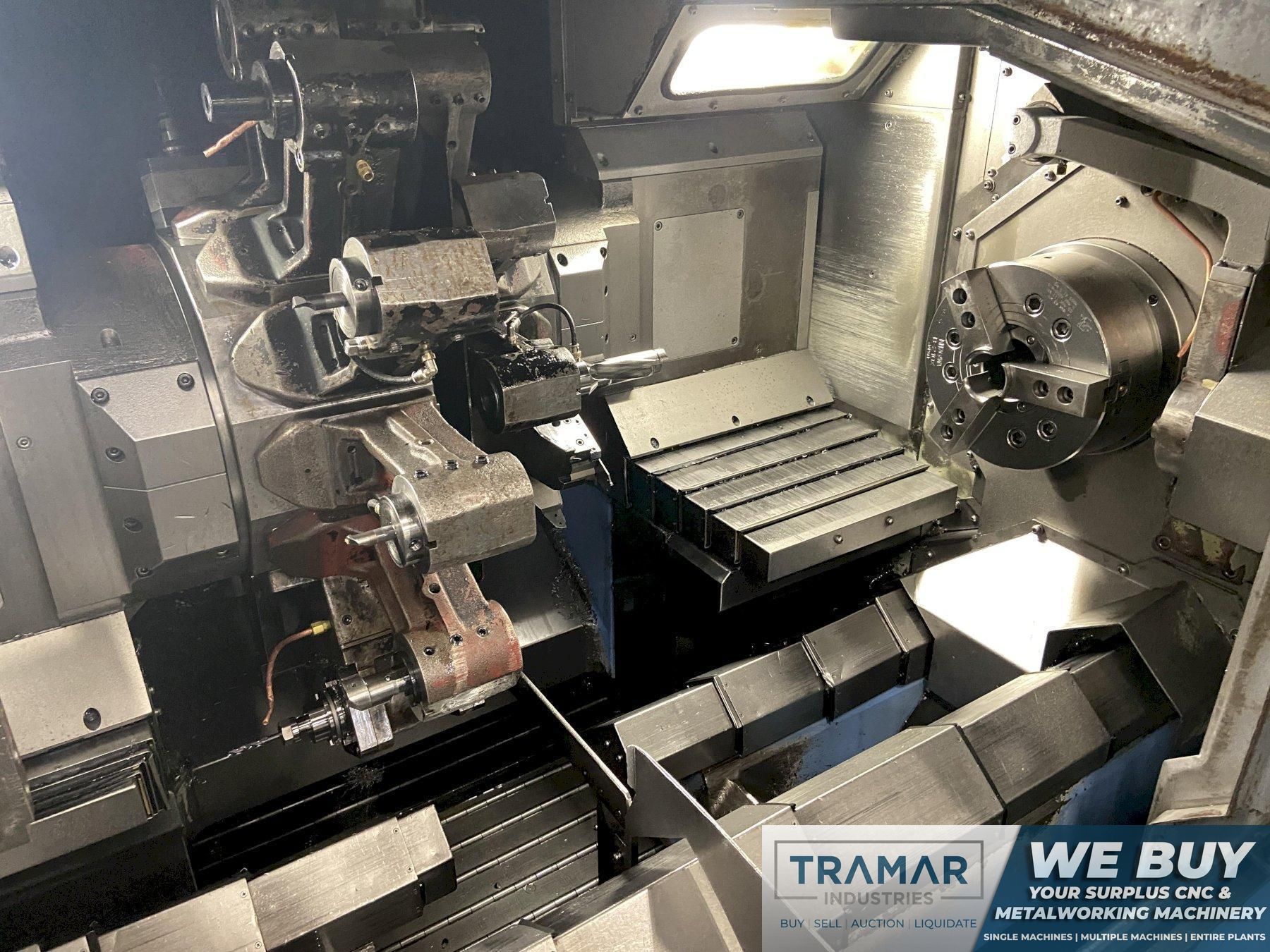

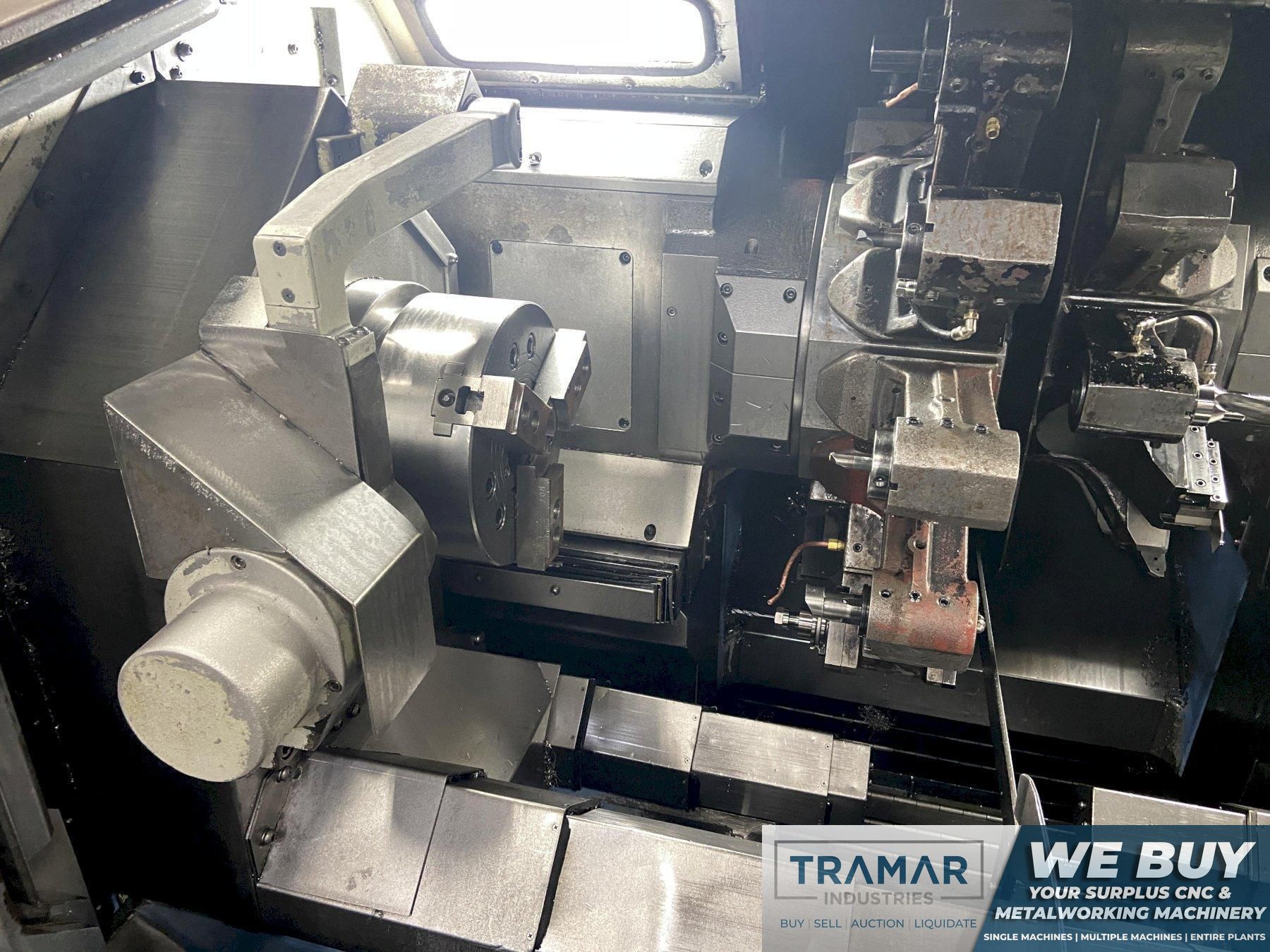

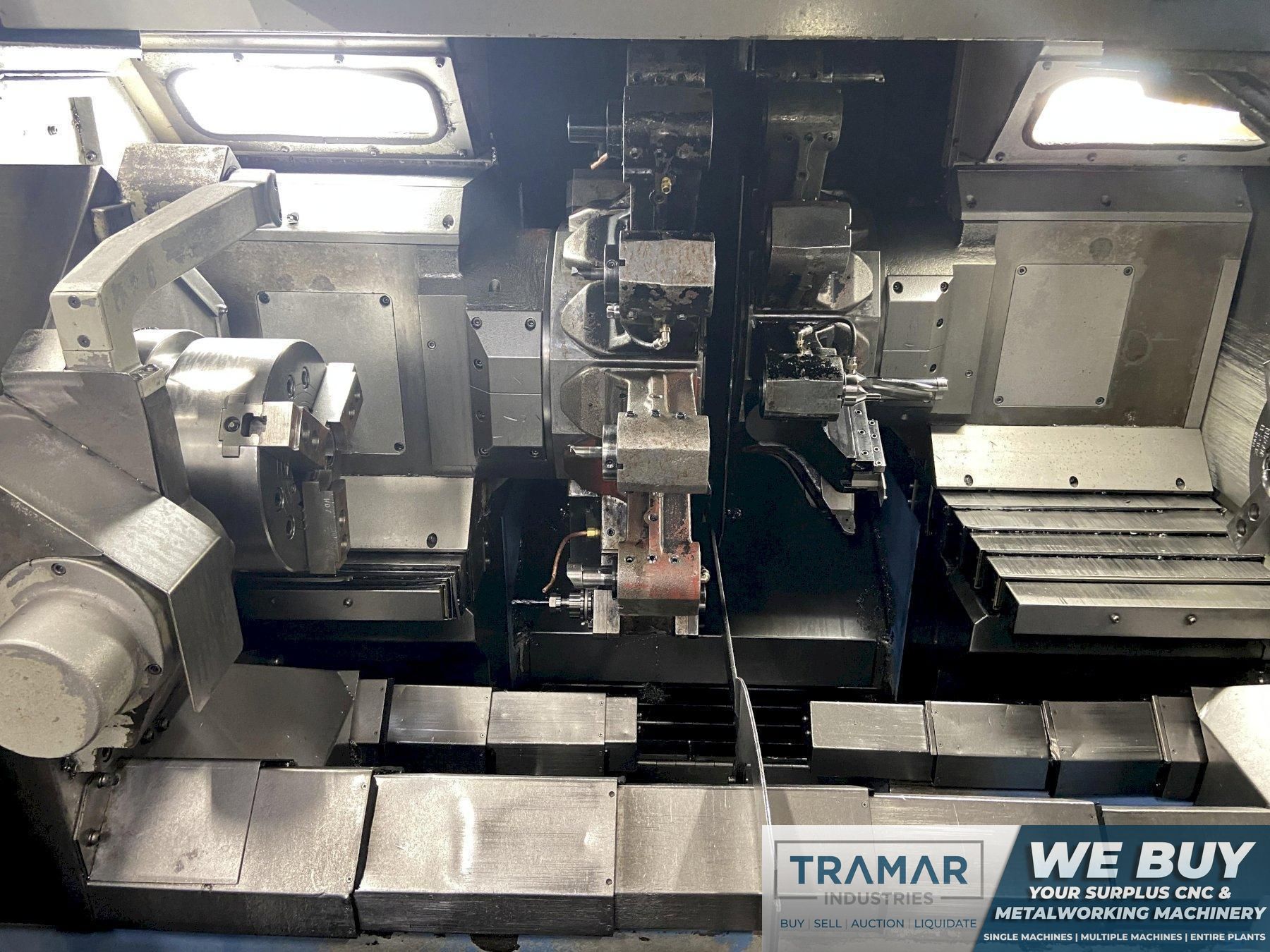

Dual Spindle, Dual Turret

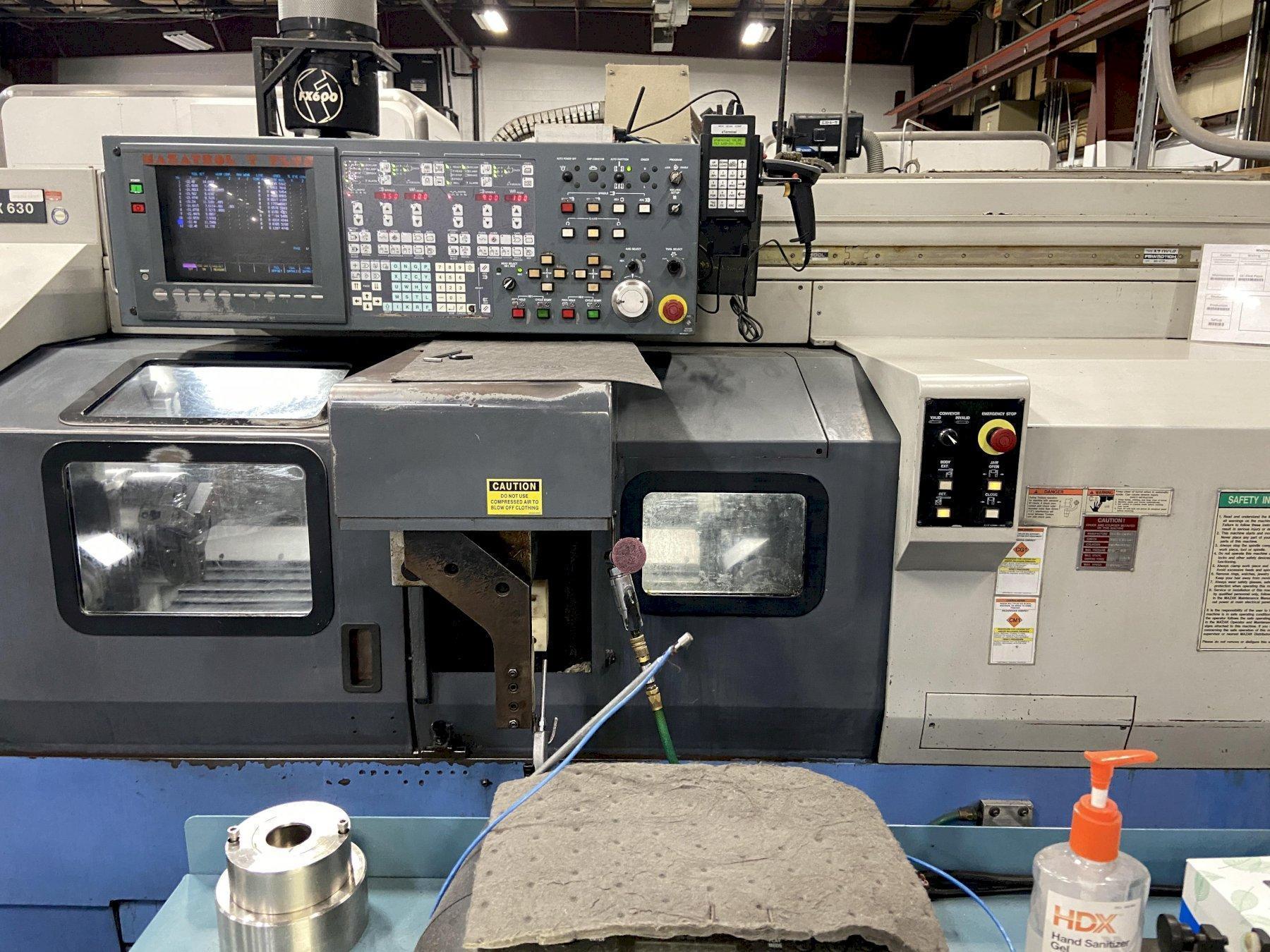

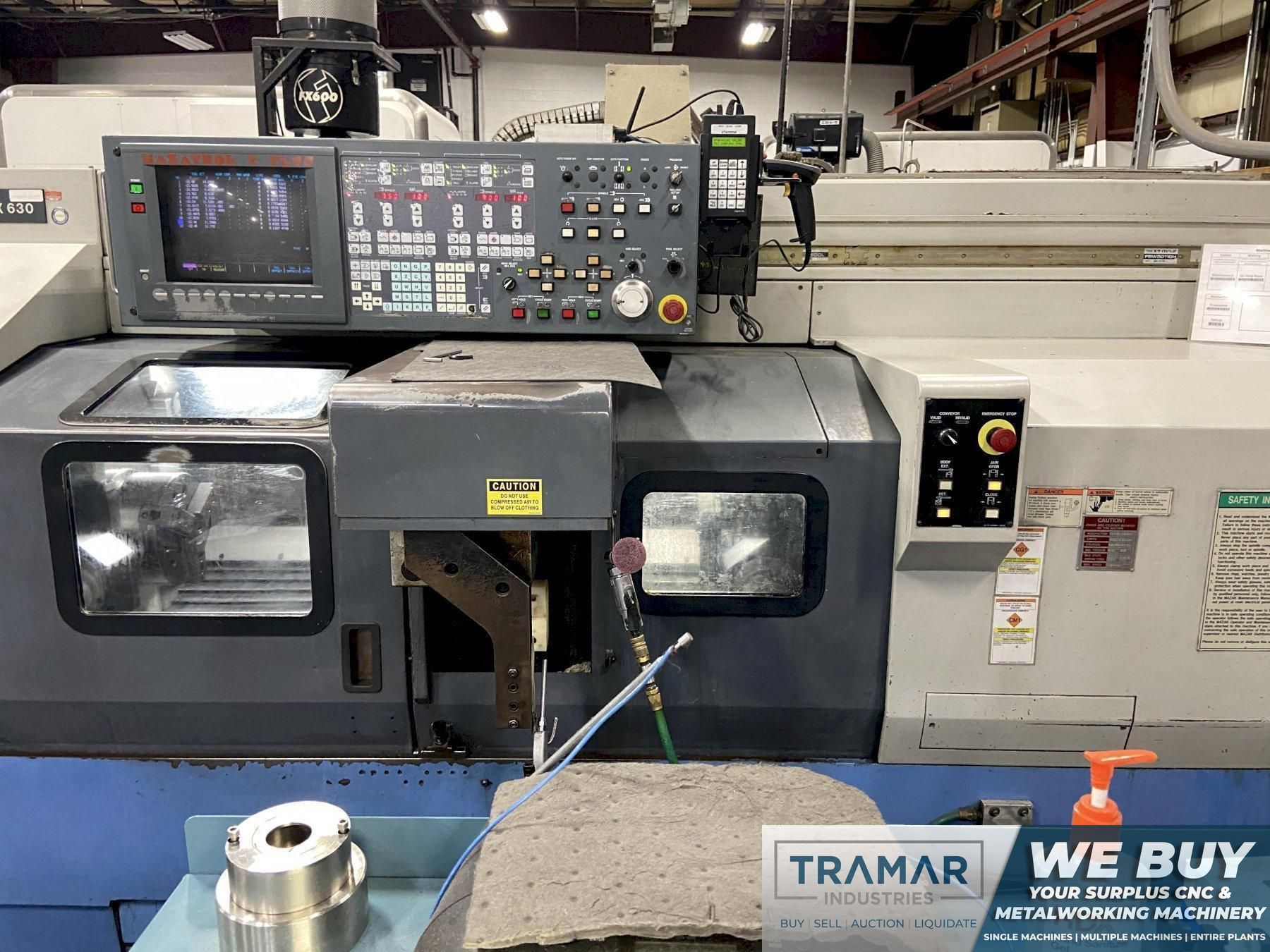

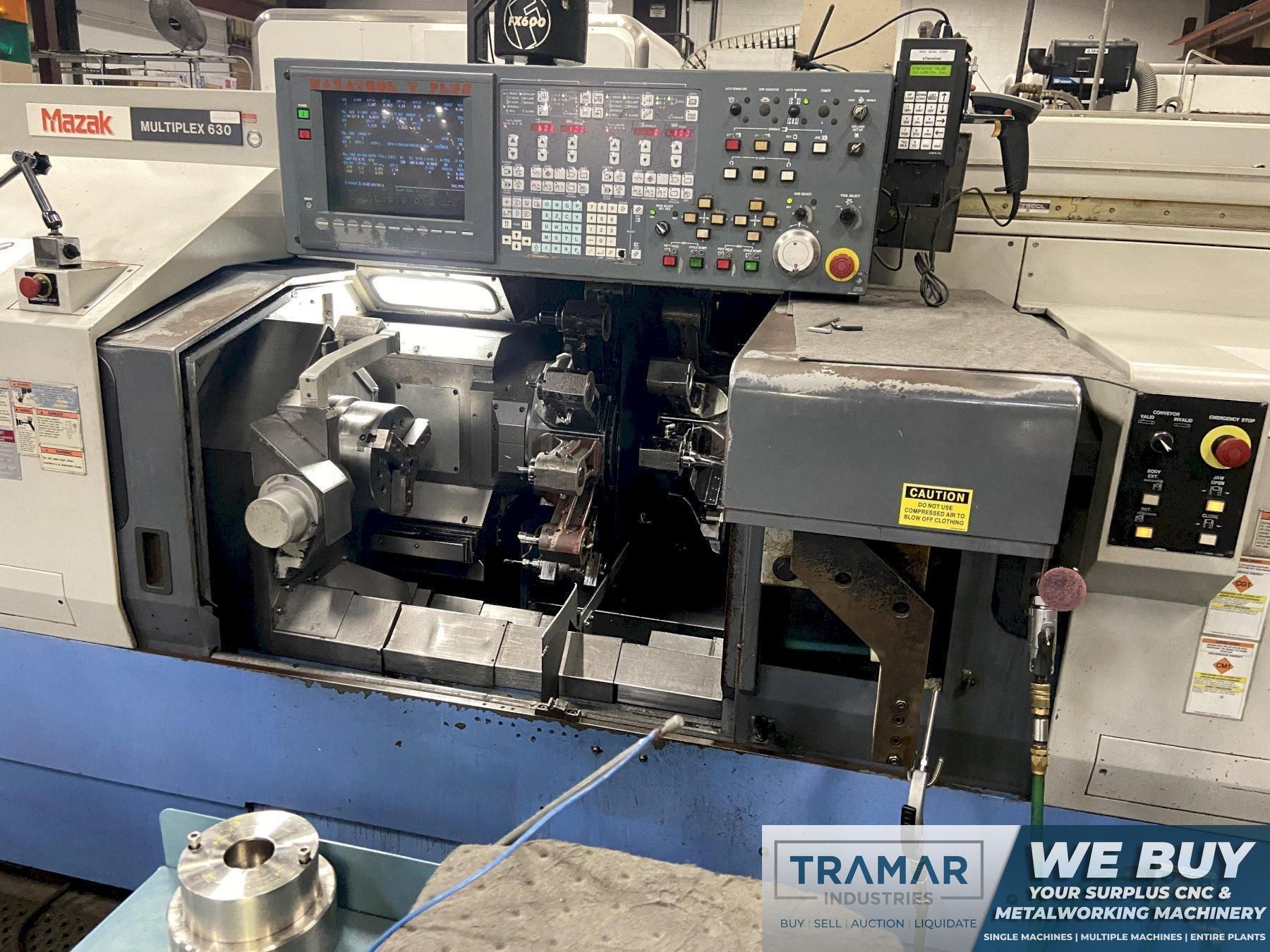

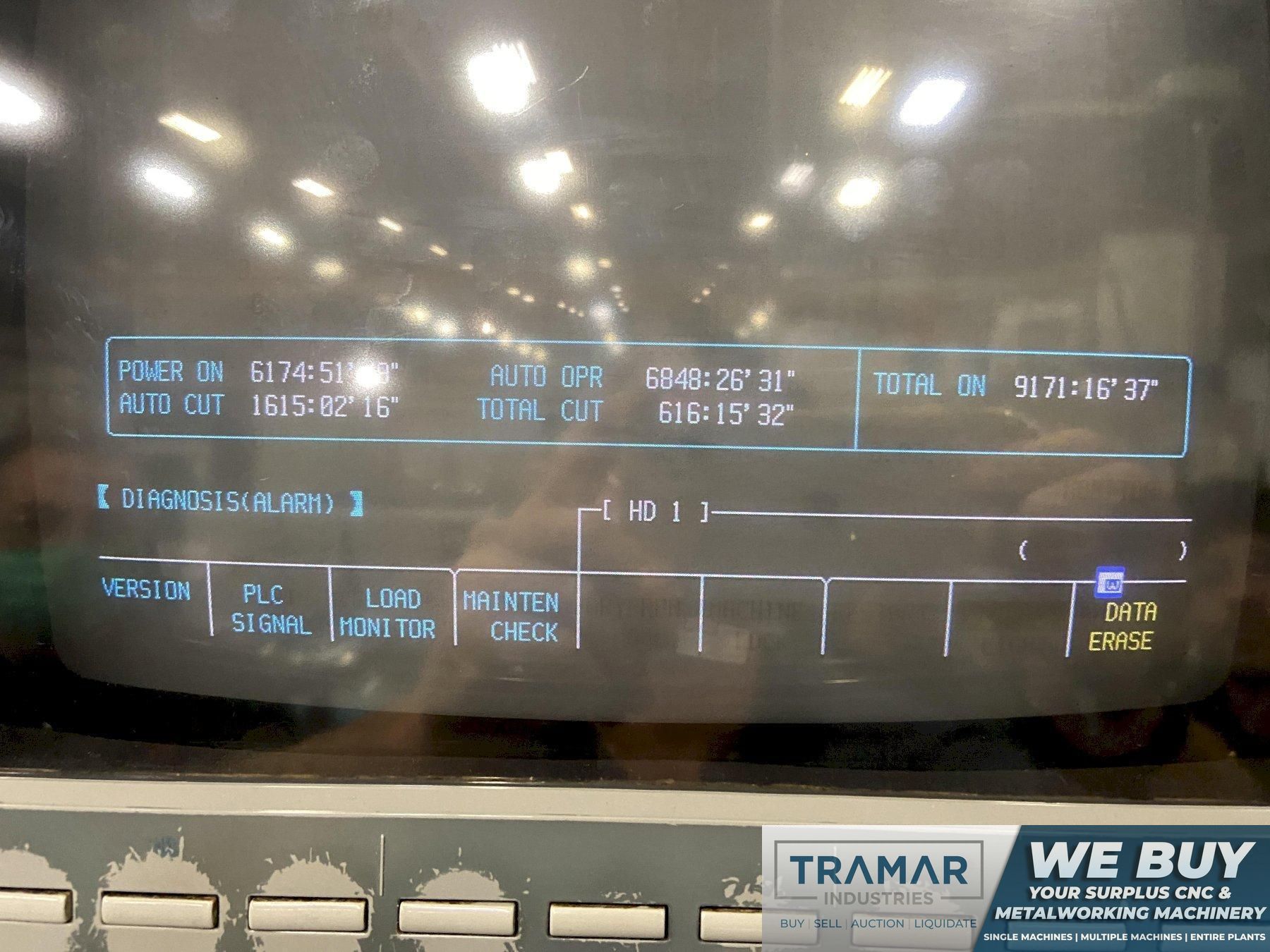

Mazatrol T-Plus Control
Tool Presetter's
Live Tooling

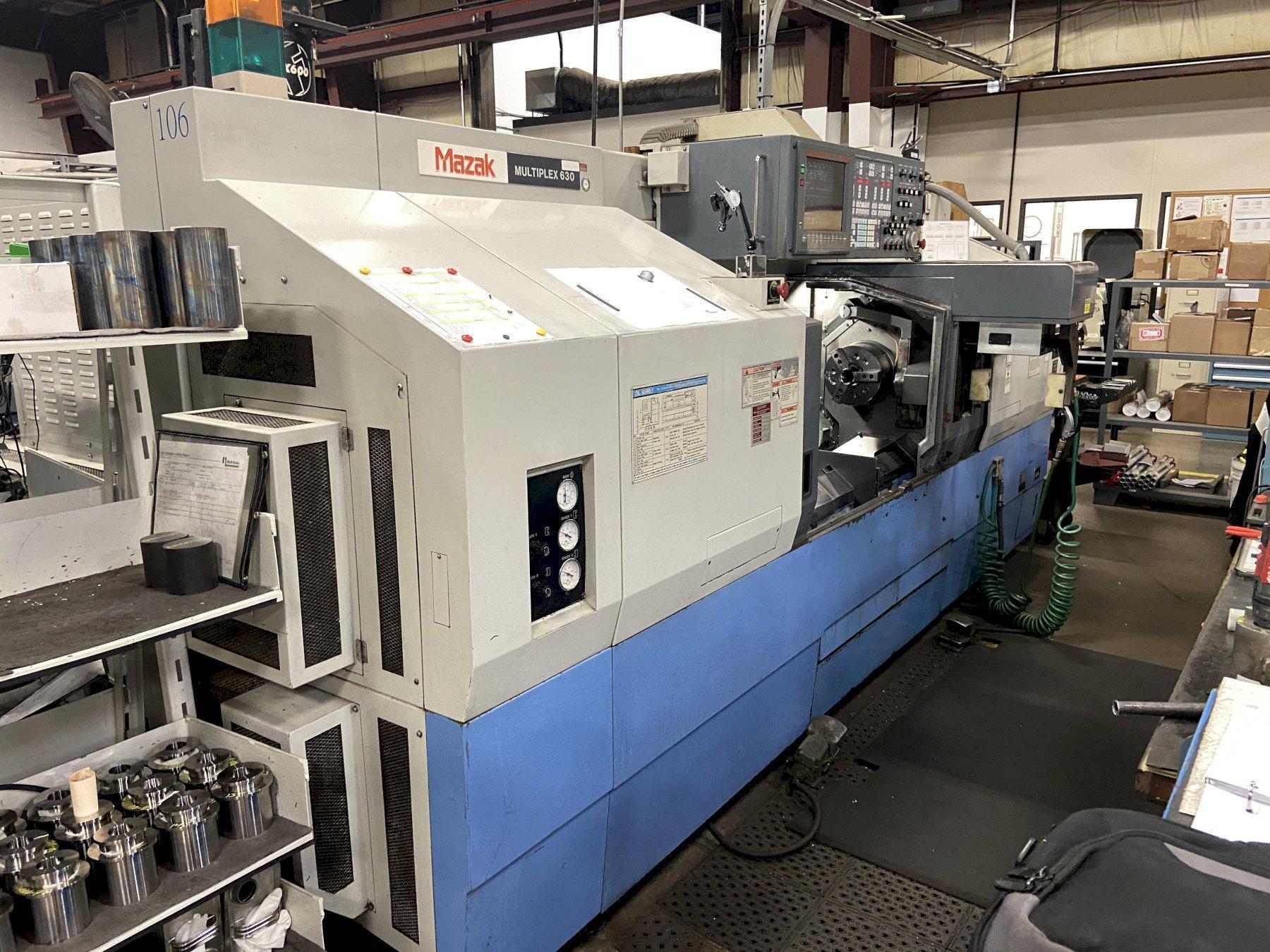

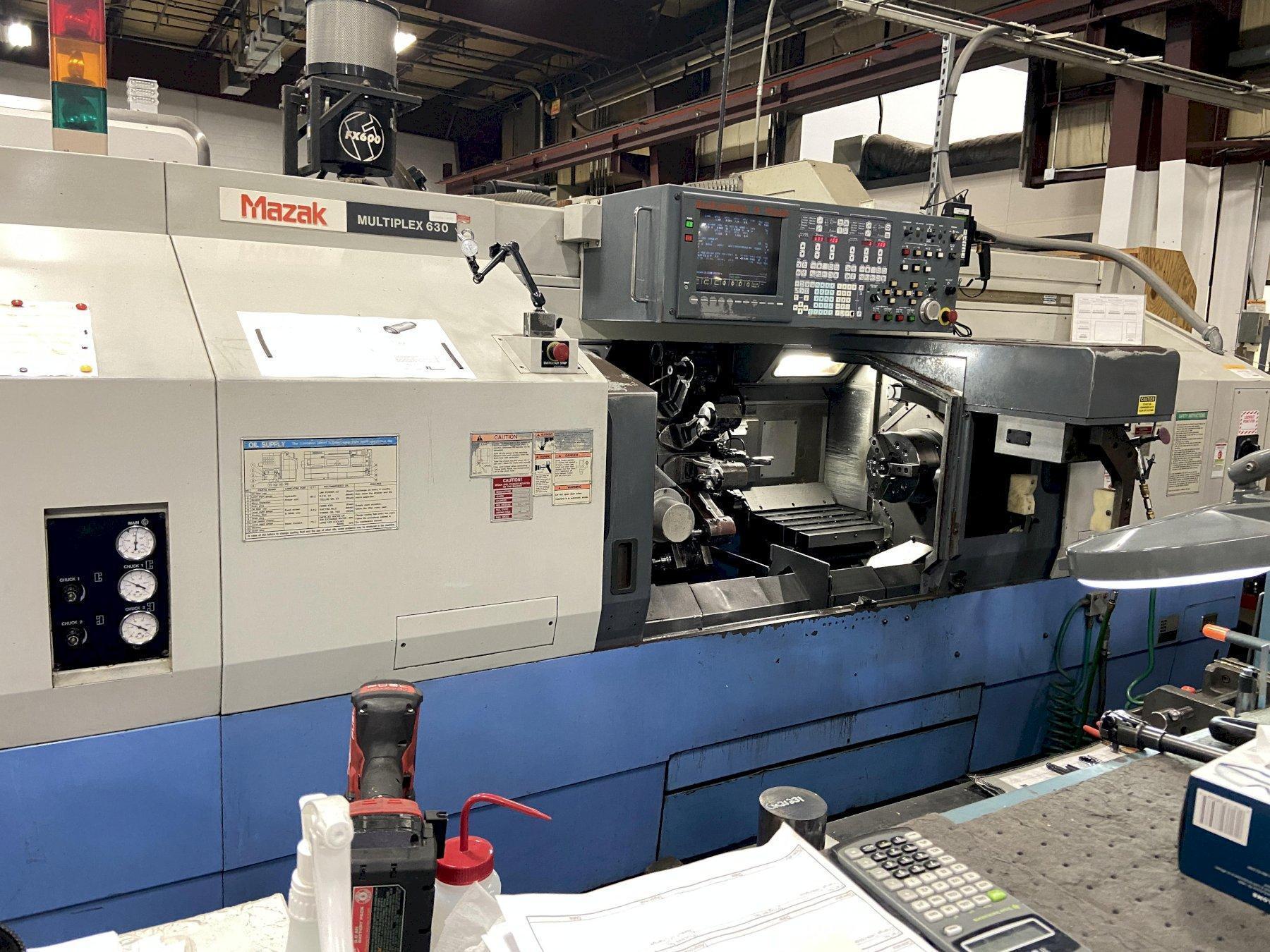

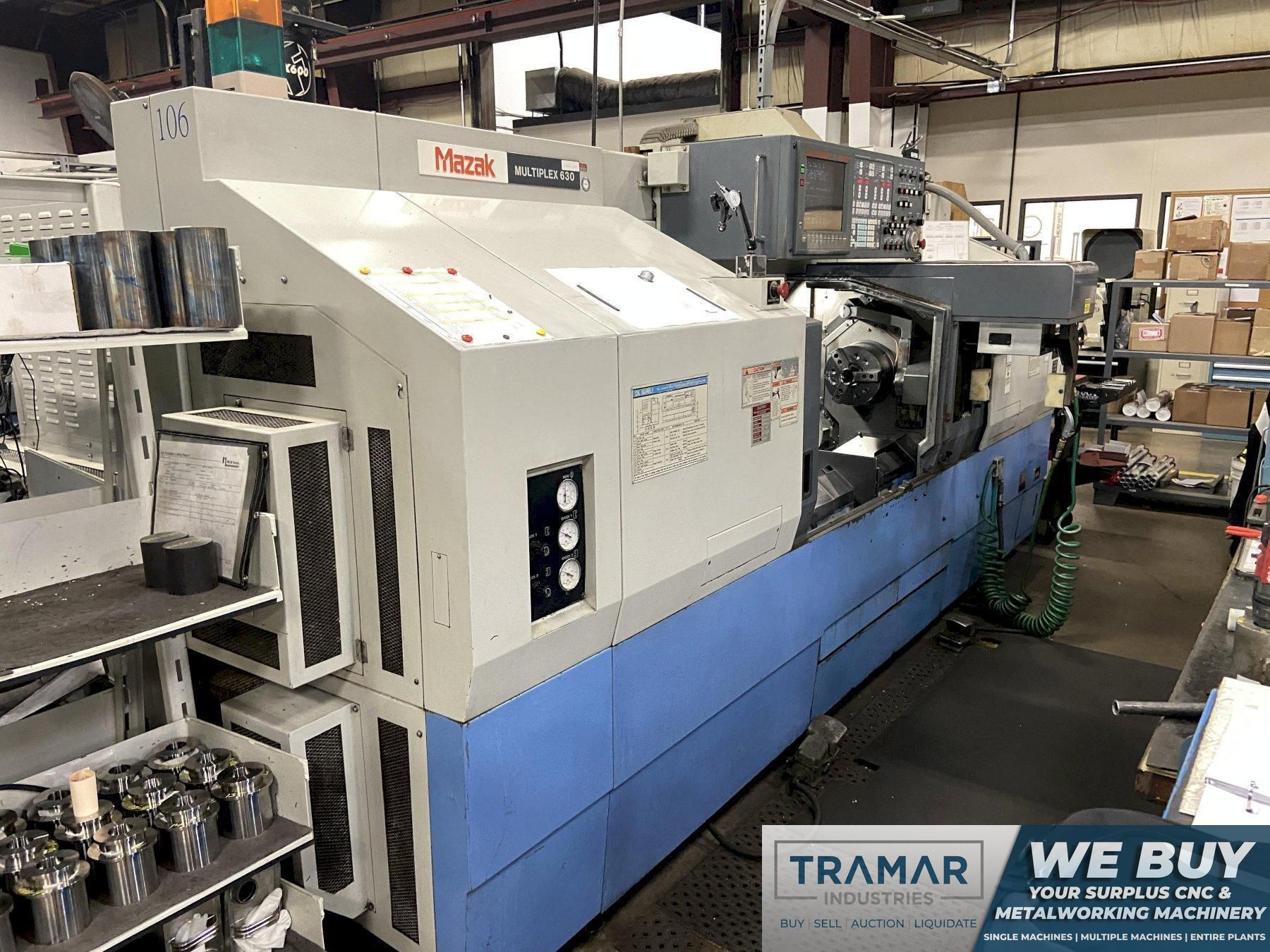

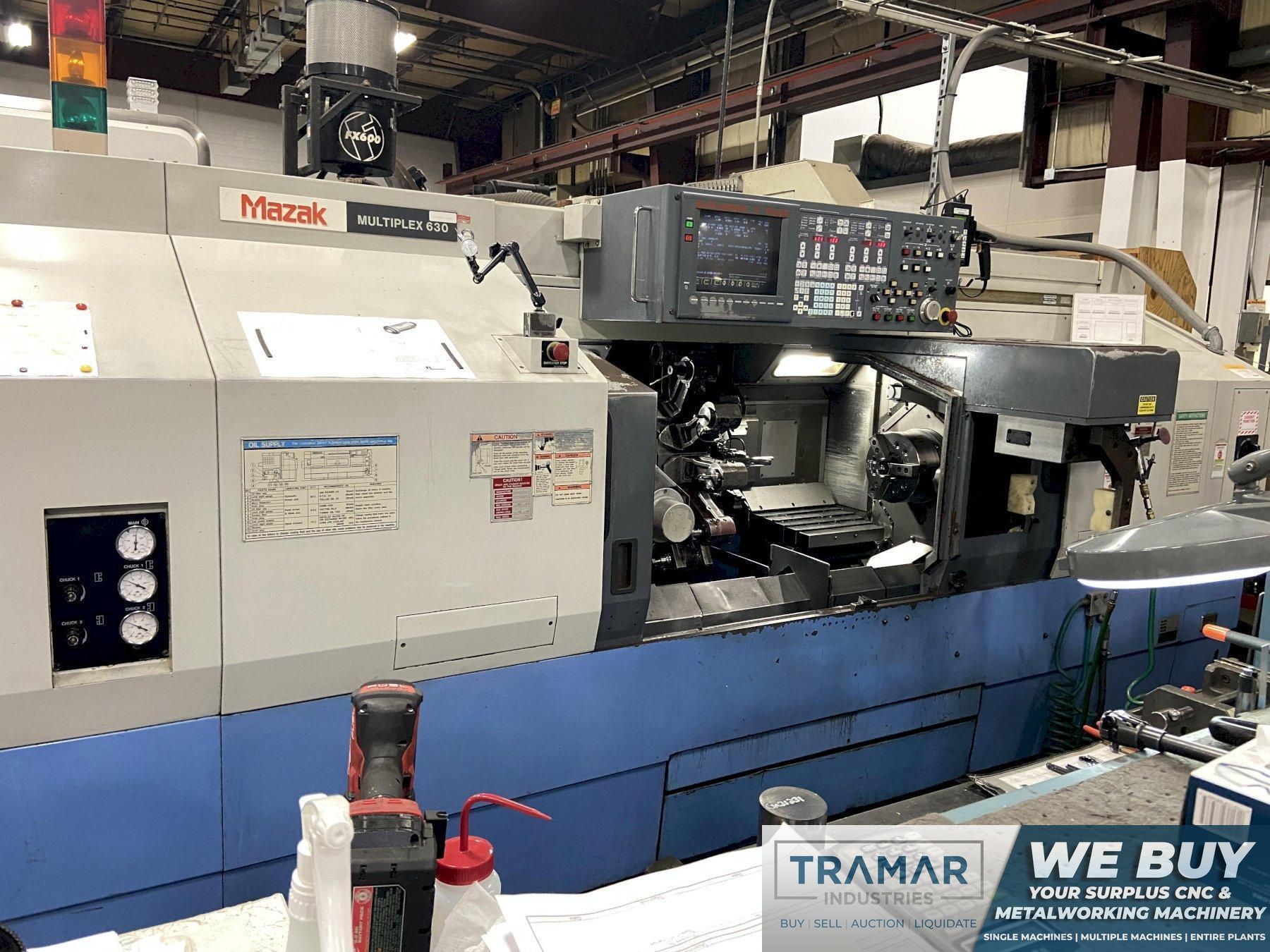

Mazak Multiplex 630 CNC Horizontal Lathe
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Mazatrol T-Plus
# Axis
6
Swing
22"
Turning Diameter
16.9"
Center Distance
24"
Chuck Size
10"
Bar Capacity
3"
X Axis Travel
12"
Z Axis Travel
24"
Rapid Traverse (X/Z)
393/984 ipm
Spindle Speed (RPM)
4,000
Main Motor
30 hp
Sub Spindle
yes
Sub Spindle Chuck
10"
Sub Spindle Bar Capacity
3"
Sub Spindle Speed
4,000 rpm
Sub Spindle Motor (HP)
30 hp
Turret Capacity
12+12
Live Tooling
yes
Tailstock
no
Y Axis
no

Equipped With:

- Mazatrol T-Plus Control
- (2) Kitagawa B210 Chucks
- Chip Conveyor
- Coolant Tank & Pumps
- Tool Presetter's
- Live Tooling
- Misc. Tooling Available

The Mazak Multiplex 630 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
