Mazak Integrex 50Y/2000 - Lathes (3-Axis or More)

Share Machine

Specifications Print Specs

Model: Integrex 50Y/2000

Year: 1998

Stock #: 13453 Sold

Type: Lathes (3-Axis or More)

Manufacturer: Used Mazak Machines

Highlights:
Mazatrol T Plus Control
Milling & Turning Function

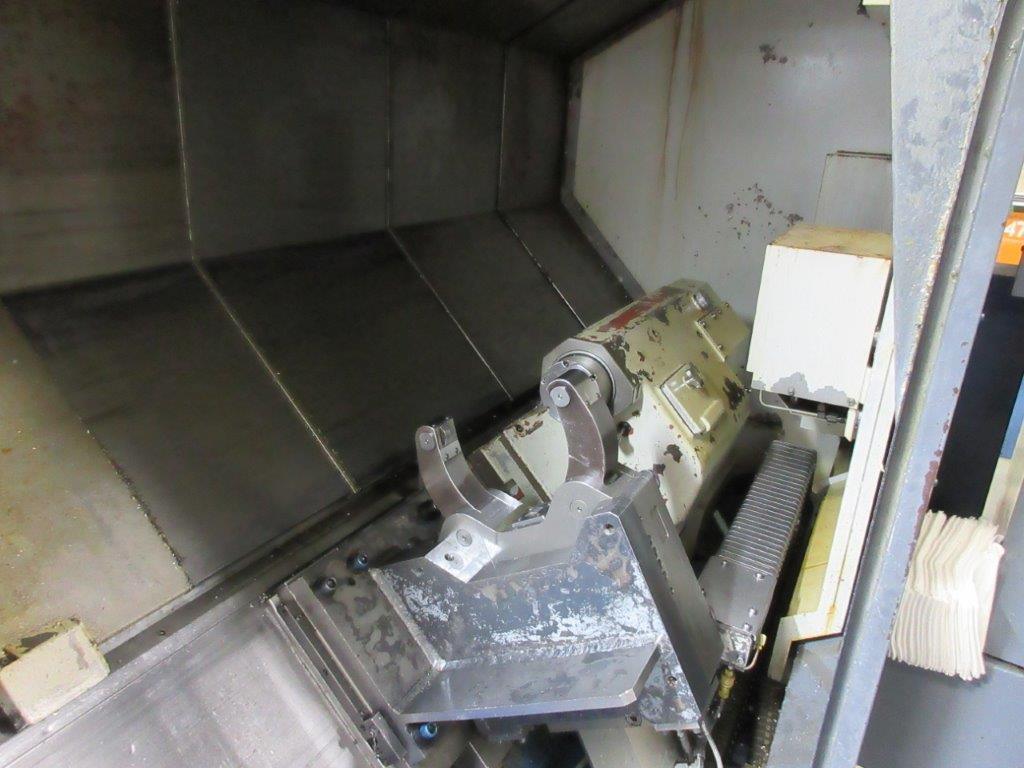

Hydraulic Steady Rest
EIA/ISO Option Package
Live Milling Spindle | Y Axis

Mazak Integrex 50Y/2000 CNC Horizontal Mill/Turn Lathe

Equipped With:

- Work Measuring System
- EIA/ISO Option Package
- Coolant Thru Milling Spindle
- Built in Live Center
- Done in 1 Technology
- Chip Conveyor

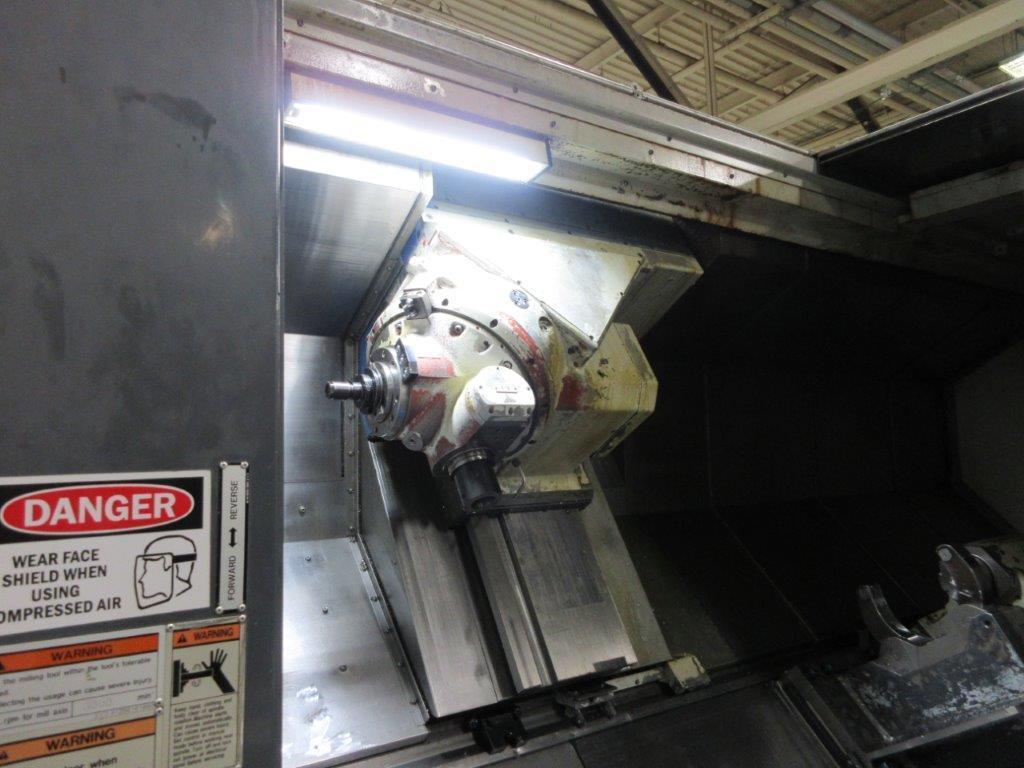

- Live Milling Spindle
- Y Axis

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

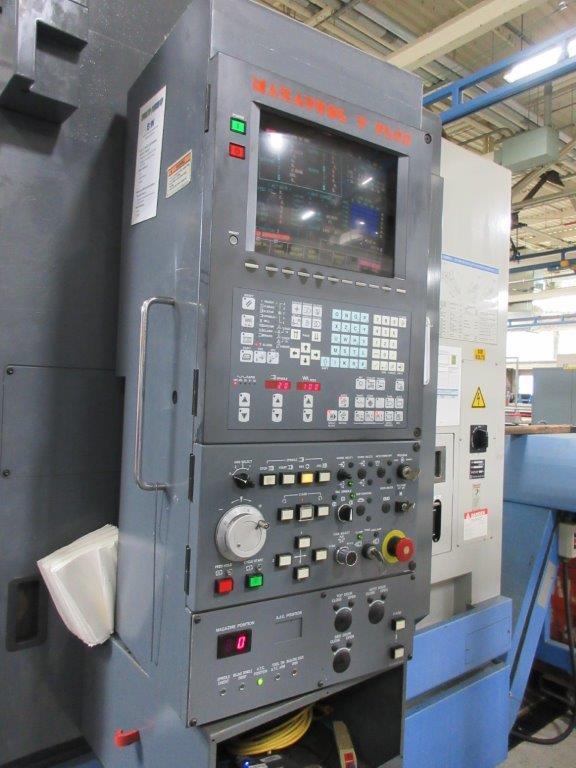

Mazatrol T Plus

# Axis

Swing

36"

Turning Diameter

27"

Center Distance

78"

Chuck Size

18"

Bar Capacity

4.6"

X Axis Travel

25.3"

Y-Axis Travel

+/- 4.13"

Z Axis Travel

80"

C Axis Index

0.001°

Spindle Speed (RPM)

3,000 rpm

Main Motor

30 hp

Live Tooling

yes

Milling Spindle Taper

CAT 50

Live Tooling Speed

Milling Spindle - 3,000 rpm

Live Tooling Motor

15 hp

Sub Spindle

Turret Capacity

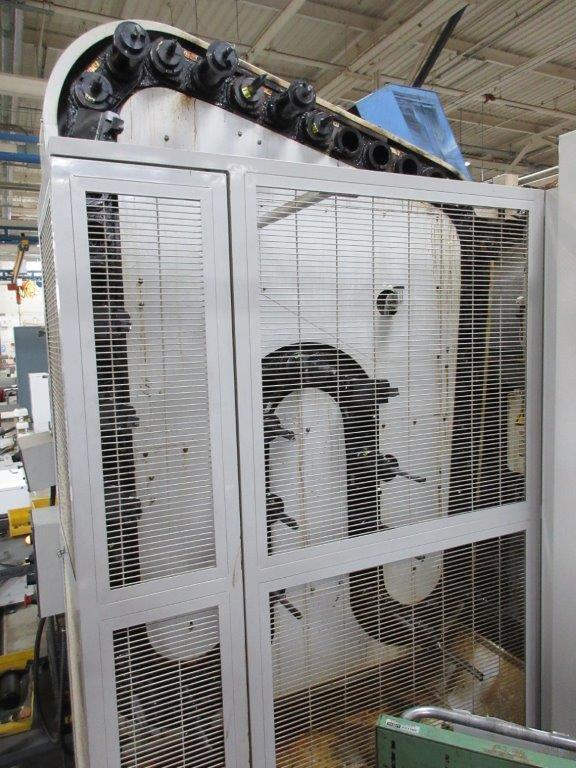

Automatic Tool Changer - 60 Stations

Tailstock

yes

Y Axis

yes

Weight

34,000 pounds

Equipped With:

- Work Measuring System
- EIA/ISO Option Package
- Coolant Thru Milling Spindle
- Built in Live Center
- Done in 1 Technology
- Chip Conveyor
- Live Milling Spindle
- Y Axis

The Mazak Integrex 50Y/2000 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
