Makino F9 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: F9
Year: 2015
Stock #: 16656 Sold
Highlights:
Professional 5 Control (Fanuc 31i)

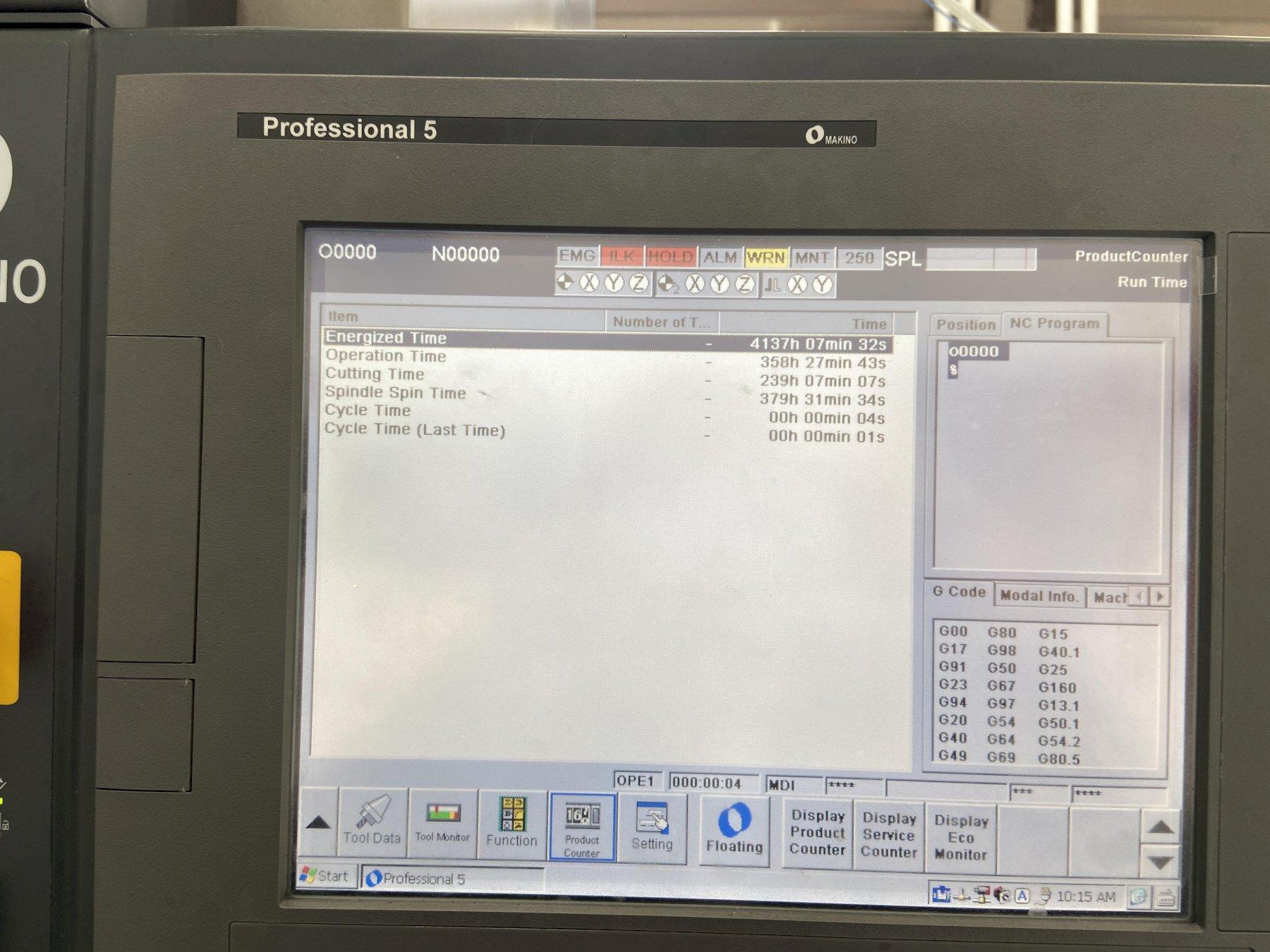

Only 239 Cutting Hours - DEMO MACHINE
Table Size: 72.9" x 31.5" | Max Table Load: 5,511 lbs
Travels: (X/Y/Z): 63" / 31.5" / 25.6"
CAT 50 | 10,000 rpm | 50 hp | 60 Station ATC
LIKE NEW, MUST SEE, EXCELLENT CONDITION

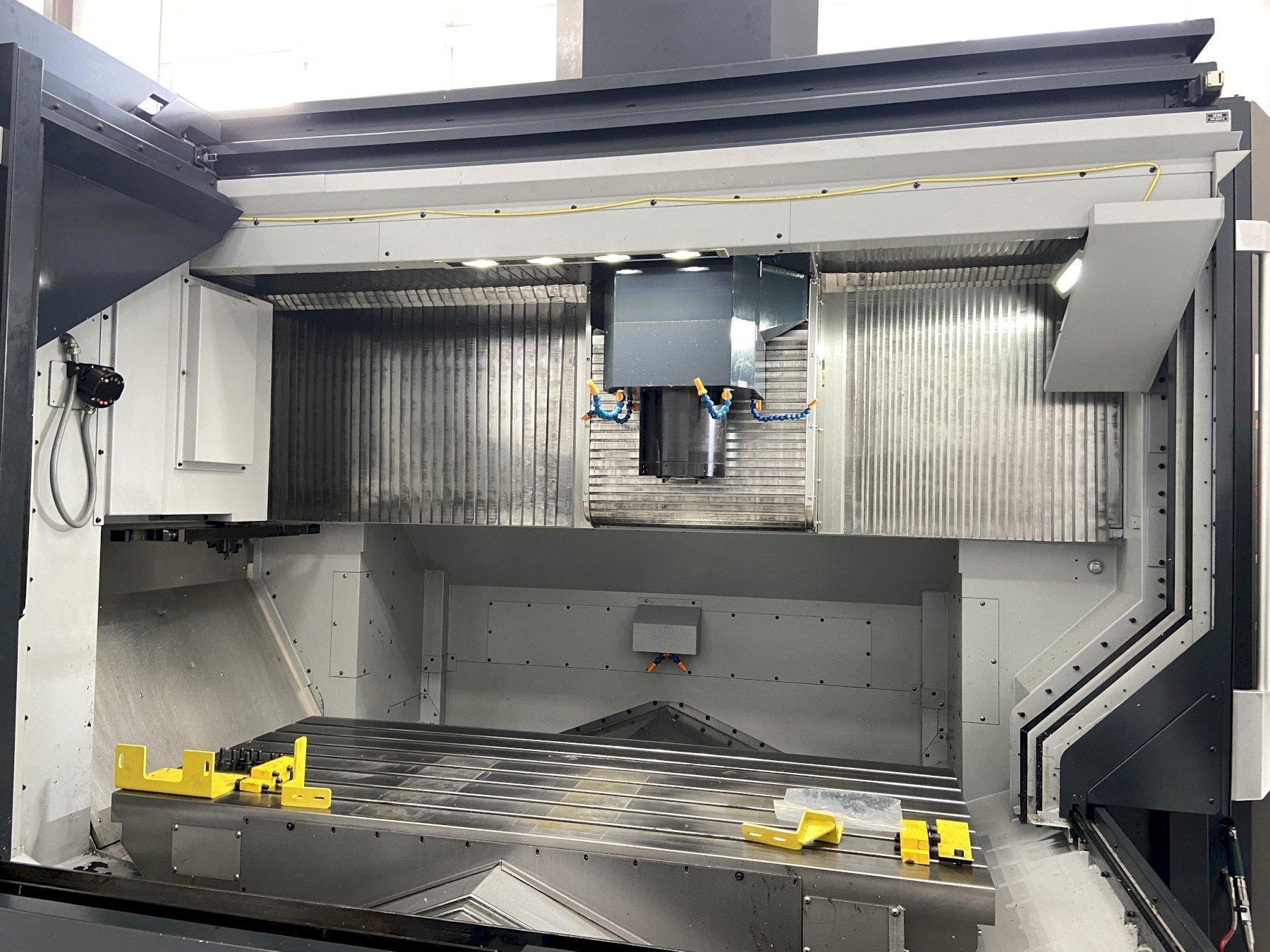

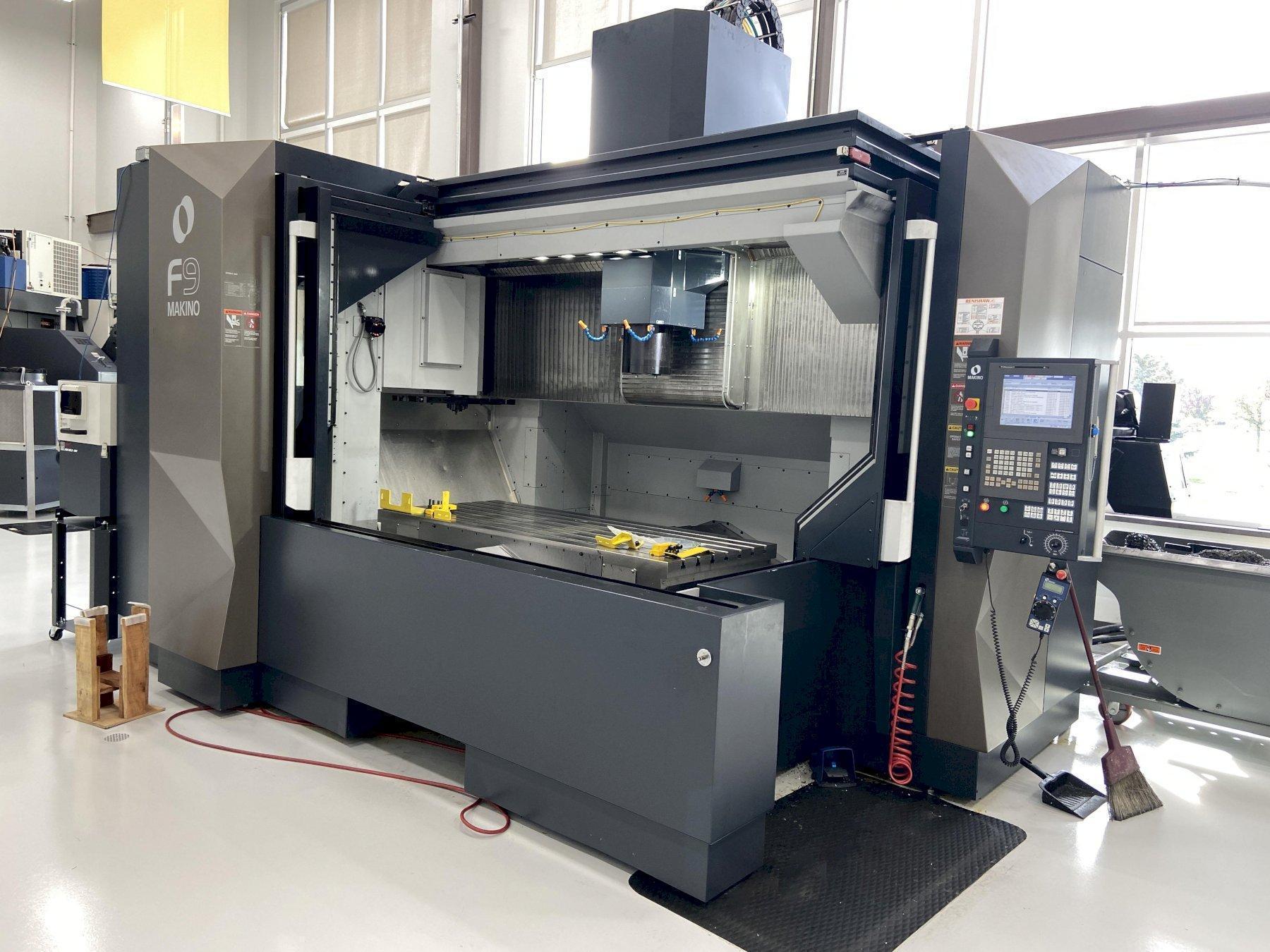

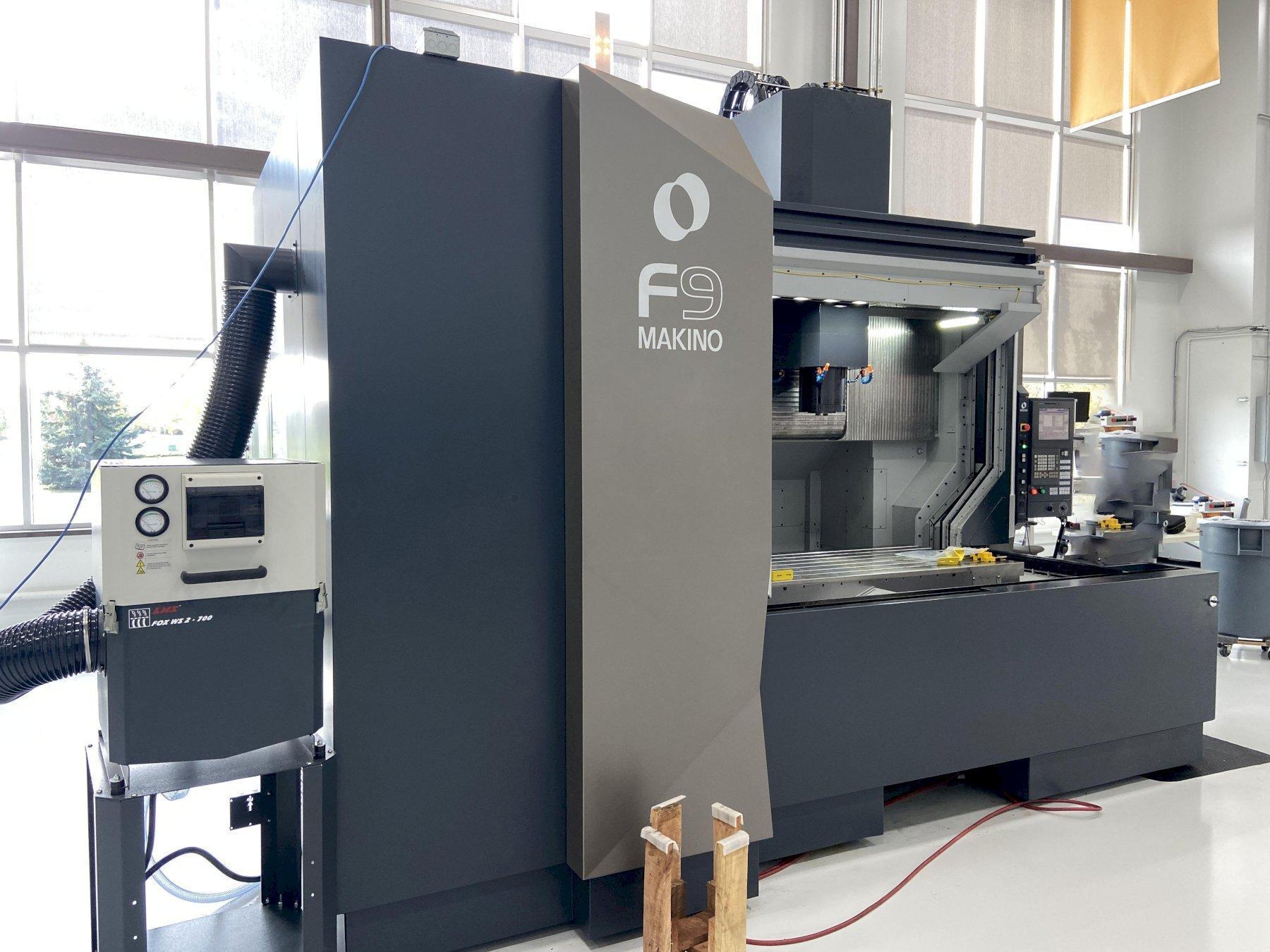

Makino F9 CNC Vertical Machining Center - LIKE NEW
Machine Specifications
CNC Control
yes
Control Type
Professional 5 (Fanuc 31iM)
# Axis
3

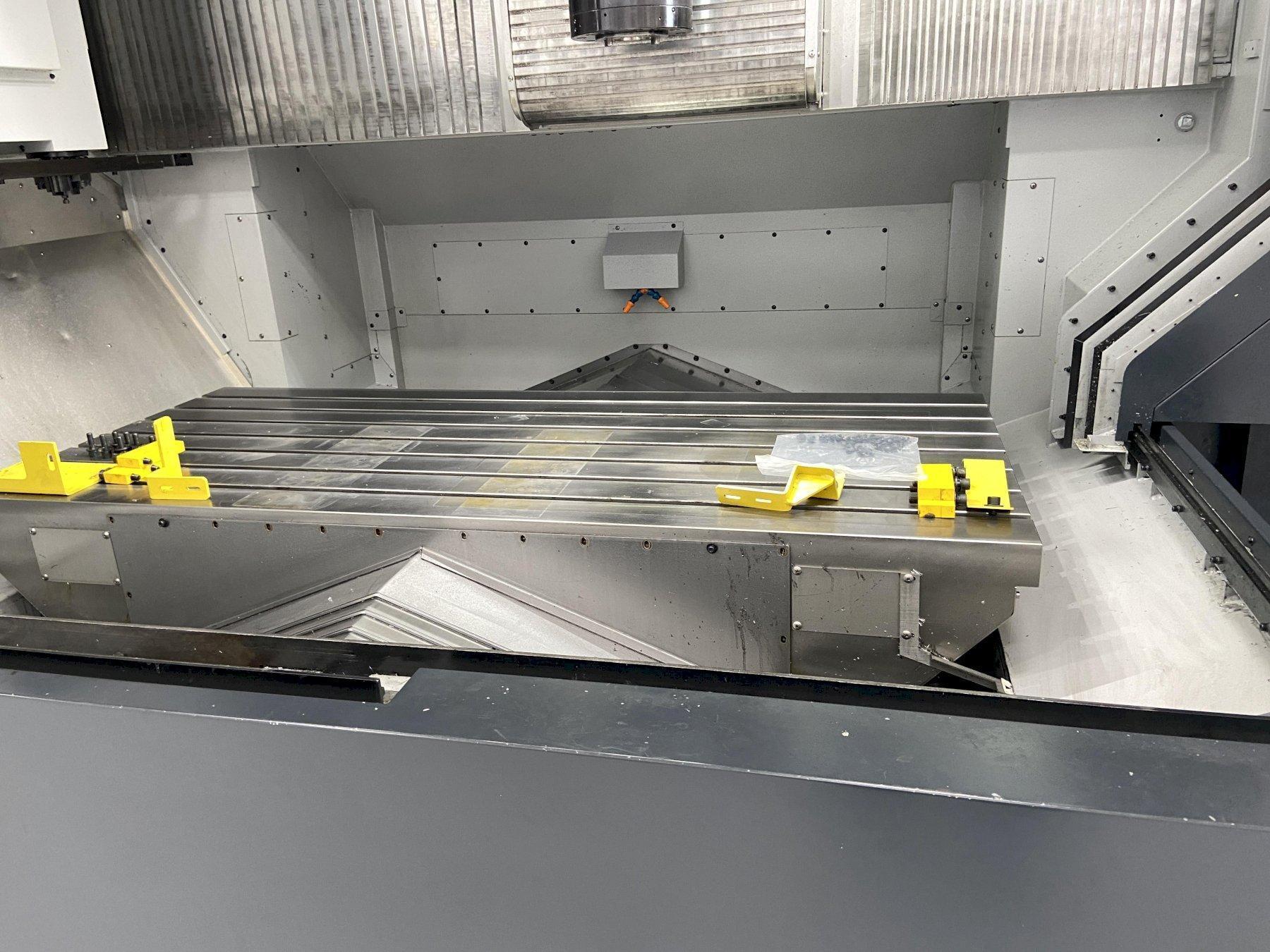

Table Size
72.8" x 31.5"
Table Capacity
5,511 pounds
X-Axis Travel
63"
Y-Axis Travel
31.5"
Z-Axis Travel
25.6"
Rapid Traverse Rate (X/Y/Z)
945 ipm
Spindle Taper
CAT 50
Spindle Speed
10,000 rpm
Main Motor
50 hp
Tool Changer Capacity
60
Coolant Thru Spindle
yes
Machine Dimensions
170" x 161" x 140" (Floor Space)
Machine Weight
37,500 pounds

Equipped With:

- DEMO MACHINE, LIKE NEW | Only 239 Cutting Hours

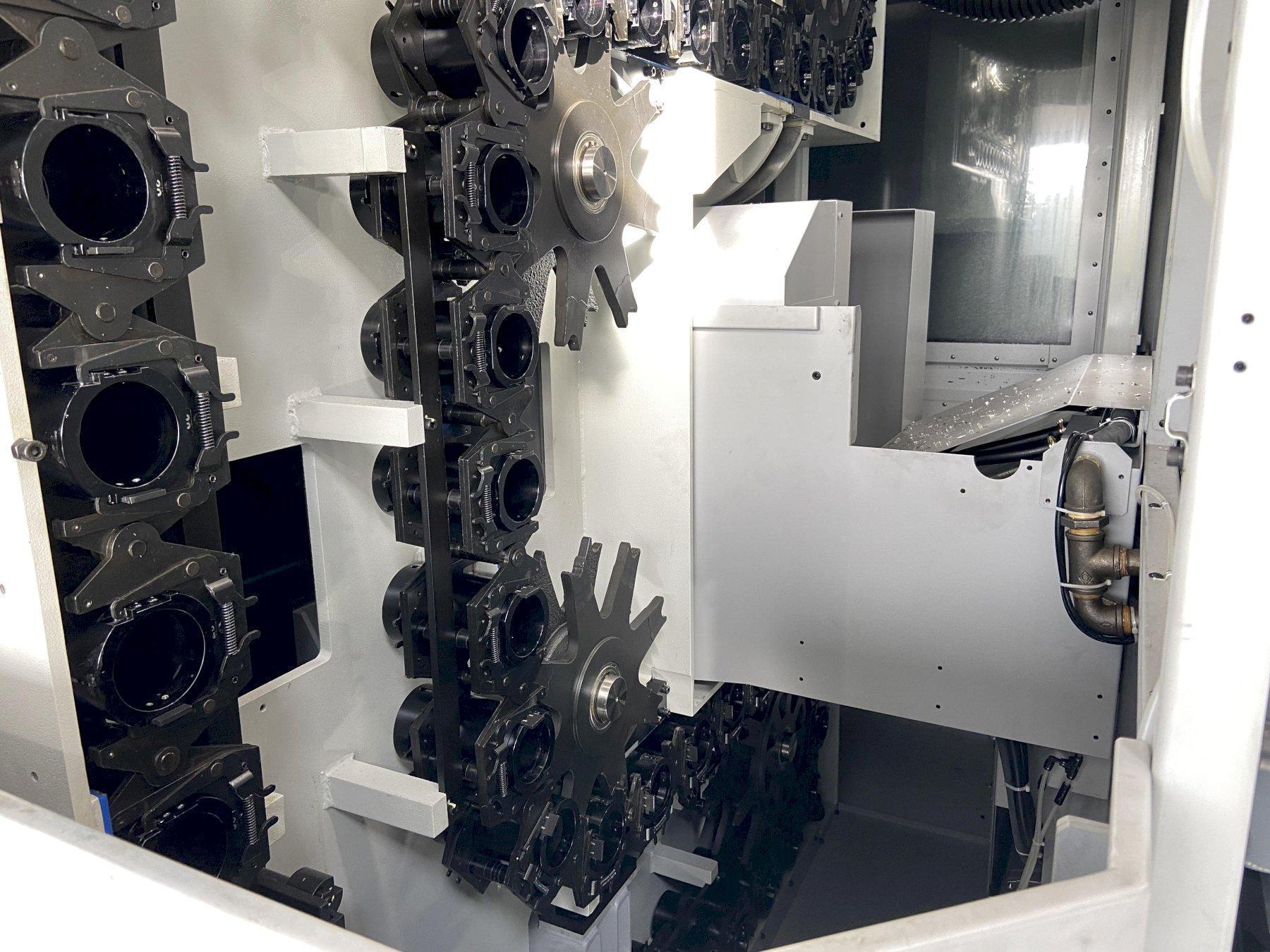

- 60 ATC Option ($35,000)

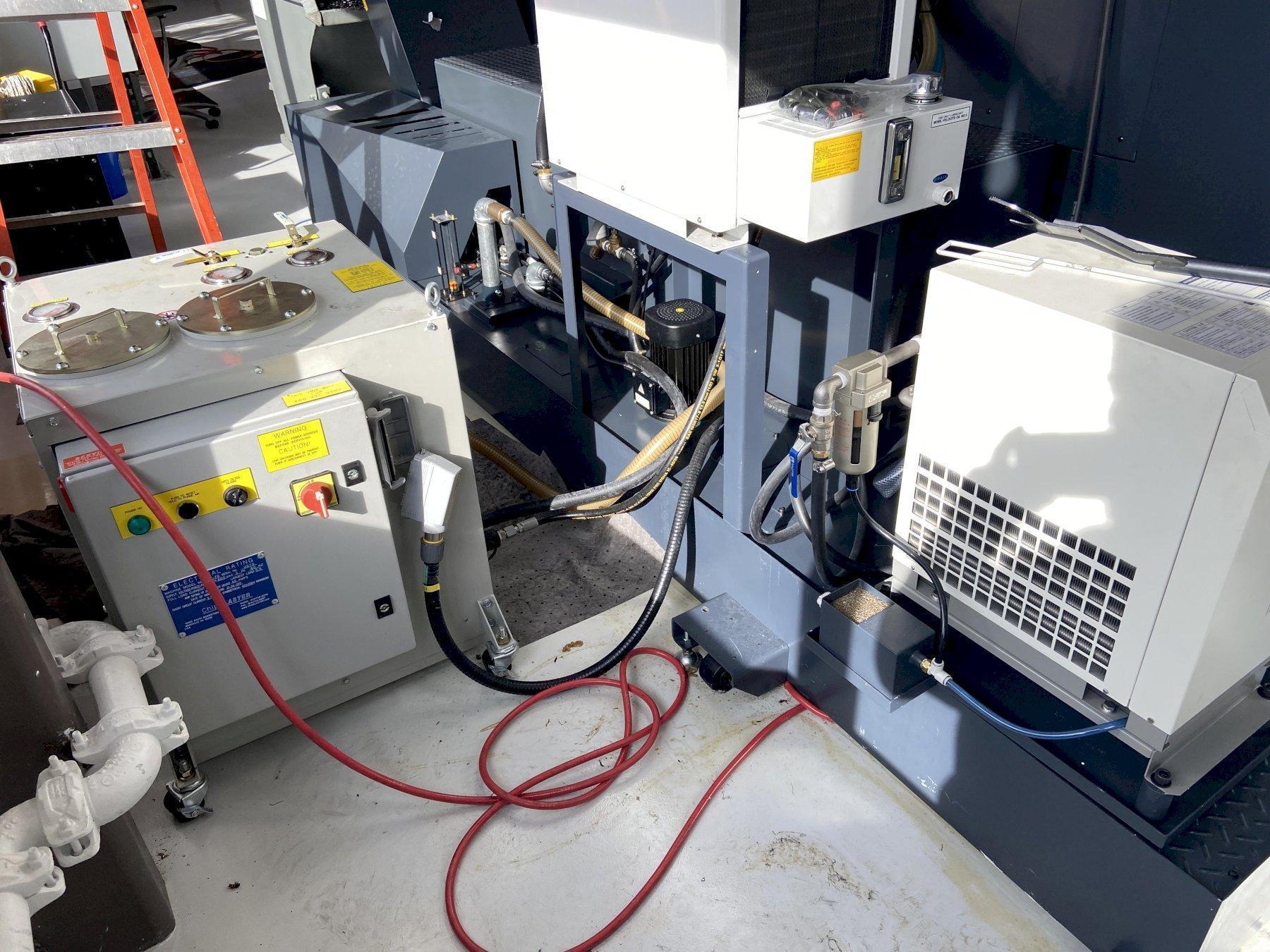

- 1000 psi Thru Spindle Coolant with Chipblaster D30-70 Option ($27,630)

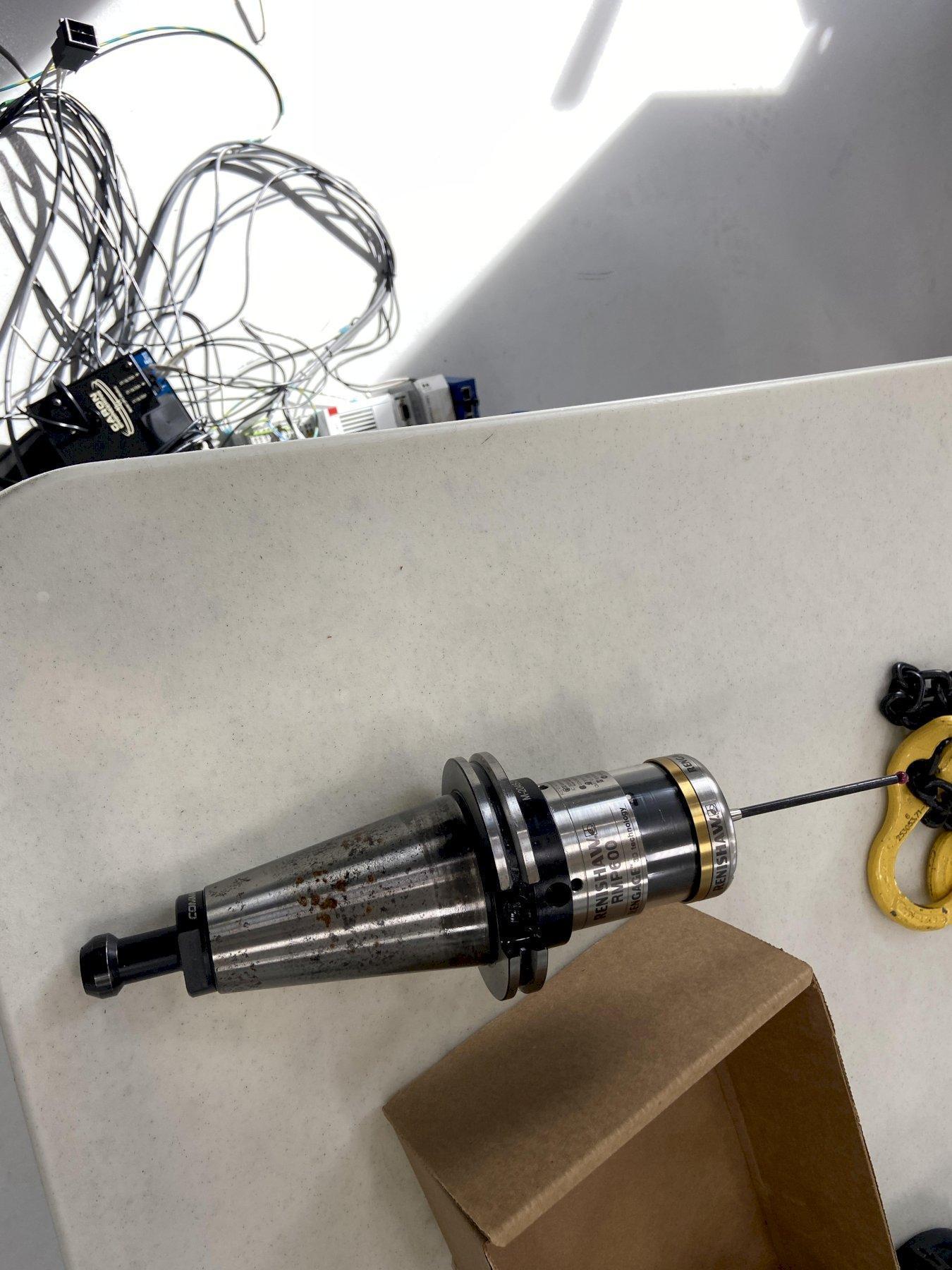

- Renishaw Probe ($13,900)
- Super GI 4 ($19,500)

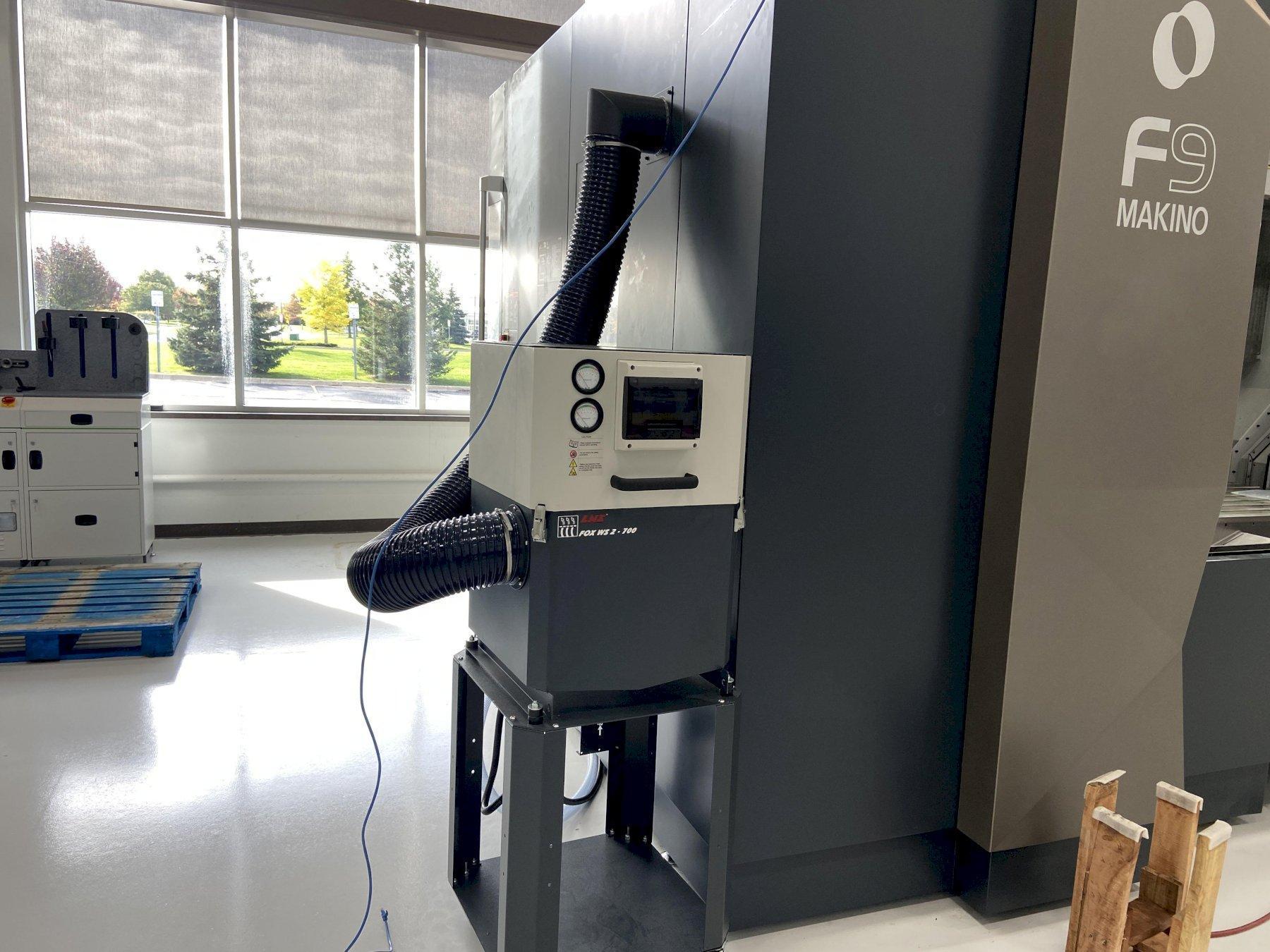

- LNS Mist Collector (11,100)
- 48 additional Work offsets
- 600 Macro Common Variable
- High Speed Skip Function
- Data Center with 400MB memory
- Linear Scales

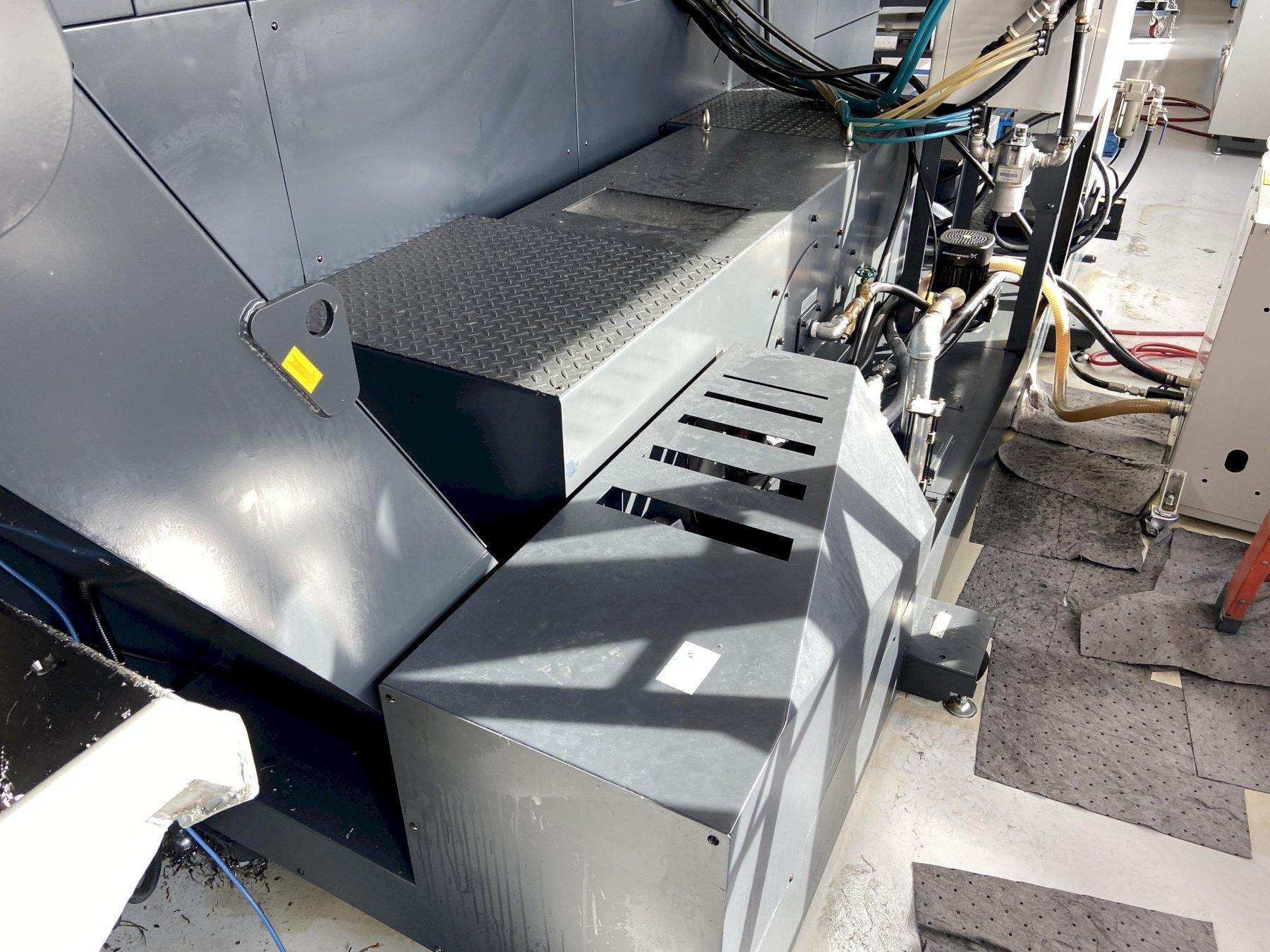

- Chip Conveyor

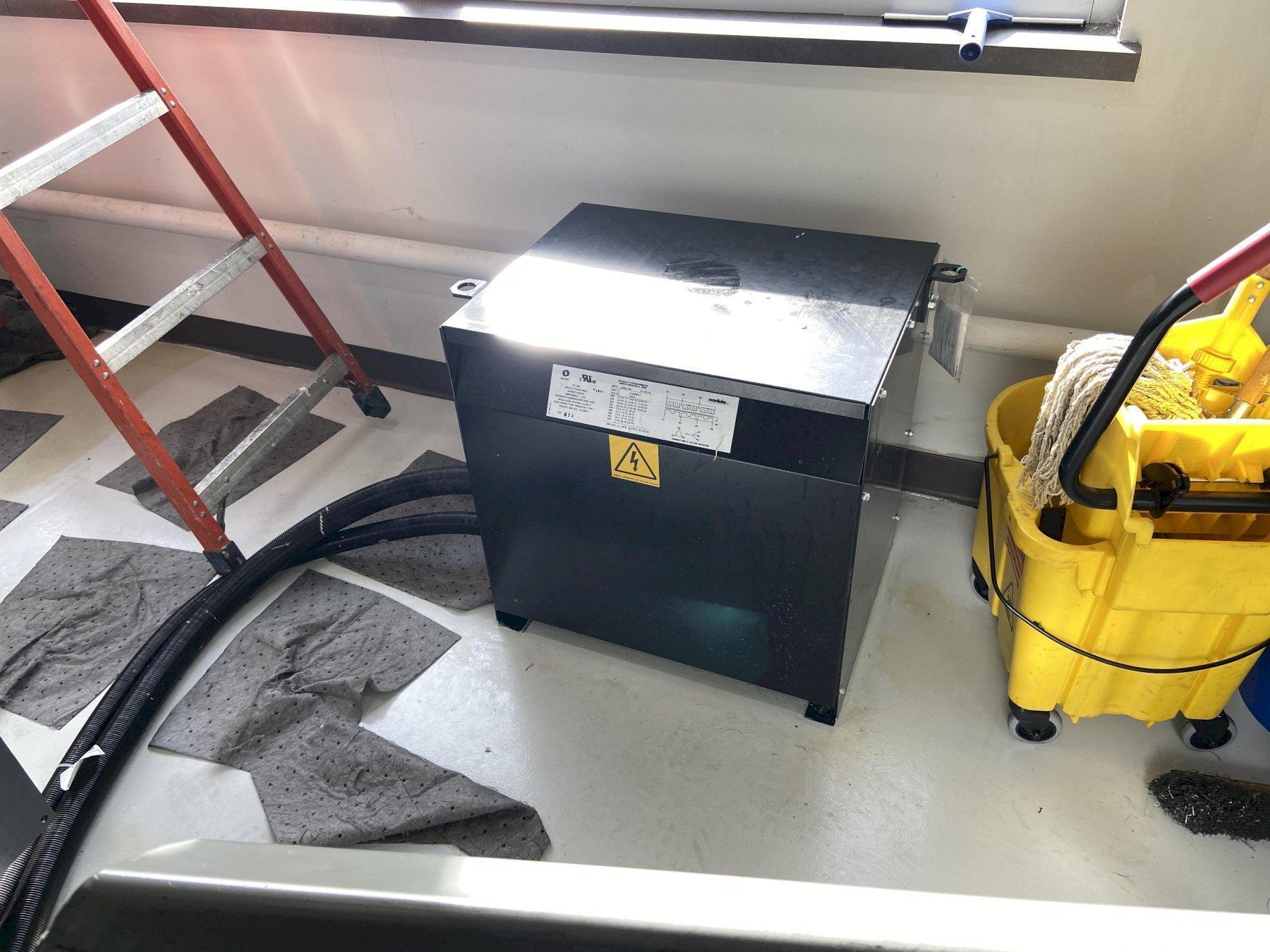

- Transformer

*** Mfg Year: 2015 ---> Installed in 2017 ***

The Makino F9 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
