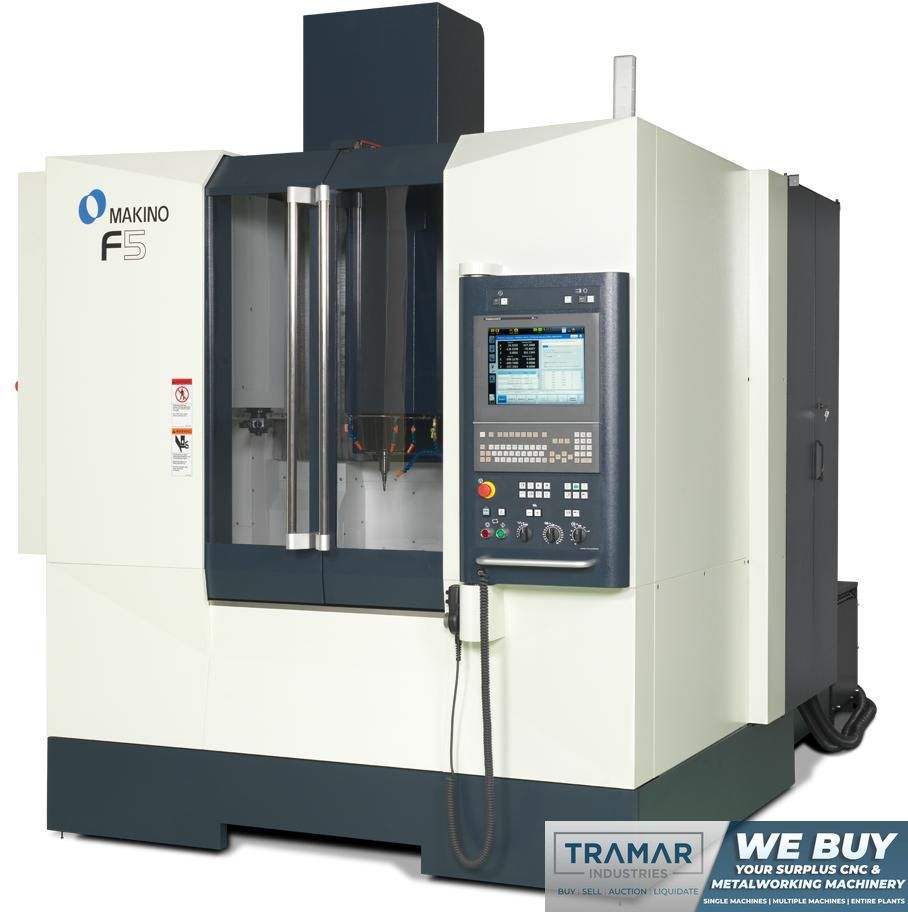

Makino F-5 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: F-5
Year: 2019
Stock #: BR15700 Sold
Yes
Highlights:

Makino F5 CNC Vertical Machining Center, Pro 5 Control, 35
Machine Specifications
Control Type

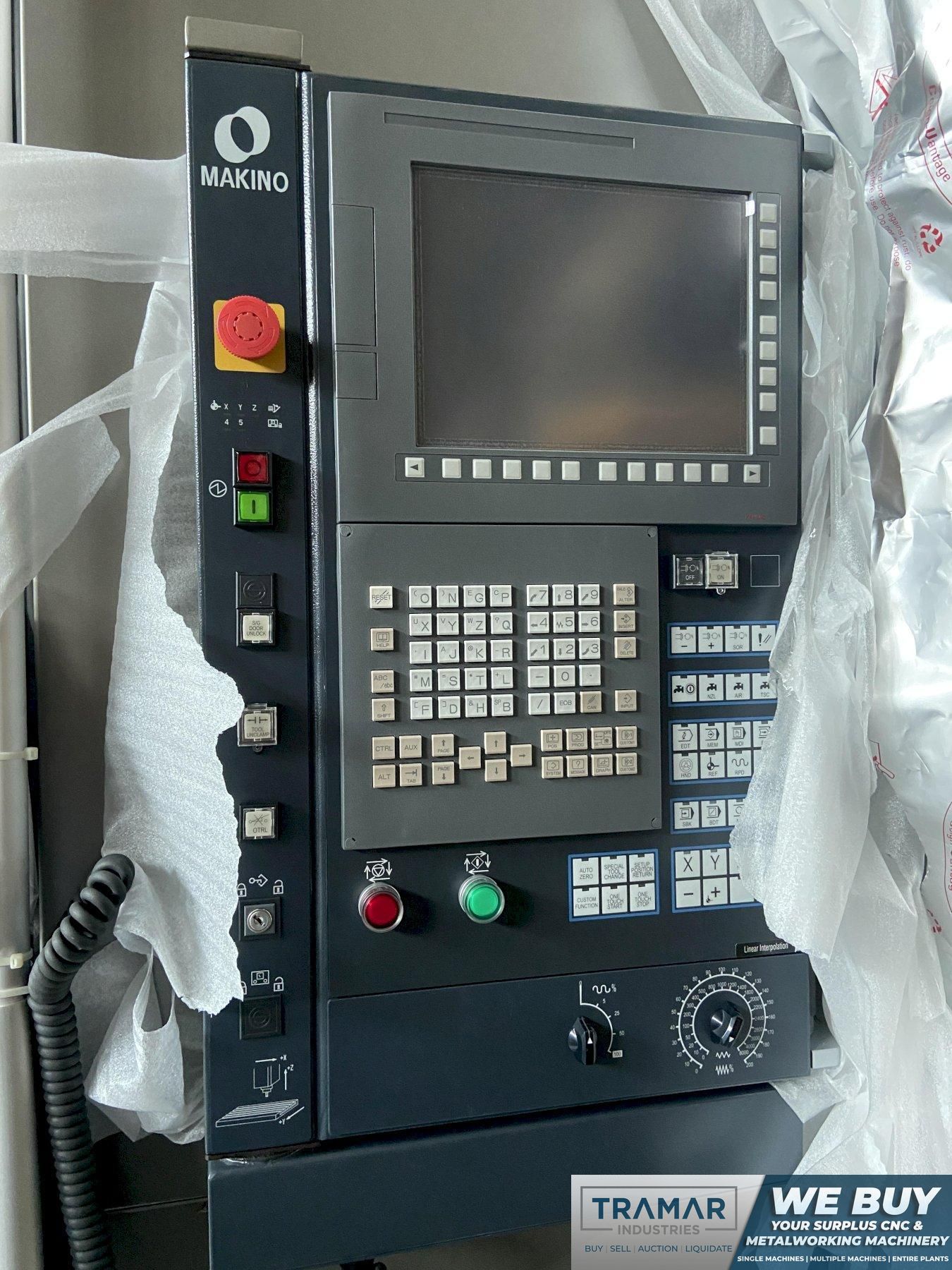

Makino Professional 5 Control
# Axis
3
Table Size
19.7" x 39.4"
Table Capacity
1,432 pounds
X-Axis Travel
35.4"
Y-Axis Travel
19.7"
Z-Axis Travel
17.7"
Spindle Speed
20,000 RPM
Spindle Taper
HSK 63a
Tool Changer Capacity
30
X-Axis Rapid Traverse Rate
787 ipm
Y-Axis Rapid Traverse Rate
787 ipm
Z-Axis Rapid Traverse Rate
787 ipm

Equipped With:

Blum Micro Compact NT Precise Laser Tool Setter + TC Probe System
Scales on X,Y, and Z
Data Center
Air Dryer
Workpiece Wash gun
Mql External Nozzle
1280 Meters Part Program Storage
1000 Registered Programs
600 Macro Common Variables
High Speed Skip
Rigid Tapping
New, Still in Crate

The Makino F-5 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
