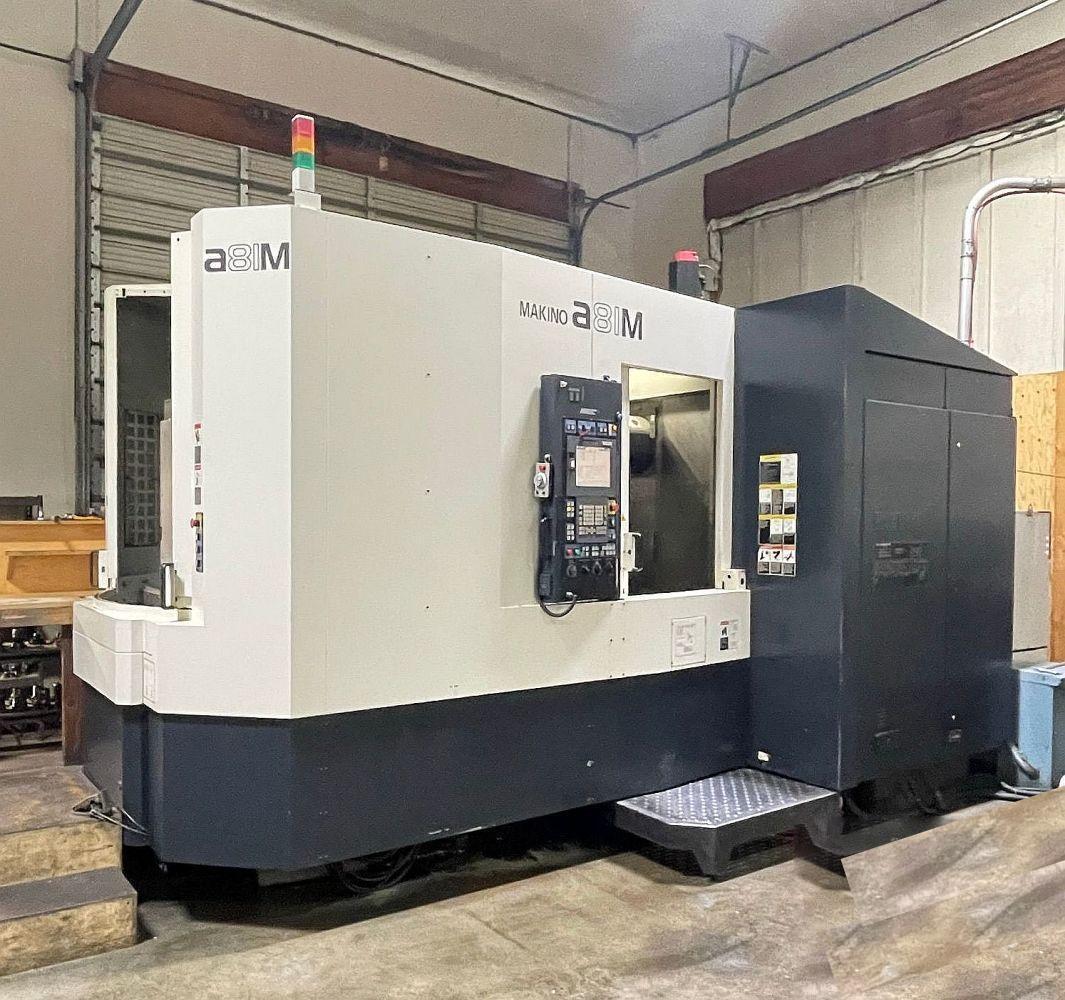

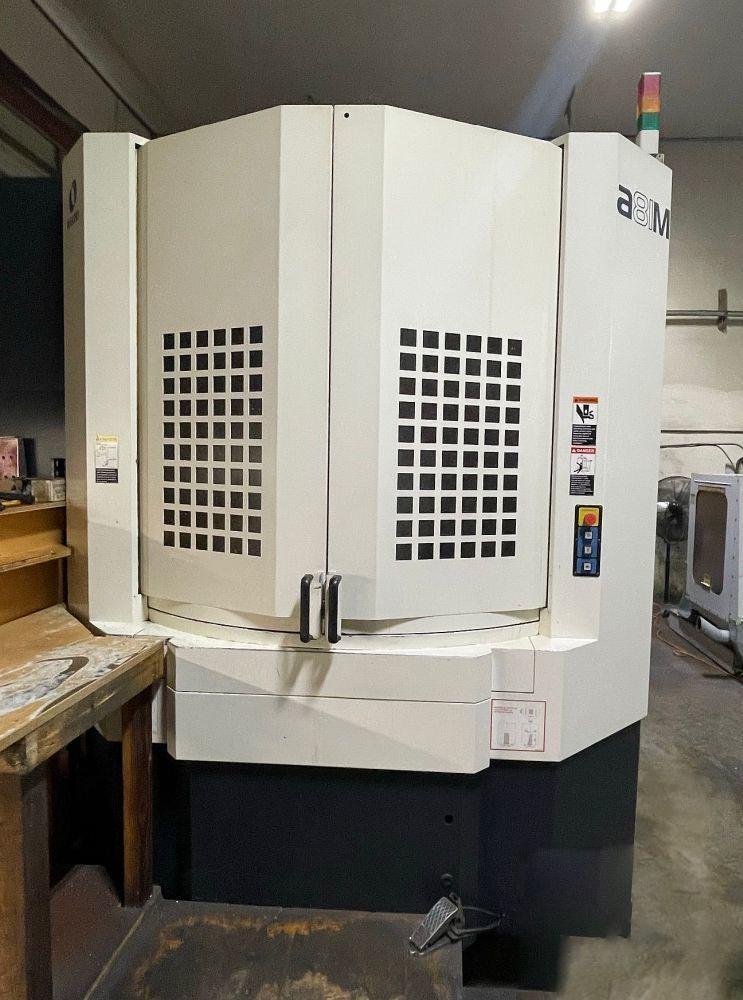

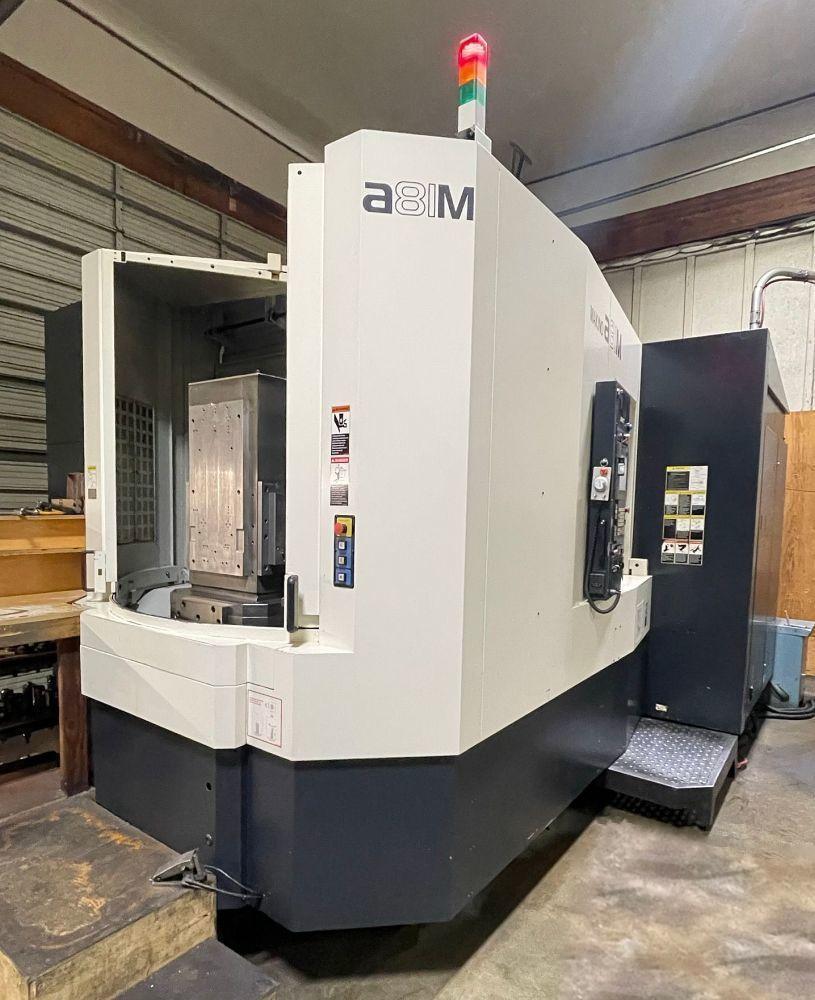

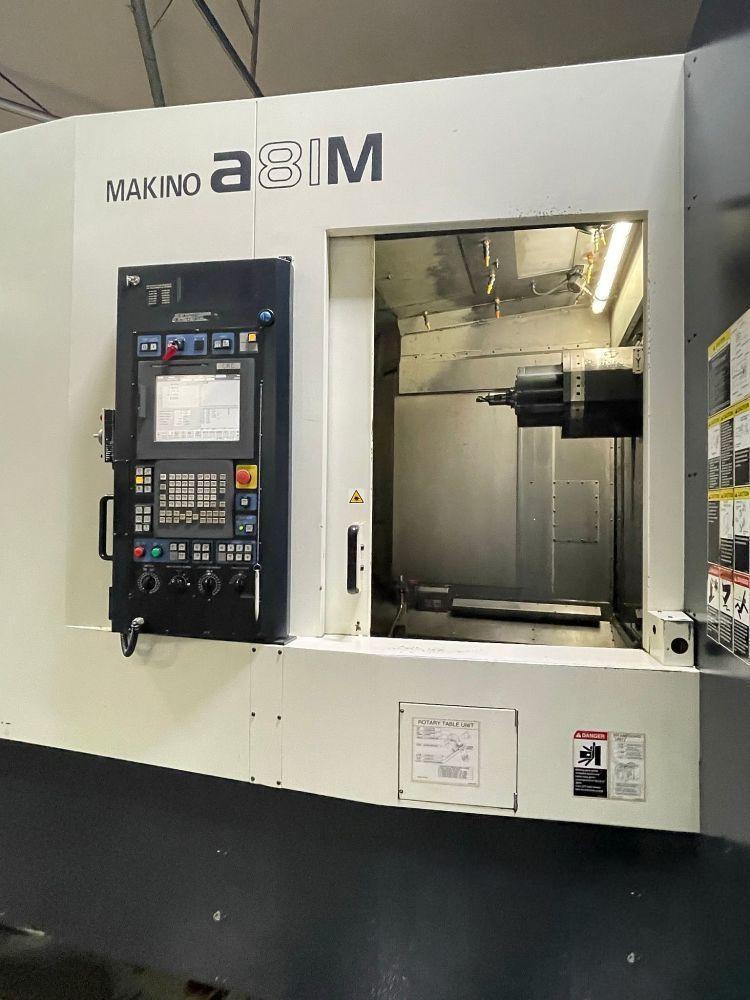

Makino A81M - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: A81M
Year: 2007
Stock #: BR41115 Sold
Yes
Highlights:
Professional 5 CNC Control
a81M High Torque Package
1,000 psi High Pressure Coolant Thru Spindle
Renishaw MP700 Automatic Measuring System
Renishaw NC4 Laser Tool Presetter

Makino a81M Used CNC Horizontal Machining Center For Sale - 2007
Machine Specifications

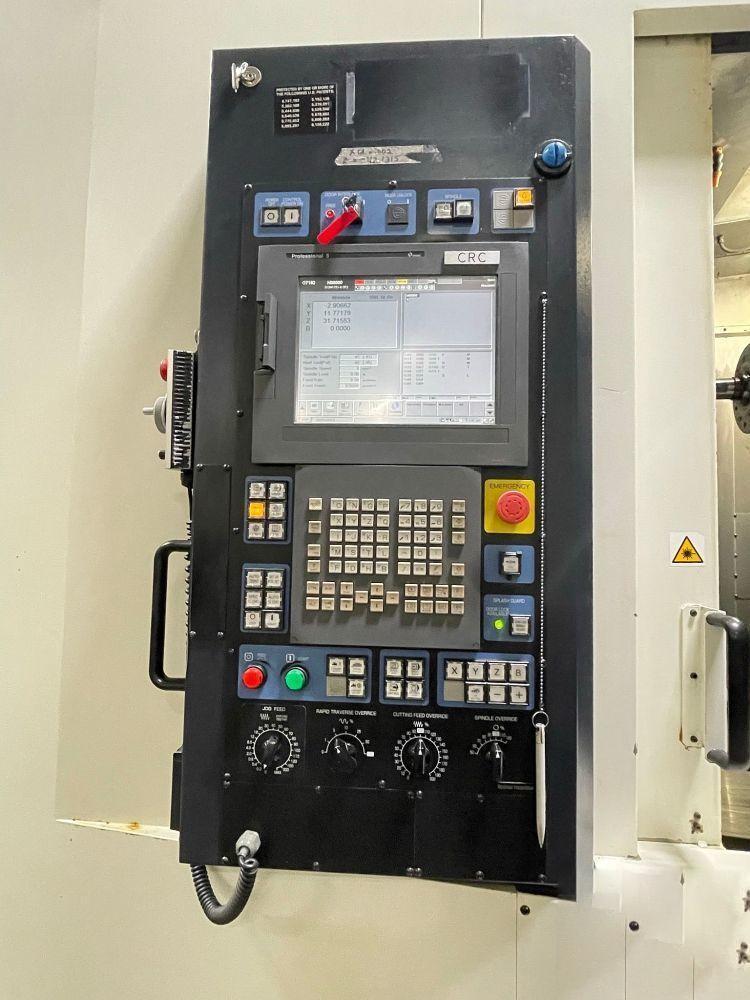

CNC Control
yes
Control Type
Professional 5
# Axis
4
Pallet Length
24.8"
Pallet Width
24.8"
Pallet Load Capacity
2,640 pounds
Pallet Indexing (B-Axis)
0.0001°
X-Axis Travel
35.4"
Y-Axis Travel
31.5"
Z-Axis Travel
40.2"
Rapid Traverse Rate (X/Y/Z)
1,916 ipm
Spindle Taper
CAT 50
Spindle Speed
8,000 rpm
Spindle Motor (HP)
50 hp

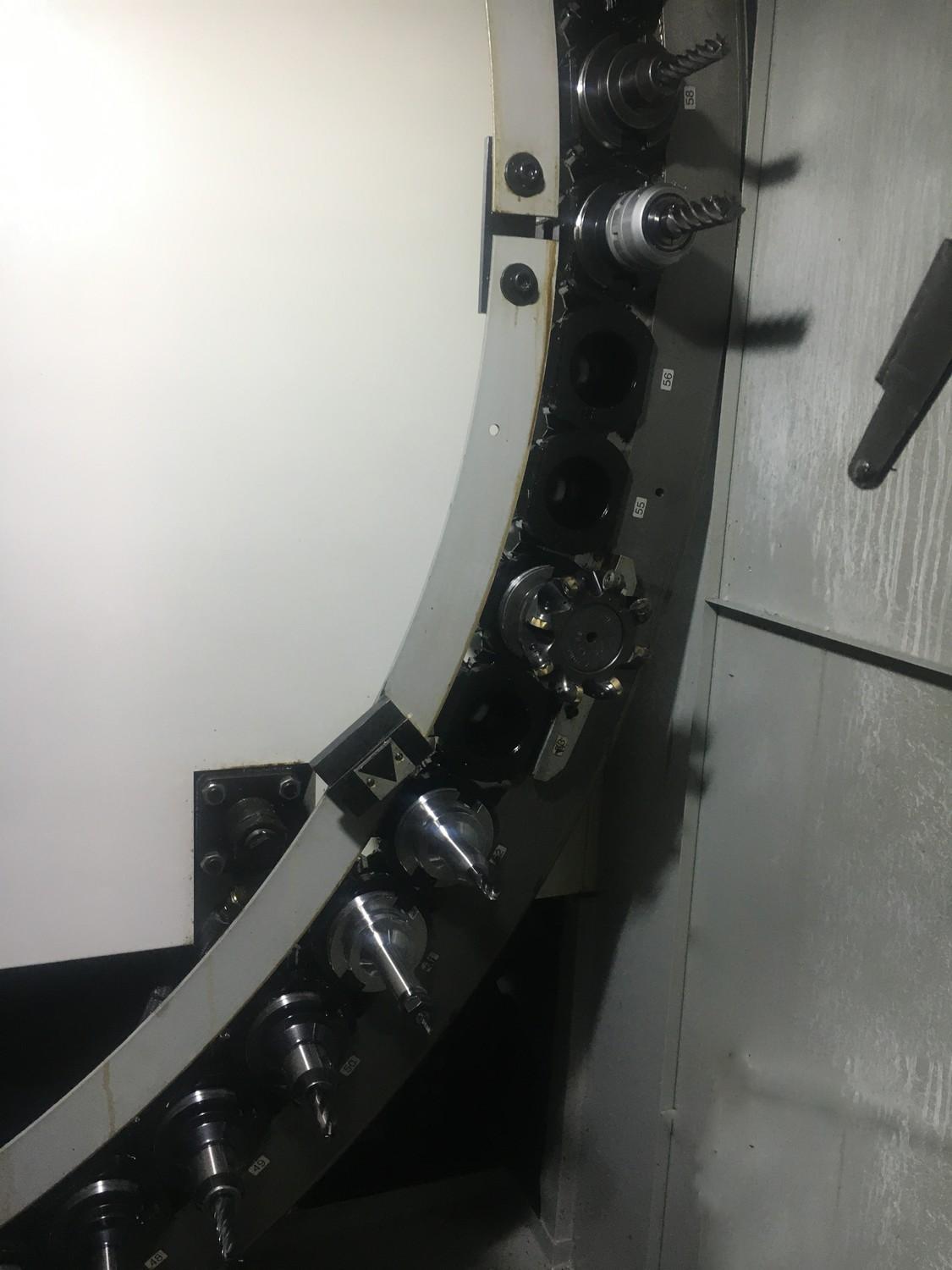

Tool Changer Capacity
60
Coolant Through Spindle
yes

Equipped With:

- Professional 5 CNC Control
- a81M High Torque Package
- 1,000psi High Pressure Coolant Thru Spindle
- Overhead Shower Coolant System
- Center Trough Chip Conveyor
- Renishaw MP700 Automatic Measuring System
- Renishaw NC4 Laser Tool Presetter
- Increased Part Storage (8064kb)

The Makino A81M is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
