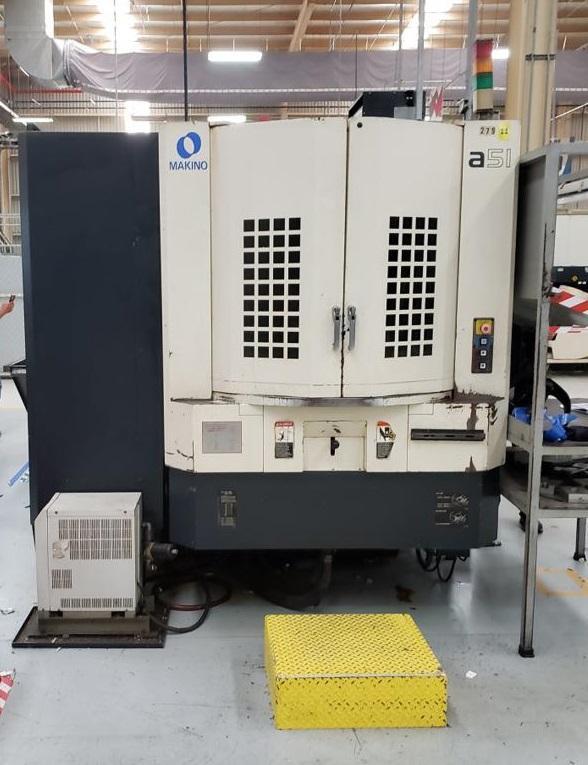

Makino A51 - Horizontal Machining Centers

Share Machine

Specifications Print Specs

Model: A51

Year: 2006

Stock #: 13469 Sold

Type: Horizontal Machining Centers

Manufacturer: Used Makino Machines

Highlights:
Professional 5 Control (Fanuc 31i)
High Pressure Coolant Thru Spindle (Chip Blaster)
Pallet Size: 15.7" x 15.7" | Full B Axis 0.001°
Travel (X/Y/Z): 22" / 22" / 23.6"
CAT 40 | 14,000 rpm | 25 hp | 60 Station ATC

Makino a51 CNC Horizontal Machining Center

Equipped With:

- Professional 5 Control (Fanuc 31i)
- High Pressure Coolant Thru Spindle (Chip Blaster)
- Chip Conveyor
- Coolant Tank & Pumps

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Professional 5

# Axis

Pallet Length

15.7"

Pallet Width

15.7"

Pallet Capacity

880 pounds

Pallet Indexing (B-Axis)

0.001°

X-Axis Travel

22"

Y-Axis Travel

22"

Z-Axis Travel

23.6"

Rapid Traverse Rate (X/Y/Z)

1,772 ipm

Spindle Taper

CAT 40

Spindle Speed

14,000 rpm

Spindle Motor (HP)

25 hp

Tool Changer Capacity

Coolant Through Spindle

yes

Machine Dimensions

152" x 102" x

Machine Weight

17,200 pounds

Equipped With:

- Professional 5 Control (Fanuc 31i)
- High Pressure Coolant Thru Spindle (Chip Blaster)
- Chip Conveyor
- Coolant Tank & Pumps

The Makino A51 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
