Kingston LD-45X120 - Lathes, Flat Bed, CNC

Request Quote
Share Machine
Specifications Print Specs
Model: LD-45X120
Year: 2006
Stock #: 15235
Highlights:

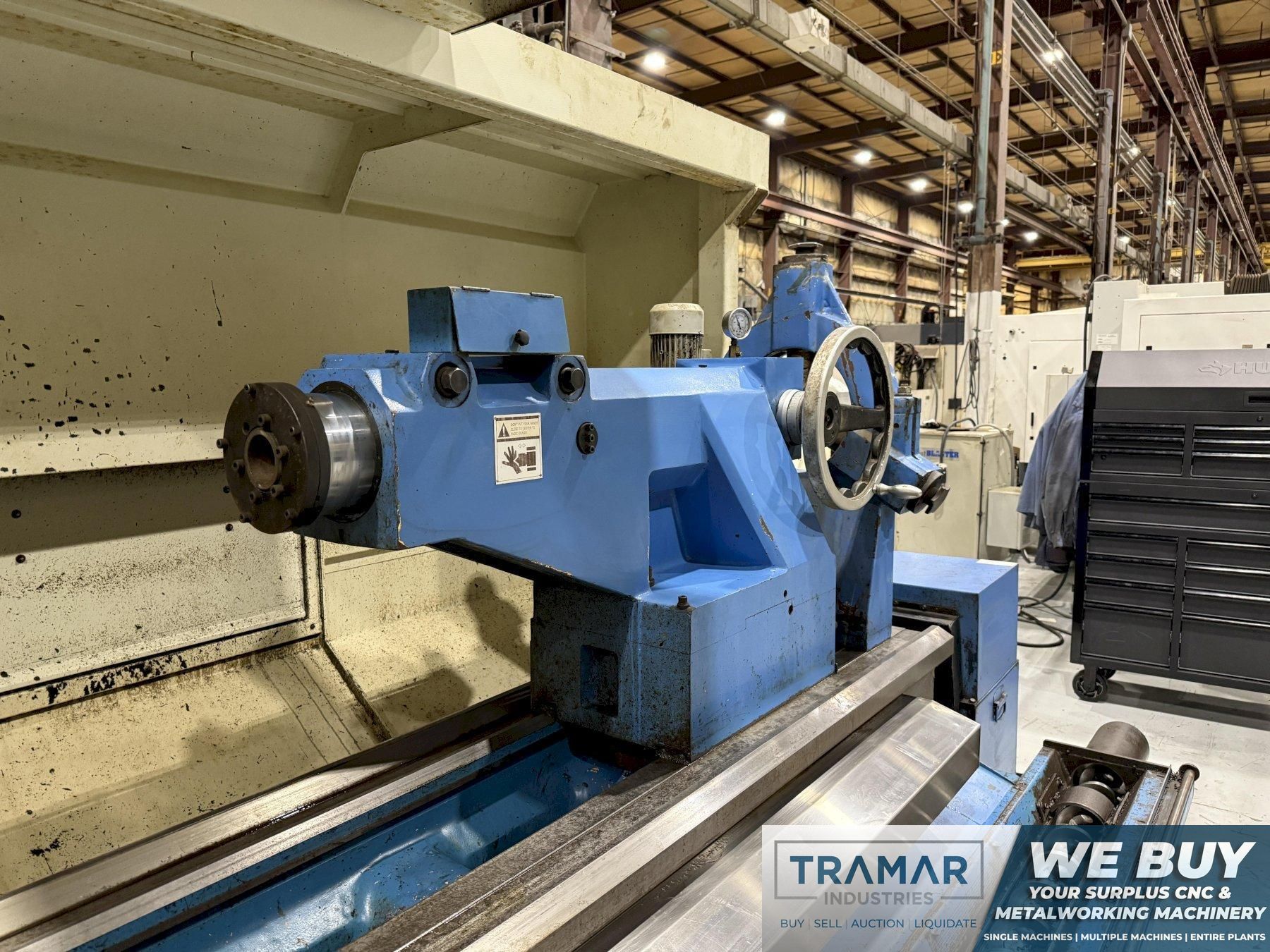

- Tailstock
- Front and Rear Chucks

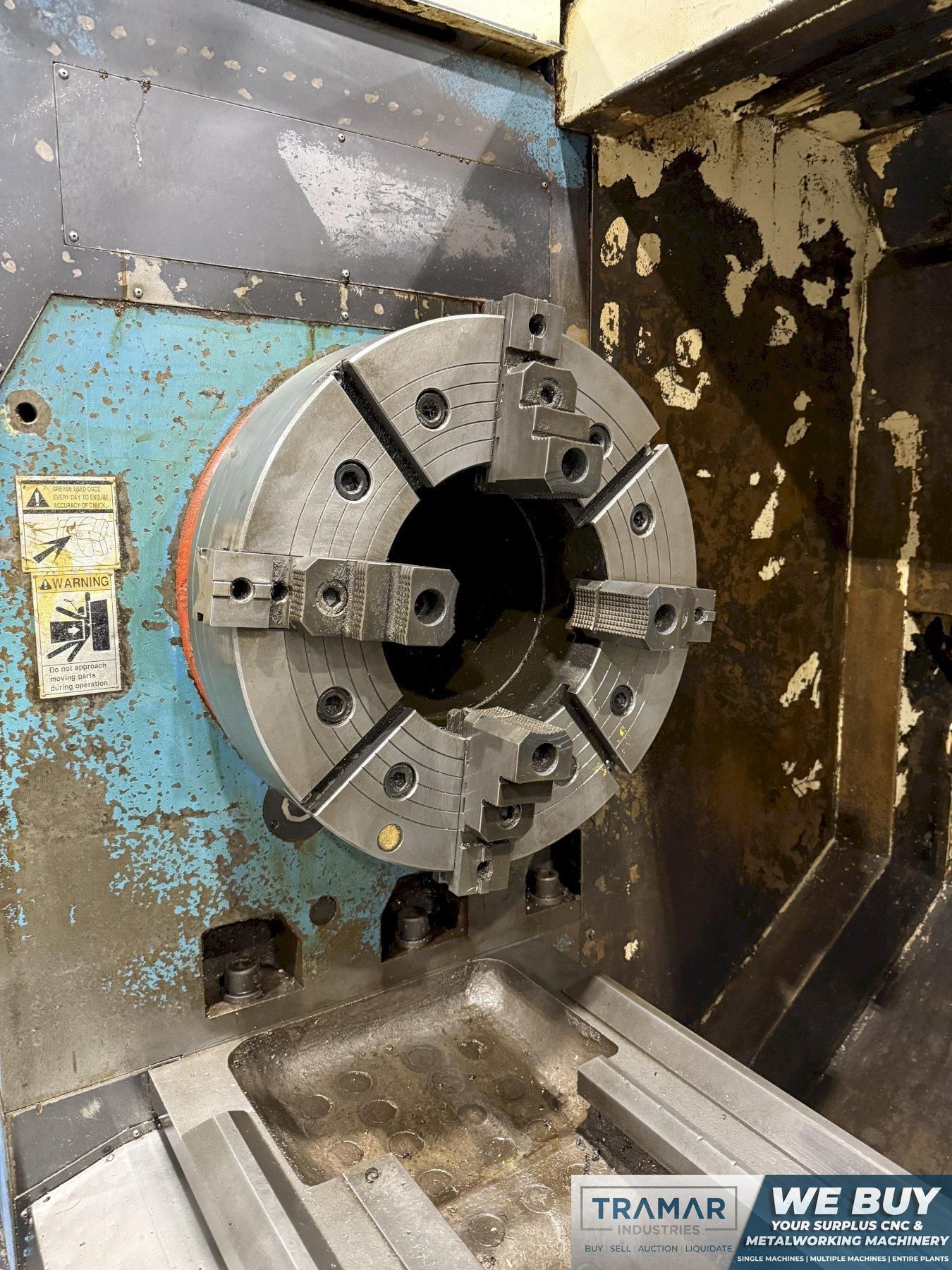

- 25" 4 jaw Chuck
- 32" 4 jaw Chuck
- Chip Conveyor

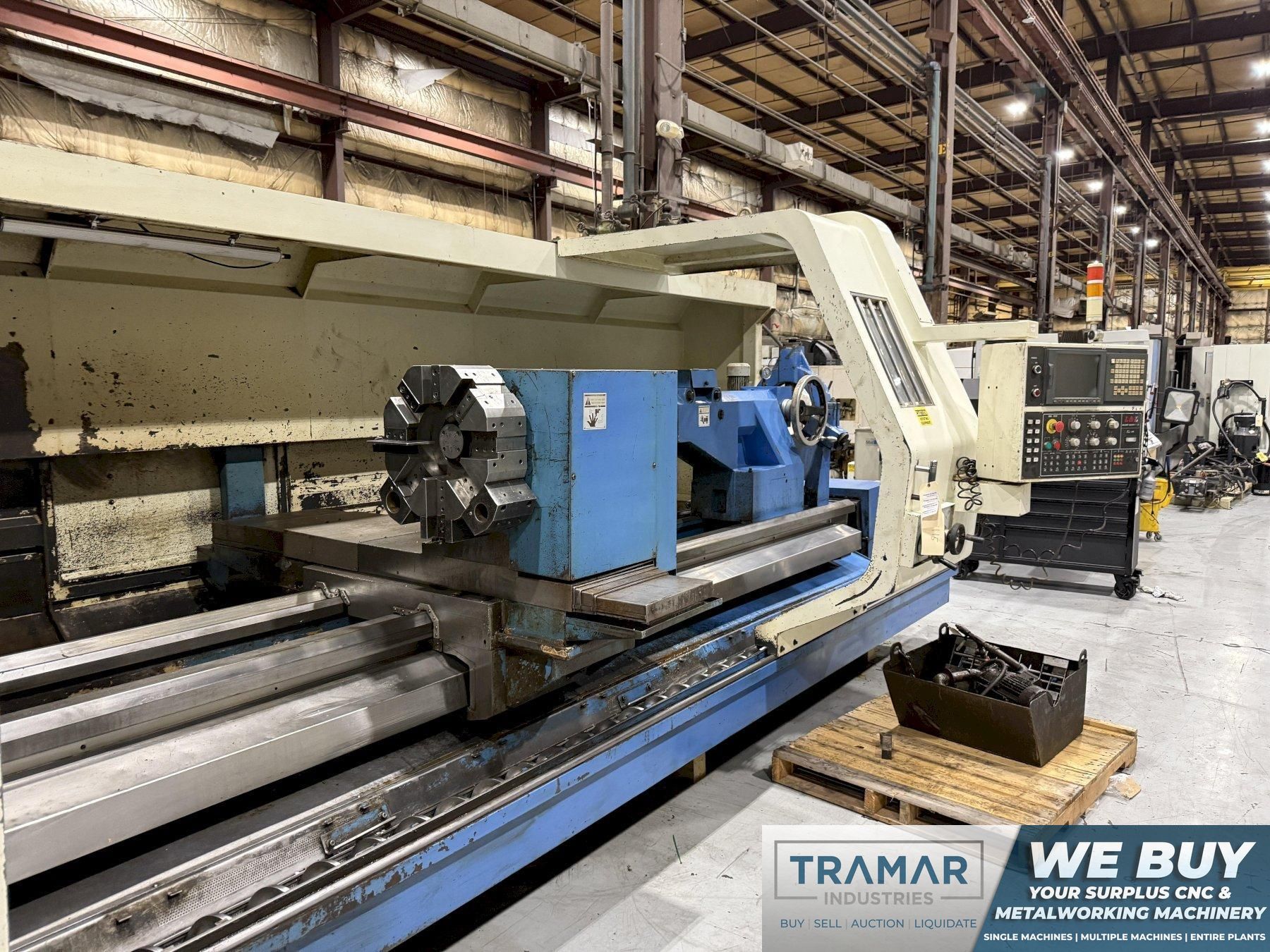

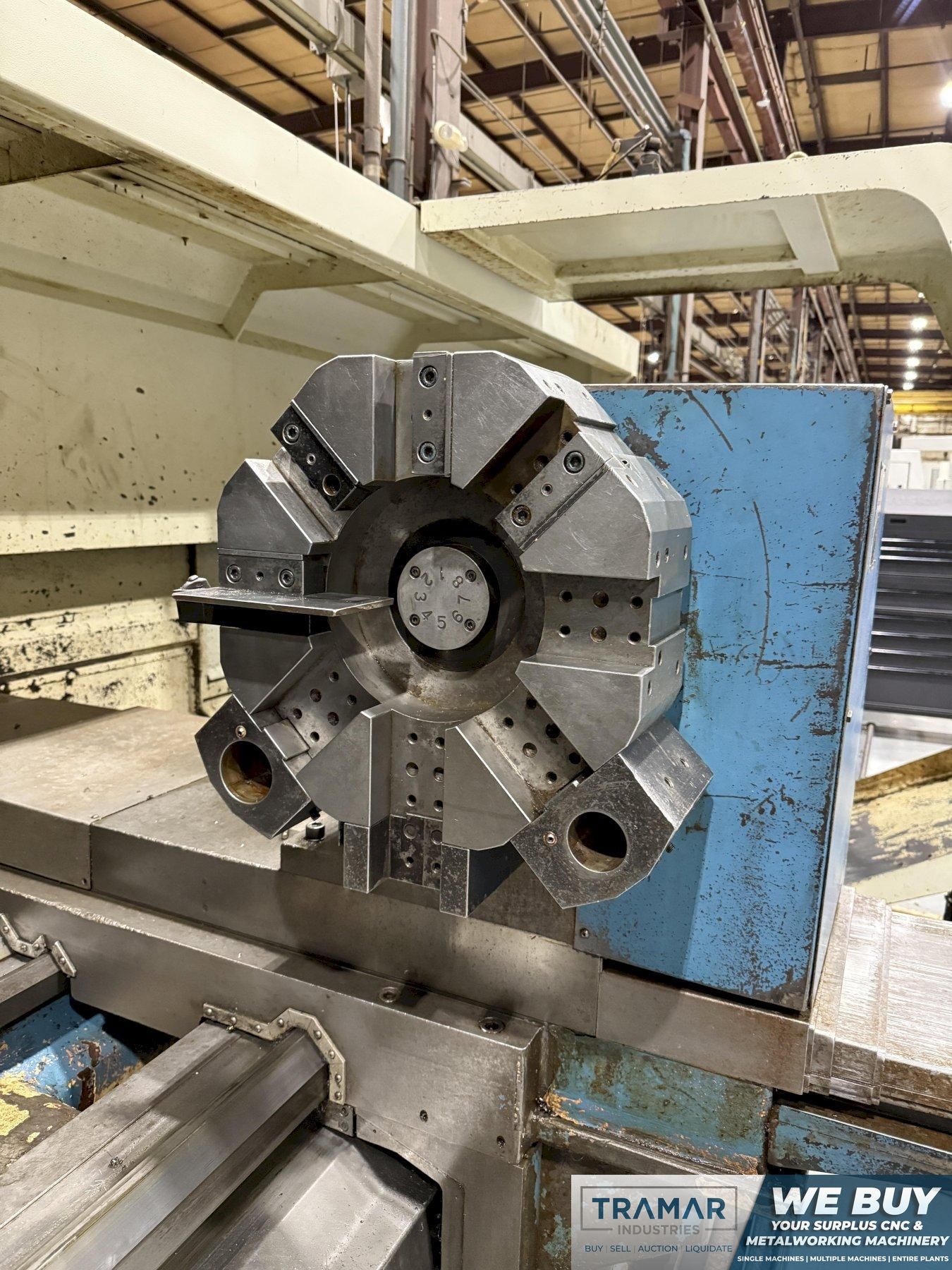

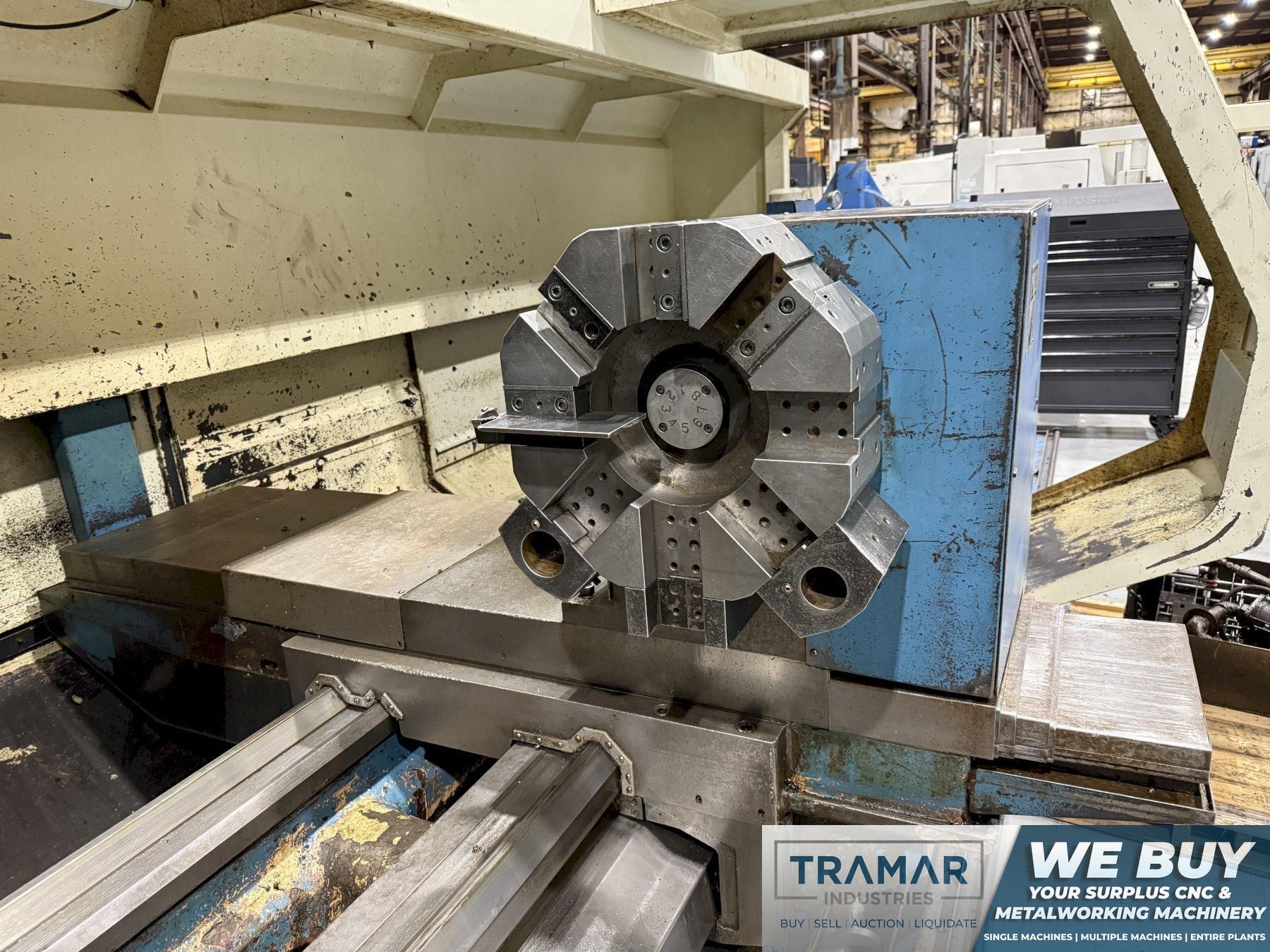

- Misc Turret System
- Coolant System
- Full Length Rear Chip Guard
- 2 Pc Front Movable Chip Guard doors
- Manuals

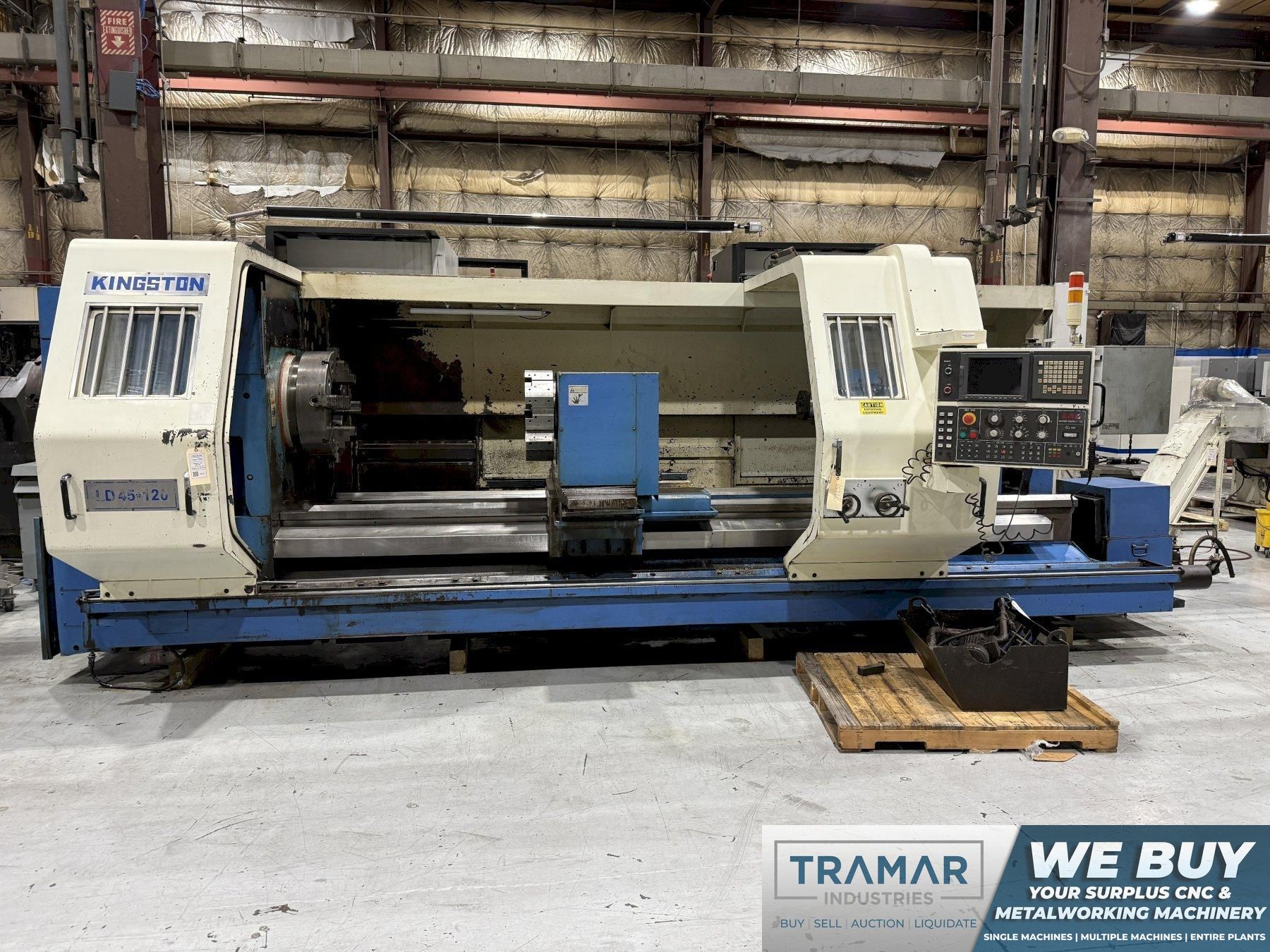

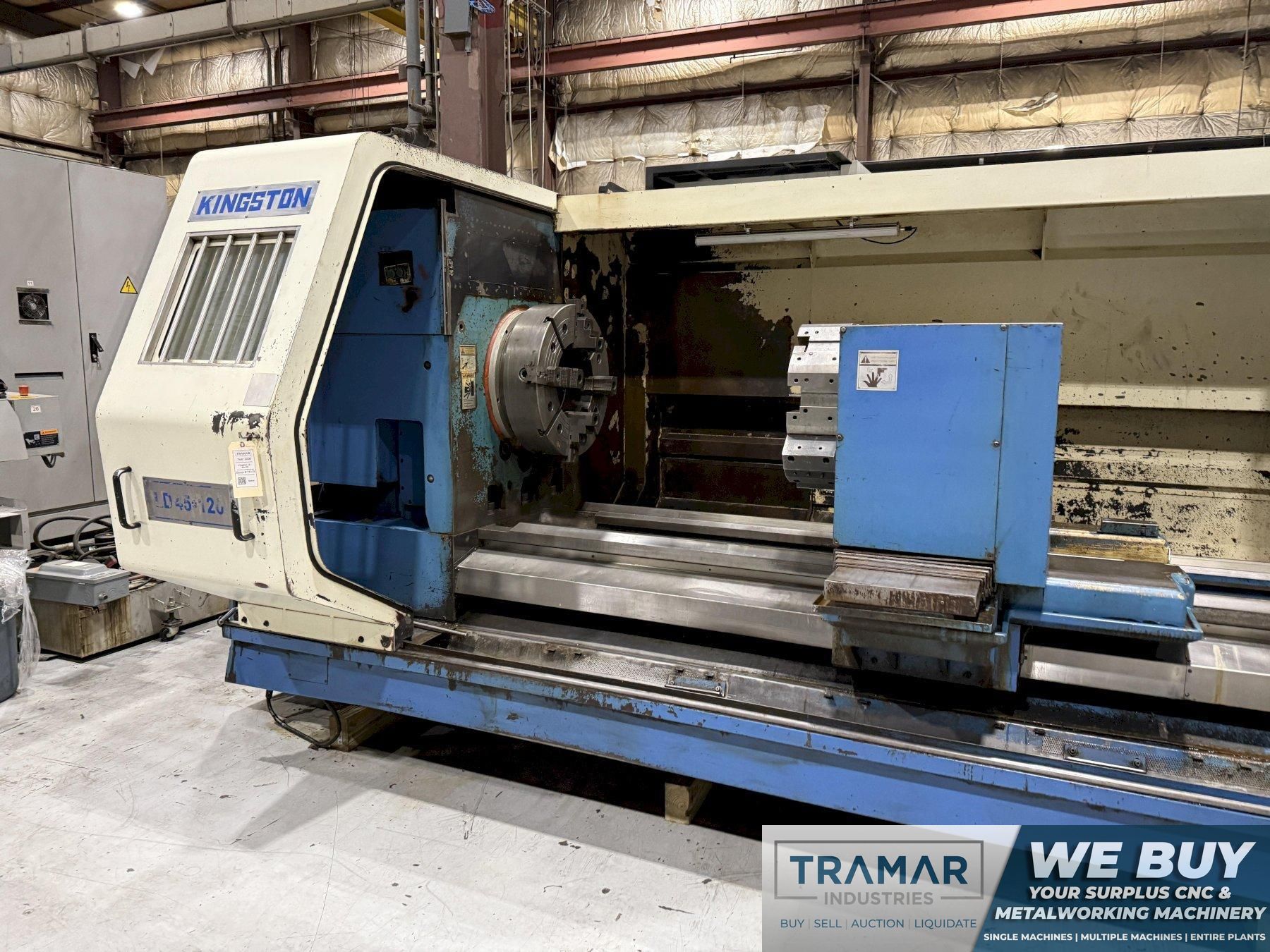

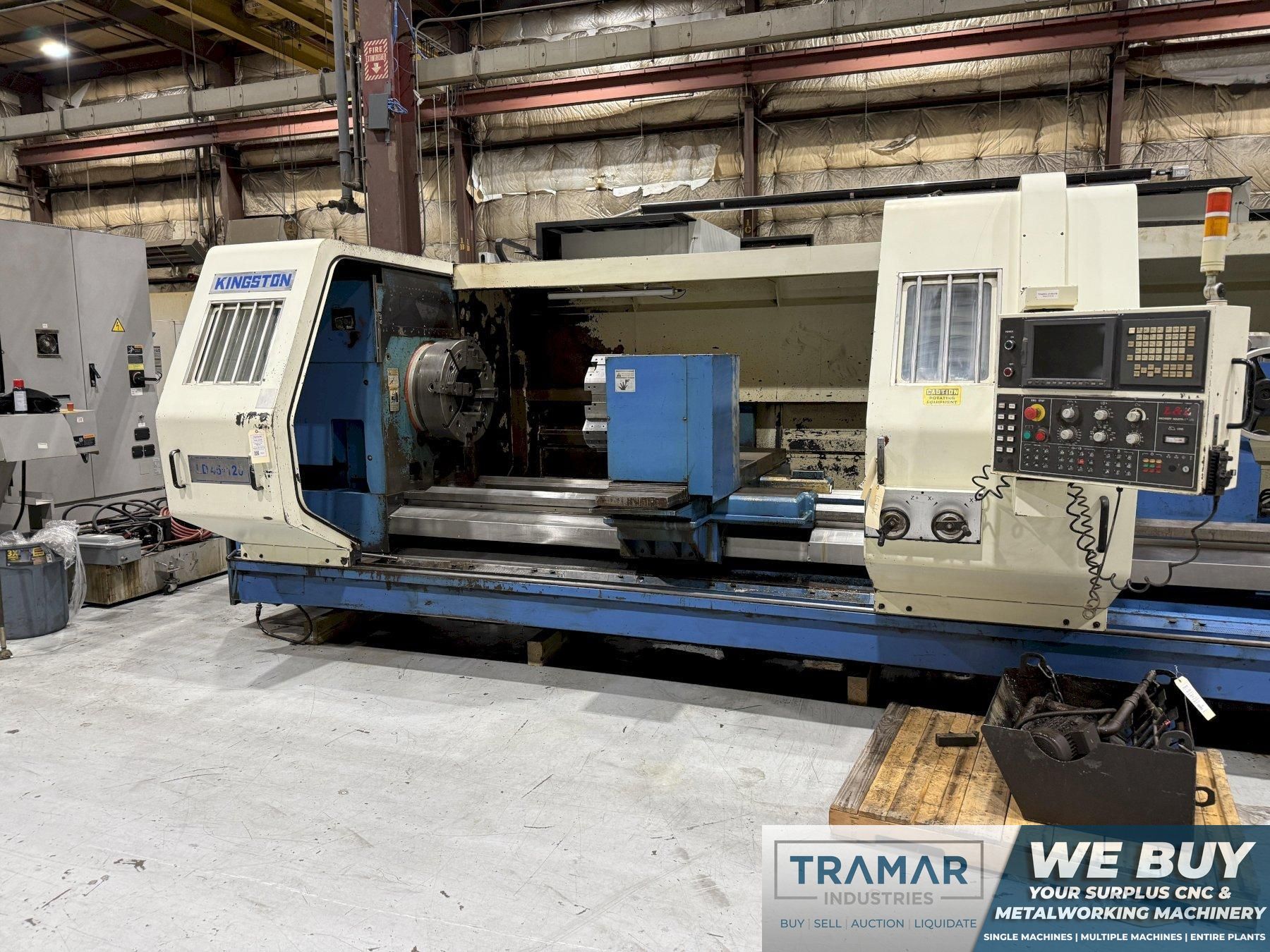

2006 Kingston LD-45x120 CNC Flat Bed Lathe For Sale
Machine Specifications
CNC Control
yes

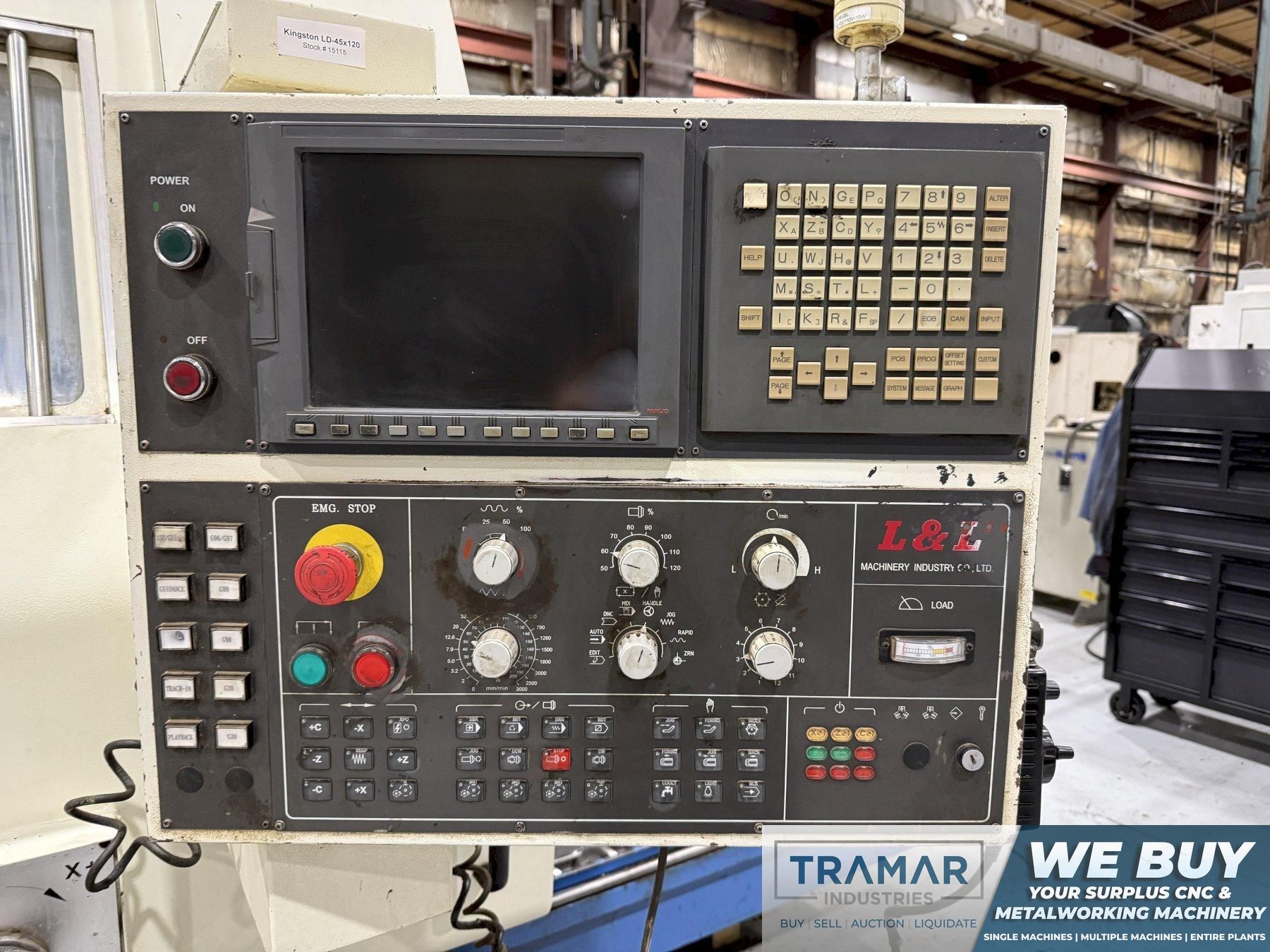

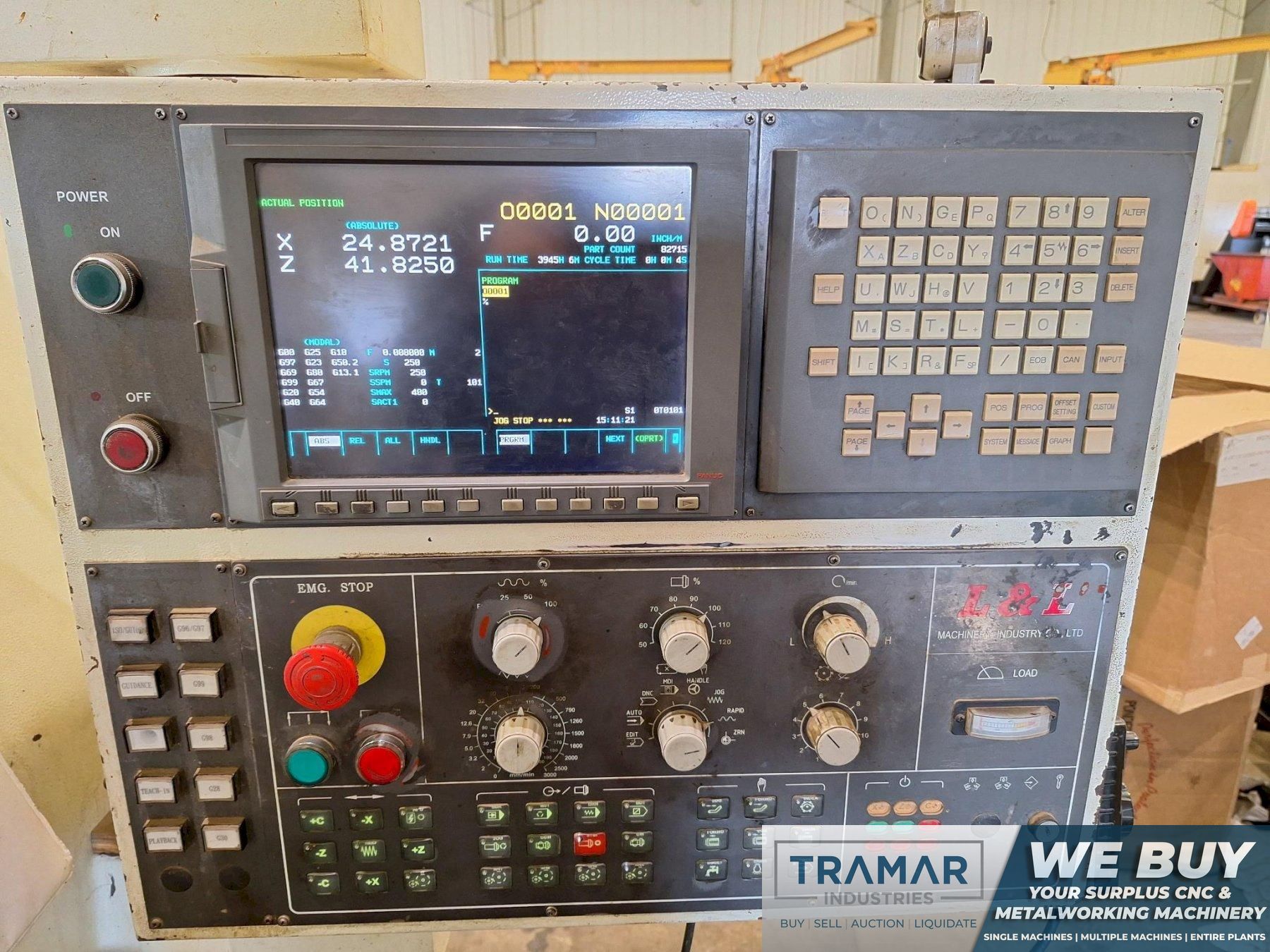

CNC Control
Fanuc 0i
Swing Over Bed
45"
Swing Over Cross Slide
29.5"
Center Distance
120"
Spindle Bore
6.7"
Spindle Nose
A2-11
Spindle Speed
600 rpm
Main Motor
30/35 hp
Turret Capacity
8
Machine Dimensions
311" x 134" x 87"
Machine Weight
32,740 pounds

Equipped With:

- Tailstock
- Front and Rear Chucks
- 25" 4 jaw Chuck
- 32" 4 jaw Chuck
- Chip Conveyor
- Misc Turret System
- Coolant System
- Full Length Rear Chip Guard
- 2 Pc Front Movable Chip Guard doors
- Manuals

The Kingston LD-45X120 is an exclusive part of our Lathes, Flat Bed, CNC inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
