Hyundai SKT460 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: SKT460
Year: 2007
Stock #: BR15913 Sold
Yes
Highlights:

Hyundai SKT460 CNC Turning Center with 18
Machine Videos
Machine Specifications
# Axis
2
Control Type
Fanuc 21iTB
Chuck Size
18"
Spindle Nose
A2-11
Swing
34.6"
Turning Diameter
24.8"
Z Axis Travel
62.01"
Bar Capacity
4.6"
X Axis Travel
14.17"
X-Axis Rapid Traverse Rate
591
Z-Axis Rapid Traverse Rate
787
Spindle Speed (RPM)
1,800

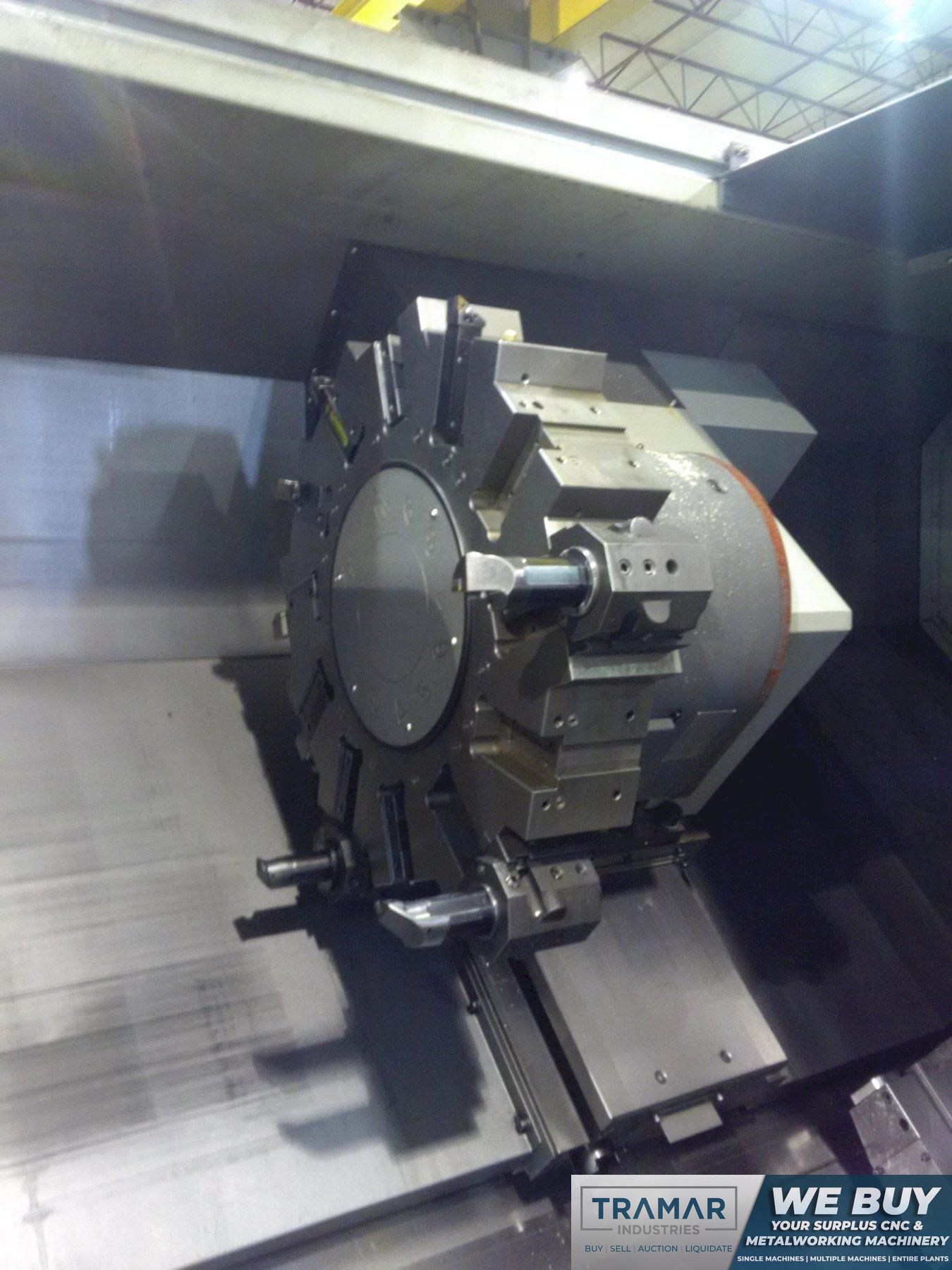

Turret Capacity
12
Max Turning Length
62"
Main Motor
49/40 Horsepower

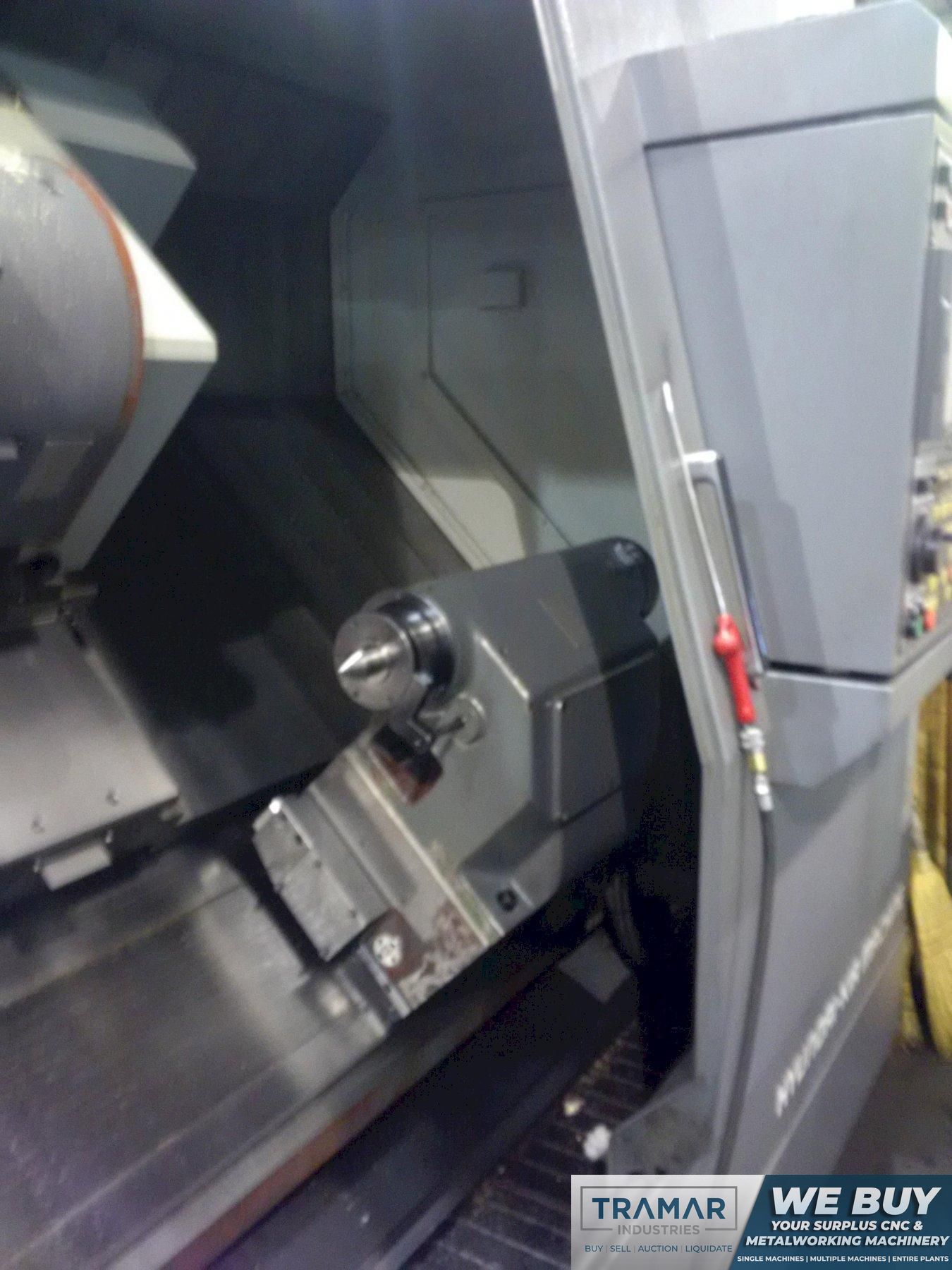

Tailstock
yes
Weight
26,455 pounds

Equipped With:

Tool Setter
Chip Conveyor

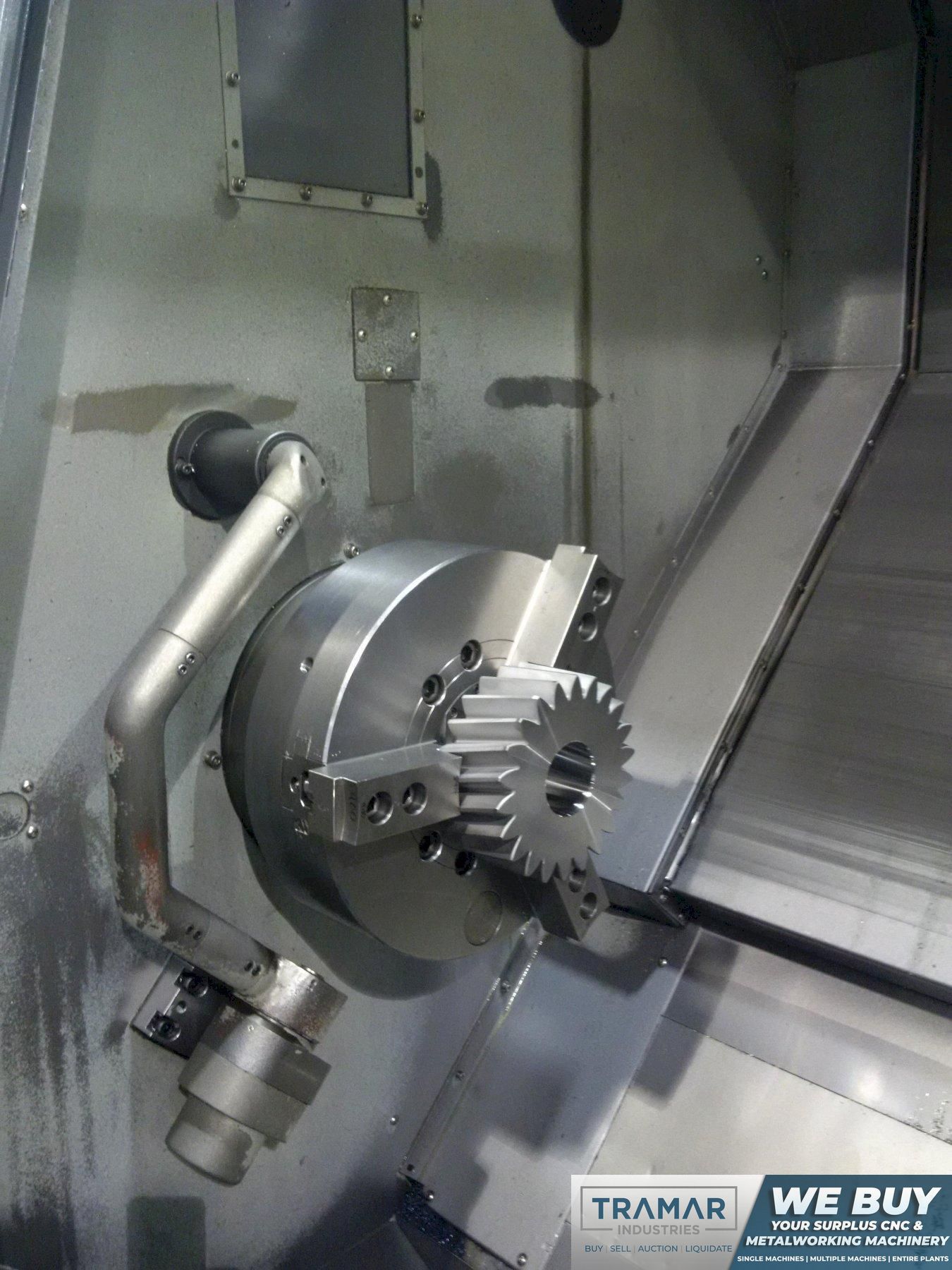

18" Hydraulic Chuck
Tailstock
Misc Tooling
Coolant Tank & Pumps

The Hyundai SKT460 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
