Haas VM2 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VM2
Year: 2011
Stock #: 3863 Sold
Highlights:

Haas VM2 CNC
Machine Videos
Machine Specifications
Control Type
Haas
# Axis
3
Table Size
18" x 36"
Table Capacity
3,000 pounds
Max Distance Spindle To Table Top
24"
X-Axis Travel
30"
Y-Axis Travel
20"
Z-Axis Travel
20"
Spindle Speed
12,000 RPM
Spindle Taper
40
Main Motor
30 Horsepower
Tool Changer Capacity
24
X-Axis Feedrate
710
Y-Axis Feedrate
710
Z-Axis Feedrate
710
Tool Change Time
2.8 Seconds (Tool to Tool)

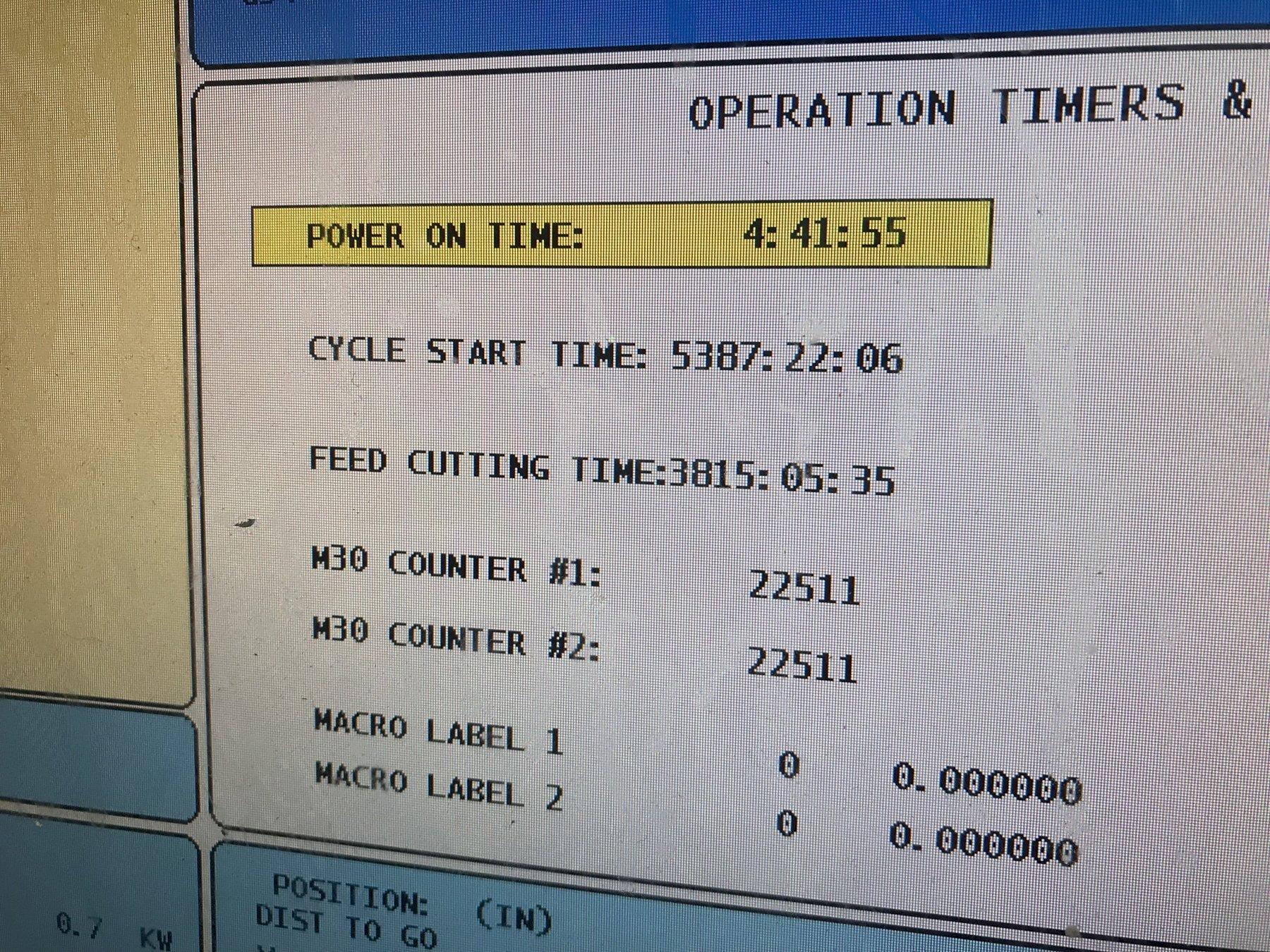

Cutting Hours
3,815
Weight
9,400 pounds
Max Torque
90 ft/lbs @ 2,000 rpm

Equipped With:

Chip augers
Rigid Tapping
Side Mounted Tool Changer
Multi Fixturing Table
High Speed Machining Software
Programmable Coolant
Coolant Tank & Pump
Ran Aluminum Only

The Haas VM2 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
