Haas VF-2B - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VF-2B
Year: 2006
Stock #: BR17001 Sold
Yes
Highlights:

Haas VF-2B CNC Vertical Machining Center, 30
Machine Specifications
Control Type
Haas
# Axis
3
Table Size
14" x 36"
Table Capacity
3,000
Coolant Thru Spindle
no
X-Axis Travel
30
Y-Axis Travel
16
Z-Axis Travel
20
Max Distance Spindle To Table Top
24
Spindle Speed
7,500
Spindle Taper
CAT-40
Main Motor
20 Horsepower

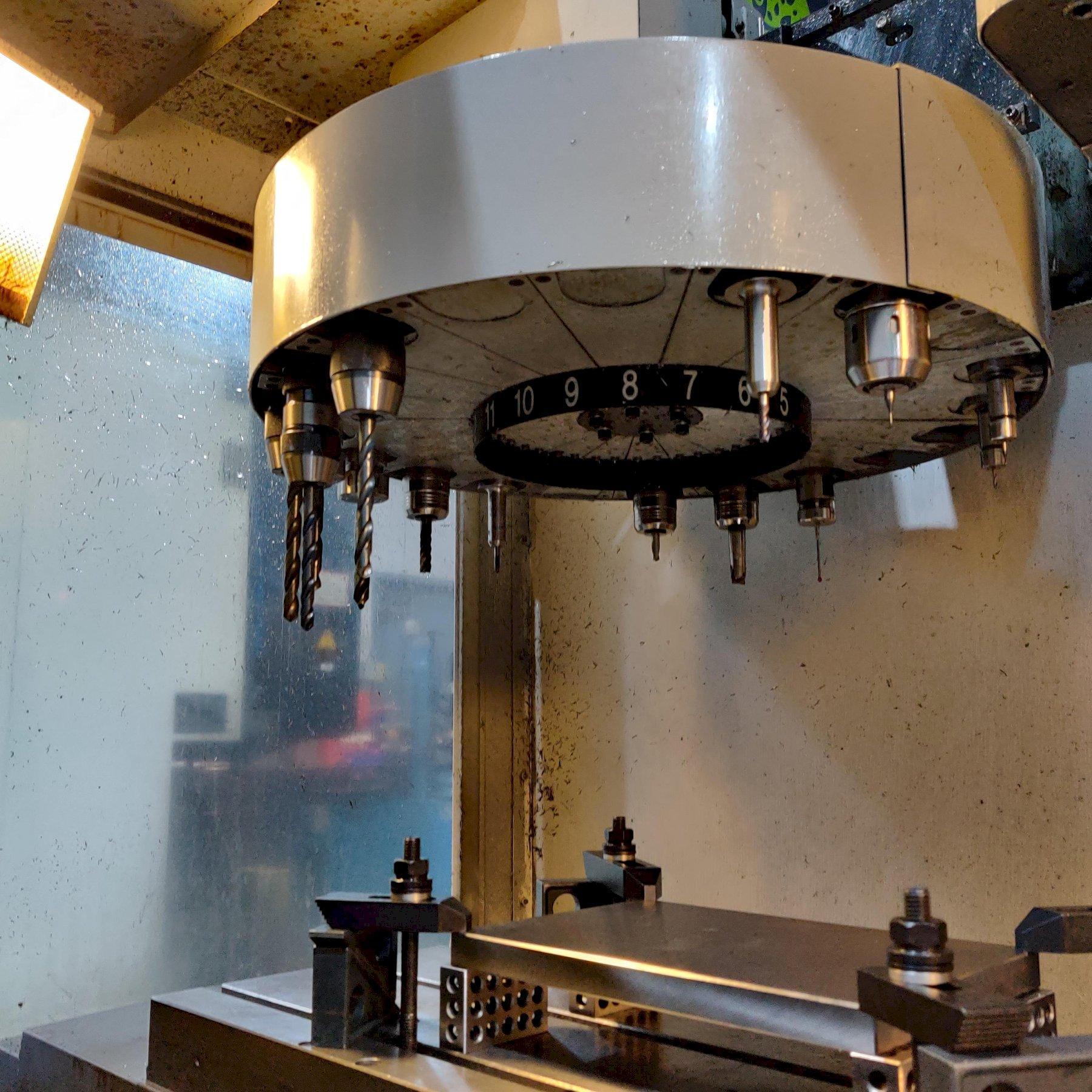

Tool Changer Capacity
20
X-Axis Feedrate
650 IPM
Y-Axis Feedrate
650 IPM
Z-Axis Feedrate
650 IPM
X-Axis Rapid Traverse Rate
1,000 IPM
Y-Axis Rapid Traverse Rate
1,000 IPM
Z-Axis Rapid Traverse Rate
1,000 IPM
Dimensions
101" x 99" x 101"
Weight
7,800

Equipped With:

Rigid Tapping
Renishaw Probe
Tool Setter

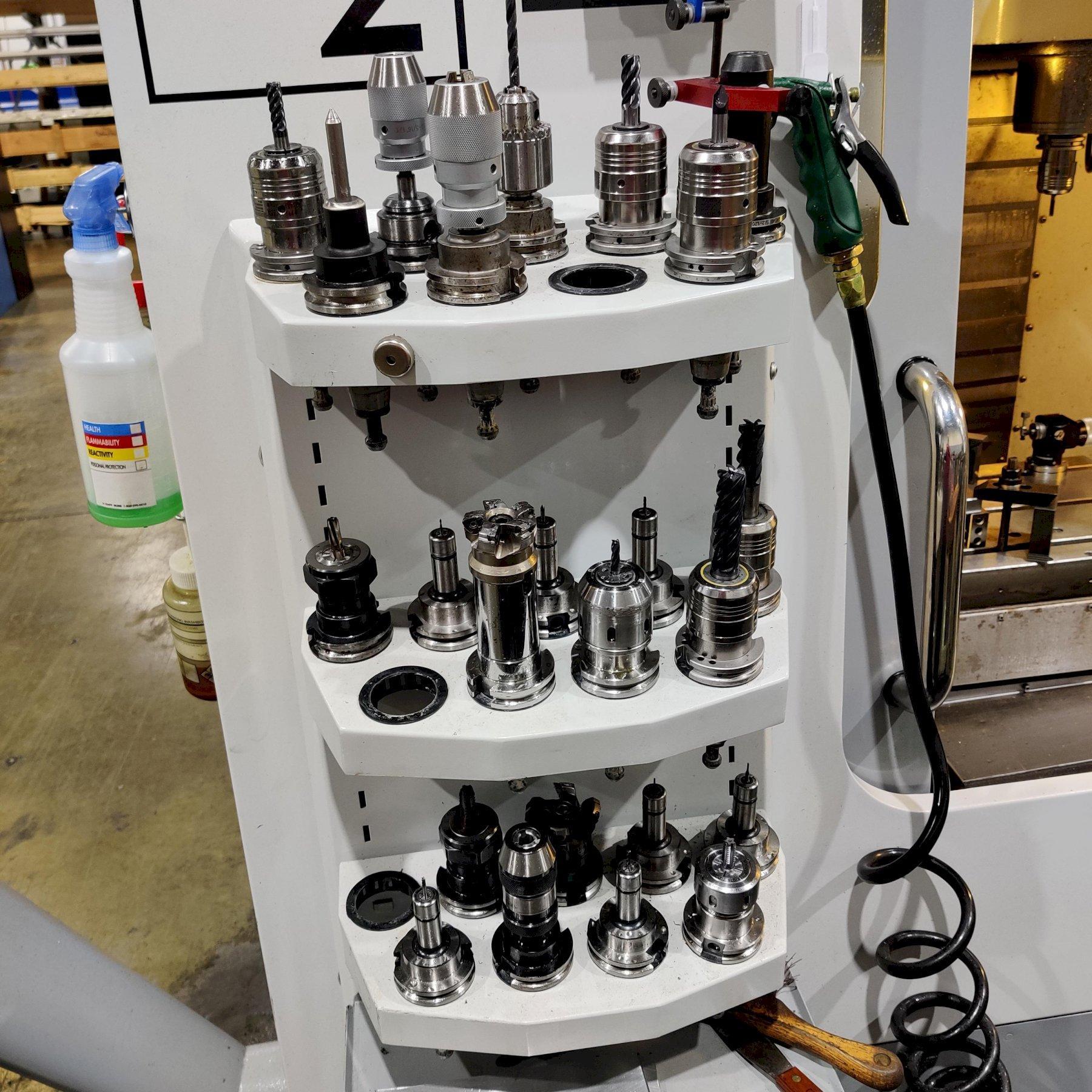

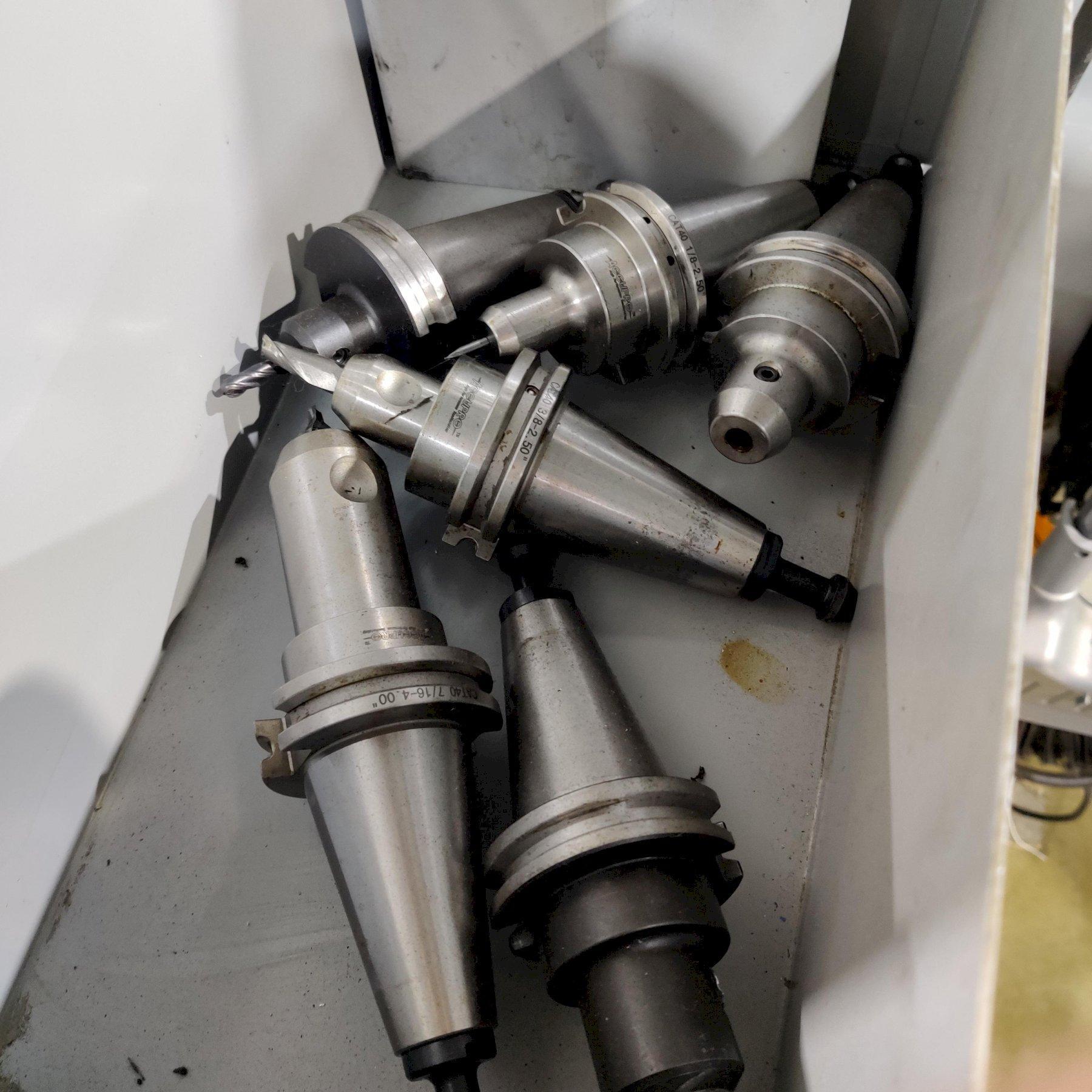

(73) CAT 40 Toolholders
11,808 Run Time Hours

The Haas VF-2B is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
