Haas ST-45L - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: ST-45L
Year: 2014
Stock #: 68598 Sold
Yes
Highlights:
Long Bed Option
Hydraulic Steady Rest
Tailstock

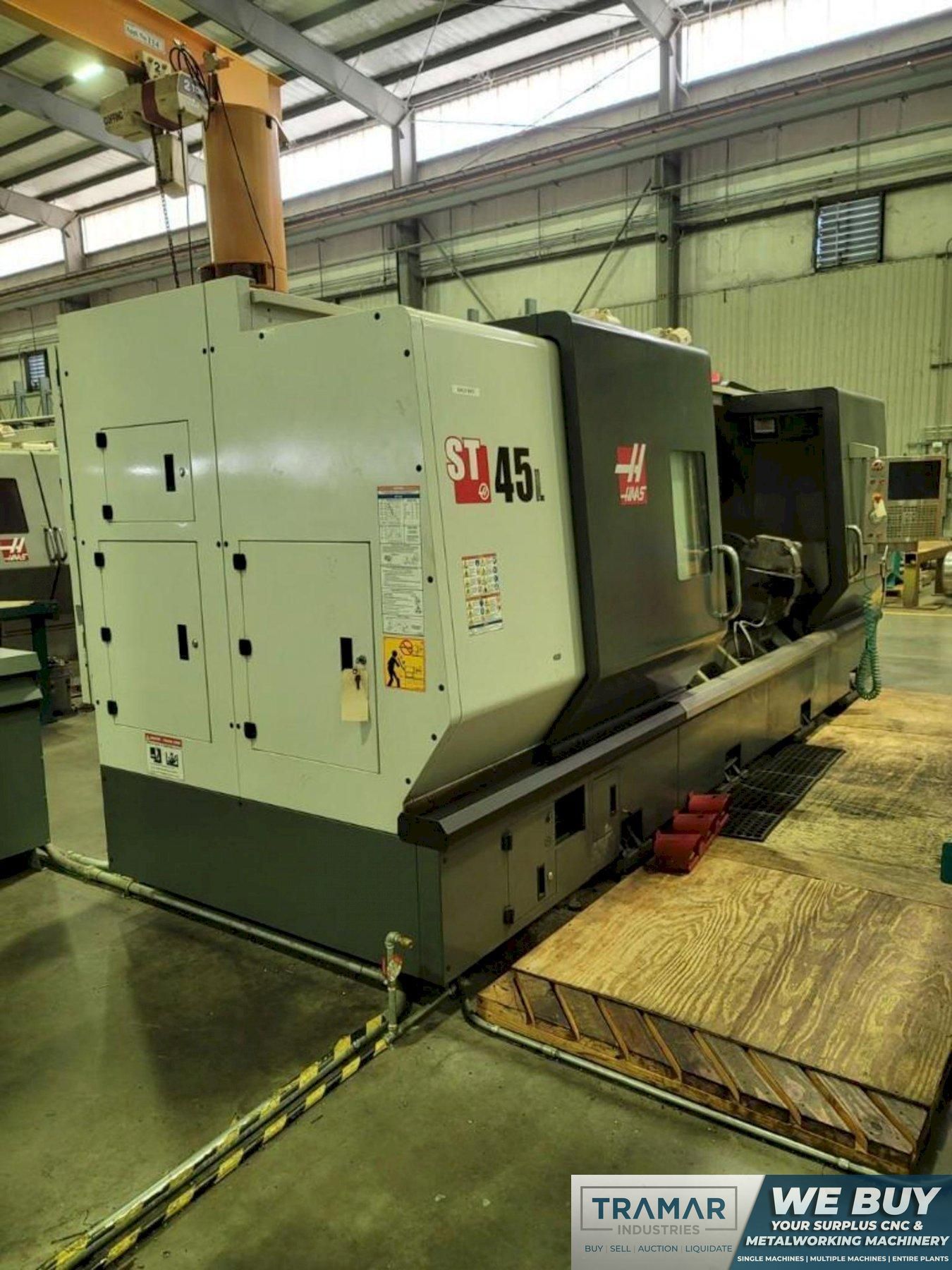

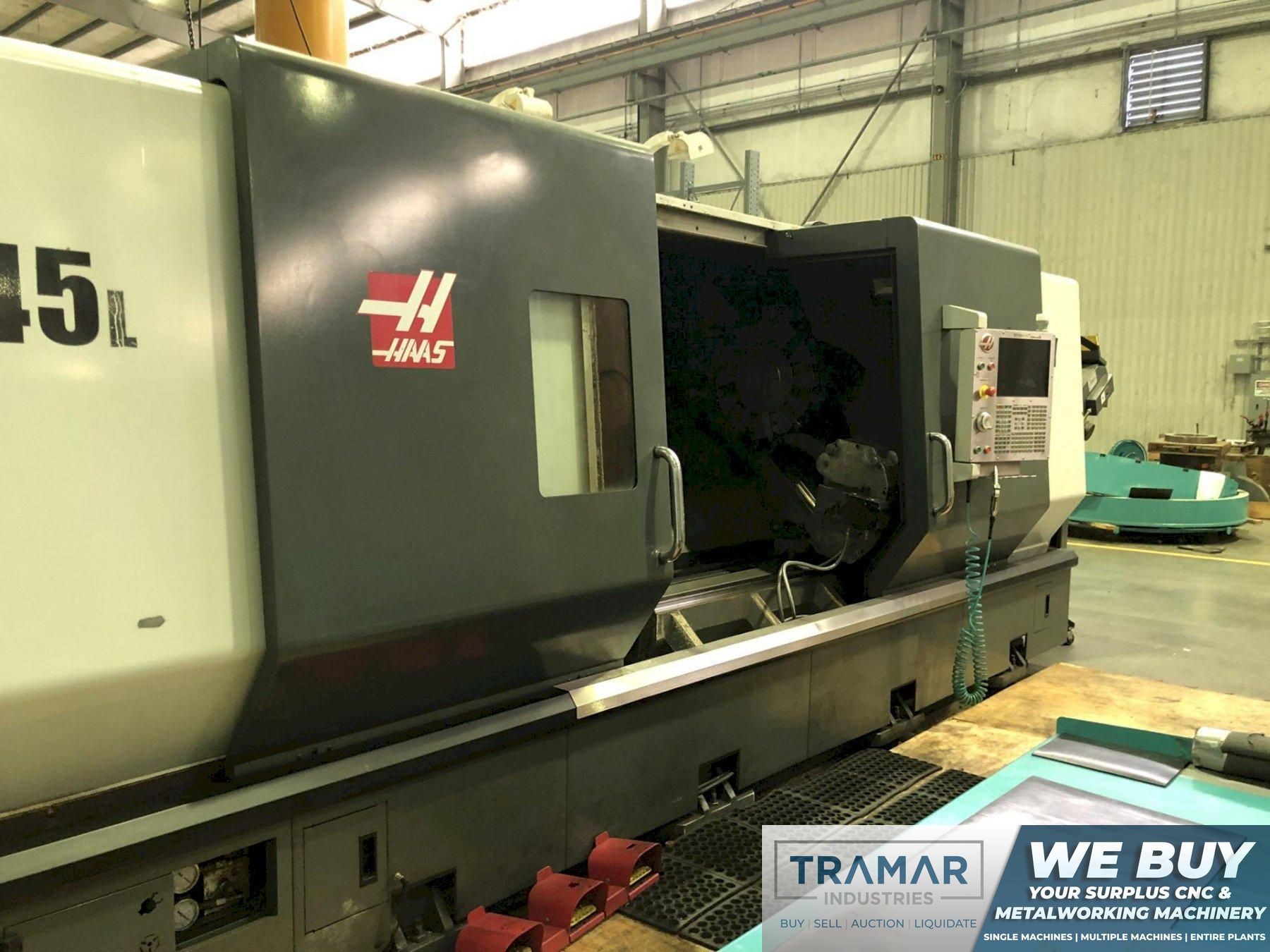

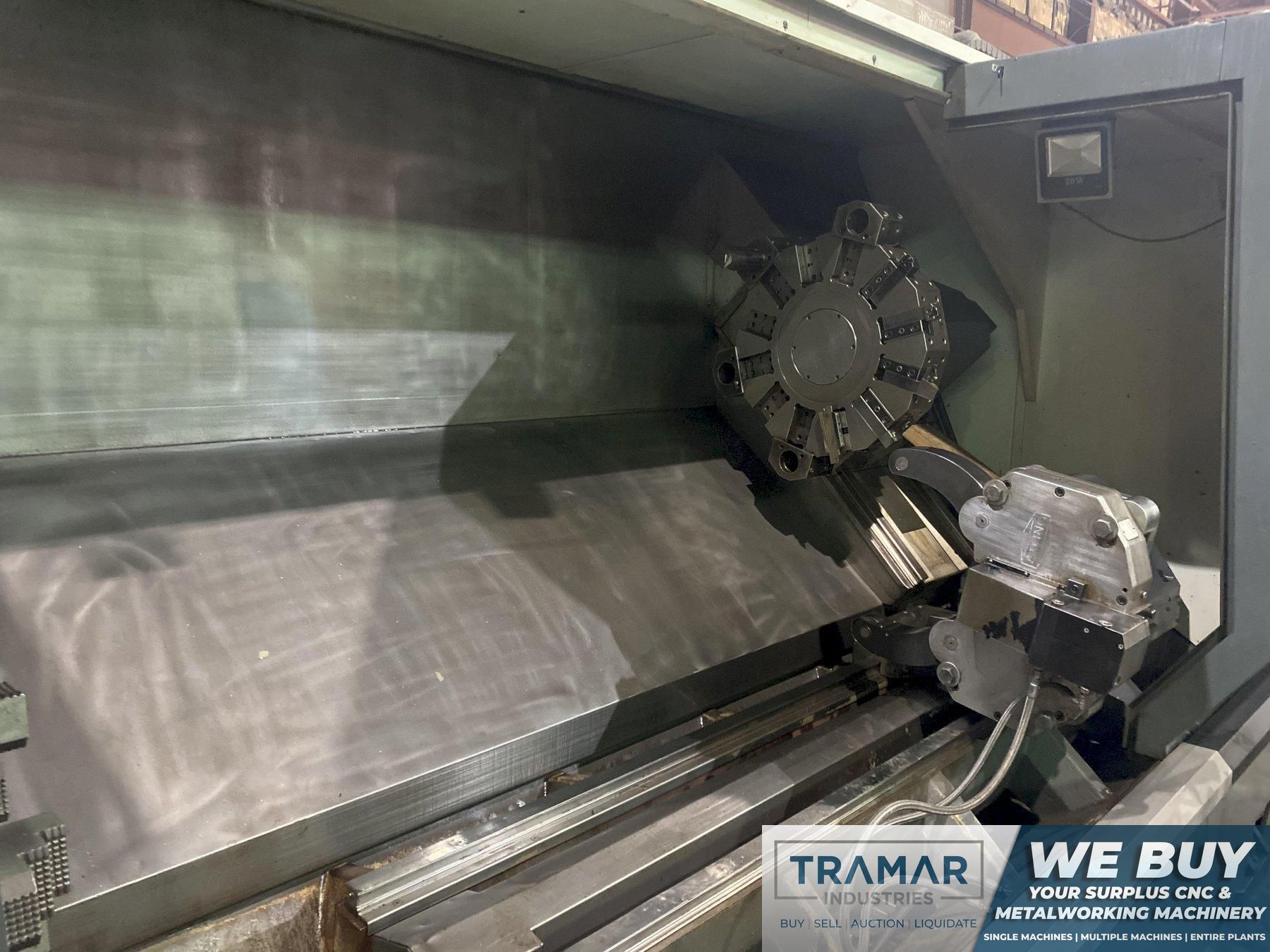

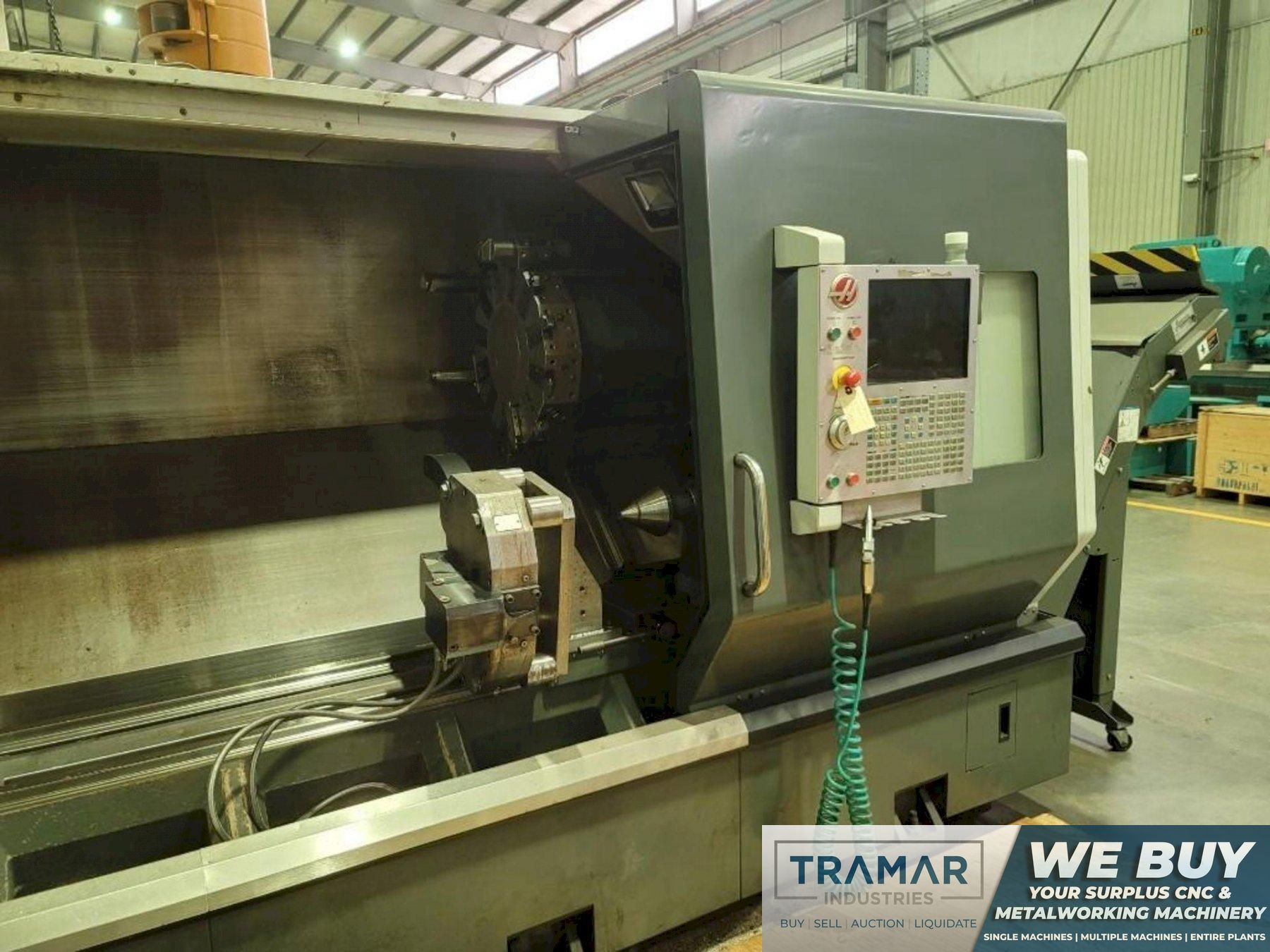

Haas ST-45L CNC Lathe For Sale 2014
Machine Specifications
CNC Control
yes
CNC Control
Haas
# Axis
2
Swing
34.5"
Turning Diameter
25.5"
Center Distance
80"
Chuck Size
20"
Bar Capacity
7"
X Axis Travel
17"
Z Axis Travel
80"
Rapid Traverse (X/Z)
710/320 ipm
Spindle Nose
A2-11
Spindle Speed
1,400 rpm
Main Motor
40 hp
Live Tooling
no
Tailstock
yes
Y Axis
no
Sub Spindle
no
Turret Capacity
10
Machine Dimensions
249" x 95" x 100"
Machine Weight
30,000 pounds

Equipped With:

- Haas CNC Control
- 20" 4-Jaw Chuck
- Hydraulic Steady Rest
- Tailstock
- Long Bed Option

The Haas ST-45L is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
