Haas ST-40 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: ST-40
Year: 2018
Stock #: 13479 Sold
Highlights:

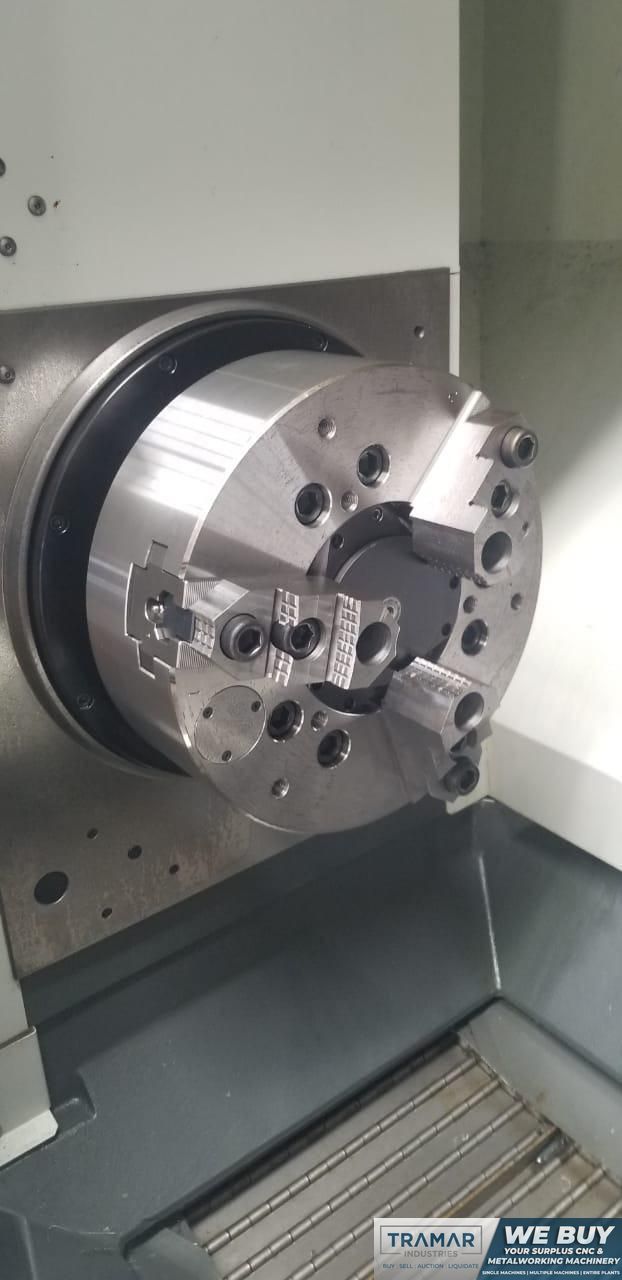

15" Hydraulic Chuck
Programmable Servo Tailstock (MT5)
Chip Conveyor
Low Hours, Like New!!

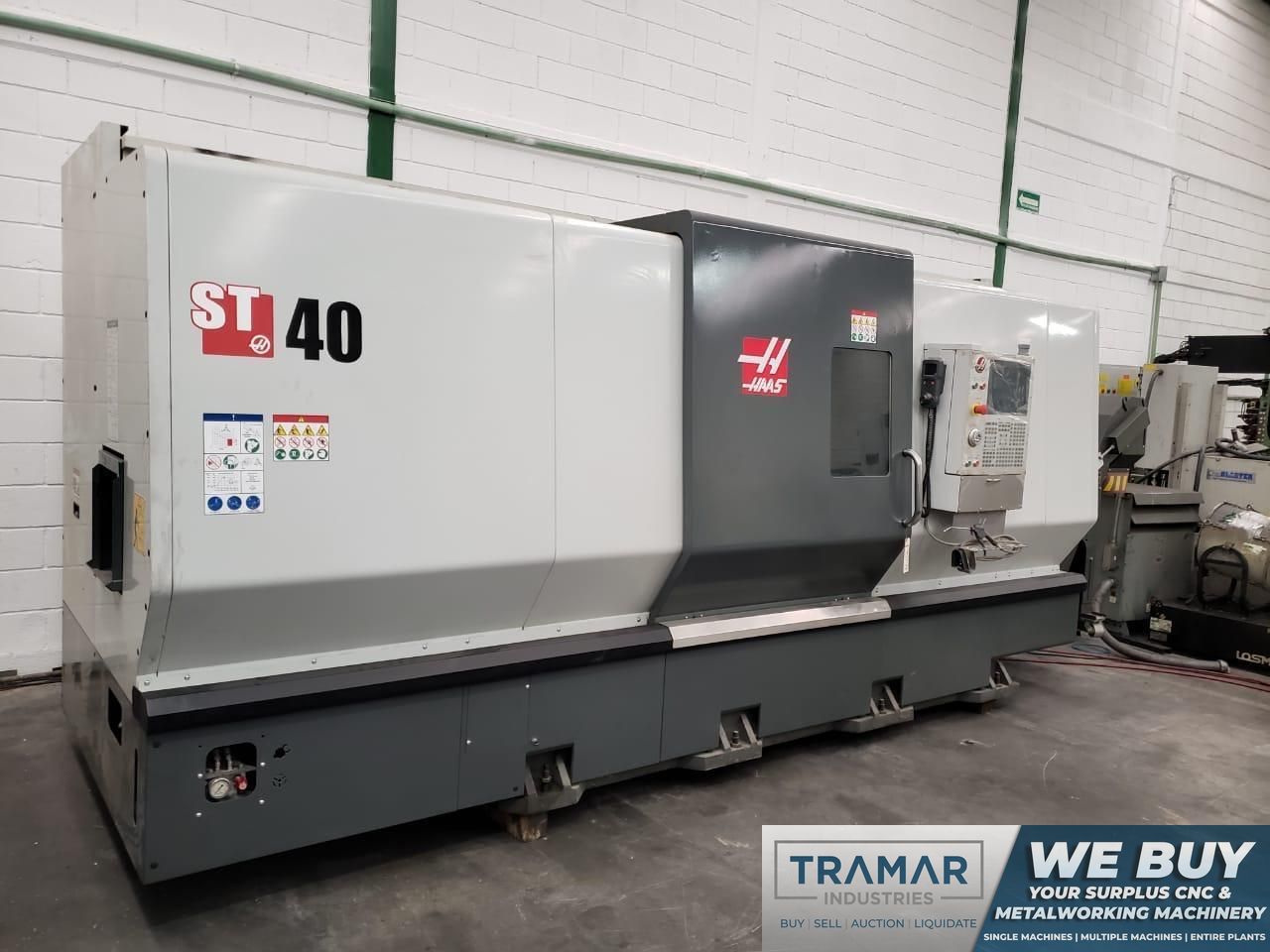

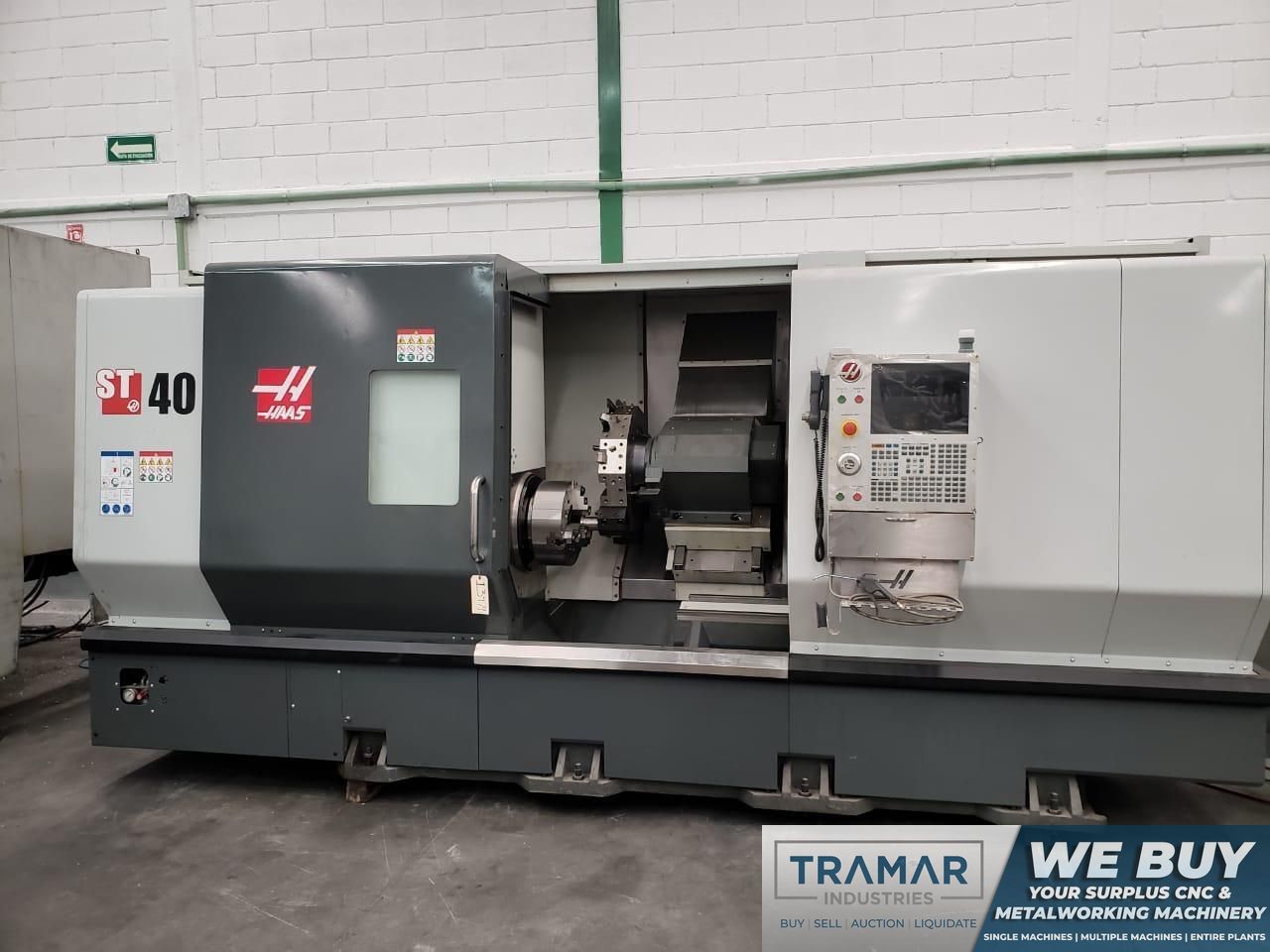

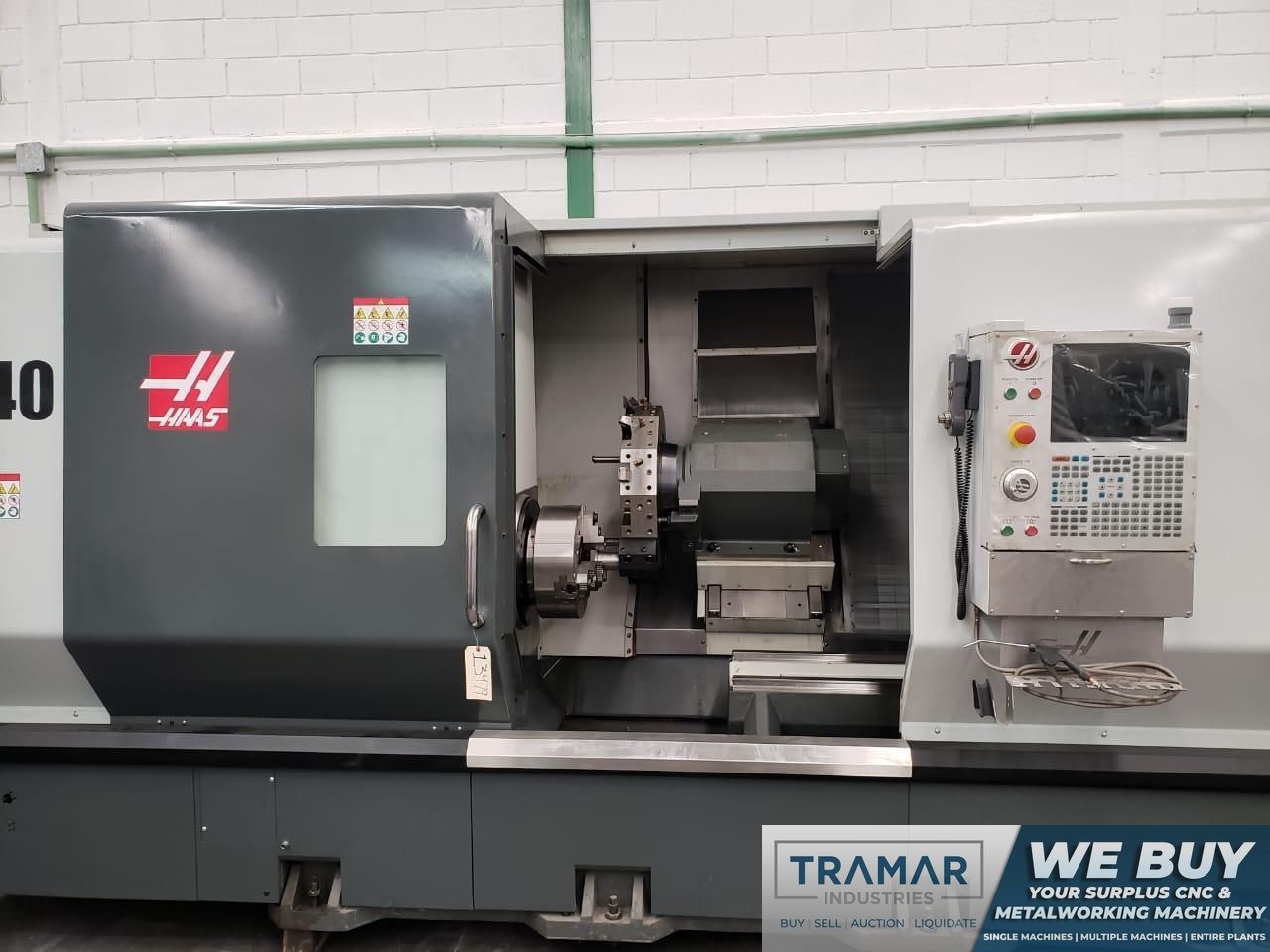

Haas ST-40 CNC Horizontal Lathe
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Haas
# Axis
2
Swing
34.5"
Turning Diameter
25.5"
Center Distance
44"
Chuck Size
15"
Bar Capacity
4"
X Axis Travel
17"
Z Axis Travel
44"
Rapid Traverse (X/Z)
710 ipm
Spindle Nose
A2-8
Spindle Speed (RPM)
2,400 rpm
Main Motor
40 hp
Tailstock
yes
Live Tooling
no
Sub Spindle
no
Y Axis
no

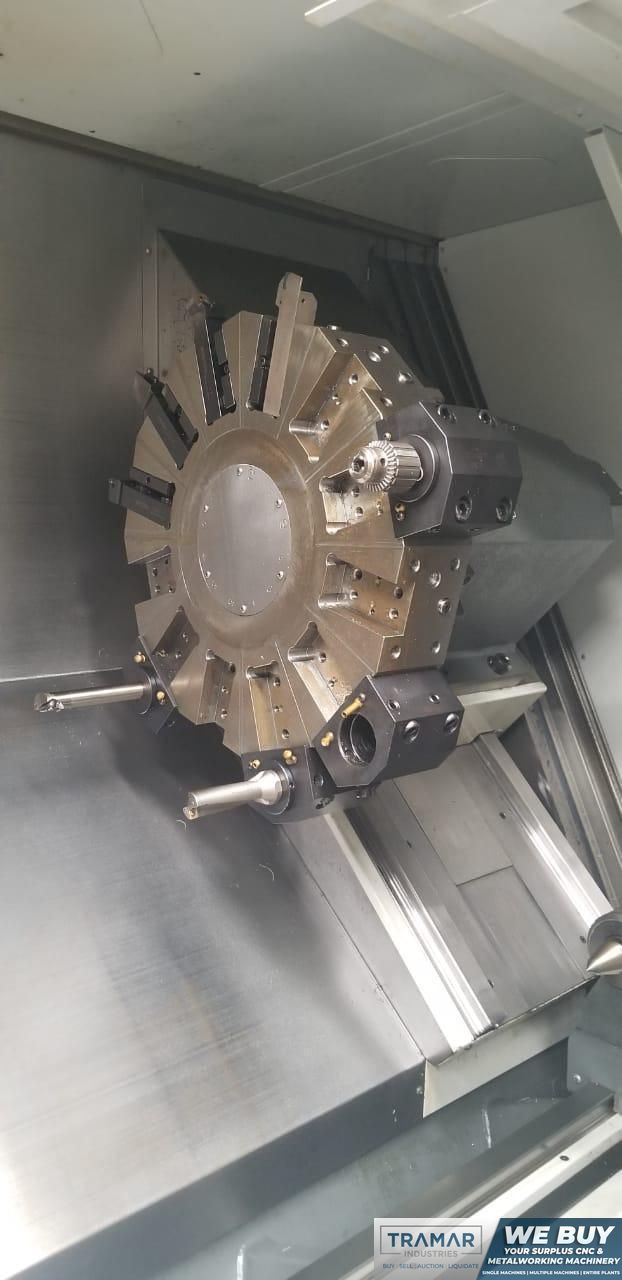

Turret Capacity
12
Dimensions
230" x 103" x 90"
Weight
27,000 pounds

Equipped With:

- Chip Conveyor
- Coolant Tank & Pump

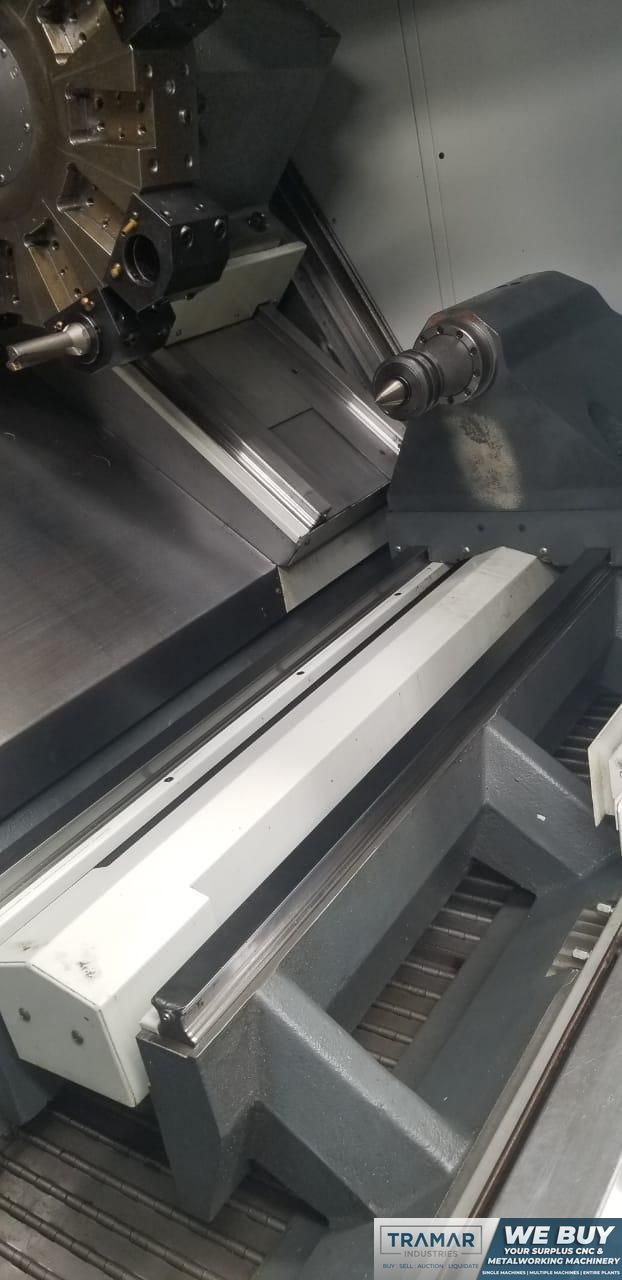

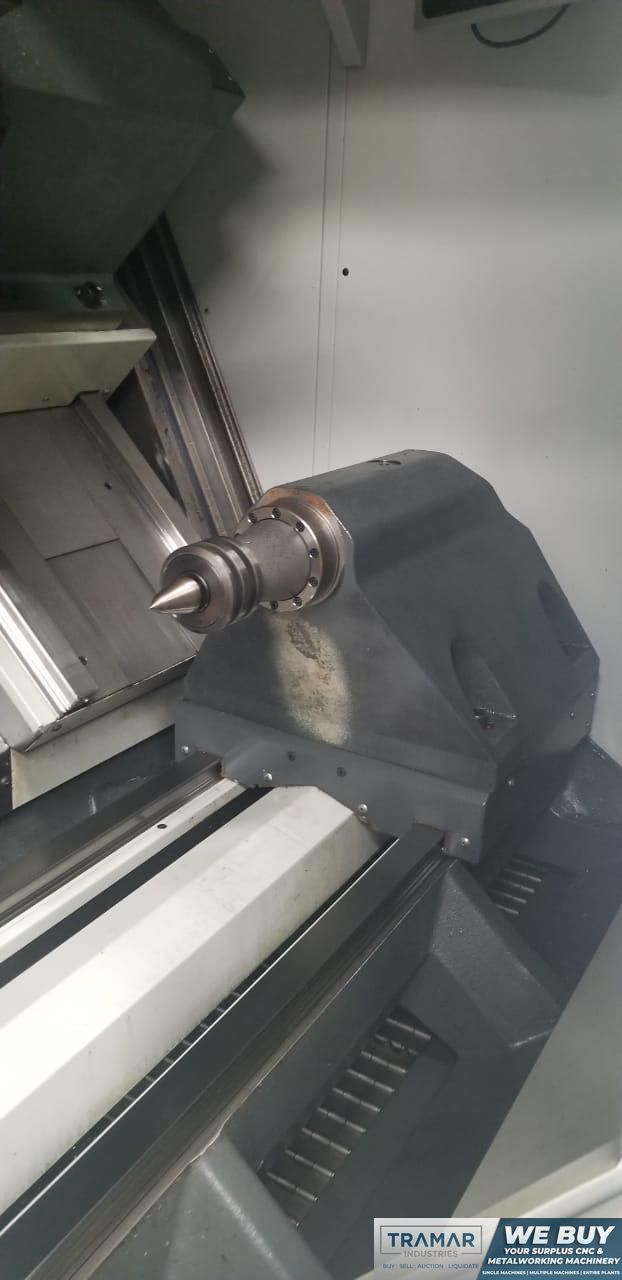

- Programmable Servo Tailstock (MT5)
- Extended Tool Pocket

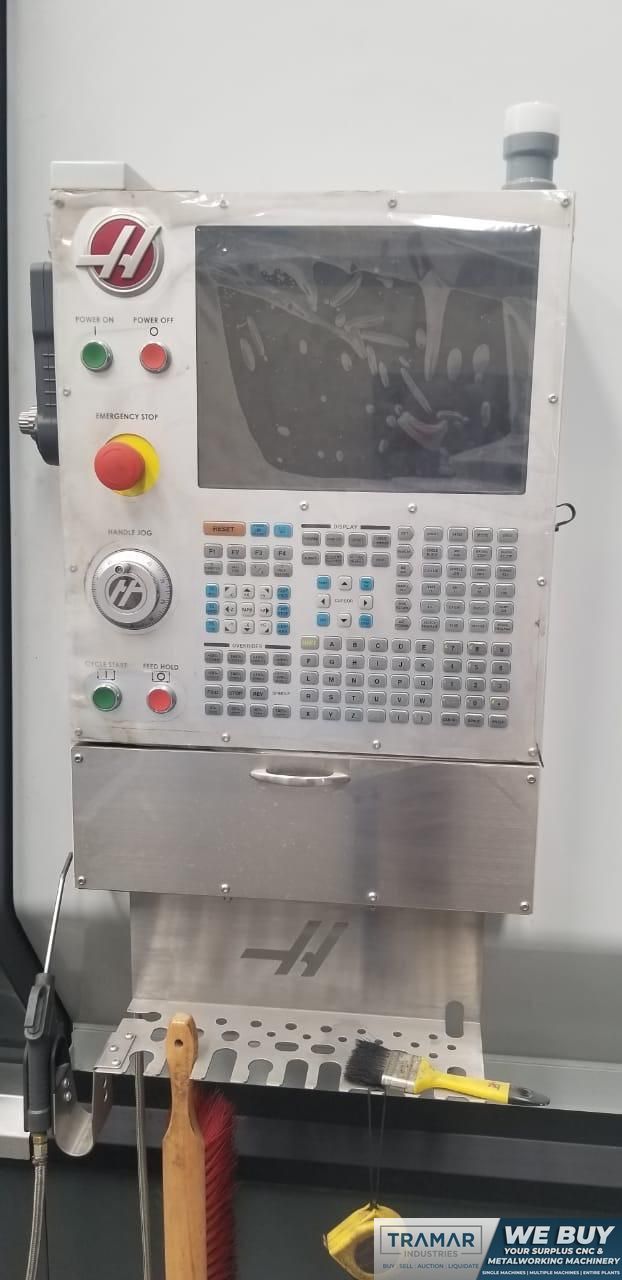

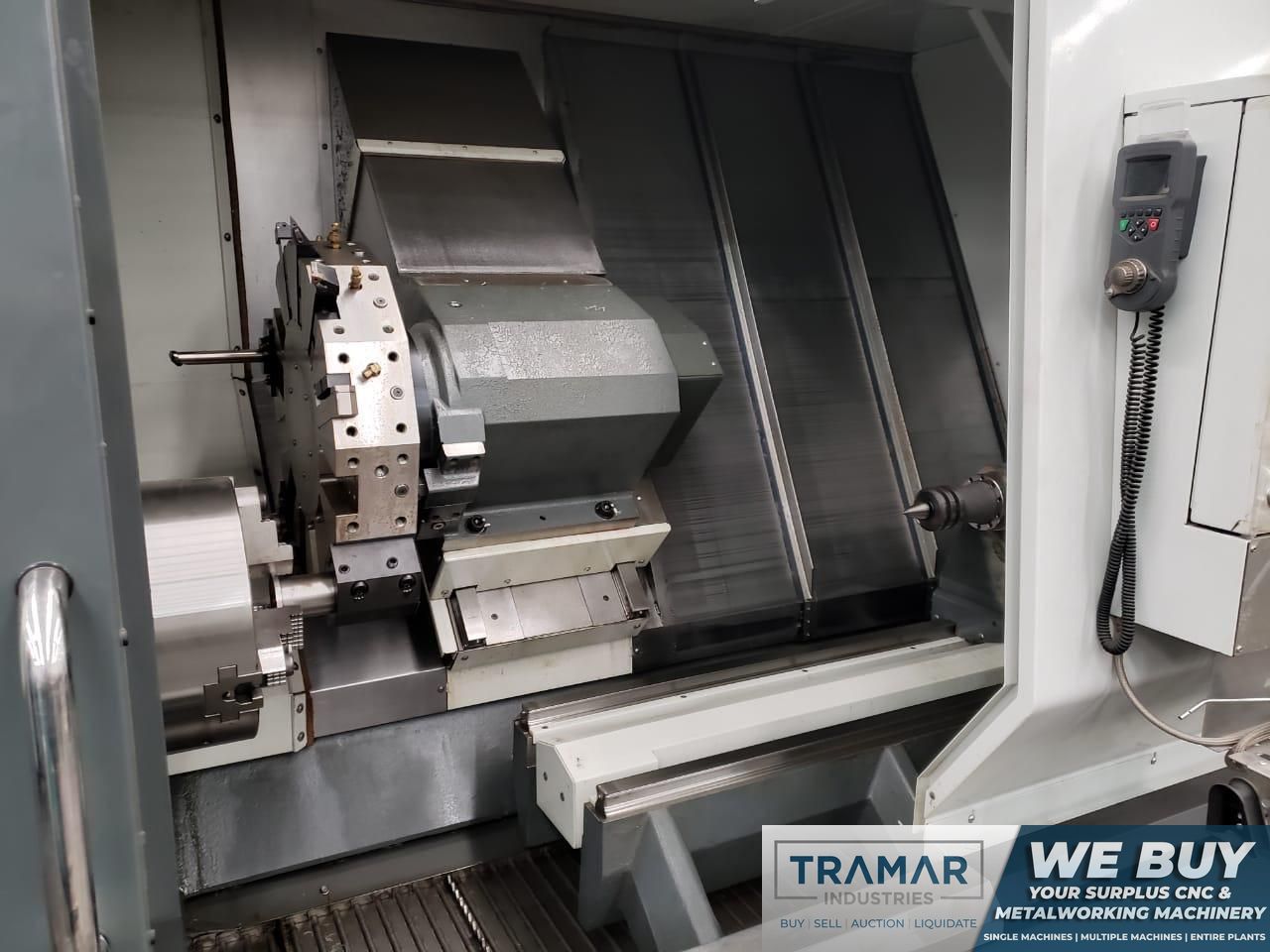

- Remote Jog Handle, Color LCD
- Rigid Tapping
- Low Hours, Like New!!!

** Video - Click Here **

The Haas ST-40 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
