Haas EC500 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: EC500
Year: 2015
Stock #: 494255 Sold
Highlights:
Pallet Size: 19.7" x 19.7" | 1° B Axis Indexing
Travels: x-32" / y-20" / z-28"
CAT 40 | 8,000 rpm | 20 hp | 40 Station ATC
Coolant Thru Spindle (300psi)

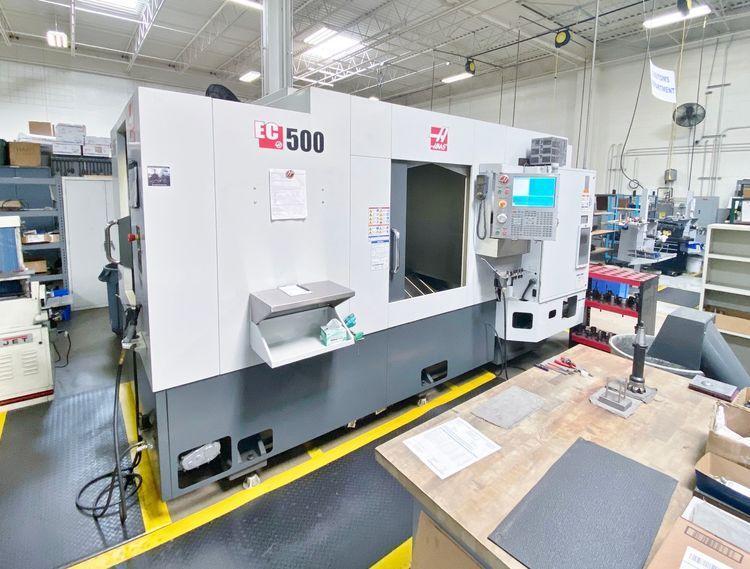

Haas EC500 CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Haas
# Axis
4
Pallet Length
19.69"
Pallet Width
19.69"
Pallet Indexing (B-Axis)
X-Axis Travel
32"
Y-Axis Travel
20"
Z-Axis Travel
28"
Spindle Taper
CAT 40
Spindle Speed
8,000 rpm
Spindle Motor (HP)
20 hp

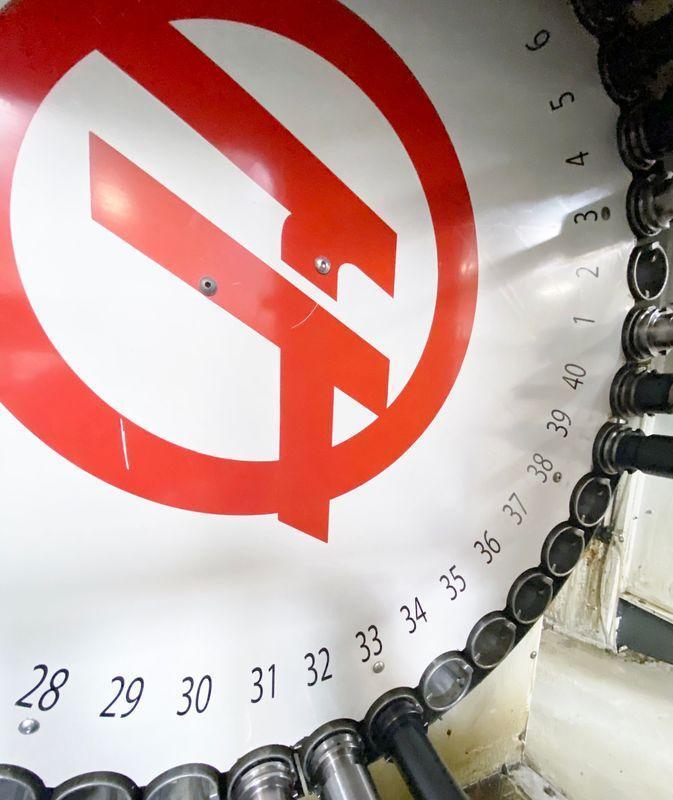

Tool Changer Capacity
40
Coolant Through Spindle
yes

Equipped With:

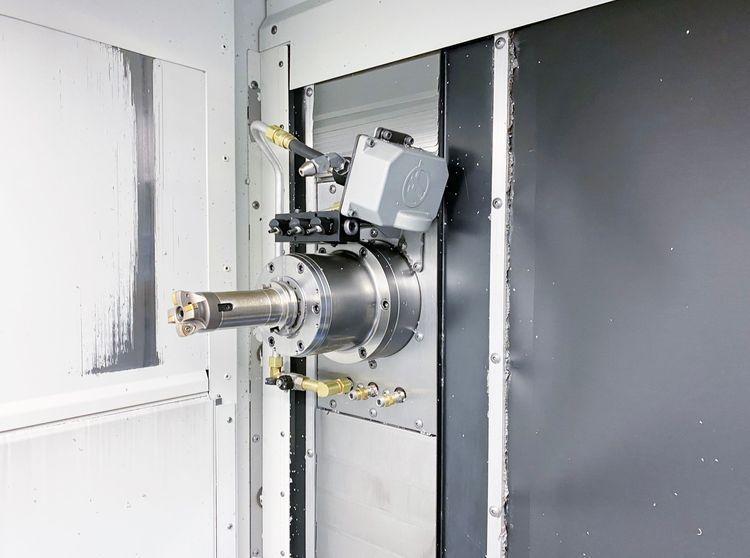

- Coolant Thru Spindle (300 Psi)
- 1-degree B Axis Indexing
- Programmable Coolant
- Remote Jog Handle

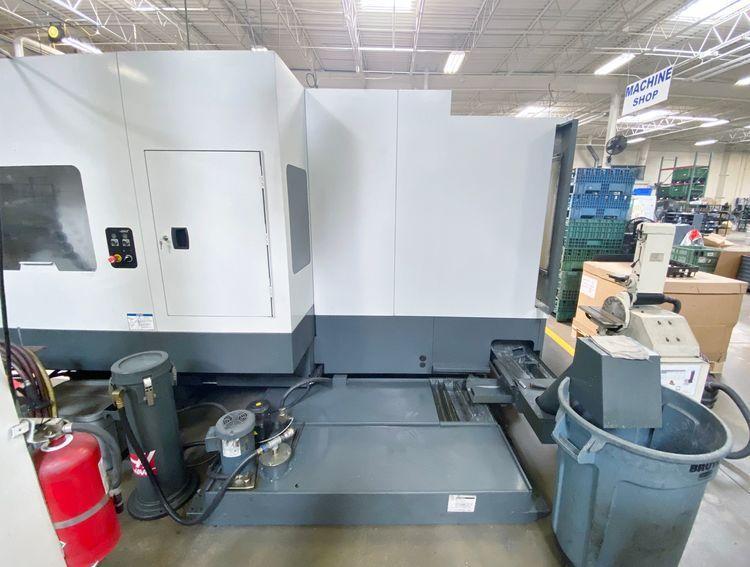

- Chip Auger
- Spindle Orientation
- Rigid Tapping
- Macros
- Auxiliary Coolant Filtration System

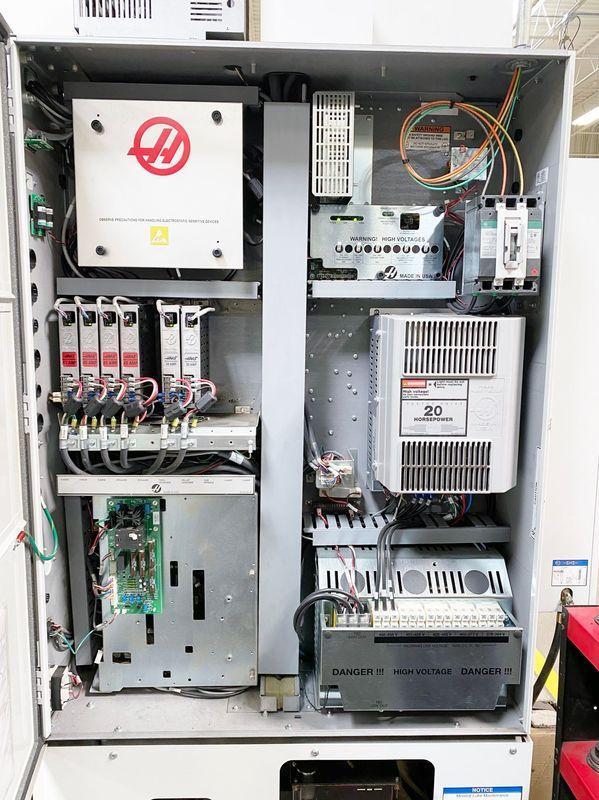

- Internal High-voltage Isolated Transformer (380-480v)
- USB Port

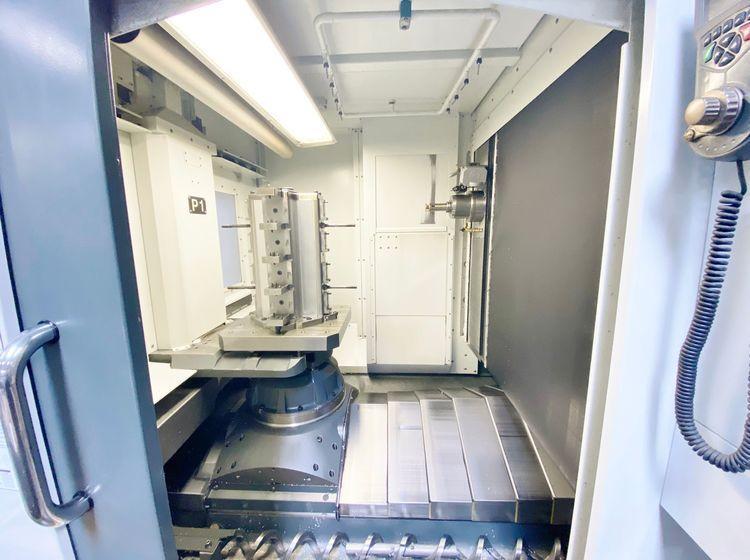

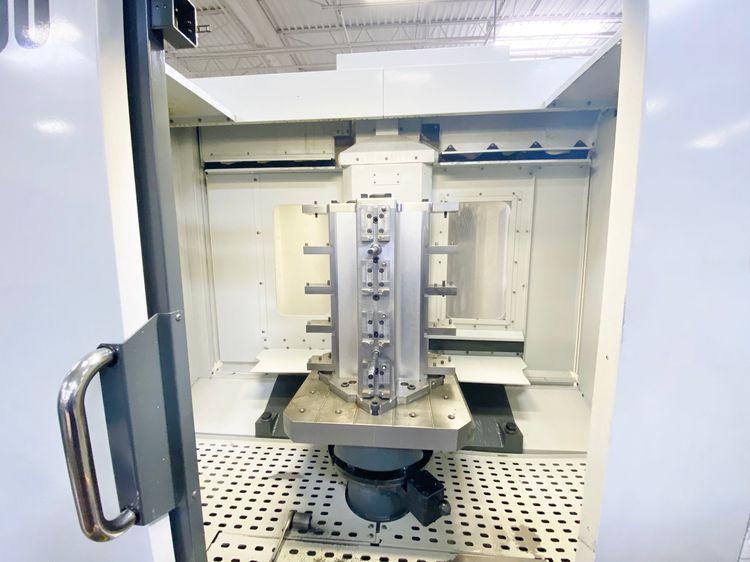

- (2) Tombstones

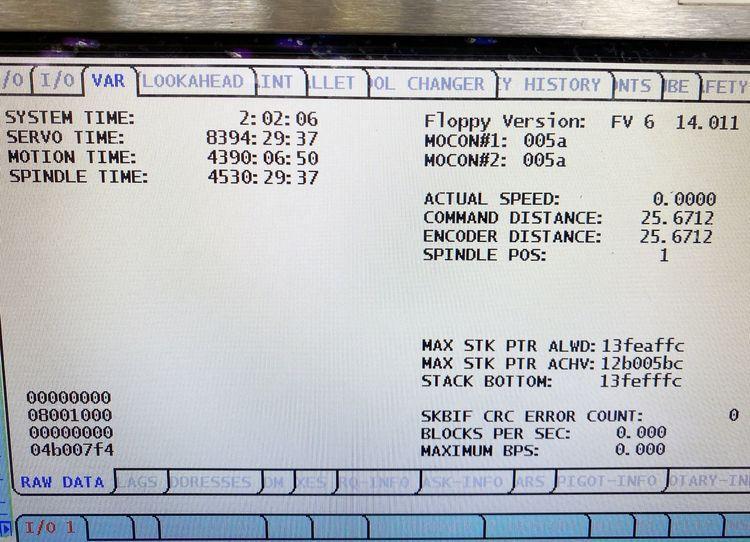

** as of 05/2020, Spindle Time – 4,530 Hours

** Machine Cut Aluminum Only


The Haas EC500 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
