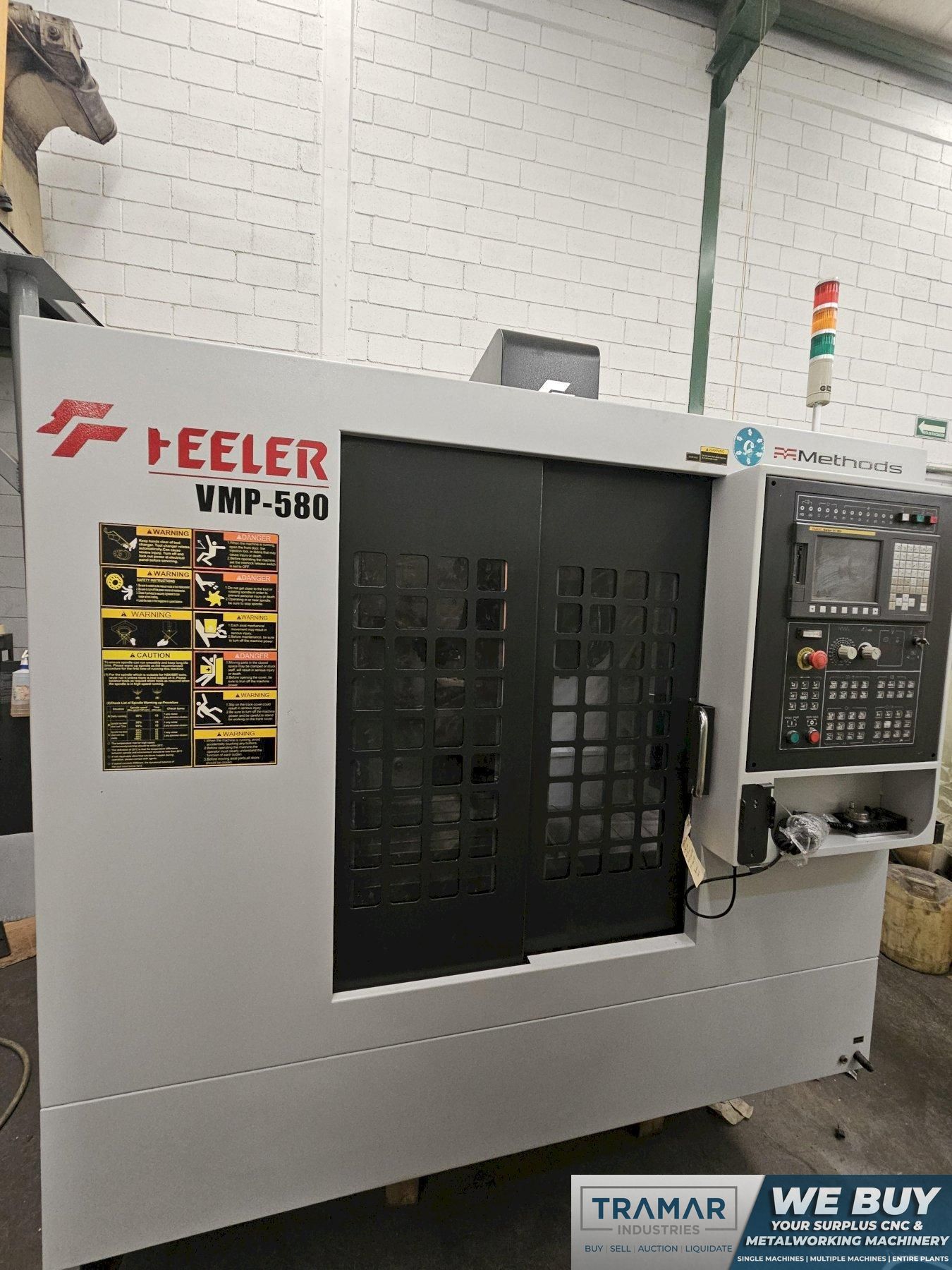

Feeler VMP-580 - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: VMP-580
Year: 2012
Stock #: 14219
Highlights:
Fanuc 0i-MD Control

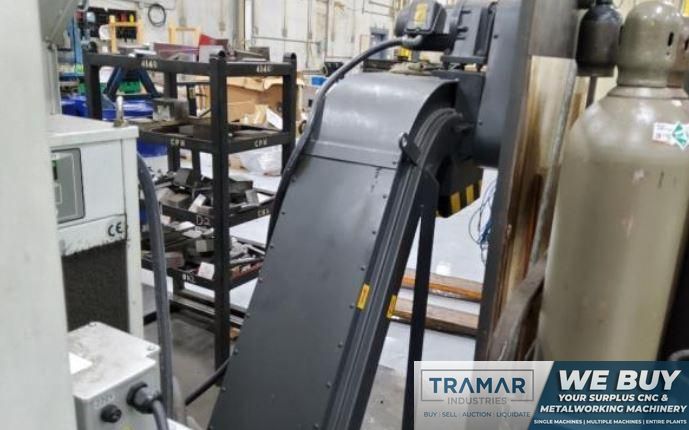

Chip Conveyor

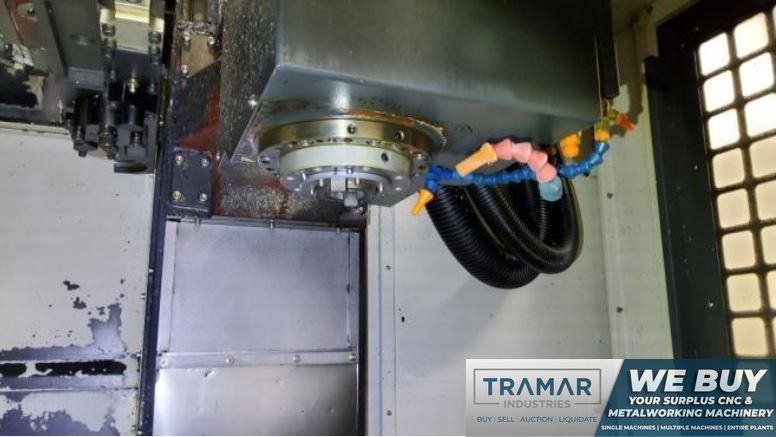

Coolant Thru Spindle
4th Axis Prewire

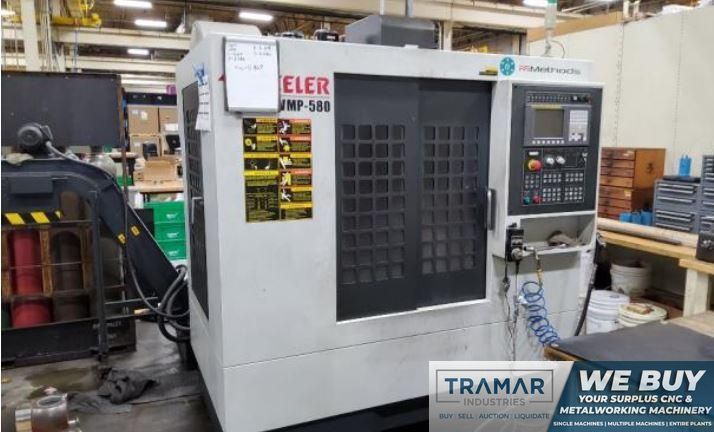

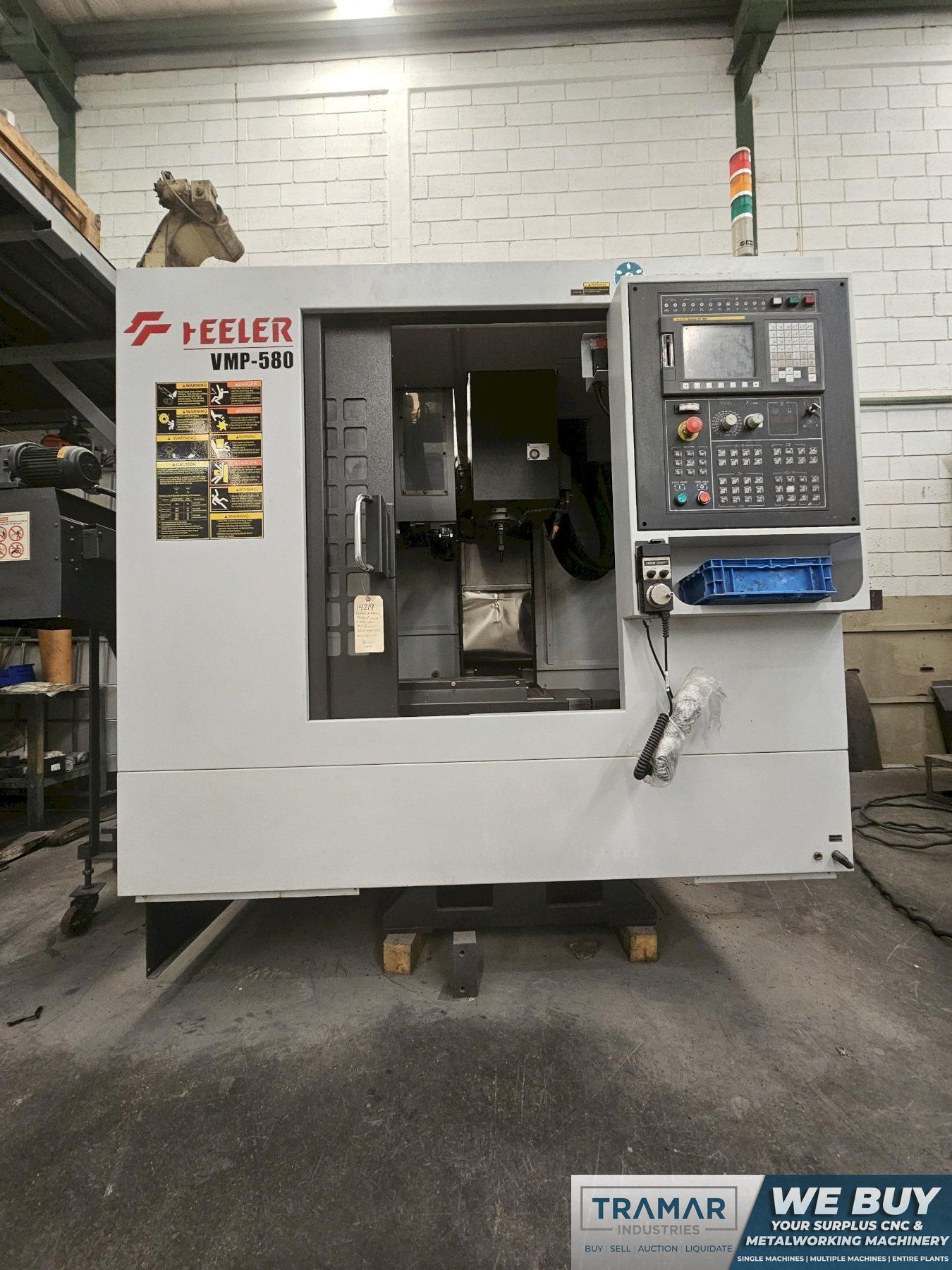

Feeler VMP-580 Used CNC Vertical Machining Center For Sale - 2012
Machine Specifications
CNC Control
yes

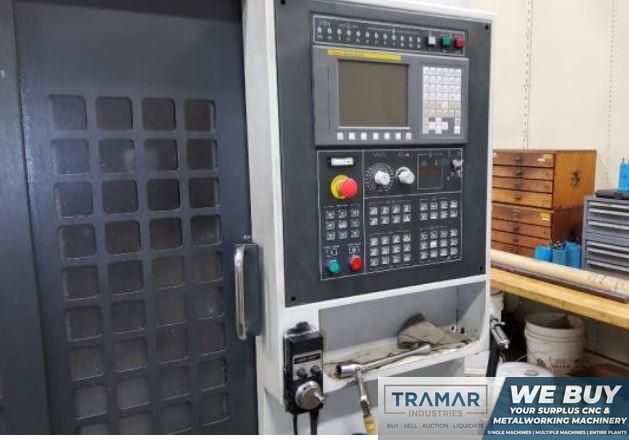

Control Type
Fanuc 0i-MD
# Axis
3

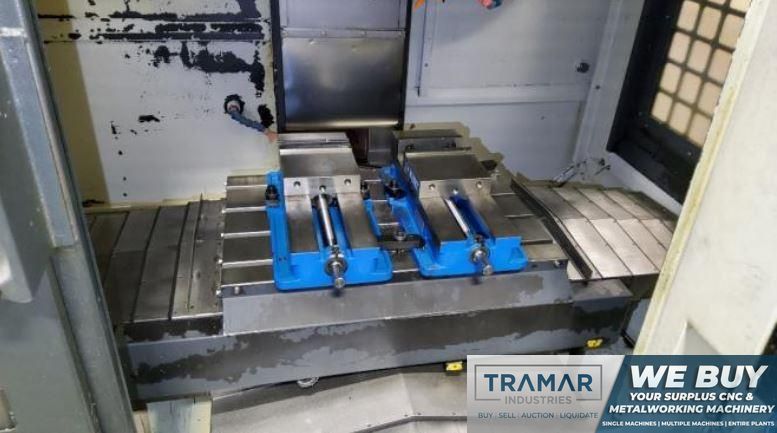

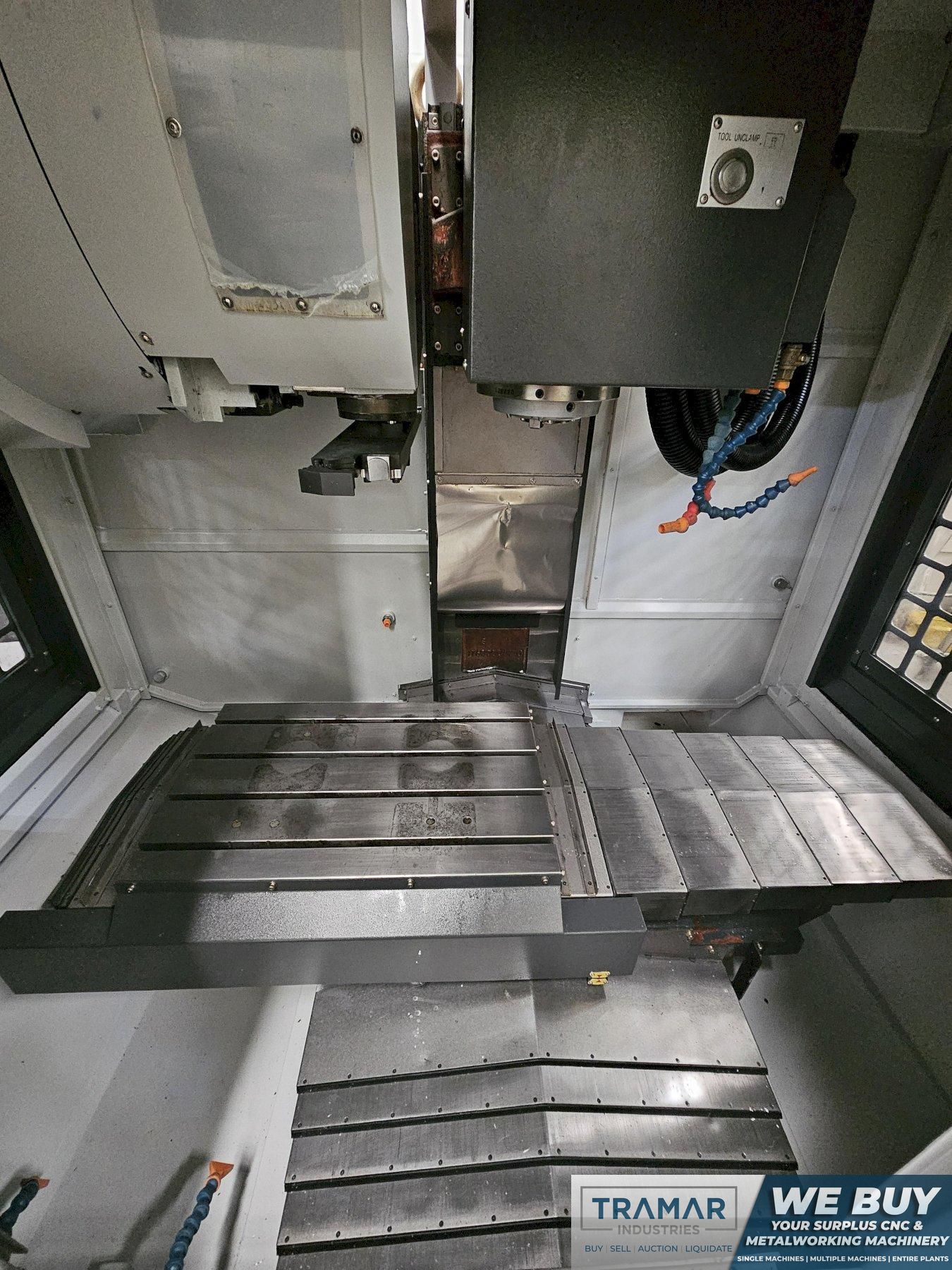

Table Size
25.6" x 16.5"
Table Capacity
660 pounds
X-Axis Travel
22.8"
Y-Axis Travel
16.5"
Z-Axis Travel
20"
Rapid Traverse Rate (X/Y/Z)
1,890 ipm

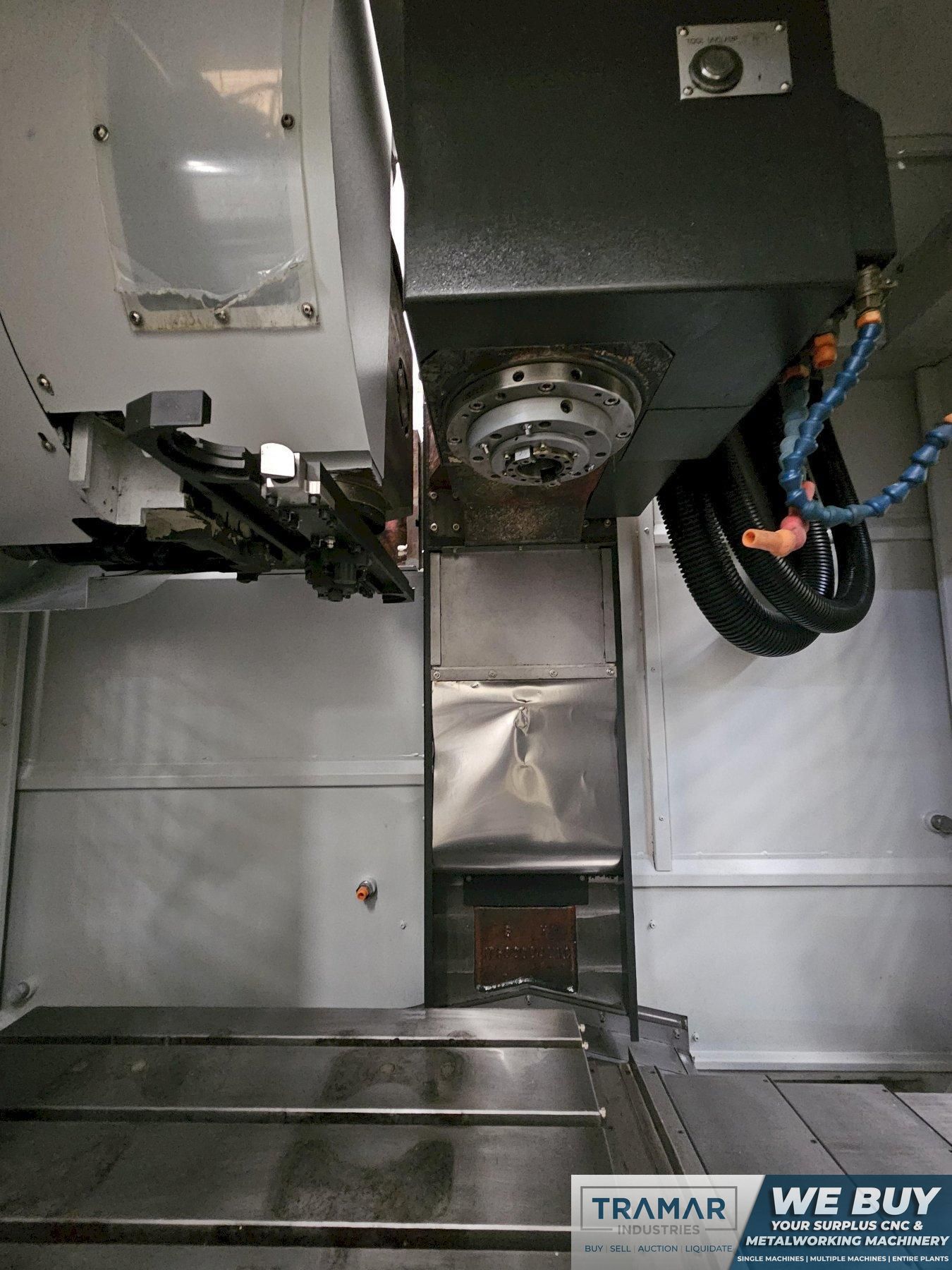

Spindle Taper
CAT 40
Spindle Speed
15,000 rpm
Main Motor
15 hp
Tool Changer Capacity
24
Coolant Thru Spindle
yes
Machine Dimensions
75" x 87" x 94"
Machine Weight
8,000 pounds

Equipped With:

- Fanuc 0i-MD CNC Control
- Coolant Thru Spindle
- 4th Axis Prewire
- Chip Conveyor

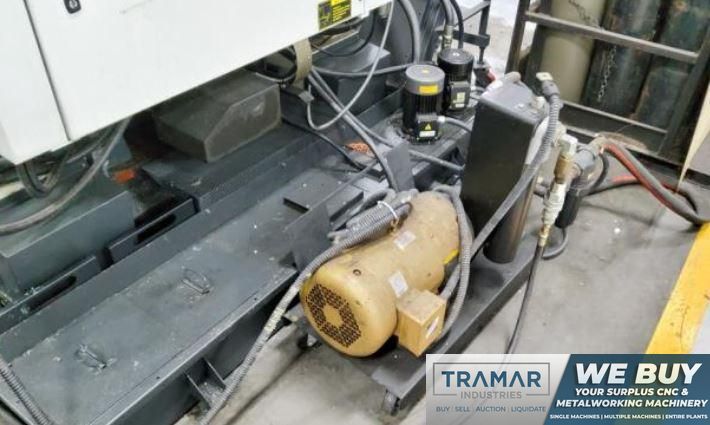

- Coolant Tank & Pump
- Spindle Chiller
- Rigid Tapping
- AICC 40 Block Look Ahead
- Helical Interpolation
- Custom Macro B

The Feeler VMP-580 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
