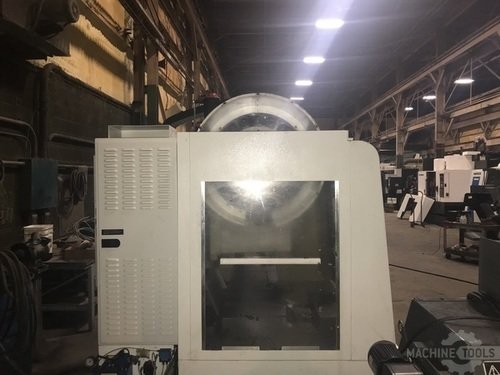

Fadal VMC-2216HT - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VMC-2216HT
Year: 2006
Stock #: 3663 Sold
Highlights:

Fadal VMC 2216HT CNC Vertical Machining Center w/Fanuc 18iMBA5, 10K Spindle, 24 Side Mount ATC, 40 Taper, Chip Conveyor, Rigid Tap, 2006
Machine Specifications
CNC Control
yes
Control Type
Fanuc 18iMB5
# Axis
3
Table Size
16" x 39"
Table Capacity
2,006 pounds
X-Axis Travel
22"
Y-Axis Travel
16"
Z-Axis Travel
20"
Spindle Speed
10,000
Spindle Taper
40
Main Motor
15
Tool Changer Capacity
24
X-Axis Feedrate
400 IPM
Y-Axis Feedrate
400 IPM
Z-Axis Feedrate
400 IPM
X-Axis Rapid Traverse Rate
900 IPM
Y-Axis Rapid Traverse Rate
900 IPM
Z-Axis Rapid Traverse Rate
700 IPM
Coolant Thru Spindle
no
Machine Hours
8,850
Dimensions
98" x 77" x 103"H
Max Distance Spindle To Table Top
24"
Torque, Up To
160 Ft/Lbs
Weight
8,300 pounds

Equipped With:

  • Fanuc 5-Axis Capable Control

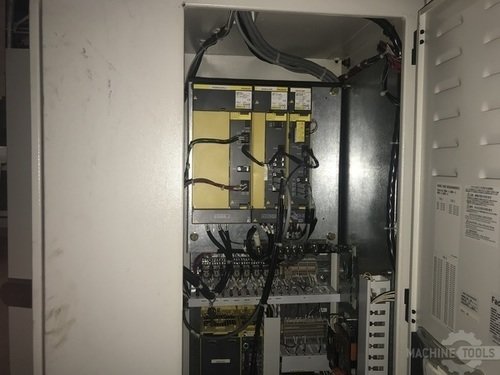

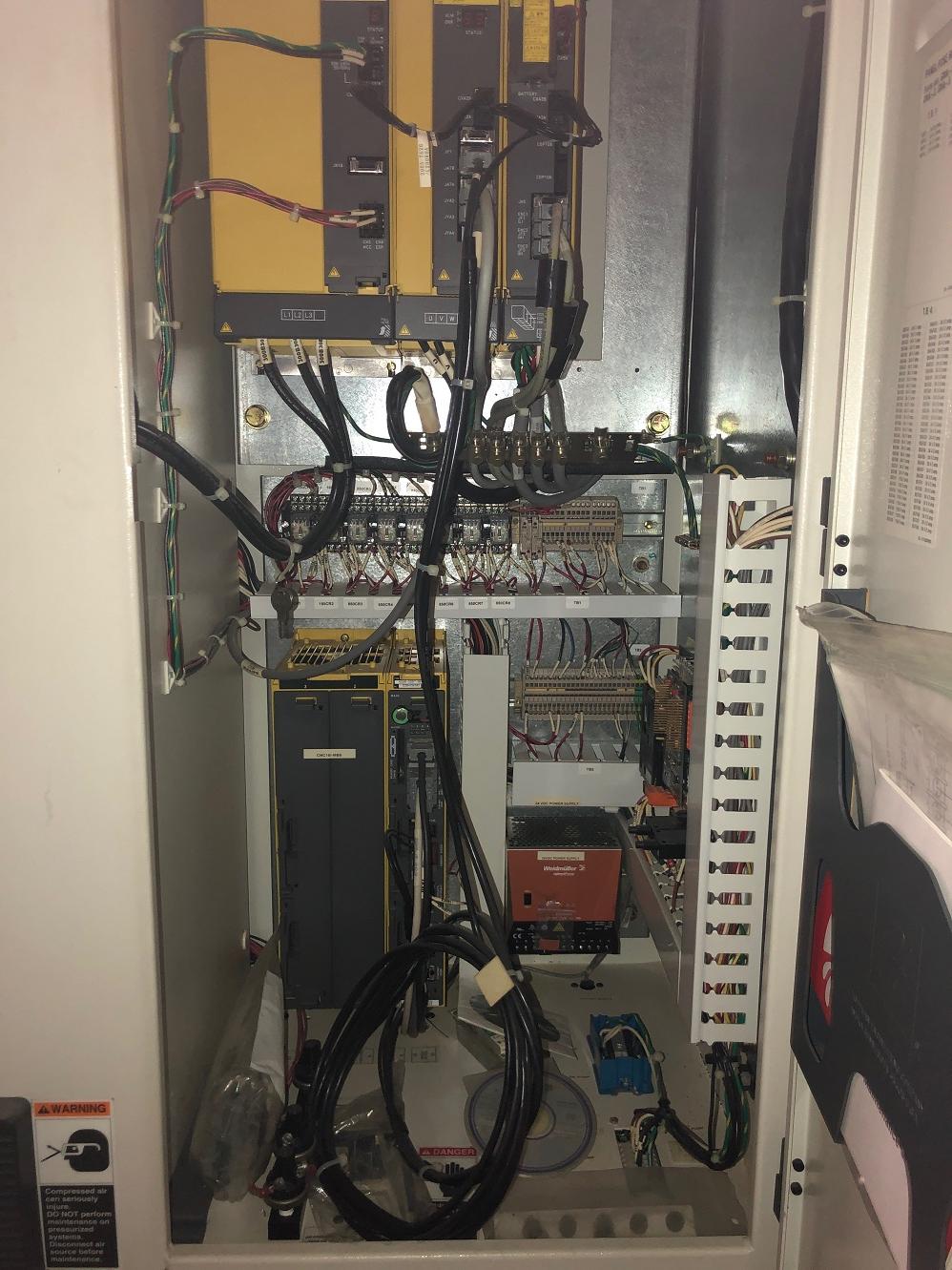

  • Fanuc Drives
  • Side Mounted Tool Changer
  • Chip Conveyor
  • Rigid Tapping
  • Remote MPG
  • Ethernet Port
  • Flash Card Reader

The Fadal VMC-2216HT is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
