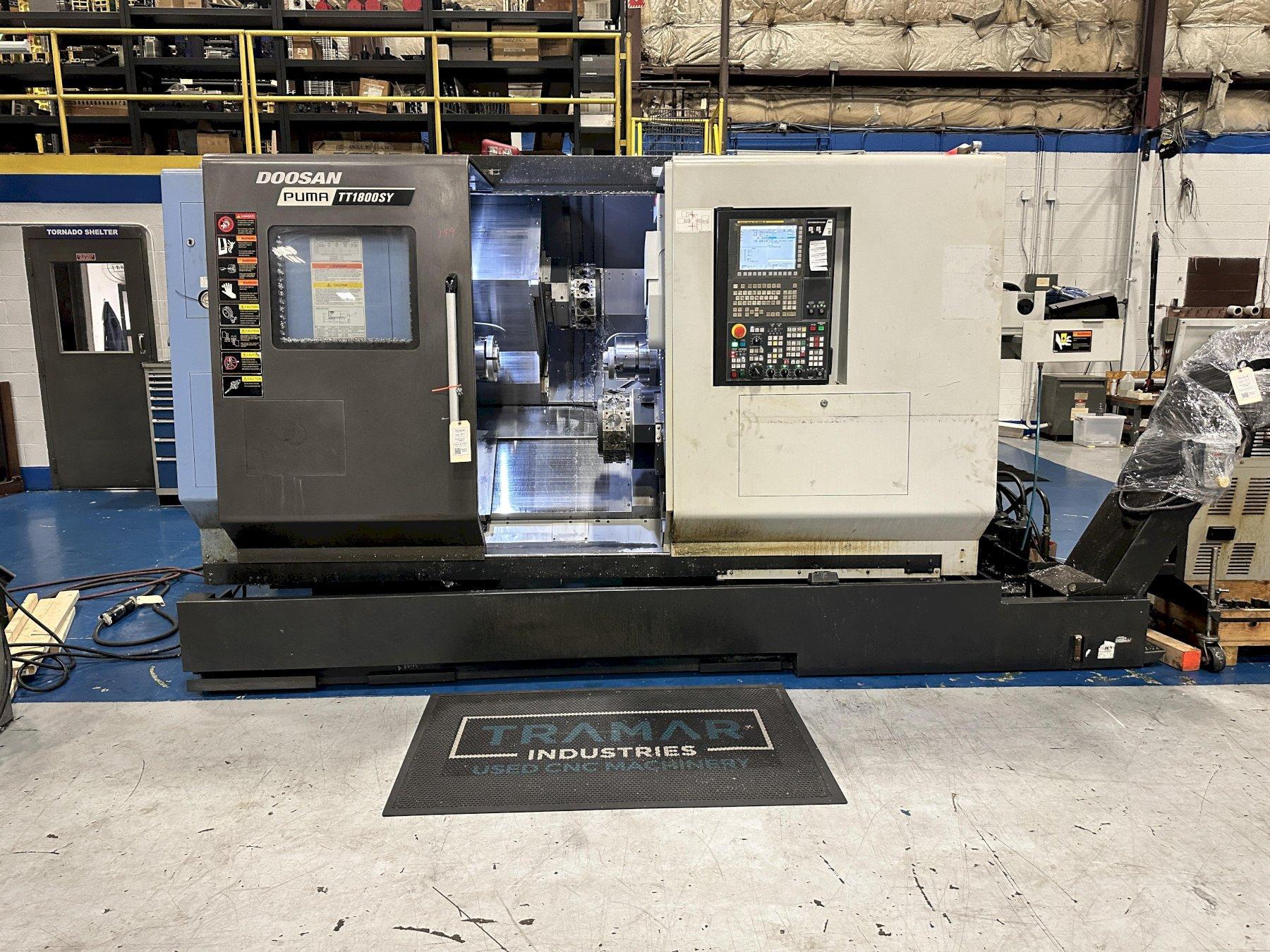

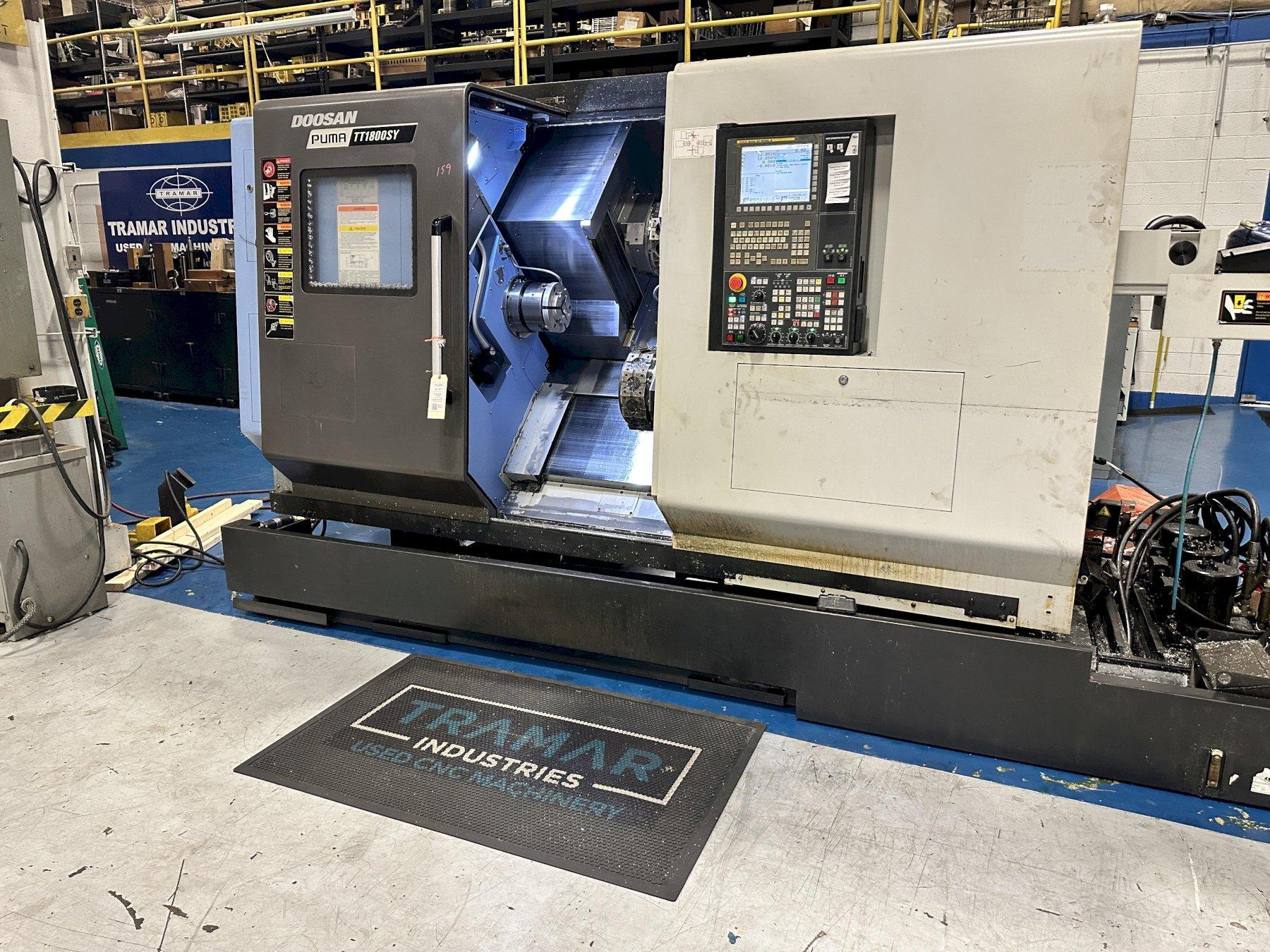

Doosan Puma TT1800SY - Lathes (3-Axis or More)

Share Machine

Specifications Print Specs

Model: Puma TT1800SY

Year: 2017

Stock #: 14377 Sold

Type: Lathes (3-Axis or More)

Manufacturer: Used Doosan Machines

Highlights:

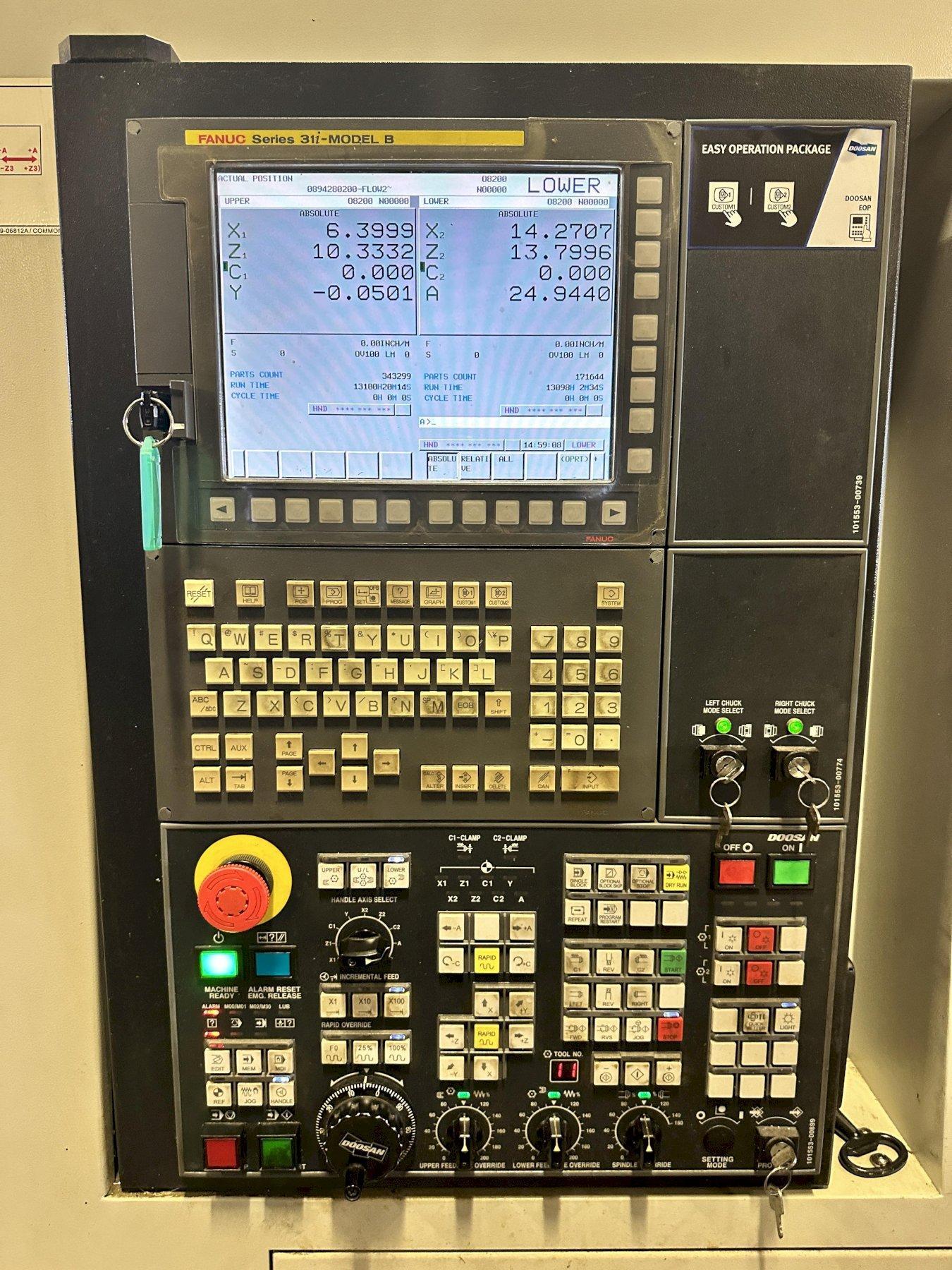

Fanuc 31i-Model B CNC Control
Live Tooling
Y Axis
Sub Spindle

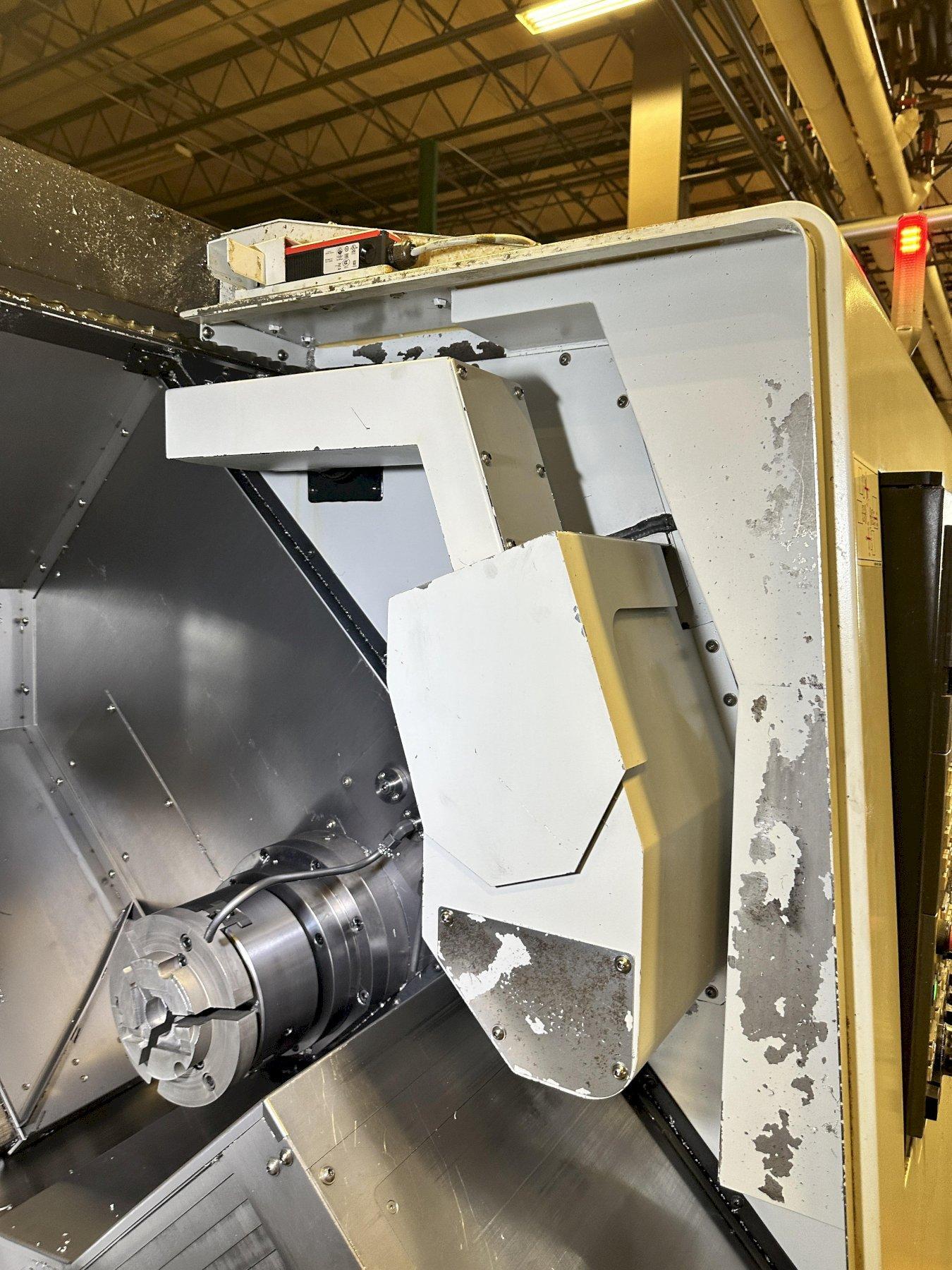

Parts Pickup, Ejector, and Conveyor-Second Spindle

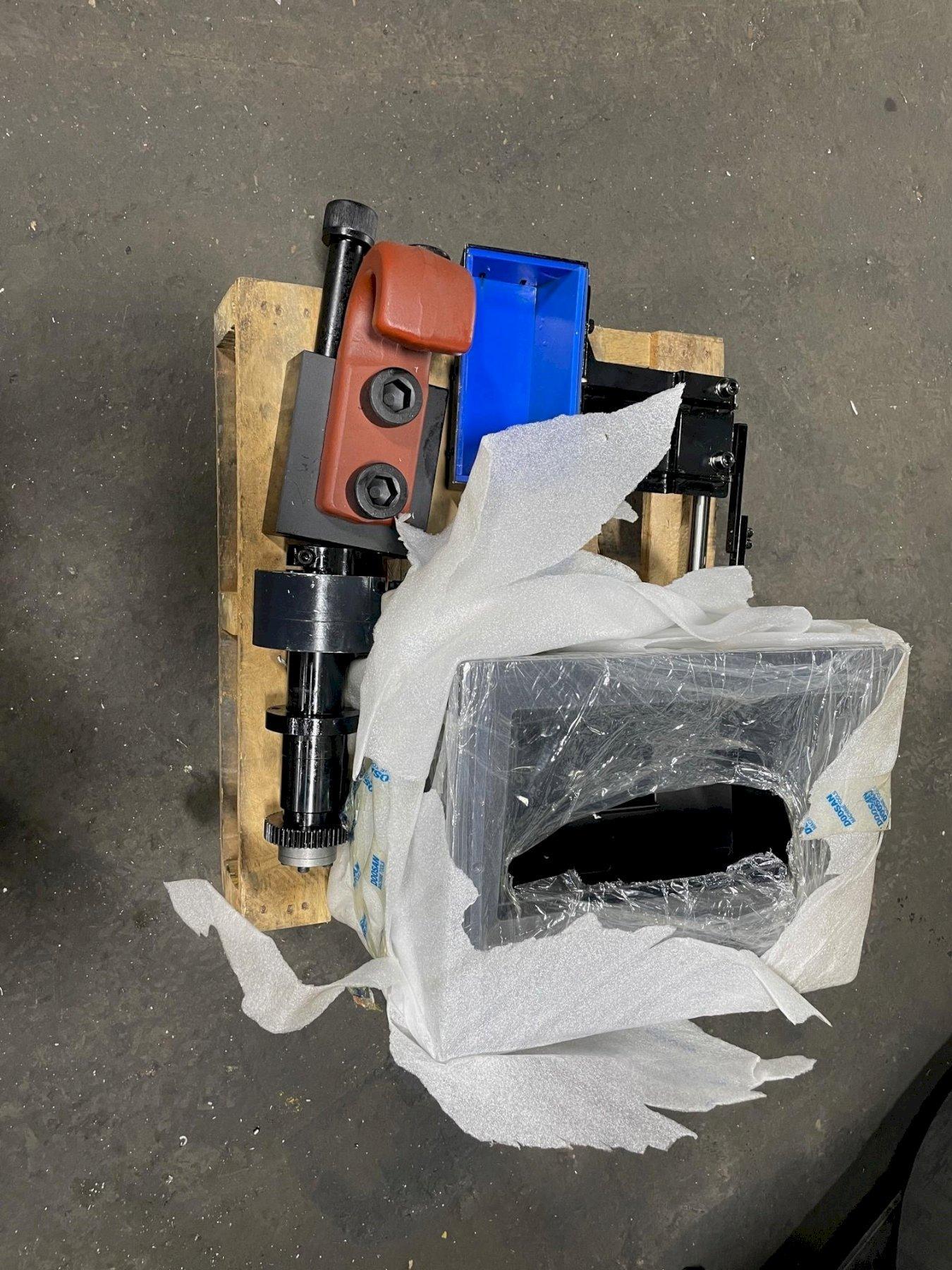

Parts Catcher for Main Spindle (New-Not installed)

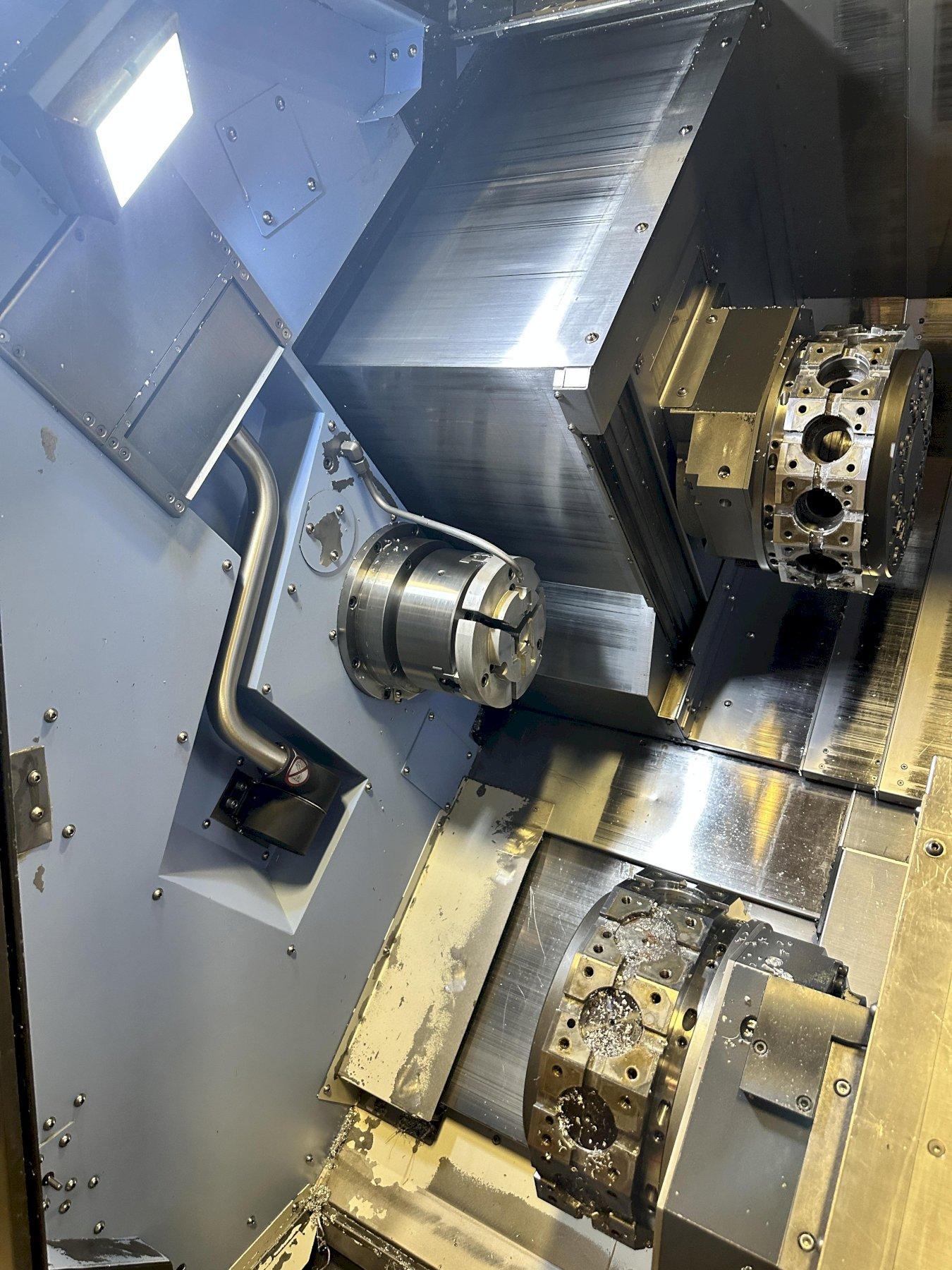

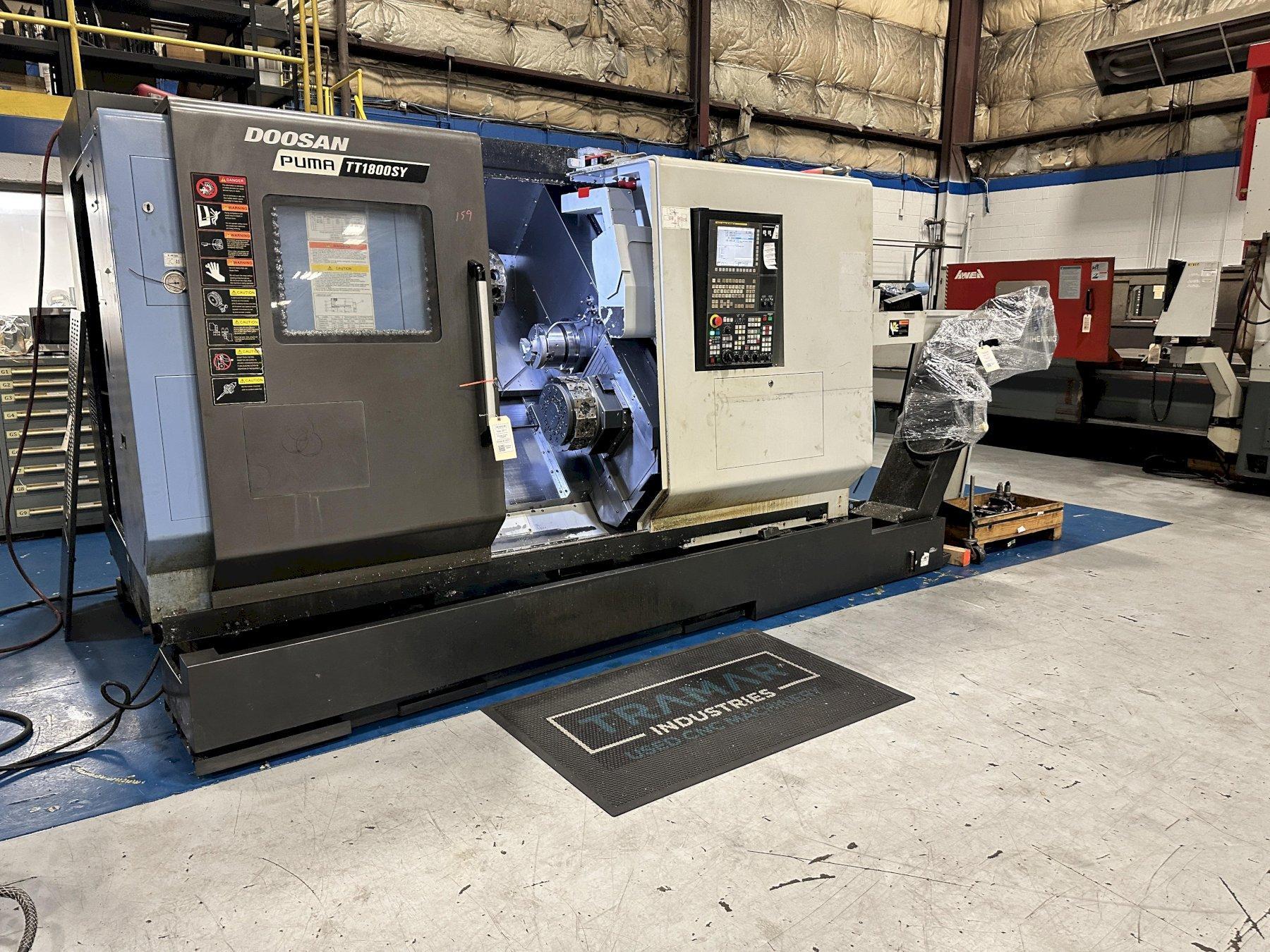

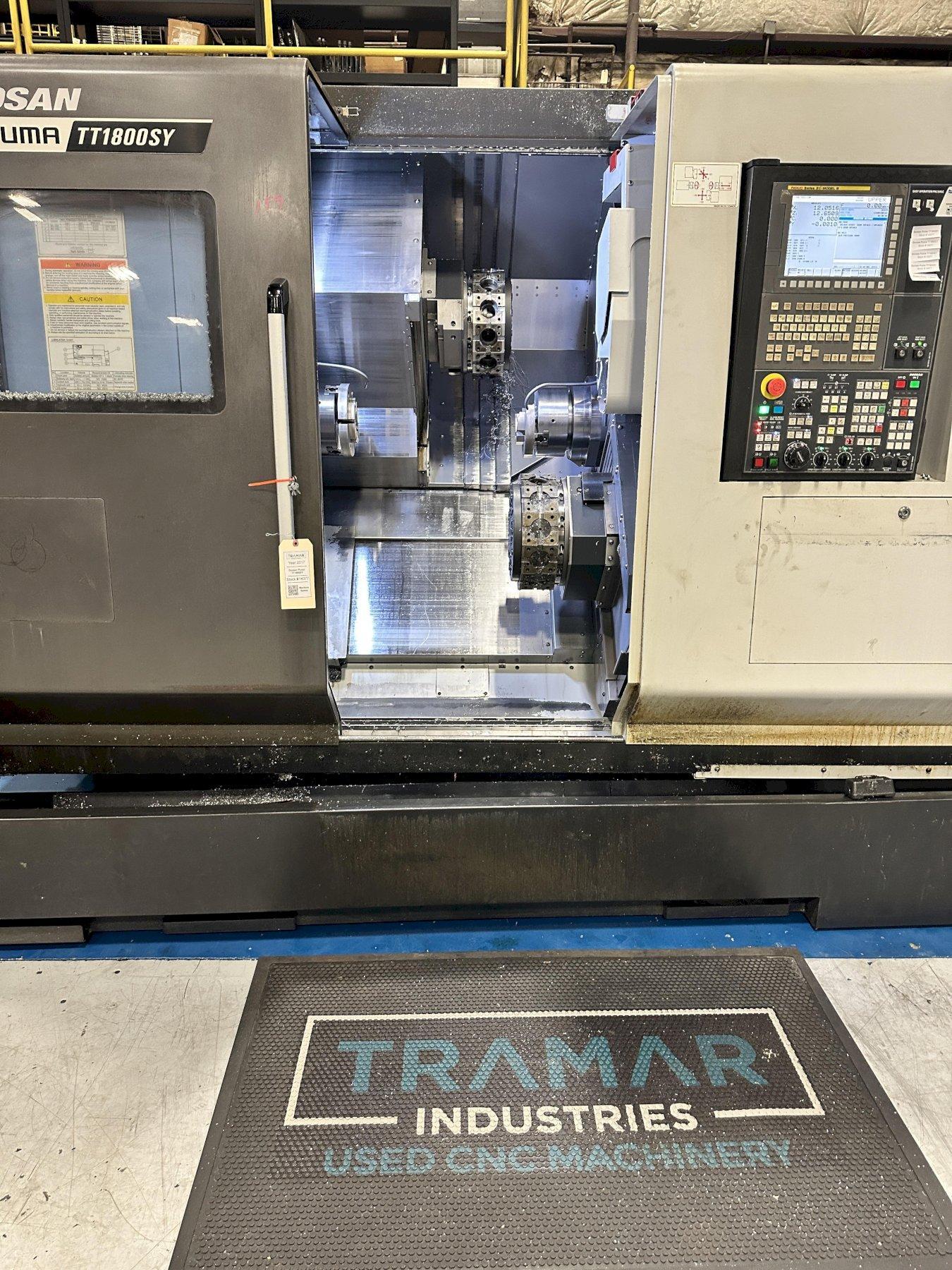

Doosan Puma TT1800SY Used CNC Twin Turret Twin Spindle CNC Lathe For Sale - 2017

Equipped With:

- Fanuc 31i-Model B CNC Control

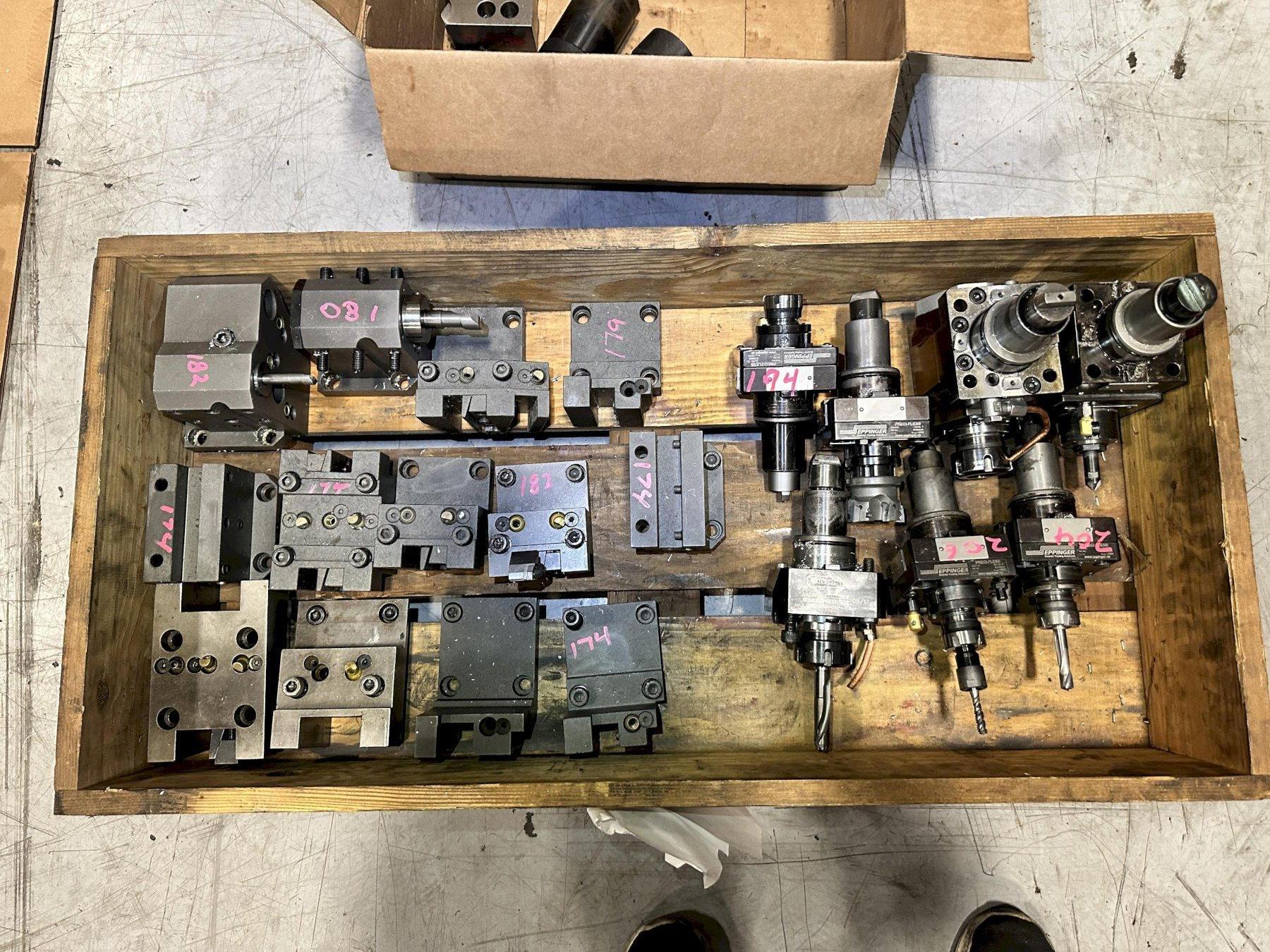

- 5,000 rpm Live Tooling

- Sub Spindle

- Y Axis

- Tool Presetter

- Parts Pickup, Ejector, and Conveyor for 2nd Spindle

- Chip Conveyor

- Coolant Tank
- Parts Catcher for Main Spindle (New-Not installed)

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 31i-Model B

# Axis

Swing

9.1"

Turning Diameter

9.1"

Center Distance

27.6"

Chuck Size

Bar Capacity

2.6"

X Axis Travel

6.5"

X2 Travel

7.5"

Y Axis Travel

3.9"

Z Axis Travel

27.6"

Z2 Travel

28.3"

B Axis Travel (Sub Spindle)

30.3"

C1/C2 Axis Index

0.001°

Rapid Traverse (X/Y/Z)

787/295/787 ipm

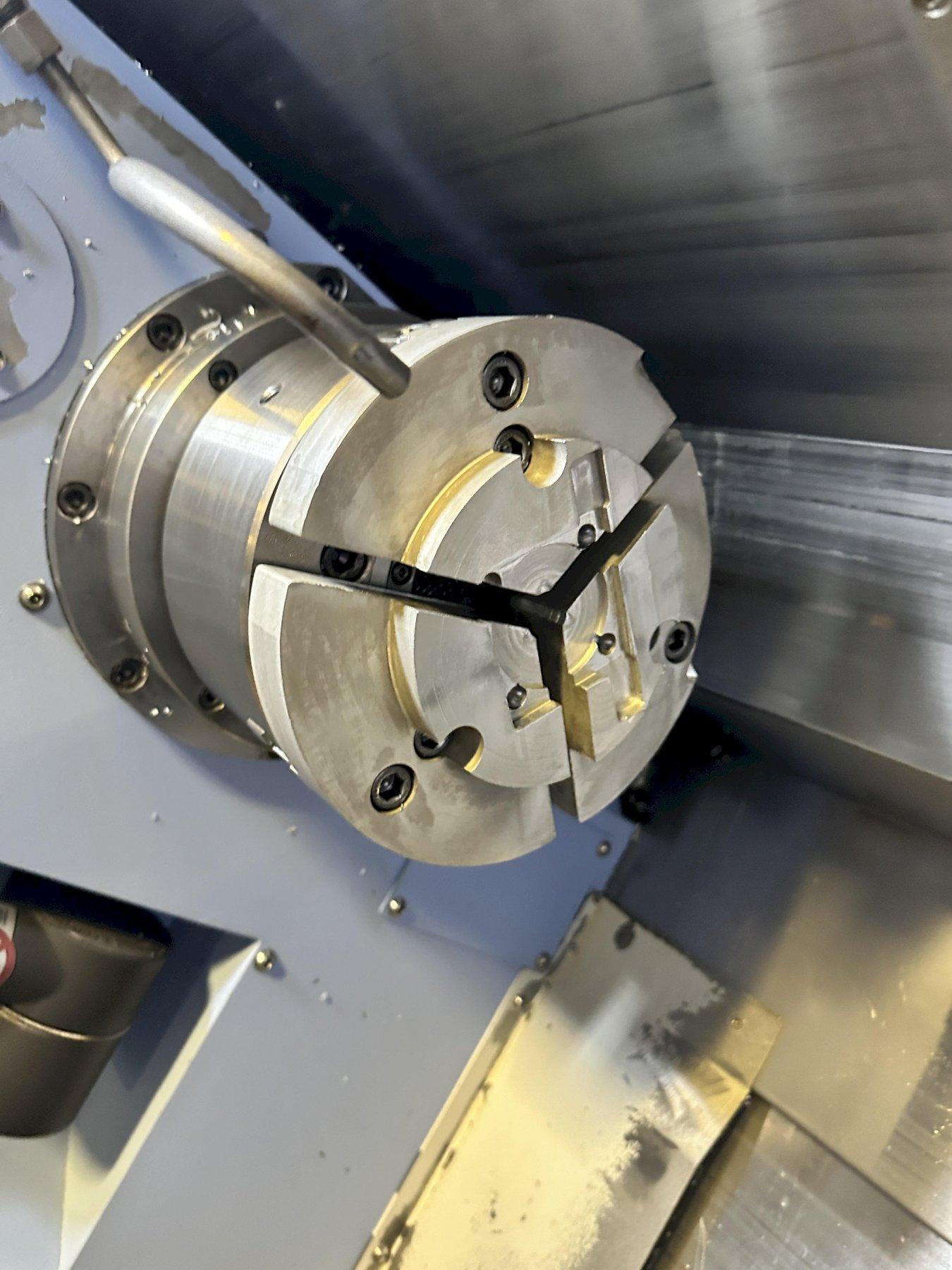

Spindle Nose

A2-6

Spindle Speed

5,000 rpm

Main Motor

25 hp

Tailstock

Y Axis

yes

Live Tooling

yes

Live Tooling Speed

5,000 rpm

Live Tooling Motor

7.5 hp

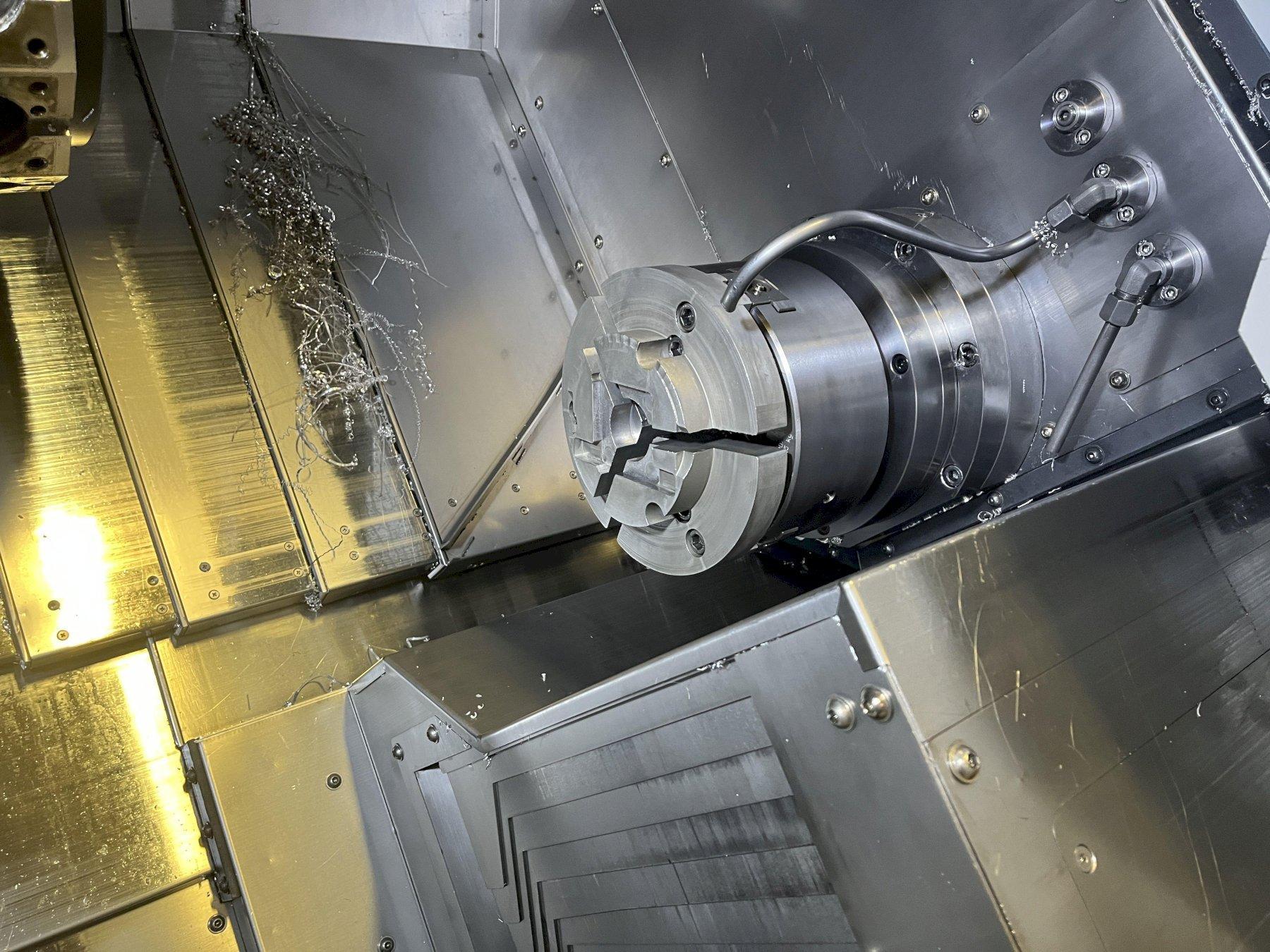

Sub Spindle

yes

Sub Spindle Chuck

Sub Spindle Bar Capacity

2.6"

Sub Spindle Nose

A2-6

Sub Spindle Speed

5,000 rpm

Sub Spindle Motor (HP)

25 hp

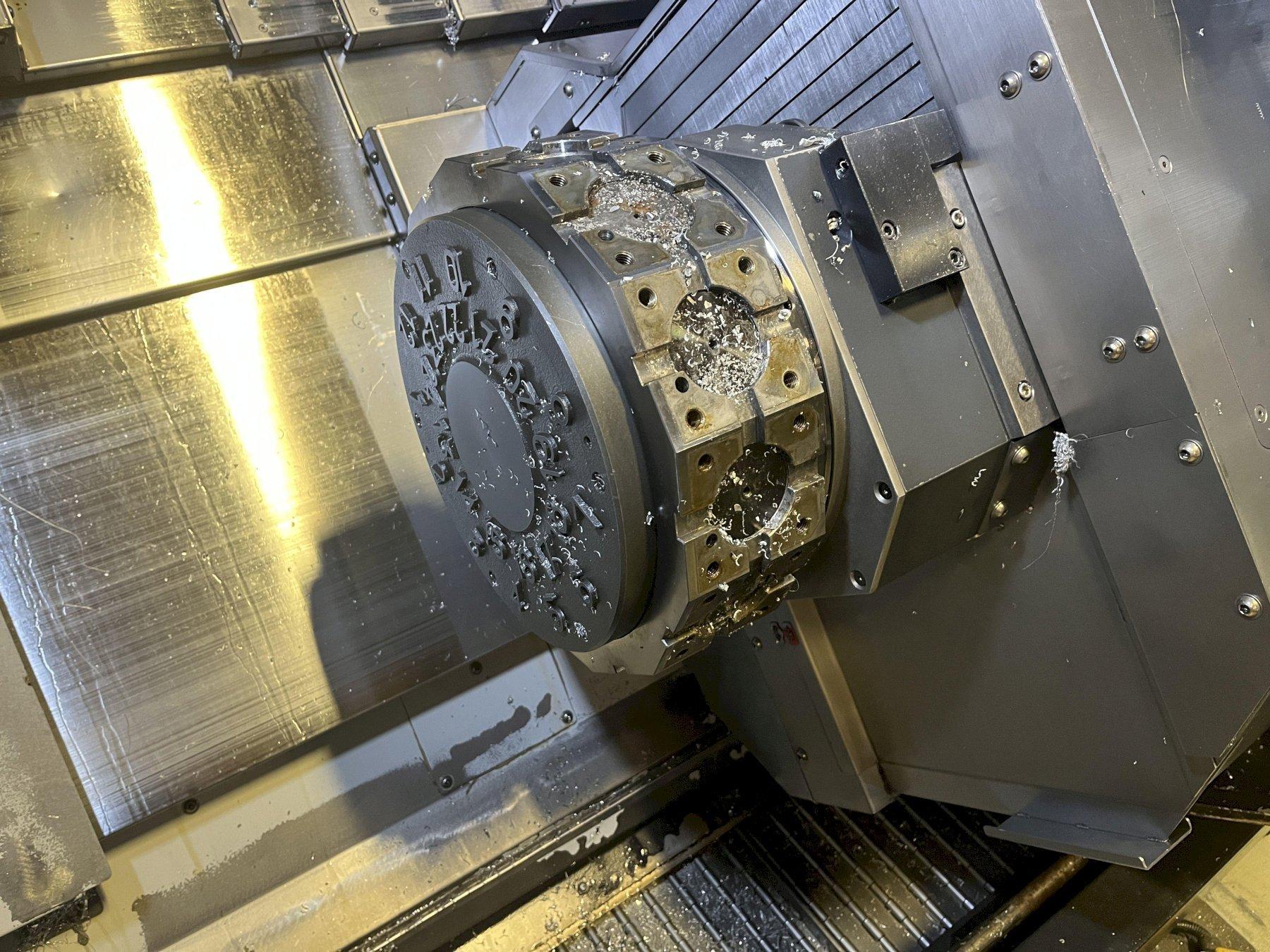

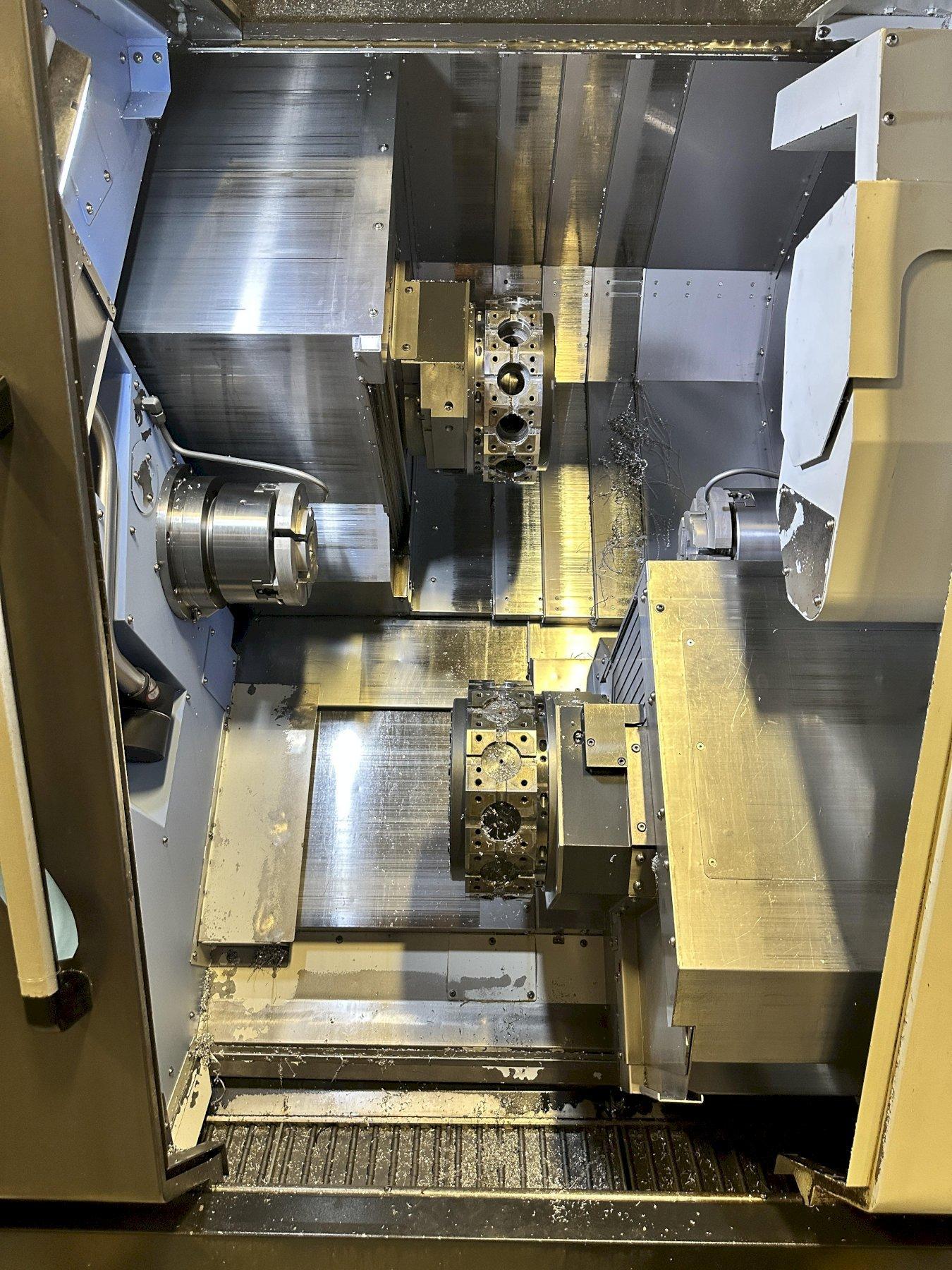

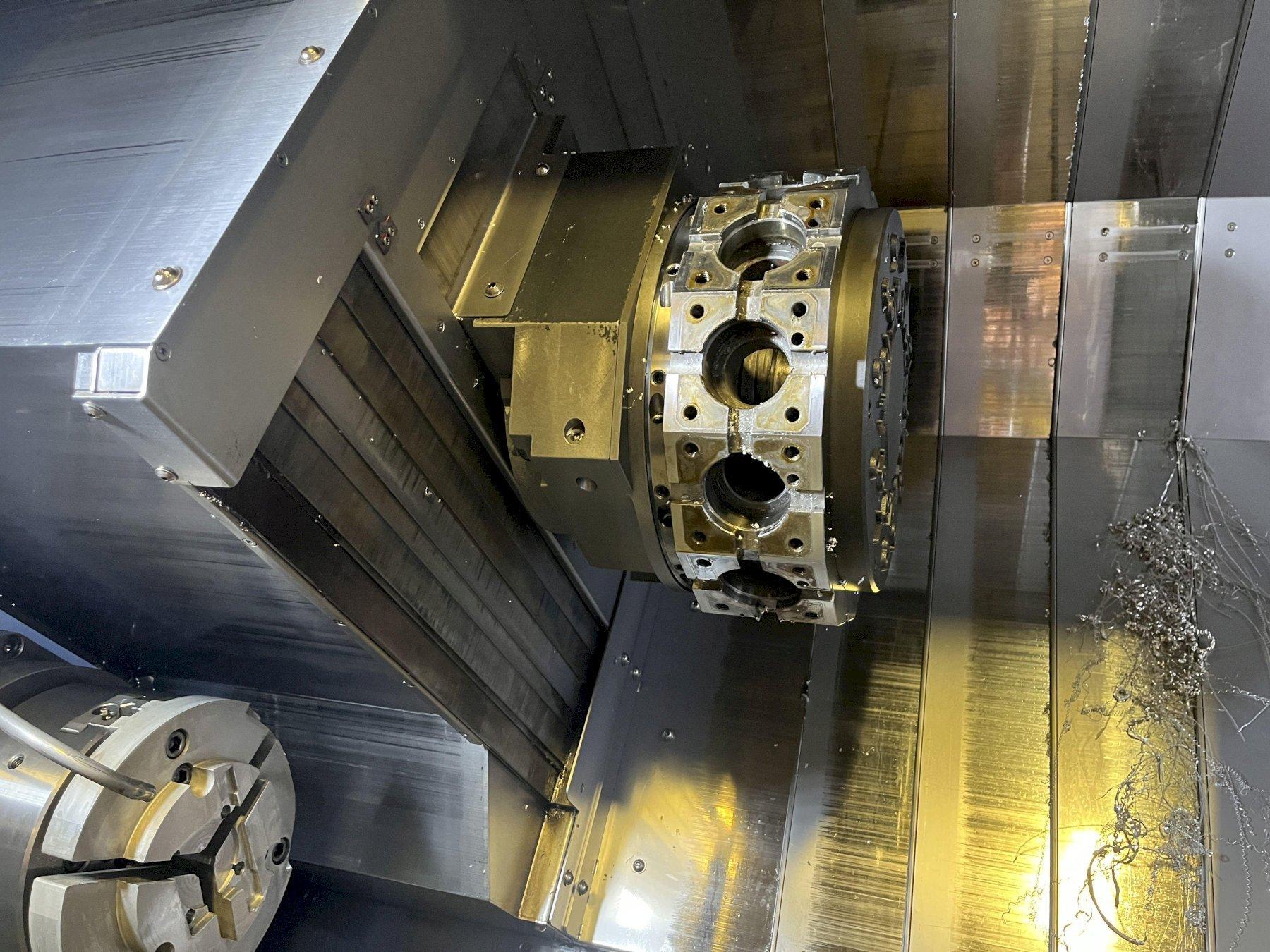

Turret Capacity

24+24

Machine Dimensions

158" x 85" x 82"

Machine Weight

20,000 pounds

Equipped With:

- Fanuc 31i-Model B CNC Control

- 5,000 rpm Live Tooling

- Sub Spindle

- Y Axis

- Tool Presetter

- Parts Pickup, Ejector, and Conveyor for 2nd Spindle

- Chip Conveyor

- Coolant Tank
- Parts Catcher for Main Spindle (New-Not installed)

The Doosan Puma TT1800SY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
