Doosan Puma 2600SY - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 2600SY
Year: 2012
Stock #: 15029
Highlights:

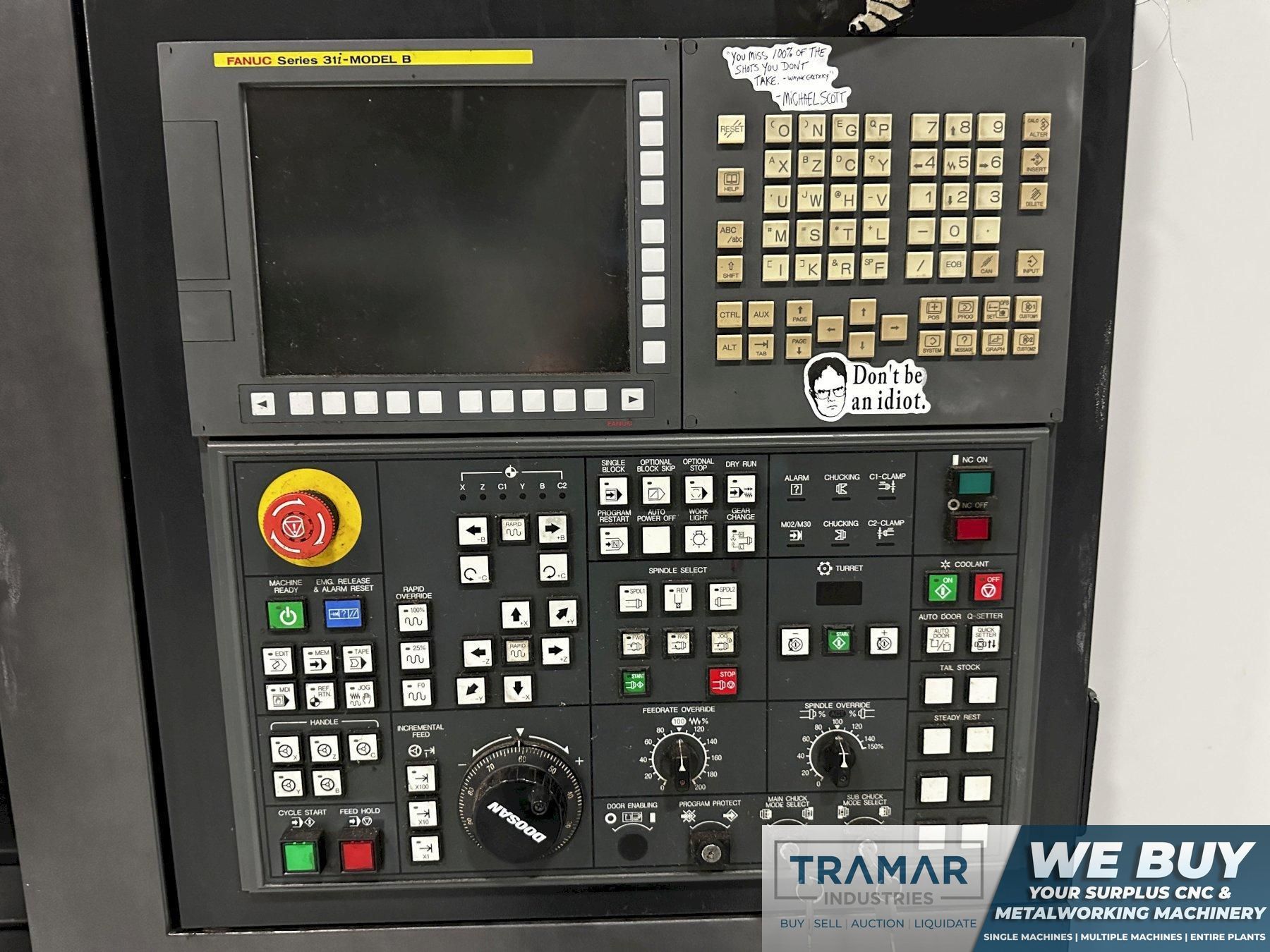

Fanuc 31i-Model A CNC Control
Live Tooling
Y Axis
Sub Spindle
Parts Catcher
Tool Presetter

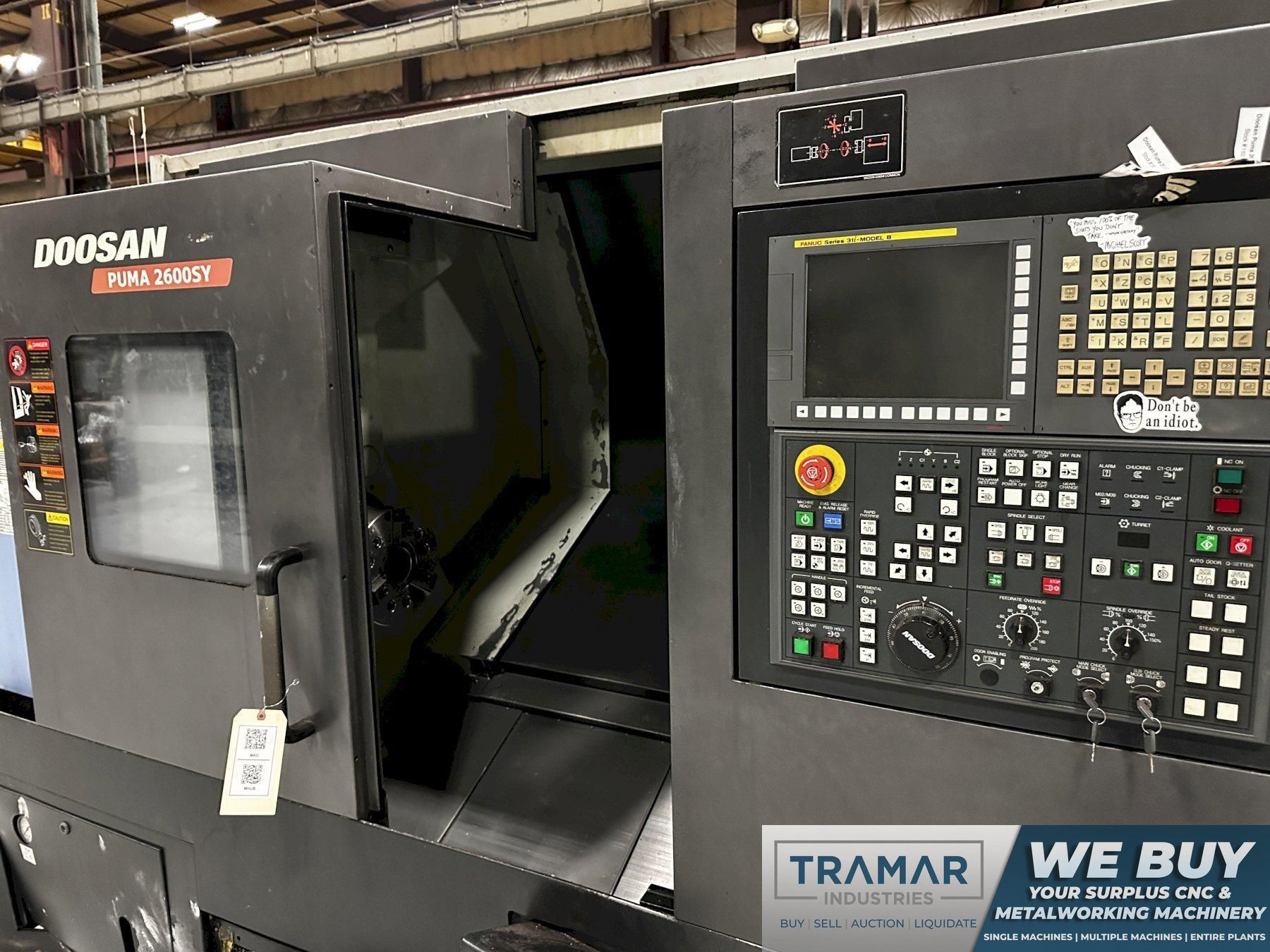

2012 Doosan Puma 2600SY CNC Lathe For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-Model A
# Axis
6
Swing
30.7"
Turning Diameter
14.8"
Center Distance
29.9"
Chuck Size
10"
Bar Capacity
3"
X Axis Travel
10.2"
Y Axis Travel
4.1"
Z Axis Travel
32.7"
B Axis Travel (Sub Spindle)
32.7"
C1/C2 Axis Index
0.001°
Rapid Traverse (X/Y/Z)
1,181/394/1,181 ipm
Spindle Nose
A2-11
Spindle Speed
2,800 rpm
Main Motor
30 hp
Tailstock
no
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
5,000 rpm
Live Tooling Motor
7 hp

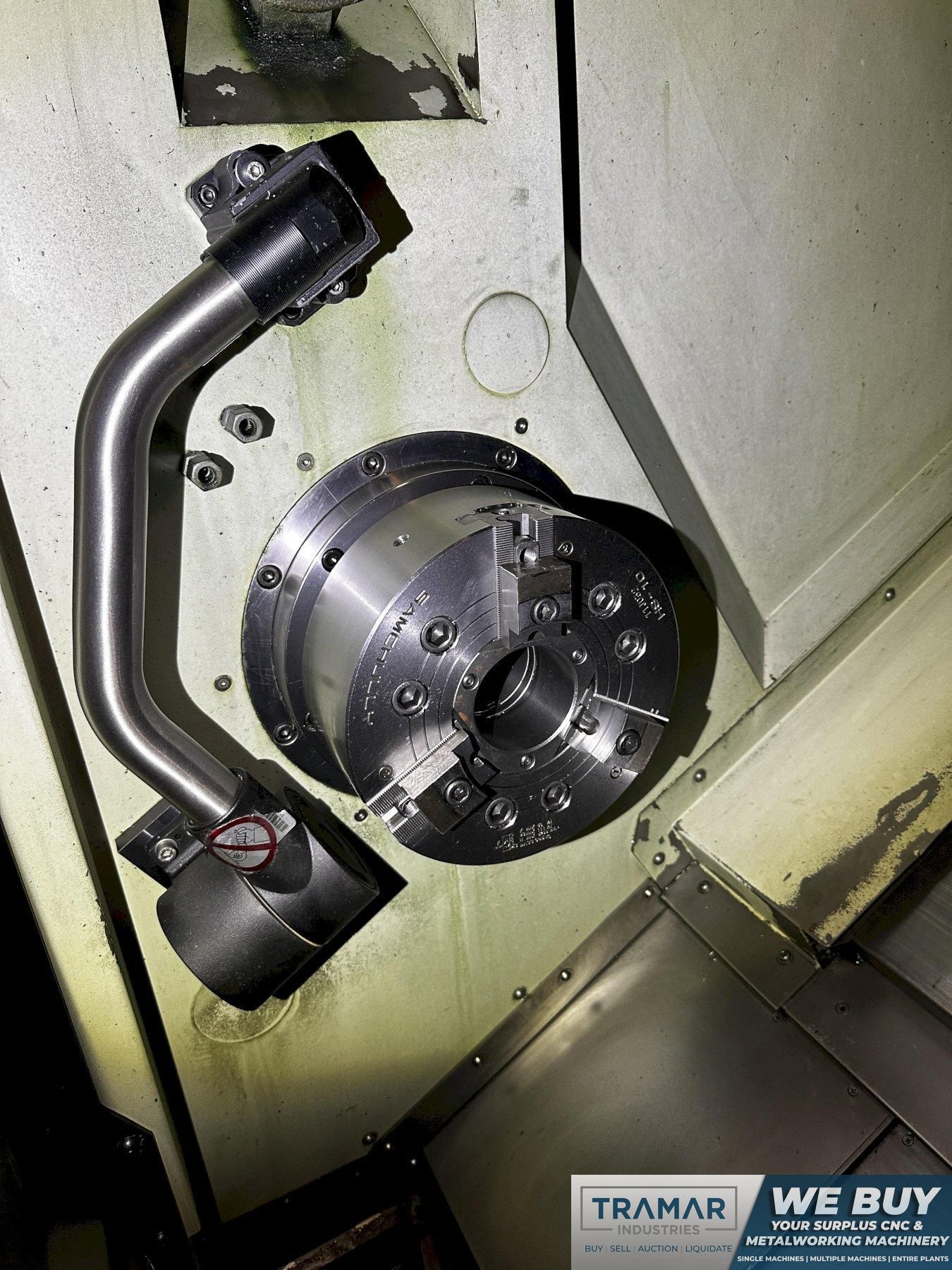

Sub Spindle
yes
Sub Spindle Chuck
8"
Sub Spindle Bar Capacity
2.4"
Sub Spindle Nose
A2-5
Sub Spindle Speed
4,500 rpm
Sub Spindle Motor (HP)
10 hp
Turret Capacity
24
Machine Dimensions
145" x 74" x 86"
Machine Weight
16,500 pounds

Equipped With:

- Fanuc 31i-Model A CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Parts Catcher
- Tool Presetter
- Auto Tool Length Measurement
- Live Tooling
- Sub Spindle
- Y Axis
- Manual Guide i
- Embedded Ethernet
- Rigid Tapping
- Custom Macro B
- Tool Geometry/Wear Offset
- Graphic Function
- AI Contour Control I

The Doosan Puma 2600SY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
