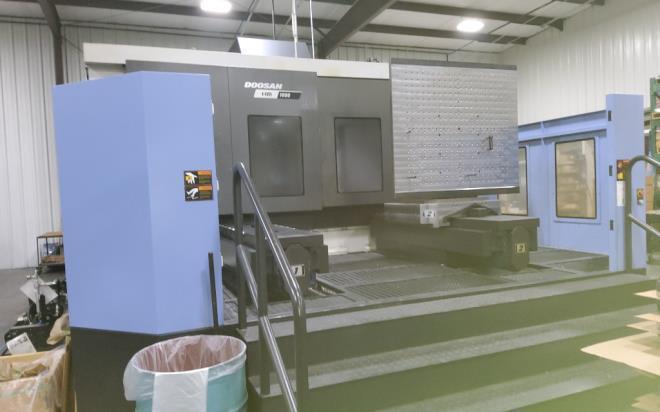

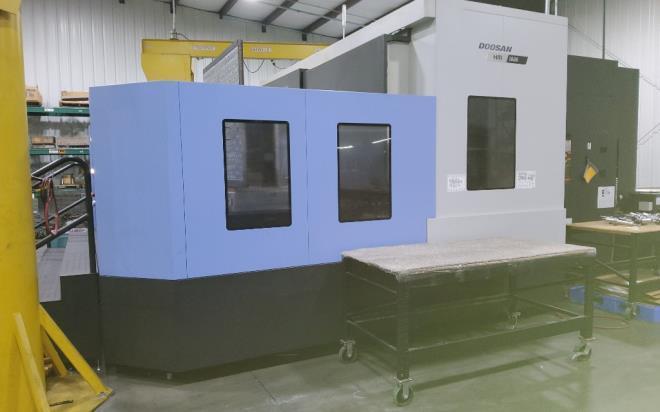

Doosan HM 1000 - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: HM 1000
Year: 2019
Stock #: KF41121
Yes
Highlights:

Doosan HM 1000 Used CNC Horizontal Machining Center For Sale - 2019
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i
# Axis
4

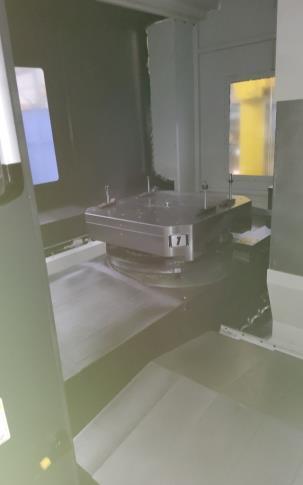

Pallet Length
39.4"
Pallet Width
39.4"
Pallet Load Capacity
6,613 pounds
Pallet Indexing (B-Axis)
X-Axis Travel
82.7"
Y-Axis Travel
49.2"
Z-Axis Travel
49.2"
Rapid Traverse Rate (X/Y/Z)
945 ipm
Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Spindle Motor (HP)
35 hp

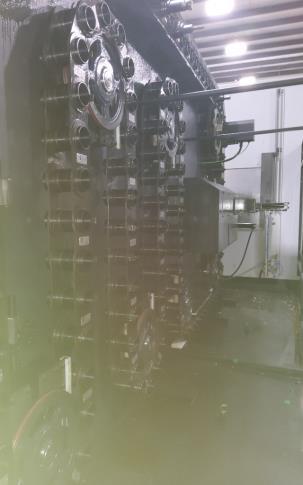

Tool Changer Capacity
120
Coolant Through Spindle
yes
Machine Dimensions
380" x 230" x 153"
Machine Weight
64,000 pounds

Equipped With:

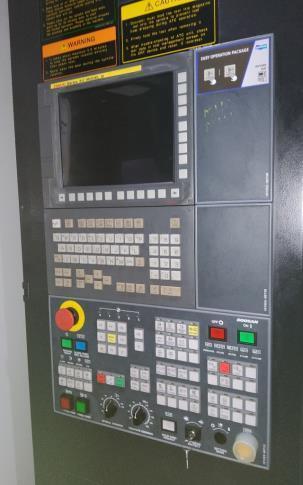

- Fanuc 31i CNC Control
- High Pressure Coolant Thru Spindle

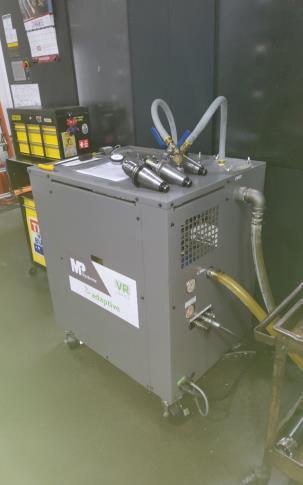

- MP Coolant Systems
- Chip Conveyor

The Doosan HM 1000 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
