Doosan DHP-400 - Horizontal Machining Centers

Request Quote

Share Machine

Specifications Print Specs

Model: DHP-400

Year: 2005

Stock #: 14213

Type: Horizontal Machining Centers

Manufacturer: Used Doosan Machines

Highlights:

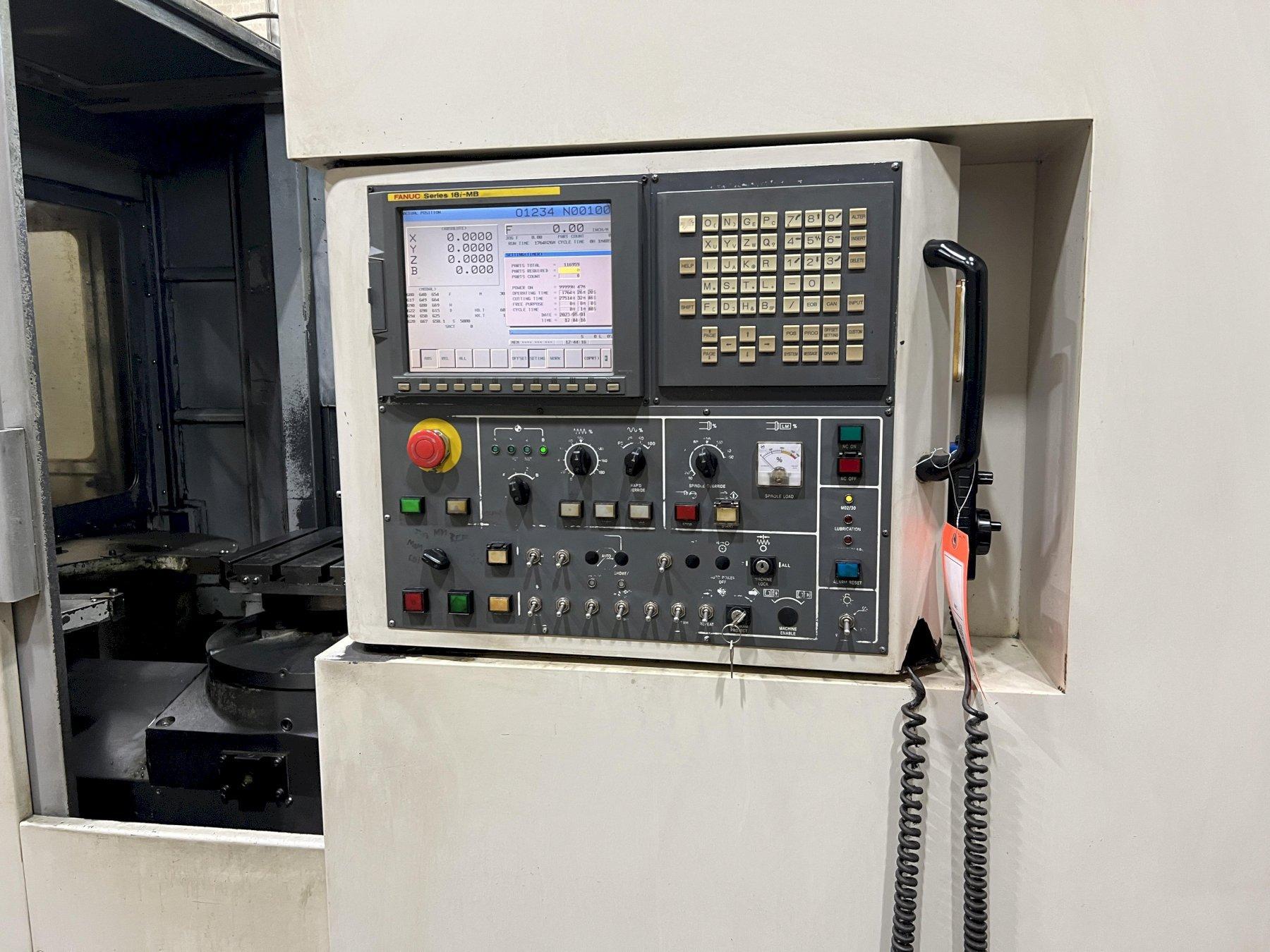

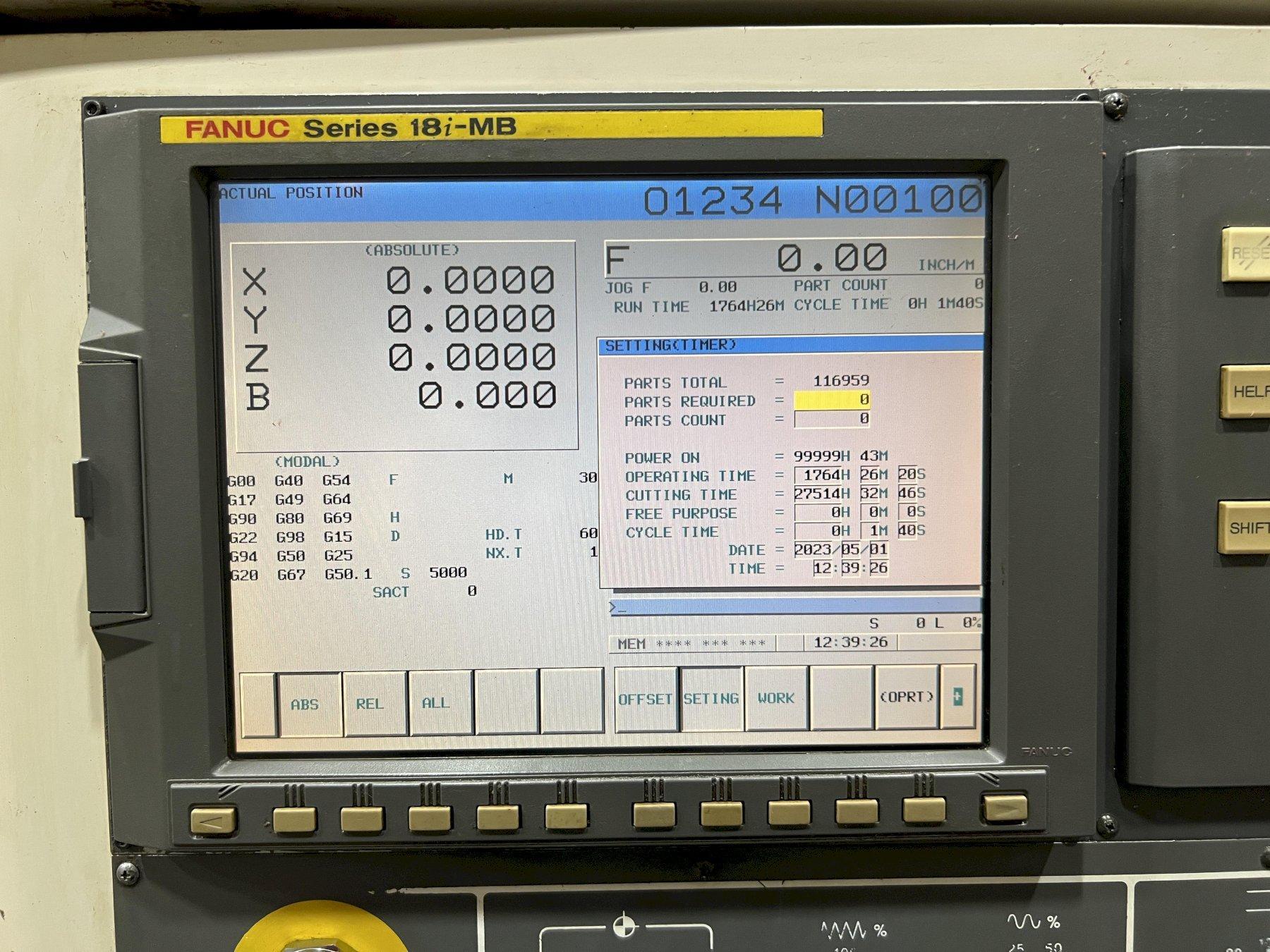

Fanuc 18i-MB CNC Control
Coolant Thru Spindle (290 psi)
Chip Conveyor & Coolant Tanks

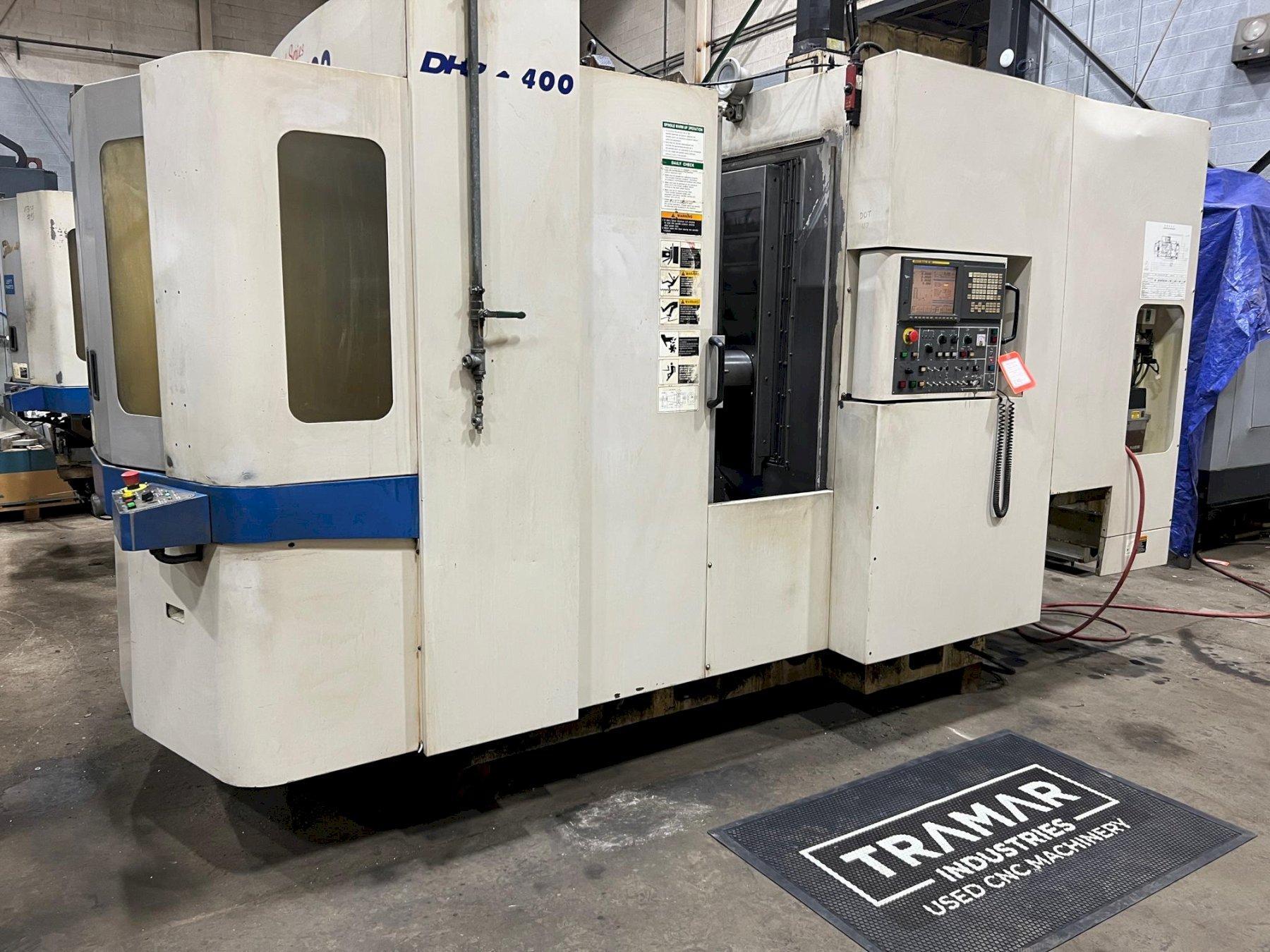

Doosan DHP 400 CNC Horizontal Machining Center For Sale - 2005

Equipped With:

- Fanuc 18i-MB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Chiller

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 18iMB

# Axis

Pallet Length

15.75"

Pallet Width

15.75"

Pallet Load Capacity

880 pounds

Pallet Indexing (B-Axis)

1°

X-Axis Travel

23.6"

Y-Axis Travel

22.05"

Z-Axis Travel

23.6"

Rapid Traverse Rate (X/Y/Z)

2,362 ipm

Spindle Taper

CAT 40

Spindle Speed

14,000 rpm

Spindle Motor

30 HP

Tool Changer Capacity

Coolant Through Spindle

yes

Machine Weight

27,000 pounds

Equipped With:

- Fanuc 18i-MB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Chiller

The Doosan DHP-400 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
