Doosan DHP-4000 - Horizontal Machining Centers

Request Quote

Share Machine

Specifications Print Specs

Model: DHP-4000

Year: 2006

Stock #: 14212

Type: Horizontal Machining Centers

Manufacturer: Used Doosan Machines

Highlights:
Fanuc 18i-MB CNC Control
Coolant Thru Spindle (290 psi)
Chip Conveyor & Coolant Tanks

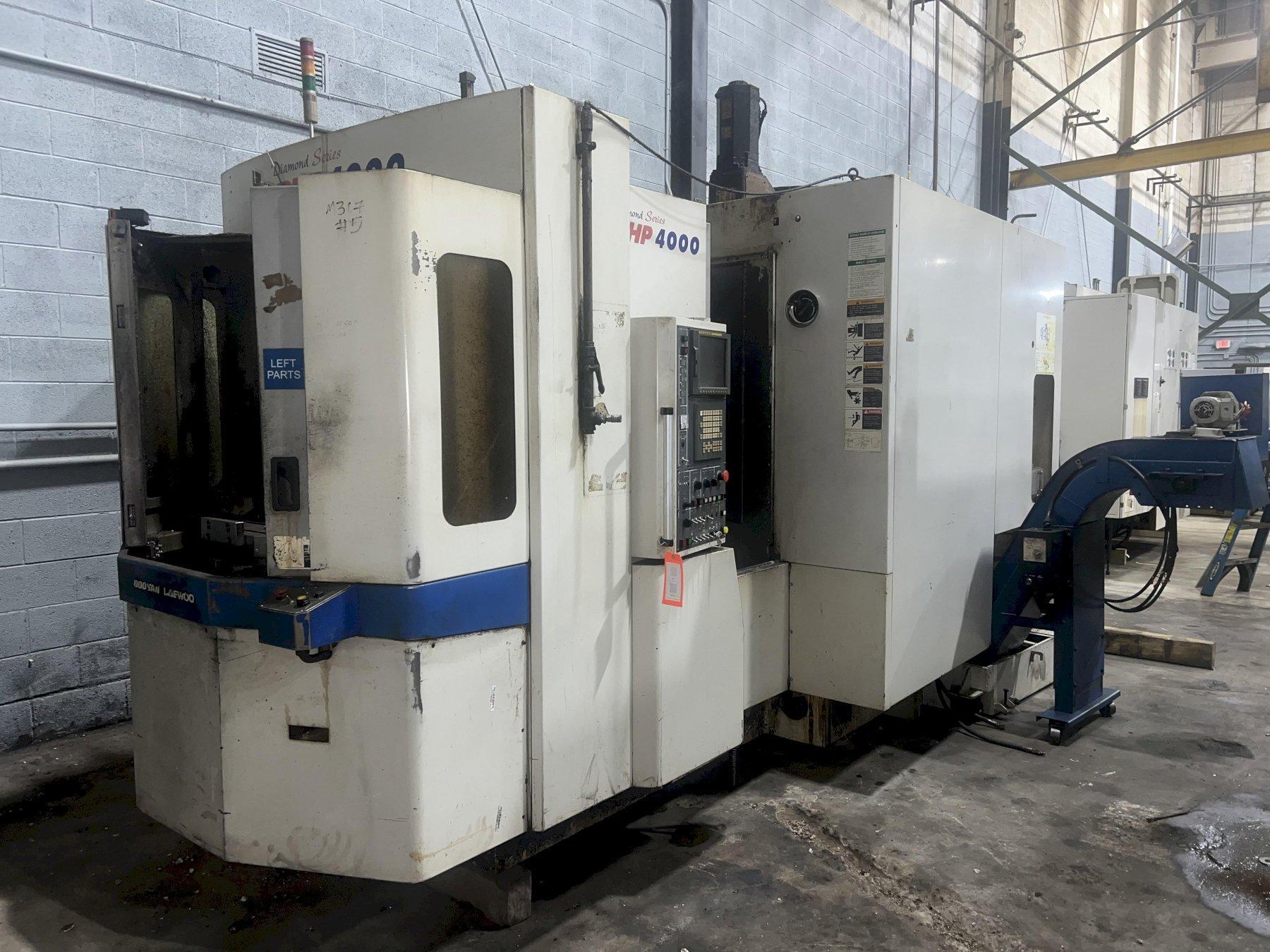

Doosan DHP 4000 CNC Horizontal Machining Center For Sale - 2006

Equipped With:

- Fanuc 18i-MB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 18i-MB

# Axis

Pallet Length

15.75"

Pallet Width

15.75"

Pallet Load Capacity

880 pounds

Pallet Indexing (B-Axis)

1°

X-Axis Travel

23.6"

Y-Axis Travel

22.05"

Z-Axis Travel

23.6"

Rapid Traverse Rate (X/Y/Z)

2,362

Spindle Taper

CAT 40

Spindle Speed

14,000 rpm

Spindle Motor

30 HP

Tool Changer Capacity

Machine Weight

27,000 pounds

Equipped With:

- Fanuc 18i-MB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Spindle Chiller

The Doosan DHP-4000 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
