Doosan Daewoo Puma 400LC - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 400LC
Year: 2006
Stock #: 14512
Highlights:

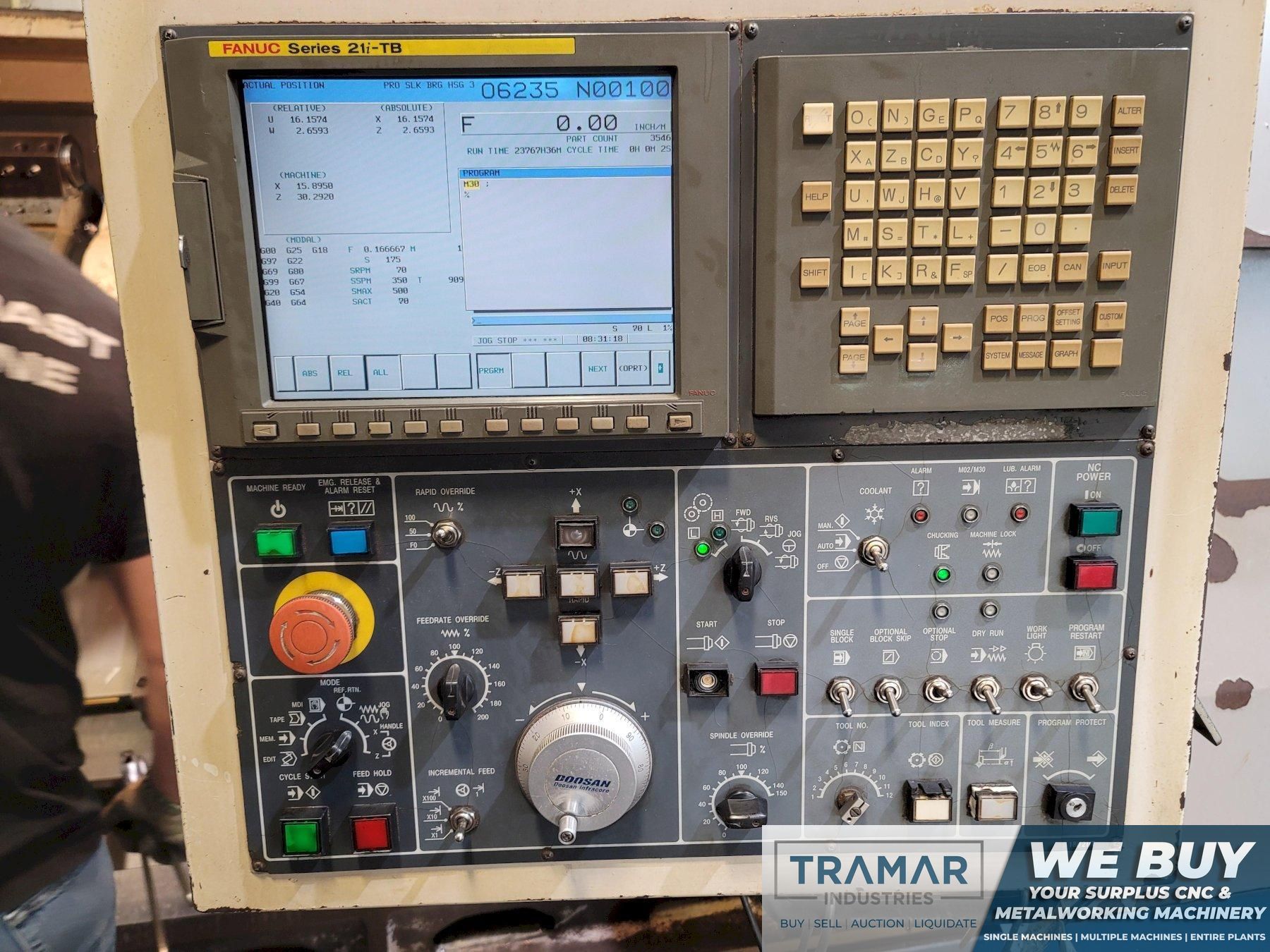

Fanuc 21i-TB CNC Control
86" Center Distance | 7.3" Bore

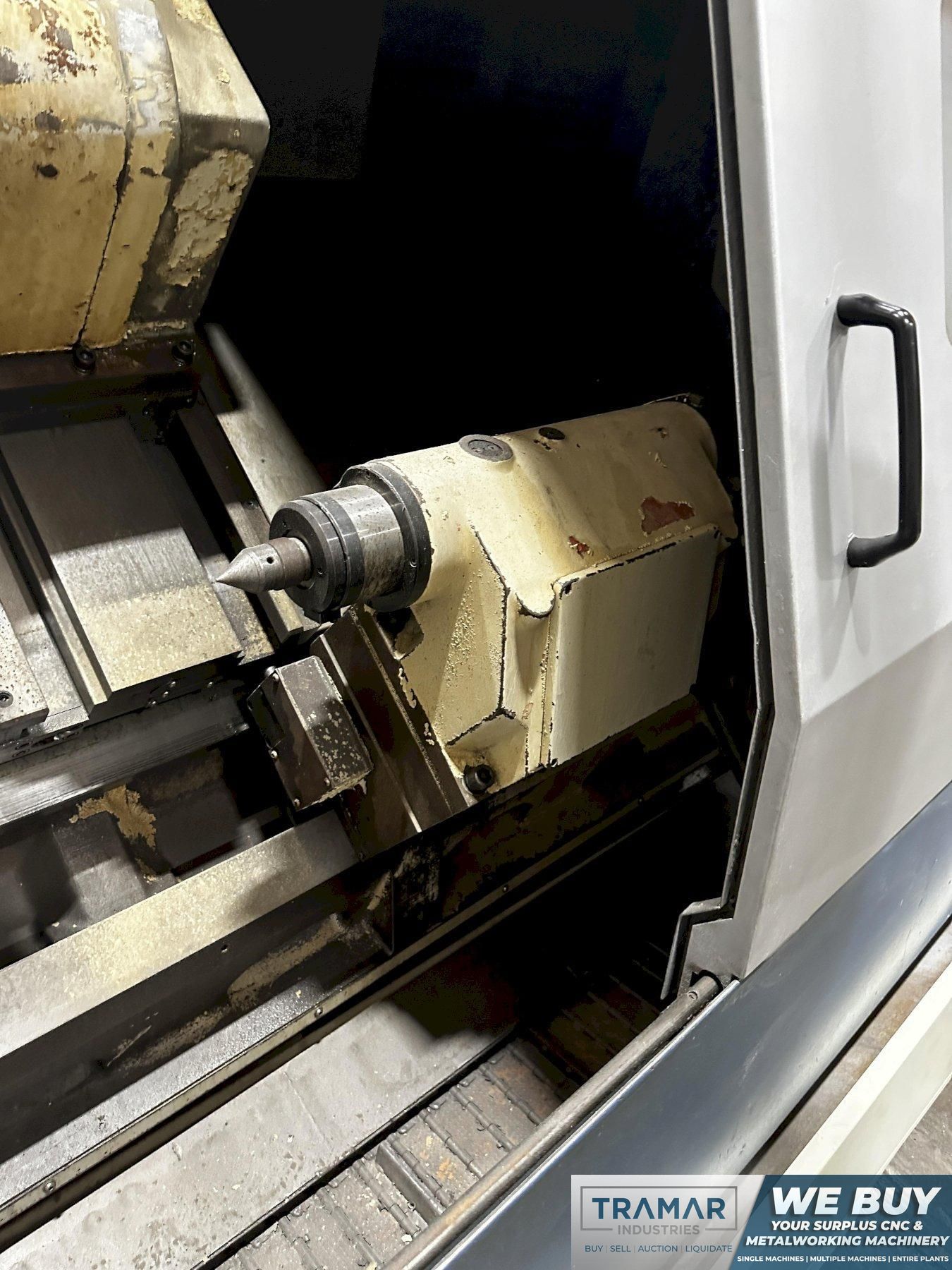

Tailstock

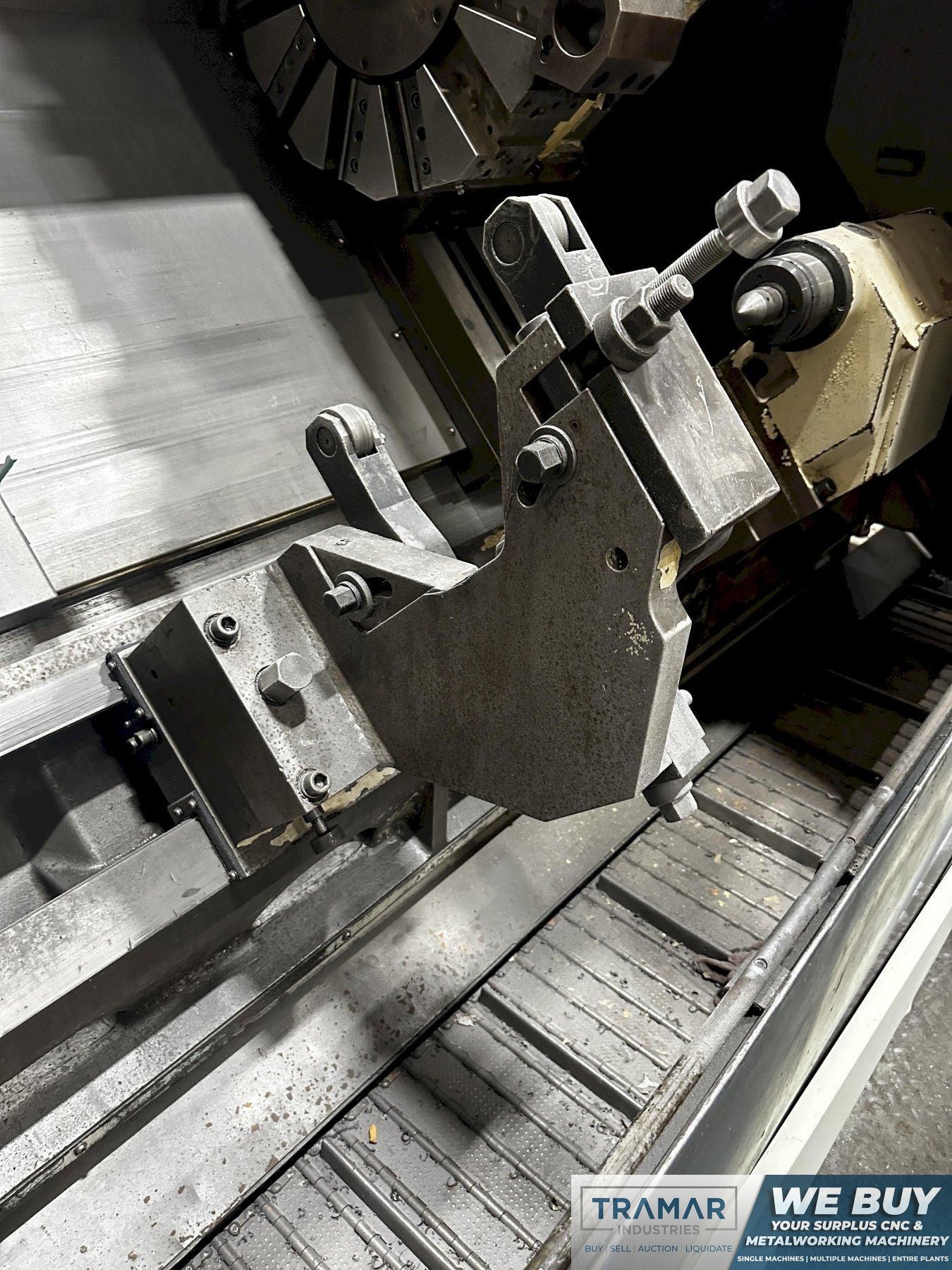

Manual Steady Rest

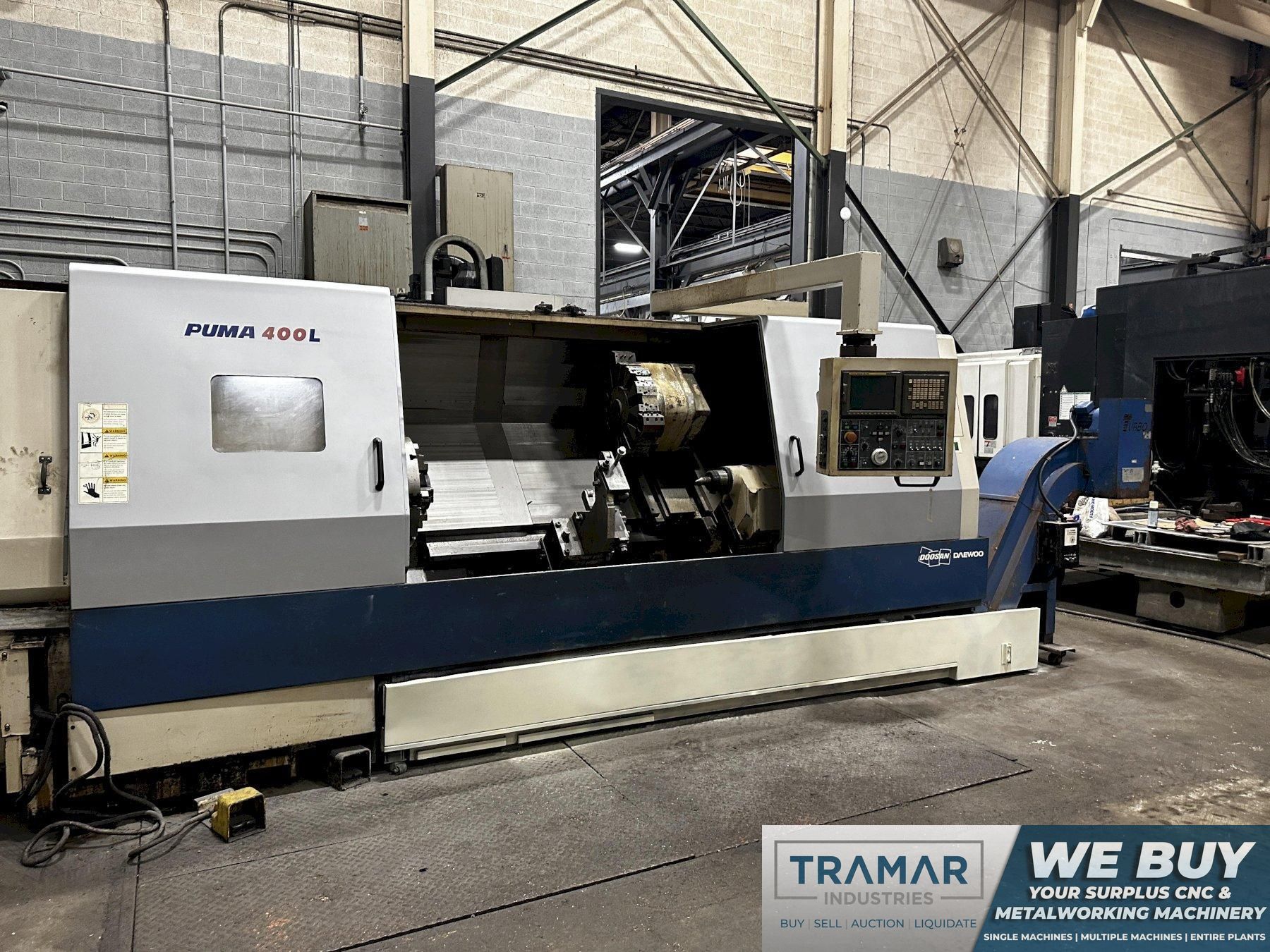

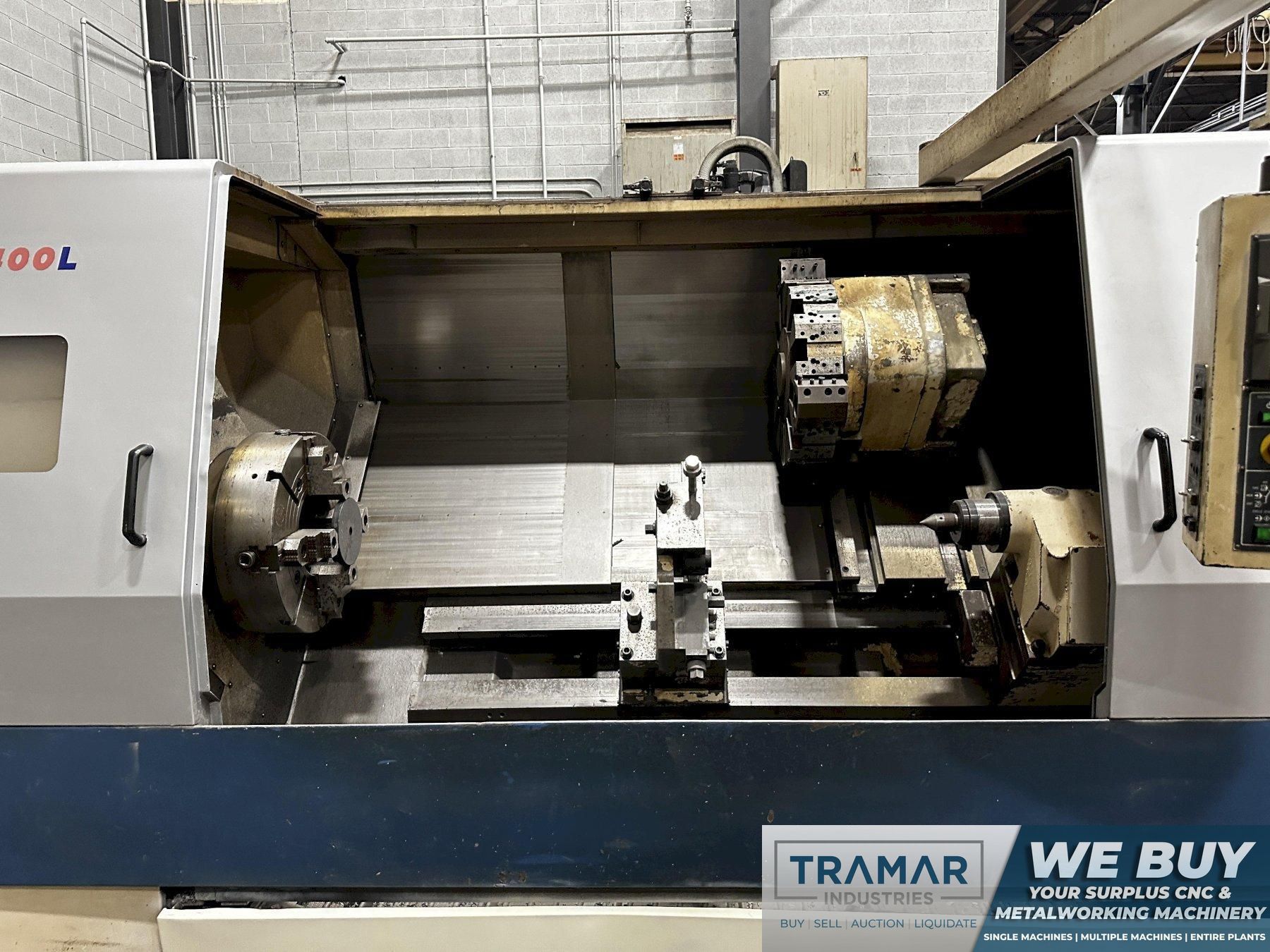

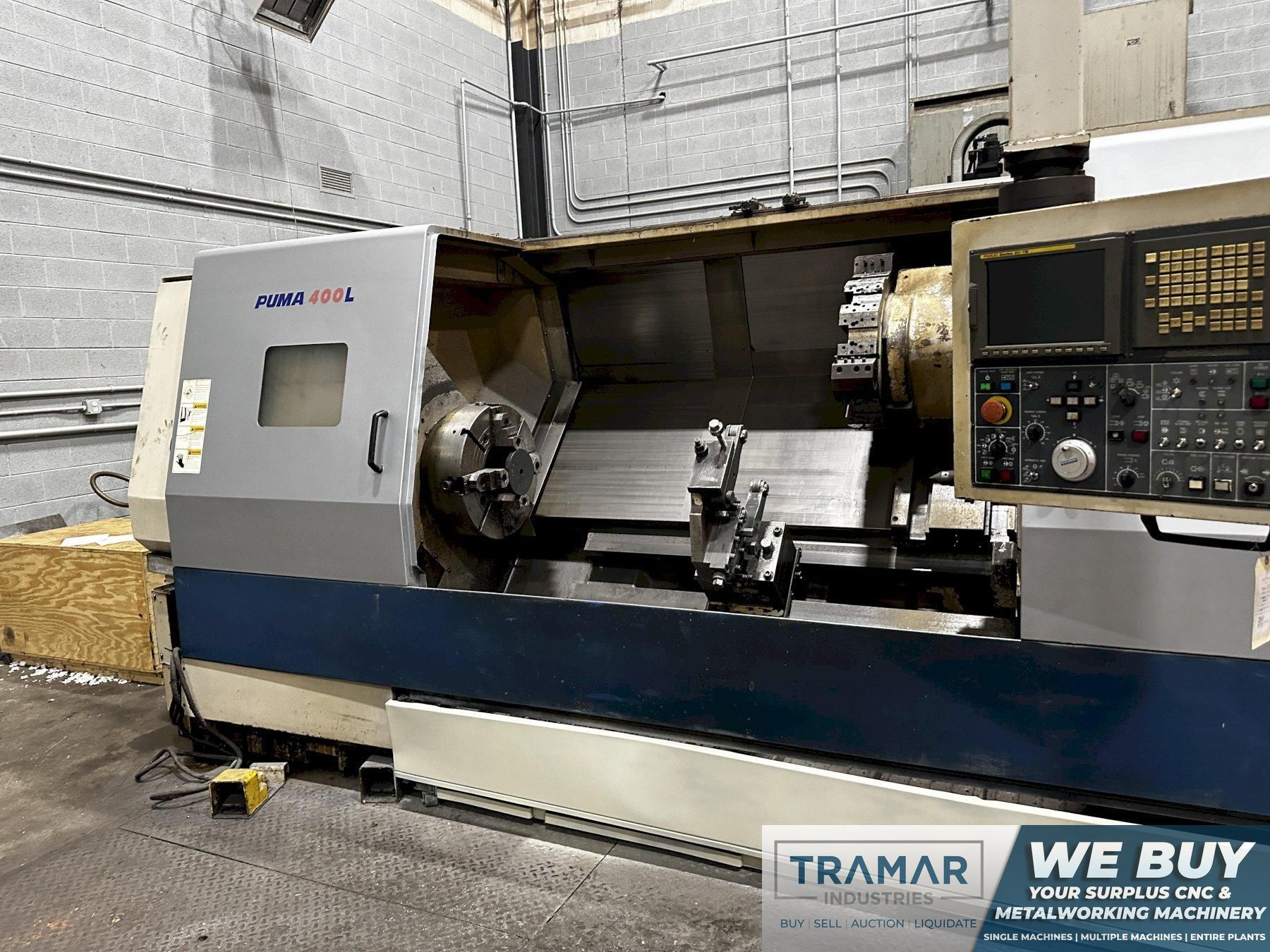

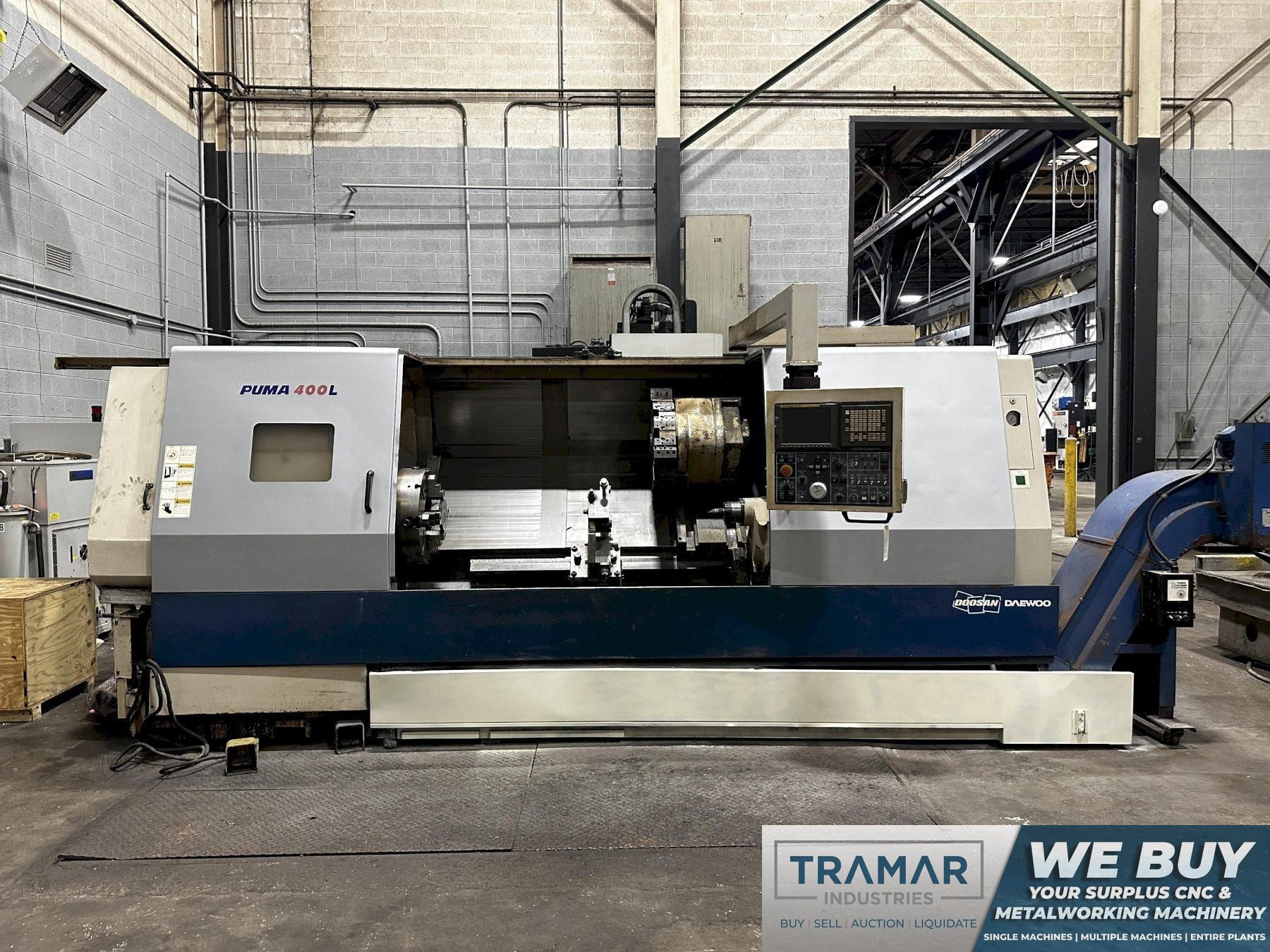

Doosan Daewoo Puma 400LC CNC Lathe For Sale - 2006
Machine Specifications
CNC Control
yes
Control Type
Fanuc 21i-TB
# Axis
2
Swing
27.56"
Turning Diameter
21.7"
Center Distance
86"
Chuck Size
21
Bar Capacity
7.3"
X-Axis Travel
14.25"
Z-Axis Travel
84.8"
Spindle Nose
A2-11
Spindle Speed
1,500 rpm
Main Motor
40 hp

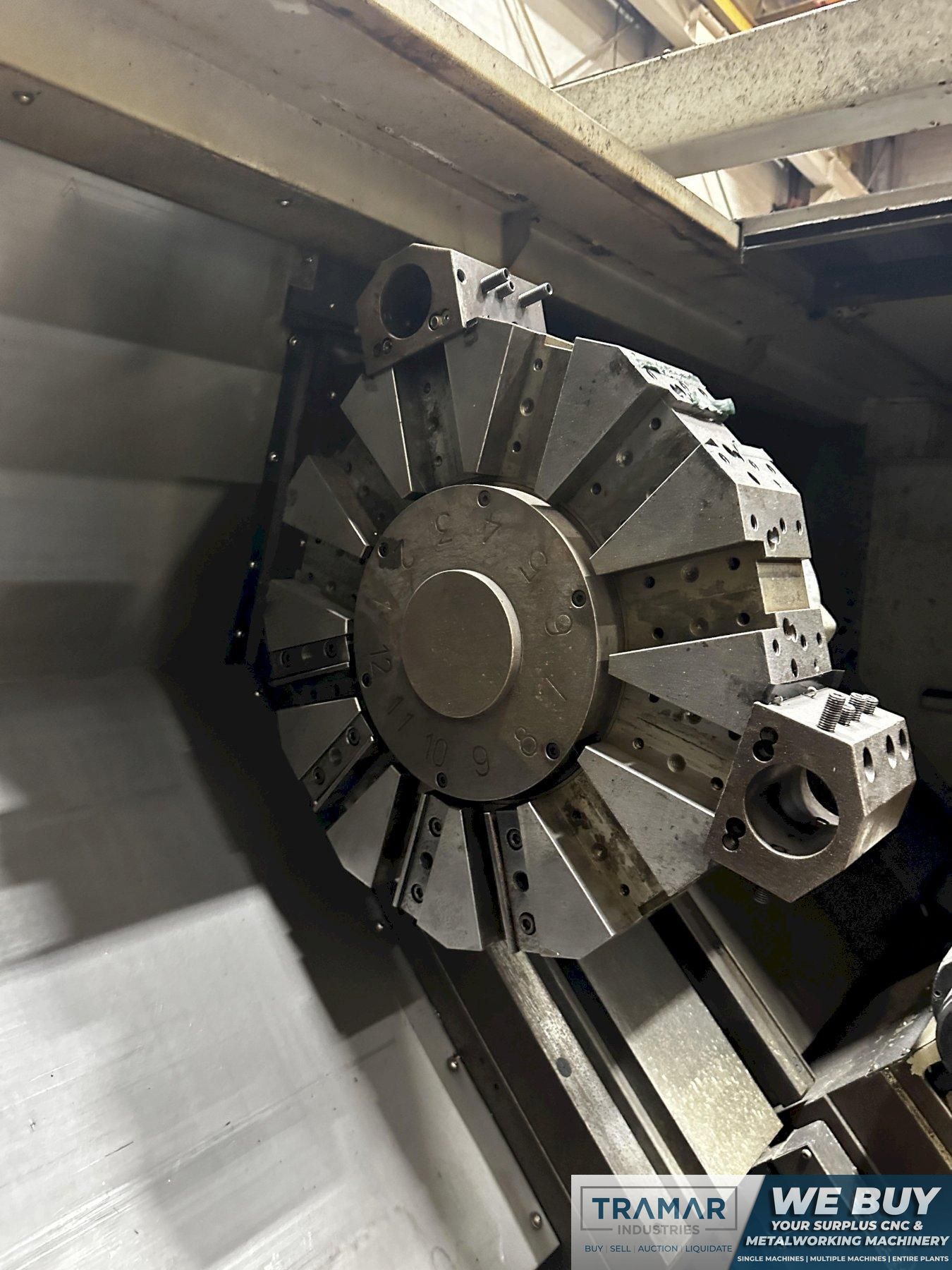

Turret Capacity
12
Tailstock (Yes/No)
yes
Live Tooling
no
Y Axis (Yes / No)
no
Sub Spindle
no
Machine Weight
23,100 pounds

Equipped With:

- Fanuc 21i-TB CNC Control

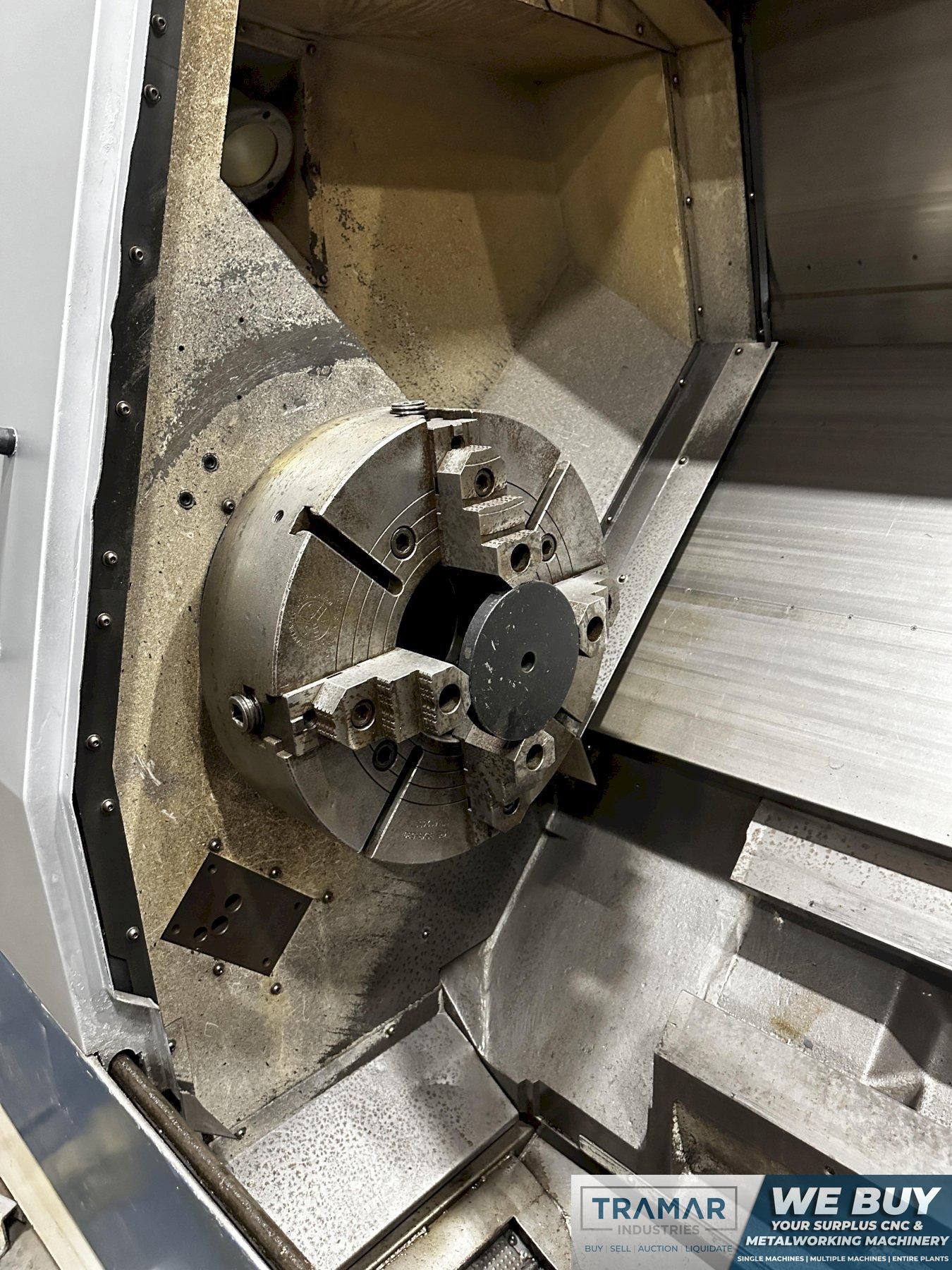

- 21" 4-Jaw Manual Chuck (No Hydraulic Actuator)
- Chip Conveyor
- Coolant Tank & Pumps

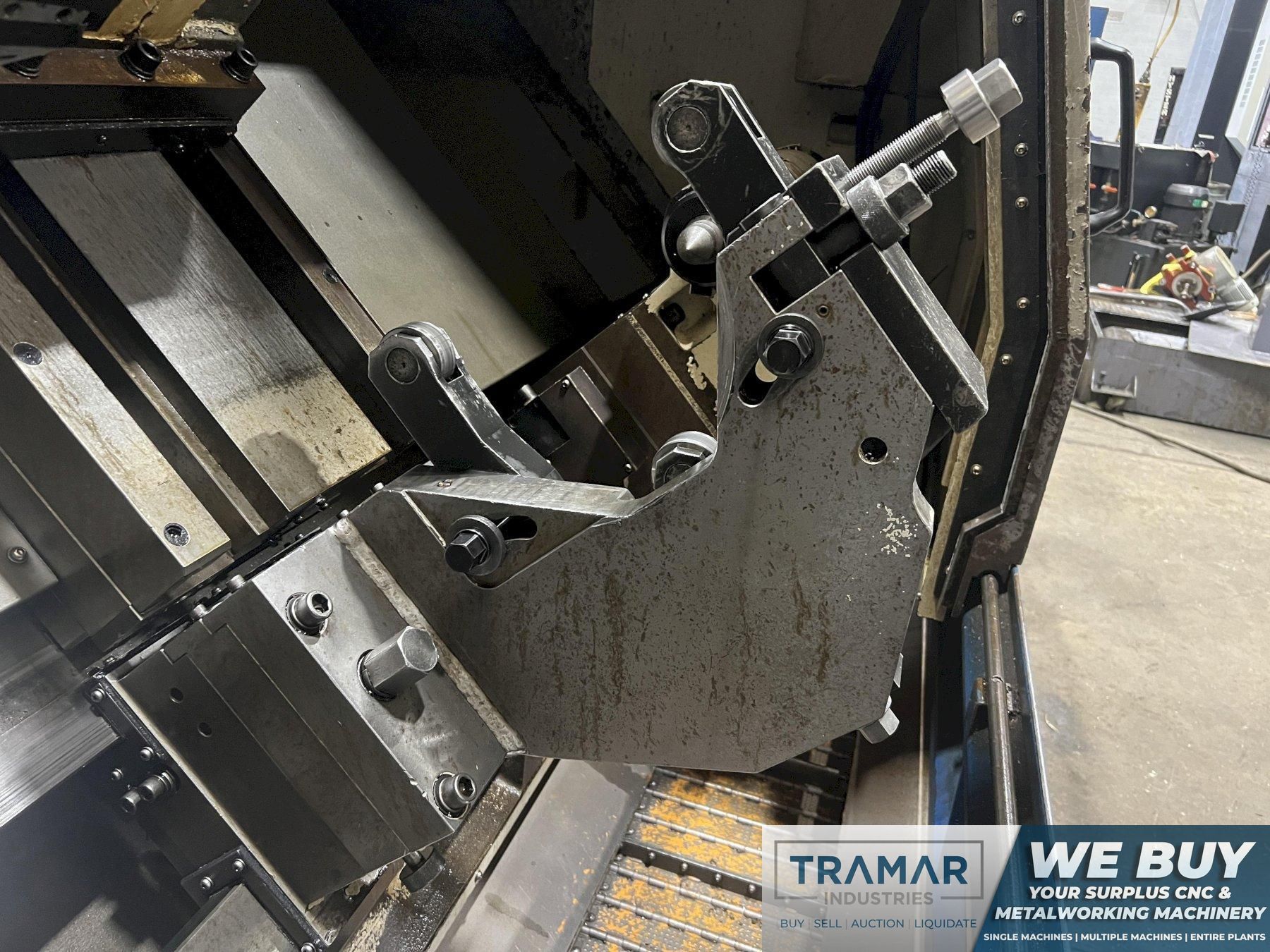

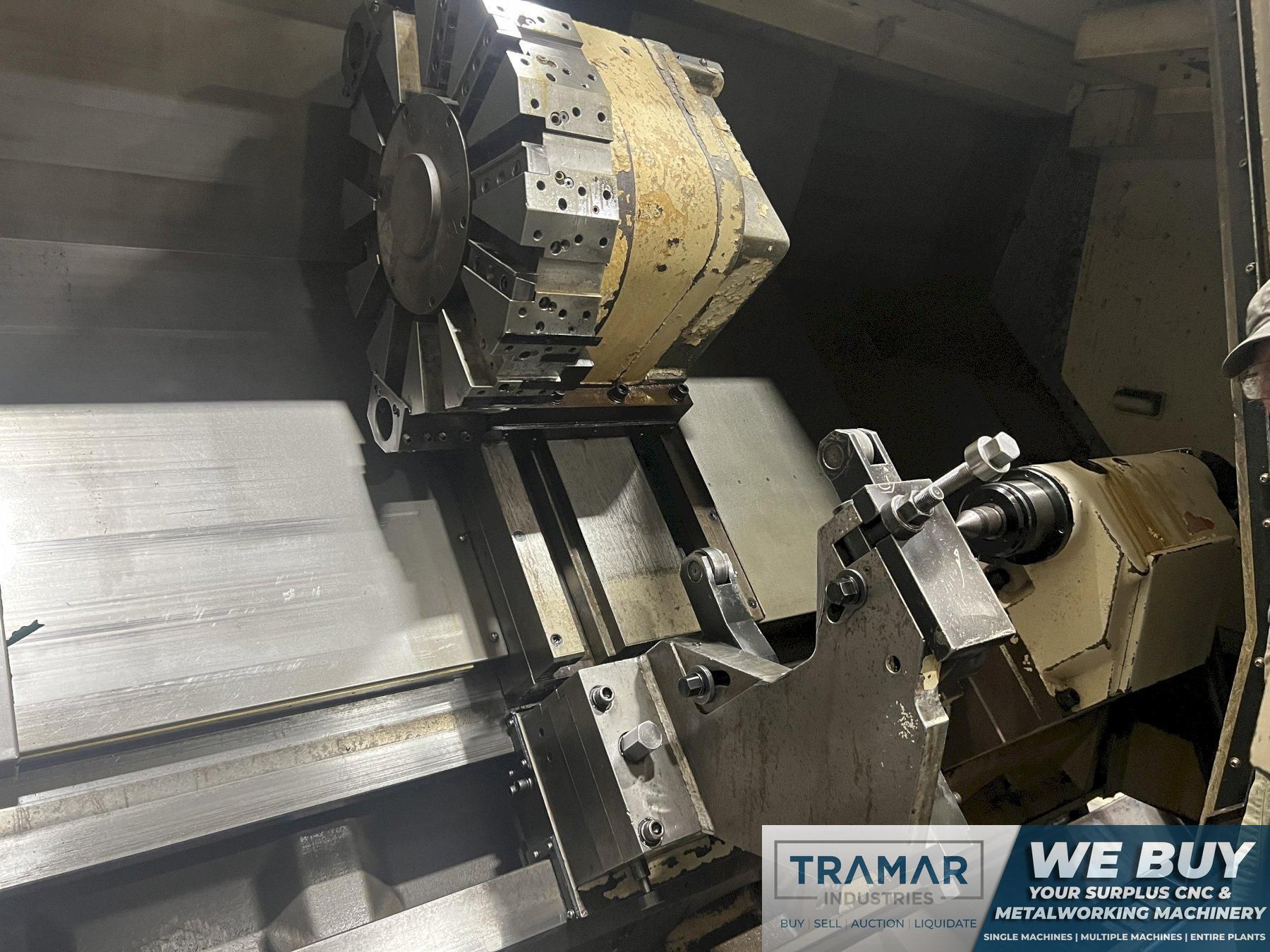

- Manual Steady Rest
- Tailstock

The Doosan Daewoo Puma 400LC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
