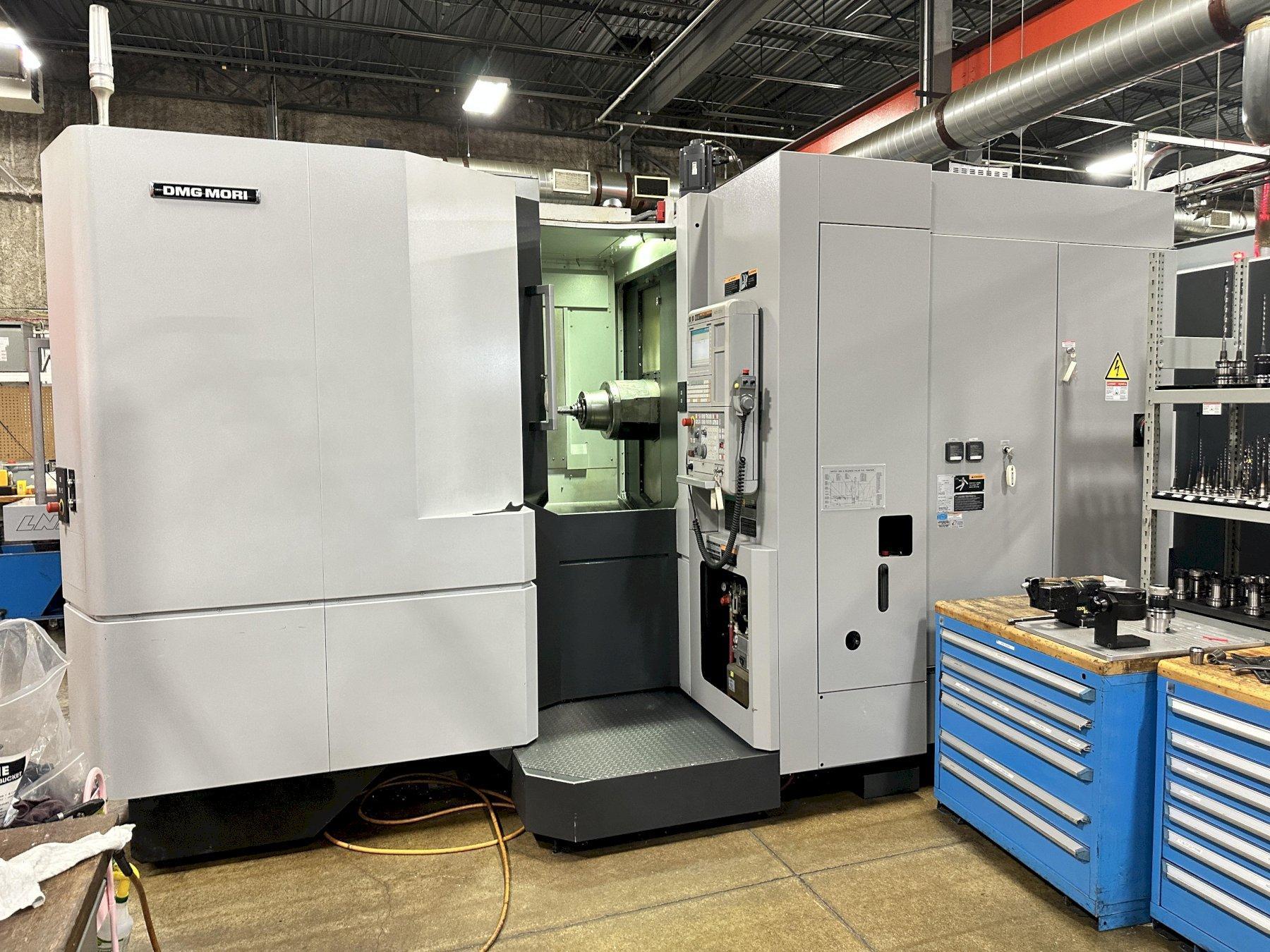

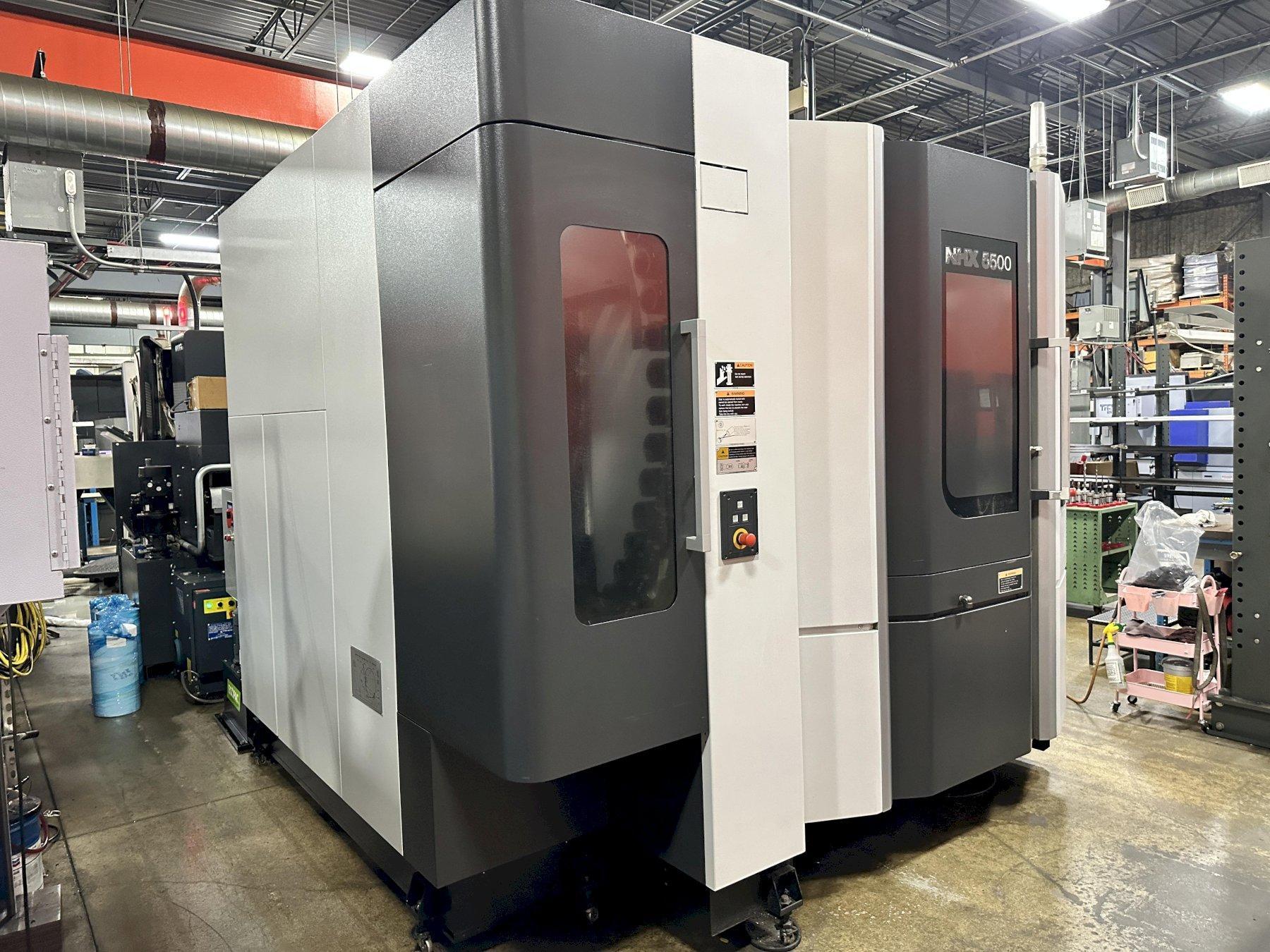

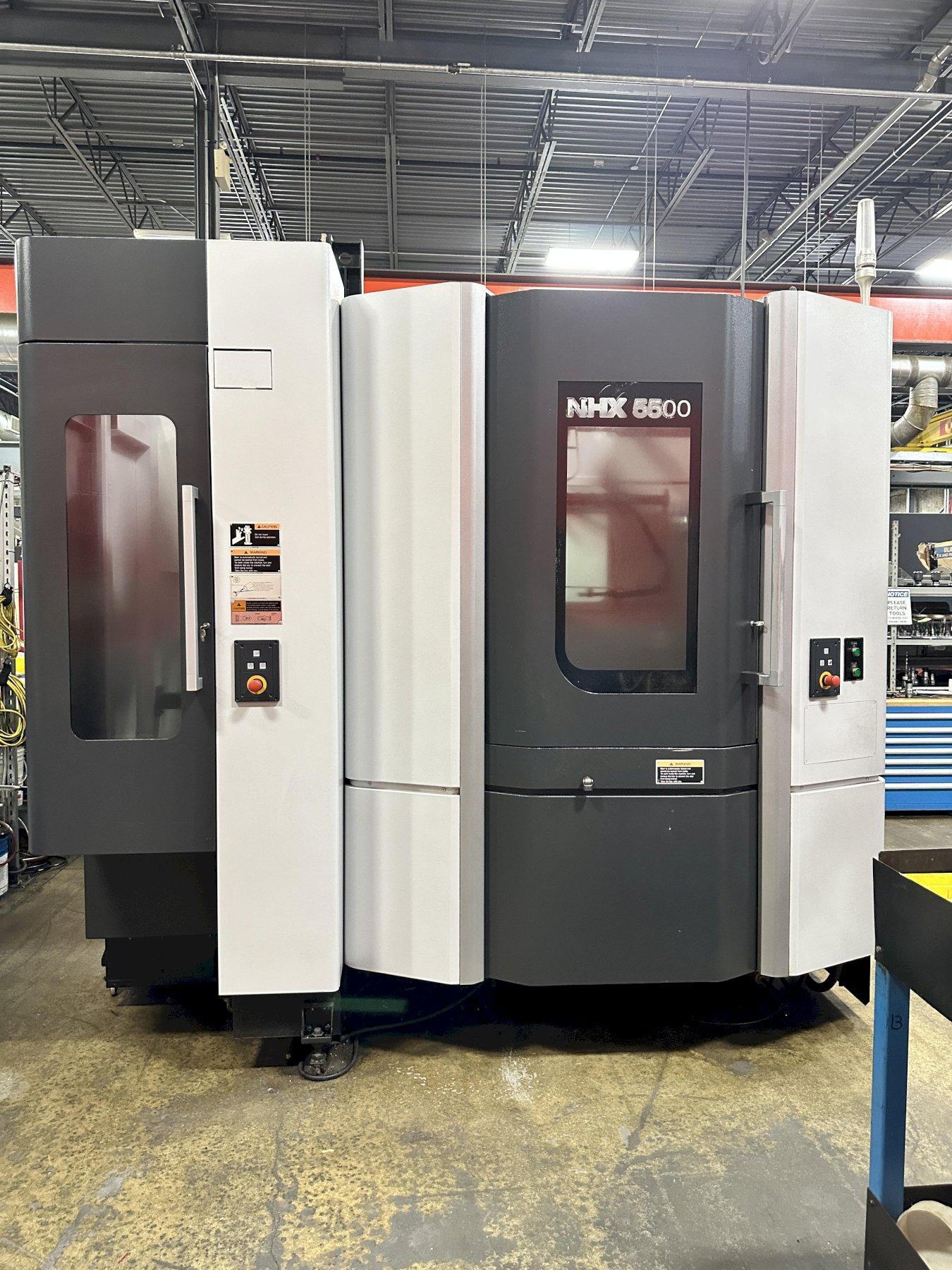

DMG Mori NHX 5500 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: NHX 5500
Year: 2015
Stock #: KF15460 Sold
Highlights:

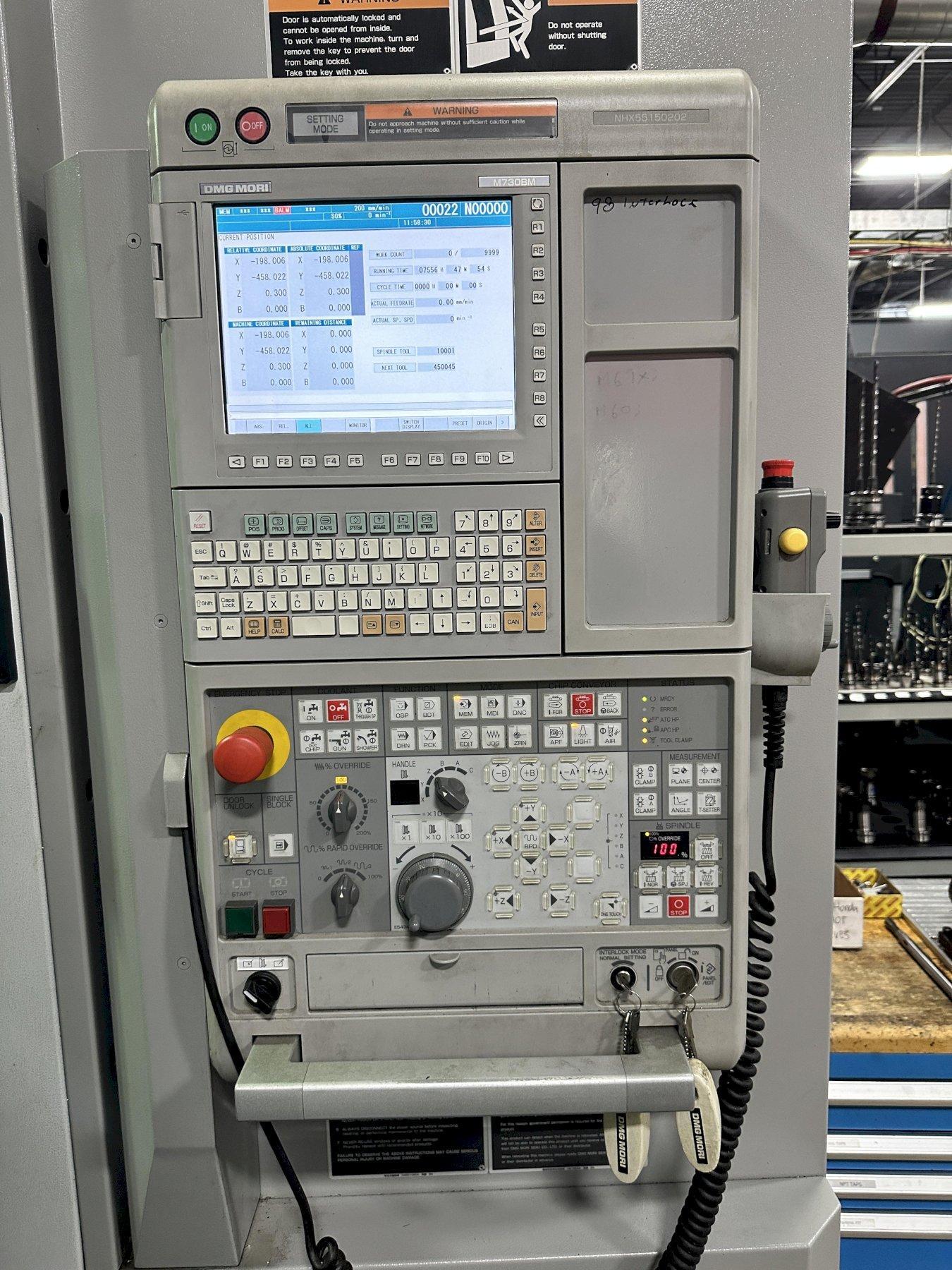

Mitsubishi M730BM Control
Hydraulic Clamping
CAT 50 Big Plus | 8,000 rpm Hi-Torque Option

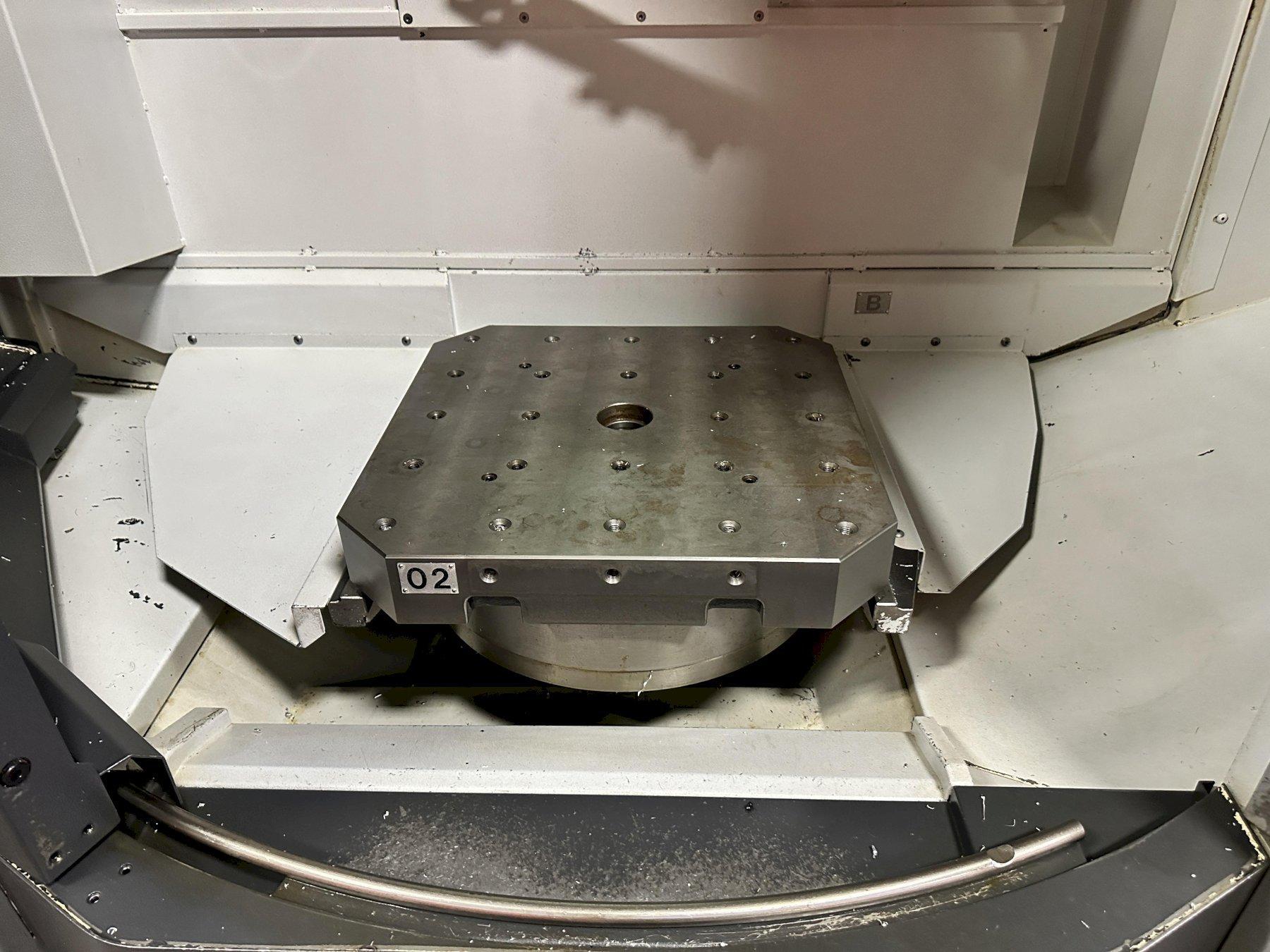

Pallet Size: 19.7" x 19.7" | 2,200lbs Max Table Load
Travels (X/Y/Z): 31.5"/31.5"/34.6"

DMG Mori NHX 5500 Used CNC Horizontal Machining Center For Sale - 2015
Machine Specifications
CNC Control
yes
Control Type
Mitsubishi M730BM
# Axis
4

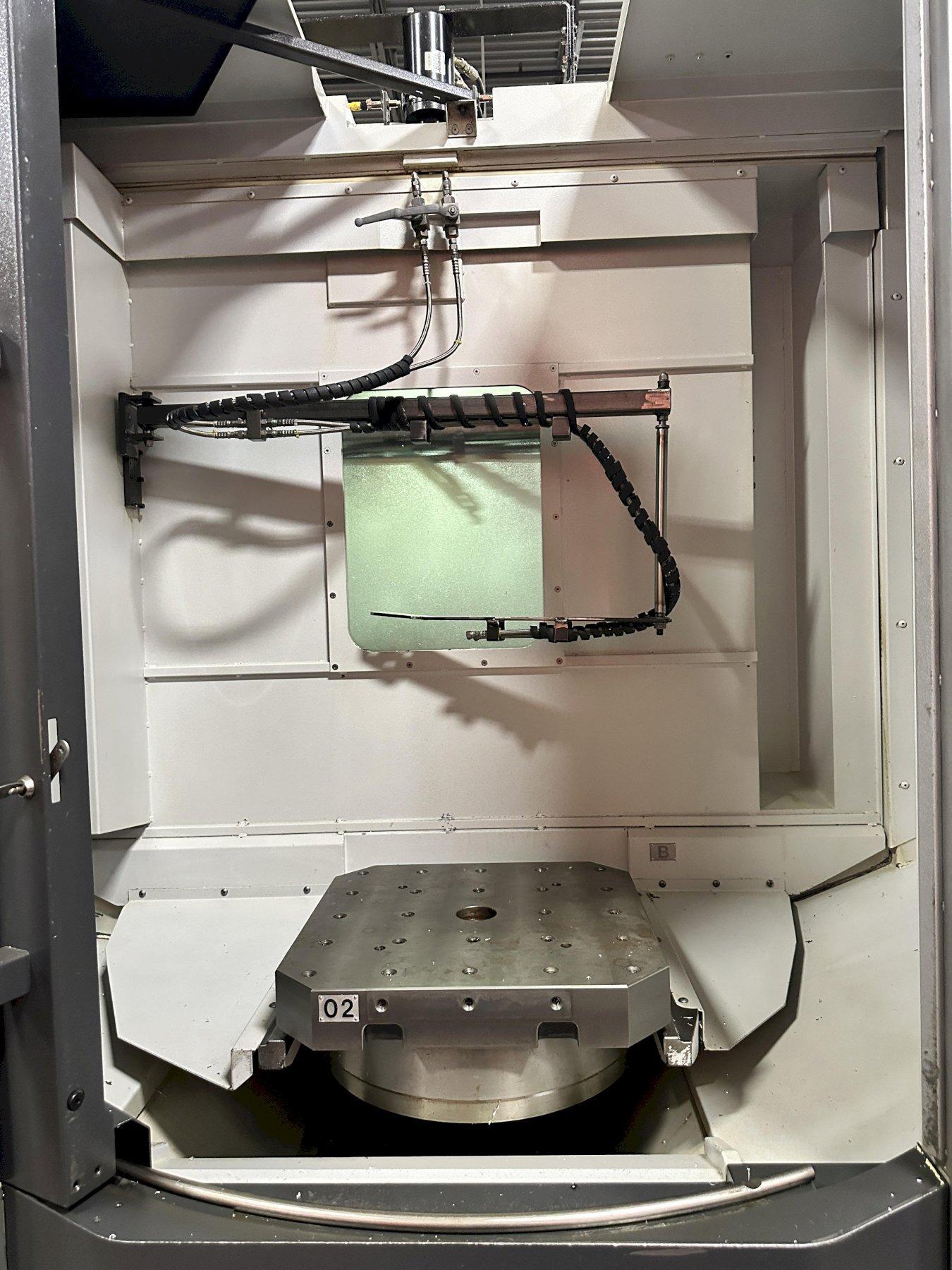

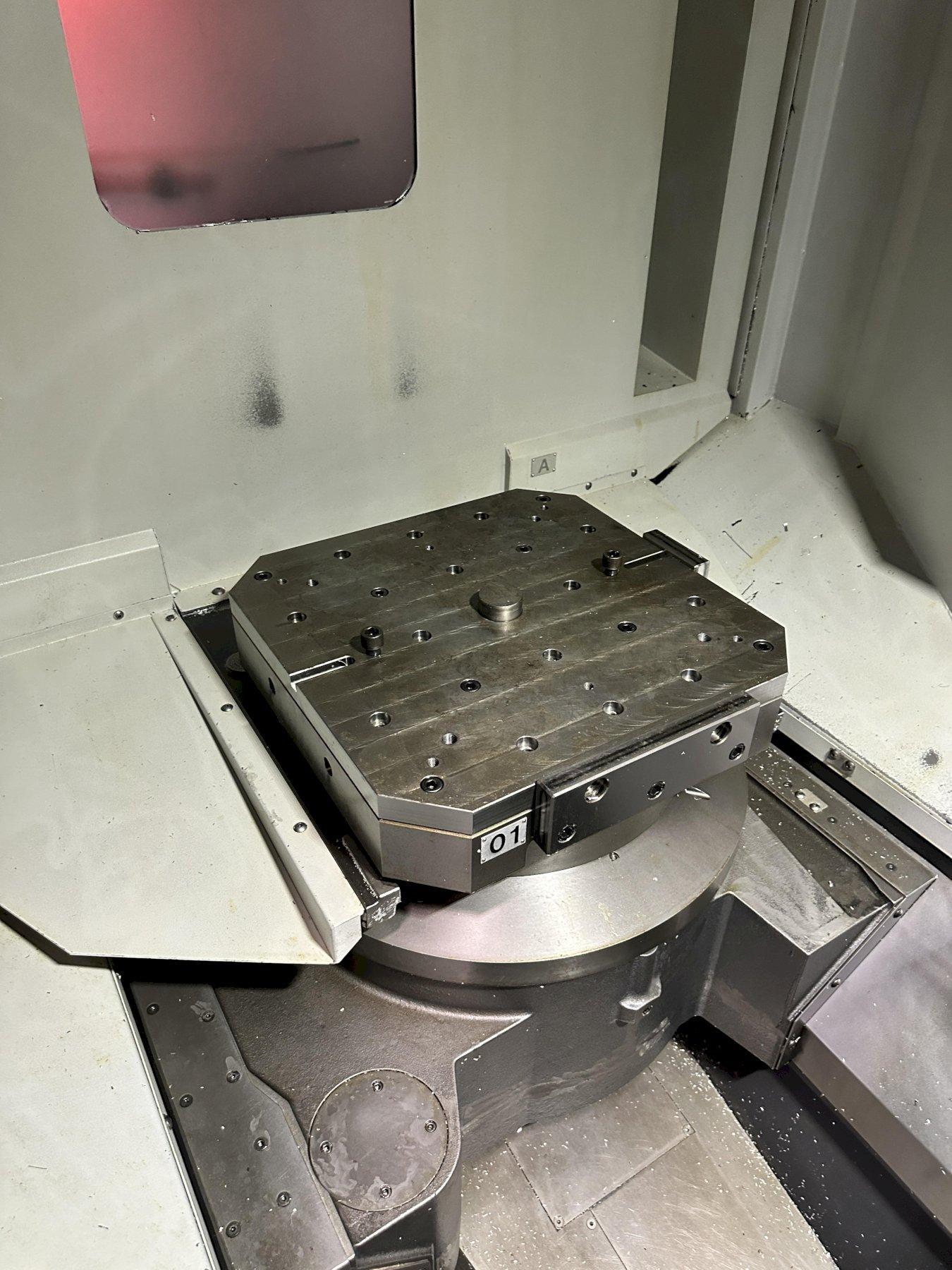

Pallet Length
19.7"
Pallet Width
19.7"
Pallet Capacity
2,200 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
31.5"
Y-Axis Travel
31.5"
Z-Axis Travel
34.6"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 50
Spindle Speed
8,000 rpm (High Torque Option)
Spindle Motor (HP)
54 hp

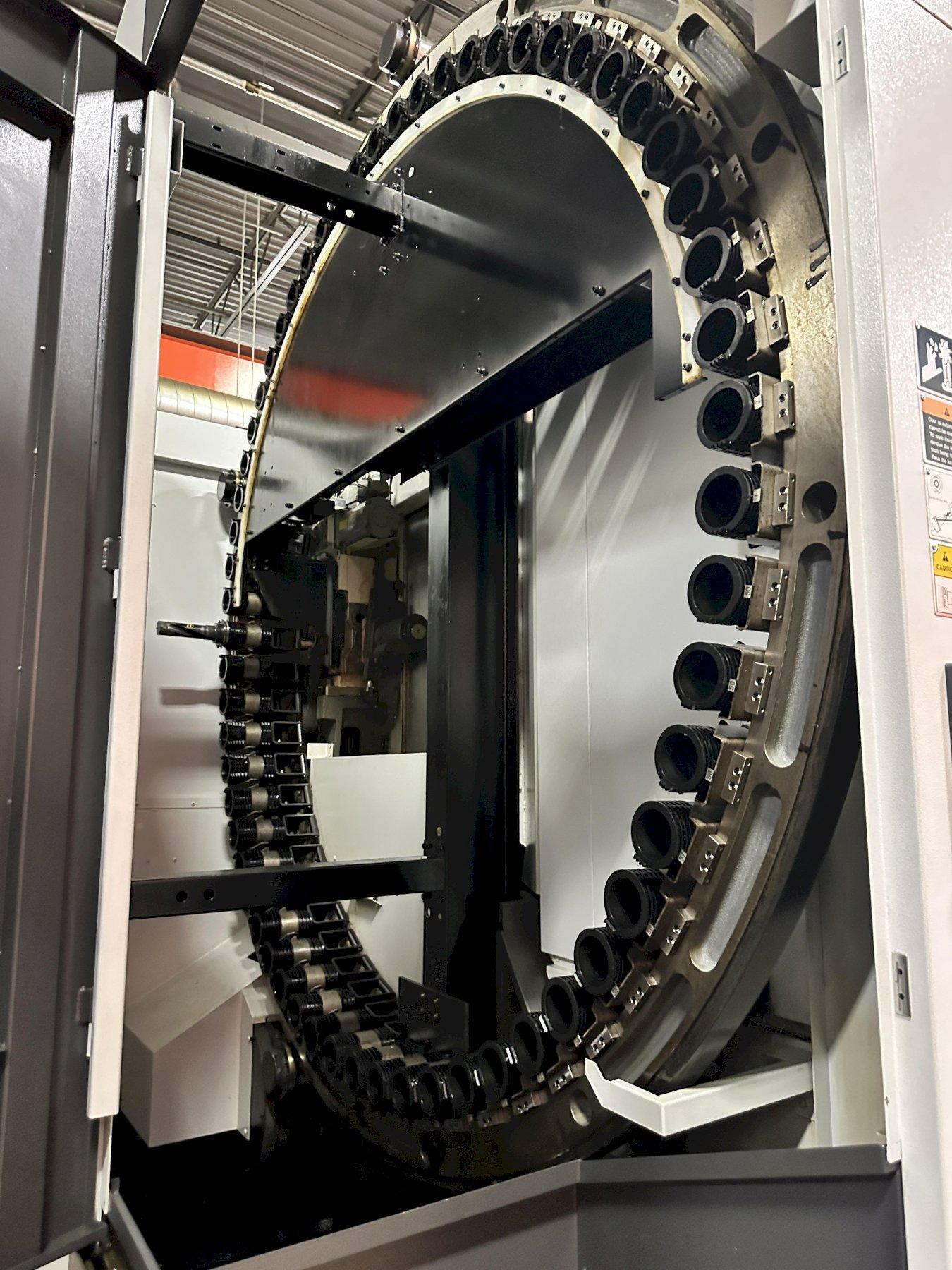

Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Dimensions
132" x 215" x 122"
Machine Weight
33,000 pounds

Equipped With:

- Mitsubishi M730BM Control
- Mfg Year: 2015 ---> Installed in 11/2016

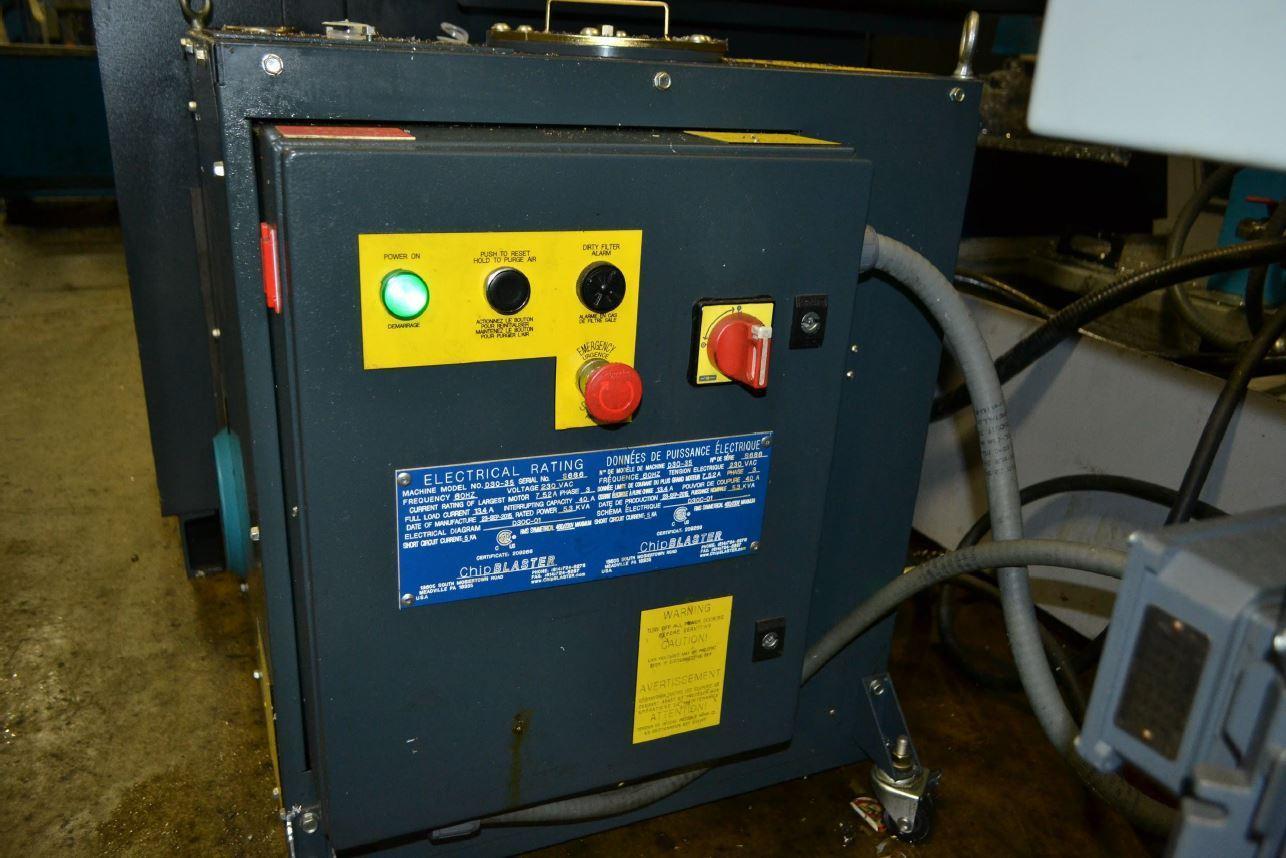

- Chip Blaster Hi-Pressure Coolant Thru Spindle

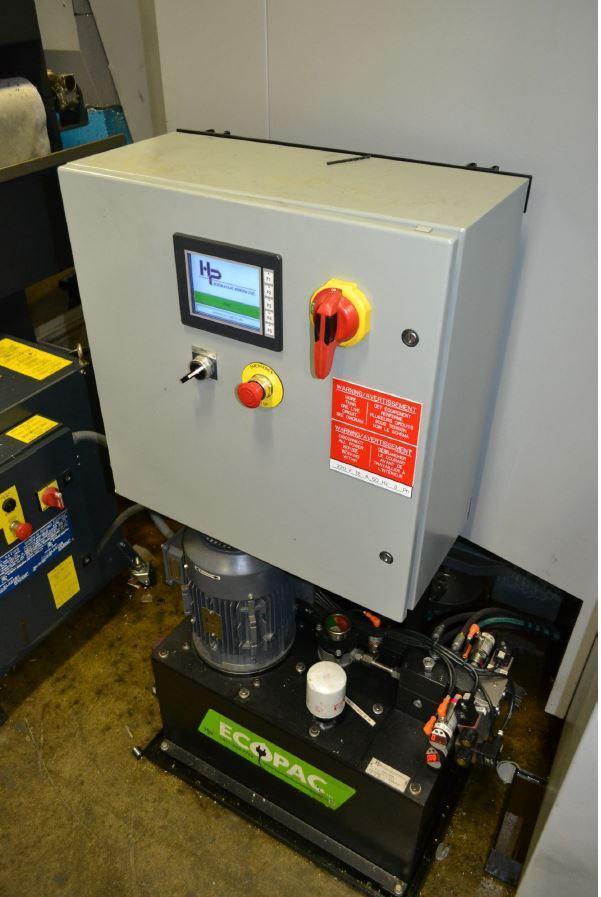

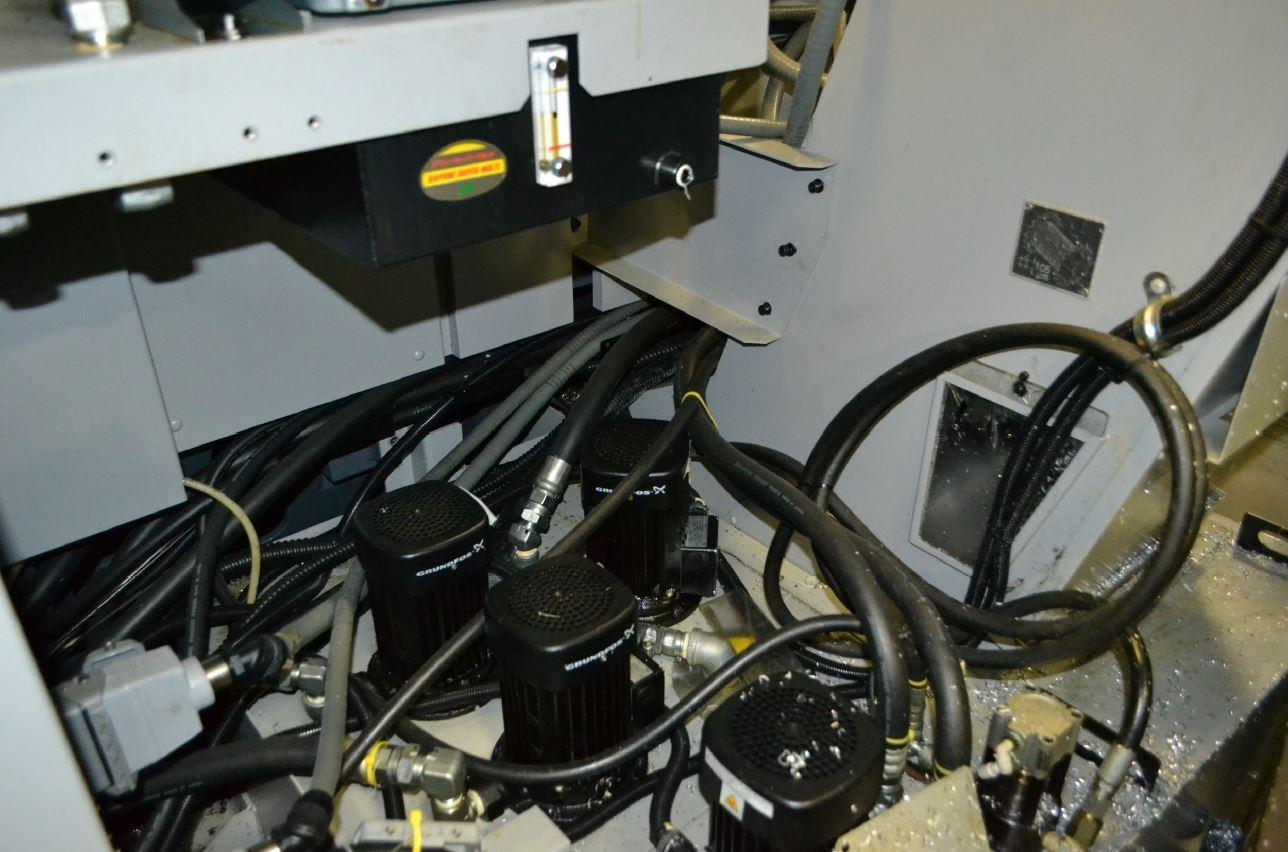

- Hydraulic Power Pack - High Flow w/VFD
- Hydraulic Clamping
- Data Server
- Ethernet
- High Speed, High Precision Function HPCC V2
- Chip Conveyor

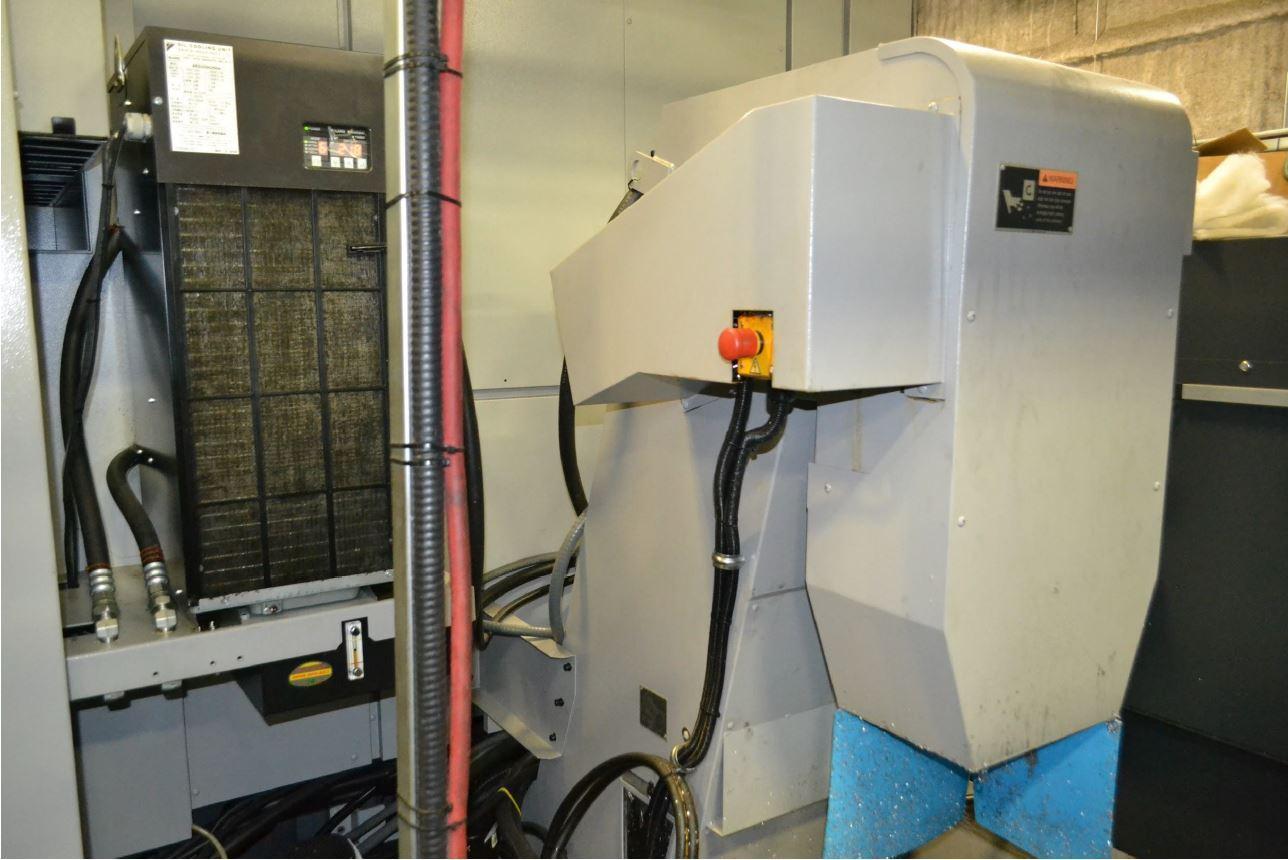

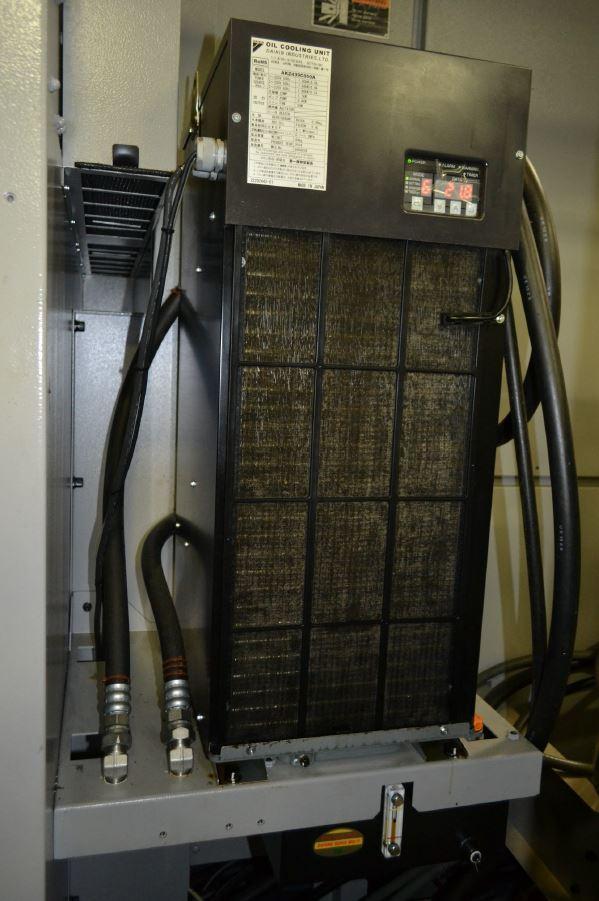

- Spindle Chiller

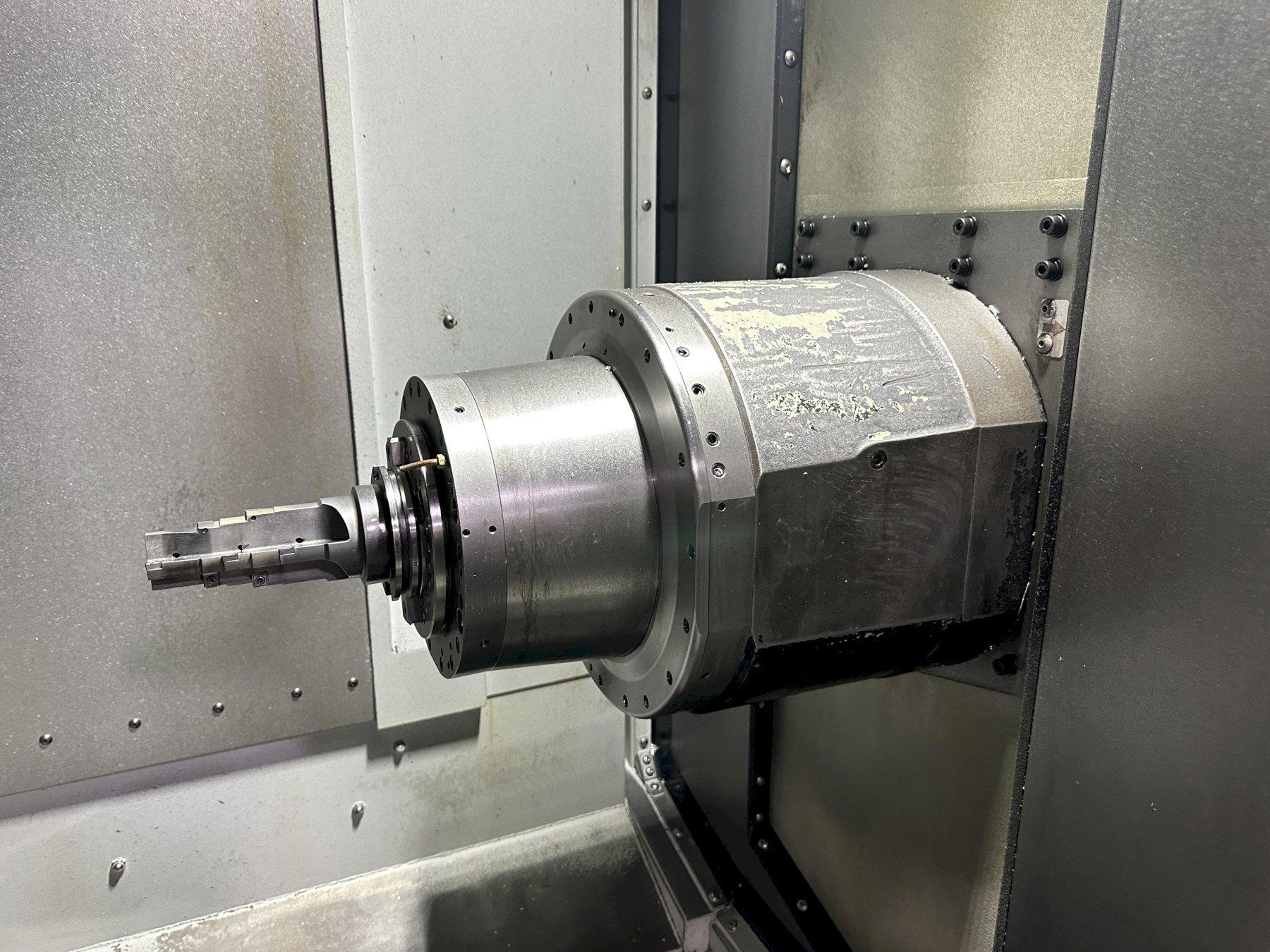

- CAT 50 Big Plus Spindle
- 8,000 rpm High Torque Option

The DMG Mori NHX 5500 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
