DMG Mori DMU105 - Machining Centers, Vertical, (5-Axis or More)

Share Machine
Specifications Print Specs
Model: DMU105
Year: 2017
Stock #: BR16068 Sold
Highlights:

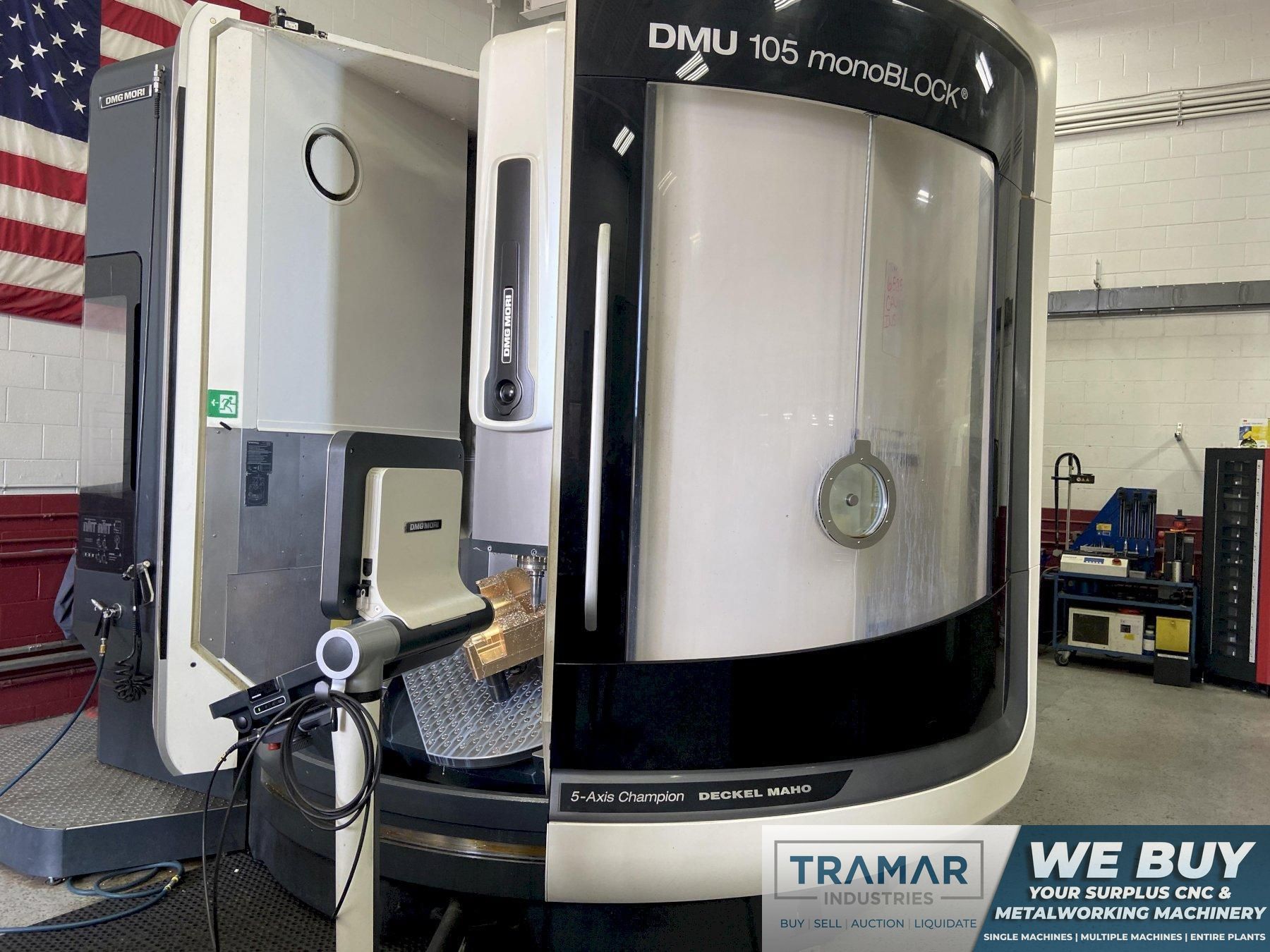

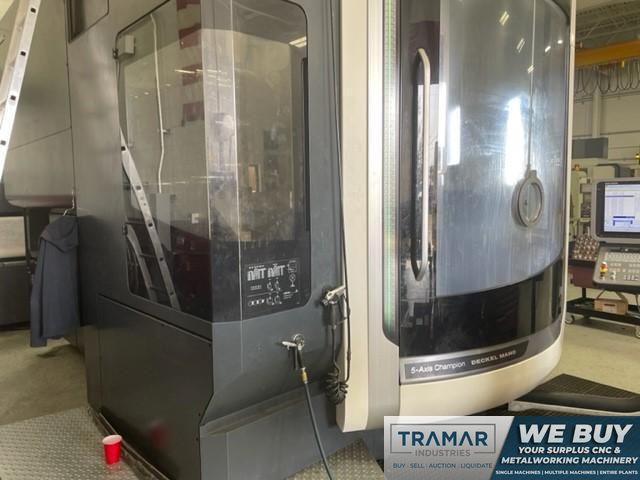

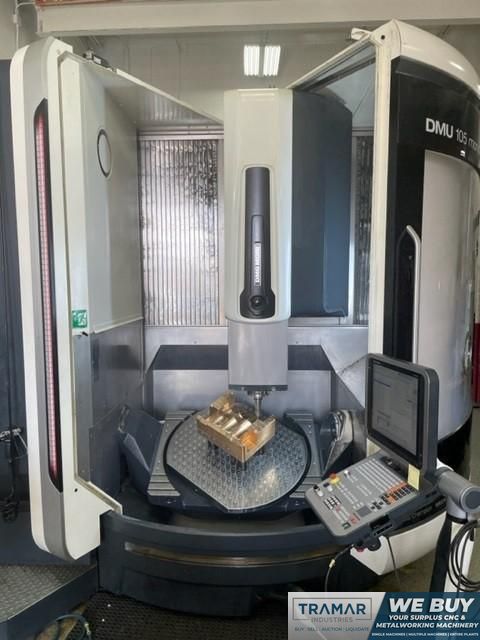

DMG Mori DMU105 MonoBlock 5-Axis CNC Vertical Machining Center, TNC640 Control, 44
Machine Specifications

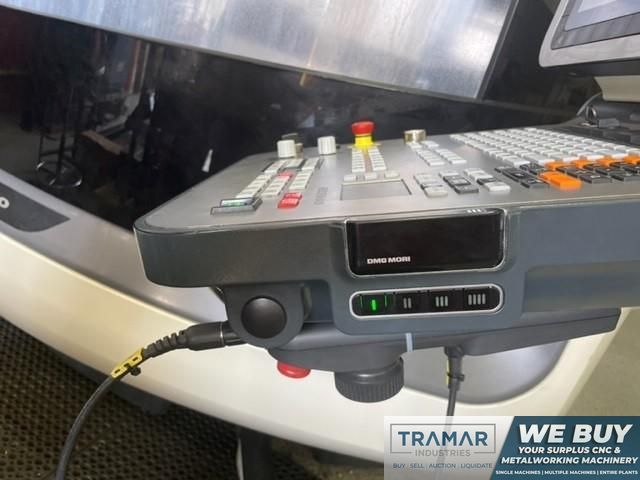

Control Type

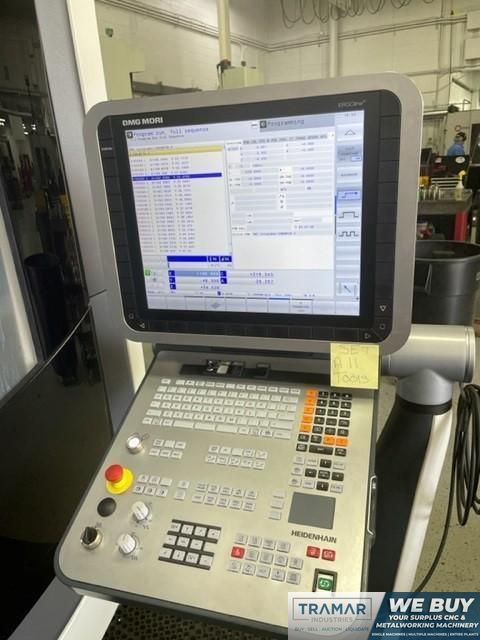

Heidenhain TNC-640
# Axis
5
Table Size
47.2" x 33.5"
RPM
20,000
Max Table Load
4409.2 pounds
X
44.7"
Y
41.3"
Z
29.5"
Table Surface To Spindle Nose
27.2"

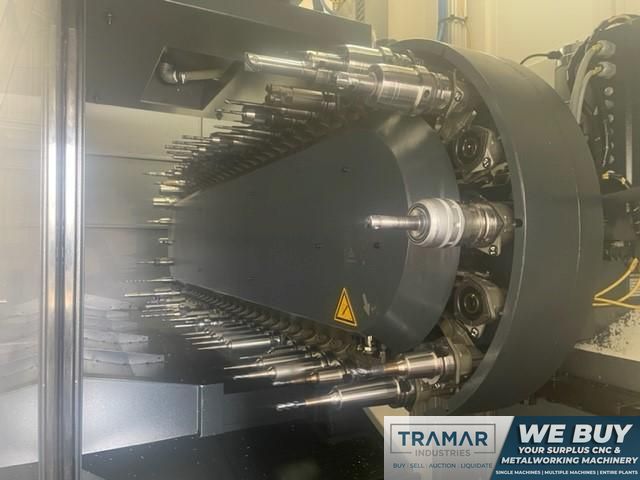

# ATC
60
Taper
HSK A-63
Rapid Traverse X/Y/Z (IPM)
1574.8

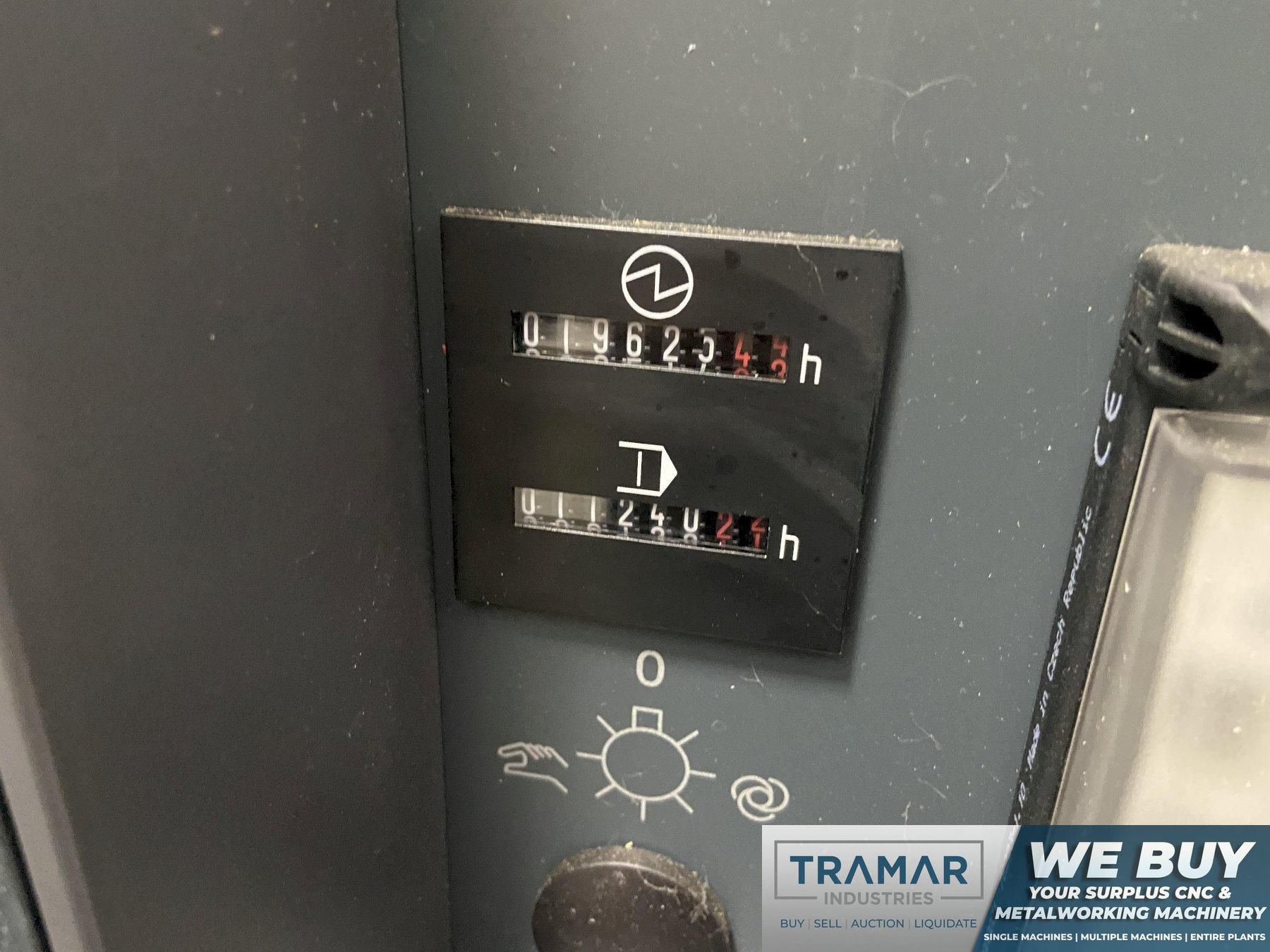

Power-On Hours
19,625
Cutting Hours
11,240
Weight
39,463 pounds

Equipped With:

-Rotating Clear View Window

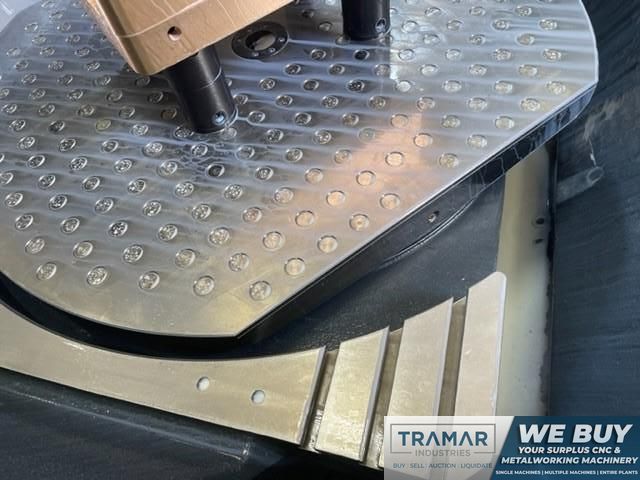

-NC Swivel Rotary Table
-Renishaw SK40 Infrared Measuring Probe
-Blum Laser

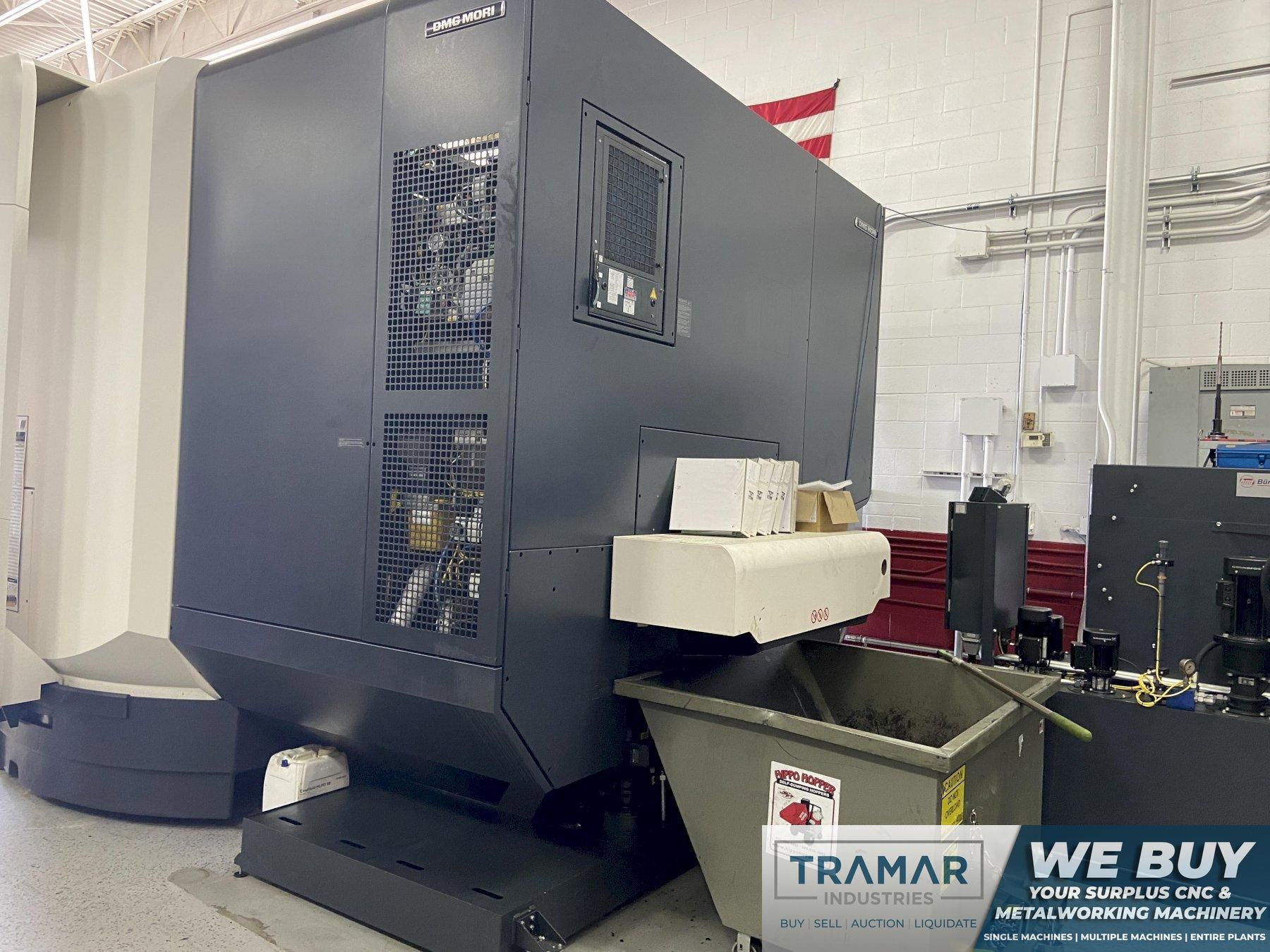

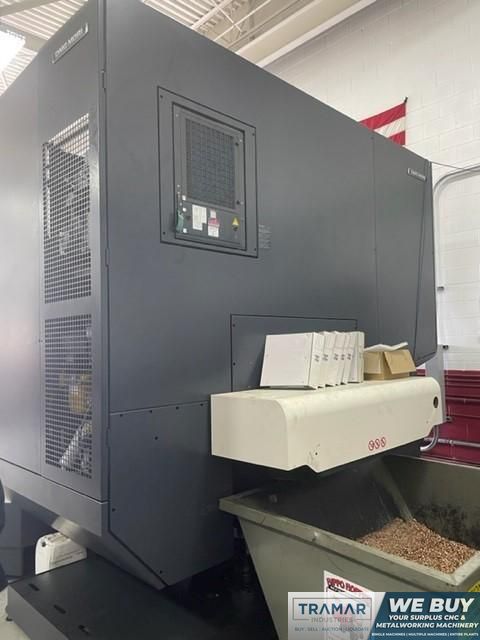

-Chip Conveyor

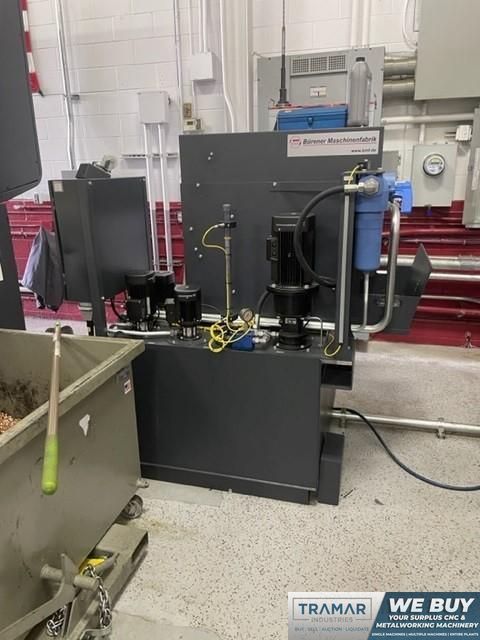

-Coolant thru spindle
-3D quickSET
-MPC (Machine Protection Control)
-Electronic Handwheel
- NO tool holders

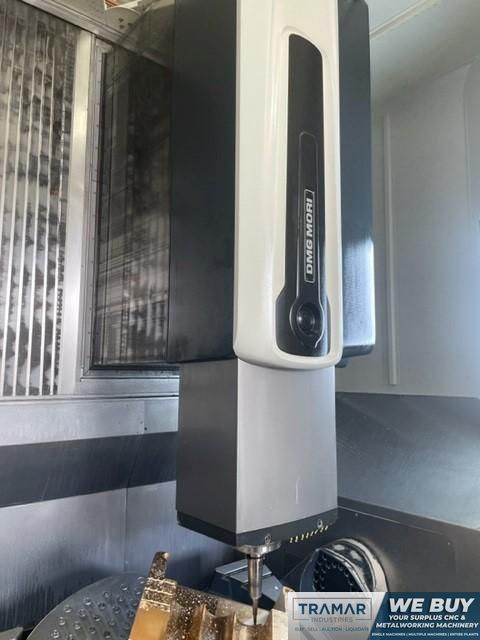

***********************Brand new spindle from DMG 9-2,020 ************************

The DMG Mori DMU105 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
