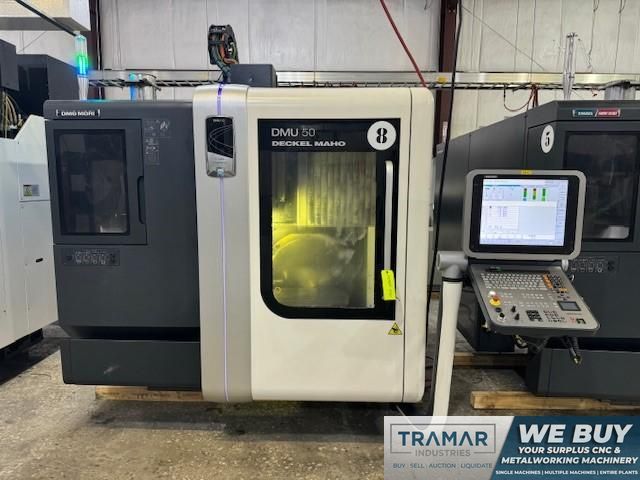

DMG Mori DMU 50 - Machining Centers, Vertical, (5-Axis or More)

Share Machine
Specifications Print Specs
Model: DMU 50
Year: 2014
Sold
Highlights:

DMG Mori DMU 50 Used 5-Axis CNC Vertical Machining Center For Sale - 2014
Machine Specifications
CNC Control
yes
Control Type
Heidenhain
# Axis
5
Table Size
24.8" x 19.7"
Max Table Load
661 pounds
X-Axis Travel
25.6"
Y-Axis Travel
20.5"
Z-Axis Travel
18.7"
B Axis Rotary
-5° +110°
A Axis Rotation
360°
Rapid Traverse Rate (X/Y/Z)
1,653 ipm
Spindle Taper
CAT 40
Spindle Speed
18,000 rpm
Main Motor
45 hp
ATC Capacity
60
Coolant Thru Spindle
yes
Machine Dimensions
87" x 111" x 103"
Machine Weight
12,500 pounds
