Clausing Metosa C1440S - Lathes, Engine

Request Quote
Share Machine
Specifications Print Specs
Model: C1440S
Stock #: 15081
Highlights:
- Clausing Metosa 14x40 Engine Lathe
- Acu-Rite Digital Readout DRO
- Tailstock
- Quick Change Tool Post

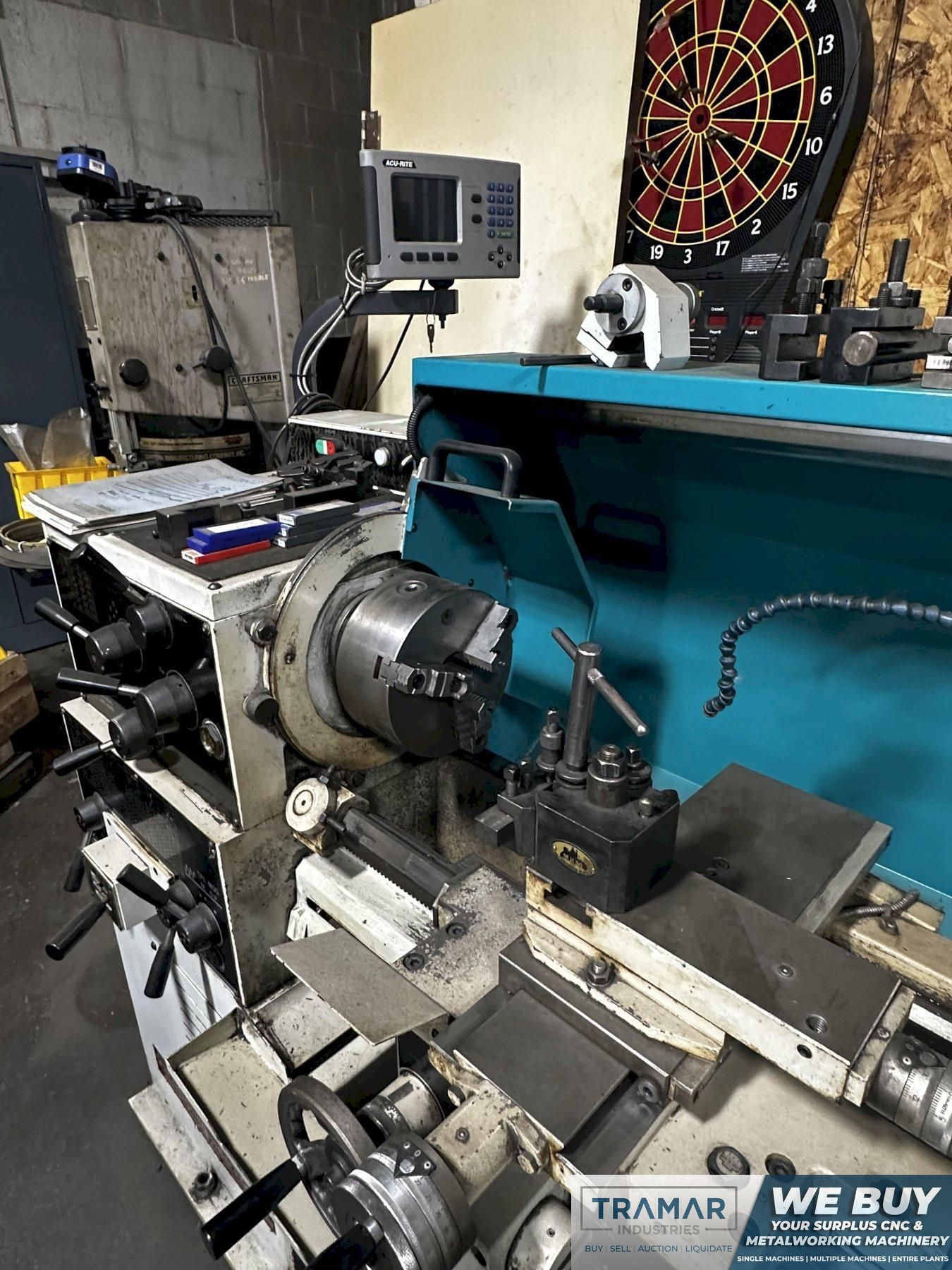

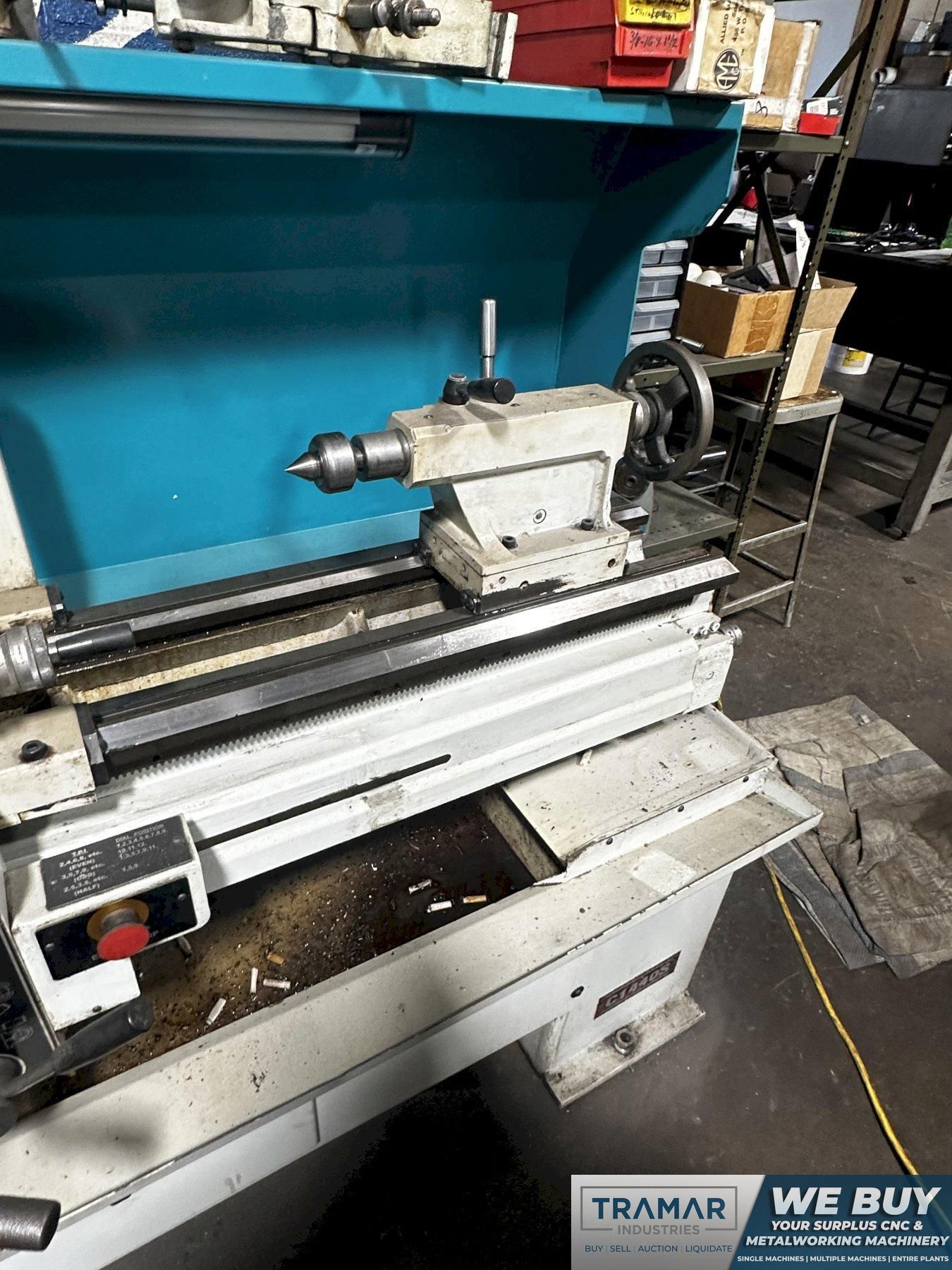

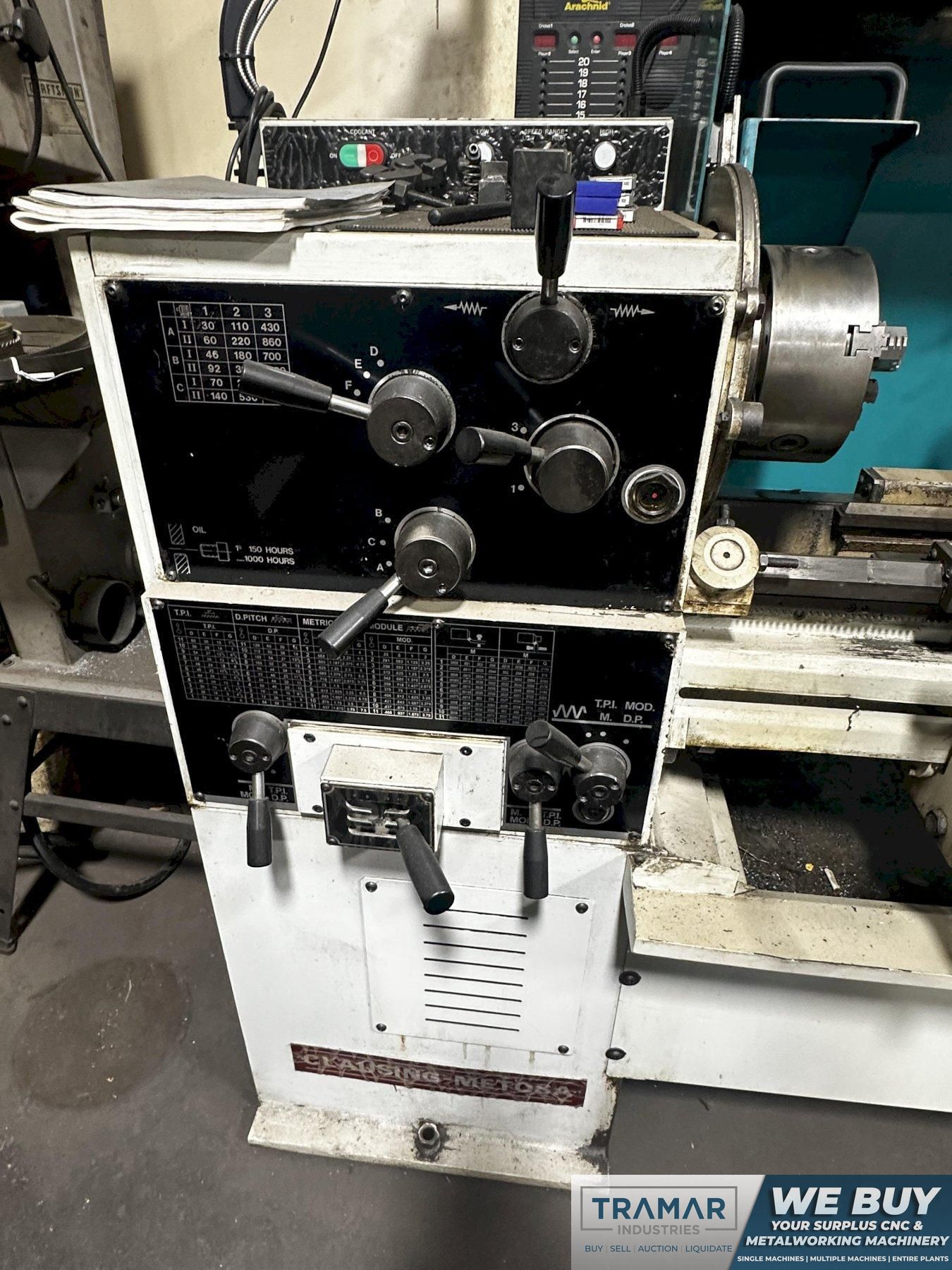

Clausing Metosa C1440S Engine Lathe 14x40 For Sale
Machine Specifications
Control Type
Acu-Rite DRO
Swing
14.17"
Swing Over Cross Slide
8.07"
Turning Diameter
8.07"
Center Distance
40"
Spindle Bore
1.625"
Cross Slide Travel
9.65"
Cross Feeds
0.0005" - 0.0076"
Longitudinal Feeds
0.0018" - 0.026"
Tool Post Slide Travel
4.75"
Spindle Taper
D1-5 Camlock
Spindle Speed
2,000 rpm
Tailstock Taper
#3 Morse
Tailstock Quill Travel
5.5"
Tailstock Quill Diameter
1.875"

Equipped With:

- Acu-Rite Digital Readout DRO
- Tailstock
- Quick Change Tool Post
- Whitmore Threads 60 - 4 T.P.I.
- Modular Threads 0.25" - 3.75"
- Diametral Threads 120 - 8
- Metric Threads 0.5mm - 7.5mm

The Clausing Metosa C1440S is an exclusive part of our Lathes, Engine inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
