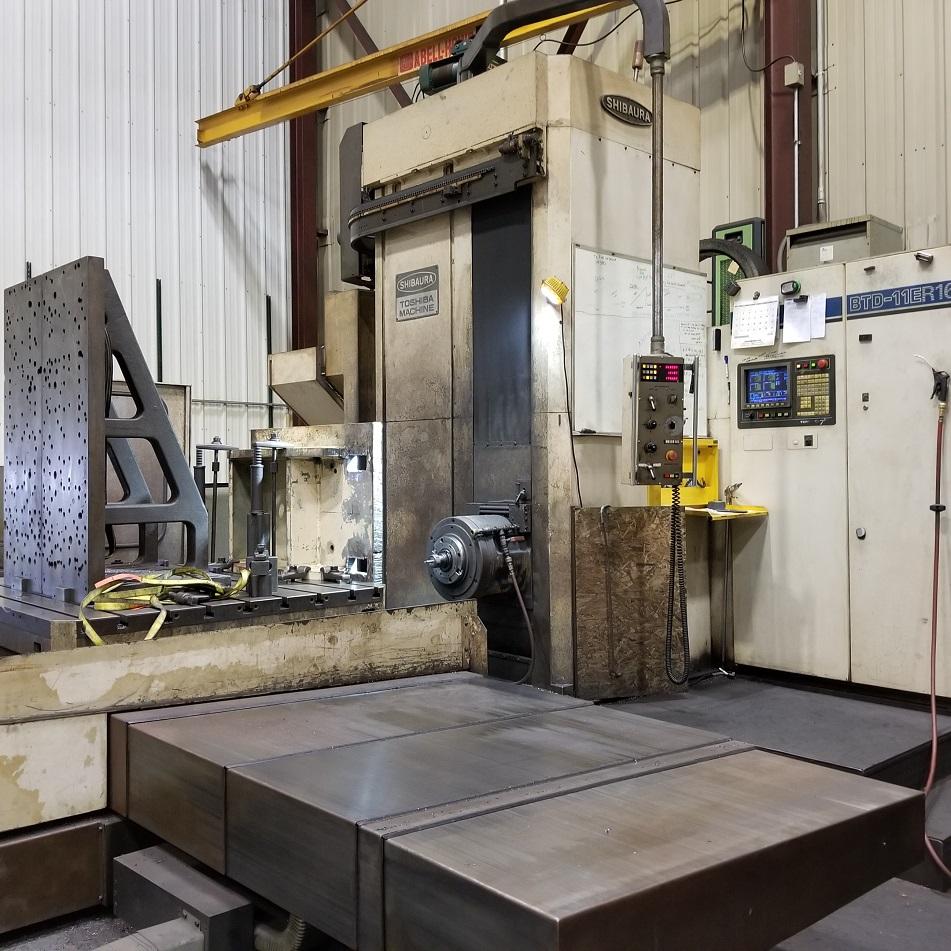

Toshiba Machine BTD-11E R 16 - Horizontal Boring Mills (Table)

Share Machine
Specifications Print Specs
Model: BTD-11E R 16
Year: 1992
Stock #: M1108 Sold
Yes
Highlights:

4.3
Machine Videos
Machine Specifications
Spindle Size
4.3"
Table Size
63" x 55"
Max Weight On Table
138,560 pounds
X-Horiz Tvl of Table
79"
Y-Vert Tvl of Head
59"
Z-Axis Travel
57"
W-Axis Travel (Quill)
20"
B-Axis (Pallet Indexing)
0.001
Spindle Speed
2,500 RPM
Spindle Motor
20 Horsepower
Spindle Taper
50
Tool Changer Capacity
40
Coolant Thru Spindle
no
CNC Control
yes
Control Type
Toshiba Tosnuc 777.2
Weight
56,100 pounds

Equipped With:

Chip Conveyor
Coolant
Full Pendant Control for Manual Operations
Scales for X,Y, and Z Axis

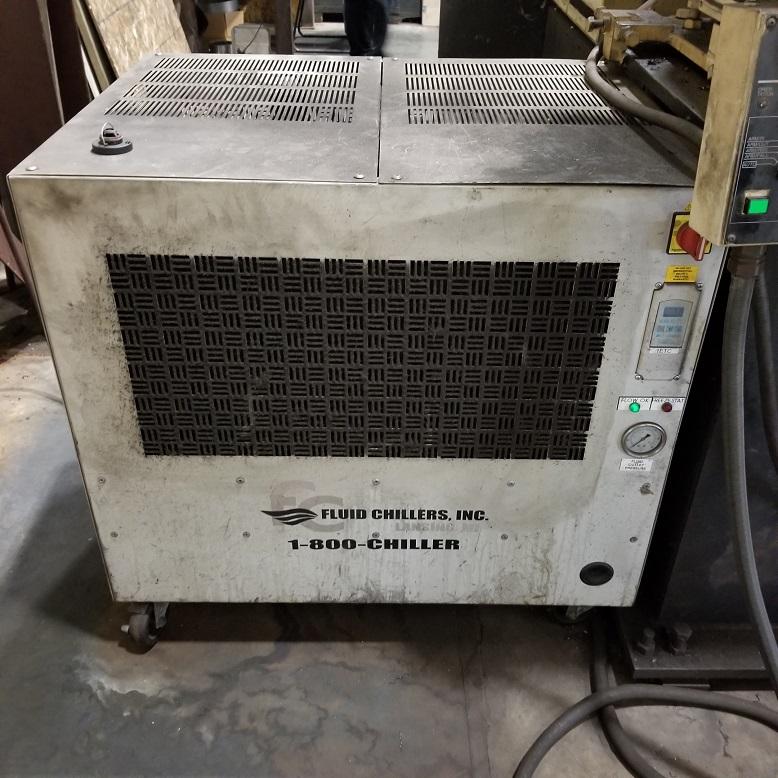

Chiller

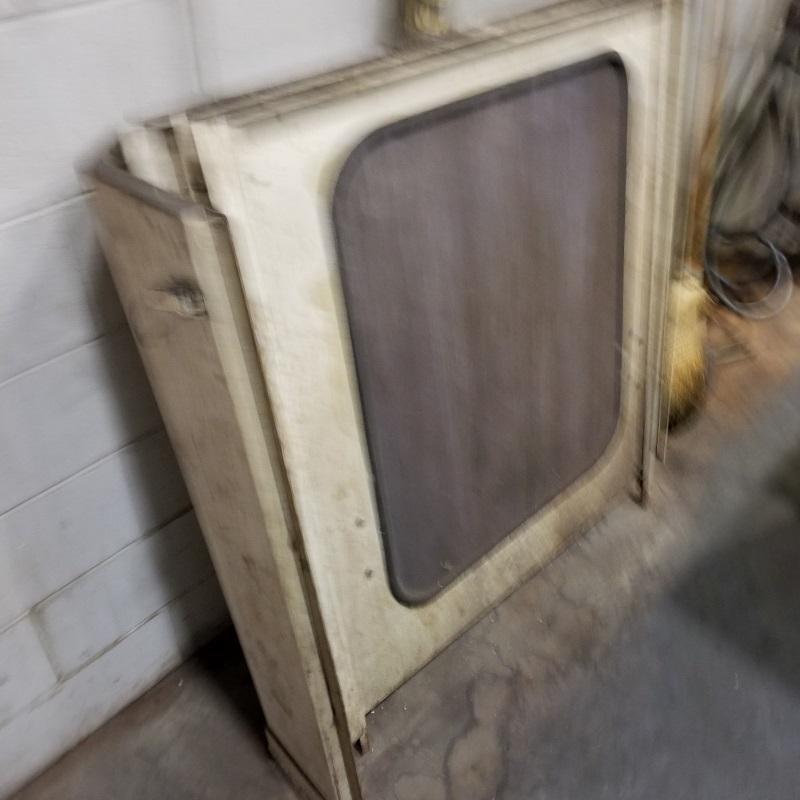

Full Table Guarding

The Toshiba Machine BTD-11E R 16 is an exclusive part of our Horizontal Boring Mills (Table) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
