Studer S41 - Cylindrical Grinders (Universal)

Share Machine
Specifications Print Specs
Model: S41
Year: 2015
Stock #: 90218-12 Sold
Highlights:
(1) OD Wheel - 4,500 rpm
(1) ID Spindle - 42,000 rpm
B Axis -45° to +225°
C Axis Workhead
Probing & Gauging
Synchronous Tailstock
Rotary Dresser

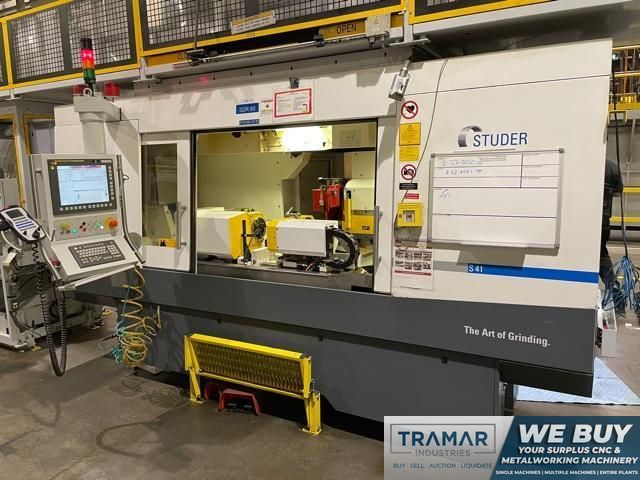

2015 Studer S41 CNC OD/ID Grinder
Machine Specifications
Weight
20,000 pounds
CNC Control
yes
Control Type
Fanuc 31i-Model A
Center Height
8.9"
Center Distance
39.4"
Max Weight Between Centers
550 pounds
X Axis Travel
13.8"
Z Axis Travel
45.3"
Workhead Speed
1,500 rpm
Workhead Power
13.6 horsepower
C Axis
yes
C Axis Index
0.0001°
B-axis Indexing
-45° to +225°
Grinding Wheel Dimensions
20" x 3.54" x 8"
Wheel Speed (RPM)
4,500 rpm
Wheel Head Motor
20 hp
ID Spindle Speed
42,000 rpm
Dimensions
154" x _ x 99"

Equipped With:

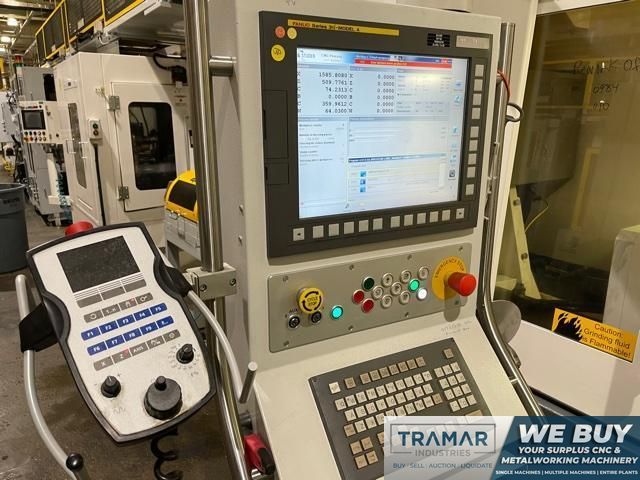

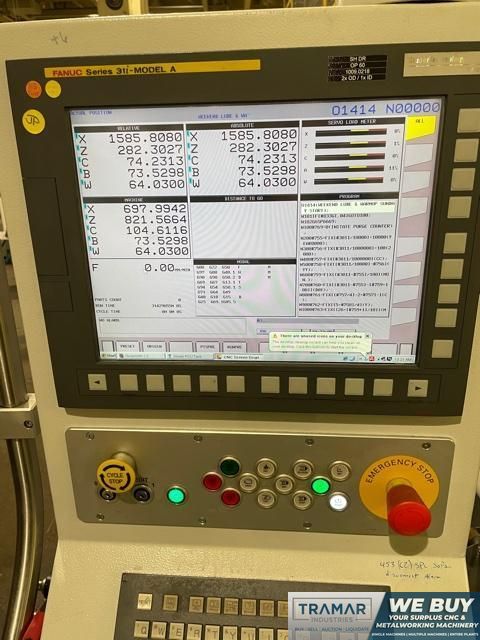

- Fanuc 31i-Model A Control
- StuderWIN User Interface

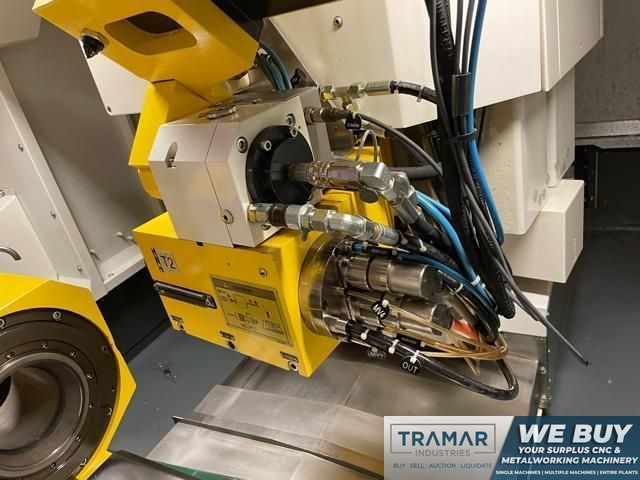

(1) ID Grinding Spindle - 42,000 rpm
- (1) OD Grinding Wheel

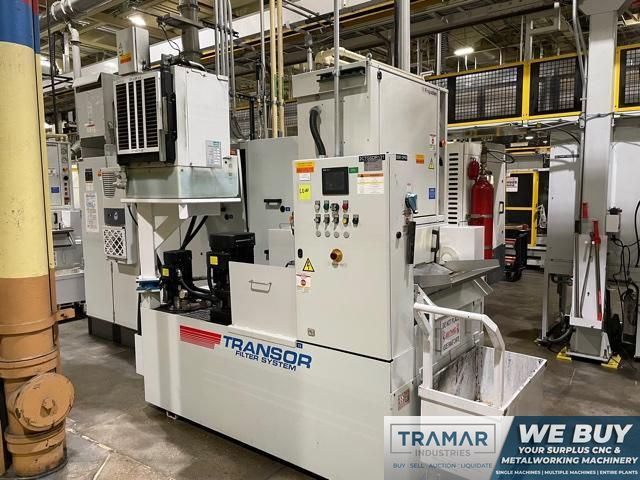

- Transor Filtration System

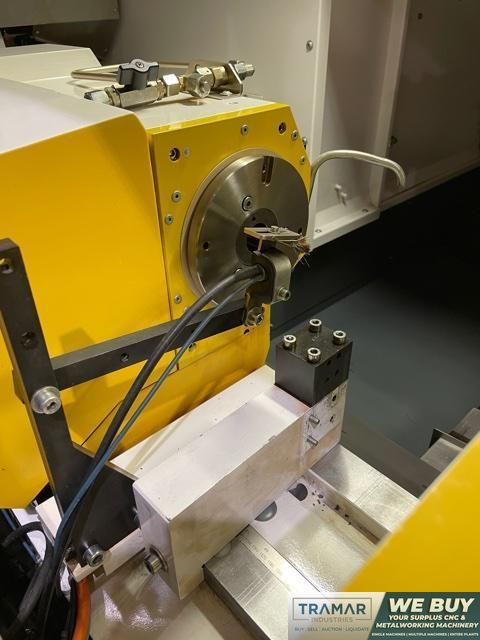

- Marposs Gauging H1 Touch Probe
- Marposs In-Process Gauging P7ME

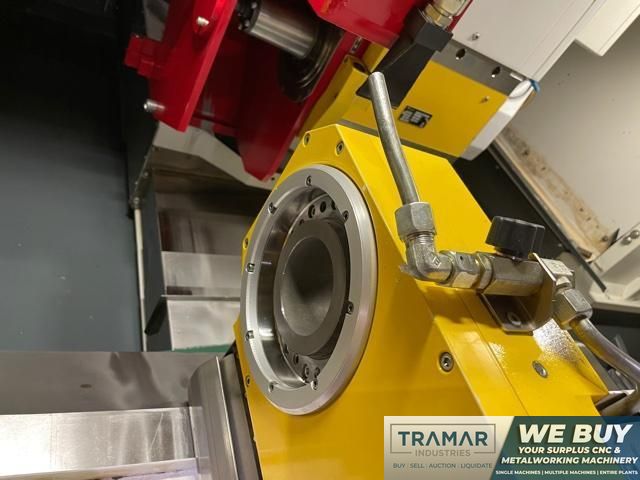

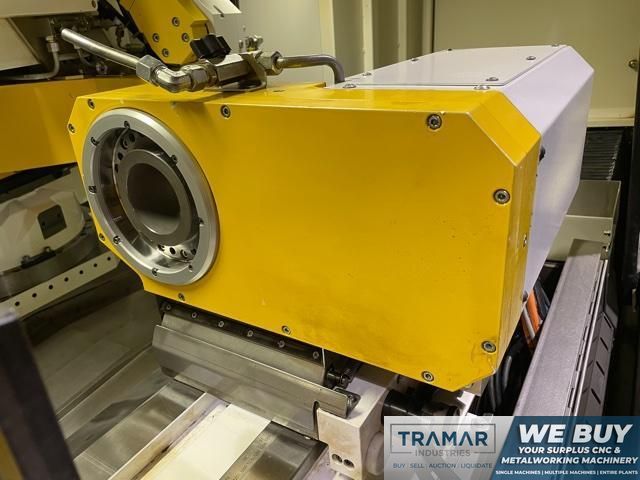

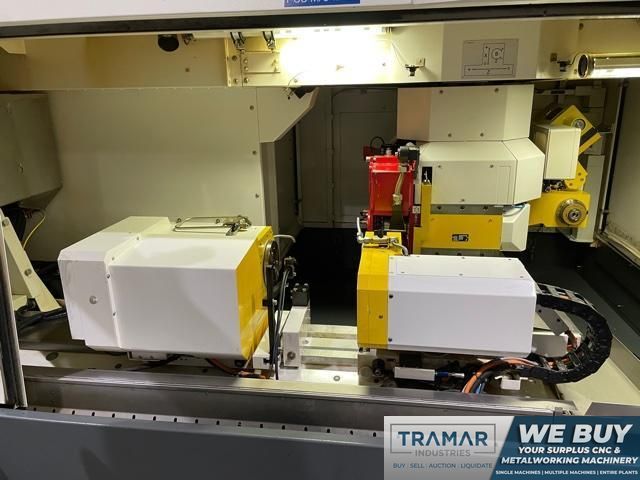

- Workhead w/C Axis

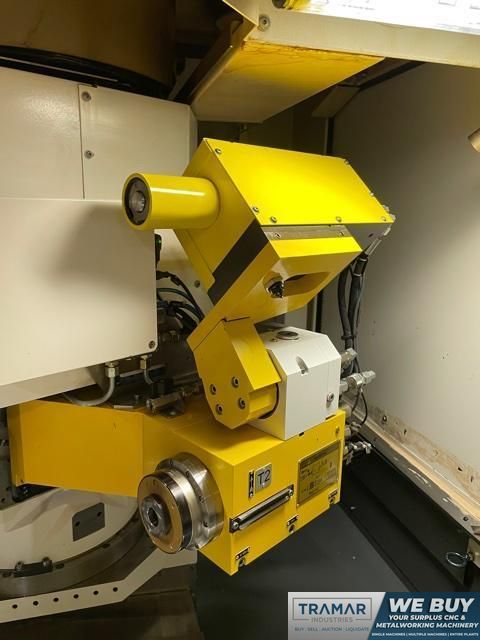

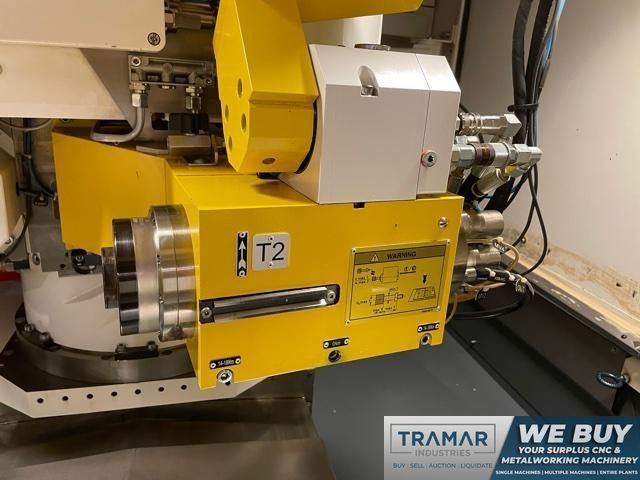

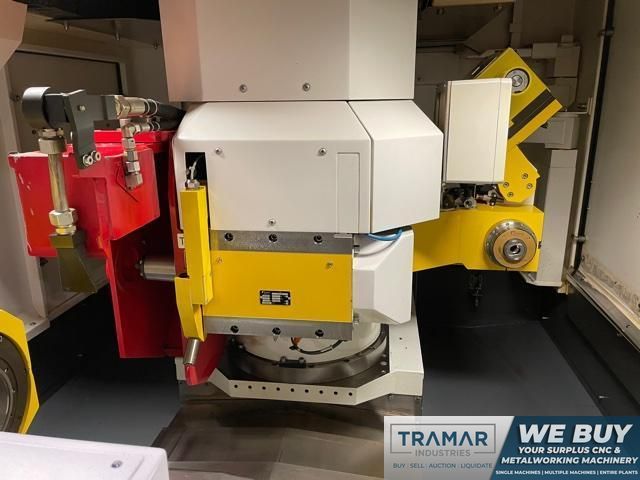

- B Axis Wheelhead

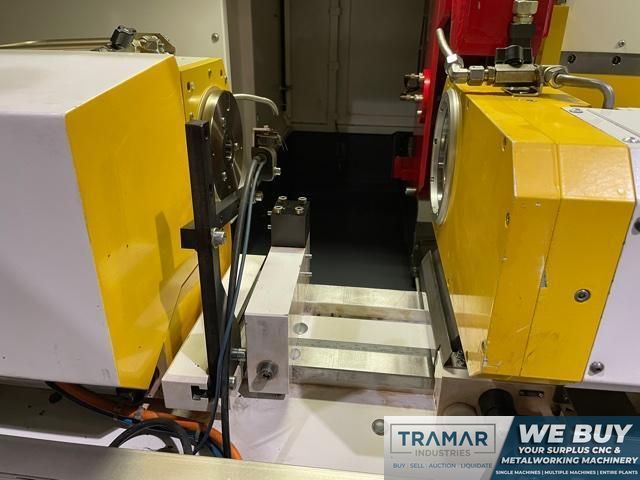

- Synchronous Tailstock - W Axis
- Probing
- Rotary Dresser

The Studer S41 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
