Studer S41 - Cylindrical Grinders (Universal)

Share Machine

Specifications Print Specs

Model: S41

Year: 2015

Stock #: 90221-10 Sold

Type: Cylindrical Grinders (Universal)

Manufacturer: Used Studer Machines

Highlights:
(2) OD Wheels - 4,500 rpm

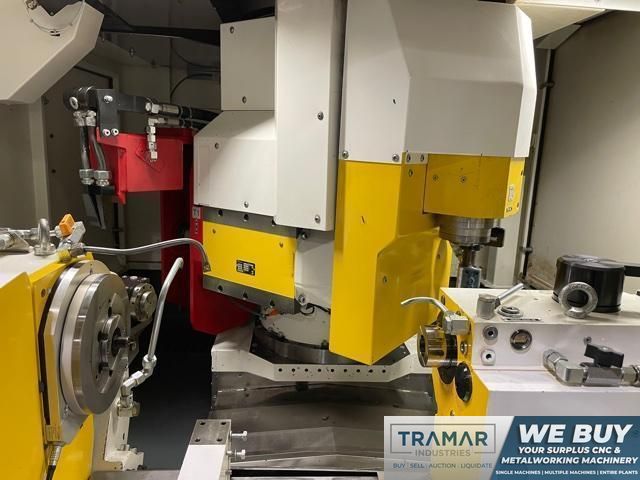

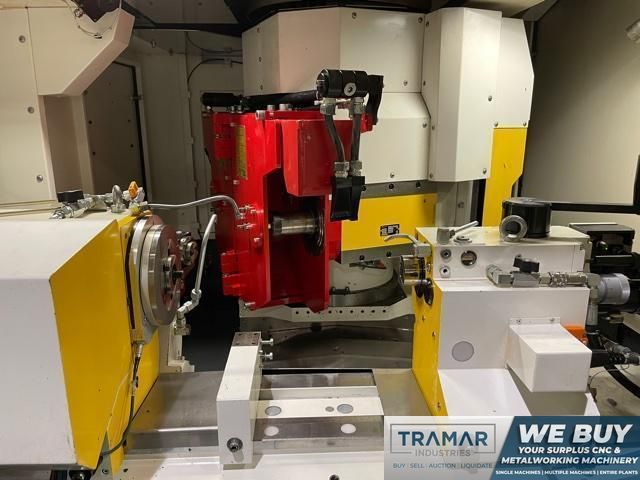

(1) Vertical Grooving Spindle - 42,000 rpm w/Y Axis
B Axis -45° to +225°
C Axis Workhead
Probing & Gauging
Tailstock

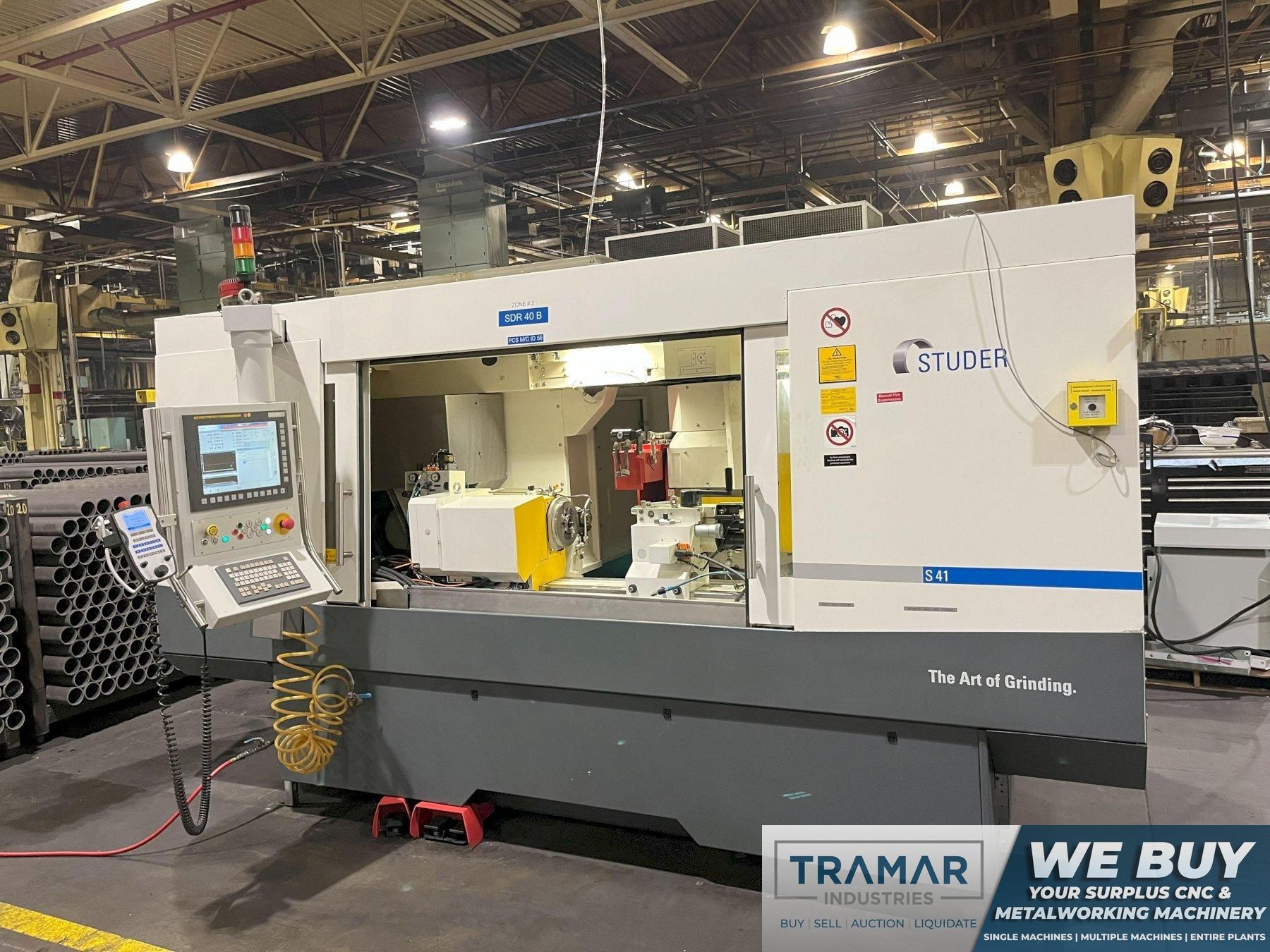

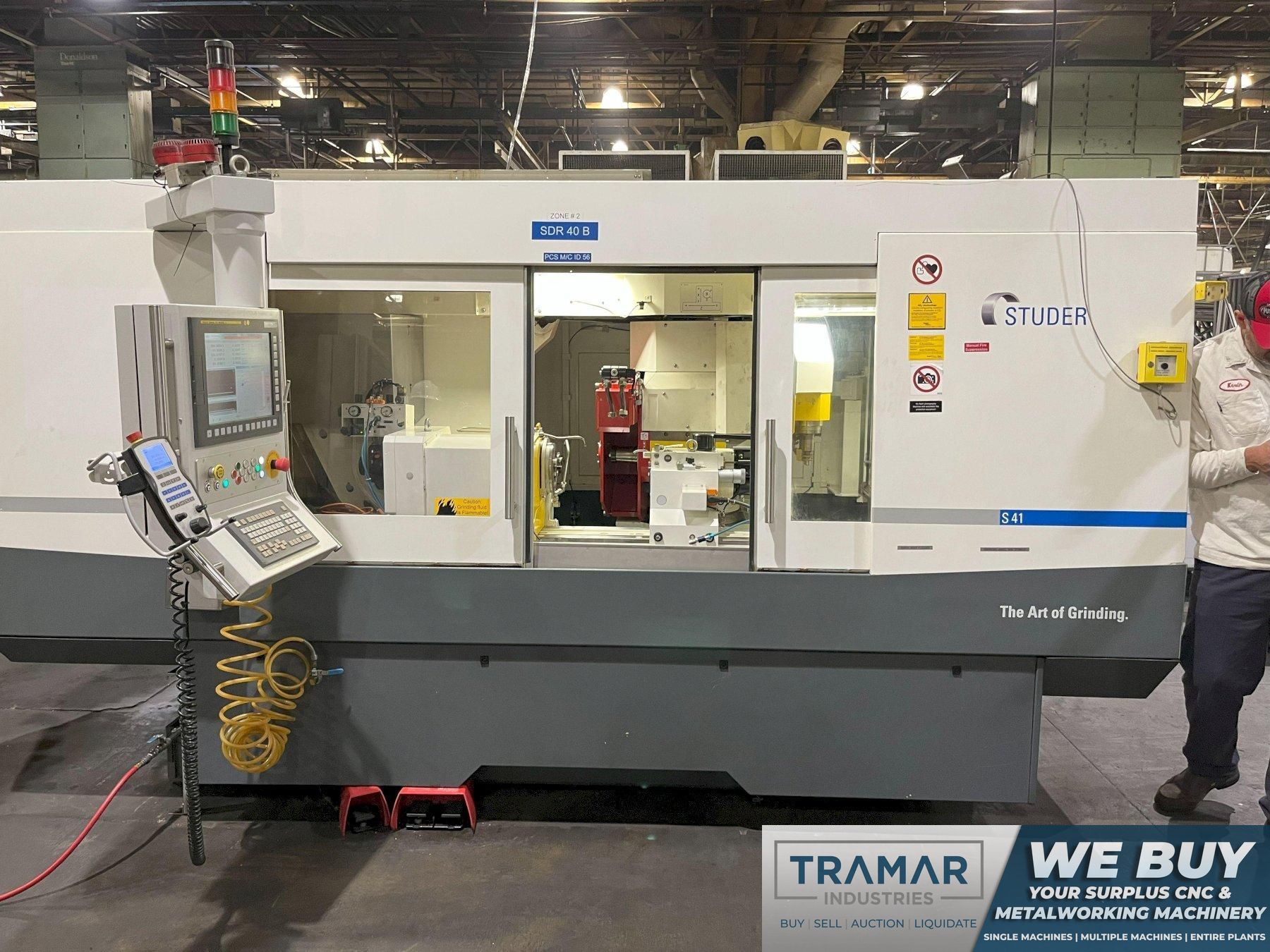

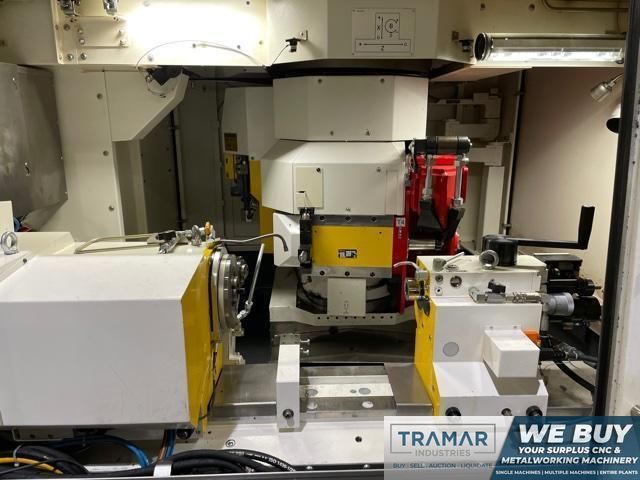

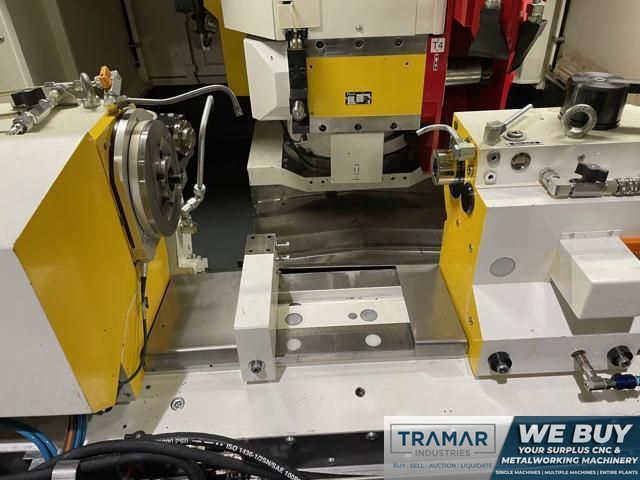

Studer S41 CNC OD Cylindrical Grinder For Sale - 2015

Equipped With:

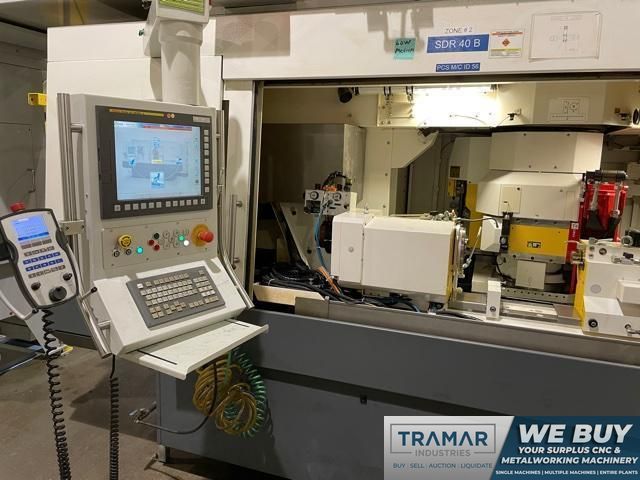

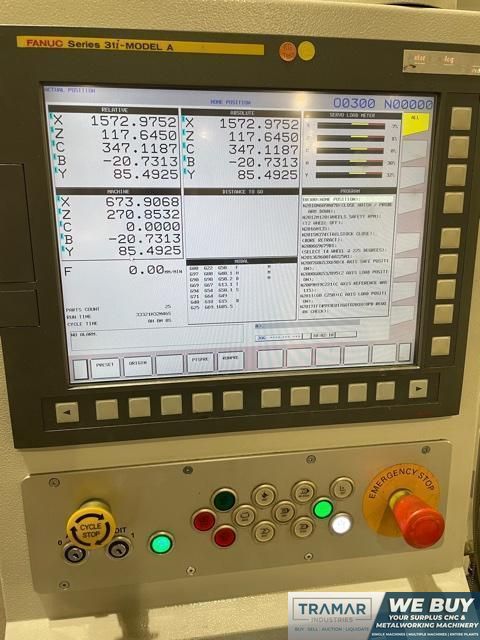

- Fanuc 31i-Model A Control

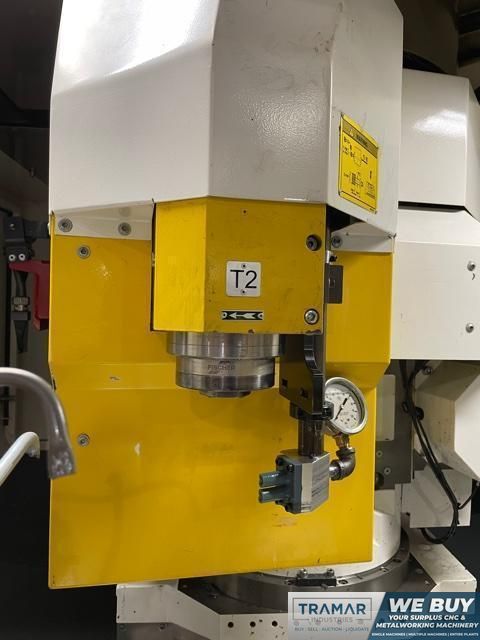

- (1) Vertical Grooving Spindle - 42,000 rpm w/ Y Axis
- (2) OD Grinding Wheels
- Marposs Gauging

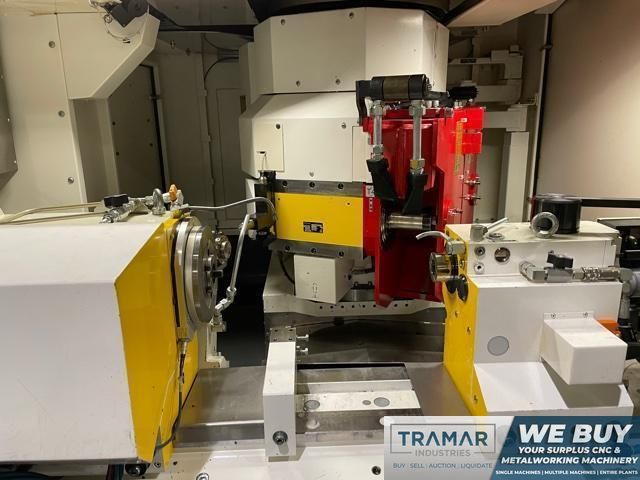

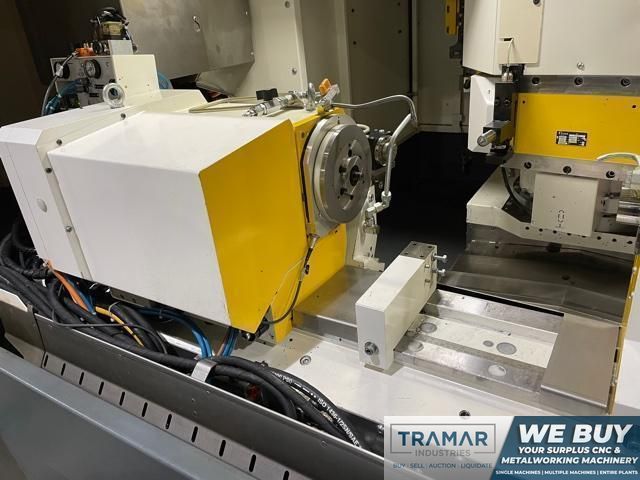

- Workhead w/C Axis
- B Axis Wheelhead

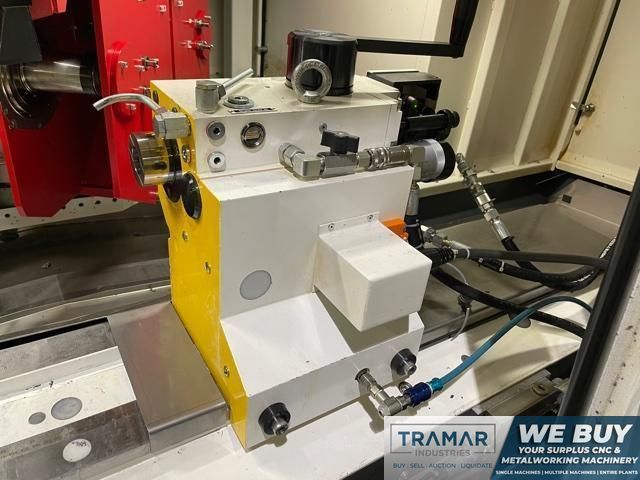

- Tailstock

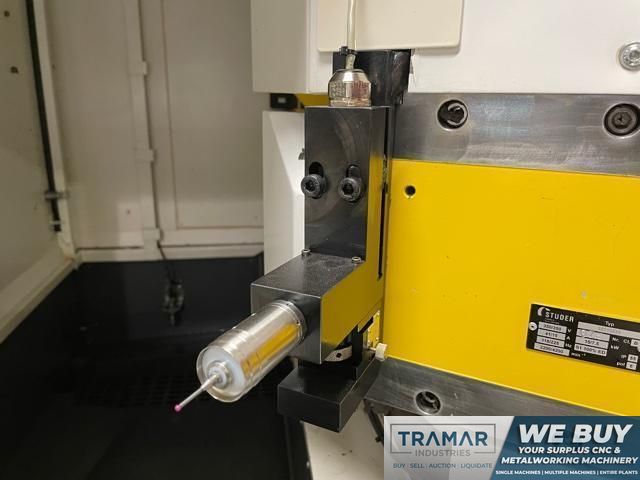

- Probing
- Dittel AE6000
- Dittel Balancing Unit M6000 for H1

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 31i-Model A

Center Height

8.9"

Center Distance

39.4"

Max Weight Between Centers

550 pounds

X Axis Travel

13.8"

Z Axis Travel

45.3"

Workhead Speed

1,500 rpm

Workhead Power

13.6 horsepower

C Axis

yes

C Axis Index

0.0001°

B-axis Indexing

-45° to +225°

Grinding Wheel Dimensions

20" x 3.54" x 8"

Wheel Speed (RPM)

4,500 rpm

Wheel Head Motor

20 hp

ID Spindle Speed

42,000 rpm

Dimensions

154" x _ x 99"

Weight

20,000 pounds

Equipped With:

The Studer S41 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
