Haas ST-30Y - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: ST-30Y
Year: 2015
Stock #: 19174 Sold
Yes
Highlights:
- Live Tooling
- Y Axis
- Collet Chuck Installed
- Programmable Tailstock
- Parts Catcher
- Haas Bar Feeder

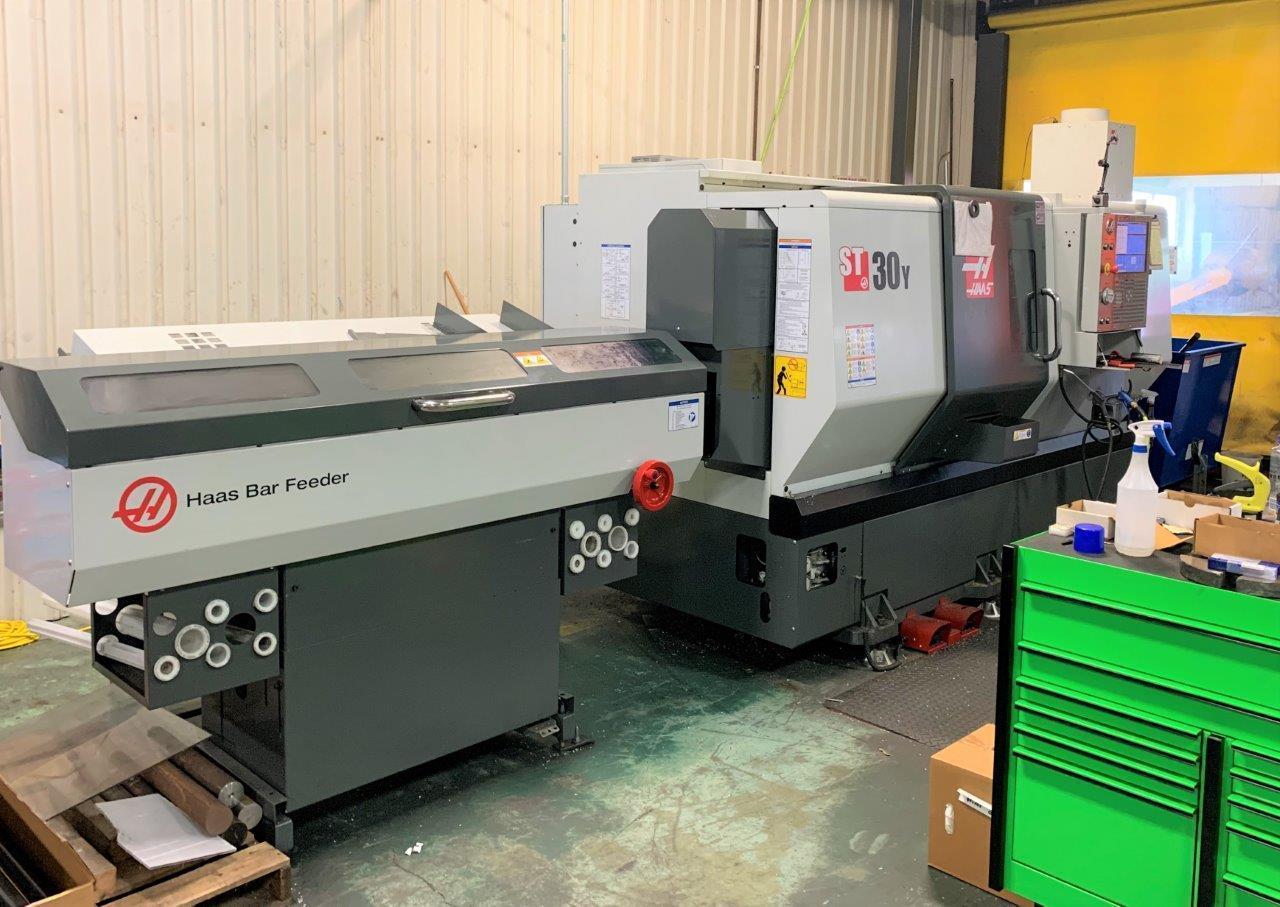

2015 Haas ST-30Y + Haas Bar Feeder - CNC Horizontal Lathe
Machine Specifications
# Axis
4
CNC Control
yes
CNC Control
Haas
Swing
31.8"
Turning Diameter
21"
Center Distance
23"
Chuck Size
10"
Bar Capacity
3"
X Axis Travel
12.5"
Z Axis Travel
23"
Y Axis Travel
4"
C Axis Index
0.001°
Rapid Traverse (X/Z)
945
Spindle Speed (RPM)
3,400
Spindle Motor
30 HP
Spindle Nose
A2-6
Live Tooling
yes
Live Tooling Speed
6,000 RPM
Live Tooling Motor
5 HP
Turret Capacity
12
Y Axis
yes
Tailstock
yes
Sub Spindle
no
Dimensions
171" x 90" x 98"
Weight
14,300 pounds

Equipped With:

- Haas Control
- Live Tooling
- Y Axis
- Collet Chuck on currently
- 6,000 RPM Live Tooling RPM Upgrade
- Parts Catcher
- Programmable Tailstock
- Tool Presetter
- Chip Conveyor
- Mist Collector
- Intuitive Programming System
- Haas Bar Feeder
- Low Hours

The Haas ST-30Y is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
