DMG Mori NLX 3000/700 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: NLX 3000/700
Year: 2014
Stock #: 13172-1 Sold
Highlights:

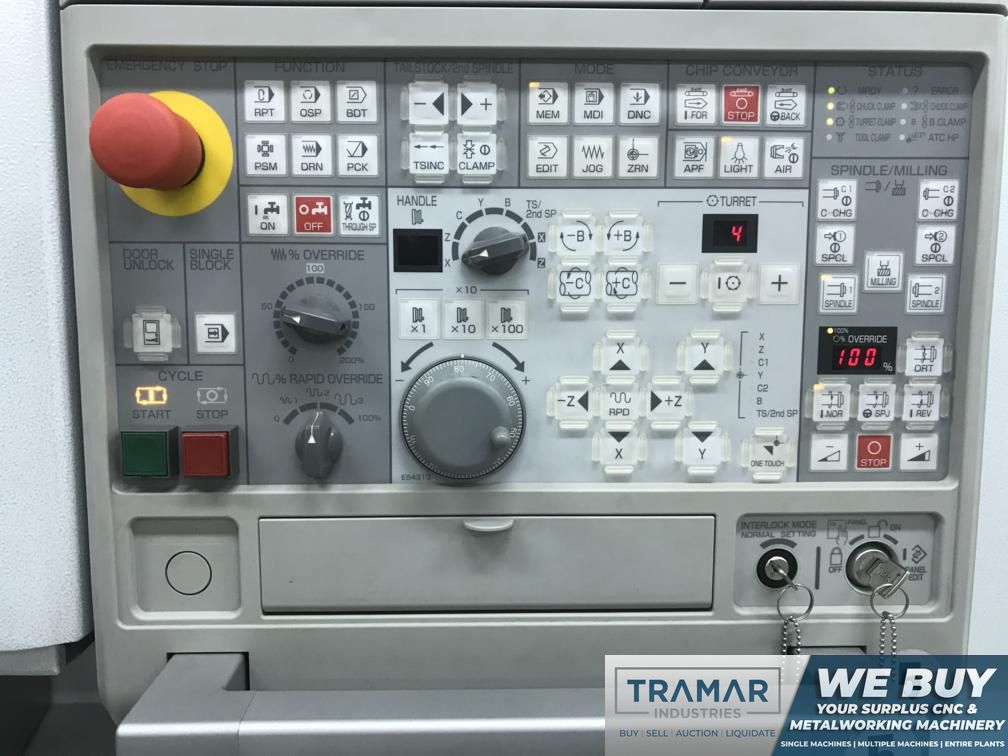

M730BM CNC Control
Kitagawa BB210 3-Jaw Chuck
Tool Presetter
Programmable Tailstock

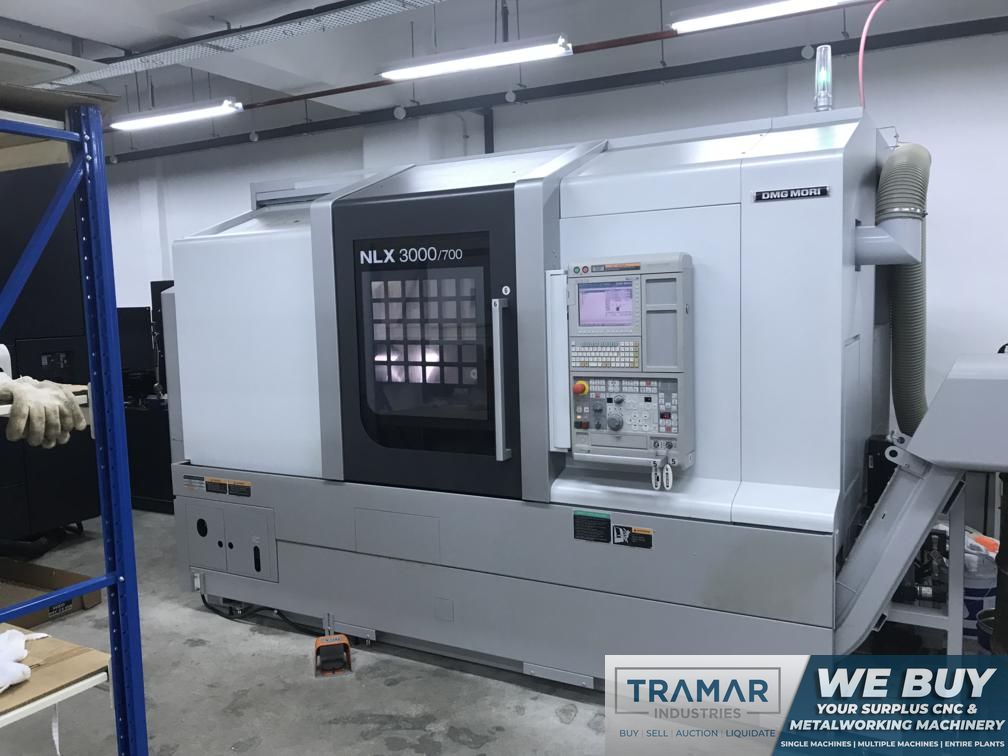

2014 DMG MORI NLX 3000/700 - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Mitsubishi M730BM
Chuck Size
10"
Swing
38.5"
Turning Diameter
16.9"
Center Distance
28"
Bar Capacity
3.5"
X Axis Travel
11"
Z Axis Travel
32.3"
Rapid Traverse (X/Z)
1,181 IPM
Spindle Speed (RPM)
4,000
Main Motor
30 HP
Turret Capacity
12
Tailstock
yes
Y Axis
no
Dimensions
140" x 87" x 90"
Weight
15,000 pounds
Live Tooling
no
Sub Spindle
no
# Axis
2

Equipped With:

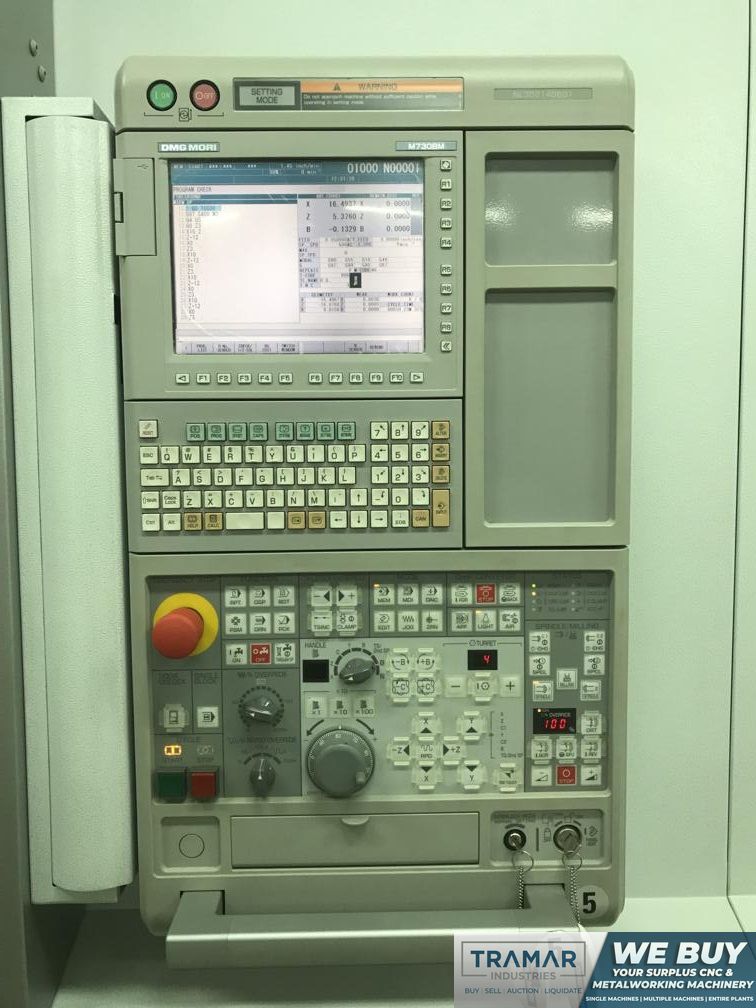

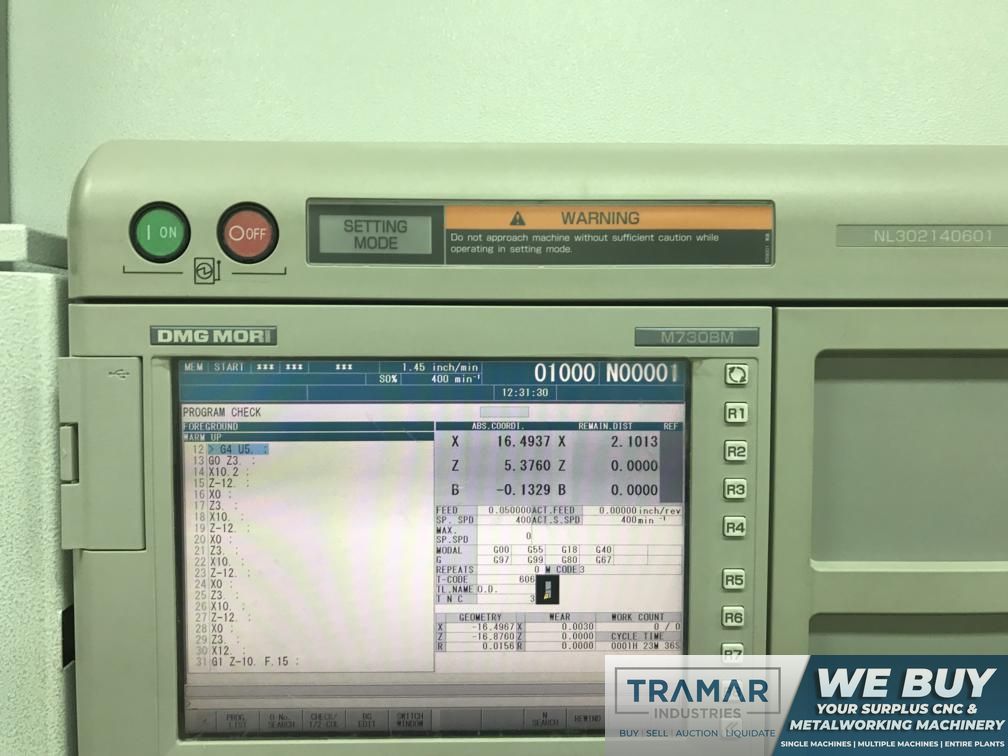

- M730BM CNC Control

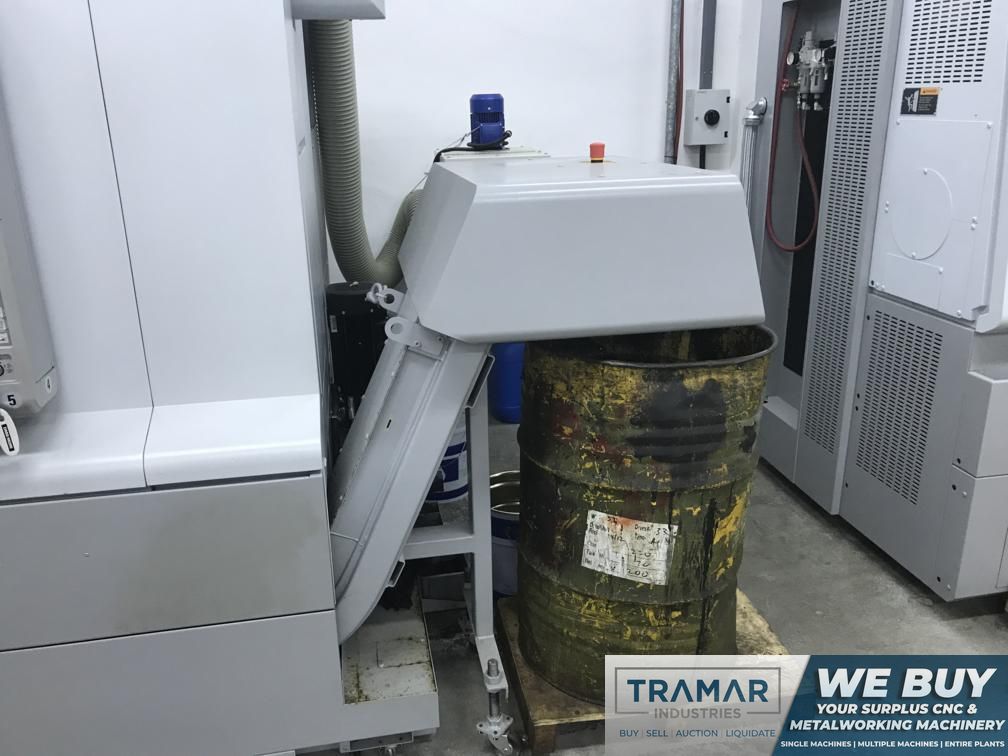

- Chip Conveyor

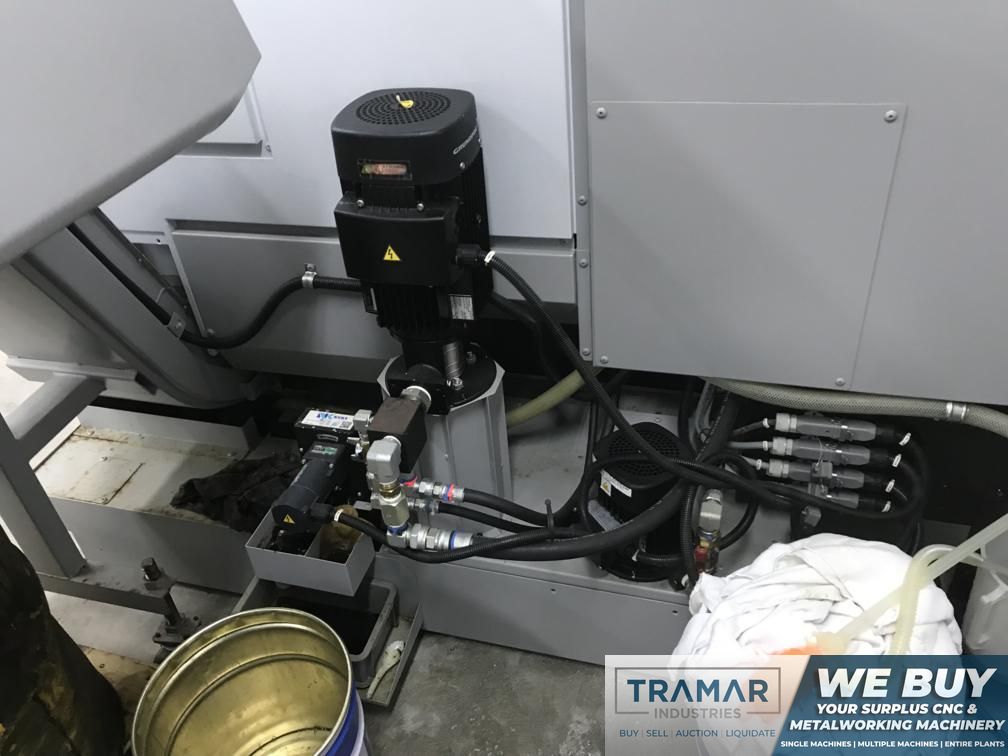

- Coolant Tank

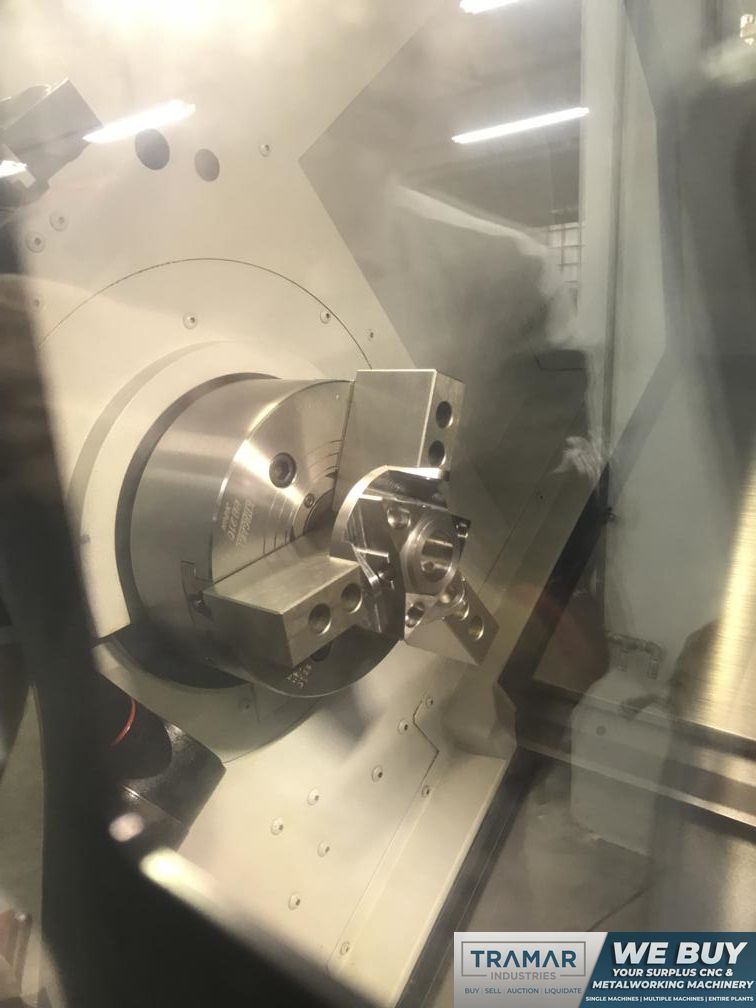

- Kitagawa BB210 3-Jaw Chuck
- Tool Presetter
- Programmable Tailstock
- Misc. Tooling Available
- Available Manuals



The DMG Mori NLX 3000/700 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
