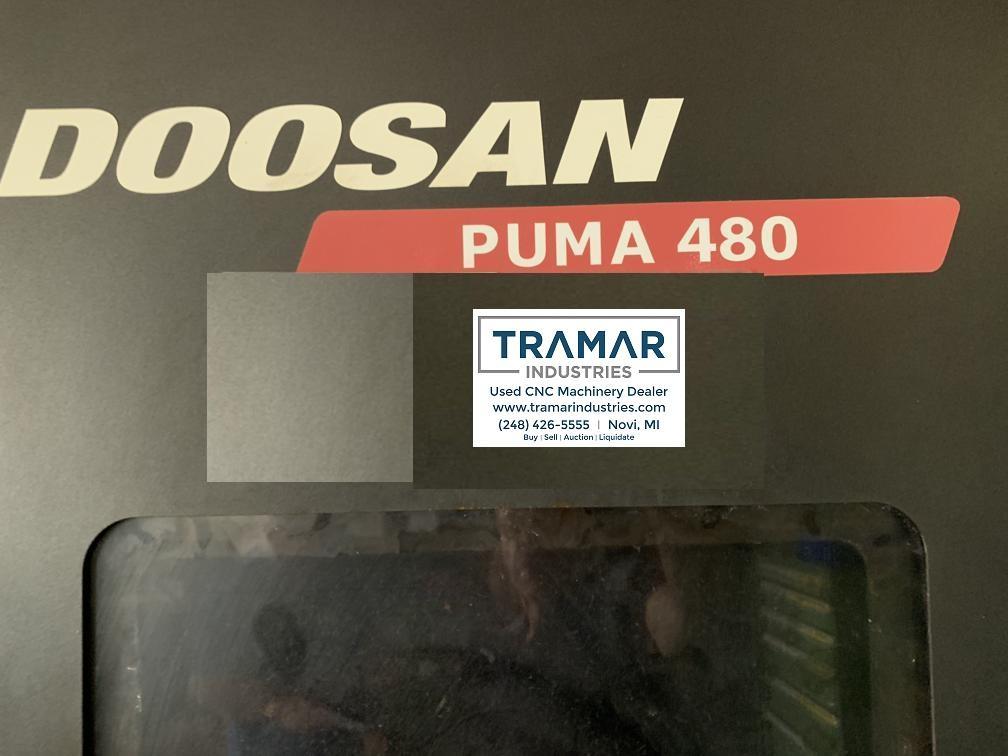

Doosan Puma 480 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 480
Year: 2013
Stock #: C14514 Sold
Highlights:
- Fanuc 32i-MA Control
- Tool Pre-Setter
- 6.5" Bar Capacity
- 35.4" Swing x 40" Center Distance

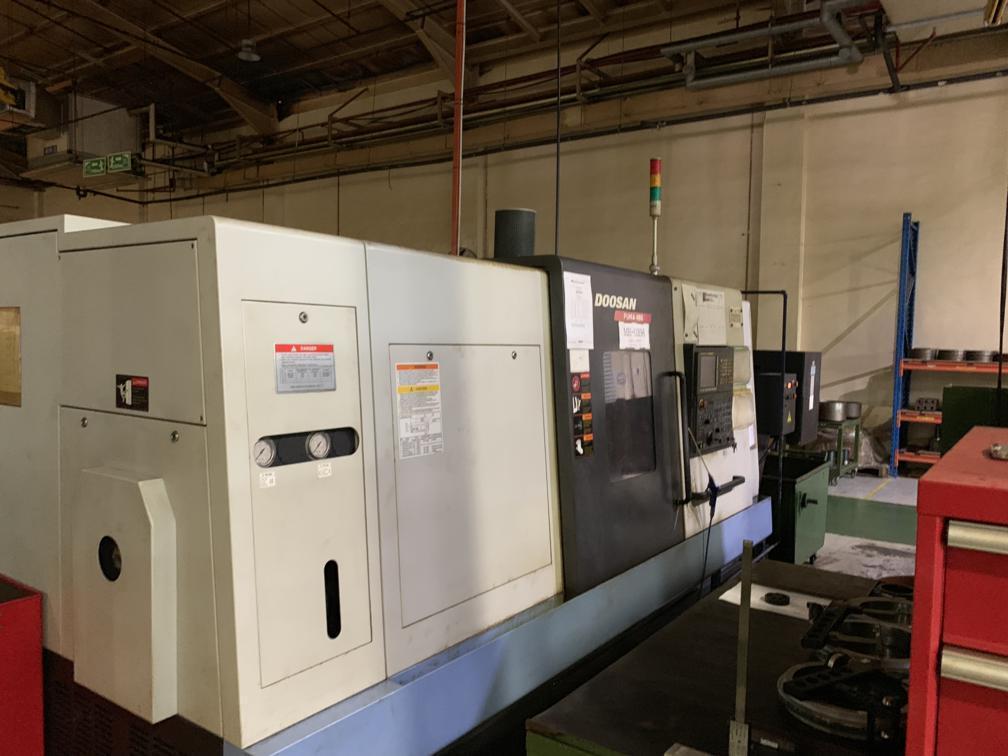

2013 Doosan Puma 480 - CNC Horizontal Lathe
Machine Specifications
# Axis
2
CNC Control
yes
CNC Control
Fanuc 32i-MA
Swing
35.4"
Turning Diameter
25.6"
Center Distance
40"
Chuck Size
24"
Bar Capacity
6.5"
X Axis Travel
14.3"
Z Axis Travel
43.5"
Rapid Traverse (X/Z)
630/787 ipm
Spindle Speed (RPM)
1,500
Spindle Motor
50 HP
Turret Capacity
12
Y Axis
no
Live Tooling
no
Tailstock
yes
Sub Spindle
no
Dimensions
182" x 84" x 87"
Weight
22,500 pounds

Equipped With:

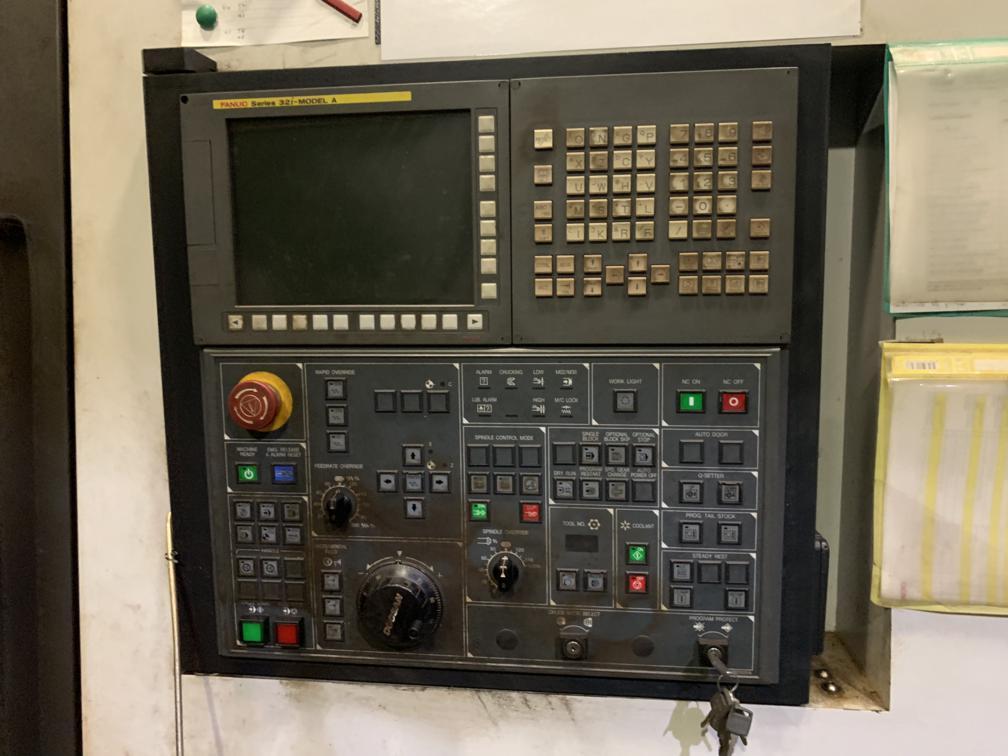

- Fanuc 32i-MA Control

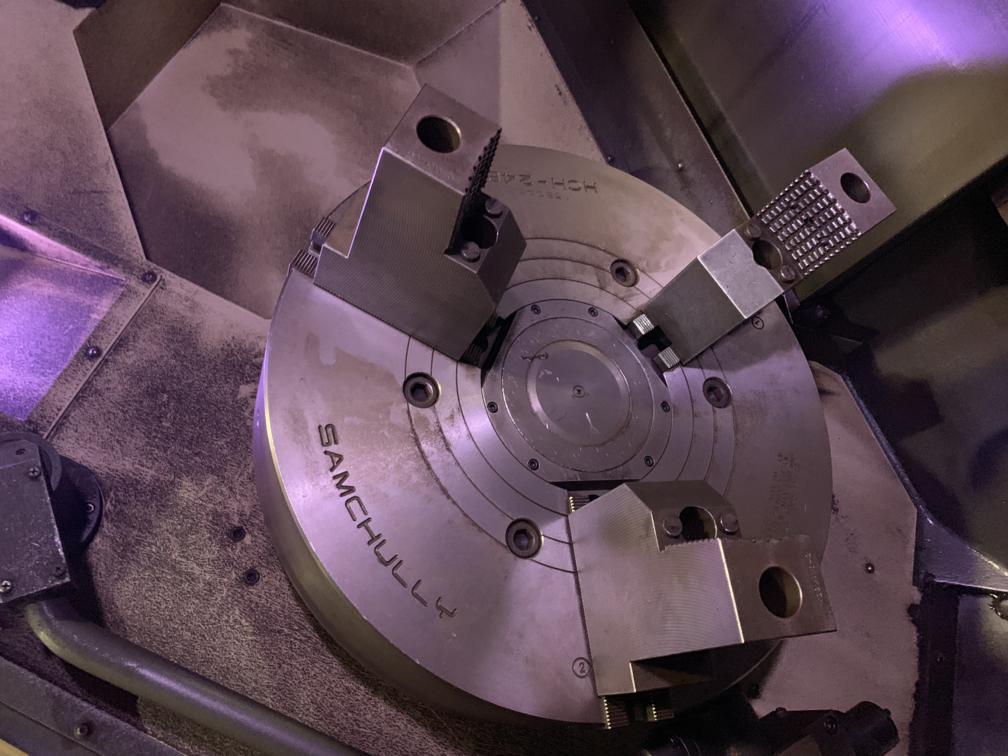

- 24" Hydraulic 3 Jaw chuck (ModelSamchully HCH-24)
- Tool Pre-Setter
- Chip Conveyor
- Tailstock

The Doosan Puma 480 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
