Doosan Lynx 220LC - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Lynx 220LC
Year: 2013
Stock #: 13176 Sold
Highlights:

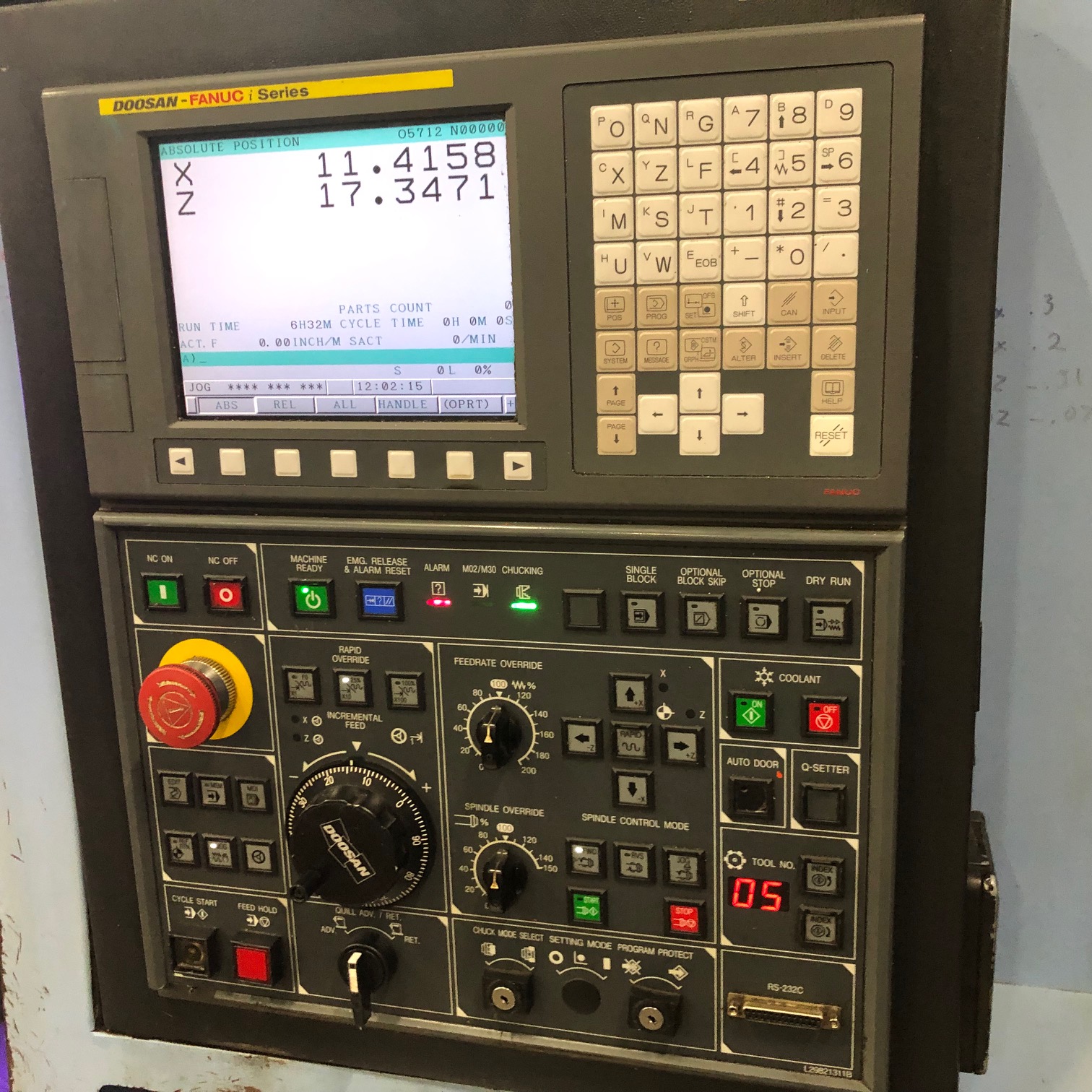

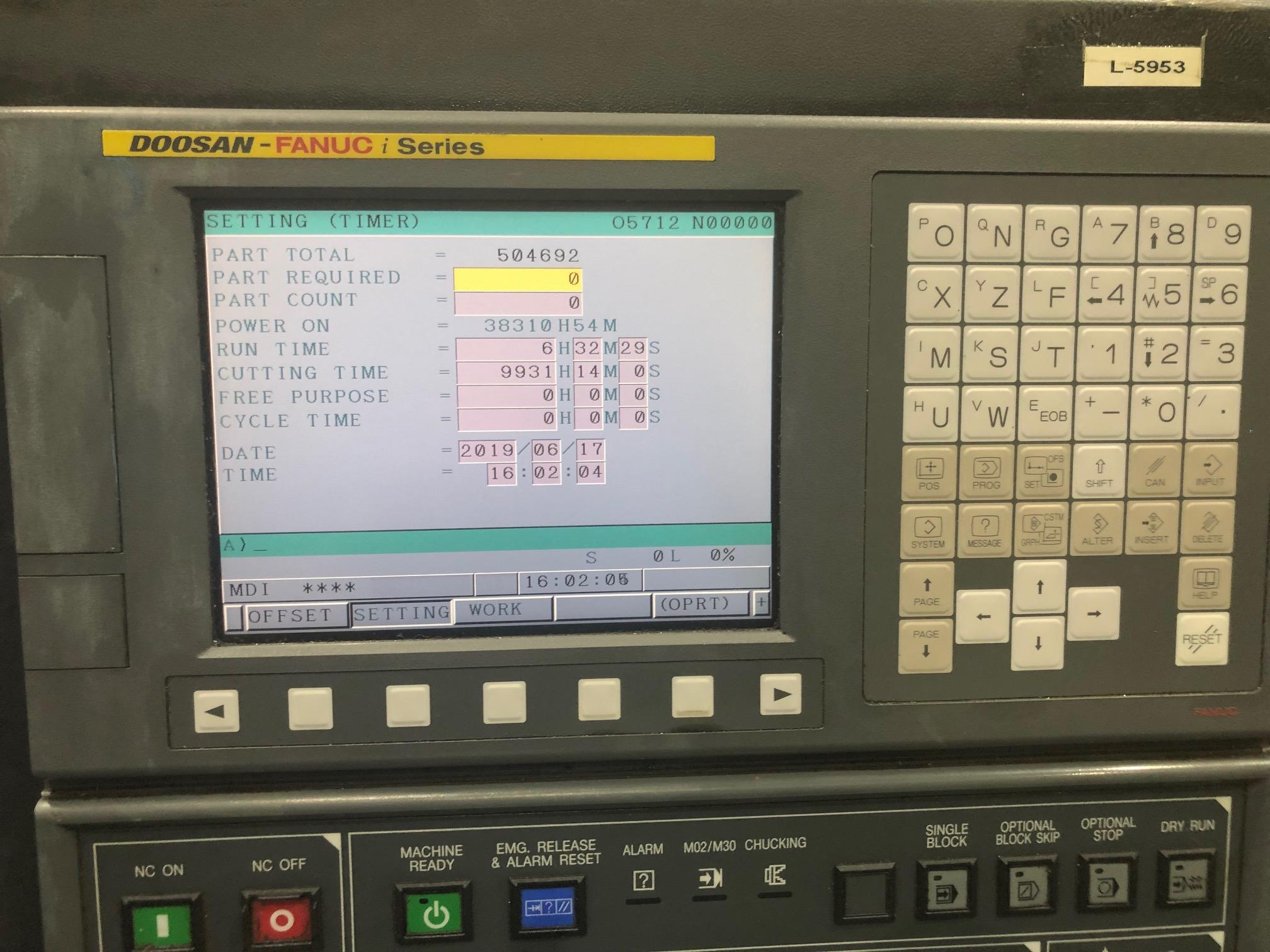

Fanuc 0i-TD CNC Control
Tool Presetter
Tailstock

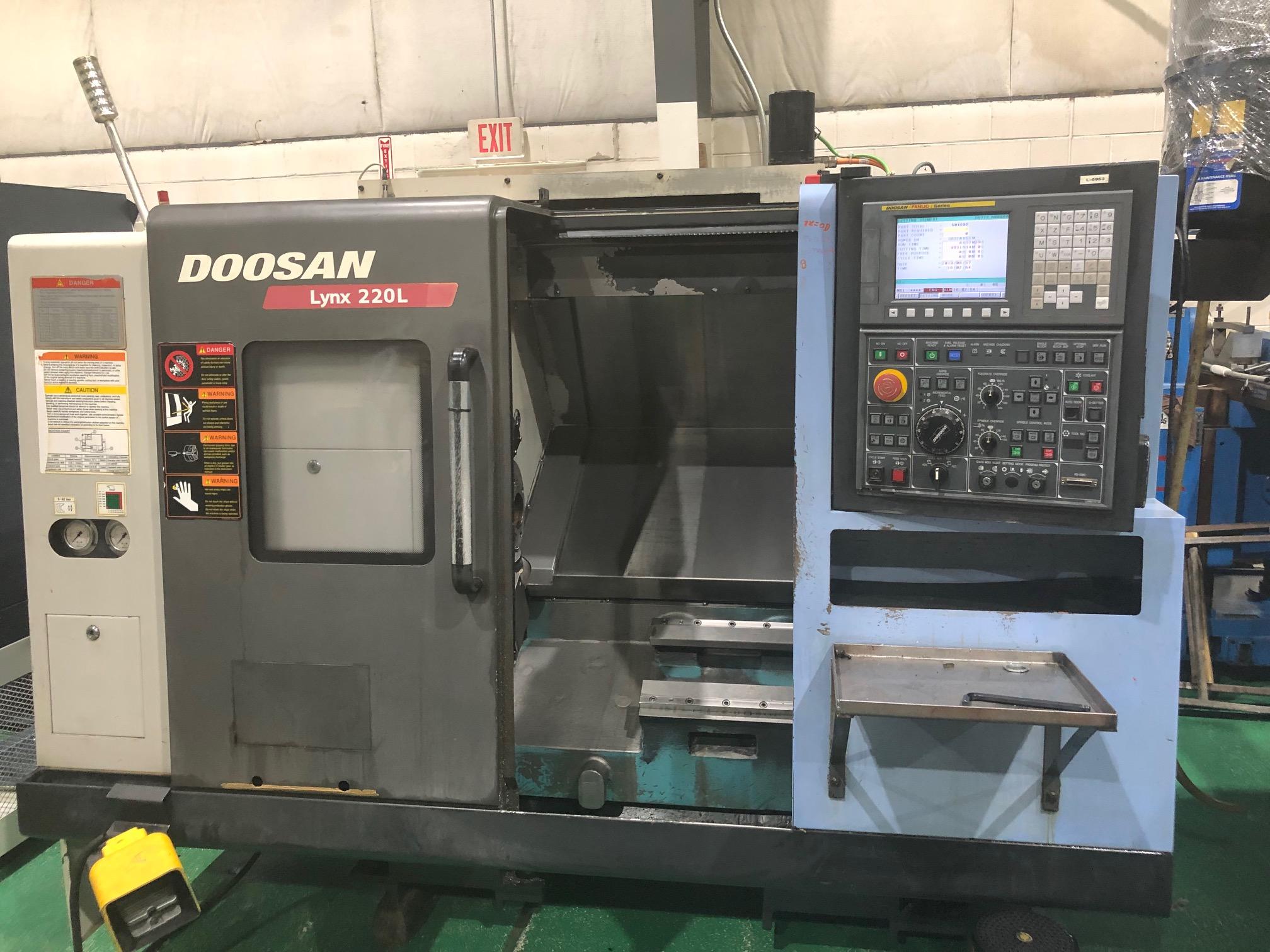

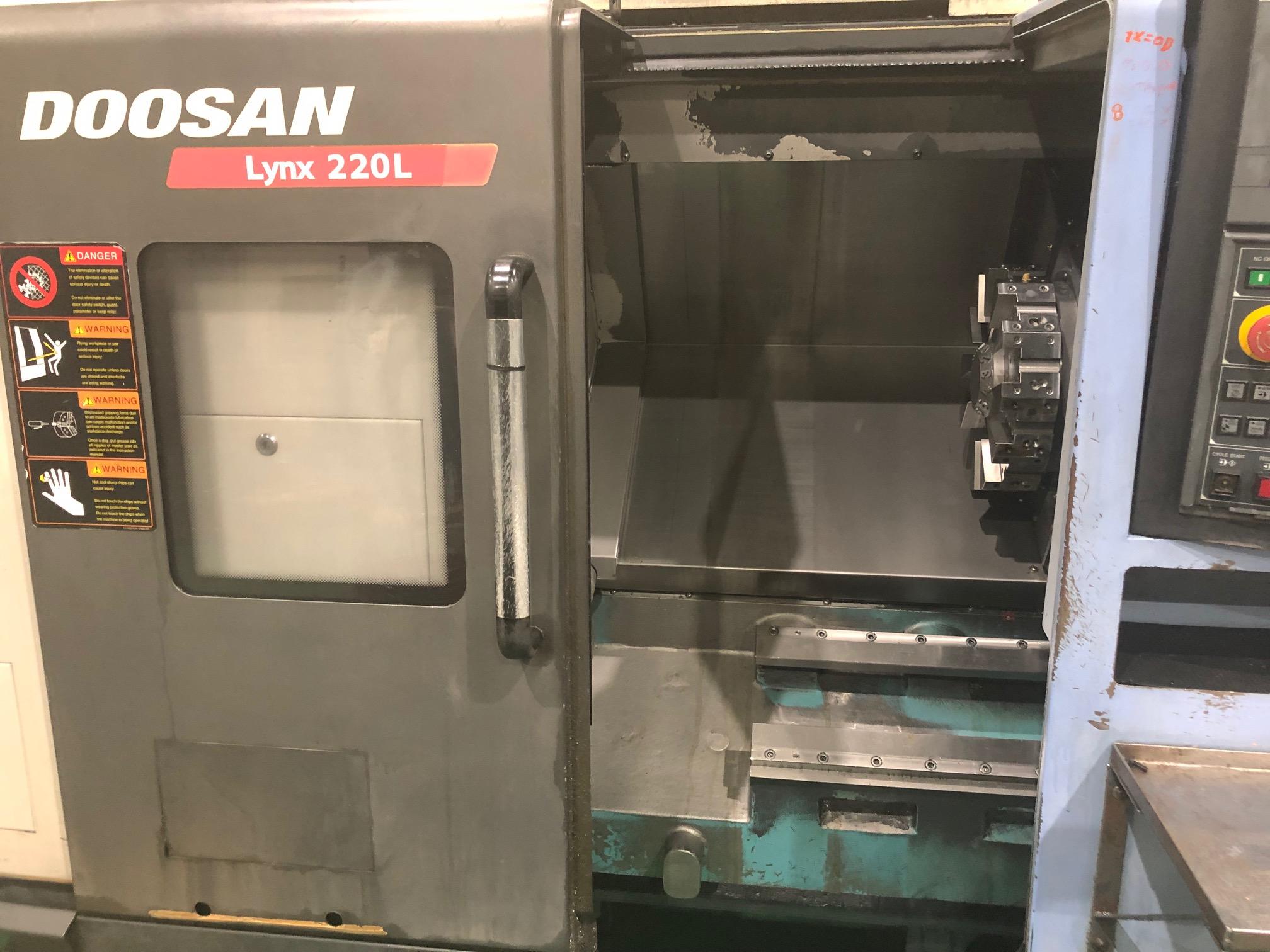

2013 DOOSAN Lynx 220LC - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TD
# Axis
2
Swing
20.1"
Turning Diameter
12.6"
Center Distance
20.7"
Chuck Size
8"
Bar Capacity
2.6"
X Axis Travel
6.9"
Z Axis Travel
21.7"
Rapid Traverse (X/Z)
1,417 IPM
Spindle Speed (RPM)
4,000
Main Motor
20 HP

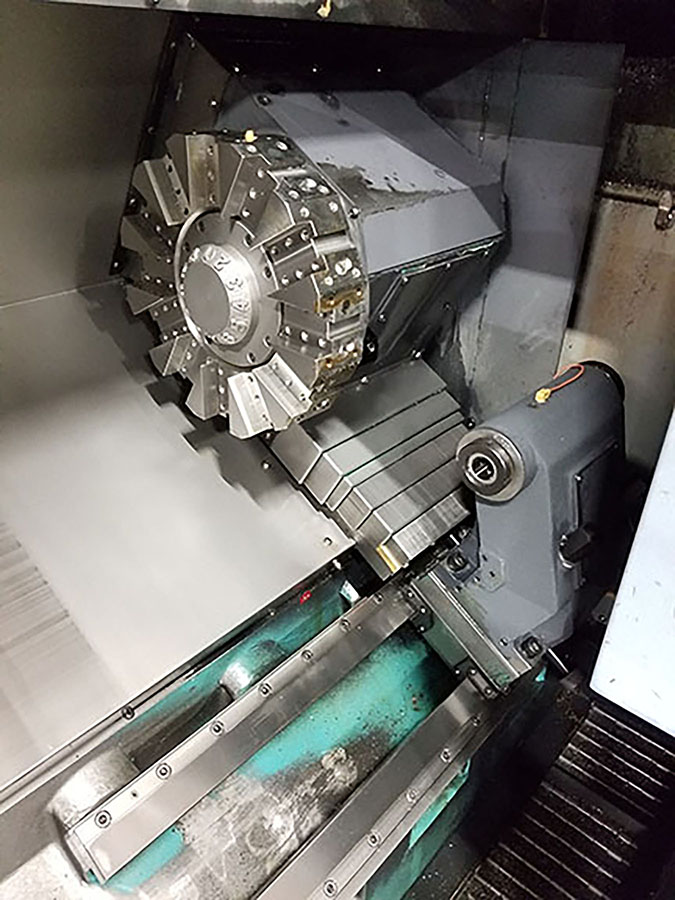

Turret Capacity
12
Tailstock
yes
Y Axis
no
Live Tooling
no
Sub Spindle
no
Dimensions
101" x 63" x 66"
Weight
7,000 pounds

Equipped With:

- Fanuc 0i-TD Control
- 6" Chuck
- Coolant Tank & Pump
- Tailstock
- Available Manuals




The Doosan Lynx 220LC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
